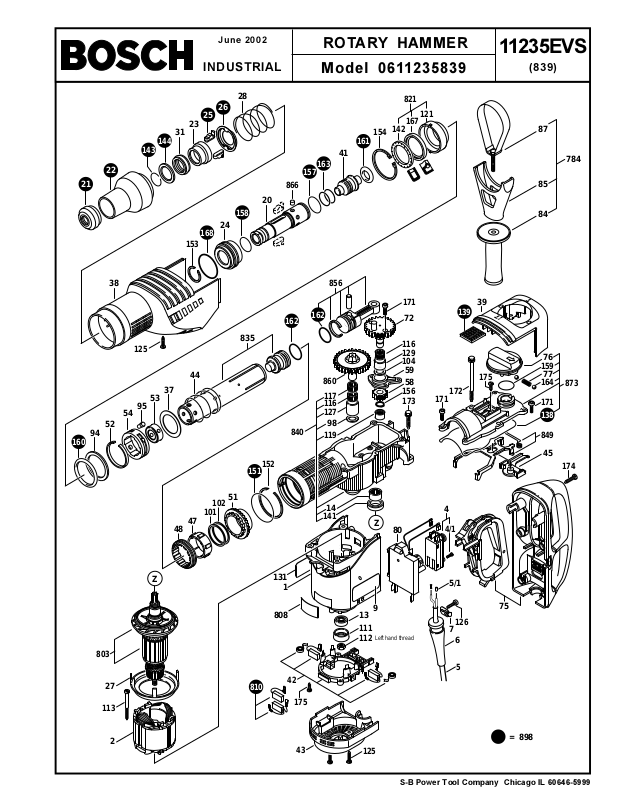

Bosch 0611235839 User Manual
June 2002
161
139
163
157
98
127
14
141
119
112
125
175
42
43
13
111
860
117
116
808
9
126
7
4/1
6
5
75
131
1
175
159
873
77
76
164
171
45
39
173
172
171
26
23
31
28
38
125
41
27
113
2
51
102
47
48
866
24
153
20
Left hand thread
840
803
142
167
154
152
80
4
174
129
72
59
58
156
171
849
151
810
138
101
25
22
21
144
143
87
85
84
784
= 898
5/1
Z
Z
856
162
835
94
52
95
54
53
37
44
160
162
168
158
121
821
104
116
ROTARY HAMMER
1 1235EVS
INDUSTRIAL
Model 0611235839
(839)
S-B Power Tool Company Chicago IL 60646-5999
11235EVS ROTARY HAMMER
Pos. Part Number Description {Qty.} F/C Pos. Part Number Description {Qty.} F/C
1 1 615 108 078 Motor Housing 71
2 1 614 220 141 Field 120V 22
4 1 617 200 048 Switch 15
4/1 2 910 011 088 Screw 89
5 1 604 460 092 Cord 11
5/1 1 900 452 003 Terminal Sleeve {2} 10
6 1 610 703 053 Strain Relief 11
7 1 601 302 018 Cord Clamp 89
9 1 611 110 C40 Label 9
13 1 610 900 026 Ball Bearing 60
14 1 610 910 089 Needle Bearing 61
20 1 618 597 072 Drill Holder 83
21 1 610 508 035 Dust Shield 92
22 1 610 591 021 Sleeve 92
23 1 610 520 001 Stop Sleeve 8
24 1 610 500 016 Bushing 82
25 1 612 300 027 Locking Cog {2} 66
26 1 610 290 025 Locking Ratchet 86
27 1 610 591 023 Air Deflector 23
28 1 614 621 004 Spring 27
31 1 610 290 049 Bushing 82
37 1 610 102 047 Support Disc 65
38 1 615 190 079 Plastic Sleeve 70
39 1 615 190 108 Cover 70
41 1 613 124 053 Impact Bolt 45
42 1 614 336 026 Brush Holder Assembly 25
43 1 615 500 296 Motor Housing Cover 70
44 1 614 621 005 Spring 27
45 1 610 591 022 Plate 62
47 1 619 990 149 Bushing 82
48 1 619 990 151 Clutch Sleeve 82
51 1 616 333 035 Gear 33
52 1 610 224 005 Retaining Ring 89
53 1 610 231 000 Guide Bushing 82
54 1 610 190 033 Collar 82
58 1 616 317 056 Intermediate Gear 31
59 1 615 805 067 Bearing Flange 38
72 1 616 317 057 Eccentric Gear 34
75 1 615 132 074 Handle Assembly 74
76 1 612 026 078 Selector Knob 64
77 1 614 610 010 Spring 27
80 1 617 233 029 Speed Control 120V 17
84 1 612 025 050 Auxiliary Handle 74
85 1 618 040 071 Clamp Holder 80
87 1 617 000 834 Clamping Band 80
94 1 610 290 052 Support Disc 65
95 1 613 120 018 Pin {4} 66
98 1 610 101 015 Washer 65
* 101 1 610 102 049 Shim 65
* 102 1 610 102 048 Shim 65
104 1 610 190 027 Washer 65
111 1 610 290 046 Bearing Sleeve 82
112 1 613 300 007 Nut LH 89
113 1 613 412 001 Screw {2} 89
116 1 610 913 004 Needle Bearing {2} 56
117 1 610 913 011 Needle Bearing 56
119 1 610 910 081 Needle Bearing 56
121 1 610 328 016 Bushing 82
125 1 613 435 011 Screw {2} 89
126 2 910 211 019 Screw 89
127 1 610 300 060 Bushing 82
129 1 610 300 067 Bushing 56
131 2 610 995 453 Label 9
138 1 611 015 047 Gasket 79
139 1 612 380 010 Gasket 79
141 1 610 290 028 Seal 77
142 1 610 290 050 Seal 77
143 1 614 601 021 Spring Ring 89
144 1 610 103 021 Support Disc 65
151 1 610 210 148 O-Ring 78
152 1 614 601 029 Retaining Ring 89
153 1 614 601 028 Retaining Ring 89
154 1 610 119 011 Retaining Ring 89
156 2 916 650 003 Retaining Ring 89
157 1 610 210 142 O-Ring 78
158 1 610 210 139 O-Ring 78
159 1 610 210 141 O-Ring 78
160 1 610 210 140 O-Ring 78
161 1 610 210 145 O-Ring 78
162 1 610 210 109 O-Ring {2} 44
163 1 610 210 144 O-Ring {2} 78
164 1 903 230 013 Ball 7mm {2} 86
167 1 610 290 051 Seal 77
168 1 610 210 149 O-Ring 78
171 1 613 414 014 Screw {8} 89
172 1 613 435 008 Screw & Washer {2} 89
173 2 914 541 008 Screw & Washer {2} 89
174 1 613 435 010 Screw {6} 89
175 2 912 401 018 Screw {3} 89
784 2 602 025 103 Auxiliary Handle Assembly 9
w/pos. 84, 85, 87
803 1 614 010 218 Armature w/Fan 120V AW
808 1 601 106 999 Nameplate 9
810 1 617 014 135 Brush Set 26
821 1 617 000 824 Bushing Assembly 82
w/pos. 121, 142, 167
835 1 617 000 417 Guide Tube Assembly 43
840 1 617 000 825 Impact Housing Assembly 73
w/pos. 14, 98, 116, 117,
119, 127, 141
849 1 617 000 826 Fork/Spring Assembly 63
856 1 617 000 845 Piston Assembly 47
w/pos. 162
860 1 617 000 828 Clutch Assembly 46
866 1 617 000 406 Pin Set (6pcs.) 66
873 1 617 000 830 Housing Cover Assembly 70
w/pos. 76, 77, 138, 159, 164
898 1 617 000 409 Service Pack 1
+ = Not Illustrated * = As Required F/C = Failure Code AW = Refer to AW Labor Time Chart
