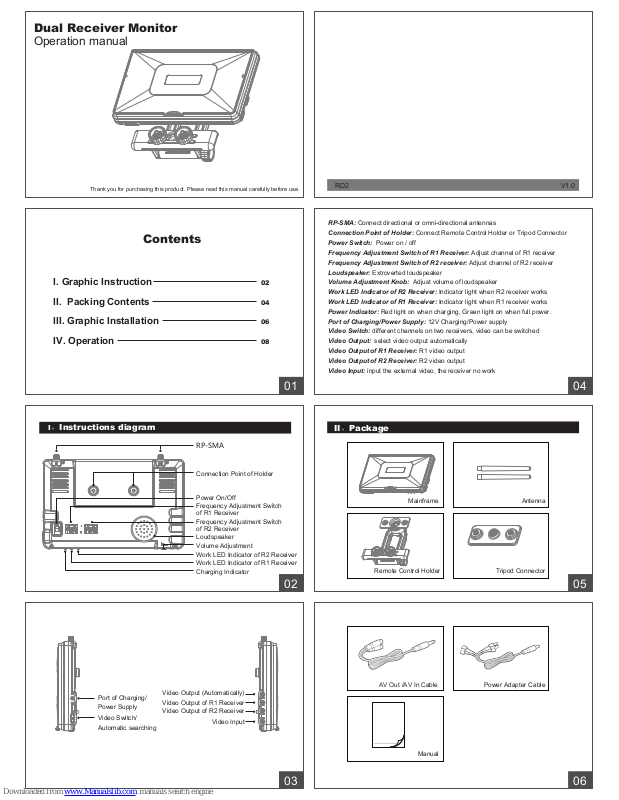

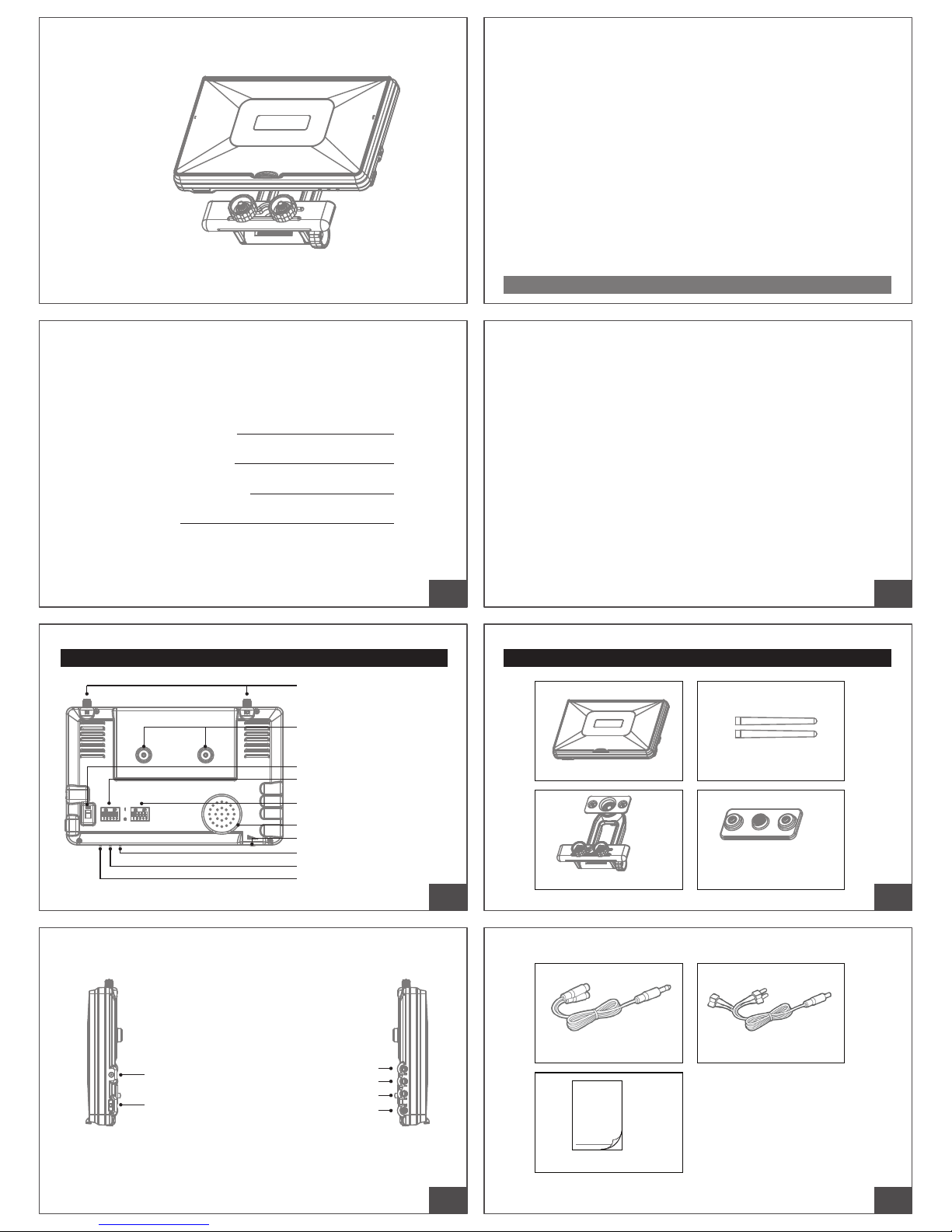

Boscam RD2 Operation Manuals

Page 1
01 04
02 05
03 06
02
04
06
08
V1.0RD2
Remote Control Holder Tripod Connector
Mainframe Antenna
Manual
AV Out /AV In Cable Power Adapter Cable
Video Output of R1 Receiver Video Output of R2 Receiver
Video Input
Video Output (Automatically)
RP-SMA
Connection Point of Holder
Video Switch/
Automatic searching
Power On/Off
Volume Adjustment
Charging Indicator
Work LED Indicator of R1 Receiver
Work LED Indicator of R2 Receiver
Loudspeaker
Frequency Adjustment Switch of R2 Receiver
Frequency Adjustment Switch of R1 Receiver
Contents
Operation manual
RP-SMA: Connect directional or omni-directional antennas
Connection Point of Holder: Connect Remote Control Holder or Tripod Connector
Power Switch: Power on / off
Frequency Adjustment Switch of R1 Receiver: Adjust channel of R1 receiver
Frequency Adjustment Switch of R2 receiver: Adjust channel of R2 receiver
Loudspeaker: Extroverted loudspeaker
Volume Adjustment Knob: Adjust volume of loudspeaker
Work LED Indicator of R2 Receiver: Indicator light when R2 receiver works
Work LED Indicator of R1 Receiver: Indicator light when R1 receiver works
Power Indicator: Red light on when charging, Green light on when full power.
Port of Charging/Power Supply: 12V Charging/Power supply
Video Switch: different channels on two receivers, video can be switched
Video Output: select video output automatically
Video Output of R1 Receiver: R1 video output
Video Output of R2 Receiver: R2 video output
Video Input: input the external video, the receiver no work
Dual Receiver Monitor
Thank you for purchasing this product. Please read this manual carefully before use.
I. Graphic Instruction
II. Packing Contents
III. Graphic Installation
IV. Operation
I、Instructions diagram
IIPackage
Page 2
07 11
08 12
09 13
10 14
Screen: 7’’ TFT LCD screen/long life, LED backlight Resolution: 800x480
Brightness: 450 cd/m²
Contrast: 500:1
View Angle: 140/120 degree (Horizontal/Vertical)
Antenna Connector: RP-SMA
Channel: 5.8G Input; 2 Brands/ 32 Frequency selectable (Automatically
switch to the frequency with better signal)
Size: 176x112x24mm (Height of light shield:102mm)
Battery: Built-in 4000mA Li-Po battery
DC: 12V/1A
Power Consumption: 600mA@12V(maximum)
Working Temp. : -10 - +65 degrees
Specifications

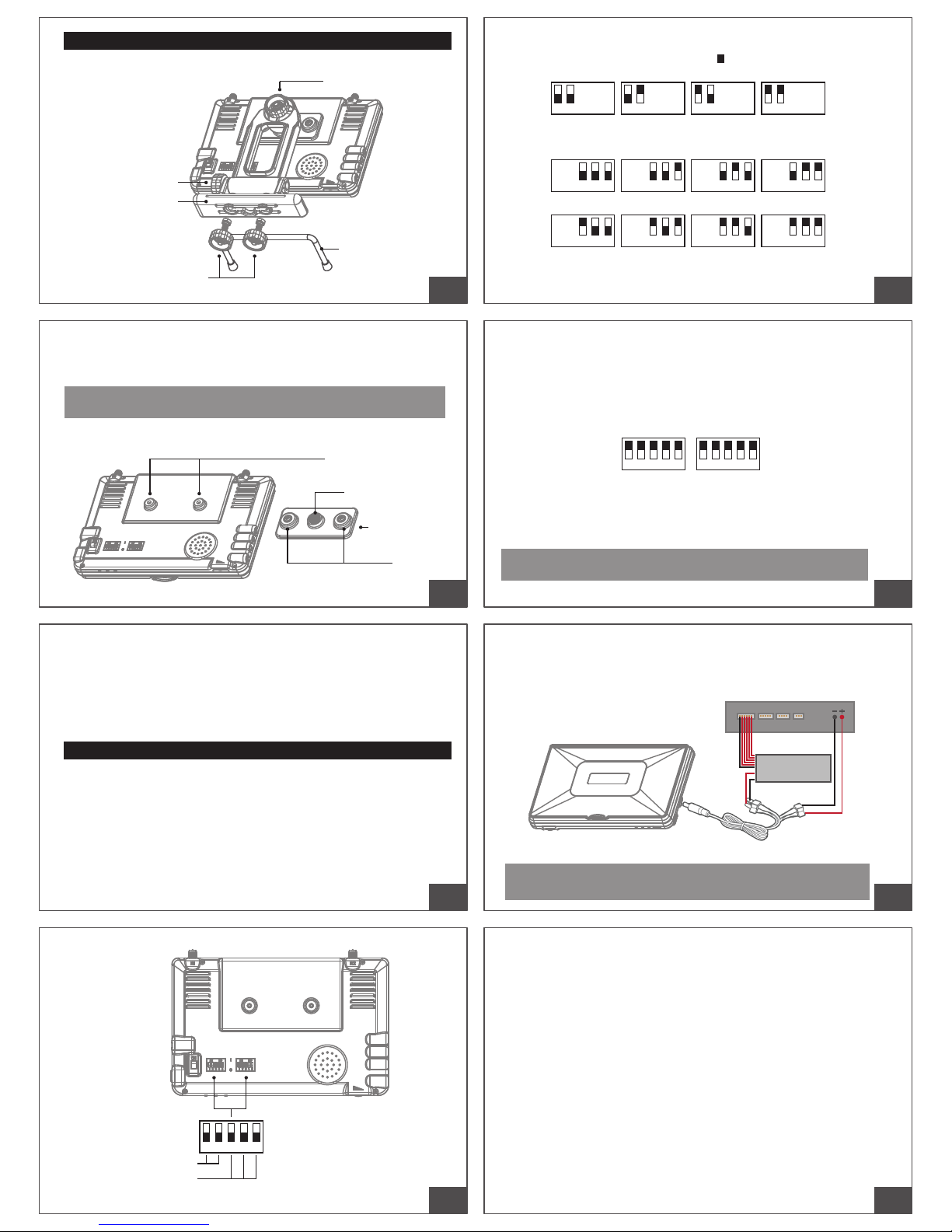

1Install Equipment to Remote Control
  2. Install Tripod Connector
aLoosen the two nuts of remote control connector, pick it out with screw from the gap; bInsert the metal pole of remote control in the bottom of remote control connector case,
then put the screw back to the gap and fasten the nuts. The installation is OK;
aAfter turning on the machine, set channel manually to receive image.
Corresponding channel frequency diagram are as below:
b
By dial switch, to set the same channel or different channels for two receivers;
If setting the same channel, system will select the receiver with strong signal.
If setting different channels, you can choose the receiver by video switch button.
a
After setting the channel of receiver, you can see the real time video image
from transmitter as below:
4
Automatic searching Automatic searching switch
when all the switches to F8 channel, the system opens automatically searching
function. At this point, no need go through DIP switch FM, Direct operate right button
to search frequency. Press searching button once, the system will automatically
search for the best channel of the signal and lock it. May continue to operate searching
if dissatisfied.
Notice: Recommend manually dialing FM signal when the distant source signal
is weak. Automatic search frequency is not easy to lock when the signal is weak.
1Power On/Off
2Channel Dial
3
Receive image
Connection Point of Holder
Tripod Connection Nut
Tripod Connector
Screw Hole
Metal Pole of Remote Control
Remote Control Connect Nut
Remote Control Connector Case
Slope Adjustment Nut
Sphere Connect Screw nut
1 2 3 4 5
1 2
3 4 5
Adjust Band of A\B\E\F
Show Switch position
Band Adjustment
A
CH1
3 4 5
CH2
3 4 5
CH3
3 4 5
CH4
1
1 0
1 0
1 0
3 4 5
CH5
3 4 5
CH6
3 4 5
CH7
3 4 5
CH8
1 0
2
B
1 2
E
1 2
F
Channel Adjustment
Adjust Channel of CH1 to CH8
IIIGraphic Installation
Please Note: When you adjust the revolute joints, be sure to loosen completely.
Or it will wear and tear the gear of the revolute joints.
a.Pick out the screw of holder connector, then take down connection holder of
remote controller;
b.Install the tripod connector, use tripod connection nut to connect tripod holder directly.
3. Install Antenna  a. Directional or Omnidirectional antenna which match with RP-SMA can be installed;
IVOperation
aAfter completing the operation above, open the light shield, push the power button to
ON to turn on the machine, the screen will be lighted; Push the power button to OFF to
turn off the machine and the screen. bWhen the power is not sufficient, power indicator will blink and you will hear a
warning voice; If no manual Shutdown, system will turn off the machine automatically.
Notice: If you do not use the machine for long time, please charge the
battery regularly to avoid undue discharging and cause the battery damage.
5
Charging for the host
3S\4S\5S\6S
Battery
charger
12V
Charge Schematic
Charging Cable
host
a
When the host battery runs low, a voice prompt, and then automatically shut
down; please charge in time for the host.
3 4 5
1 0
1 2
3 4 5
1 2
