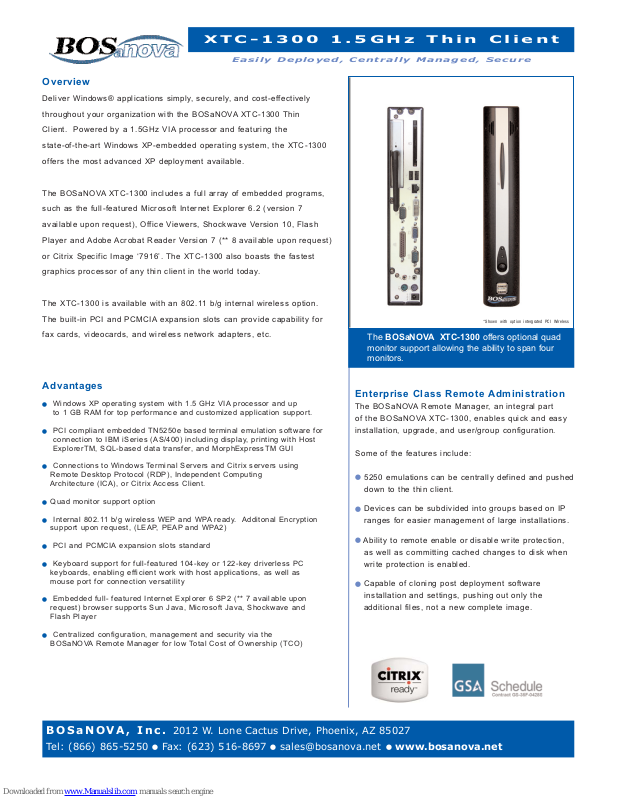

Page 1
XTC-1300 1.5GHz Thin Client
Easily Deployed, Centrally Managed, Secure
BOSaNOVA, Inc. 2012 W. Lone Cactus Drive, Phoenix, AZ 85027
Tel: (866) 865-5250 GFax: (623) 516-8697 [email protected]
Enterprise Class Remote Administration
The BOSaNOVA Remote Manager, an integral part
of the BOSaNOVA XTC-1300, enables quick and easy
installation, upgrade, and user/group configuration.
Some of the features include:
G
5250 emulations can be centrally defined and pushed
down to the thin client.
G
Devices can be subdivided into groups based on IP
ranges for easier management of large installations.
G
Ability to remote enable or disable write protection,
as well as committing cached changes to disk when
write protection is enabled.
G
Capable of cloning post deployment software
installation and settings, pushing out only the
additional files, not a new complete image.
Overview
Deliver Windows® applications simply, securely, and cost-effectively
throughout your organization with the BOSaNOVA XTC-1300 Thin
Client. Powered by a 1.5GHz VIA processor and featuring the
state-of-the-art Windows XP-embedded operating system, the XTC-1300
offers the most advanced XP deployment available.
The BOSaNOVA XTC-1300 includes a full array of embedded programs,
such as the full-featured Microsoft Internet Explorer 6.2 (version 7
available upon request), Office Viewers, Shockwave Version 10, Flash
Player and Adobe Acrobat Reader Version 7 (** 8 available upon request)
or Citrix Specific Image ‘7916’. The XTC-1300 also boasts the fastest
graphics processor of any thin client in the world today.
The XTC-1300 is available with an 802.11 b/g internal wireless option.
The built-in PCI and PCMCIA expansion slots can provide capability for
fax cards, videocards, and wireless network adapters, etc.
Advantages
G Windows XP operating system with 1.5 GHz VIA processor and up
to 1 GB RAM for top performance and customized application support.
G PCI compliant embedded TN5250e based terminal emulation software for
connection to IBM iSeries (AS/400) including display, printing with Host
ExplorerTM, SQL-based data transfer, and MorphExpressTM GUI
G Connections to Windows Terminal Servers and Citrix servers using
Remote Desktop Protocol (RDP), Independent Computing
Architecture (ICA), or Citrix Access Client.
G Quad monitor support option
G Internal 802.11 b/g wireless WEP and WPA ready. Additonal Encryption
support upon request, (LEAP, PEAP and WPA2)
G PCI and PCMCIA expansion slots standard
G Keyboard support for full-featured 104-key or 122-key driverless PC
keyboards, enabling efficient work with host applications, as well as
mouse port for connection versatility
G Embedded full- featured Internet Explorer 6 SP2 (** 7 available upon
request) browser supports Sun Java, Microsoft Java, Shockwave and
Flash Player
G Centralized configuration, management and security via the
BOSaNOVA Remote Manager for low Total Cost of Ownership (TCO)
The BOSaNOVA XTC-1300 offers optional quad
monitor support allowing the ability to span four
monitors.
*Shown with option intergrated PCI Wireless
Page 2
XTC-1300 1.5GHz Thin Client
Easily Deployed, Centrally Managed, Secure
BOSaNOVA, Inc. 2012 W. Lone Cactus Drive, Phoenix, AZ 85027
Tel: (866) 865-5250 GFax: (623) 516-8697 [email protected]
Ordering Information
PID
7916
7916C
8004
Description
9009
Internal 802.11b/g wireless supports WPA & WEP
512 RAM upgrade (1 GB Total)
8012
VESA Mounting Bracket
Options
8X AGP, 1600x1200 dpi, 32 bit color
Supports 32 TN5250e, SSL and *optional
Ericom emulations
7916
512 MB - 1GB DDR2
Version 10
••
Version 6.0
Internet Explorer 6.2
(** 7 available on request)
Part Number
RAM (Standard/MAX)
ICA
Web Interface
RDP
Host Access
Browser
Video
Wide Screen Support
Quad Monitor Support
XP Embedded SP2
Read-only file system, lockeddown user account, administative
passwords
Lotus Notes, iSeries Access and
additional customization available.
MS Office Viewers
Microsoft JVM
Sun JVM
Microsft Outlook Express
VNC Shadowing
Software Configuration
Operating System
Security Features
Client Software
Special Features
•
•
Management
BOSaNOVA Remote Manager
VNC
Compact stand alone metal case
VIA 1.5 GHz
Autosensing, 10/100 Ethernet,
RJ-45, WakeOnLan, PXE boot,
Internal/External wireless option
2
1
4
1 Keyboard/1 Mouse
2” W x 11.5” H x 8.2” D 53mm
x 292 mm x 237 mm
8.4 lbs.
32-104
0
F (0-400 C)
20-90% non-condensing
0-20,000 ft (0-6,096 m)
100-240 VAC, 50-60 Hz
Max AC Input Power: 15 W
UL, UL1950, FCC Class B, cUL,
CSA-C22, No. 950M89, CE
Mark: EMC/LVD, TUV-GS, ROHS
Complaint
••
••
Form Factor
CPU
Audio
Mic In/Line Out
Internal Speaker
Networking
I/O and Expansion
Serial Port – D-Sub
9-Pin Male Connector
Parallel Port – D-Sub
25-Pin Female Conn.
USB Ports – Type 2
PS/2 Ports
Physical Specifications
Dimensions
Shipping Weight
Operating Temperature
Operating Humidity
Operating Altitude
Power Requirements
Safety Certifications
Hardware Configuration
Enviornmental
PCMCIA and PCI
External Power Option
8008
Standard
512 MB - 4 GB FLASH
up to 1280x960 @ 32 bit. Plus 17
other video modes with 32 bit color
Optional
XTC-1300, XPe, IE 6 SP2, Sun JVM, MS JVM, RDP, ICA,
Windows Media Player, Shockwave, Flash Player, Citrix 10
Dual Monitor
STD (1VGA,1DVI)
Adobe PDF Viewer Version 7
(** 8.1 available on request )
8016
2 GB DOM
Windows Media Player 10
(** 11 available on request)
** Requires
1 GB DOM
IE 7, MP11, SunJVM 1.6, Adobe 8.10, Citrix 10,
Office 2003 Viewers
Push/Pull Updates
•
Featured software from the 7916C plus Adobe Acrobat Reader,
MS Office Viewers, Microsoft Outlook Express and BOSaNOVA
Secure
1 GB DOM ( call for information on customization and other
embedded applications
*Ericom Emulations supported include: 5250, 3270, 3151, AIXTerm, Wyse 50, Wyse 50+, VT52, VT220, VT320, VT420,
VT525, TVI910, TVI920, TVI925, TVI950, TVI955, Linux Console, SCO ANSI, BBS, ANSI, AT386, Siemens 97801,
ADDS VP A2, DG210, DG410, HZ1500, HP 700/92, HP 700/96, Tandem 6530
Storage (Standard/MAX)
Standard Client Software
Security
Kensington Security Lock Slot
v0508
