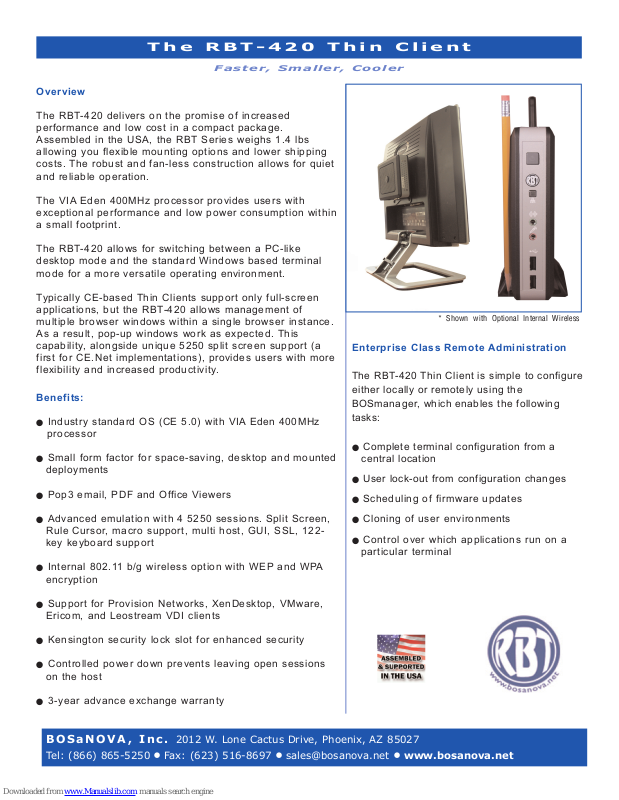

Page 1
Overview
The RBT-420 delivers on the promise of increased
performance and low cost in a compact package.
Assembled in the USA, the RBT Series weighs 1.4 lbs
allowing you flexible mounting options and lower shipping
costs. The robust and fan-less construction allows for quiet
and reliable operation.
The VIA Eden 400MHz processor provides users with
exceptional performance and low power consumption within
a small footprint.
The RBT-420 allows for switching between a PC-like
desktop mode and the standard Windows based terminal
mode for a more versatile operating environment.
Typically CE-based Thin Clients support only full-screen
applications, but the RBT-420 allows management of
multiple browser windows within a single browser instance.
As a result, pop-up windows work as expected. This
capability, alongside unique 5250 split screen support (a
first for CE.Net implementations), provides users with more
flexibility and increased productivity.
Benefits:
O Industry standard OS (CE 5.0) with VIA Eden 400MHz
processor
O Small form factor for space-saving, desktop and mounted
deployments
O Pop3 email, PDF and Office Viewers
O Advanced emulation with 4 5250 sessions. Split Screen,
Rule Cursor, macro support, multi host, GUI, SSL, 122key keyboard support
O Internal 802.11 b/g wireless option with WEP and WPA
encryption
O Support for Provision Networks, XenDesktop, VMware,
Ericom, and Leostream VDI clients
O Kensington security lock slot for enhanced security
O Controlled power down prevents leaving open sessions
on the host
O 3-year advance exchange warranty
The RBT-420 Thin Client
Faster, Smaller, Cooler
Enterprise Class Remote Administration
The RBT-420 Thin Client is simple to configure
either locally or remotely using the
BOSmanager, which enables the following
tasks:
O Complete terminal configuration from a
central location
O User lock-out from configuration changes
O Scheduling of firmware updates
O Cloning of user environments
O Control over which applications run on a
particular terminal
BOSaNOVA, Inc. 2012 W. Lone Cactus Drive, Phoenix, AZ 85027
Tel: (866) 865-5250 OFax: (623) 516-8697 [email protected]
* Shown with Optional Internal Wireless
Page 2
The RBT-420 Thin Client
Ordering Information
PID
5420
Description
RBT-420 Thin Client, CE.Net, 5250, RDP, ICA, Office
Viewers, AC/DC Adapter, Optical Mouse
9006
VESA Mounting Bracket
Hardware Configuration
Form Factor
Standard Flash/RAM
CPU
Audio
Mic In/Line Out
Internal Speaker
Networking
Networking
Browser
USB Ports – Type 2.0
Physical Specifications
Dimensions
Base Weight
Environmental
Operating Temperature
Operating Humidity
Power Requirements
Security
Options
Compact stand-alone metal case
VIA Eden 400MHz
Q
Q
4
1.4" W x 5.9" H x 4.7" D
35mm x 150 mm x 120 mm
1.4 lbs. (.66kg)
0° ~ 35°C
32° ~ 95°F
0% ~ 90%
DC12V, 1.2A, 8W
Kensington Security Lock Slot
Software Configuration
Operating System
Security Features
Client Software
MS Office Viewers
Citrix ICA
Secure Gateway
VNC Shadowing
BOSmanager
ThinPrint
Language Support
Special Features
Options
CE.Net 5.0
Read-only file system,
locked-down user account,
administrative passwords
Q
Q
Q
Q
Q
Q
US, UK English, Spanish, Italian,
German, French, and 30 more
including Eastern Europe
Autostart/auto-restart connection,
multiple level lock-down user
interface
Management
BOSmanager Support
Push/Pull Updates
VNC
Software/Configuration
Cloning
Options
Q
Q
Q
Q
Options
Supports 4 TN5250e and TN370e
sessions,Telnet with SSH, SSL,
Wyse 60, Xterm R6, VT100,
VT220 and VT400
5420
128MB/256MB
Version 9
Web Client
5.5
IE6 CE Version
•
Part Number
Standard Flash/Ram
Standard Client Software
ICA
Web Interface
RDP
Host Access
Browser
Propalms
Faster, Smaller, Cooler
9009
Internal Wireless
8122b
122-key Driverless PC Keyboard
BOSaNOVA, Inc. 2012 W. Lone Cactus Drive, Phoenix, AZ 85027
Tel: (866) 865-5250 OFax: (623) 516-8697 [email protected]
Power Consumption 8 - 9 watts average
Autosensing, 10/100 Ethernet,
RJ-45, WakeOnLAN, PXE boot,
Internal 802.11 b/g wireless option
I/O and Expansion
PS2 Port
Q
VDI
VMware, XenDesktop, Leostream,
Provision Networks, Ericom
Screen Resolution
Up to 1920 x 1440
