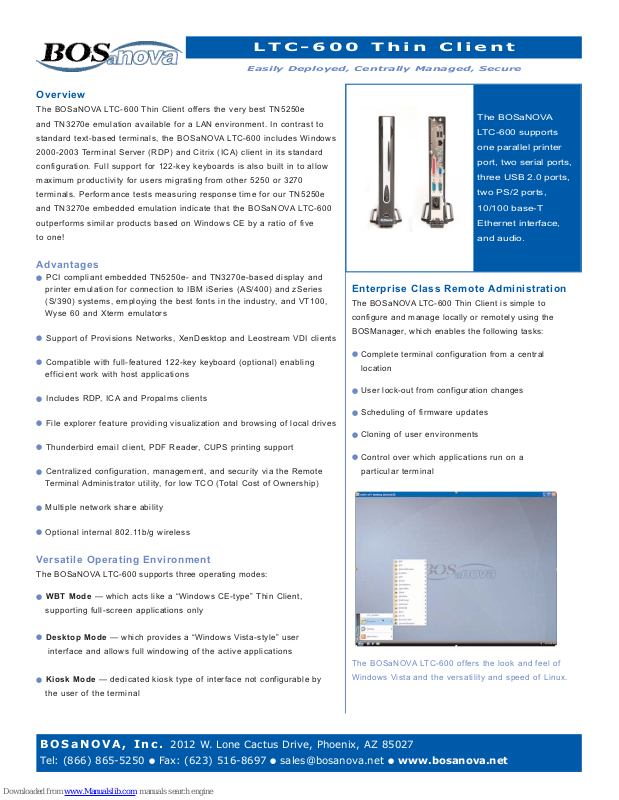

Page 1
LTC-600 Thin Client
Easily Deployed, Centrally Managed, Secure
Overview
The BOSaNOVA LTC-600 Thin Client offers the very best TN5250e
and TN3270e emulation available for a LAN environment. In contrast to
standard text-based terminals, the BOSaNOVA LTC-600 includes Windows
2000-2003 Terminal Server (RDP) and Citrix (ICA) client in its standard
configuration. Full support for 122-key keyboards is also built in to allow
maximum productivity for users migrating from other 5250 or 3270
terminals. Performance tests measuring response time for our TN5250e
and TN3270e embedded emulation indicate that the BOSaNOVA LTC-600
outperforms similar products based on Windows CE by a ratio of five
to one!
Advantages
PCI compliant embedded TN5250e- and TN3270e-based display and
printer emulation for connection to IBM iSeries (AS/400) and zSeries
(S/390) systems, employing the best fonts in the industry, and VT100,
Wyse 60 and Xterm emulators
Support of Provisions Networks, XenDesktop and Leostream VDI clients
Compatible with full-featured 122-key keyboard (optional) enabling
efficient work with host applications
Includes RDP, ICA and Propalms clients
File explorer feature providing visualization and browsing of local drives
Thunderbird email client, PDF Reader, CUPS printing support
Centralized configuration, management, and security via the Remote
Terminal Administrator utility, for low TCO (Total Cost of Ownership)
Multiple network share ability
Optional internal 802.11b/g wireless
Versatile Operating Environment
The BOSaNOVA LTC-600 supports three operating modes:
WBT Mode — which acts like a “Windows CE-type” Thin Client,
supporting full-screen applications only
Desktop Mode — which provides a “Windows Vista-style” user
interface and allows full windowing of the active applications
Kiosk Mode — dedicated kiosk type of interface not configurable by
the user of the terminal
BOSaNOVA, Inc. 2012 W. Lone Cactus Drive, Phoenix, AZ 85027
Tel: (866) 865-5250 Fax: (623) 516-8697 [email protected]www.bosanova.net
Enterprise Class Remote Administration
The BOSaNOVA LTC-600 Thin Client is simple to
configure and manage locally or remotely using the
BOSManager, which enables the following tasks:
Complete terminal configuration from a central
location
User lock-out from configuration changes
Scheduling of firmware updates
Cloning of user environments
Control over which applications run on a
particular terminal
The BOSaNOVA LTC-600 offers the look and feel of
Windows Vista and the versatility and speed of Linux.
The BOSaNOVA
LTC-600 supports
one parallel printer
port, two serial ports,
three USB 2.0 ports,
two PS/2 ports,
10/100 base-T
Ethernet interface,
and audio.
Page 2
LTC-600 Thin Client
Easily Deployed, Centrally Managed, Secure
Options
Ordering Information
PID
7602
8122x
Description
LTC-600 with TN5250e/3270e, Mozilla Browser, JVM,
RDP, ICA, Adobe Acrobat Reader, POP3
122-key 5250/PC Keyboard, Driverless
8009
OpenOffice Suite and Java Cache V1.1.3
9009
Internal mini PCI b/g wireless adapter
BOSaNOVA, Inc. 2012 W. Lone Cactus Drive, Phoenix, AZ 85027
Tel: (866) 865-5250 Fax: (623) 516-8697 [email protected]www.bosanova.net
Hardware Configuration
Form Factor
Standard Flash/RAM
CPU
Audio
Mic In/Line Out
Internal Speaker
Networking
Networking
Browser
I/O and Expansion
Serial Port – D-Sub
9-Pin Male Connector
Parallel Port – D-Sub
25-Pin Female Conn.
USB Ports – Type 2
PS/2 Ports
Physical Specifications
Dimensions
Shipping Weight
Environmental
Operating Temperature
Operating Humidity
Operating Altitude
Power Requirements
Safety Certifications
Security
Options
Compact stand-alone metal case
VIA Eden 600MHz
Autosensing, 10/100 Ethernet,
RJ-45, WakeOnLAN, PXE boot,
USB 802.11g support
2
1
3
1 Keyboard/1 Mouse
1.75” W x 9.5” H x 9.0” D
4.3 mm x 24.8 mm x 22.3 mm
6.2 lbs.
32-104
o
F (0-40oC)
20-90% non-condensing
0-20,000 ft (0-6,096 m)
100-240 VAC, 50-60 Hz
Max AC Input Power: 30 W
UL, UL1950, FCC Class B, cUL,
CSA-C22.2, No. 950-M89, CE
Mark; EMC/LVD, TUV-GS
Kensington Security Lock Slot
Software Configuration
Operating System
Security Features
Client Software
Citrix ICA
X-Windows
NX Client
Secure Gateway
BOSmanager
ThinPrint
VDI Client
Special Features
Options
Linux
Read-only file system,
locked-down user account,
administrative passwords
Provision Networks, Leostream,
XenDesktop, VMWare
Autostart/auto-restart connection,
multiple level lock-down user
Management
BOSmanager
Push/Pull Updates
VNC
Software/Configuration
Cloning
Options
8X AGP, Wide Screen Support
Supports 8 TN5250e and TN370e
sessions,Telnet with SSH, SSL,
Ericom, Wyse 60, VT100 and
VT200, x-Term, and Optional SCO
Up to 1280x1024 @ 75 Hz
Up to 1600x1200 @ 60 Hz
7602
256MB/256MB (Flash/Ram)
Version 10
5.2
Firefox or Mozilla
Up to 1280x1024 @ 75 Hz
Up to 1024x768 @ 85 Hz
Up to 1280x1024 @ 75 Hz
Up to 1024x768 @ 85 Hz
••
Part Number
Standard Flash/Ram
Standard Client Software
ICA
Web Interface
RDP
Host Access
Browser
SSGD-EE
Video
@ 8-Bit Color
@16-Bit Color
@24-Bit Color
••
Propalms TSE
••
V0508
