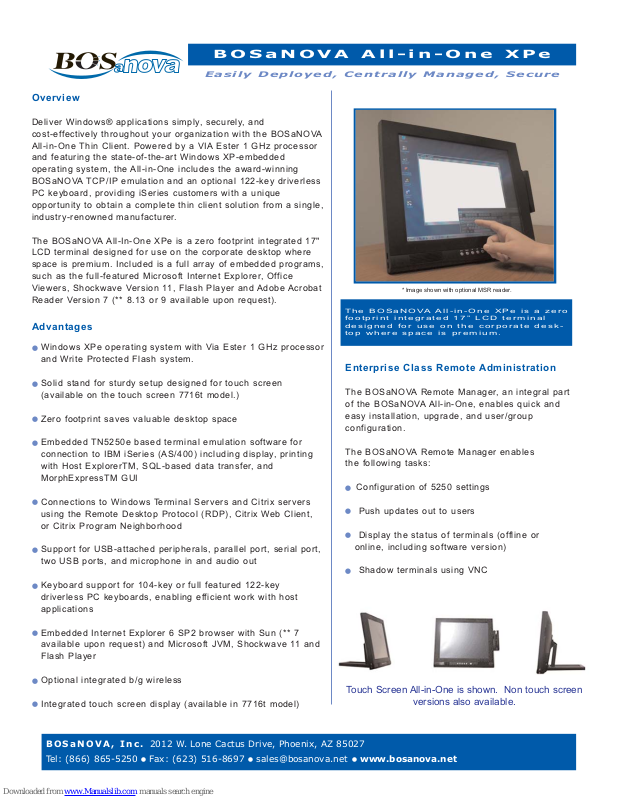

Bosanova 7716, All-in-One XPe 7716 Specifications

BOSaNOVA All-in-One XPe

Easily Deployed, Centrally Managed, Secure

BOSaNOVA, Inc. 2012 W. Lone Cactus Drive, Phoenix, AZ 85027

Tel: [phone]



Fax: [phone] [e-mail]www.bosanova.net

Enterprise Class Remote Administration

The BOSaNOVA Remote Manager, an integral part
of the BOSaNOVA All-in-One, enables quick and
easy installation, upgrade, and user/group
configuration.

The BOSaNOVA Remote Manager enables
the following tasks:



Configuration of 5250 settings



Push updates out to users



Display the status of terminals (offline or

online, including software version)



Shadow terminals using VNC

Overview

Deliver Windows® applications simply, securely, and
cost-effectively throughout your organization with the BOSaNOVA
All-in-One Thin Client. Powered by a VIA Ester 1 GHz processor
and featuring the state-of-the-art Windows XP-embedded
operating system, the All-in-One includes the award-winning
BOSaNOVA TCP/IP emulation and an optional 122-key driverless
PC keyboard, providing iSeries customers with a unique
opportunity to obtain a complete thin client solution from a single,
industry-renowned manufacturer.

The BOSaNOVA All-In-One XPe is a zero footprint integrated 17"
LCD terminal designed for use on the corporate desktop where
space is premium. Included is a full array of embedded programs,
such as the full-featured Microsoft Internet Explorer, Office
Viewers, Shockwave Version 11, Flash Player and Adobe Acrobat
Reader Version 7 (** 8.13 or 9 available upon request).

Advantages



Windows XPe operating system with Via Ester 1 GHz processor
and Write Protected Flash system.



Solid stand for sturdy setup designed for touch screen
(available on the touch screen 7716t model.)



Zero footprint saves valuable desktop space



Embedded TN5250e based terminal emulation software for
connection to IBM iSeries (AS/400) including display, printing
with Host ExplorerTM, SQL-based data transfer, and
MorphExpressTM GUI



Connections to Windows Terminal Servers and Citrix servers
using the Remote Desktop Protocol (RDP), Citrix Web Client,
or Citrix Program Neighborhood



Support for USB-attached peripherals, parallel port, serial port,
two USB ports, and microphone in and audio out



Keyboard support for 104-key or full featured 122-key
driverless PC keyboards, enabling efficient work with host
applications



Embedded Internet Explorer 6 SP2 browser with Sun (** 7
available upon request) and Microsoft JVM, Shockwave 11 and
Flash Player



Optional integrated b/g wireless



Integrated touch screen display (available in 7716t model)

The BOSaNOVA All-in-One XPe is a zero
footprint integrated 17” LCD terminal
designed for use on the corporate desk­top where space is premium.

Touch Screen All-in-One is shown. Non touch screen

versions also available.

* Image shown with optional MSR reader.

BOSaNOVA All-in-One XPe

Easily Deployed, Centrally Managed, Secure

BOSaNOVA, Inc. 2012 W. Lone Cactus Drive, Phoenix, AZ 85027

Tel: [phone]



Fax: [phone] [e-mail]www.bosanova.net

Ordering Information

PID

7716

8104x

Description

XTC-733 All-in-One, XPe, IE 6 SP2, Sun JVM, MS

JVM, RDP, ICA, Adobe Acrobat Reader, Office

Viewers, Microsoft Outlook Express

104-key PC Keyboard

8122x

122-key Driverless PC Keyboard

Options

0.297(H)*0.275(V)mm

Supports 32 TN5250e sessions with
optional emulations

300 cd/m2

7716

256MB/512MB (Ram/Flash)

Version 10.1.50

Version 6.0

Internet Explorer 6.1 SP2
(** 7 available upon request)

H:30~60KHz

V: 50~75Hz

70/70degree(V)

65/65degree(H)

Upon request

Part Number

Standard Flash/Ram

Standard Client Software

ICA

RDP

Host Access

Browser

Tarantella Client

Display Pitch

Display Area

Windows XPe SP2

Read-only file system,
locked-down user account,
administative passwords

Lotus Notes and/or iSeries access

MS Office Viewers

Shockwave 11

Microsoft & Sun JVM

Microsft Outlook Express

VNC Shadowing

Software Configuration

Operating System

Security Features

Client Software

Special Features

•

•

•

Management

BOSaNOVA Remote Manager

Push/Pull Updates

Software/Configuration
Cloning

All-in-One

VIA Eden 1 GHz Processor

Autosensing, 10/100 Ethernet,
RJ-45, WakeOnLan, PXE boot,
Internal/External wireless option

1

1

4 (2 Internal and 2 External)

1 Keyboard/1 Mouse

20"(W) x 23"(H)x 6.3"(D)

18 lbs.

41ºF to 104ºF

-40ºF to 140 ºF

External power supply

Voltage: 100~240VAC
Frequency: 50~60Hz
Output: 12 V, 4.2 A

••

••

Form Factor

CPU

Audio

Mic In/Line Out

Internal Speaker

Networking

I/O and Expansion

Serial Port – D-Sub
9-Pin Male Connector

Parallel Port – D-Sub
25-Pin Female Conn.

USB Ports – Type 2

PS/2 Ports

Physical Specifications

Dimensions

Shipping Weight

Operating Temperature

Operating Storage

Power Requirements

Hardware Configuration

Enviornmental

Power

Flash Player Version 7

Windows Media Player 11

Adobe Acrobat Reader Version 7
(** 8.13 or 9 available upon request)

Viewing Angle

0.297(H)*0.275(V)mm

LCD Display

Frequency Range

Brightness

9005

USB 802.11 b/g wireless adapter

Touch Screen

Available on 7716t

** requires

1GB DOM

IE7, Sun JVM 1.6, Adobe 8.13 or 9

VDI

Upon request
(Ericom WebConnect standard)

7716t

XTC-733t All-in-One Touch Screen
