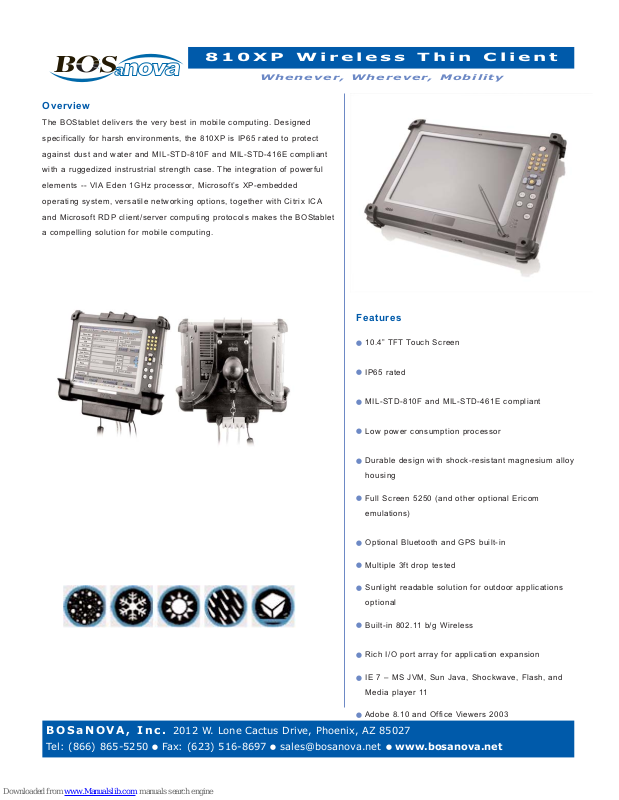

Page 1
810XP Wireless Thin Client
Whenever, Wherever, Mobility
BOSaNOVA, Inc. 2012 W. Lone Cactus Drive, Phoenix, AZ 85027
Tel: (866) 865-5250 GFax: (623) 516-8697 [email protected]
Overview
The BOStablet delivers the very best in mobile computing. Designed
specifically for harsh environments, the 810XP is IP65 rated to protect
against dust and water and MIL-STD-810F and MIL-STD-416E compliant
with a ruggedized instrustrial strength case. The integration of powerful
elements -- VIA Eden 1GHz processor, Microsoft’s XP-embedded
operating system, versatile networking options, together with Citrix ICA
and Microsoft RDP client/server computing protocols makes the BOStablet
a compelling solution for mobile computing.
Features
G
10.4” TFT Touch Screen
G
IP65 rated
G
MIL-STD-810F and MIL-STD-461E compliant
G
Low power consumption processor
G
Durable design with shock-resistant magnesium alloy
housing
G
Full Screen 5250 (and other optional Ericom
emulations)
G
Optional Bluetooth and GPS built-in
G
Multiple 3ft drop tested
G
Sunlight readable solution for outdoor applications
optional
G
Built-in 802.11 b/g Wireless
G
Rich I/O port array for application expansion
G
IE 7 – MS JVM, Sun Java, Shockwave, Flash, and
Media player 11
G
Adobe 8.10 and Office Viewers 2003
Page 2
810XP Wireless Thin Client
Whenever, Wherever, Mobility
BOSaNOVA, Inc. 2012 W. Lone Cactus Drive, Phoenix, AZ 85027
Tel: (866) 865-5250 GFax: (623) 516-8697 [email protected]
Ordering Information
PID
810XP
Description
Embedded XP, Touch Screen, 5250, IE7, Office
Viewers, Shockwave, Flash, Media Player, RDP, ICA
Options
USA, EU, UK
IP65, MIL-STD-810F,
MIL-STD-416E
Four function programmable
buttons, four-way navigation button
with an enter function
810 XP
256MB/1GB
Windows XP Embedded
2GB Compact Flash card
2.5" HDD 40GB optional
Integrated 802.11 b/g WLAN
Part Number
Standard/Max RAM
Display
Operating System
Storage
Ruggability Rating
Power Cords
Battery Packs
(Lithium-Ion)
Wireless WAN
Input & Control Buttons
10.4” TFT touch display (1024 x 768)
AC/DC Adapter
Input: 47~63Hz
Output: 19V, 3.16A
Universal AC 90V ~ 265V
Rechargeable Li-ion smart battery
10.8V, 4800mAh (3S2P)
Input/Output Ports
Two USB Type 2.0; CF type II slot,
RJ45 port, PCMCIA type II, RJ11,
Audio for headphone/microphone,
VGA out connector, DC-in jack,
Docking connector for cradle, Two
RS232/422/485 ports (factory option)
Dimensions
12.2 x 9.3 x 1.6 (in)
310 x 236 x 42 (mm)
Base Weight
6.1 lbs (2.79 kg)
Operating Temp.
-20° – 60°C
Accessories
Docking cradle
Docking cradle
VESA Mount
810-01
810-02
810-03
Sunlight readable screen (Factory option)
Hand and
shoulder strap
Vehicle Mount
VESA mount
810-04
Hand and shoulder strap
