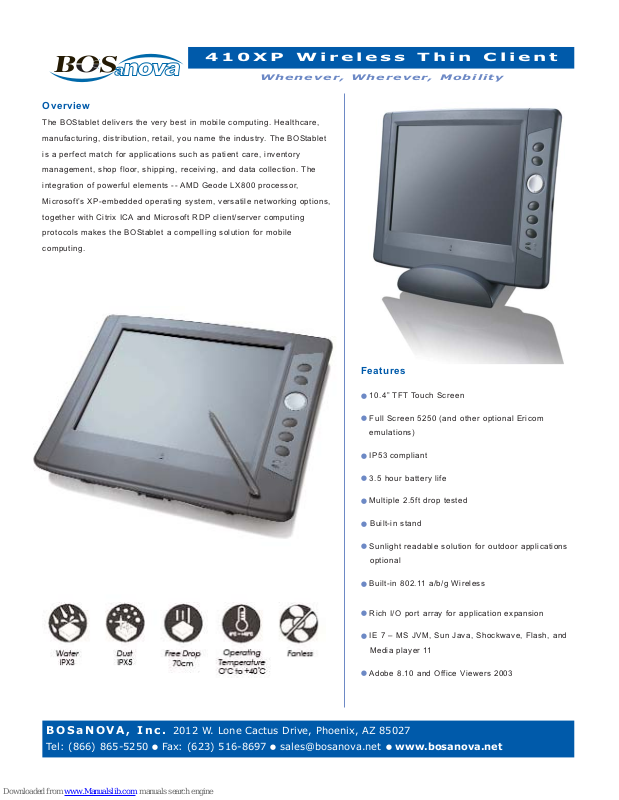

Page 1
410XP Wireless Thin Client
Whenever, Wherever, Mobility
BOSaNOVA, Inc. 2012 W. Lone Cactus Drive, Phoenix, AZ 85027
Tel: (866) 865-5250 Fax: (623) 516-8697 [email protected]www.bosanova.net
Overview
The BOStablet delivers the very best in mobile computing. Healthcare,
manufacturing, distribution, retail, you name the industry. The BOStablet
is a perfect match for applications such as patient care, inventory
management, shop floor, shipping, receiving, and data collection. The
integration of powerful elements -- AMD Geode LX800 processor,
Microsoft’s XP-embedded operating system, versatile networking options,
together with Citrix ICA and Microsoft RDP client/server computing
protocols makes the BOStablet a compelling solution for mobile
computing.
Features
10.4” TFT Touch Screen
Full Screen 5250 (and other optional Ericom
emulations)
IP53 compliant
3.5 hour battery life
Multiple 2.5ft drop tested
Built-in stand
Sunlight readable solution for outdoor applications
optional
Built-in 802.11 a/b/g Wireless
Rich I/O port array for application expansion
IE 7 – MS JVM, Sun Java, Shockwave, Flash, and
Media player 11
Adobe 8.10 and Office Viewers 2003
Page 2
410XP Wireless Thin Client
Whenever, Wherever, Mobility
BOSaNOVA, Inc. 2012 W. Lone Cactus Drive, Phoenix, AZ 85027
Tel: (866) 865-5250 Fax: (623) 516-8697 [email protected]www.bosanova.net
Ordering Information
PID
410XP
Description
Embedded XP, Touch Screen, 5250, IE7, Office
Viewers, Shockwave, Flash, Media Player, RDP, ICA
Options
USA, EU, UK
IP53, multiple 2.5 ft drop
Five software programmable
buttons, one navigation button with
an enter function
410 XP
512MB/2GB
Windows XP Embedded
2GB Compact Flash card
1.8” HDD 30GB optional
Integrated 802.11 a/b/g
Part Number
Standard/Maximum RAM
Display
Operating System
Storage
Ruggability Rating
Power Cords
Battery Packs
(Lithium-Ion)
Wireless WAN
Input & Control Buttons
10.4” TFT touch display (1024 x 768)
AC/DC Adapter
Input: 50-60Hz
Output: 19V, 3.16A
Universal AC 100V-240V, 60W
Rechargeable Li-ion smart battery
14.8V, 2200mAH, 3.5 hour battery
life
Input/Output Ports
RS-232 port; Two USB Type A
connectors; SD slot, RJ45 LAN
port, Audio for headphone/microphone, VGA out connector, DC-in
jack, Docking connector for cradle
Dimensions
10 x 9.4 x 1.2 (in)
295 x 238 x 30 (mm)
Base Weight
3.5 lbs (1.6 kg)
Operating Temp.
0° – 40°C
1GB RAM
Accessories
Built-in stand
VESA mount
Docking cradle
VESA mount (Factory option)
Sunlight readable screen (Factory option)
8027
410-01
410-02
410-03
Docking cradle
