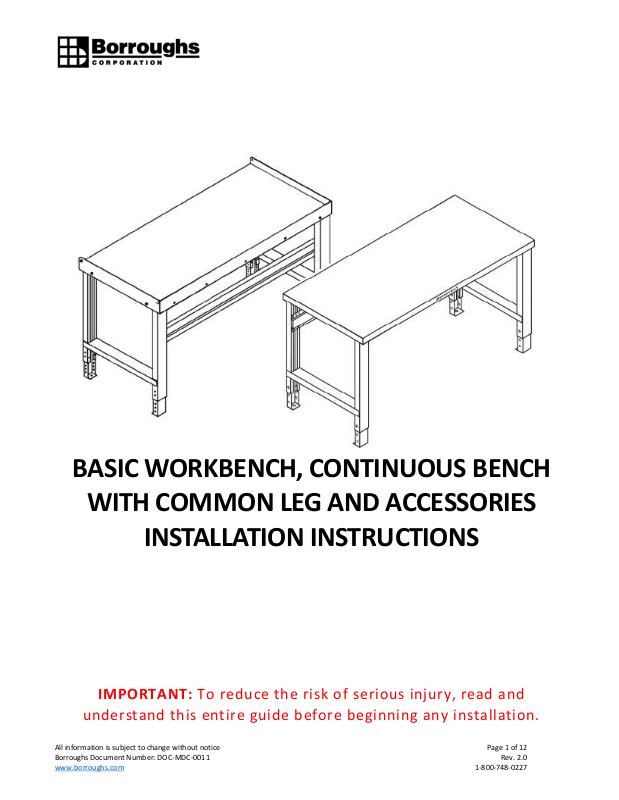

BASIC WORKBENCH, CONTINUOUS BENCH
WITH COMMON LEG AND ACCESSORIES
INSTALLATION INSTRUCTIONS
IMPORTANT: To reduce the risk of serious injury, read and
understand this entire guide before beginning any installation.
All information is subject to change without notice Page 1 of 12
Borroughs Document Number: DOC-MDC-0011 Rev. 2.0
www.borroughs.com 1-800-748-0227
Contents
BEFORE YOU BEGIN: .................................................................................................................................................... 3
SAFETY WARNINGS: ..................................................................................................................................................... 3
Basic Workbench ......................................................................................................................................................... 4
Workbench with All-Wood Top ................................................................................................................................... 5
Continuous Bench with Common Leg ......................................................................................................................... 6
Shelf for Basic Workbench .......................................................................................................................................... 7
Shelf for Continuous Bench with Common Leg ........................................................................................................... 7
Footrest for Basic Work Bench .................................................................................................................................... 8
Footrest for Continuous Bench with Common Leg ..................................................................................................... 8
End Guards .................................................................................................................................................................. 9
Back Guard .................................................................................................................................................................. 9
End Guards and Back Guard Combined....................................................................................................................... 9
Back & End Filler Panels ............................................................................................................................................ 10
Ledge Riser for Work Bench Without End Guards and Back Guard .......................................................................... 10
Ledge Riser for Work Bench with End Guards and Back Guard ................................................................................ 11
Portable Bench .......................................................................................................................................................... 11
WARRANTY ................................................................................................................................................................ 12
All information is subject to change without notice Page 2 of 12
Borroughs Document Number: DOC-MDC-0011 Rev. 2.0
www.borroughs.com 1-800-748-0227
1/2”
39X
Weldnut 5/16
-
18
8X
2X
2X
2X
4X
4X
4X
BEFORE YOU BEGIN:
1. Check your inventory to be sure you received your entire order. If there are any missing or damaged
parts, contact your Dealer or Borroughs Corporation Customer Service Manager.
NOTES: Each workbench is packaged separately. Each unit features an identification sheet located on the
face of the unit. The identification sheet will match the items detailed in contents above.
2. Read and understand the entire installation instructions prior to beginning the install.
SAFETY WARNINGS:
This symbol is used to address practices not related to personal injury.
A potentially hazardous condition exists that may result in death or serious injury, property
damage, or destruction if instructions are not strictly observed.
This symbol is used to address practices not related to physical injury.
Once installation is completed, a copy of the installation instruction booklet MUST remain with the customer.

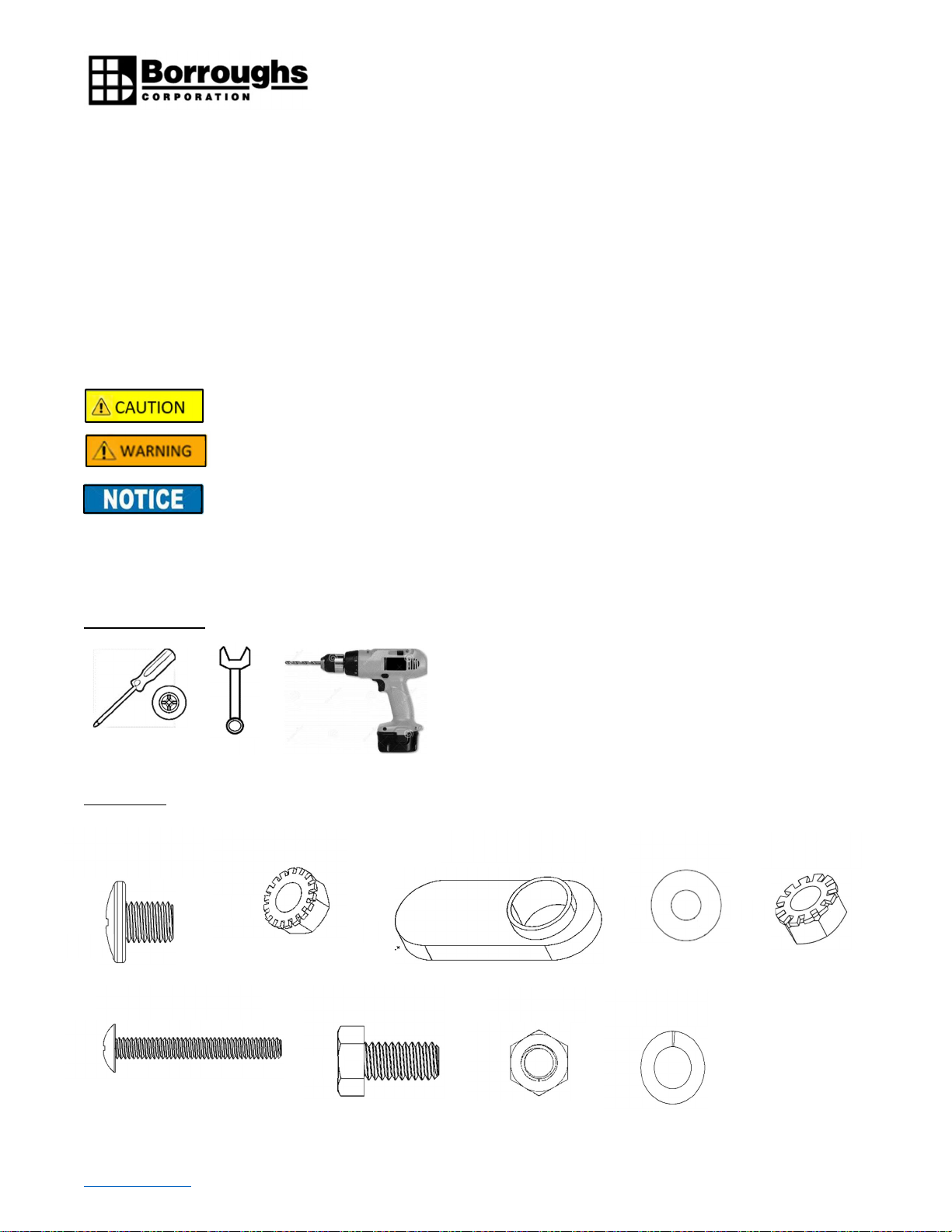

Tools Required:
1/4”
Hardware:
07792-00
Screw 5/16-18 X 1/2
46X
07791-00
Screw 1/4-20 x 2
17213-00
Nut 5/16-18
07764-00
Screw 5/16-18 x 5/8
100530-00
07737-00
Nut 7/16-14
41801-00
Washer 1/4"
07843-00
Washer 7/16
07742-00
Nut 1/4-20
All information is subject to change without notice Page 3 of 12
Borroughs Document Number: DOC-MDC-0011 Rev. 2.0
www.borroughs.com 1-800-748-0227
Basic Workbench
Do not tip bench on its side, without a shelf attached as it is unstable and may cause
damage. Must use two people to rotate bench.
STEPS

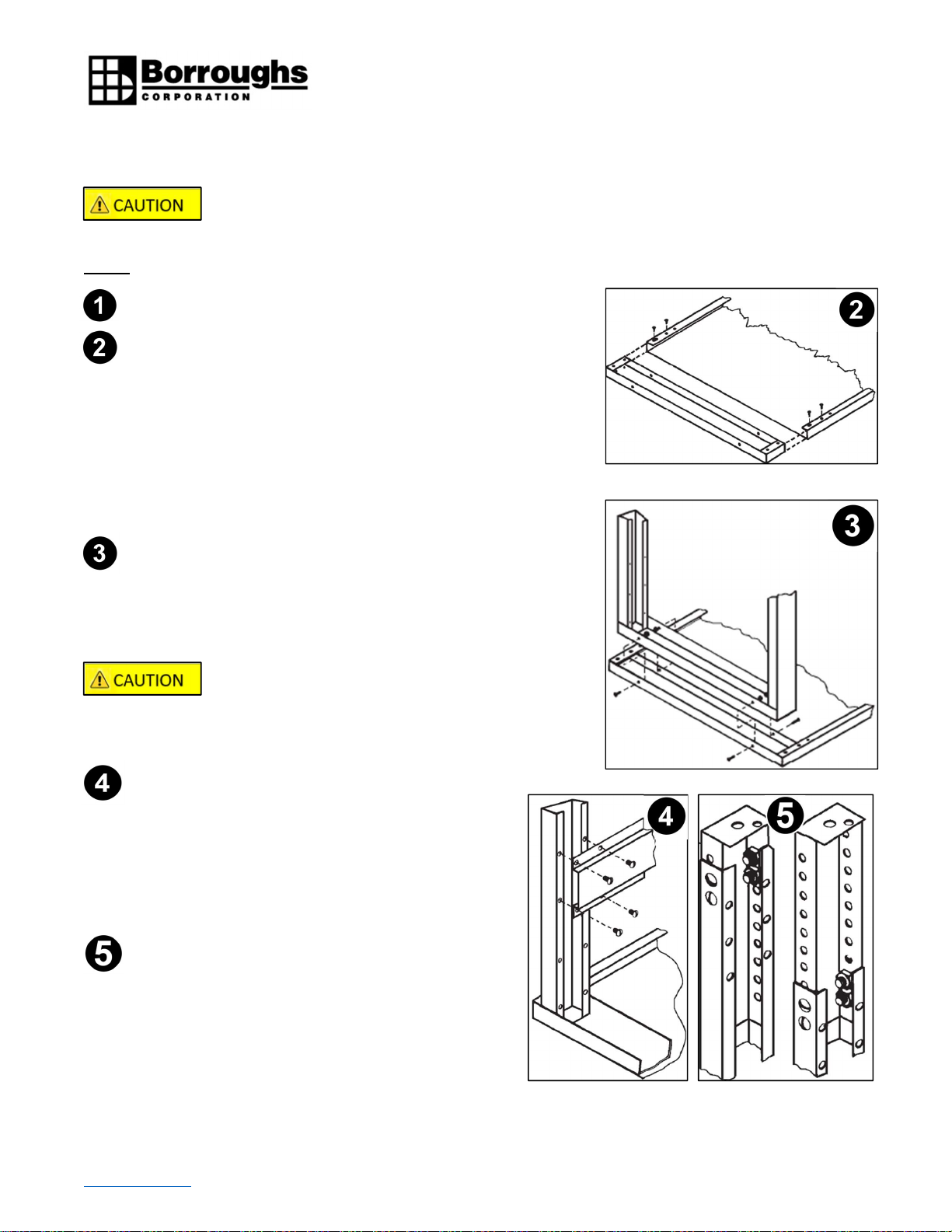

Lay bench top face down on a flat clean surface; such as blanket
or cardboard to protect from scratching.
Insert leg attachment channel into bench top with open area of
channel facing upward. Position attachment channel so that
holes in end flanges are in line with oval and first hole in front
and back flanges of benchtop. Use four (4) 07792-00 screws and
17213-00 nuts to loosely fasten leg and channel together.
Repeat procedure on the other end.
Stand leg weldment in place (leg fits inside attachment channel).
Position leg so that holes in sides of leg weldment are in line
with the holes in the side of the attachment channel. Loosely
fasten leg and channel together with four (4) 07792-00 screws
and 17213-00 nuts. Repeat procedure on the other end.
Do not tip bench on its side, without a shelf
attached as it is unstable and may cause damage.
Must use two people to rotate bench.
Attach stringer to legs along back edges of bench (Borroughs is
stamped in front edge of bench). Position stringer so
that holes in end of stringer are in line with holes in
leg. Fasten stringer to leg with four (4) 07792-00
screws and 100530-00 weldnuts. Repeat procedure
at the other end. Tighten screws holding leg
weldments and attachment channels together.
Insert adjustable foot or caster bracket into leg so
that holes in the sides of foot or bracket are aligned
with holes in sides of leg. At desired height, fasten
foot to leg with four (4) 07792-00 screws and 1721300 nuts or fasten caster bracket with two (2). Repeat
procedure for other legs. Tighten all hardware. This
completes assembly of Basic workbench. Put bench
in upright position.
All information is subject to change without notice Page 4 of 12
Borroughs Document Number: DOC-MDC-0011 Rev. 2.0
www.borroughs.com 1-800-748-0227
Workbench with All-Wood Top
Do not tip bench on its side, without a shelf attached as it is unstable and may cause
damage. Must use two people to rotate bench.
STEPS

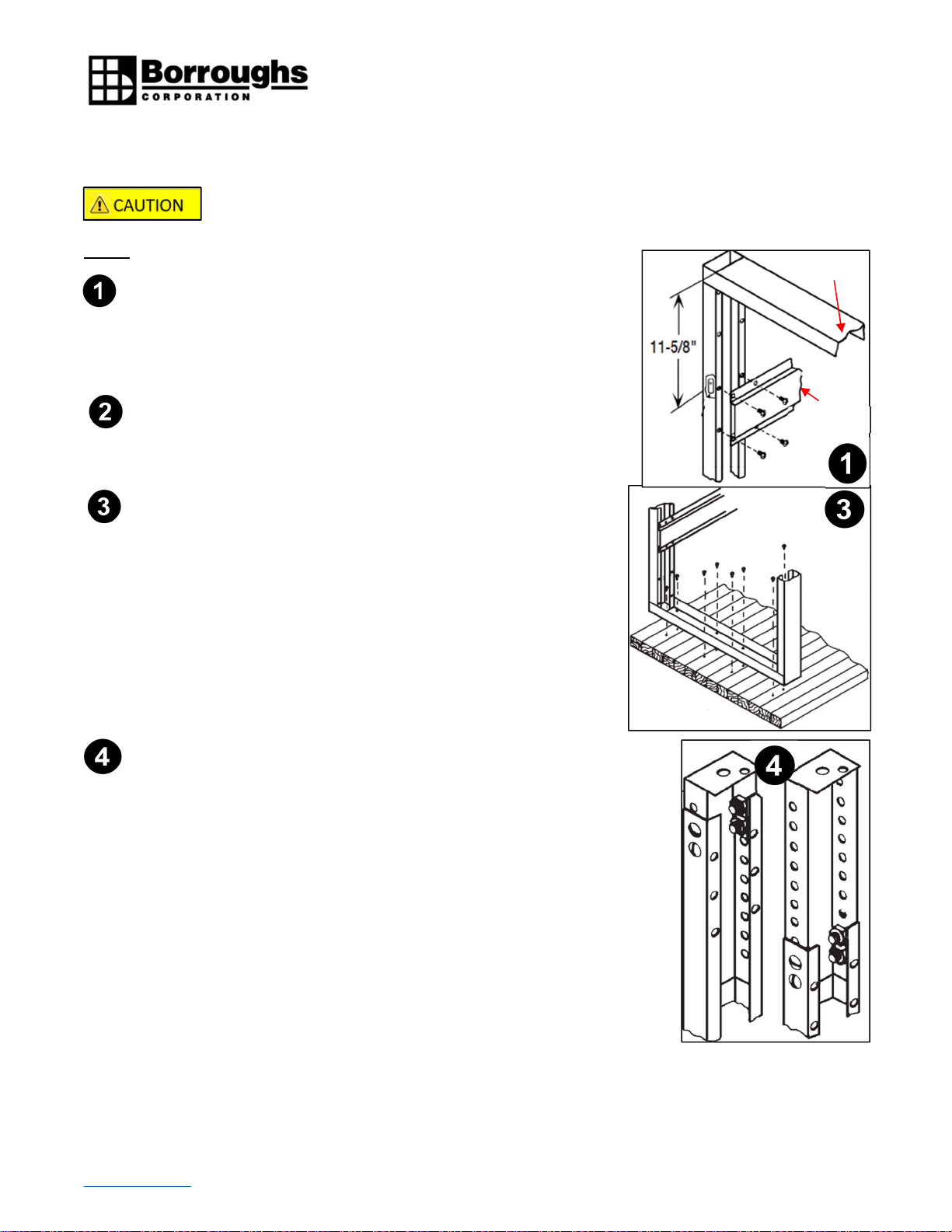

Attach stringer to leg weldment. Position stringer so that holes in end
of stringer are in line with holes in legs; locate approximately 11-5/8”
down from top of leg weldment. Fasten stringer to leg with four (4)
07792-00 screws and 100530-00 weldnuts provided. Repeat step for
opposite end.
Leg
Lay bench top face down on a flat clean surface; such as blanket or
cardboard to protect from scratching
Stringer
Place leg weldment and stringer assembly upside down on bench
top. Stringer should be placed toward back edge of bench top.
Position leg weldment and stringer assembly so it is centered on
bench top and legs are parallel to end of bench. Use leg weldments
as templates and drill eight (8) 1/4” pilot holes x 1” deep for lag
screws at each end of bench top. Fasten leg weldment and stringer
assembly to bench top with eight (8) .312 (5/16”) x 1” lag screws.
NOTE: Lag screws are not furnished by manufacturer.
Insert adjustable foot into leg so that holes in the sides of foot are
aligned with holes in sides of leg. At desired height, fasten foot to leg with
four (4) 07792-00 screws and 17213-00 nuts. Repeat procedure for other
legs. Tighten all hardware. This completes assembly of Basic workbench.
Put bench in upright position.
All information is subject to change without notice Page 5 of 12
Borroughs Document Number: DOC-MDC-0011 Rev. 2.0
www.borroughs.com 1-800-748-0227
Continuous Bench with Common Leg

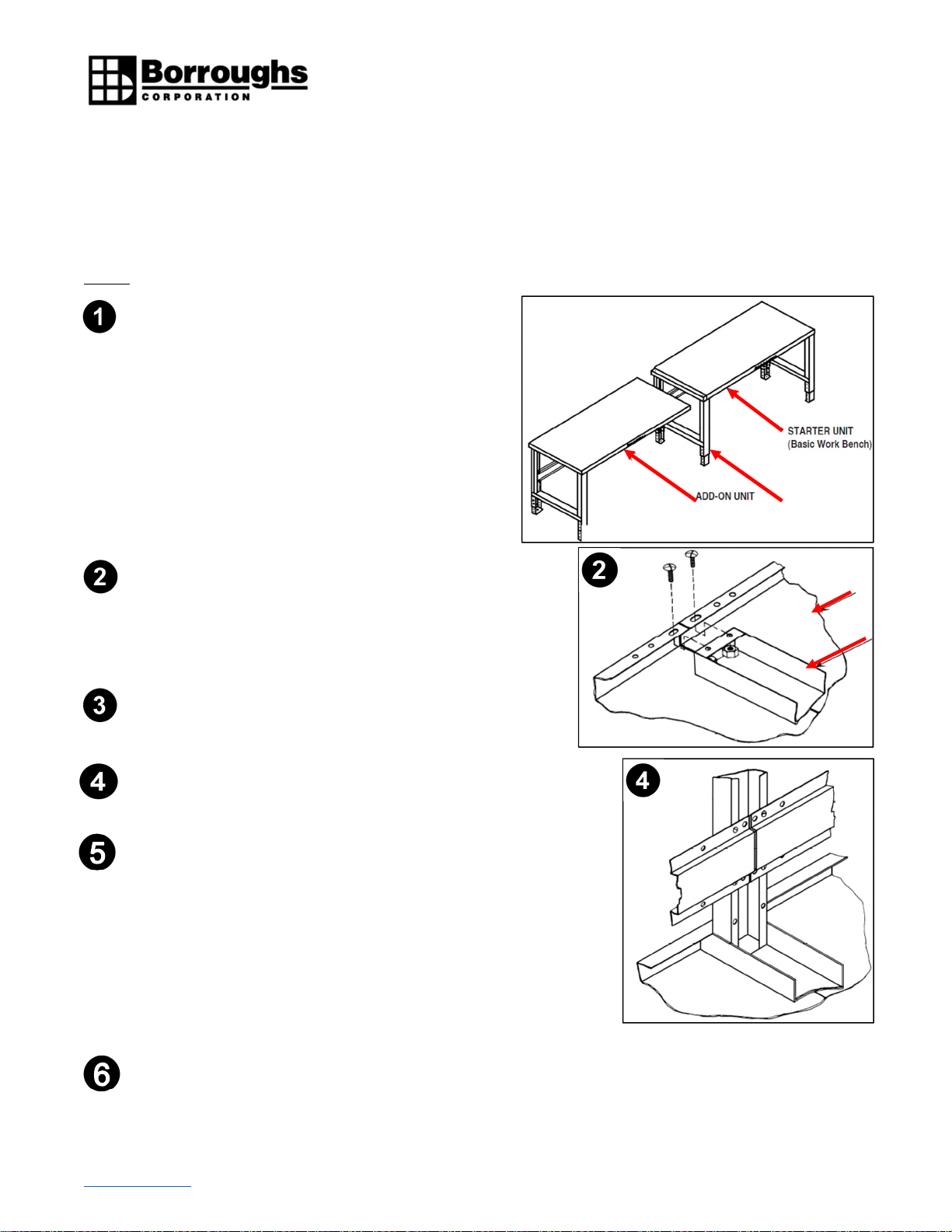

Benches over six (6) feet long may be obtained by placing end to end, a starter unit and an add-on unit. Each addon unit contains one (1) bench top, one (1) stringer, one (1) leg attachment channel, one (1) leg weldment and
two (2) adjustable feet, and associated hardware.
STEPS
Lay bench top face down on a flat clean surface;
(such as blanket or cardboard to protect from
scratching). Placing them end to end to completed
steps 1-3 for both benches. Once completed turn
benches to upright positions to connect.
COMMON LEG
Insert leg attachment channel into bench tops. Position
channel so that the holes in end flanges are in line with the
oval in each of bench tops, where tops are end to end.
Fasten channel to the tops with four (4) screws and nuts as
provided.
Fasten end flanges of attachment channels to bench top as
stated in step 2 of the basic work bench instructions (refer
to page 4). Assemble one each end.
Fasten leg weldments to attachment channels as stated in Step 3
of the Basic Work Bench instructions (refer to page 4). Fasten one
on each end and one on the common attachment channel.
The stringer is to be attached to legs along back edge of unit.
(BORROUGHS is stamped on the front edge of benchtop). Position
stringer so that second set of holes are in line with two holes in
inside of leg. Fasten stringer to leg with two (2) screws and
weldnuts as provided. The second stringer is to be fastened to the
other side of the leg in the same manner. The other ends of
stringers are attached as stated in Step 4 of the Basic Work Bench
instructions. Tighten screws holding leg weldment s and
attachment channels together.
Fasten adjustable feet to legs as stated in Step 5 of the Basic Work Bench instructions (refer to page 4).
Fasten one foot of each leg. This completes assembly of the Continuous Bench with Common Leg.
All information is subject to change without notice Page 6 of 12
Borroughs Document Number: DOC-MDC-0011 Rev. 2.0
www.borroughs.com 1-800-748-0227
Shelf for Basic Workbench
STEPS

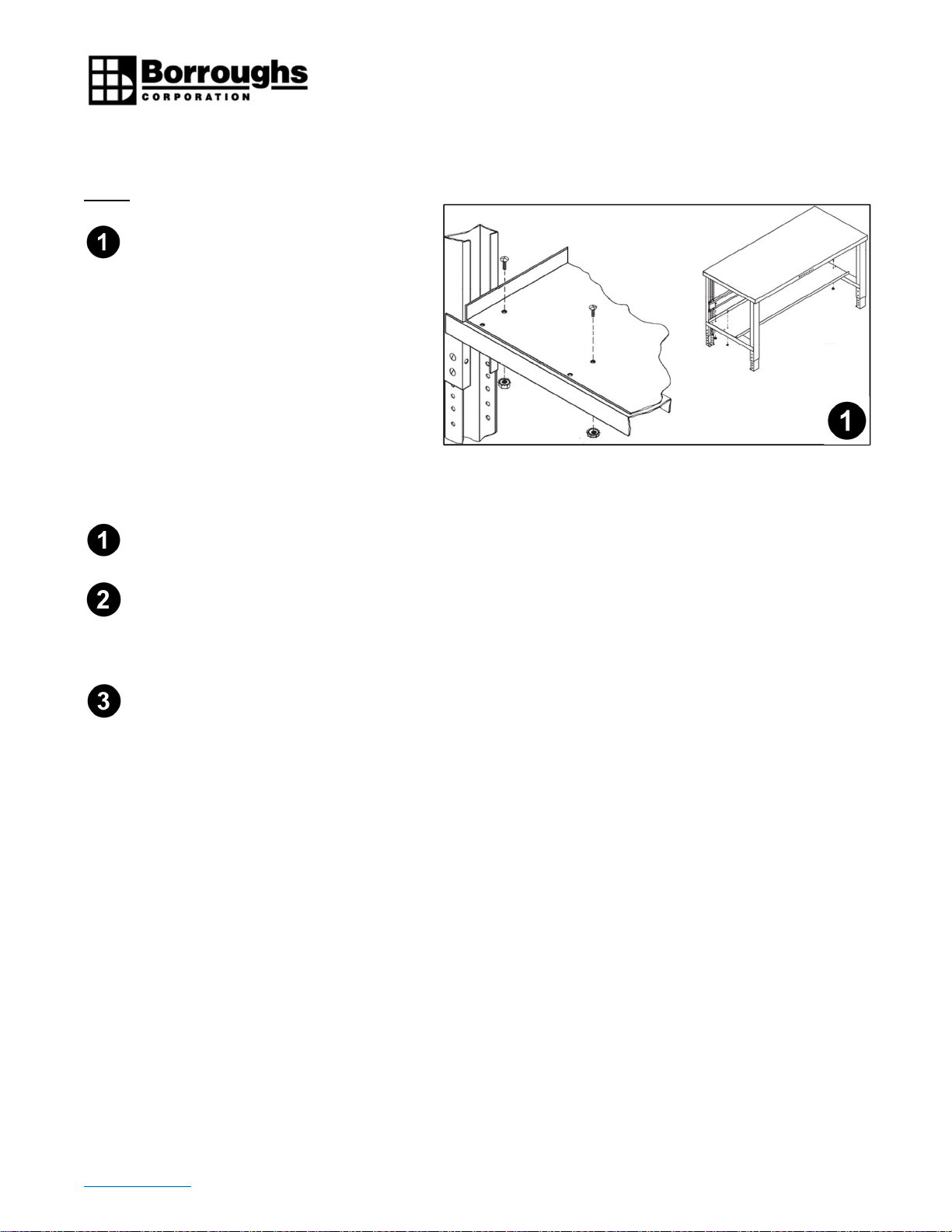

Place shelf on shelf supports between
legs of workbench with back edge of
shelf (edge with 90° flange is back)
approximately .062 (1/16”) from back
legs of workbench. Position shelf so two
inner holes on each end of shelf are in
line with two (2) inner holes of each shelf
support. Fasten shelf to shelf supports
with four (4) 07792-00 and 17213-00.
This completes assembly of shelf
assembly for basic workbench.
Shelf for Continuous Bench with Common Leg
Place shelf on shelf supports between legs of work bench with back edge of shelf (edge with 90° flange is
back) approximately .062 (1/16”) from back legs of work bench. Position shelf so two inner holes in end
of shelf on shell support, are in line with two inner holes of the shelf support.
The two outer holes, in shelf end that is on common shelf support, are to be aligned with two inner holes
in common shelf support. Fasten shelf to shelf supports with four (4) screws and nuts as provided. Repeat
procedure with other shelf on the other side of the common shelf support.
If more than two (2) benches will be strung together in a continuous row, with a common leg between
each, the two outer holes in shelf will always align with the respective inner holes in the common shelf
support. This completed the shelf assembly for the Continuous Work Bench with Common Leg.
All information is subject to change without notice Page 7 of 12
Borroughs Document Number: DOC-MDC-0011 Rev. 2.0
www.borroughs.com 1-800-748-0227
Footrest for Basic Work Bench
STEPS

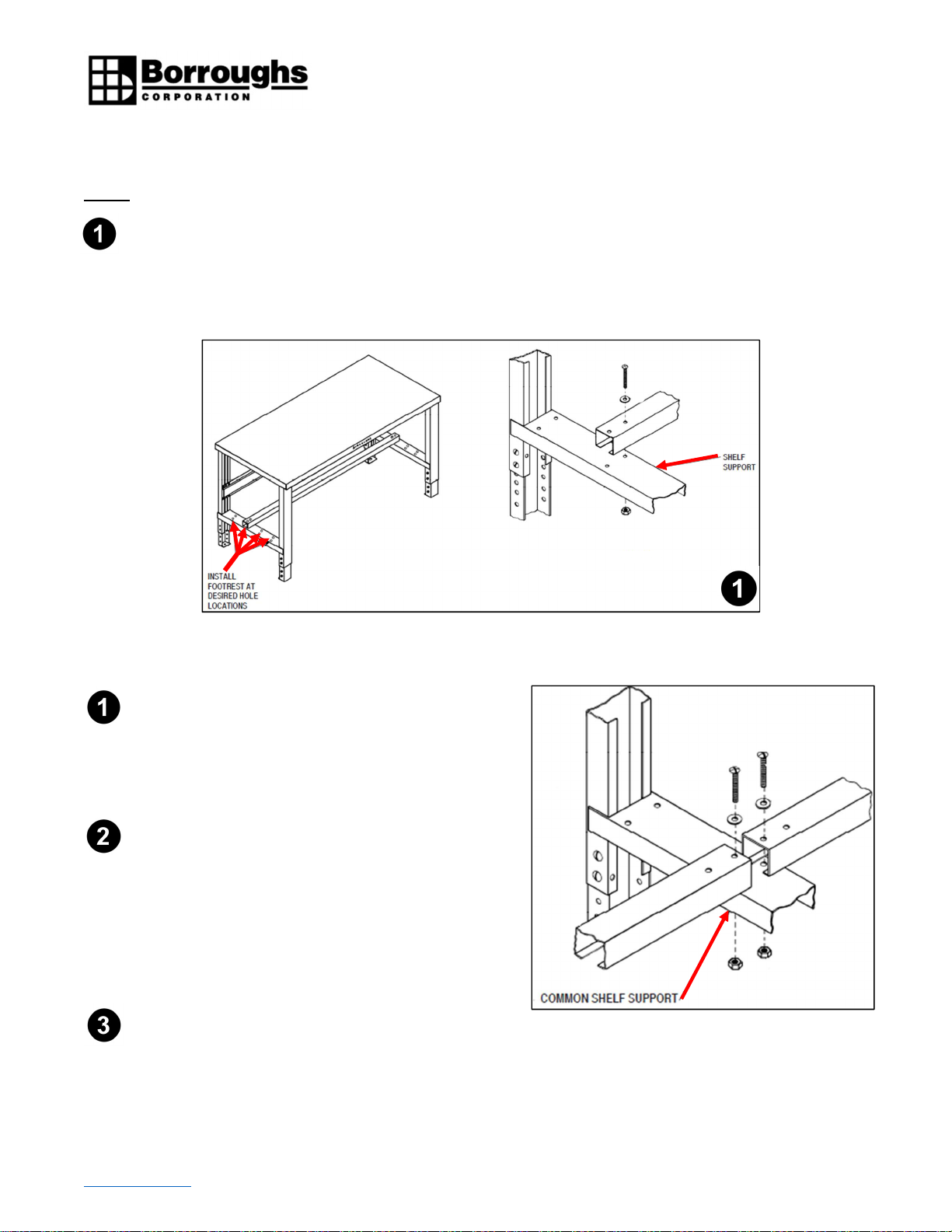

Place footrest on shelf supports between legs of work bench with open area of footrest channel facing
downward. Position footrest so that the inner holes, in each end of footrest, are in line with inner holes in
each shelf support (NOTE: Footrest can be positioned at any one of four (4) locations in the shelf
supports). Fasten footrest to shelf supports with two (2) screws, washers, and nuts as provided, one (1)
each end. This completes the Footrest assembly for Basic Work Bench.
Footrest for Continuous Bench with Common Leg
Place footrest on shelf supports between legs of work
bench with open area of footrest channel facing
downward. Position footrest so that the inner hole, in
the end of footrest on end shelf supports, is in line
with the inner hole of shelf support.
The outer hole, in footrest end, that is sitting on
common shelf support is to be aligned with inner hole
in the common shelf support. (NOTE: The footrest
can be positioned at any one of four-hole locations on
the shelf supports). Fasten footrest to the shelf
supports with two (2) screws, washers, and nuts as
provided. Repeat procedure with the other footrest
on the other side of the common shelf support.
If more than two (2) benches will be strung together
in a continuous row, with a common leg between each, the outer hole in footrest will always align with
respective inner hole in the common shelf support. This completed the footrest assembly for the
Continuous Work Bench with Common Leg.
All information is subject to change without notice Page 8 of 12
Borroughs Document Number: DOC-MDC-0011 Rev. 2.0
www.borroughs.com 1-800-748-0227

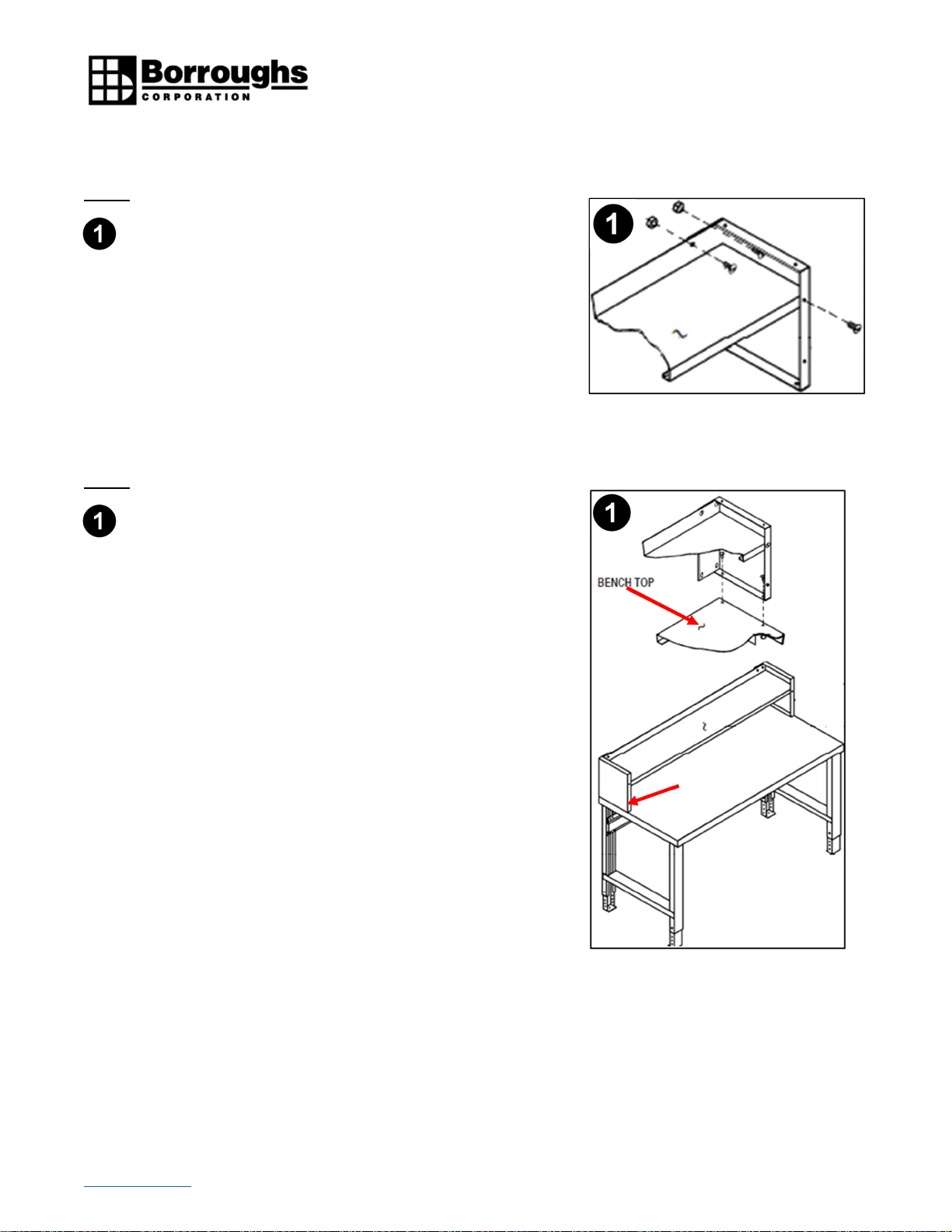

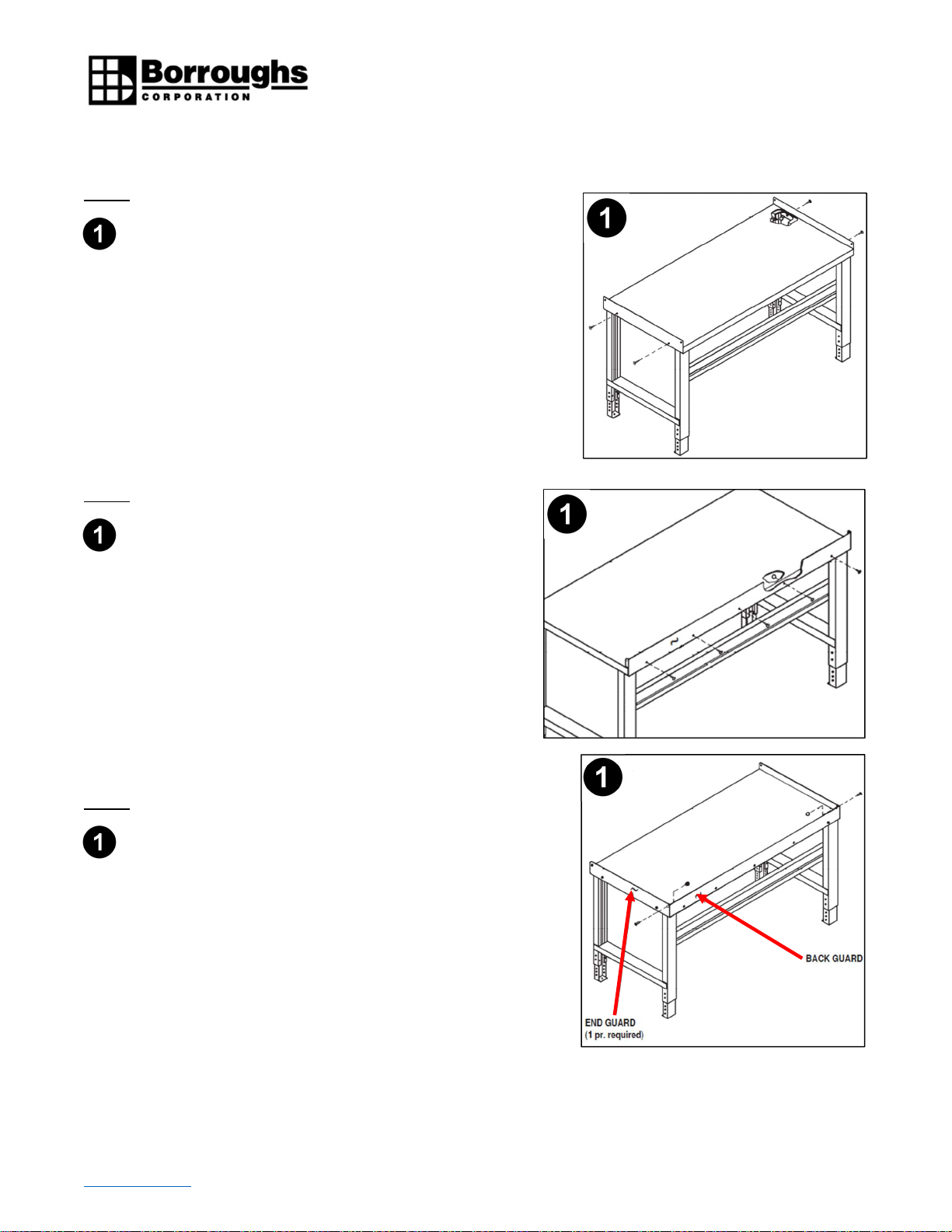

End Guards
STEPS
Position end guard so that two (2) holes align with holes in
side of attachment channel. Fasten end guard to channel
with two (2) 07792-00 and 17213-00. Repeat procedure at
the other end. This completes end guard assembly.

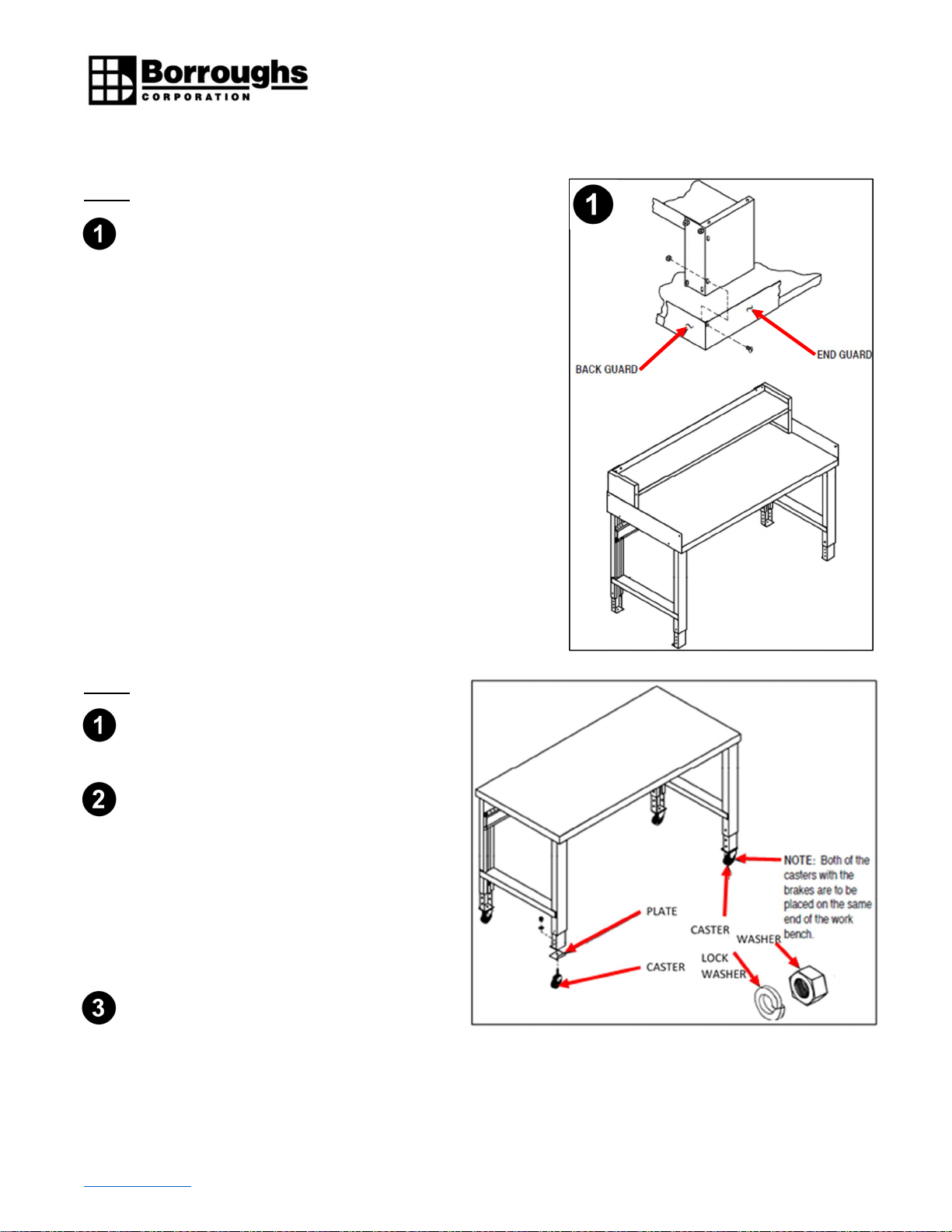

Back Guard
STEPS
Position back guard so that ovals in lower edge of back
guard are in line with holes in back edge of bench top.
(Flanges on back guard are to be facing toward front).
Fasten back guard to bench top with five (5) 07792-00
and 17213-00. This completes back guard assembly
NOTE: The extra two (2) screws and nuts are used
when the end guards and back guard are combined on
workbench.
End Guards and Back Guard Combined
STEPS
Attach end guards and back guard to work bench as stated in
separate assemblies for end guards and back guard above.
Flanges on back guard are to be located inside of end guards.
Fasten end guards to back guard with one (1) 07792-00 and
17213-00 at each corner. This completes assembly for end
guards and back guard combined.
All information is subject to change without notice Page 9 of 12
Borroughs Document Number: DOC-MDC-0011 Rev. 2.0
www.borroughs.com 1-800-748-0227
Back & End Filler Panels
STEPS
Place end of ledge shelf in between flanges of ledge end. The
two (2) holes on back of shelf must align with top two (2)
ovals on rear flange of ledge end. Align hole in front flange of
ledge shelf with top hole on front flange of ledge end. Fasten
ledge shelf to ledge end with three (3) screws and nuts as
provided. Repeat procedure at the other end.
Ledge Riser for Work Bench Without End Guards and Back Guard
STEPS
Place ledge assembly on bench top so that rear flanges and
sides of ledge ends are flush with back and sides of bench top.
Mark location of two (2) holes of bottom flange of ledge end,
on bench top, at each end. Remove ledge assembly and drill
two (2) .344 (11/32 inches) dia. Holes at marked locations at
each end of bench top. Reposition ledge assembly so that
holes in bottom flanges of ledge ends align with the drilled
holes. Fasten ledge assembly to bench top with four (4) screws
and nuts as provided, two (2) each end. This completes
assembly of Ledge Riser for the Work Bench Without End
Guards and Back Guard.
LEDGE END
All information is subject to change without notice Page 10 of 12
Borroughs Document Number: DOC-MDC-0011 Rev. 2.0
www.borroughs.com 1-800-748-0227
Ledge Riser for Work Bench with End Guards and Back Guard
STEPS
Place ledge assembly on bench top flush against end
guards and/or back guard. The bottom oval in the sides of
ledge ends must align with hole in back corner of end
guards and/or hole in end flanges of back guard. Fasten
ledge assembly to end guards and/or back guard with one
(1) screw and nut as provided. If both end guards and a
back guard are on work bench, remove hardware holding
two (2) pieces together at each rear corner. Position ledge
assembly to align with the holes in guards as stated in the
beginning of this step and fasten ledge assembly to guards
with hardware originally provided. This completed the
assembly of Ledge Riser for the Work Bench Without End
Guards and Back Guard.
Portable Bench
STEPS
Place work bench upside down on a flat
clean surface.
Position heavy duty plate on adjustable foot.
The flange on heavy duty plate is to be
placed along front edge of adjustable foot.
Insert threaded stem of caster through holes
in heavy duty plate and the adjustable foot.
Fasten three (3) items together with one (1)
washer and nut as provided. Repeat
procedure with other three (3) adjustable
feet.
Adjust bench to desired height. Place unit in
upright position. This completes assembly of
the Portable Bench.
All information is subject to change without notice Page 11 of 12
Borroughs Document Number: DOC-MDC-0011 Rev. 2.0
www.borroughs.com 1-800-748-0227
Once installation is completed, a copy of the installation instruction booklet MUST
remain with the customer.
WARRANTY
Borroughs Corporation extends to the original purchaser from the date of purchase a limited lifetime warranty for
Borroughs’ Automotive Workstations and Modular Drawer Cabinets against manufacturing defects in material and
workmanship. For all other products Borroughs extends to the original purchaser from the date of purchase a 5year limited warranty against manufacturing defects in material and workmanship.
If a Borroughs product fails to perform because of a manufacturing defect, Borroughs will examine it. If found
defective, it will be repaired or replaced at our option. This warranty applies only to Borroughs products acquired
directly from Borroughs Corporation or from Authorized Borroughs Dealers.
This warranty does not apply to any product which has been subject to misuse, negligence, or accident; has been
damaged in shipment, storage, or installation; has been misapplied or has been modified or repaired by
unauthorized persons or been repaired with non-standard Borroughs replacement parts. This warranty specifically
excludes claims for indirect, incidental, or consequential damages arising in any way from a product defect. This
warranty is exclusive, and exists in lieu of all other warranties, either expressed or implied.
This warranty gives you specific legal rights; you may also have other rights which may vary from state to state.
Contact your Borroughs Selling Dealer, to obtain warranty service. You must make a written claim. Provide a copy
of your purchase record and a written description of the warranty problem with your claim.
If you are unable to contact your Dealer, contact:
Borroughs Corporation, Customer Service Manager,
3002 N. Burdick St., Kalamazoo, MI 49004-3483.
Phone: 1-800-748-0227
All information is subject to change without notice Page 12 of 12
Borroughs Document Number: DOC-MDC-0011 Rev. 2.0
www.borroughs.com 1-800-748-0227
Loading...
