ZERO7
design Giovanni Baccolini
ZERO7
7219 - Upholstered High Back
User Manual
Page 2
Zero7

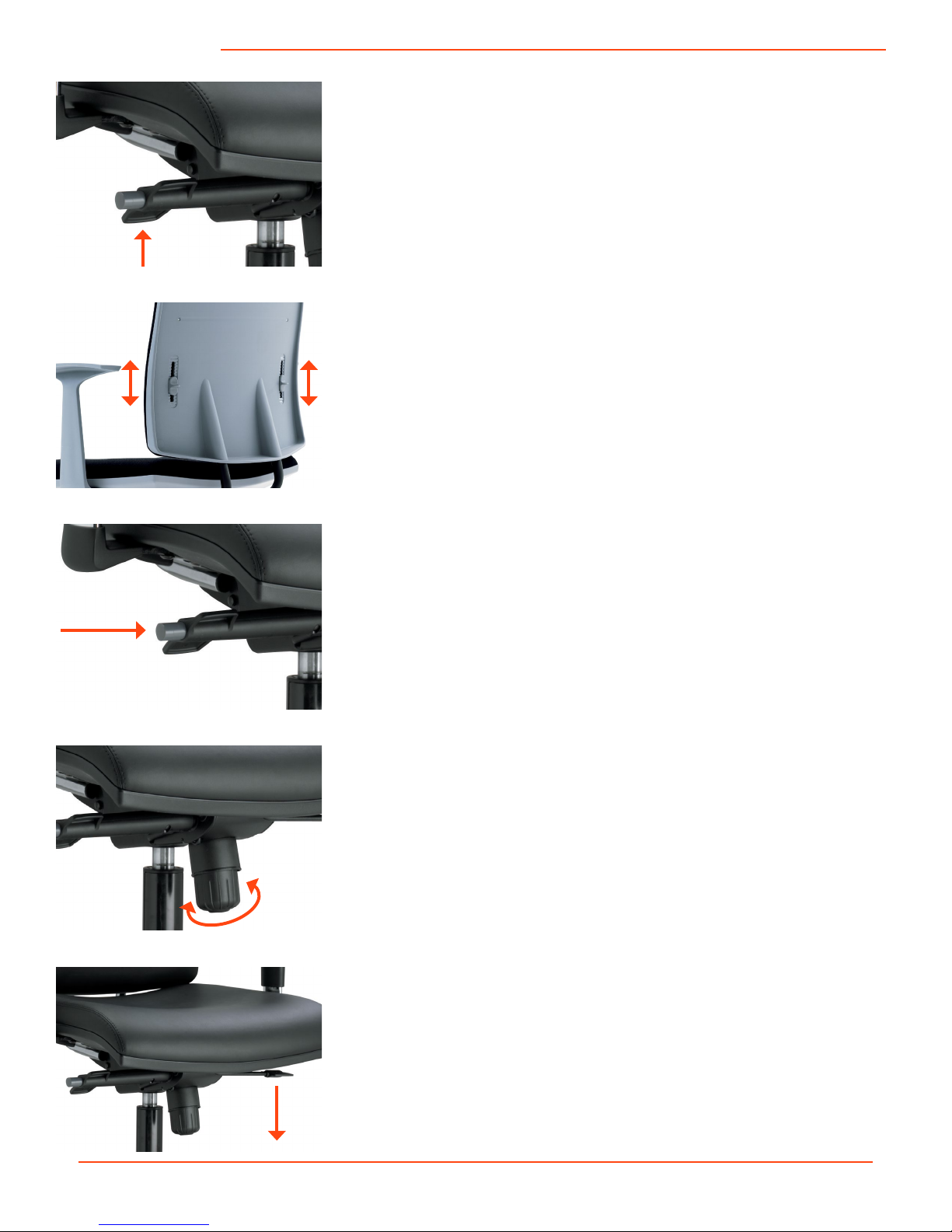

Seat Height Adjustment
The first rule to follow is to sit down correctly covering the whole
depth of the seat, leaning well and uniformly your back on the
backrest, and regulate the height of the seat in such a way that your
legs are at a 90° angle. To do so, move the lever on the right upwards.
Lumbar Adjustment
Then, adjust the height lumbar support in order to find the best
comfort of the back.While sat, lift and let down at the same time
the two knobs of the lumbar support placed on the rear part of the
backrest finding the desired position.
Back Tilt
The button on the lever on the right-hand side allows you disable the
synchronised oscillation of the seat and of the backrest or to lock
them at the desired position. To obtain a free oscillation, press the
button; to lock the armchair at a definite position press again the
button (3).
P.S.: since the armchairis furnished with an anti-shock security device,
to free the oscillation, decrease the pressure on the backrest by
leaning yourself a bit forward. Only after doing so, you press the
button and lean again against the backrest.This movement will unlock
the anti-shock device.
Back Tension
The intensity of the oscillation can be regulated depending on the
weight of the user by moving the knob which is situated on the
front part of the armchair. To obtain a hardening of the oscillation
mechanism, turn the knob clock-wise and vice-versa.
Borgo [email protected] www.borgo.com/zero7 © Borgo Contract Seating
Sliding Seat Pan Adjustment
Only for models with regulation of sliding seat The adjustment of the
sliding seat can be regulated by moving downwards the lever on the
left-hand side of the seat..
Page 3
pa a gas.
e
torno.
e in
ustment and
umbar

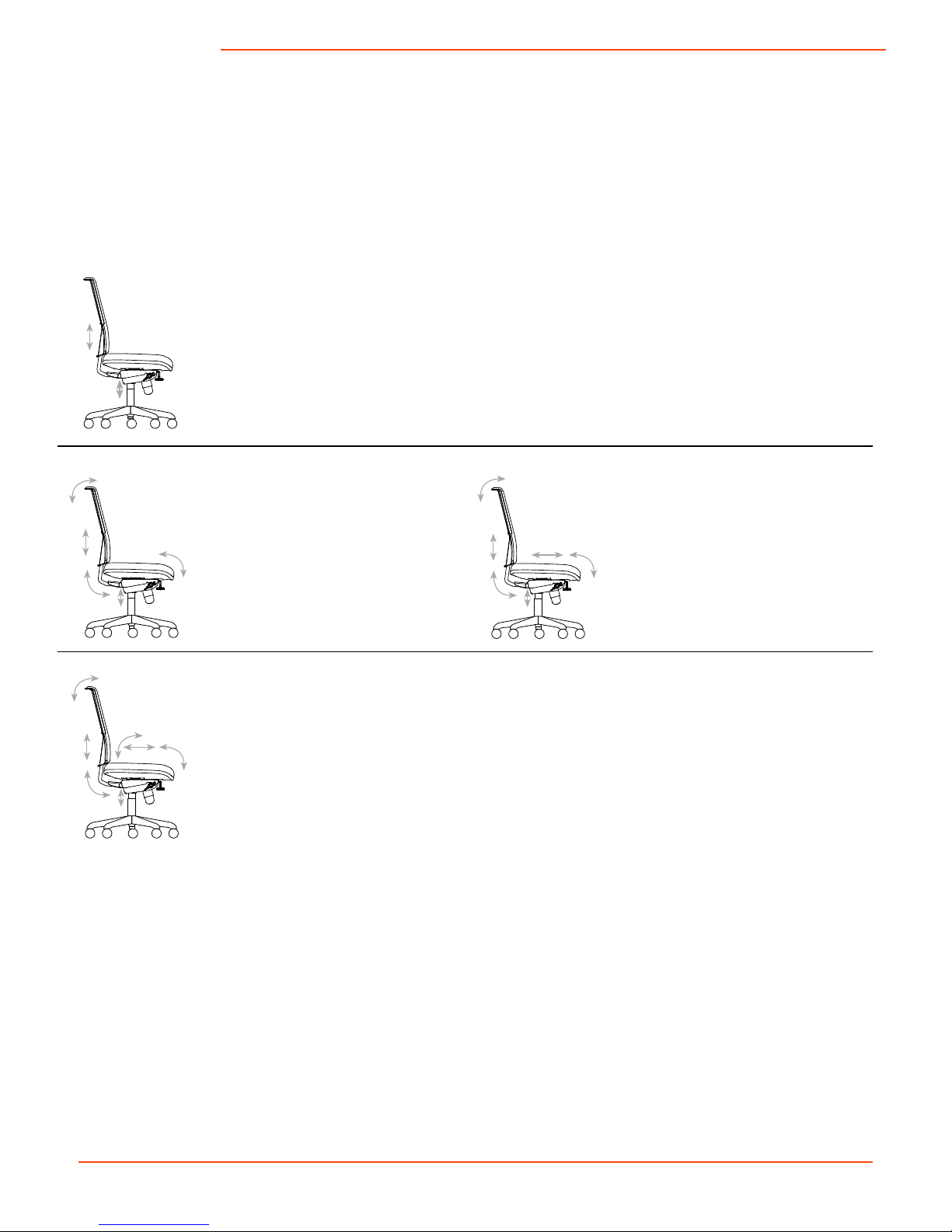

Significato dei codici dei meccanismi - Meaning for mechanism codes
a gas.
no.
ment
a gas.
T
Regolazione in altezza della seduta con pompa a gas.
Movimento sincron multiblock con regolazione
dell’oscillazione e sistema di sicurezza anti-ritorno.
Regolazione in altezza del supporto lombare e in
profondità del sedile.
Seating height adjustment by gas lift.
Multiblock synchro mechanism with tilting adjustment and
anti-return safety system. Height adjustable lumbar
support and sliding seat adjustment.
a gas.
apida in
cillazione
o.
standard
nchro
safety
from
S
Fissa su slitta.
Sled base.
Zero7
B
• Seating height adjustment by gas lift.
Regolazione in altezza della seduta con pompa
Regolazione in altezza del supporto lombare.
• Height adjustable lumbar support.
Seating height adjustment by gas lift.
Height adjustable lumbar support.
M
Regolazione in altezza della seduta con pompa
• Seating height adjustment by gas lift.
Movimento sincron multiblock con regolazione
• Multiblock synchro mechanism with
dell’oscillazione e sistema di sicurezza anti-ritor
tilting adjustment and anti-return safety
Regolazione in altezza del supporto lombare.
system.
• Height adjustable lumbar support.
Seating height adjustment by gas lift.
Multiblock synchro mechanism with tilting adjust
and anti-return safety system.
Height adjustable lumbar support.
T
Regolazione in altezza della seduta con pom
• Seating height adjustment by gas lift.
Movimento sincron multiblock con regolazion
• Multiblock synchro mechanism with
dell’oscillazione e sistema di sicurezza anti-ri
tilting adjustment and anti-return safety
Regolazione in altezza del supporto lombare
profondità del sedile.
sy ste m.
• Height adjustable lumbar support and
sliding seat adjustment.
Seating height adjustment by gas lift.
Multiblock synchro mechanism with tilting adj
anti-return safety system. Height adjustable l
support and sliding seat adjustment.
K
Regolazione in altezza della seduta con pompa
• Seat height adjustment by gas lift.
Movimento sincron multiblock con regolazione r
Multiblock synchro mechanism with easy
un quarto di giro della tensione della molla di os
quick quarter turn lever adjustmentfor
dello schienale e sistema di sicurezza anti-ritorn
back tilting tension and anti-return safety
Variatore di assetto del sedile in 3 posizioni, da
system. Seat angle adjustment with 3
a negativo. Regolazione in profondità del sedile.
positions, from standard to forward tilt.
Regolazione in altezza del supporto lombare.
Sliding seat adjustment.
Seat height adjustment by gas lift. Multiblock sy
• Height adjustable lumbar support.
mechanism with easy quick quarter turn lever
adjustmentfor back tilting tension and anti-return
system. Seat angle adjustment with 3 positions,
standard to forward tilt. Sliding seat adjustment.
Height adjustable lumbar support.
Borgo [email protected] www.borgo.com/zero7 © Borgo Contract Seating
Page 4
Zero7
FEAT URE S
• The Zero7 is a modular, high performance, ergonomic chair that is capable of fitting
into any workspace. Easily paired with our Best of NeoCon award winning Zero9 to
complete any environment.
• The backrest is available in three different unique options; scratchproof
polypropylene, nylon mesh and with an upholstered panel, all come with standard
adjustable lumbar support.
• Scratchproof polypropylene backrest comes with lumbar support in soft anthracite
color polyurethane.
• Mesh back version is made of a black nylon frame and covered with nylon mesh.
• Upholstered panel is padded with polyurethane foam on a polypropylene back.
• The seat features a waterfall front edge design to relieve pressure behind the legs.
Padded with fire-retardant CFC polyurethane foam, with a polypropylene internal
seat, reinforced with steel square tubular bars; the seat pan is made of shockproof
and scratchproof polypropylene to match the backrest.
• 4D adjustable T-arms (height, and width adjustment, with pivot and sliding arm pad)
have a nylon frame, in black, with comfort polyurethane arm pads.
• Fixed polypropylene armrests come in the same color as the mesh or polypropylene
backrest.
• The Zero7 comes standard with a synchro tilting mechanism which uses a multiblock system with several locking position.
• Swivel and seat height adjustment is obtained by a pneumatic gas cylinder
• 5-Star, nylon base reinforced with fiberglass in black.
• Carpet twin wheel-casters.
• Meets safety and performance standards of ANSI/BIFMA x 5.1-2010.
• Available in all standard Borgo fabric, leather, vinyl, as well as COM & COL.
OPTIONS
• Upholstered Polypropylene Back Panel*:
Black, White, & Gray
• Mesh Back*:
Black, White, & Gray.
• Polypropylene Back*:
Black, White, & Gray.
• Synchro control with sliding seat pan.
• Simple height adjustment only control.
• Mirco-Springs Comfort Seat with stitch
seams, puts tiny springs inside beneath the
seat cushion offering optimal support and
comfor t.
• 5-Star chrome-plated base.
• Various casters and pneumatic gas cylinder
options available.
*Polypropylene seat pan and fixed arms will
always match the color mesh or polypropylene
back rest.

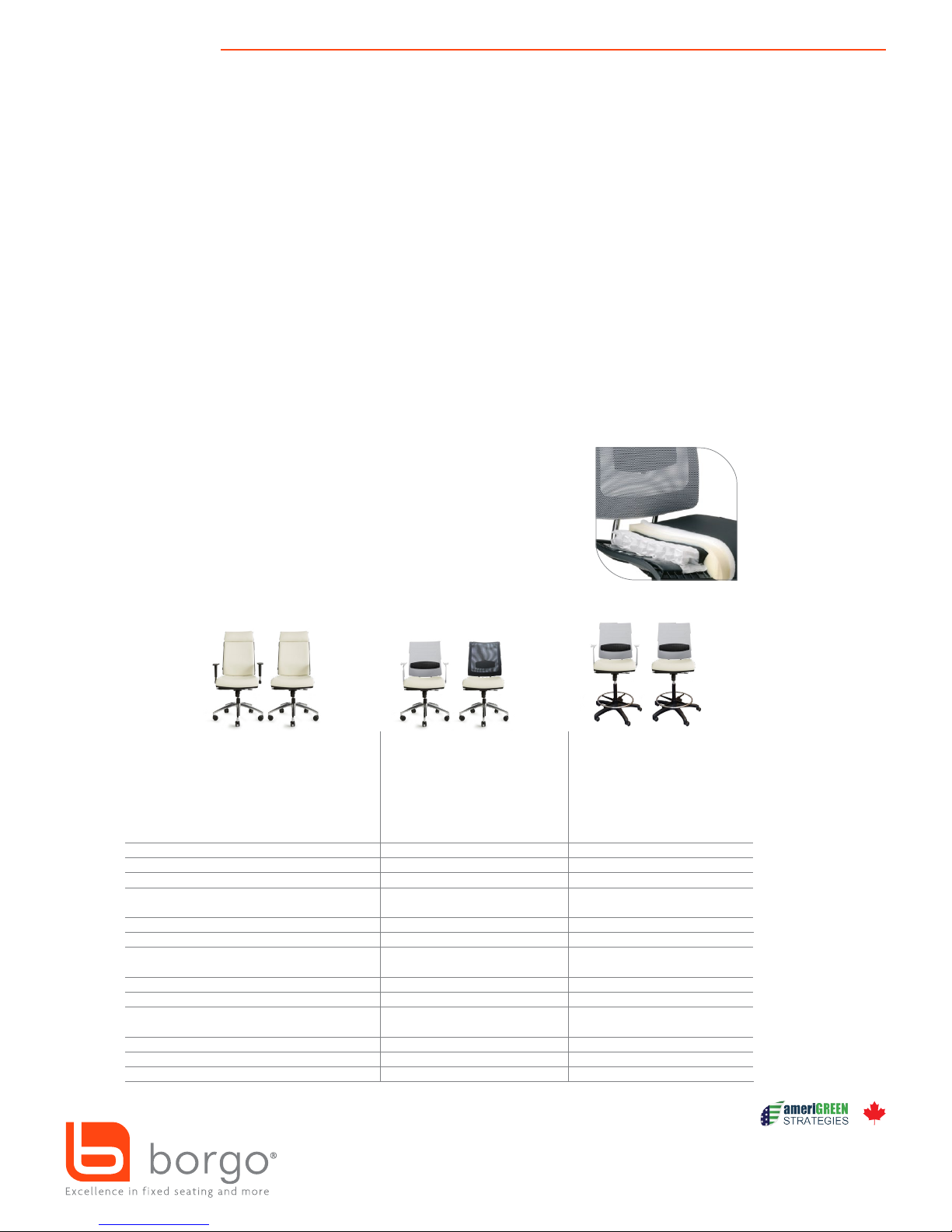

Micro-Spring
Comfort Seat
7213 Adjustable Arms
7219 Fixed Arms
7211 Armless
High Back
Max Height: 42.5-47.5” 1080-1210 mm
Max Width: 24.5” 620 mm
Armless Width: 23.5” 600 mm
Max Depth: 21.25” 540 mm
Adj Arm H: 24.5-31.5” 622-800 mm
Fixed Arm H: 24.75-32” 630-815 mm
Back Height: 25.5” 650 mm
Seat Height: 16.5-22” 430 -560 mm
Seat Width: 20” 510 mm
Seat Depth: 17” 430 mm
Wt/Chair: 43 lbs. 19 kg
Volume: 19 ft3 0.54 m
COM Fabric: 1.5 yd 1.38 m
Per Carton: 1
3
7233 Adjustable Arms
7239 Fixed Arms
7231 Armless
Mid Back
37.5-42.25” 950-1080 mm
24.5” 620 mm
23.5” 600 mm
21.25” 540 mm
24.5-31.5” 622-800 mm
24.75-32” 630-815 mm
20.5” 520 mm
16.5-22” 430-560 mm
20” 510 mm
17” 430 mm
39 lbs. 18 kg
19 ft3 0.54 m
1.25 yd 1.0 m
2
3
7233S Adjustable Arms
7239S Fixed Arms
7231S Armless
Drafting Stool
44.25-54.25” 1125-1380 mm
25.5” 650 mm
23.5” 600 mm
21.25” 540 mm
31.5-46.5” 800-1180 mm
32.25-42.5” 820-1080 mm
20.5” 520 mm
20.5-32.5” 520-825 mm
20” 510 mm
17” 430 mm
44 lbs. 20 kg
19 ft3 0.53 m
1.25 yd 1.0 m
1
ISO 9001:2008
324 Carlingview Drive Toronto, Ontario M9W 5G5
3
certified
Borgo Contract Seating
www.borgo.com | [email protected]
T. 416 679.8133 | Toll Free. 1 888 312.6746
© Borgo Contract Seating - A ugust 26, 2015 4:3 8 PM
