Page 1
2
1
99 11/16
B
6
1
6
1
/
6
6
B B
1
/
1
2
5
9
1
/
9
3
3
1
2
4
/
3
4
3
4
/
1
5
1
15 1/2
/
3
3
3
6
0
2
8
1
/
5
2
5
7
3
2 7/8
Power
B
Drain
43 1/2
52 1/16
SECTION B-B
Refrigeration
NOTES:
1. OPTIONS NOT SHOWN ON DRAWING SHOULD BE LISTED IN WRITTEN
PROPOSAL AND LISTED ON PURCHASE ORDER.
CASE SPECIFICATIONS:
REFRIGERATION
LOAD: 9,160 BTU/hr
SUCTION TEMP: 20ยบ F
LIQUID LINE: 3/8IN ODS
SUCTION LINE: 5/8IN ODS
ELECTRICAL 115VAC, 60HZ, 1PH.
A A
EVAP. FANS: 2.54A, MCA 15A
LIGHT BALLAST: 1.5A, MCA 15A
ADDITIONAL CONECTIONS FOR:
LIQUID LINE SOLENOID VALVE
DISCHARGE AIR PROBE
REAR FAN CONTROL RELAY
2
2. ELEC. CONNECTION: 115V/230V, 4x4 SUPPLY BOX AS NEEDED.
3. EXPANSION VALVES: SPORLAN "Q" SERIES STANDARD UNLESS
OTHERWISE SPECIFIED.
4. DEFROST CONTROL: REMOTE CASES (N/A, DIGITAL CASE
CONTROLERS AVAILABLE), OPTIONAL CONDENSING UNIT (DIGITAL
CASE CONTROLER).
5. THERMOSTATS & LIQUID LINE SOLENOID VALVES: OPTIONAL.
6. DRAIN: 1 1/2 INCH PVC.
7. SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
Borgen Systems
1901 Bell Avenue, Suite 2
Des Moines. IA 50315
www.borgensystems.com
DATE:
2/17/2005
DRAWN BY:
DWT

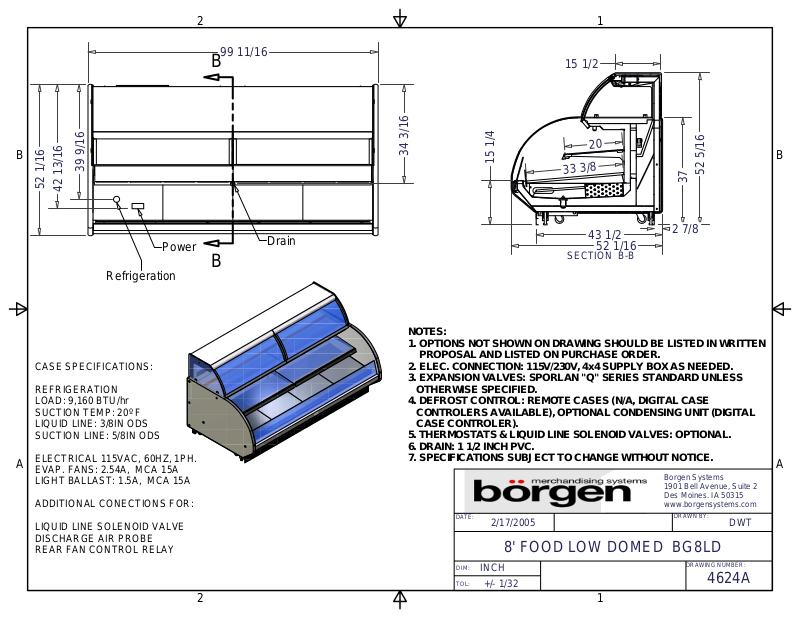

8' FOOD LOW DOMED BG8LD
DIM:
TOL:
INCH
+/- 1/32
1
DRAWING NUMBER:
4624A
