Instructions for the Pion
eer Co
t
/
Bed
*IMPORTANT-RETAIN FOR FUTURE REF
ERENCE*
27-37 Vallance Street
St.Marys NSW
2760 Australia
Ph: 02 9833 3769
Fax: 02
9673 4240
Drop Si
de
Fixed Side
2 Allen Keys
Drop side
glide pins
Capping nuts
Connecting bolts
Connecting bolts
80
mm
2 End Panels (ldentical)
Glide Pin Holes
Top Hole
(For high base position
)
Bottom Hol
e
(For low base position)
70mm
(for fixed side only)
Connecting bolts
(for base only)
4 x
40mm

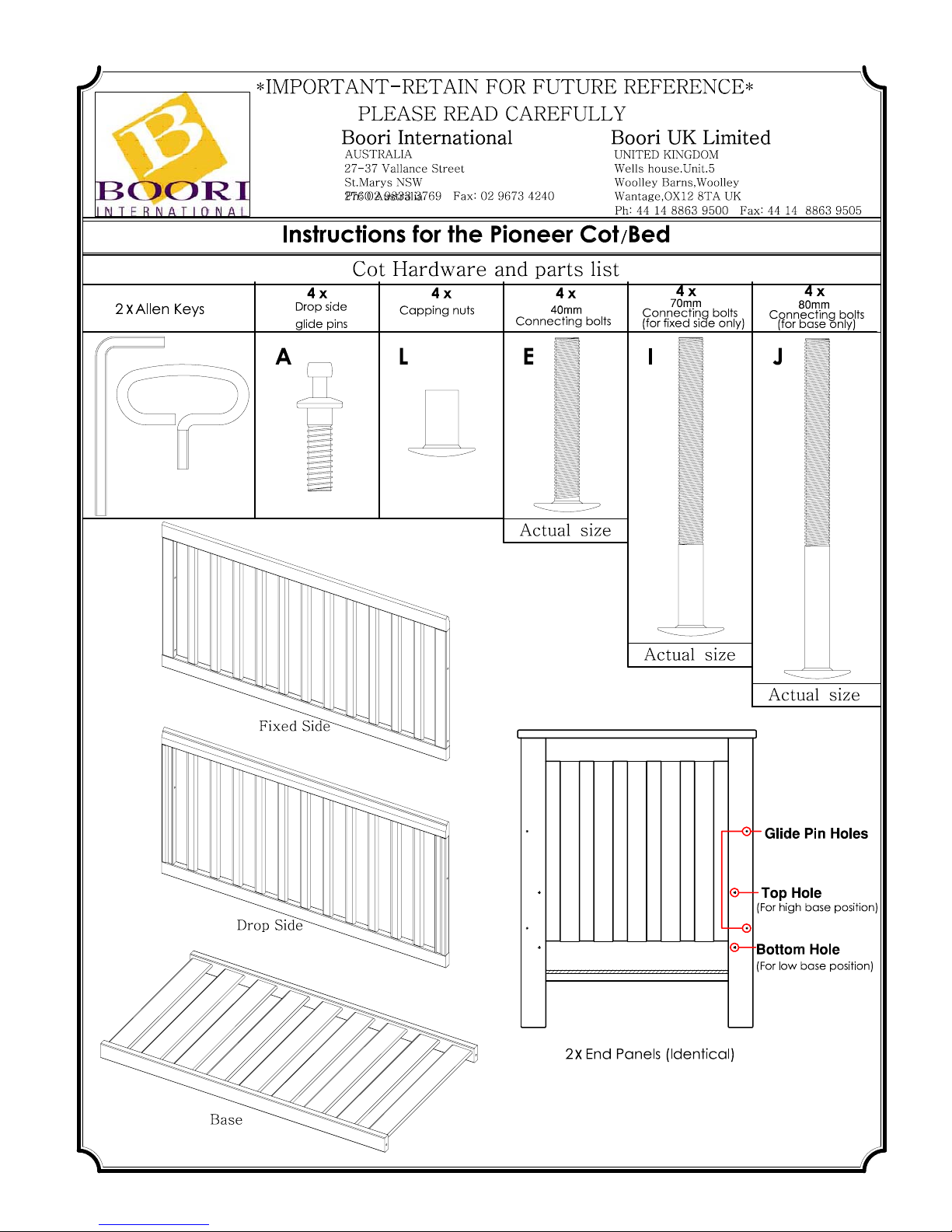

Cot Hardware and parts list
Bas
e
Actua
l
size
Actua
l
siz
e
Actua
l
siz
e
I
E
L
A
J
Boori Internationa
l
PLEASE READ CAREFULL
Y
AUSTRALIA
Wells house.Unit.5
Woolley Barns,Woolley
Wantage,OX12 8TA U
K
Ph: 44 14 8863 9500
Fax: 44 14
8863 9505
Boori UK Limit
ed
UNITED KINGDOM
4 x
4 x
4 x
4 x
87
0
1
0
84
845
7
1
3
1
0
55
42

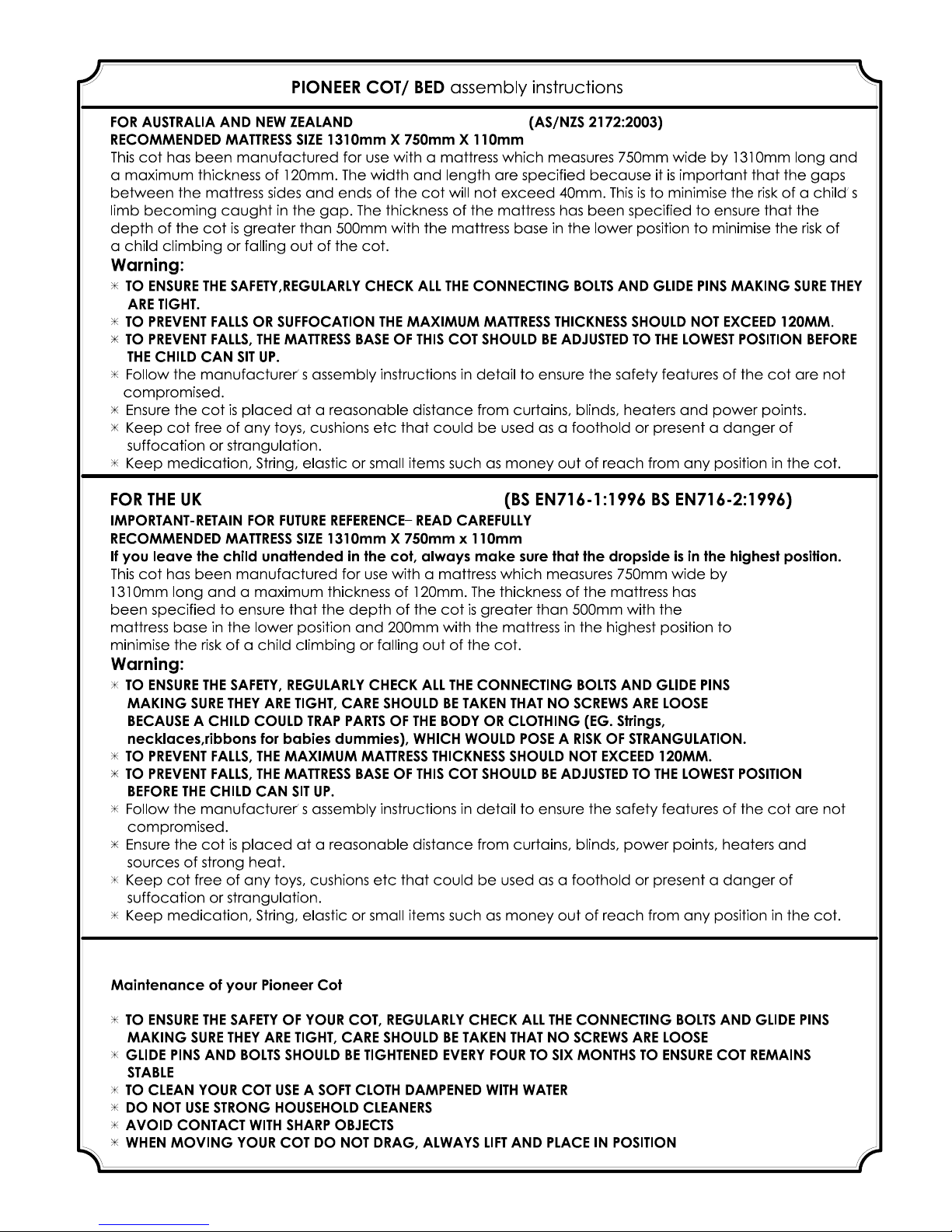

FOR AUSTRALIA AND NEW ZEALAND
(AS/NZS 2172:2003
)
RECOMMENDED MATTRESS SIZE
1310mm X
750mm X
110
mm
This cot has been manufactured for use with a mattress which measures
750mm wide by
1310mm long and
a maximum thickness of 120mm. The width and length are specified because it is important that the gaps
between the mattress sides and ends of the cot w
ill not exceed 40mm. This is to minimise the risk of a child
'
s
limb becoming caught in the gap. The thickness of the mattress has been specified to ensure that th
e
depth of the cot is greater than
500mm with the mattress base in the lower position to minimise the risk of
a child climbing or falling out of the cot.
Warning
:
*
TO ENSURE THE SAFETY,REGULARLY CHECK ALL THE CONNECTING BOLTS AND GLIDE PINS MAKING SURE THEY
ARE TIGHT.
*
TO PREVENT FALLS OR SUFFOCATION THE MAXIMUM MATTRESS THICKNESS SHOULD NOT EXCEED
120
MM
.
*
TO PREVENT FALLS, THE MATTRESS BASE OF THIS COT SHOULD BE ADJUSTED TO THE LOWEST POSITION BEFOR
E
THE CHILD CAN SIT UP.
*
Follow the manufacturer
'
s assembly instructions in detail to ensure the safety features of the cot are no
t
compromised.
*
Ensure the cot is placed at a reasonable distance from curtains, blinds, heaters and power points
.
*
Keep cot free of any toys, cushions etc that could be used as a foothold or present a danger o
f
suffocation or strangulation.
*
Keep medication, String, elastic or small items such as money out of reach from any position in the cot.
FOR THE U
K
(BS EN716-1:1996 BS EN
716-2:1996
)
IMPORTANT-RETAIN FOR FUTURE REFERENC
E
-
READ CAREFULLY
RECOMMENDED MATTRESS SIZE
1310mm X
750mm x
110
mm
If you leave the child unattended in the cot, always make sure that the dropside is in the highest position.
This cot has been manufactured for use with a mattress which measures
750mm wide b
y
1310mm long and a maximum thickness of 120mm. The thickness of the mattress has
been specified to ensure that the depth of the cot is greater than 500mm with the
mattress base in the lower position and 200mm with the mattress in the highest position to
minimise the risk of a child climbing or fa
lling out of the cot.
Warning
:
*
TO ENSURE THE SAFETY, REGULARLY CHECK ALL THE CONNECTING BOLTS AND GLIDE PINS
MAKING SURE THEY ARE TIGHT, CARE SHOULD BE TAKEN THAT NO SCREWS ARE LOOSE
BECAUSE A CHILD COULD TRAP PARTS OF THE BODY OR CLOTHING (EG. Strings,
necklaces,ribbons for babies dummies), WHICH WOULD POSE A RISK OF STRANGULATION
.
*
TO PREVENT FALLS, THE MAXIMUM MATTRESS THICKNESS SHOULD NOT EXCEED 120MM.
*
TO PREVENT FALLS, THE MATTRESS BASE OF THIS COT SHOULD BE ADJUSTED TO THE LOWEST POSITION
BEFORE THE CHILD CAN SIT UP.
*
Follow the manufacturer
'
s assembly instructions in detail to ensure the safety features of the cot are no
t
compromised.
*
Ensure the cot is placed at a reasonable distance from curtains, blinds, power points, heaters and
sources of strong heat
.
*
Keep cot free of any toys, cushions etc that could be used as a foothold or present a danger o
f
suffocation or strangulation.
*
Keep medication, String, elastic or small items such as money out of reach from any position in the cot.
Maintenance of your Pioneer Co
t
*
TO ENSURE THE SAFETY OF YOUR COT, REGULARLY CHECK ALL THE CONNECTING BOLTS AND GLIDE PINS
MAKING SURE THEY ARE TIGHT, CARE SHOULD BE TAKEN THAT NO SCREWS ARE LOOSE
*
GLIDE PINS AND BOLTS SHOULD BE TIGHTENED EVERY FOUR TO SIX MONTHS TO ENSURE COT REMAIN
S
STABLE
*
TO CLEAN YOUR COT USE A SOFT CLOTH DAMPENED WITH WATER
*
DO NOT USE STRONG HOUSEHOLD CLEANERS
*
AVOID CONTACT WITH SHARP OBJECT
S
*
WHEN MOVING YOUR COT DO NOT DRAG, ALWAYS LIFT AND PLACE IN POSITION
PIONEER COT/ BED
assembly instruction
s
