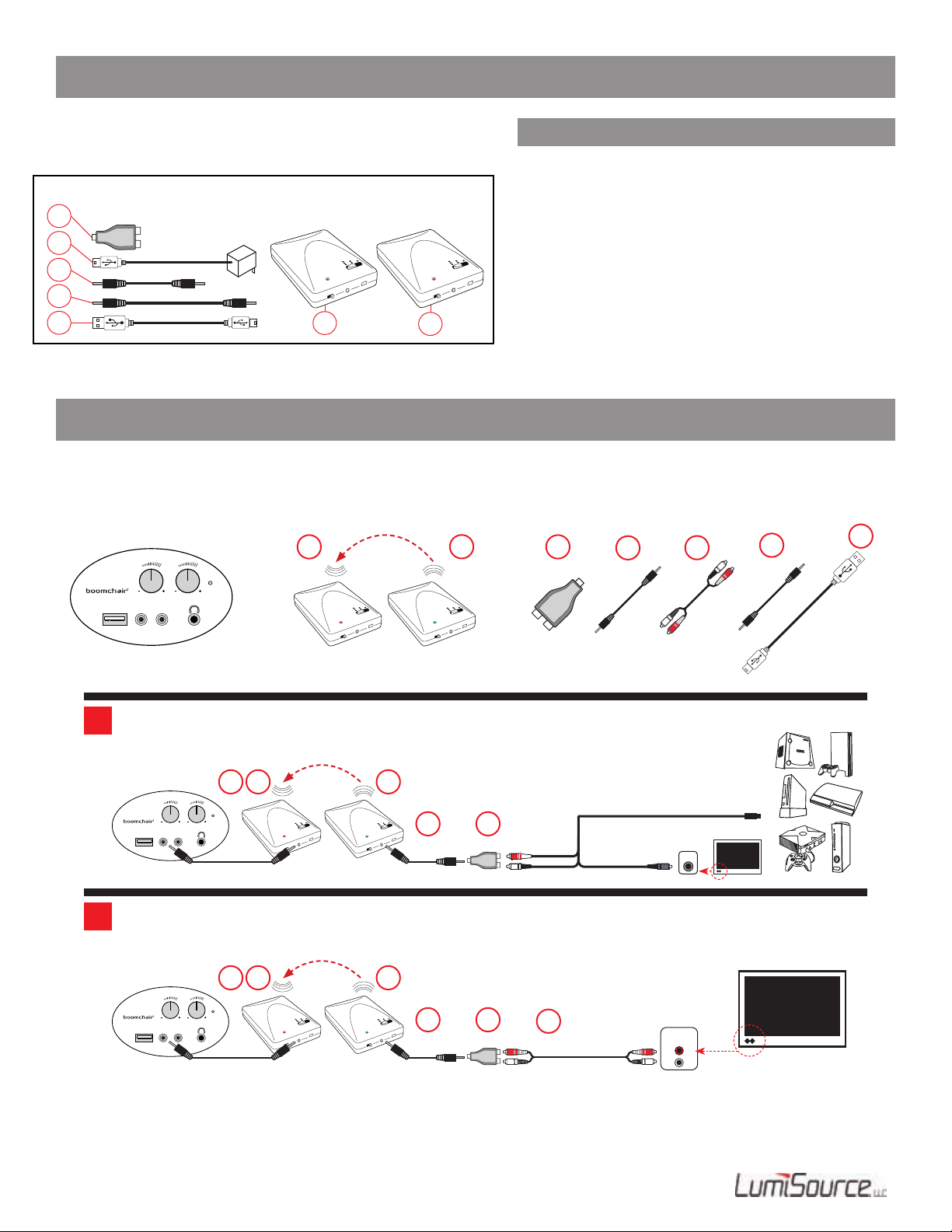

WIRELESS KIT SET-UP GUIDE
The BOOMCHAIR® Wireless Kit comes with the following:
PARTS LIST:
Wireless Kit*
W1)* WIRELESS TRANSMITTER
W3
W4
W5
W6
W7
Wireless Kit
TRANSMITTER
W1
RECEIVER
W2
W2)* WIRELESS RECEIVER
W3)* Y - ADAPTOR
W4)* 5VDC MINI USB POWER ADAPTOR
W5)* 1/8 in. (3.5mm) AUDIO CORD - SHORT
W6)* 1/8 in. (3.5mm) AUDIO CORD - LONG
W7)* USB TO MINI USB POWER CORD
d imensions: 5 in. L x 3.375 in. W x 1.375 in. H 12.7 cm. L x 8.6 cm. W x 3.5 cm. H
CONNECTING YOUR GAMES, MUSIC and MOVIES
WIRELESS CONNECTION
W1
W2
2a
2b
2c
W6
W7
BASS/TREBLE VOLUME
INPUT OUTPUT
BASS/TREBLE VOLUME
INPUT OUTPUT
POWER
2b
W1 W2
POWER
2b
POWER
RECEIVER
W1 W2
RECEIVER
USB CHARGING PORT
BASS/TREBLE VOLUME
INPUT OUTPUT
CONNECTING GAME CONSOLES
1
USB CHARGING PORT
CONNECTING TV / DVD
2
USB CHARGING PORT
RECEIVER
TRANSMITTER
TRANSMITTER
TRANSMITTER
W6
W6
2a
2a
• Cable from game console
2c
AUDIO
OUT
IN
TV
T V
1
1
www.LumiSource.com www.BoomChair.com
CONNECTING YOUR GAMES, MUSIC and MOVIES
CONNECTING HANDHELD / MP3 / PORTABLE DEVICES
3
2b
W1 W2
BASS/TREBLE VOLUME
USB CHARGING PORT
INPUT OUTPUT
CONNECTING WHILE USING yOUR HDMI CABLE
4
POWER
2b
USB CHARGING PORT
BASS/TREBLE VOLUME
INPUT OUTPUT
POWER
RECEIVER
TRANSMITTER
W1 W2
RECEIVER
TRANSMITTER
W6
W6
DASHBOARD CONTROL PANEL
2a
2c
AUDIO
OUT
T V
HDMI
IN
HEADPHONE
• HDMI cable
not included
HDMI
OUT
USB CHARGING PORT
BASS/TREBLE VOLUME
INPUT OUTPUT
BASE/TREBLE
POWER SWITCH / VOLUME CONTROL
LED POWER INDICATOR
POWER
HEADPHONE JACK
RCA AUDIO OUTPUT
RCA AUDIO INPUT
USB POWER PORT
2
WIRELESS KIT CONNECTION TIPS
Assembly
• Battery Power - Both the WIRELESS TRANSMITTER (W1) and the
WIRELESS RECEIVER (W2) have battery compartments, requiring
4AA batteries each, for a wire free experience.
• Electrical Power - Use provided 5VDC MINI USB POWER ADAPTOR
(W4) and USB TO MINI USB POWER CORD (W7) for power.
WIRELESS TRANSMITTER (W1) can be powered using the 5VDC
MINI USB POWER ADAPTOR (W4). The WIRELESS RECEIVER
(W2) can be powered using the USB TO MINI USB POWER CORD
(W7) by connecting to the USB POWER PORT of your BoomChair®.
Operation
• Turn WIRELESS TRANSMITTER (W1) and WIRELESS RECEIVER
(W2) On/Off using power switch.
• To operate, switch the channel on the WIRELESS
TRANSMITTER (W1) & WIRELESS RECEIVER (W2) to a
corresponding number of dots using the slider bar (Fig. 1).
that all cables are securely connected.
If you experience static or poor reception from your wireless connection,
you may need to select the direct connection method to ensure the best
possible sound quality.
Fig. 1
RECEIVER
TRANSMITTER
Fig. 2
Channel
Selector
DAISY CHAINING CHAIRS TOGETHER
DIRECT CONNECTION
Step 1: BOOMCHAIR® to any media device using the Direct Connection method as described on page 5.
Channel
Selector
LED Power
Indicator
Power Port
Audio Port
Power Switch
Battery
Compartment
Step 2:
BOOMCHAIR
Step 3: Connect other end of 1/8 in. (3.5mm) AUDIO CORD (2b) into INPUT of second BOOMCHAIR
®
Step 4: Repeat steps 2 and 3 starting from second chair to connect more BOOMCHAIRS
®
Step 5: Turn all BOOMCHAIRS
Up to 4 BOOMCHAIRS
on by turning POWER SWITCH / VOLUME CONTROL clockwise.
®
can be connected when using the direct connection method.
FIRST CHAIR:
Connected to Media Device
.
®
.
®
.
2b
Media Device
WIRELESS CONNECTION
Step 1: Connect BOOMCHAIR® to any media device using the Wireless Method as described on page 6.
SECOND CHAIR
Connected to First Chair
INPUT OUTPUTINPUT OUTPUT
Step 2: Repeat Steps 2 through 4 of the Direct Connection method to connect more BOOMCHAIRS
wirelss switcher number of every BOOMCHAIR
Step 3: Turn all BOOMCHAIRS
Up to 4 BOOMCHAIRS
®
on by turning POWER SWITCH / VOLUME CONTROL clockwise.
®
can be connected using the wireless method.
®
to the corresponding number of dots on the Transmitter.
3
®
. OR, if using wirelessly, change the
TROUBLESHOOTING BOOMCHAIR
®
Q: Why isn’t there sound coming from any of my speakers?
A: Ensure your BoomChair
®
is connected as described in the Assembly Instructions. Check that the power to the unit is on and the
volume is turned up. Make sure your audio device is not set to “MUTE” and volume is turned up.
Q: Where can I get more information?
A: Visit us at www.BoomChair.com or www.LumiSource.com Contact information: LumiSource, LLC. 2950 Old Higgins Road, Elk Grove
Village, IL 60007, E-mail: customerservice@lumisource.com
MAINTENANCE/REPAIR & CLEANING/CARE INSTRUCTIONS
If a problem occurs while using this product, please contact customerservice@lumisource.com. DO NOT open unit or attempt to repair
on your own. It may result in serious injury from electric shock and void your product warranty.
Fabric: Use a clean cloth to dab lightly with soap and water. DO NOT rub. DO NOT immerse in water. DO NOT use detergent.
NOTE: PLEASE DO NOT USE ON HARDWOOD FLOORS, IT MAy CAUSE SCRATCHING.
LUMISOURCE, LLC LIMITED WARRANTY
LIMITED WARRANTY: LumiSource, LLC (“LumiSource”) warrants this product against defects in materials and workmanship for a period
of ninety (90) days from the date of original consumer purchase. If a covered warranty claim is timely made, LumiSource, LLC will, at
its sole discretion: (a) repair the product, using new and/or refurbished replacement parts or (b) replace the product with an identical (or
comparable) product, without charge to you other than the initial shipping cost to return the product. LumiSource, LLC will only pay return
shipping charges for destinations within the 48 continguous U.S.A., if the returned product is covered by the limited warranty.
WHAT THIS WARRANTY DOES NOT COVER: This warranty does not cover defects resulting from accidents, alterations, unauthorized
WHAT WE ASK YOU TO DO: If there is a covered defect, please write or email us within 90 days of the date of purchase at the address
noted bellow to obtain instructions and authorization to return the product to LumiSource, LLC. You will need to pack the product
securely in packaging providing at least the degree of protection of the original carton and packing materials and ship it to us at your
expense. You will also need to include with the product (a) a copy of your original proof of purchase (retail receipt) showing the date of
purchase and (b) a detailed explanation of the problem(s) requiring service.
TO THE EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE
AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, ORAL OR WRITTEN, EXPRESS OR IMPLIED.
TO THE EXTENT PERMITTED BY LAW, LUMISOURCE, LLC HEREBY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING
WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT
APPLICABLE STATE LAW EXCLUDES SUCH DISCLAIMERS, THEN TO THE EXTENT ALLOWED BY LAW, THE TIME FOR ANY
CLAIMS FOR SUCH IMPLIED WARRANTIES SHALL EXPIRE 90 DAYS FROM THE DATE OF ORIGINAL CONSUMER PURCHASE.
TO THE EXTENT PERMITTED BY LAW, LUMISOURCE, LLC IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO LOSS OF TIME, INCONVENIENCE, LOSS OF USE OF YOUR
PRODUCT, OR PERSONAL INJURY OR PROPERTY DAMAGE, CAUSED BY YOUR PRODUCT OR ITS FAILURE TO WORK.
damages, and applicable law may not permit the exclusion of certain implied warranties. You may also have other rights, which vary,
from state to state.
2950 Old Higgins Road, Elk Grove Village, IL 60007
E-mail: customerservice@lumisource.com
Phone: 1-888-461-5864 (toll free)
Phone: 1-847-699-8988 (international)
www.BoomChair.com • www.LumiSource.com
© 2011 LumiSource, LLC. All rights reserved. BoomChair® AMP2 and the BoomChair® logo are trademarks of LumiSource, LLC. Other trademarks are properties of their respective owners.
The design of this product is a trade dress of LumiSource, LLC. Patents pending. Actual contents may differ slightly from those pictured. Made in China.
Distributed by LumiSource, LLC, 2950 Old Higgins Road, Elk Grove Village, IL 60007. www.lumisource.com.
®
This product is not manufactured or distributed by Microsoft
This product is not manufactured or distributed by Sony
the owner of the trademark Xbox™, This product is not manufactured or distributed by Nintendo® the owner of the trademark GameCube™ and DS™.
®
the owner of the trademark Playstation™ PS3™, PS2™, and PSP™. iPod™ is a registered trademark of Apple Computer, Inc. All Rights Reserved.
4
