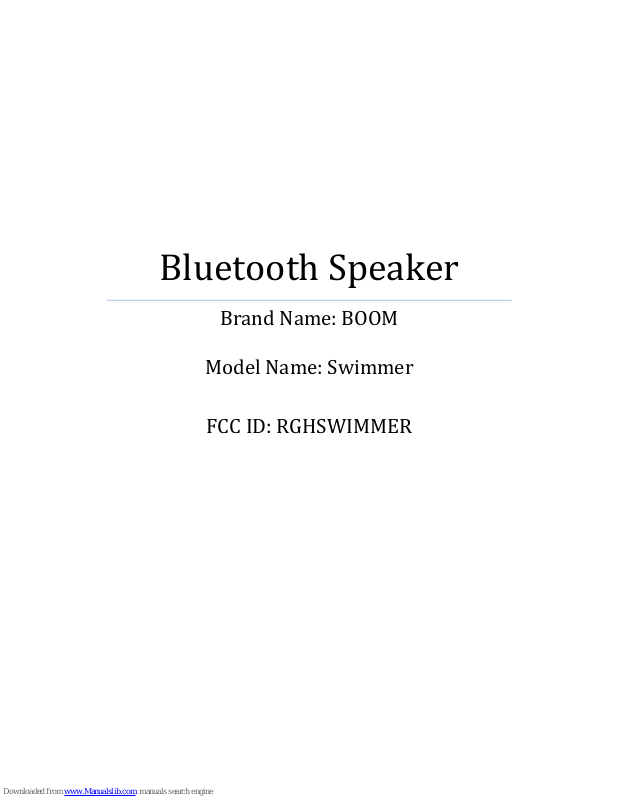

Page 1
Bluetooth Speaker
Brand Name: BOOM
Model Name: Swimmer
FCC ID: RGHSWIMMER
Page 2
User Guide
User Guide
Thank you for purchasing the Swimmer Waterproof Bluetooth Speaker from Boom. This
multi-function Speaker is designed to provide high quality audio Playback from any Bluetooth
enabled Audio Device such as Smartphones, Tablets, Notebooks or MP3 Players.
Please read this user Guide thoroughly before use so that you can understand the setup and
functions.
Package Contents
Please check your Swimmer Bluetooth Speaker package contains the following items
Swimmer Speaker
Line-IN Audio Cable
USB Charging Cable
User Guide
Suction cup
Flexible attachment tail
Product Features
1. ON/OFF
2. LED indicator
3. Previous/VOL+
4. Pairing button
5. Next/VOL-
6. Play/ Pause
7. USB port.
8. 3.5mm audio interface
Page 3
Two way installation
The Swimmer from Boom provides two different attachment methods to suit the
location the Speaker will be used in;
1. Suction cup. The suction cup screws to on the top of the Speaker, then you can attach
the speaker on the glass or other smooth dry surface to use the speaker by pushing
firmly.
2. Flexible attachment Tail. The tail screws on to the the top of the Speaker, then bend or
twist the tail so you can attach the speaker to places such as pipe, bicycle or other similar
positions to use the speaker
Setup
Note: Please fully charge the battery before 1st time use. This can be performed using the
Provided USB Cable and any powered USB Port.
Switch the Swimmer Speaker ON/OFF
Turn the Swimmer ON：Long press the ON/OFF button for 2 seconds to power on, green LED
flashes 3 times quickly with an indication tone “Power On”. Then green LED remians on.
Turn the Swimmer OFF：In the On state, Long press the ON/OFF button for 2 seconds, green
LED flashes 2 times quickly and all LED off with an indication tone“Power off”.
Connecting with Bluetooth
To connect the Swimmer Speaker with Bluetooth enabled device please follow this
procedure;
Ensure the speaker is ON. The LED will flash red and blue alternately
Refer to the operating instruction manual of your Bluetooth device to start the
connection process. Typically, this is performed by going to a “Settings” or “Setup”
Page 4
Menu and then choosing the option to select BOOM Swimmer that will be looking
for a device to connect with.
The device will find the Bluetooth speaker, and ask if you are ready to connect , press
the OK or Confirm to connect.
Note: Some Bluetooth devices may ask for a password or PIN. Enter 0000 and the
Speaker will be connected
Note: If the pairing is unsuccessful, please turn OFF the Swimmer Speaker and then ON
again and repeat the connection procedure.
Description of Swimmer Functions
Music Playback controls
Short press Play/Pause Button to start/pause music
Long press “VOL-” for 3 seconds to skip to the previous song.
Long press “VOL+” for 3 seconds to skip to the next song.
Short press “VOL+” button to increase the volume.
Short press “VOL-” button to decrease the volume
Using the line-IN Function
1. Turn on the power.
2. Plug one end of the Line in cable into the 3.5mm jack, the other end into your audio
equipment.
3. Play and control the music from your audio equipment.
4. Bluetooth priority line in, it will play the line in audio if no bluetooth input
LED Indicator status information
Status
Indicator
Description
Turn on
Green light flashes
3 times quickly
Long press the ON/OFF button for 2 seconds
Turn off
Green light flashes
2 times quickly
Long press the ON/OFF button for 2 seconds
Bluetooth pairing
Blue lights flashes
quickly
Enters into pairing mode with an indication
tone “Pairing”
Bluetooth
connectivity/playback
Blue light flashes
every 7 seconds
Bluetooth not
connected
Blue light flashes
every 5 seconds
Low voltage alert
Red light flashes
with indication
tone
Page 5
Charge
Red light remains
on Charging finish
Red light off
Battery low-voltage alert
The red light flashes every 7 seconds indicate that the battery has run low and needs to
charge as soon as possible.
Battery and Charging Notice
We use rechargeable battery for Swimmer. A normal charging process takes about 1-2 hours.
The red LED will turn ON when charging and will turn OFF when charging is complete.
When the battery is low, the red LED will flashes. Please charge the Speaker at this time.
It is recommended to make sure the Battery has been fully charged and fully released at the
beginning three times of use to ensure the battery the best long life performance.
Always use correct USB Cable to charge the Swimmer Speaker
After finished charging, please remove the cable from the Speaker Do not put the speaker in
charging state for a long time. This will shorten the lifetime of the battery.
Dot not install, place or use the Speaker near any source of heat such as a stove, radiator,
oven, toaster, coffee maker or other apparatus that gives off heat
Safety and General Information
Please read the following information before using this product
Users are not permitted to make changes or modify the product doing so will invalidate your
Warrantee.
1. To avoid electronic interference and/or compatible conflicts, TURN OFF the product in any
facilities where posted notices instruct you to do so. For example: Aircraft, Military Base,
Hospital or Health Care Facilities.
2. To avoid impairing your hearing in the long-term operation, keep the headset volume at a
moderate level.
3. Keep away of fire, and high voltage equipment
4. Follow the charging procedure described in this guide to charge the product.
5. Not suitable for use by very young children
Notice: When using the USB Charging cable or LINE-IN Cable keep the Swimmer away from
water as the connected devices may not be Waterproof and there will be a danger of
damage or Electric shock
Page 6
Important Regulatory Information
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
