Data Sheet

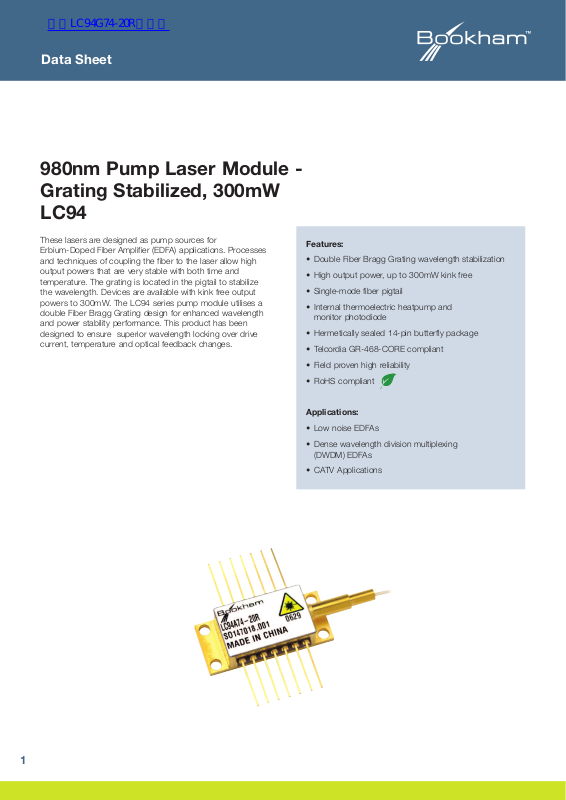

980nm Pump Laser Module Grating Stabilized, 300mW
LC94
These lasers are designed as pump sources for
Erbium-Doped Fiber Amplifier (EDFA) applications. Processes
and techniques of coupling the fiber to the laser allow high
output powers that are very stable with both time and
temperature. The grating is located in the pigtail to stabilize
the wavelength. Devices are available with kink free output
powers to 300mW. The LC94 series pump module utilises a
double Fiber Bragg Grating design for enhanced wavelength
and power stability performance. This product has been
designed to ensure superior wavelength locking over drive
current, temperature and optical feedback changes.
Features:
• Double Fiber Bragg Grating wavelength stabilization
• High output power, up to 300mW kink free
• Single-mode fiber pigtail
• Internal thermoelectric heatpump and
monitor photodiode
• Hermetically sealed 14-pin butterfly package
• Telcordia GR-468-CORE compliant
• Field proven high reliability
• RoHS compliant
Applications:
• Low noise EDFAs
• Dense wavelength division multiplexing
(DWDM) EDFAs
• CATV Applications
1
Page 2
Data Sheet
Characteristics
Conditions unless otherwise stated: Case temperature -20 to +75°C
Submount temperature 25°C
Monitor diode bias -5V
CW operation
Kink-free fiber-coupled output power: LC94ZC74-20R 100mW LC94A74-20R 200mW
avelength = 974nm) LC94ZD74-20R 110mW LC94B74-20R 210mW
(W
LC94ZE74-20R 120mW LC94C74-20R 220mW
LC94ZF74-20R 130mW LC94D74-20R 230mW
LC94ZG74-20R 140mW LC94E74-20R 240mW
LC94ZH74-20R 150mW LC94F74-20R 250mW
LC94ZJ74-20R 160mW LC94G74-20R 260mW
LC94ZK74-20R 170mW LC94H74-20R 270mW
LC94ZL74-20R 180mW LC94J74-20R 280mW
LC94ZM74-20R 190mW LC94K74-20R 290mW
LC94L74-20R 300mW
Parameter Min Typ Max Unit
Threshold current (Ith) 30 40 mA
Operating drive current (I
Forward voltage (V
e wavelength (
Centr
Spectral width (RMS @ -13dB) 0.2 1 nm
um stability (t = 60s) ±0.5 nm
Spectr
Temperature dependence of peak wavelength 0.02 nm/°C
Wavelength tolerance ±0.5 nm
Monitor detector responsivity 1.0 8 25 µA/mW
Monitor dark current 50 nA
mistor resistance (at 25
Ther
Intended laser submount operating temperature 20 25 30 °C
Power stability
Peak-to peak, t = 60s,
DC to 50kHz sampling, T
>20mW
10-20mW 0.1 dB
Laser temperatur
Heatpump current (
2
Heatpump voltage (
e, R = 10k
) ZC thru ZD 250 mA
f
) 1.9 2.5 V
f
λc)
C) 9.5 10 10.5 k
°
= 25°C
C
Ω 23.5
∆T = 50°C, If= 500mA) 1.3 A
∆T = 50°C, If= 500mA) 2.8 V
ZE thru ZF 300 mA
ZG thru ZJ 350 mA
ZK thru ZM 400 mA
A thru B 450 mA
C thru E 500 mA
F thru K 550 mA
L 600 mA
974 nm
0.05
26.5
dB
°
Ω
C
Page 3
Data Sheet
Absolute Maximum Ratings
Parameter Min Max Unit
Operating temperature -20 75 °C
Storage temperature -40 85 °C
Laser forward current 800 mA
Laser r
everse voltage 2 V
Heatpump current 1.8 A
Lead soldering temperature (10s max) 260 °C
Fibre bend radius 30 mm

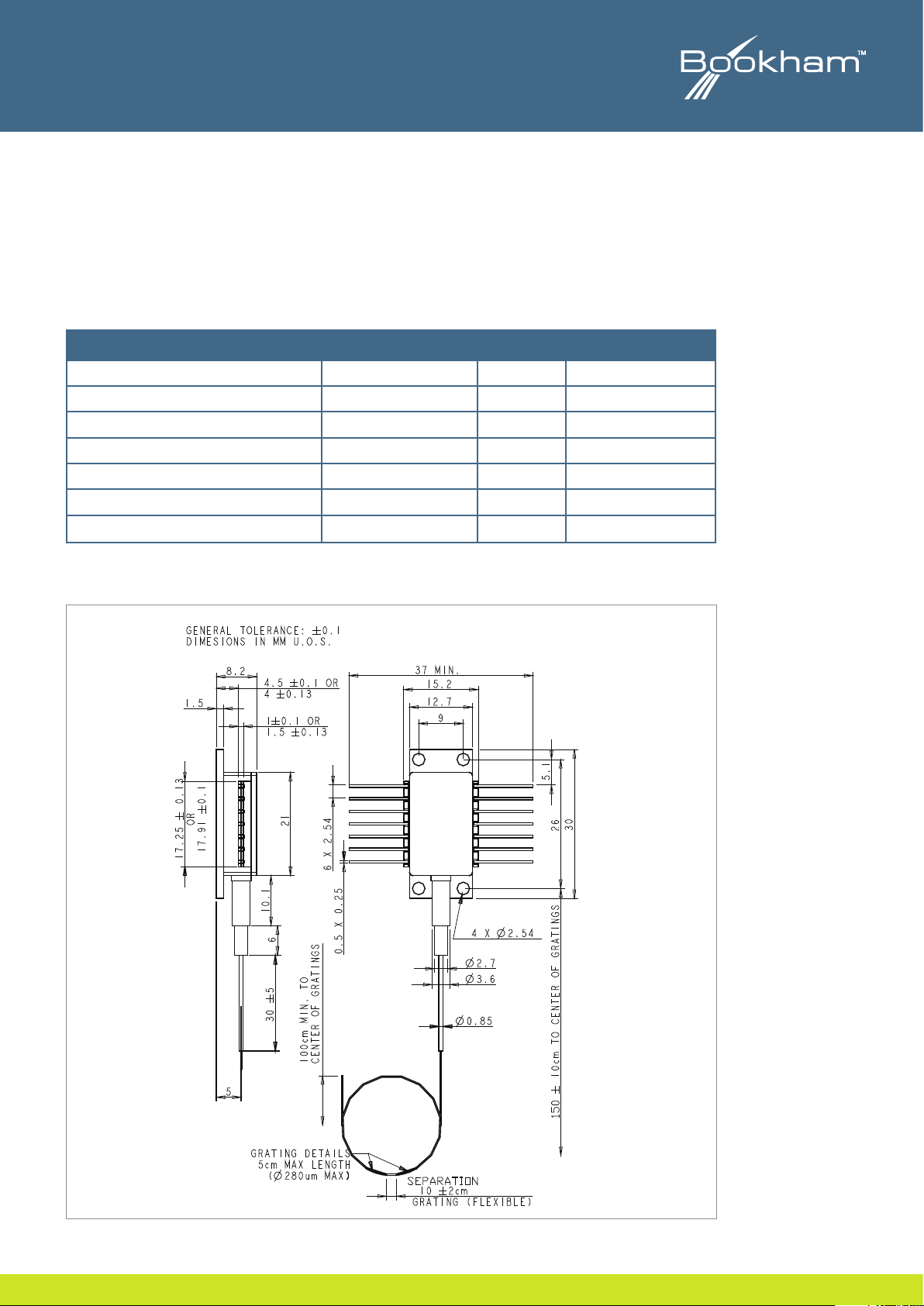

Package Outline Drawing and Dimensions
Fiber Specification
3
emode HI980 or equivalent 250
Pur
m primar
µ
y coated.
Page 4
Data Sheet
7 6 5 4 3 2 1
8 9 10 11 12 13 14

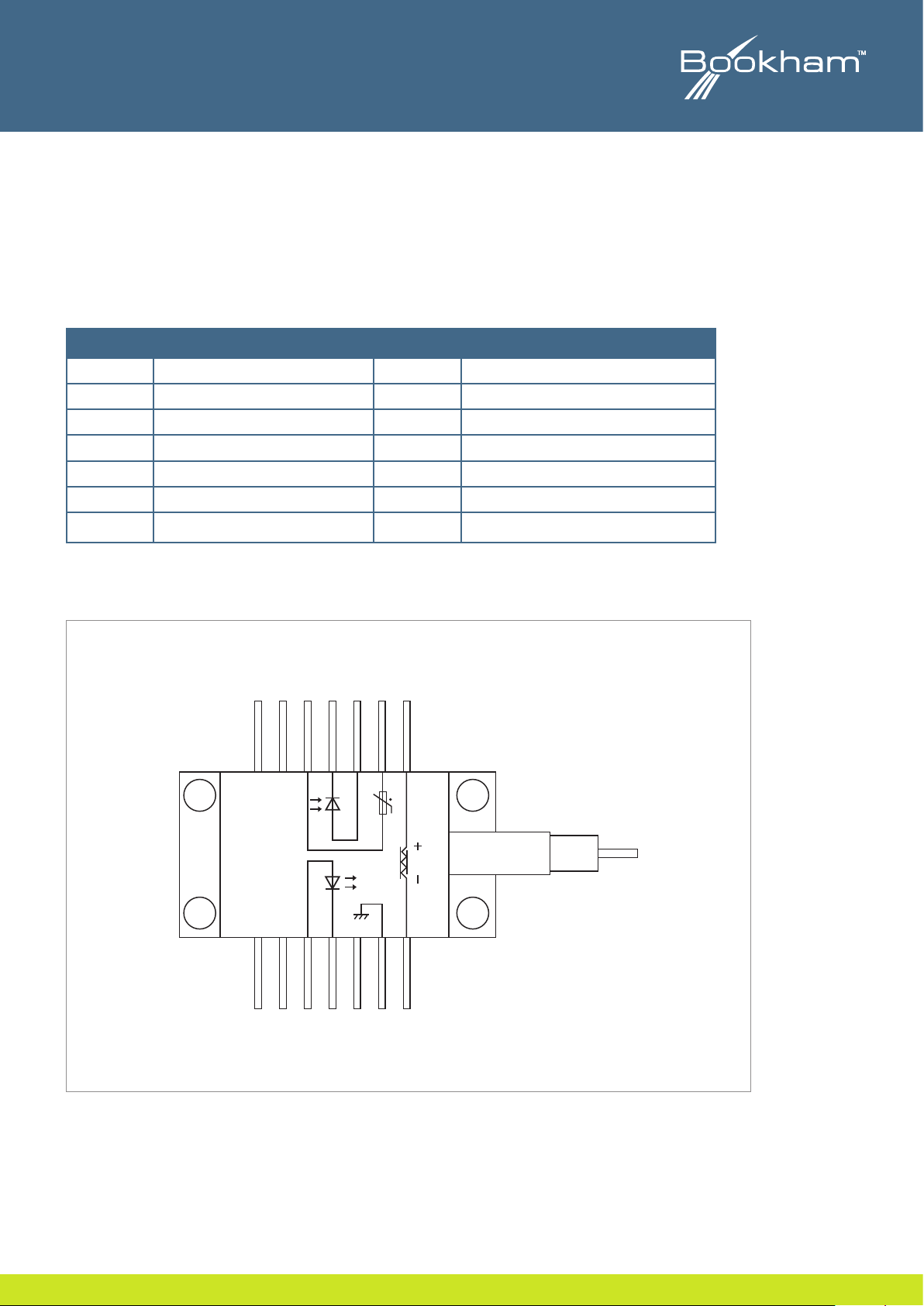

Connections
Pin # Description Pin # Description
1 Peltier cooler (+) 8 Not connected
2 Thermistor 9 Not connected
3 Monitor anode (-) 10 Laser anode (+)
4 Monitor cathode (+) 11 Laser cathode (-)
5 Thermistor 12 Not connected
6 Not connected 13 Case ground
7 Not connected 14 Peltier cooler (-)
4
Page 5
Data Sheet
INVISIBLELASER RADIATION AVOIDDIRECT EXPOSURE TO BEAM
MAX POWER < 490mW
WAVELENGTH > 970nm
CLASS IIIb LASER PRODUCT
THIS PRODUCTCOMPLIES WITH 21CFR 1040.10
RoHS Compliance
Bookham is fully committed to environment
protection and sustainable development and has
set in place a comprehensive program for
removing polluting and hazardous substances from
all of its products. The relevant evidence of RoHS
compliance is held as part of our controlled
documentation for each of our compliant products.
RoHS compliance parts are available to order,
please refer to the ordering information section for
further details.
Contact Information
North America
Bookham Worldwide
Headquarters
2584 Junction A
ve.
San Jose
CA 95134
USA
+1 408 919 1500
el:
• T
+1 408 919 6083
• Fax:
www.bookham.com
[email protected]
Europe
Paignton Office
Brixham Road
Paignton
Devon
TQ4 7BE
United Kingdom
el:
• T
• Fax:
Ordering Information:
LC94ZC74-20R for 100mW device LC94A74-20R for 200mW device
LC94ZD74-20R for 110mW device LC94B74-20R for 210mW device
LC94ZE74-20R for 120mW device LC94C74-20R for 220mW device
LC94ZF74-20R for 130mW device LC94D74-20R for 230mW device
LC94ZG74-20R for 140mW device LC94E74-20R for 240mW device
LC94ZH74-20R for 150mW device LC94F74-20R for 250mW device
LC94ZJ74-20R for 160mW device
LC94ZK74-20R for 170mW device LC94H74-20R for 270mW device
LC94ZL74-20R for 180mW device LC94J74-20R for 280mW device
LC94ZM74-20R for 190mW device LC94K74-20R for 290mW device
+44 (0) 1803 66 2000
+44 (0) 1803 66 2801
Asia
Shenzhen Office
2 Phoenix Road
rade Zone
Futian Fr
ee T
Shenzhen 518038
China
• Tel: +86 755 33305888
+86 755 33305805
• Fax:
+86 755 33305807
LC94G74-20R for 260mW device
LC94L74-20R for 300mW device
Important Notice
formance figures, data and any illustrative material
Per
ovided in this data sheet are typical and must be
pr
specifically confir
they become applicable to any par
contract. In accordance with the Bookham policy of
continuous improvement specifications may change
without notice. The publication of information in this
data sheet does not imply freedom from patent or other
protective rights of Bookham or others. Further details
are available from any Bookham sales representative.
med in writing by Bookham before
ticular order or
5
INVISIBLE LASER RADIATION
AVOID EXPOSURE TO BEAM
CLASS 3B PRODUCT
Maximum Power <490mW
Wavelength >970nm
REFERENCE IEC 60825-Edition 1.2
ISO14001:1996
EMS 504193
TL9000 Rev 3.0 (ISO9001:2000)
FM15040
©Bookham 2006. Bookham is a registered trademark of Bookham Inc.
BH12841 Rev 1.0 November 2006
