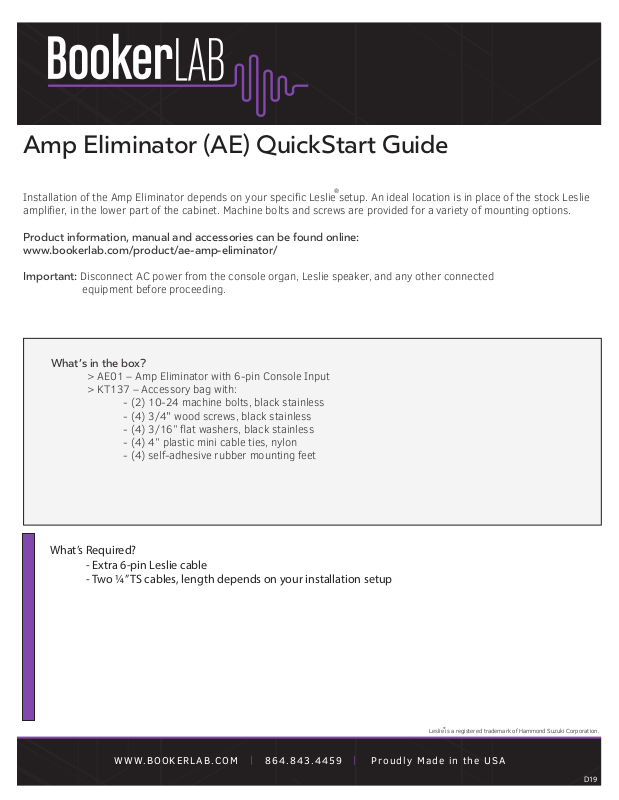

Amp Eliminator (AE) QuickStart Guide
Installation of the Amp Eliminator depends on your specific Leslie setup. An ideal location is in place of the stock Leslie
®
amplifier, in the lower part of the cabinet. Machine bolts and screws are provided for a variety of mounting options.
Product information, manual and accessories can be found online:
www.bookerlab.com/product/ae-amp-eliminator/
Important: Disconnect AC power from the console organ, Leslie speaker, and any other connected
equipment before proceeding.
What’s in the box?
> AE01 – Amp Eliminator with 6-pin Console Input
> KT137 – Accessory bag with:
- (2) 10-24 machine bolts, black stainless
- (4) 3/4" wood screws, black stainless
- (4) 3/16” flat washers, black stainless
- (4) 4” plastic mini cable ties, nylon
- (4) self-adhesive rubber mounting feet
What’s Required?
- Extra 6-pin Leslie cable
- Two ¼” TS cables, length depends on your installation setup
WWW. BOOKERLAB.COM | 864.843.4459 Proudly Made in the USA|
®
Leslie is a registered trademark of Hammond Suzuki Corporation.
D19
Page 2
Amp Eliminator (AE) QuickStart Guide
Important: Disconnect AC power from the console organ, Leslie speaker, and any other connected
equipment before proceeding.

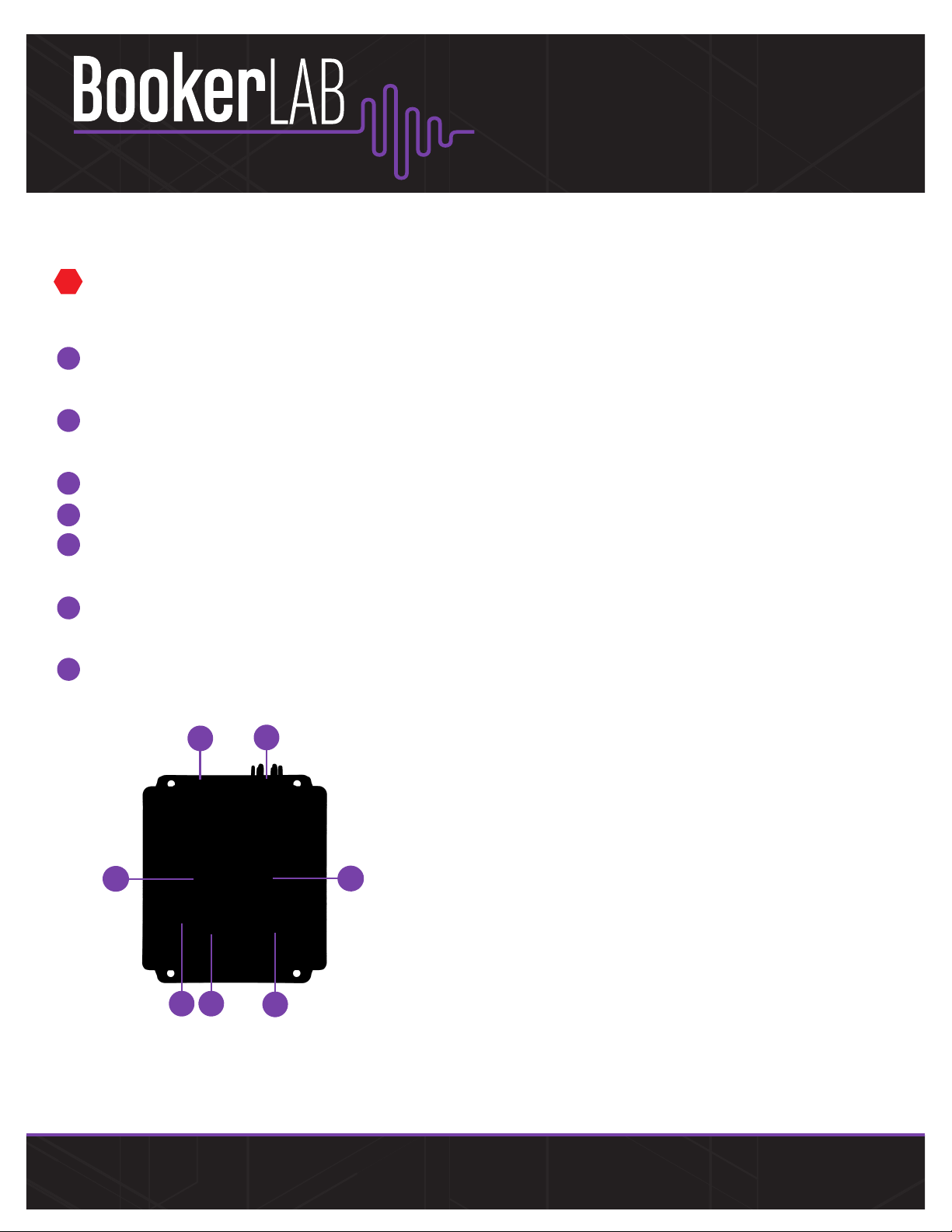

Amp Eliminator Connectors
1
Change the 122/147 selection switch to match your console organ wiring for either a Leslie 122 or Leslie 147
speaker (This switch properly grounds the 122 and reduces “hum”.)
2
Connect audio signal To Amp of choice using the To Amp output jack and ¼” TS cable – make sure volume on
amp is turned all the way down
Connect speaker audio signal From Amp to input jack using a ¼” TS cable
3
Connect 2-pin speaker/crossover connector from Leslie to Speaker connector
4
5
Plug external amplifier (100W max) into Amplier Power (3 prong, grounded) AC outlet, or other
suitable power source
Connect the console organ to the 6-pin Input connector – the AE receives AC power and audio signal from the
6
console organ on this cable
7
(Optional) Accessory AC outlet (2 prong polarized) can be used to power the BookerLAB Vintage
Motor Controller, or similar motor controller accessory
5
7
1
2
Connect AC power to console organ and any other connected equipment and test.
Slowly increase volume to desired level while playing. Enjoy!
Congratulations! Your Leslie speaker is now driven by your non-Leslie amplifier.
6
4
3
®
Leslie is a registered trademark of Hammond Suzuki Corporation.
