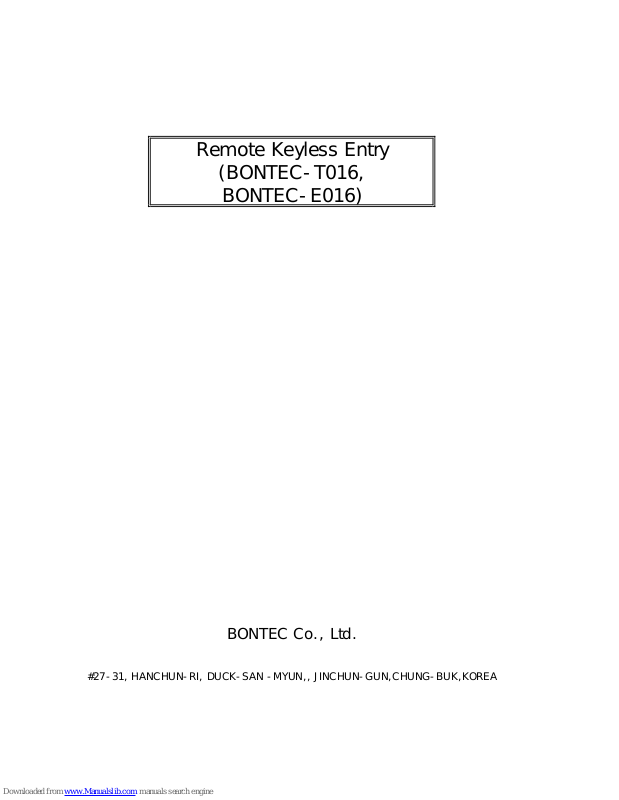

Page 1
BONTEC Co., Ltd.
#27-31, HANCHUN-RI, DUCK-SAN -MYUN,, JINCHUN-GUN,CHUNG-BUK,KOREA
Remote Keyless Entry
(BONTEC-T016,
BONTEC-E016)
Page 2
FCC COMPLIANCE STATEMENT
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC FULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION;
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED
OPERATION.
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Page 3
USER MANUAL
NAME: REMOTE KEYLESS ENTRY SYSTEM
This RKE S
y
stem is to be installed on motor vehicles as OE (Origianal Equipment) item
It is intended for auto-locking/unlocking of the door
SYSTEM CONSTRUCTION
SYSTEM IN VEHICLE
Antenna
Door actuator
LOCK UnLock
Button Button
B/Glass Panic
Button Signal
Button
12V
ETACS
Page 4
OPERATING SUMMARY
1. By the driver of the vehicle, TRNSMITTER's button is pushed.
2. TRANSMITTER sends appropriate CODE by RF frequency.
3. ETACS gets the code and decodes it.
4. When Rx proves it to be the right code, ETACS control Door relay
5. ETACS receive it, and drive the actuator.
The system has the function as follow:
- Whenever DATA is sended to ETACS, LED is turned 'ON'.
1) LOCK & UNLOCK
If LOCK or UNLOCK button is pushed for less than 1 sec, then
TRANSMITTER sends the LOCK or UNLOCK DATA.
2) REAR GLASS OPEN
IF REAR GLASS OPEN button is pushed for less than 1 sec, then
TRANSMITTER sends the Rear Glass open data
3) PANIC
If PANIC button is pushed for more than 2 sec, then
TRANSMITTER sends the PANIC (Burglar alarm)
Page 5

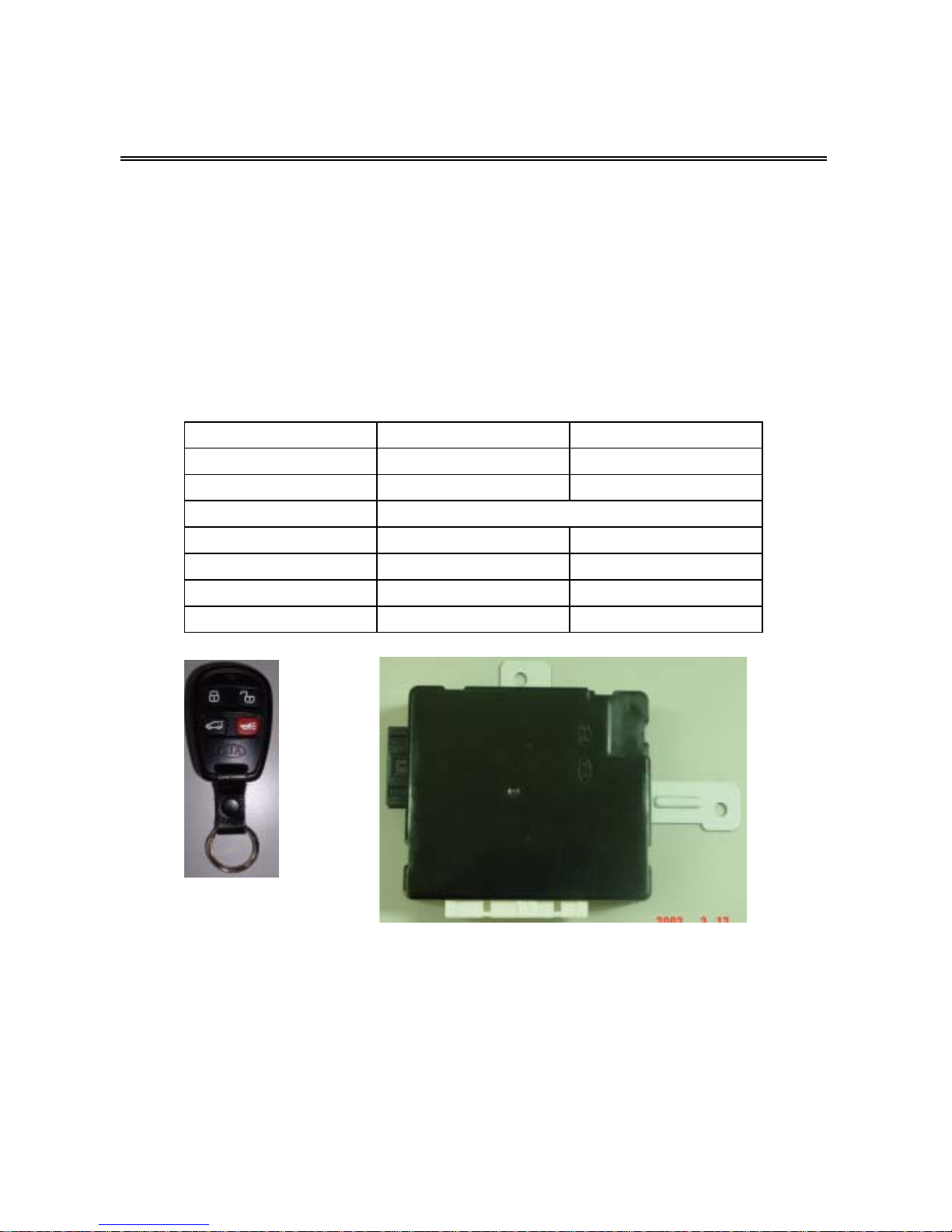

1. PRIMARY FUNTION
- Remeto door lock/unlock/Back Glass Open/Panic
- LED turn on ( When the lock/unlock/B.G.O/Panic button is pushed )
- Operating distance : 7~ 10 m
2. ELECTRICAL CHARACTERISTICS
Sensitivity - -105dBm(typical)
TRANSMITTER ETACS
Consumption current Max 20mA Max 5.5mA
Operating frequency
Power 10mW under -
315㎒
etc AM modulation Super-heterodyne
Description of Transmitter and ETACS
Operating voltage 3 VDC 10 ~ 16 VDC
Operating temperature -20 ~ +60℃ -30 ~ +80℃
Page 6

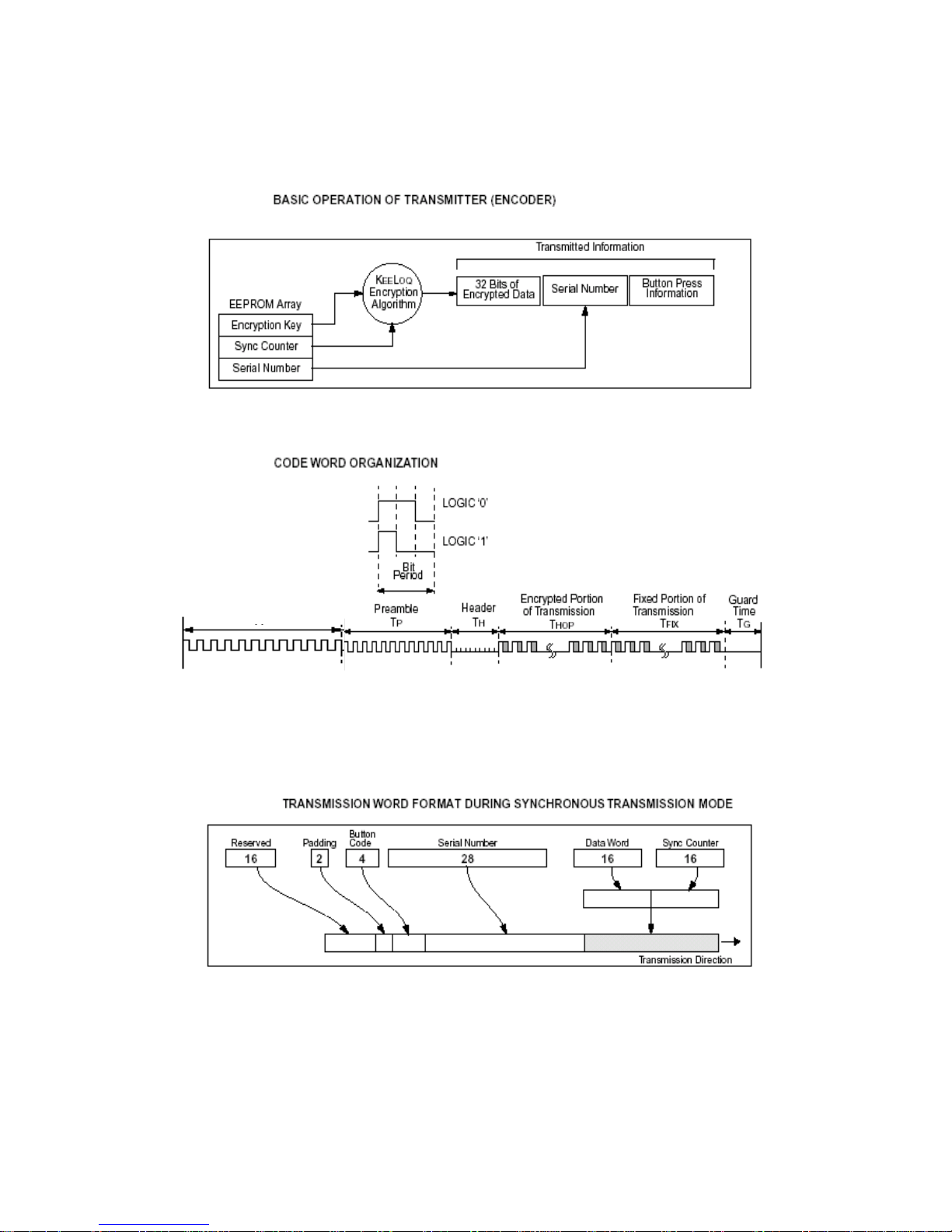

3. OPERATING DIAGRAM
1) TRANSMITTER
A)
B)
C)
1200usec
180msec
Page 7

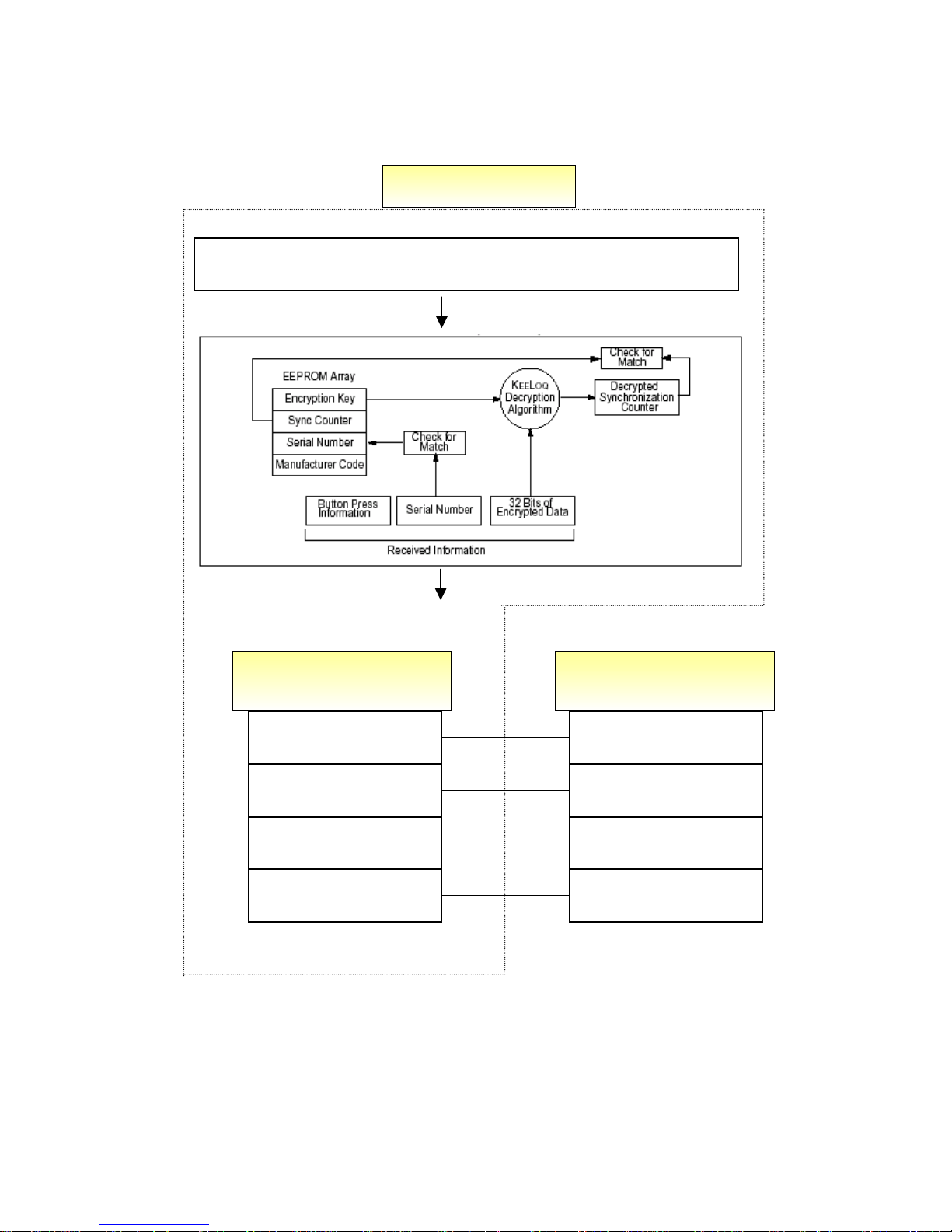

2) ETACS
Door Lock
Door Unlock
Back Glass Open
Panic
Door lock Relay
Door unlock Relay
Back Glass Relay
Hazard Relay
Horn Relay
RF DATA INPUT
ETACS
Output Circuit CAR
