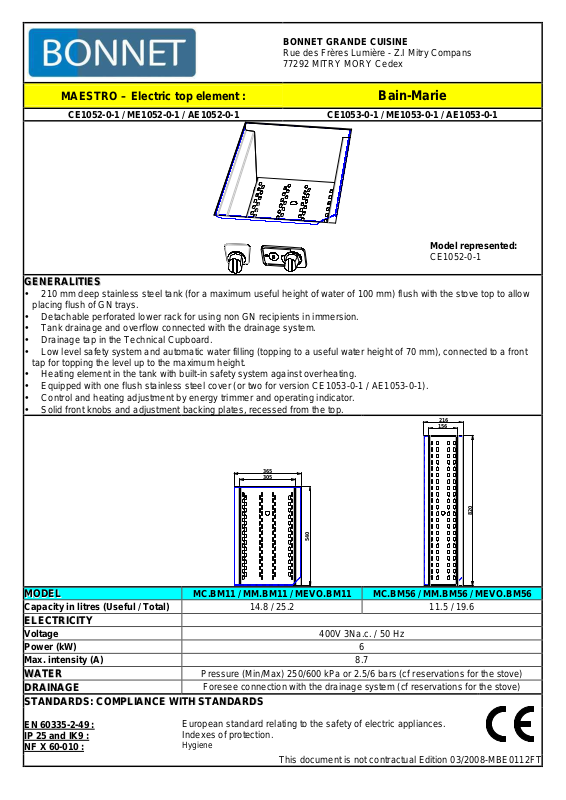

BONNET GRANDE CUISINE
MMOODDEELL
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
MAESTRO – Electric top element :
CE1052-0-1 / ME1052-0-1 / AE1052-0-1 CE1053-0-1 / ME1053-0-1 / AE1053-0-1
GGEENNEERRAALLIITTIIEESS
• 210 mm deep stainless steel tank (for a maximum useful height of water of 100 mm) flush with the stove top to allow
placing flush of GN trays.
• Detachable perforated lower rack for using non GN recipients in immersion.
• Tank drainage and overflow connected with the drainage system.
• Drainage tap in the Technical Cupboard.
• Low level safety system and automatic water filling (topping to a useful water height of 70 mm), connected to a front
tap for topping the level up to the maximum height.
• Heating element in the tank with built-in safety system against overheating.
• Equipped with one flush stainless steel cover (or two for version CE1053-0-1 / AE1053-0-1).
• Control and heating adjustment by energy trimmer and operating indicator.
• Solid front knobs and adjustment backing plates, recessed from the top.
Bain-Marie
Model represented:
CE1052-0-1
216
156
MC.BM11 / MM.BM11 / MEVO.BM11 MC.BM56 / MM.BM56 / MEVO.BM56
Capacity in litres (Useful / Total)
EELLEECCTTRRIICCIITTYY
Voltage
Power (kW)
Max. intensity (A)
WWAATTEERR
DDRRAAIINNAAGGEE
Pressure (Min/Max) 250/600 kPa or 2.5/6 bars (cf reservations for the stove)
Foresee connection with the drainage system (cf reservations for the stove)
14.8 / 25.2 11.5 / 19.6
SSTTAANNDDAARRDDSS:: CCOOMMPPLLIIAANNCCEE WWIITTHH SSTTAANNDDAARRDDS
EN 60335-2-49 :
IP 25 and IK9 :
NF X 60-010 :
European standard relating to the safety of electric appliances.
Indexes of protection.
Hygiene
365
305
820
540
400V 3Na.c. / 50 Hz
6
8.7
S
This document is not contractual Edition 03/2008-MBE0112FT
