BONITOR Mini Projector
User Guide Menu
Overview
Specifications
Compatibility
Operating Instructions
Trouble Shooting
MP302
3
4
5
6-7
8
Safety Statements
9
2 | Bonitor All Rights Reserved.
Page 3
ights Reserved.
is a portable mini projector
can project sharper and more colorful pictures. MP302 proudly
ndows and Mac operating systems
presentation simply by connecting your
also
e your ideas and
embedded with three
It allows you to give a mobile
With built
It is an ideal solution
BONITOR Mini Projector

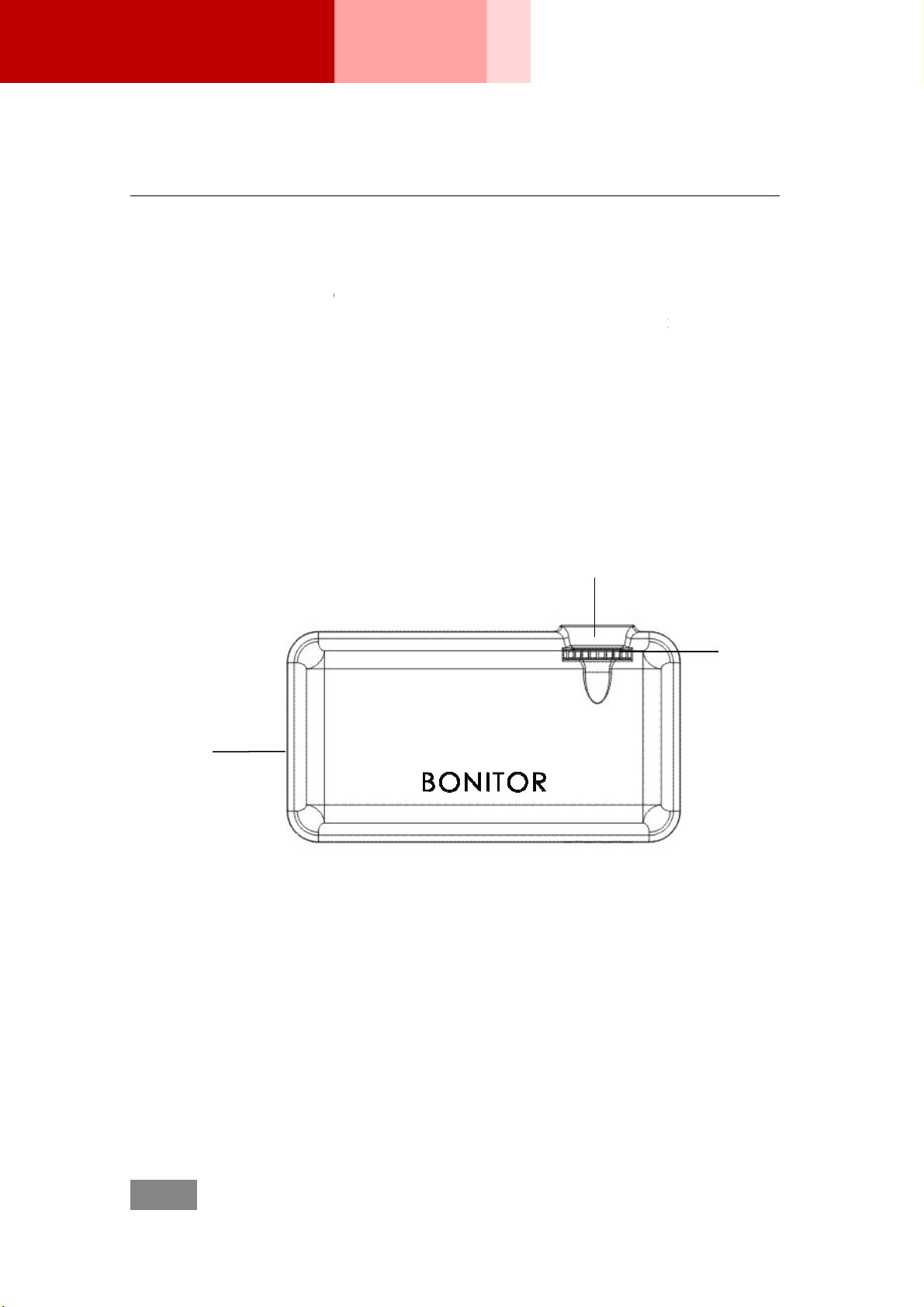

Overview
Bonitor MP302
which
with Wi
memory, MP302 can
to demonstrat
MP302
.
laptop with MP302.
project videos or images itself.
products.
RGB LEDs
works
-in flash
USB Input
Lamp
Focus
3 | Bonitor All R
Page 4
BONITOR Mini Projector
Specifications
Description Parameter
Display Technology LCOS
Maximum Output Resolution 1920 x 1200 pixels
Aspect Ratio 4 : 3
Brightness 15 lumens
Throw Ratio 1.62
Projection Distance 140mm - infinite
Image Size 86.4mm - infinite / 3.4” - infinite
Light Source RGB LED
LED Lifetime >30,000 hours
MP302
Inputs VGA, DC Power
Dimension 100 x 53 x 25 mm
Weight 110 grams
Tripod Socket ¼" – 20
Operating Temperature 10˚ - 27˚C / 50˚ - 80˚F
4 | Bonitor All Rights Reserved.
Page 5
BONITOR Mini Projector
Operating Instructions
Functioning MP302 with Computer
1. Connecting a computer
Connect MP302 and a computer with the included USB cable.
2. Installing a driver
Browse www.bonitor.com/support/ to download the latest driver for MP302.
Install the driver in the unzipped folder.
MP302
3. Functioning MP302
After successful driver installation, a program called UVProjector should be
installed. Start the program and the projector should be functioning.
Moving Files to MP302
1. Connecting a computer
Connect MP302 and a computer with the included USB cable.
2. Using remote controller
Press ‘Return’ button of the remote controller. MP302 should be projecting a
‘Home Menu’ screen. Choose ‘USB Storage’, press ‘Enter’ of the remote
controller, the computer should recognize MP302 as a USB stick. Drag and
drop the files to the memory of MP302.
5 | Bonitor All Rights Reserved.
Page 6
BONITOR Mini Projector
Functioning MP302 with Wall Charger
1. Connecting the wall charger
Connect MP302 with the included wall charger.
2. Using remote controller
Press ‘Return’ button of the remote controller. MP302 should be projecting a
‘Home Menu’ screen. Choose ‘Flash’, press ‘Enter’ of the remote controller.
Two sub-folders naming ‘Photo’ and ‘Movie’ are shown. Choose the right folder
and then the file name.
MP302
Image Size
Distance between MP302 and the display decides the image size. The
following table gives a quick reference for the relationship.
Distance Image Size
5.5 Inch 3.4 Inch
16 Inch 9.9 Inch
32 Inch 19.8 Inch
80 Inch 49.4 Inch
118 Inch 72.8 Inch
6 | Bonitor All Rights Reserved.
Page 7
BONITOR Mini Projector
Trouble Shooting
Situations Problems and Solutions
No Projection 1. Driver uninstalled
Blurred Image 1. Not focused
MP302
Install proper driver for MP302
2. USB connection
Reconnect the USB cable
Rotate the focus wheel until the projected image is
satisfactory
2. Out of range
Place MP302 within the distance range
7 | Bonitor All Rights Reserved.
Page 8
BONITOR Mini Projector
Safety Statements
CE Statement
This product is herewith confirmed to comply with applicable directive
2004/108/EC Electromagnetic Compatibility (as amended) in accordance with
European Union Rules.
The equipment was passed. The test was performed according to the following
applicable standards:
EMC
EN 55022: 2006
MP302
EN55024: 1998+A1: 2001+A2: 2003
EN61000-3-2: 2006
EN61000-3-3: 1995+A1: 2001+A2: 2005
FCC Statement Class B
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected
- Consult the dealer or an experienced radio/TV technician for help
