Page 1
Inhaltsverzeichnis
AHD 1200
Embedded PC
Operation Manual
Read this manual before beginning any work!
Dok-ID: PaJ-1045 V1
Page 2
2 V1
© Böning
Automationstechnologie GmbH & Co. KG
Am Steenöver 4
D-27777 Ganderkesee
Tel.: +49 (0) 4221 9475-0
Fax: +49 (0) 4221 9475-21 /-22
Page 3
AHD 1200 Embedded PC
Contents
V1 3
1 General Information ............................................................... 6
1.1 About this Manual .......................................................... 6
1.2 Explanation of Symbols ................................................. 6
1.3 Limitation of Liability ...................................................... 7
1.4 Copyright ........................................................................ 8
1.5 Spare Parts .................................................................... 8
1.6 Warranty Terms ............................................................. 8
1.7 Customer Care............................................................... 8
2 Safety ...................................................................................... 9
2.1 Operator’s Responsibilities ............................................ 9
2.2 Personnel Requirements ............................................. 10
2.2.1 Qualifications ................................................ 10
2.2.2 Unauthorized Persons .................................. 11
2.3 Intended Use................................................................ 11
3 Structure and Function ....................................................... 13
3.1 General Function ......................................................... 13
3.2 Mechanical Structure ................................................... 13
3.3 Device Electronics ....................................................... 14
3.4 Interfaces ..................................................................... 14
3.5 Electronic Data Processing .......................................... 15
3.6 Configuration................................................................ 16
4 Technical Information .......................................................... 17
4.1 Technical Data AHD 1200 ........................................... 17
4.2 Name Plate .................................................................. 18

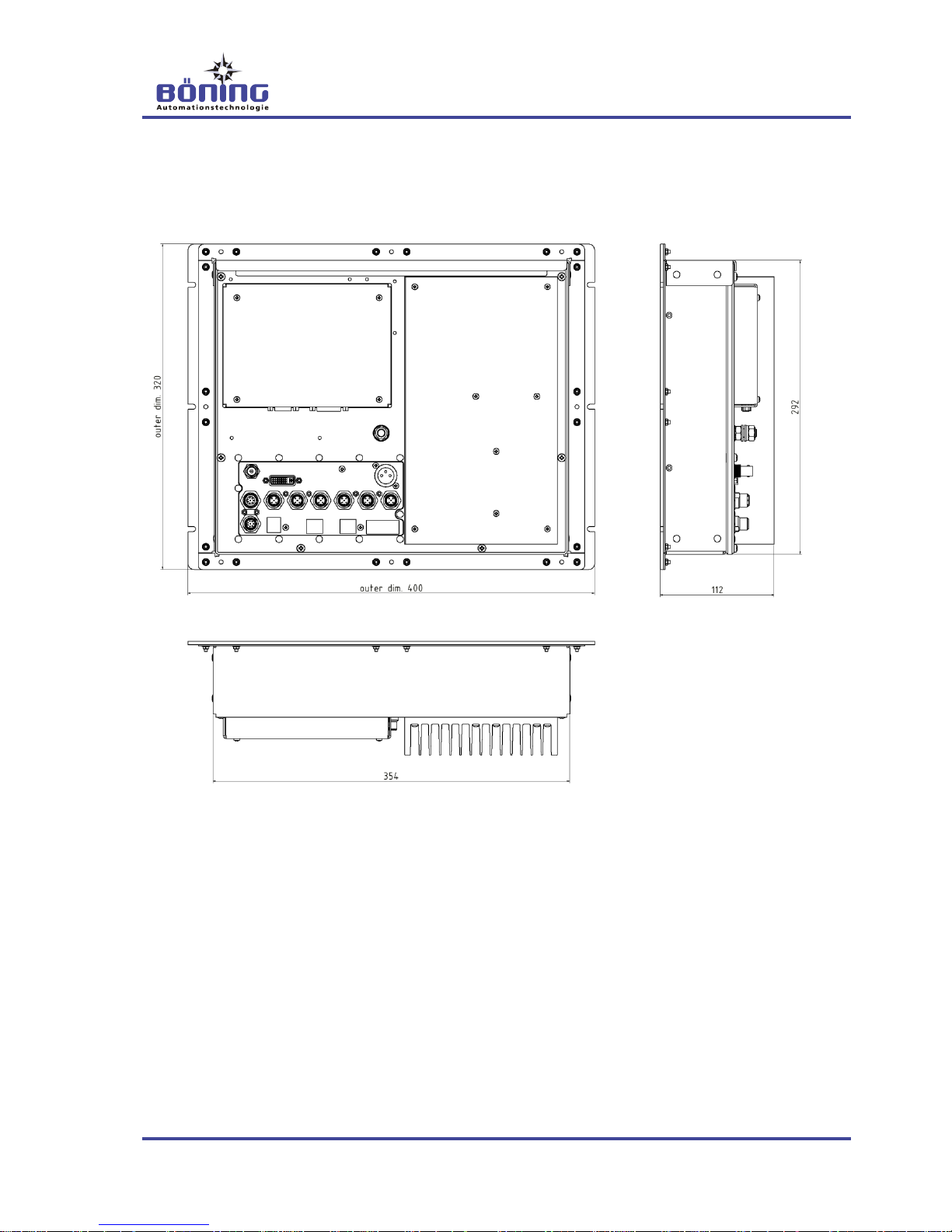

4.3 Dimensions .................................................................. 19
4.3.1 Device Dimensions ....................................... 19
4.3.2 Drill Holes ..................................................... 20
4.4 Connections ................................................................. 21
4.4.1 Device Connections ..................................... 21

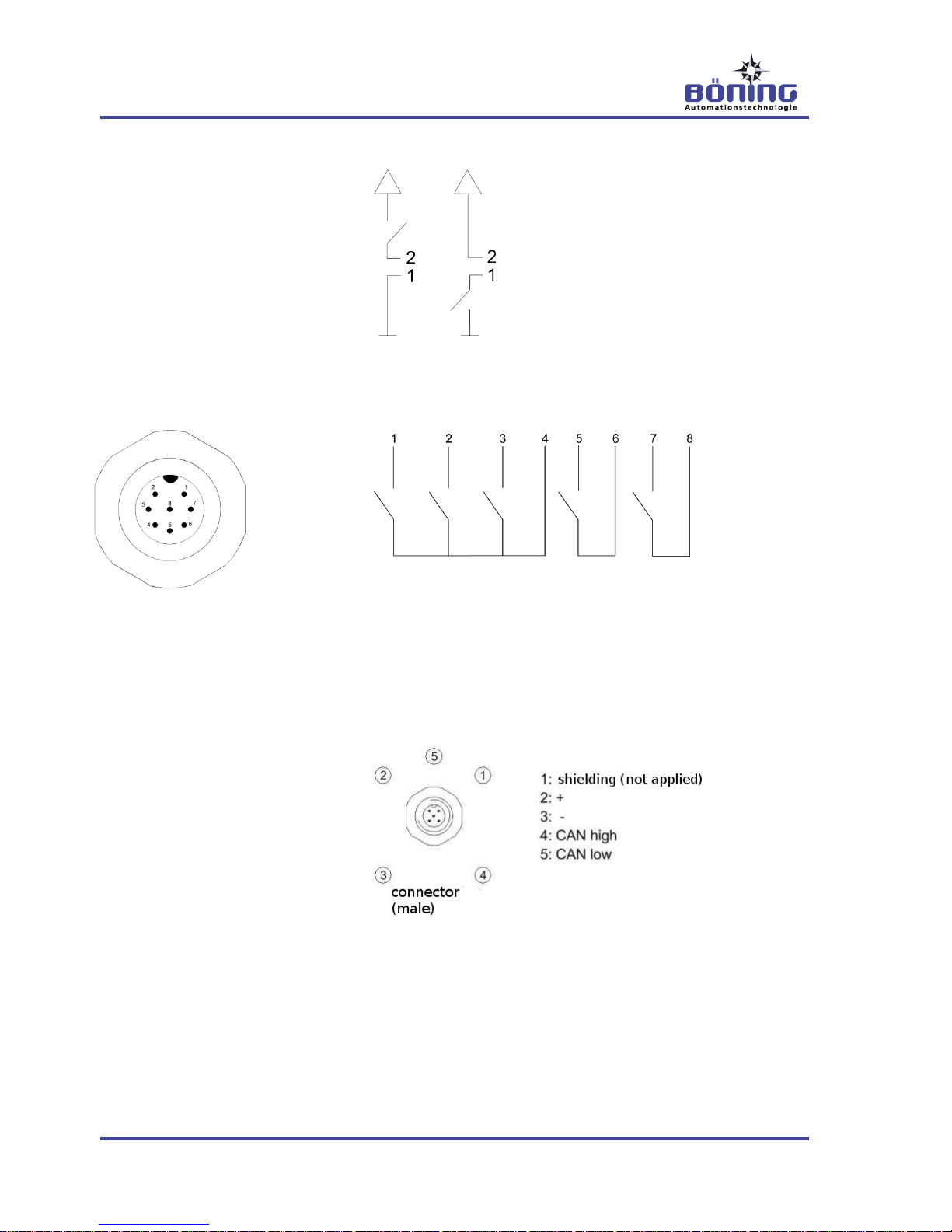

4.4.2 Terminal Assignment .................................... 21
5 Transport, Packaging and Storage .................................... 23
5.1 Transport Safety Instructions ....................................... 23
5.2 Transport Inspection .................................................... 23
5.3 Packaging .................................................................... 23
6 Installation and Initial Startup ............................................. 25
6.1 Safety ........................................................................... 25
6.2 Installation .................................................................... 26
6.2.1 Installation .................................................... 28

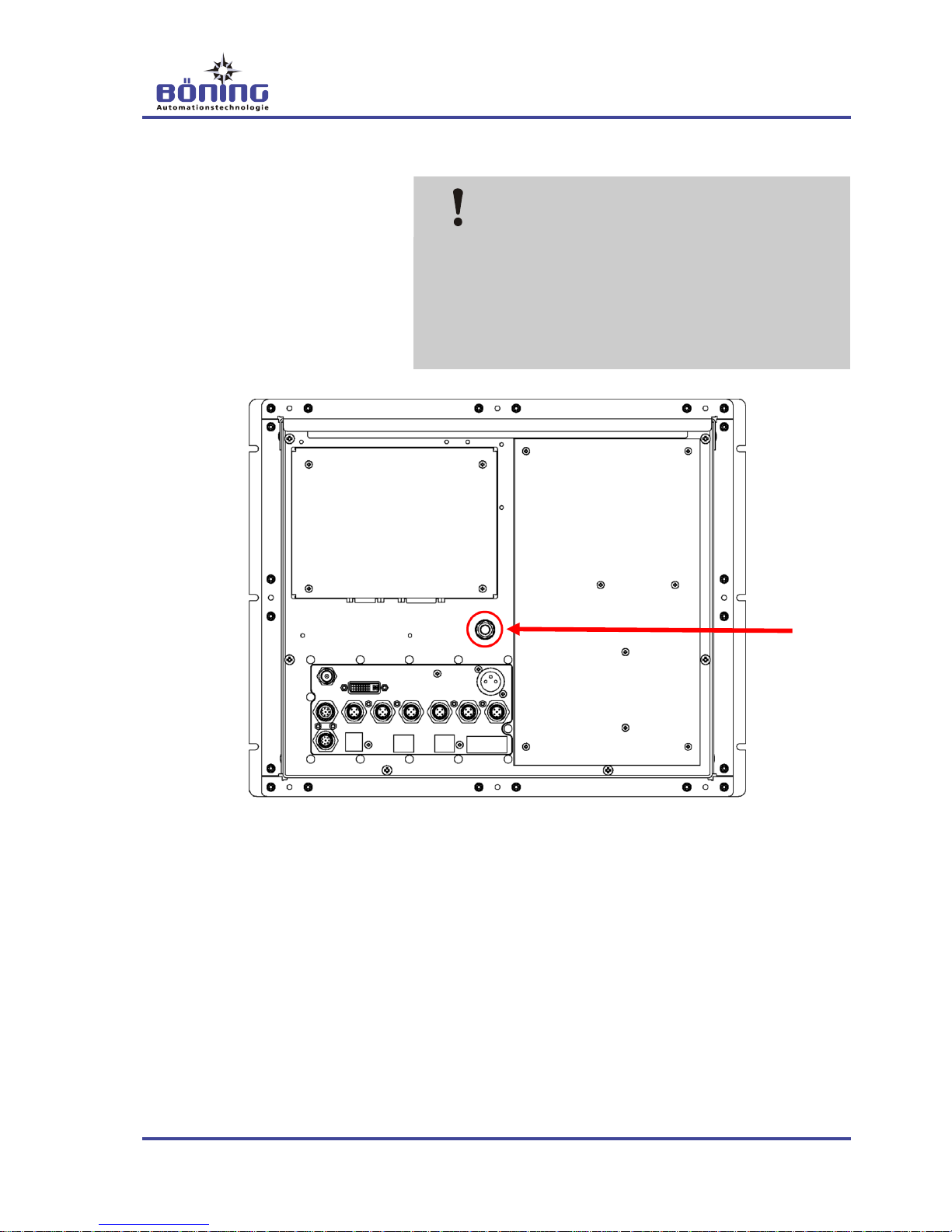

6.2.2 Ground .......................................................... 29
Page 4
AHD 1200 Embedded PC
Inhaltsverzeichnis
4 V1

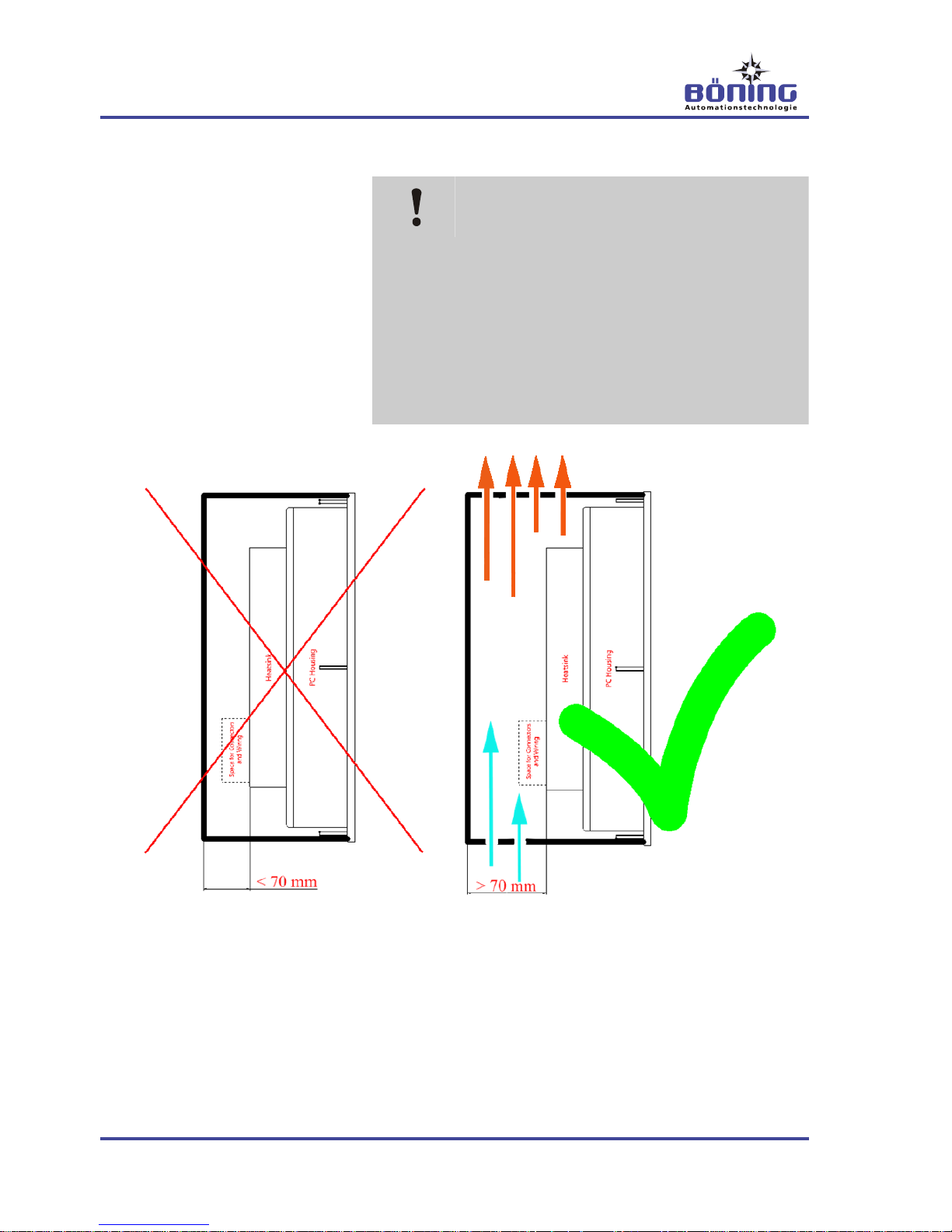

6.2.3 Cooling ..........................................................30
6.2.4 Updating the Firmware .................................31
6.2.5 Transferring the Configuration ......................31
6.3 Initial Startup ................................................................32
7 Operation ..............................................................................33
7.1 Power On .....................................................................33
7.2 Selecting the Video Source ..........................................33
7.3 Power Off .....................................................................34
8 Maintenance ..........................................................................35
9 Errors .....................................................................................36
9.1 Safety ...........................................................................36
9.2 Error Correction ............................................................37
10 Disassembly .........................................................................38
10.1 Safety 38
10.2 Disassembly .................................................................38
10.3 Disposal 39
11 Index ......................................................................................40
12 List of Abbreviations ............................................................41
Page 5
AHD 1200 Embedded PC
General Information
V1 5
Change History
for Operation Manual AHD 1200
Date
Version
Reason for Change
Page
Author
11/19/2012
AHD_1200_DOK_en_V1_20121119
New Creation
Entire
Document
Patzke, Jens
(PaJ)
Page 6
AHD 1200 Embedded PC
General Information
6 V1
1 General Information
1.1 About this Manual
Read this operation manual carefully before beginning any
work! It is part of the product and must be kept in the prod-
uct’s immediate vicinity, so that it is always available to the
personnel.
Include this manual when passing the product on to third par-
ties.
This operation manual provides important product handling information. On the following pages, this manual describes the Embedded PC AHD 1200.
This manual includes specific instructions, in case additional, more
detailed documentation is available for individual components.
Adhering to all product safety and handling instructions for the
product and all connected components is a prerequisite for safe
operation.
In addition, the local accident prevention and general safety rules
for the device’s area of operation must be observed.
The illustrations in this manual are intended to demonstrate the
contents more clearly. They are not necessarily drawn to scale and
can vary from the actual product in minor details.
This operation manual must be viewed exclusively as a complete
unit. It is not permitted to use excerpts from this manual as standalone documentation without referring to the entire document.
1.2 Explanation of Symbols
Warnings
In this manual, warnings are marked by symbols. The warnings are
introduced by signal words indicating the degree of danger.
It is important to heed these warnings and act with caution to
avoid accidents, Personnel injury and equipment damage!
DANGER!
… indicates an imminently hazardous situation that
can result in death or severe injury, if not
avoided.
WARNING!
… indicates a potentially hazardous situation which
can result in death or severe injury, if not
avoided.
Page 7
AHD 1200 Embedded PC
General Information
V1 7
CAUTION!
… indicates a potentially hazardous situation that
can result in minor or light injury, if not avoided.
CAUTION!
… indicates a potentially hazardous situation that
can result in equipment damage, if not avoided.
Tips and Recommendations
TIP!
… indicates useful tips and recommendations as
well as information for efficient and error-free operation.
1.3 Limitation of Liability
All information and instructions in this manual have been compiled
in consideration of current norms and regulations, the state of
technology, and our knowledge and experience of many years.
The manufacturer is not responsible for damages due to:
Noncompliance with the instructions in this manual
Unintended use
Employment of untrained personnel
Unauthorized modifications and software changes
Technical modifications
Use of unauthorized spare parts
The actual scope of delivery can vary from the explanations and illustrations in this manual in case of customized models, special
ordering options or the latest technical improvements.
In addition, the agreed upon obligations in the delivery contract, the
general terms and conditions, the manufacturer’s delivery terms
and the legal regulations current at the contract signing are in
force.
We reserve the right to make changes to improve the device’s service properties and to further develop the product.
Page 8
AHD 1200 Embedded PC
General Information
8 V1
1.4 Copyright
This operation manual is a confidential document. It is intended
solely for those persons working with the product. It is not permitted to hand this manual over to third parties without the manufacturer’s prior written permission.
TIP!
The information, texts, drawings, illustrations, and
other representations in this manual are protected
by copyright laws and are subject to industrial
property rights. Any misuse is subject to prosecution.
It is not permitted to duplicate this manual in any type or form –
even in excerpts – or use and/or communicate its contents without
the manufacturer’s written permission. Contraventions are liable to
compensation. We reserve other rights.
1.5 Spare Parts
WARNING!
Risk of injury from incorrect spare parts!
Incorrect or defective spare parts can cause damages, malfunctions, or complete failure and jeopardize the vessel’s safety.
Therefore:
– Only use the manufacturer’s original spare
parts.
Please order spare parts from a contracted reseller or directly from
the manufacturer. Refer to page 2 for the address.
1.6 Warranty Terms
The warranty terms can be found in the General Terms and Conditions (GTC) of the manufacturer’s sales documents.
1.7 Customer Care
Our customer service department is available to assist you with
technical information.
Information concerning the corresponding customer contact is always accessible via telephone, fax, e-mail, or the Internet. Please
refer to page 2 for the manufacturer’s address.
In addition, our staff is always interested in new information and
experiences resulting from the use of the product which can be
used to further improve our products.
Page 9
AHD 1200 Embedded PC
Safety
V1 9
2 Safety
This chapter provides an overview of all important safety aspects
for optimal protection of the personnel as well as safe and errorfree operation.
Noncompliance with the handling and safety instructions listed in
this manual can cause significant hazards.
2.1 Operator’s Responsibilities
This product is intended for commercial use. Therefore, its operation is subject to legal workplace safety regulations.
In addition to the workplace safety instructions in this manual, the
current safety, accident prevention, and environmental protection
regulations for the product’s place of use must be observed. Especially:
The operator must stay abreast of the current workplace safety
regulations and determine through a risk assessment any additional hazards resulting from the special working conditions of
the product’s place of use. He must implement these in the form
of operating instructions for the product’s use.
During the product’s entire period of operation, the operator
must verify that his operating instructions are in compliance with
current regulations and revise them, if necessary.
The operator must clearly regulate and define areas of respon-
sibility for installation, operation, maintenance, and cleaning.
The operator must ensure that all employees handling the
product have read and understood this manual.
In addition, he must train the personnel in regular intervals and
inform them about any dangers.
Furthermore, the operator is responsible for always keeping the
product in perfect working condition.
Page 10
AHD 1200 Embedded PC
Safety
10 V1
2.2 Personnel Requirements
2.2.1 Qualifications
WARNING!
Risk of injury from insufficient qualifications!
Improper use can lead to significant Personnel injury and equipment damage.
Therefore:
– Only allow qualified personnel to perform any
work.
This manual lists the following qualifications for various areas of
activity.
Trained Person
has been trained by the operator through an orientation for the
assigned tasks and has been informed about possible hazards
from improper execution.
Specialist
is able to execute the assigned tasks and recognize and avoid
potential hazards independently due to formal training, knowledge and experience, as well as knowledge of the situational
norms and regulations
Electrician
is able to work on electrical systems and recognize and avoid
potential hazards independently due to formal training, knowledge and experience, as well as knowledge of the situational
norms and regulations.
The electrician is trained for the specific work site in which he is
active and knows the relevant norms and regulations.
Only those persons who can be expected to do their work reliably
are permitted as personnel. Persons, whose responsiveness is diminished by e.g. drugs, alcohol, or medication, are not permitted.
Observe the local age and profession specific regulations when
selecting the personnel.
Page 11
AHD 1200 Embedded PC
Safety
V1 11
2.2.2 Unauthorized Persons
WARNING! Danger to unauthorized persons!
Unauthorized persons who do not meet the requirements described in this manual do not know
the occupational hazards.
Therefore:
– Keep unauthorized persons out of the work
area.
– When in doubt, approach persons and remove
them from the work area.
– Interrupt all work as long as unauthorized per-
sons remain in the work area.
2.3 Intended Use
AHD 1200 has been designed and constructed exclusively for the
purpose described in this manual.
AHD 1200 adapts various device types by external manufacturers to the Böning ship alarm, monitoring, and control system.
The device reads the supported protocols and sends the required
information in real time to a redundant CAN bus or video interfaces for display on ship alarm displays. In addition to data gathered immediately from the ship’s system, other video source
data can also be transmitted for viewing on displays.
WARNING!
Danger from unintended use!
Any use of the product beyond and/or other its intended use can cause hazardous situations.
Therefore:
– Only use the product as intended.
– Strictly adhere to all instructions in this manual.
– In particular, avoid the following unintended use:
– Using a supply voltage other than the one
indicated in this manual
Any claims for damages resulting from unintended use are void.
The operator is solely responsible for any damages resulting from
unintended use.
Page 12
AHD 1200 Embedded PC
Safety
12 V1
WARNING!
Danger from improper operation of the product!
Product failure or malfunctions can lead to Personnel injury or equipment damage in the overall system.
Therefore:
– Although the product itself is not especially dan-
gerous, the effects of failures or malfunctions on
the overall system must be considered.
– Always discontinue using the products when
they develop smoke or abnormal heat.
Page 13
AHD 1200 Embedded PC
Structure and Function
V1 13
3 Structure and Function
3.1 General Function
The Embedded PC AHD 1200 is integrated into the vessel’s monitoring and control system and adapts device types by external
manufacturers into a Böning ship alarm, monitoring, and control
system. AHD 1200 reads supported protocols (NMEA 0182,
SAE J1939, etc.), processes them (PLC-functionality), and sends
the required information to a redundant CAN bus or for rendering
on ship displays.
In addition to the data taken immediately form the vessel, data
from external video sources can also be transmitted to displays for
viewing. The video sources can be selected with e.g. the Control
Unit for Color Displays and Monitors with Rotary Push Drive AHDDRM R and the Control Unit for Color Displays and Monitors with
Trackball AHD-DRM T. Additionally, operating elements for changing the displays’ video sources can be set up in the visualization
configuration.
The configuration software AHD-DeviceConfig configures the integration into the vessel’s system.
Six CAN interfaces with standardized plug connectors are available
for connecting the unit to the ship systems.
Data from external devices, such as a GPS receiver, can be read
via the RS232 interface.
3.2 Mechanical Structure
Designed for wall mounting, the Embedded PC AHD 1200 encompasses all the processor-controlled electronics and standardized
interface plug connections in a compact unit. A passive cooling
system eliminates the need for fans and air vents in the housing,
thus achieving a maximum degree of reliability.
The device is mounted with six M4 screws.
All device connections are pluggable and have been led to the de-
vice front, making it possible to install the device quickly and safely. The device’s frontside protection class is IP 20.
The elimination of mechanically movable components, such as
hard drives, renders the device impact resistant.
Specially developed for use on board of ships, the box is completely maintenance free.
Page 14
AHD 1200 Embedded PC
Structure and Function
14 V1
3.3 Device Electronics
The Embedded PC AHD 1200’s central unit is a 1.6 GH dual core
microprocessor that reads all incoming data and requests in the
supported protocols, providing all required information via a redundant CAN bus in the ship system.
All necessary data can be stored on a 4GB flash disk.
The Embedded PC AHD 1200 includes an internal voltage control
which secures the required internal supply voltage. Therefore, the
device’s supply voltage fed by the external distribution can vary
from 18 V DC to 32 V DC (24 V DC +30%/-25%).
For increased operational safety, all communications interfaces are
galvanically isolated from one another.

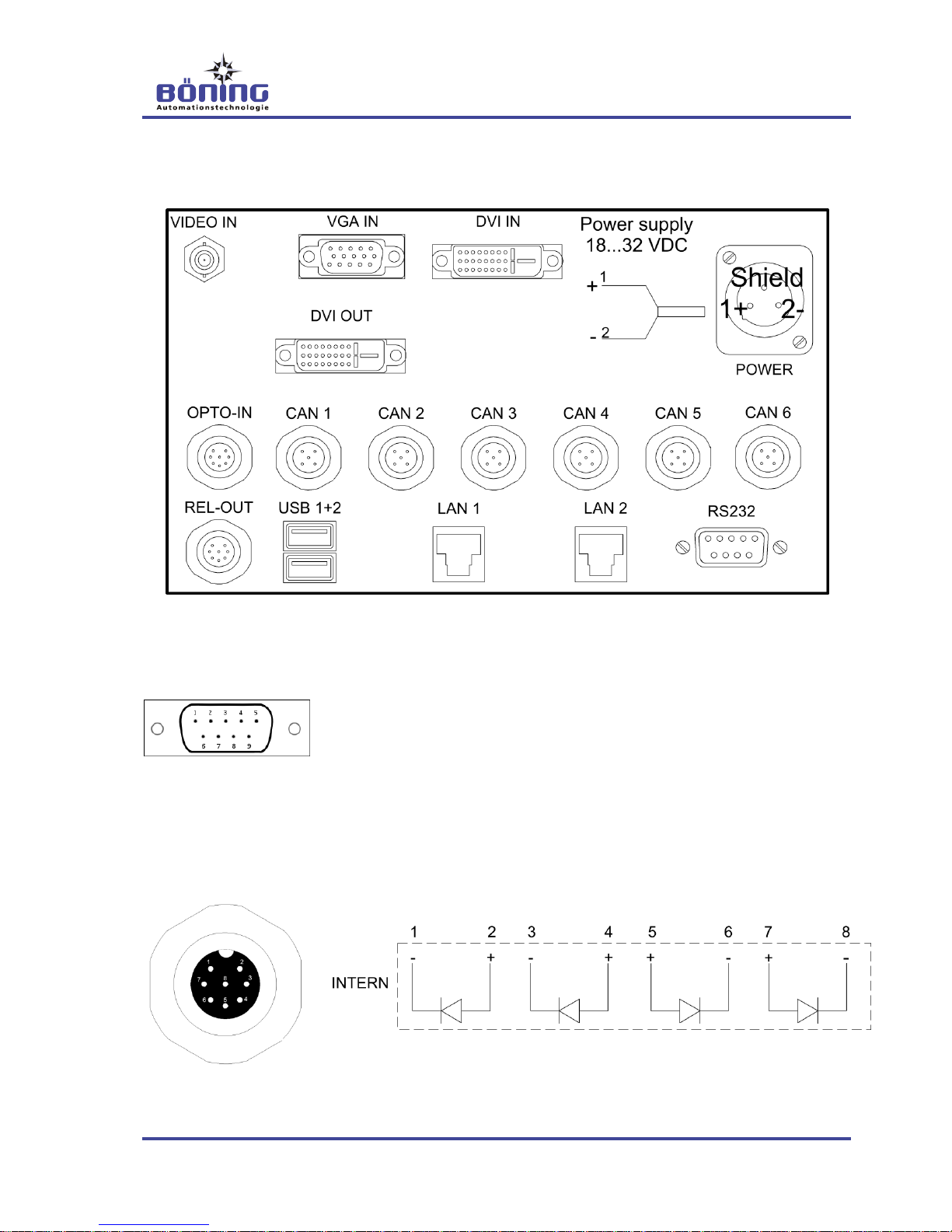

3.4 Interfaces
6 interfaces to the CAN bus integrate the device into the ship system. With the Universal CAN Converter AHD-UCC and the Protocol Converter Modbus AHD-UIC, additional protocols can be read
via the SAS protocol used.
CAN interfaces 5 and 6 are intended for the remote bus, which
provides commands for selecting video sources and controlling the
displays from e.g. the display control units AHD-DRM R and AHDDRM T.
The integrated RS232 interface can be used to connect e.g. a GPS
receiver.
The video IN port (BNC, coupling) receives data from an external
video source, e.g. a camera, for viewing on a display connected to
the AHD 1200’s DVI OUT output.
The VGA interface receives data from an external video source for
viewing on a display connected to the AHD 1200’s DVI OUT output.
The DVI IN interface receives data from an external video source,
e.g. radar or electronic sea chart (ECDIS), for viewing on displays
connected to the AHD 1200’s DVI OUT output.
The DVI OUT interface transmits video data for output on a connected display. The maximum resolution is 1024 x 768 pixels
(XGA) or 1080 x 1024 pixels (SXGA).
Data from the video sources connected to the Video IN, VGA and
DVI IN interfaces or video data provided by the AHD 1200 can be
sent from this interface.
CAN-Bus
RS232
Video IN
VGA
DVI IN
DVI OUT
Page 15
AHD 1200 Embedded PC
Structure and Function
V1 15
These interfaces are used for connecting e.g. an AHD-DPU 9,
AHD-WNL, or a printer.
These interfaces allow for connecting external storage media, a
mouse, or a keyboard for operating the displays.
The four optocoupler inputs are primarily used for accepting acknowledge requests.
The five relay outputs are primarily used for switching external
alarm indicators.
3.5 Electronic Data Processing
The Embedded PC AHD 1200 reads the ship data via the vessel’s
CAN bus, processes them, and makes them available via the CAN
bus to other devices, such as displays.
During the configuration process with the configuration software
AHD-DeviceConfig, basic properties for the visualization of ship
data, their processing, and data transmission via the AHD 1200 are
configured.
When configuring the display of values and statuses, the languages used for controlling the ship are set up. Furthermore, the available units with their necessary conversions, texts for displaying statuses and formats for displaying numbers, date and time information are set up for viewing. These can be combined for selecting
country specific display settings.
When configuring data processing, the properties of the captured
system buses, devices, and their inputs and outputs are set up.
During the configuration of the system buses, their functions (ship
alarm system, engine monitoring, watch standby system and control (conning)) are also set up. Furthermore, basic settings for triggering alarms, their viewing on displays, and the activation of event
log entries are configured.
During the configuration of the devices existing in the system buses, their properties as well as the motor protocols used (MTU BR
2000, MTU BR 4000, MTU Serial, SAE J1939, NMEA 0183), and
among others, basic settings for triggering and viewing alarms on
displays are set up.
Accordingly, channel types (binary, analog) are set up when configuring the physical and virtual channels. With both types, the
channel’s presentation on the displays, among other things, can be
configured. With analog channels, detected sensor values, their
conversion into physical measurands, as well as alarm triggers and
sensor errors can be configured. Channels can be combined into
groups, e.g. for group alarms.
Channel and group values can be combined for user defined functions and can be used for controlling e.g. relay outputs. The available functions encompass common mathematical calculations and
LAN
USB (Coupling A)
Opto-IN
Relay-OUT
Page 16
AHD 1200 Embedded PC
Structure and Function
16 V1
special functions to use the AHD 1200 for monitoring and controlling ships.
Furthermore, control devices (receiver), interfaces, and relay outputs, are configured in the configuration.
TIP!
More information for configuring the AHD 1200 with
AHD-DeviceConfig can be found in the corresponding configuration manual, which is available from
the manufacturer upon request.
TIP!
The configuration that has been set up with AHD-
DeviceConfig and stored in the device cannot be
changed e.g. from the vessel’s displays when the
device is running. You can only select preconfigured settings from the ship displays.
Please contact the manufacturer or an authorized
representative, if it is necessary to change the configuration.
3.6 Configuration
When configuring the AHD 1200, one must distinguish between
two configuration types:
– System configuration with AHD-DeviceConfig
– Visualization configuration with AHD Display Designer
During the ship’s system configuration with AHD-DeviceConfig, the
AHD 1200’s integration into the ship’s system is configured.
Among others, this process determines how ship data are
processed and how alarms are triggered and processed. In addition, basic settings, such as languages, units, and the presentation
of values and statuses on the ship displays are set up.
The configuration with AHD Display Designer determines how
measured values, statuses, and operating elements for controlling
the ship are rendered on suitable displays.
More information for configuring the device with AHD-DeviceConfig
can be found in the AHD-DeviceConfig operation manual and the
device’s configuration instructions.
Page 17
AHD 1200 Embedded PC
Technical Information
V1 17
4 Technical Information
4.1 Technical Data AHD 1200
Description
Value/Unit/Type
General Data
Dimensions, W x H x D
400 x 320 x 112mm
Panel Cutout, W x H
354 x 292mm
Req. Installation Depth
min. 130 mm (maintain a minimum distance of 70mm between
cooling units and a wall when
installing the device)
Weight
appr. 10 kg
Environmental Data
Operating Temperature
-30°C…+55°C (-30°C…70°C at
an interior console temperature
of +45°C)
Storage Temperature
-30°C…+70°C
Protection Class
IP 20
Electrical Data
Power Supply
24VDC (+30% / -25%)
Performance
appr. 45W (24VDC)
Computer
Processor
1.6 GHz Dual Core
RAM
4GB
Flash Disk (SSD)
4GB
Operating System
Windows® XP Embedded
Page 18
AHD 1200 Embedded PC
Technical Information
18 V1
Interfaces
6 x CAN (DeviceNet, 5-pin, Lumberg connector)
1 x RS232 (Sub-D, 9-pin, plug)
2 x LAN (coupling, RJ45,
10/100MBit)
2 x USB (coupling, A)
1 x Video IN (50Hz, composite
PAL, BNC, coupling)
1 x VGA (Sub-D, 15-pin, plug)
1 DVI IN (DVI-D, coupling)
1 DVI OUT (DVI-D, coupling)
4 x Opto-IN (Optocoupler, Lumberg, 8-pin, coupling)
5 x Relay-OUT (Relay, Lumberg,
8-pin, plug)
Resolution
DVI OUT
1024 x 768 pixels (max., XGA)
1280 x 1024 pixels (max., SXGA)
Classifications
In Progress
GL, DNV, LR, BV, DNV, ABS,
RMRS, RINA, CRS

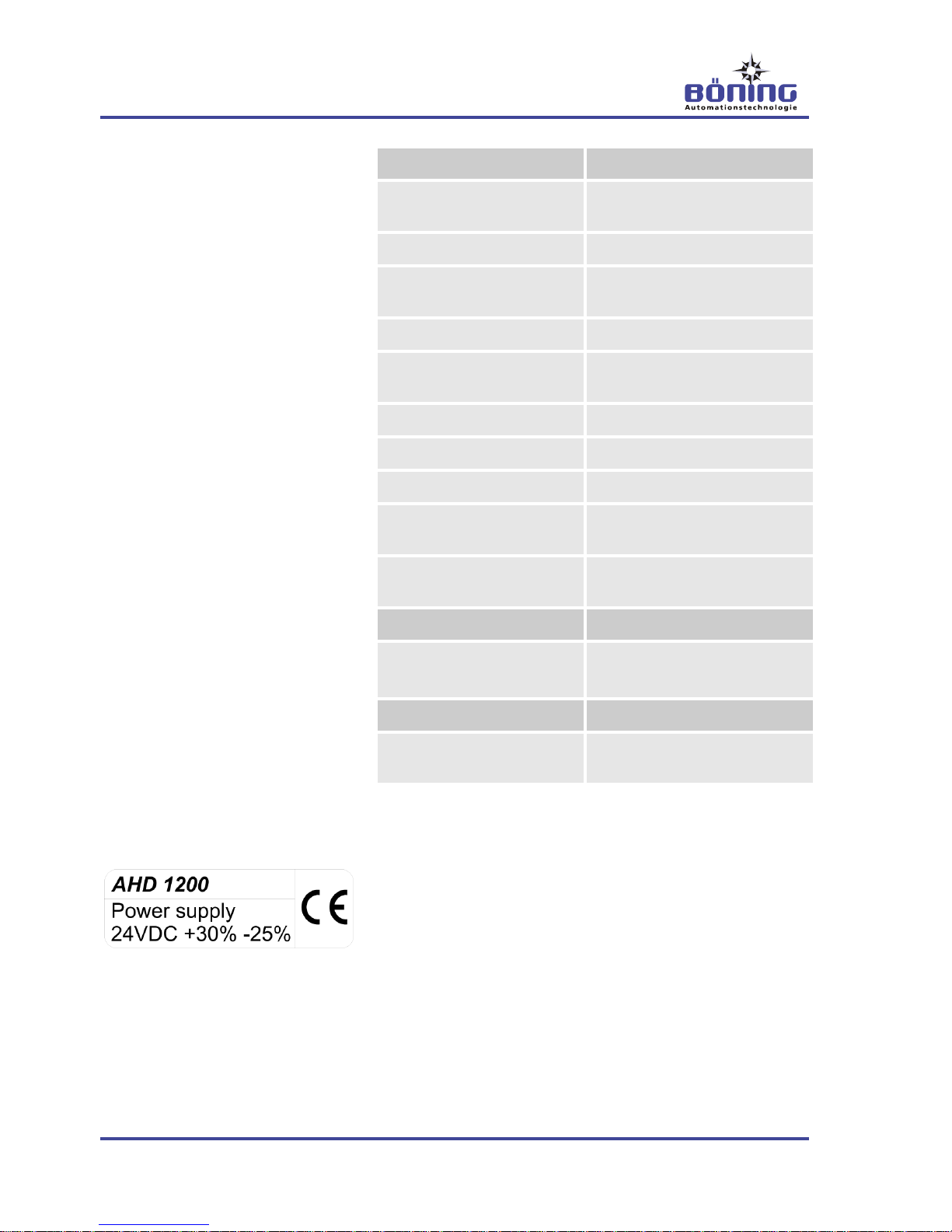

4.2 Name Plate
The Embedded PC AHD 1200’s name plate is located on the device front and contains the following information:
Model designation of the unit (in the top section of the cover
plate)
Serial number (may be on separate label) and power supply
Manufacturer (may be on separate label) and CE marking
Page 19
AHD 1200 Embedded PC
Technical Information
V1 19
4.3 Dimensions
4.3.1 Device Dimensions
Page 20
AHD 1200 Embedded PC
Technical Information
20 V1

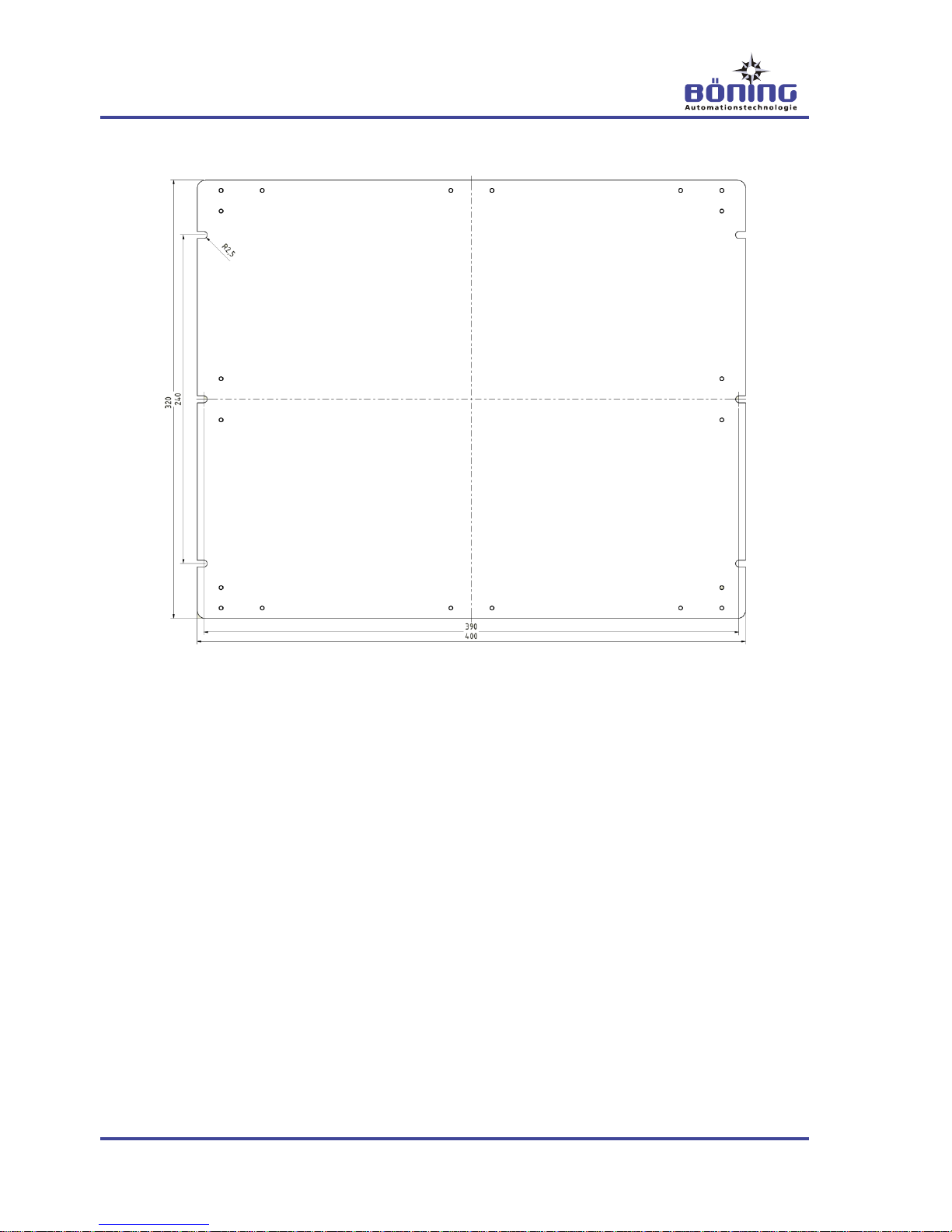

4.3.2 Drill Holes
Page 21
AHD 1200 Embedded PC
Technical Information
V1 21
4.4 Connections
4.4.1 Device Connections
4.4.2 Terminal Assignment
The RS232 port is used for connecting e.g. a GPS receiver. It has
the following pin assignment:
Pin 2: TxD, data transfer from the AHD 1200
Pin 3: RxD, data reception for the AHD 1200
Sig.5: GND: Ground
When connecting a GPS receiver or another device, pin TxD is
connected to the AHD 1200’s pin RxD, and the device’s ground is
connected to the AHD 1200’s “Ground” pin.
Four optocoupler inputs, intended for accepting acknowledgements.
The pins are assigned as follows:
The maximum allowable voltage is 24V DC (+30% / 25%).
RS232
Opto-IN
Relay-OUT
Page 22
AHD 1200 Embedded PC
Technical Information
22 V1
The assignment allows for switching to ground or Vcc.
Five relay outputs for controlling alarm indicators.
The pins are assigned as follows:
The relay outputs’ function is determined via configuration with
AHD-DeviceConfig.
6 CAN plugs are used for connection to the vessel’s CAN bus system.
The pins are assigned as in the illustration.
Relay-Out
CAN
Page 23
AHD 1200 Embedded PC
Transport, Packaging and Storage
V1 23
5 Transport, Packaging and Storage
5.1 Transport Safety Instructions
Improper Transport
CAUTION!
Equipment damage from improper transport!
Improper transport can cause significant equipment
damage.
Therefore:
– Use caution when unloading the packages dur-
ing delivery and during on-site transport and
observe the symbols and instructions on the
packaging.
– Remove the packaging only shortly before in-
stallation.
5.2 Transport Inspection
You must inspect the delivery for completeness and damages in
transport immediately upon receipt.
Proceed as follows when noticing external transport damages:
Do not accept delivery, or accept it only with reservation.
Note the scope of the damage on the transport documents or
the deliverer’s bill of lading.
File a claim.
TIP!
Claim any fault as soon as it is noticed. Damage
claims can only be filed within their respective reclamation periods.
5.3 Packaging
About the Packaging
The individual parts are packaged according to the expected
transport conditions. Only environmentally safe materials have
been used for the packaging.
The packaging is intended to protect the individual parts from
transport damages, corrosion and other damages up to the point of
installation. Therefore, the packaging may not be destroyed, and it
may only be removed shortly before installation.
Page 24
AHD 1200 Embedded PC
Transport, Packaging and Storage
24 V1
Handling the Packaging Materials
The packaging materials must be disposed according to current
legal regulations and local ordinances.
CAUTION!
Environmental damages from incorrect disposal!
Packaging materials are valuable raw materials
and can often be reused or meaningfully processed
and recycled.
Therefore:
– Dispose packaging materials in an environmen-
tally safe manner.
– Observe the local disposal regulations. When
necessary, contract a specialist company.
Storage
Store the packages under the following conditions:
Do not store them outdoors.
Store them in a dry, dust free environment.
Do not expose them to aggressive media.
Protect them from sunlight.
Observe the storage temperature (see technical data).
Avoid mechanical shock.
When storing longer than 3 months, regularly inspect the gen-
eral condition of all parts and the packaging. If necessary, re-
fresh or renew the preservative.
TIP!
In some cases, the packages contain instructions
which extend beyond the requirements listed in this
manual. These must be observed accordingly.
Page 25
AHD 1200 Embedded PC
Installation and Initial Startup
V1 25
6 Installation and Initial Startup
6.1 Safety
Personnel
Installation and initial startup may only be performed by special-
ly trained professionals.
Only electricians may work on the electrical system.
Basic Information
Caution!
Risk of injury from improper installation and
initial startup!
Improper installation and initial startup can cause
Personnel injury and equipment damage.
Therefore:
– Ensure sufficient installation space before be-
ginning any work.
– Handle parts with exposed sharp edges careful-
ly.
– Observe orderliness and cleanliness in the work
area!
– Install parts properly.
Page 26
AHD 1200 Embedded PC
Installation and Initial Startup
26 V1
6.2 Installation
General Information
CAUTION!
Equipment damage from improper handling
and selection of installation locations!
Installing the products in locations that do not meet
the requirements of the technical specifications
and improper handling can lead to system errors
and equipment damage.
Therefore:
– Observe the products’ technical specifications
when selecting the installation location.
– Only trained personnel may perform the instal-
lation.
– Never install the products in areas that are not
of the required protection type.
– Never install the products in extreme high or
low temperature areas.
– Never install the products on ceilings that can-
not support their weight.
– Install the products in such a manner that unau-
thorized persons cannot access the interfaces
for the configuration.
– Never bump or shake the products vigorously.
TIP!
When installing the AHD 1200, ensure that the de-
vice’s interfaces can be accessed.
Installation Requirements
All required connecting cables are of the required version,
equipped with plug connectors according to technical specifica-
tions or project drawings, led to the intended installation loca-
tion, and are properly installed and stripped. Free cables are of
sufficient installation length and are secured against short cir-
cuit and earth fault.
The product is not connected to the supply voltage and switch-
ed off-circuit.
Installation
1. Install the AHD 1200 properly in the intended installation loca-
tion according to technical specifications or project drawings.
2. Wire all of the unit’s inputs and outputs according to technical
drawings.
Page 27
AHD 1200 Embedded PC
Installation and Initial Startup
V1 27
TIP!
On delivery, the AHD 1200 is configured as speci-
fied in the project configuration.
This includes the integration of the ship’s devices
captured by the AHD 1200, the data processing, and
the graphic rendering of ship data and control elements on the displays.
When changing the project specific configuration, the
device may need to be reconfigured locally by trained
personnel.
For this, please contact the manufacturer or an authorized representative.
CAUTION!
Equipment damage from incorrect cable connections!
Improperly connected cables can cause system
errors and equipment damage.
Therefore:
– Always verify cable and wire designations be-
fore connecting them. Check for secure seating
of the connecting wires in the terminals.
– To avoid short circuits, verify that all wires are
connected in the terminal.
– To not over tighten the terminal clamps.
– When using pluggable terminal strips or plug
connectors, it is imperative to ensure insertion
in the correct socket and secure seating.
3. Test the system for earth/ground fault.
CAUTION!
System failure or malfunction!
During earth/ground fault, incorrect data can be
transmitted and lead to overall system failure or
malfunctions.
Therefore:
– Immediately correct any discovered
earth/ground fault.
Page 28
AHD 1200 Embedded PC
Installation and Initial Startup
28 V1
6.2.1 Installation
CAUTION!
Mechanical tension during installation can impair
the device’s tightness and lead to equipment damage.
Ensure that the device is installed on even surfaces
or in even panel cutouts without tilting.
Ensure that the drill holes in the device match exactly the drill holes in the mounting surface.
Tighten the screws evenly and crosswise.
Page 29
AHD 1200 Embedded PC
Installation and Initial Startup
V1 29
6.2.2 Ground
CAUTION!
Equipment damage and system errors from
missing ground!
If the AHD 1200 is not grounded, equipment damage and system errors may occur.
Therefore:
- Ground the device during installation!
When grounding the device, only use the designated M4 bolt, marked red in the illustration!
Page 30
AHD 1200 Embedded PC
Installation and Initial Startup
30 V1
6.2.3 Cooling
CAUTION!
Equipment damage from improper cooling!
Improper cooling of the AHD 1200 can lead to
equipment damage and system errors.
Therefore:
– Only install the devices in housings/panels with
air vents.
– Select the installation location so that an air cur-
rent for cooling the devices can circulate. The
distance between the cooling elements and the
closest housing/console wall must be at least
70 mm, so that proper cooling can be ensured.
Page 31
AHD 1200 Embedded PC
Installation and Initial Startup
V1 31
6.2.4 Updating the Firmware
TIP!
Generally, this step is not necessary with factory
side configured devices.
In some cases, the device firmware must be updated prior to starting up the device. For this, contact the manufacturer for further information.
6.2.5 Transferring the Configuration
TIP!
With factory side configured devices, this step is
only necessary for subsequent changes of the system or visualization configuration.
For more information about transferring the system
configuration, consult the device’s configuration
instructions. If you need to transfer the visualization
configuration, contact the manufacturer.
Page 32
AHD 1200 Embedded PC
Installation and Initial Startup
32 V1
6.3 Initial Startup
Startup Requirements
The AHD 1200 has been properly installed and is equipped with
all required connections.
All external devices connected to the AHD 1200 have also been
installed according to technical specifications or project drawings and are operational.
All required power supplies are available and error-free.
The AHD 1200 and all connected external devices are not con-
nected to the power supply or have been wired off-circuit.
1. Establish the 24 V DC power supply for the AHD 1200 according to technical specifications or project drawings.
2. Establish the power supplies for all external devices connected
to the AHD 1200 according to their corresponding operating
instructions.
3. Test the power supplies.
CAUTION!
Equipment damage from incorrect voltage!
Connecting an incorrect supply voltage can lead to
equipment damage.
Therefore:
– Review all relevant project documents and op-
eration manuals of the devices used and verify
their correct supply voltage and polarity before
connecting them.
4. Switch on the power supply of the AHD 1200 and all con-
nected external devices from the corresponding circuit breakers in the power distribution and the device internal starting
devices according to the corresponding operation manuals.
5. Upon successful startup, the Windows XP Embedded start
screen, or another visualization set up in the configuration, is
shown on a display connected to the AHD 1200.
6. Log any errors or functional deviations that may occur and
correct errors through proper measures, referring to the errors
described in the chapter titled “Errors.”
7. You may need to review the installed configuration and adjust
it to the necessary operating conditions. Log the final configuration for the project documentation.
Page 33
AHD 1200 Embedded PC
Operation
V1 33
7 Operation
After successful transmission of the project specific configuration,
the configuration of the data visualization, and successful startup,
the Embedded PC AHD 1200 requires no further user operation.
Its function is fully monitored and controlled by the predefined configuration software.
Correspondingly configured devices are used to switch between
the video sources. For more information, consult the project description and other documentations
.
7.1 Power On
TIP!
The Embedded PC AHD 1200 is part of a ship
alarm system with other connected external components.
For this reason, the power supplies for the entire
system must be switched on to establish complete
and error-free system operation.
The Embedded PC AHD 1200 does not include its own switch for
powering the device on and off.
The AHD 1200 is powered on by switching on its power supply in
the corresponding distribution box.
Upon successful startup, the Windows XP Embedded start screen,
or another visualization set up in the configuration, is shown on a
display connected to the AHD 1200.
7.2 Selecting the Video Source
The selection of the video source whose data are shown on the
display is project specific. For more information, consult the project
specification and when necessary other descriptions of the system.
Switching between the available video sources is project specific.
Control panels AHD-DRM R, AHD-DRM T or the operating elements of suitable displays can be used. For more information, consult the project documentation.
Page 34
AHD 1200 Embedded PC
Operation
34 V1
7.3 Power Off
TIP!
The Embedded PC AHD 1200 is a part of a ship
alarm system with other connected external components.
Powering the device off can cause an error message within the system. To avoid this, deactivate all
power supplies for the entire system, powering
down the system completely.
When doing this, observe the operation manuals of
the devices.
The Embedded PC AHD 1200 does not include its own switch for
powering the device on and off.
The AHD 1200 is powered off by switching off its power supply in
the corresponding distribution box.
The PC does not require a special shutdown procedure. The device’s software is not impaired by the shutdown.
Page 35
AHD 1200 Embedded PC
Maintenance
V1 35
8 Maintenance
TIP!
Generally, the Embedded PC AHD 1200 is main-
tenance free.
Maintenance of the units is limited merely to exter-
nal cleansing and inspection.
Only use solvent-free, nonabrasive detergents for
cleaning.
CAUTION!
Risk of injury from dangerous voltages and
other hazards
Opening covers can expose you to dangerous voltages or other hazards.
Therefore:
– Never perform device repairs yourself.
– Do not remove the covers for maintenance or
inspection.
– In case of product malfunctions, contact the
manufacturer or an authorized representative.
Page 36
AHD 1200 Embedded PC
Errors
36 V1
9 Errors
The following table describes errors that can occur when operating
the AHD 1200, including information about causes, error recognition, and error correction.
9.1 Safety
Personnel
Some work may only be performed by specially trained profes-
sionals or the manufacturer. This is specifically indicated in the
description of the individual errors.
As a rule, only electricians may work on the electrical system.
Basic Information
CAUTION!
Risk of injury from dangerous voltages or other
hazards
Opening the covers can expose you to dangerous
voltages or other hazards.
Therefore:
– Never perform device repairs yourself.
– Do not remove the covers for maintenance.
WARNING!
Risk of injury from improper error correction!
Improper error correction can cause severe Personnel injury or equipment damage.
Therefore:
– Only the manufacturer or authorized personnel
may repair the device.
– Ensure sufficient installation space before be-
ginning any work.
– Observe orderliness and cleanliness in the work
area! Parts and tools that are loosely stacked or
lying about are accident sources.
– Observe correct installation procedures when
parts have been uninstalled. Reinstall all mounting elements and observe torque limits.
Page 37
AHD 1200 Embedded PC
Errors
V1 37
In Case of Error:
As a rule:
1. Determine the cause of the error.
2. Immediately inform a responsible party on-site.
3. Depending on the error type, have an authorized specialist
correct it, or correct it on your own.
4. Correct the error by replacing or repairing the defective parts
(e.g. cables, plugs, etc.).
5. If the error cannot be determined through the error table, a
device defect cannot be excluded. For repairs, send the device
to the manufacturer’s address or to an authorized specialist
company.
9.2 Error Correction
Error
Possible Cause
Diagnosis/Error Correction
No visualization shown
Power supply failure
Test the power supply
No connection to video source
Test the connection to the video source
No connection to the display
Test the connection to the display
Incorrect data processing and
visualization of external data,
although the device and system are connected to the
power supply and to each
other
Device defect
Contact the manufacturer or an authorized representative, if the device does
not function properly in spite of all measures taken.
Device integrated in the system configuration is not visualized.
Device failure
Test the device functionality according to
its documentation.
Connection to the device has
failed
Test the device connection
The configuration does not
intend for the device to be visualized on the display used.
Choose a display on which the device is
visualized according to the system configuration.
Page 38
AHD 1200 Embedded PC
Disassembly
38 V1
10 Disassembly
After the device has reached its end of life, it must be disassembled and disposed in an environmentally safe manner.
10.1 Safety
Personnel
Only a specially trained professional may perform the disas-
sembly.
Only electricians may work on the electric system.
Basic Information
Caution!
Risk of injury from improper disassembly!
Stored residual energies, edged parts, points and
corners on and inside the device or the required
tools can cause injury.
Therefore:
– Ensure sufficient space before beginning any
work.
– Use caution when handling parts with exposed
sharp edges.
– Observe orderliness and cleanliness in the work
area! Parts and tools that are loosely stacked or
lying about are accident sources.
– Uninstall parts properly.
– When in doubt, consult the manufacturer.
10.2 Disassembly
Before beginning disassembly: disconnect the device from the
power supply and secure it against reconnection
Disconnect the cable connections and mark them, if necessary.
Secure free wire ends against short circuit and earth/ground
fault.
Loosen the device mountings.
Uninstall the device through proper measures.
Clean and disassemble the device for selection according to
workplace safety and environmental protection regulations.
Page 39
AHD 1200 Embedded PC
Disassembly
V1 39
10.3 Disposal
In the absence of a return or disposal agreement, recycle the disassembled components:
Scrap metals.
Recycle plastic components.
Dispose the other components according to their material
properties.
CAUTION!
Environmental damages from improper disposal!
Electrical scraps, electronic components, lubricants, and other auxiliary materials are subject to
hazardous waste regulations and may only be disposed by licensed specialist companies!
Your local authorities or specialized disposal companies can provide you with information about environmentally safe disposal.
Page 40
AHD 1200 Embedded PC
Index
40 V1
11 Index
A
About this Manual .................................................6
AHD Display Designer ....................................... 16
AHD-DeviceConfig ............................................. 16
C
Configuration...................................................... 16
Cooling ............................................................... 30
Copyright ...............................................................8
Customer Care......................................................8
D
Device
Connections ................................................... 21
Dimensions ..................................................... 19
Drill Holes ....................................................... 20
Device Electronics ............................................. 14
Disassembly ....................................................... 38
Disposal ............................................................. 39
E
Electronic Data Processing ................................ 15
Error Correction ................................................. 37
Errors ................................................................. 36
Explanation of Symbols ........................................6
G
General Function ............................................... 13
Ground ............................................................... 29
I
Initial Startup ...................................................... 32
Installation .................................................... 26, 28
Intended Use...................................................... 11
Interfaces ........................................................... 14
L
Limitation of Liability .............................................7
M
Maintenance ...................................................... 35
Mechanical Structure ......................................... 13
N
Name Plate ........................................................ 18
O
Operation ........................................................... 33
Power Off ........................................................ 34
Power On ........................................................ 33
Selecting the Video Source ............................ 33
Operator’s Responsibilities .................................. 9
P
Packaging .......................................................... 23
Personnel
Disassembly ................................................... 38
Electrician ....................................................... 10
Errors .............................................................. 36
Initial Startup ................................................... 25
Installation ...................................................... 25
Requirements ................................................. 10
Specialist ........................................................ 10
Trained Person ............................................... 10
S
Safety ................................................................... 9
Spare Parts .......................................................... 8
Storage ............................................................... 23
Structure and Function ....................................... 13
T
Technical Data ................................................... 17
Terminal Assignment ......................................... 21
Transferring the Configuration ........................... 31
Transport ............................................................ 23
Transport Inspection .......................................... 23
U
Unauthorized Persons ....................................... 11
Updating the Firmware ....................................... 31
W
Warranty Terms ................................................... 8
