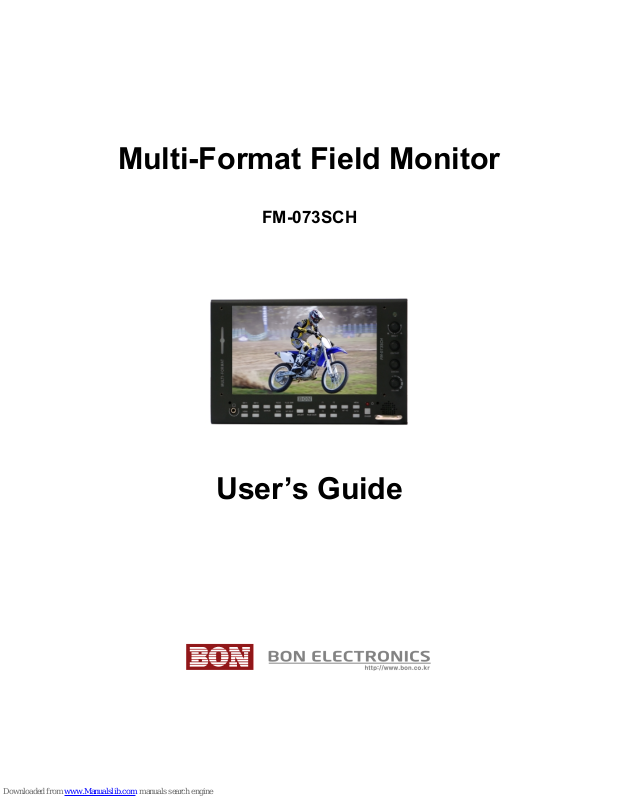

Multi-Format Field Monitor
FM-073SCH
User’s Guide
Page 2
Contents
Introduction...........................................................................................................3
Features.................................................................................................................3
Safety Instructions................................................................................................4
Front......................................................................................................................5
Rear....................................................................................................................... 8
Tally.......................................................................................................................9
Audio Level Meters............................................................................................... 9
OSD Menu................................................................................................................10
2
Page 3
Introduction
FM-073SCH is an 1100 cd/m² super bright on-camera monitor for DSLR and ENG cameras. New features such as H/V level meter, auto flip, still image overlay, and PIP are included.
Features
Superbright LCD Screen for Sunlight Visibility
Auto Flip
Firmware Update with USB Memory
Focus Assistance/False Color
Waveform/Vectorscope
DSLR Scales
Closed Caption (CEA-608/708)
Time Code
8~16ch Audio Level Meter
Video Exposure Range Check
IMD Mode
AFD & V-CHIP(SDI Only)
Various Markers
H/V Delay
Pixel-to-Pixel View
Tally LED Control Output R/G/B/W Internal Patterns Rack & VESA Mount (Option)
HDMI to SDI, SDI to HDMI Conversion (Same Quality Conversion)
Auto Luminance Control
Auto Color Temperature Adjustment
Horizontal/Vertical Angle Level Meters
3G SDI input (Level A/B)
1~16Ch Audio Level Meters
3
Page 4
Safety Instructions
• To help avoid damaging your monitor, connect only one power (AC or DC) in operation.
• Rough handling of product may cause physical damage or malfunction.
• Never insert anything metallic into the monitor openings. Doing so may create
the danger of electric shock.
• To avoid electric shock, never touch the inside of the monitor. Only a qualified should open the monitor’s case.
• Openings in the monitor cabinet are provided for ventilation. To prevent overheating, these openings should not be blocked or covered.
• Put your monitor in a location with low humidity and a minimum of dust. Avoid places like damp basement or dusty hallways.
• Place the monitor on a solid surface and treat it carefully. The screen is made of glass and can be damaged if dropped or sharply hit.
• Do not attempt to remove the back cover, as you will be exposed to a shock hazard. The back cover should only be removed by qualified service personnel.
• Unplug the monitor power before you connect external devices to the monitor.
• If your monitor does not operate normally, or if there are any unusual sounds or
smells coning from it, unplug it immediately and contact us.
• Please do not disassemble the monitor. No service will be provided in that case.
• Displaying fixed picture for a long time may cause an afterimage or dead spots.
To recover LCD pixels, display whole white picture on screen for a n hour or two and pixels will be recovered.
• No service will be provided for user’s own color calibration.
4
Page 5

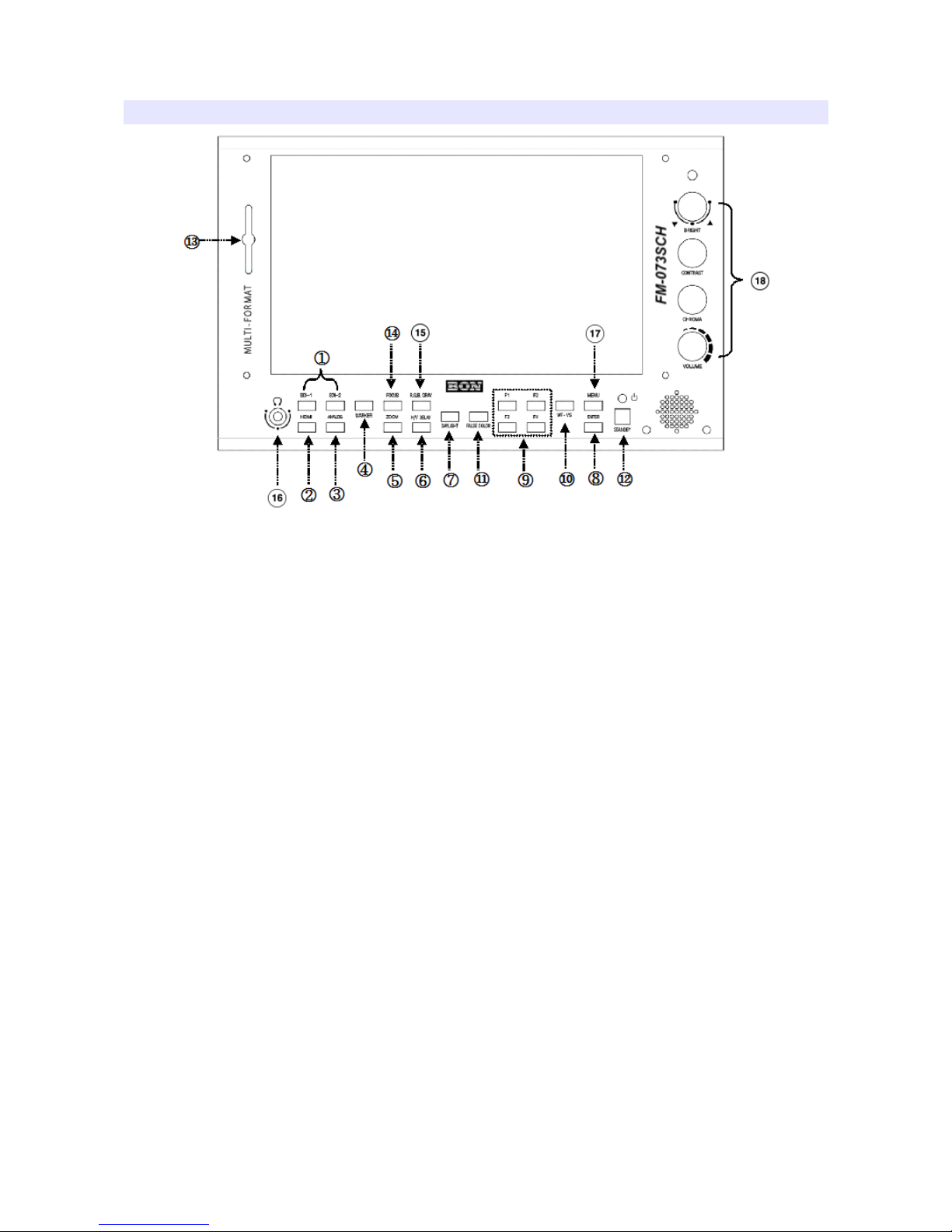

Front
1,2) SDI, HDMI Input Selection
3) Analog Input Selection
Switch input in the order of : YPbPr(Component), CVBS1, CVBS2, CVBS3(Composites)
4) Marker On/Off
5) Zoom
Switch zoom mode in the order of : Pixel to Pixel, User Zoom, DSLR Zoom
Pixel to Pixel
Shows the original picture with 1:1 pixel mapping. If the picture is larger than the monitor’s LCD resolution, the center part of the picture is shown. Use knob to see a different part of the picture. 5 parts are selectable : CENTER, TOP-LEFT, TOP­RIGHT, BOTTOM-LEFT, BOTTOM-RIGHT.
User Zoom
This is a custom zoom mode which user can set the zoom level. Turn the knob to set your own zoom level in this mode.
5
Page 6
DSLR Zoom
This zoom-in/out preset allows fully scaled-up monitoring of contracted video from DSLRs. Zoom-in/out area can also be customized to allow partial or full view.
To choose camera type, press Menu and choose Video, choose a DSLR camera from Canon 5D Mark II/7D, 60D, Nikon D800, Sony A77, Panasonic GH2 and Canon 5D Mark III.
6) H/V Delay
H/V Delay allows you to check the outside signal of active picture area. This mode is for broadcast professionals. By pressing the button, it switches the mode in the order of : H Delay, V Delay, H/V Delay, Off.
7) Daylight
This button switches luminance level in the order of : Indoor, Outdoor, Daylight, Auto. Press this button to switch the luminance to see the screen comfortably. Daylight mode provides maximum luminance for sunlight visibility. If you choose Auto, the luminance changes automatically for the environment.
8) Enter
Enter Key.
9) Function Keys
User-preferred function can be assigned to function keys. Assignable functions are listed below.
● ALM (Audio Level Meter) Display On/Off
● Aspect On/Off
● Scan Mode
● IMD Display
● Exposure Range Check
● Audio Mute
● Freeze On/Off
● H/V Flip On/Off
● 1:1 Scan On/Off
● Caption Display
● Time Code
6
Page 7
10) Waveform / Vectorscope
Waveform enables users to check the luminance level. Vectorscope is for checking chrominance values of the picture. The mode is switched in the order of : Waveform, Waveform Parade, Vectorscope, Wide Waveform, Full-Screen Waveform, Full-Screen Vectorscope.
* Some afterimage might be left on Waveform when the input picture freezed long on interlace signal.
* On SDI 2K input with Psf scanning mode, displaying Circle or Horizontal Line pattern might cause an afterimage effect. However, it will be disappeared after the picture is changed.
11) False Color
Shows pictures in specific colors as its luminance level other than the original colors. Much exposed area is filled with red while little exposed area is purple.
* 10-bit, 12-bit Dithered gradient pattern might not be displayed clearly in this mode.
12) Power Button
Power turns off when pressed for one second.
13) Tally Lamp
Tally lamp displays Red, Green, Amber color tally.
14) Focus Assist
Displays focus area when pressed. The focus sensitivity is adjustable on the display menu.
15) R/G/B/Gray Only
Displays Red, Green, Blue or Gray only as the button is pressed.
16) Audio Out
Stereo phone jack for audio output.
17) Menu Button
Menu and Exit button.
18) Knobs
Brightness, Contrast, Chroma, Volume adjustable knobs. The brightness knob is also used as arrow knob to move up and down on the menu, User Zoom, etc.
7
Page 8

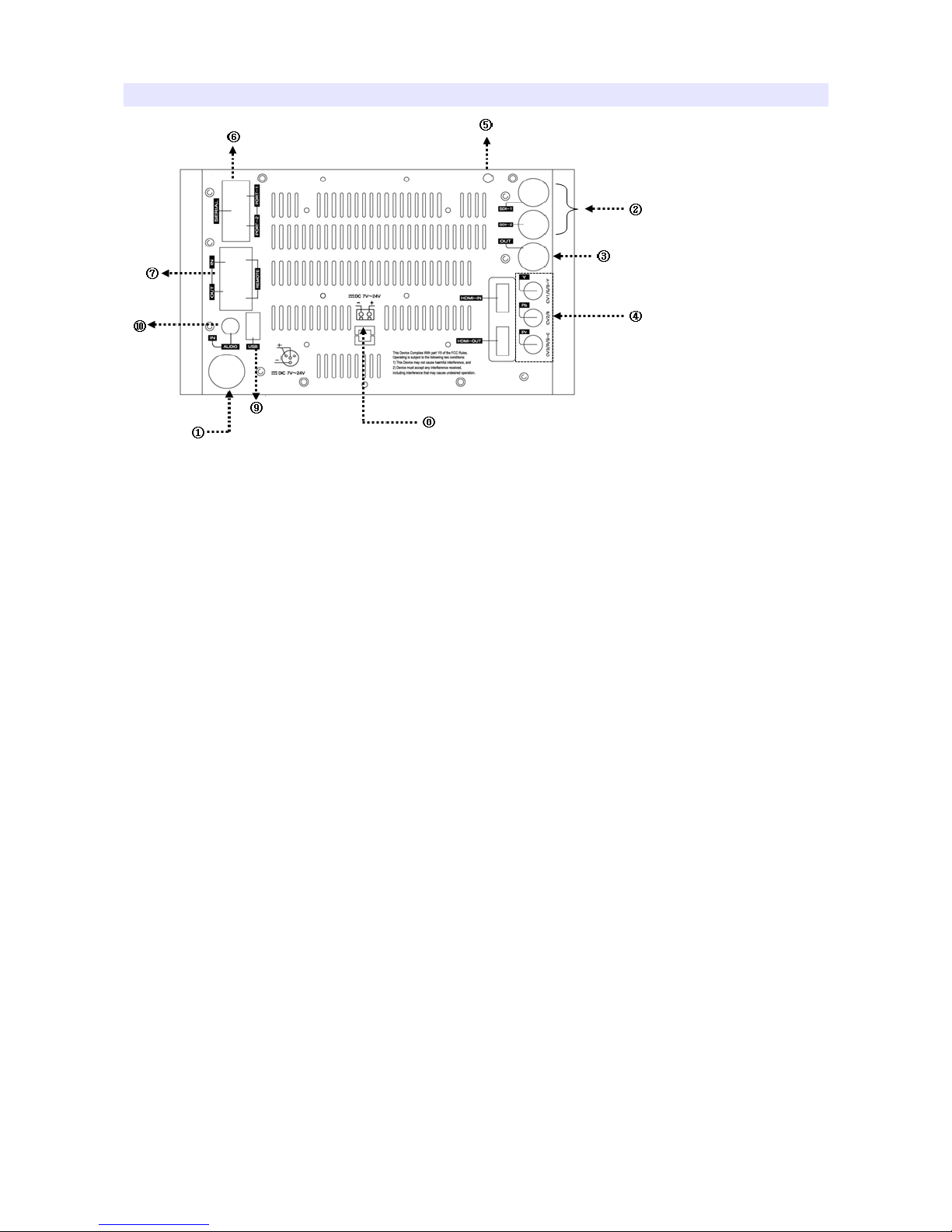

Rear
1) DC Power Jack
7V ~ 24V DC power can be used.
2) SDI 1, 2 Input Ports
HD SDI or SD SDI input ports. SDI signal should be fulfill SMPTE standards.
3) SDI Loop-Through and HDMI-to-SDI Out Port
This port can be used either SDI Loop-through or SDI out of HDMI-to-SDI converter.
4) Component YPbPr or CVBS 1,2,3 Input Ports
Component YPbPr or CVBS(Composite) input ports.
5) Tally Input
To display Red, Green, Amber tally.
6) Update Port (RJ-11 Jack)
Serial communication port for updating firmware or monitor control.
7) Control Port
Monitor control port. The detail is in the chapter “Remote Terminal Assignment Connection”
8
Page 9
8) Internal Power Port
External battery power connection port. (7V ~ 24V)
9) USB Port
USB firmware update port.
Tally
Tally mode displays Red, Green, Amber color by the input from tally (RJ-45 GPI) input port.
Audio Level Meters
Audio level meters displays max 16 channels. But it depends on the number of channels contained in the signal itself. For example, if the signal contains 2 channels, the audio level should be 2 channels.
The odd channels are displayed in the left, whereas the even channels are in the right. The position of the meters can be set to top or bottom of the screen on the AUDIO section of the menu.
9
Page 10
OSD Menu
Menu opens up by pressing Menu button. This button also works as Exit button on the Menu. The brightness knob works as up/down arrow. To select something, press either enter button or the knob.
* The menu may disappear on no signal or instable signal input.
* Menu setting is saved for each input mode. So the user should make selection on an appropriate input mode.

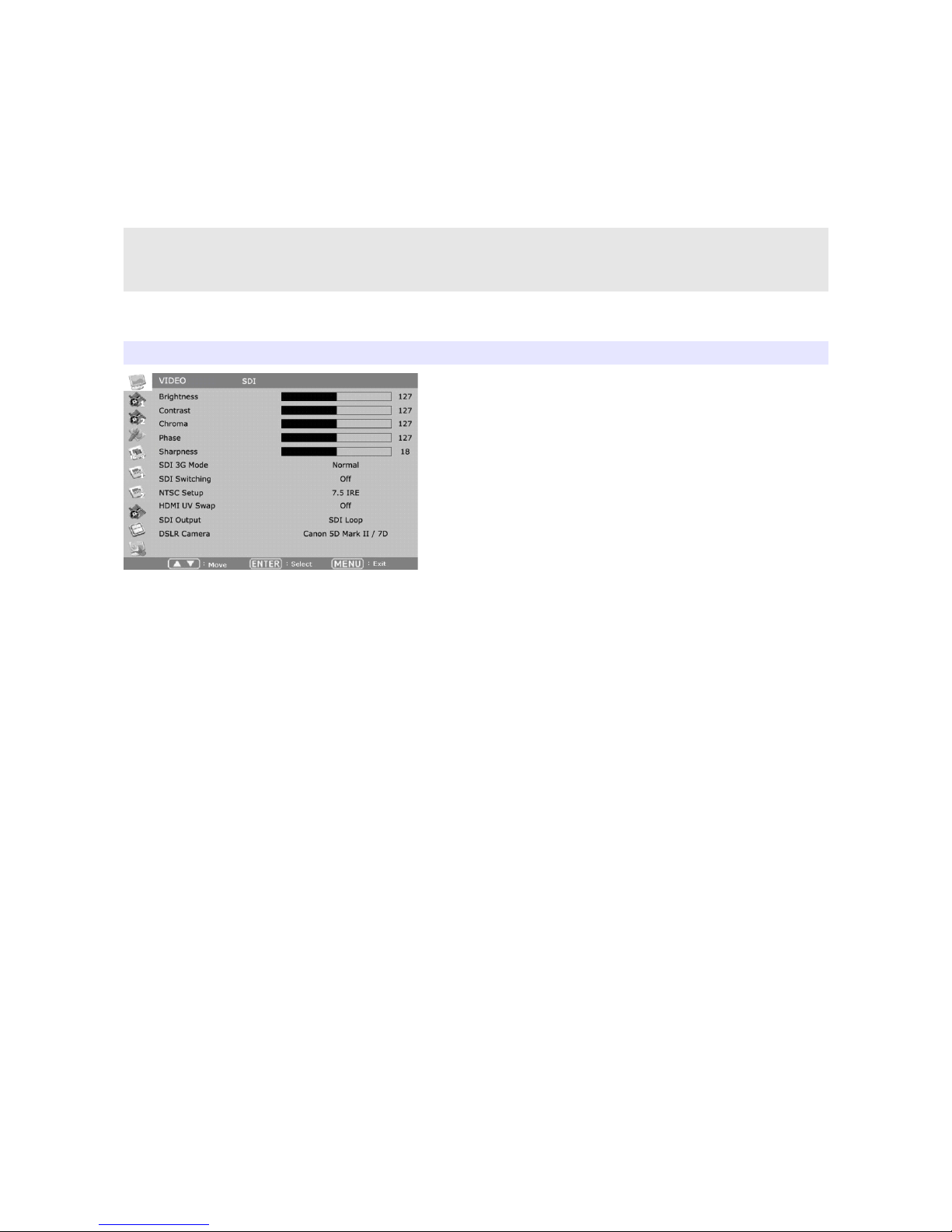

VIDEO
Brightness
Adjust brightness. Default: 127.
Contrast
Adjust contrast. Default: 127.
Chroma (Hue)
Adjust chroma. Default: 127.
Phase
Adjust phase. Default: 127.
Sharpness
Adjust sharpness. Default: 18.
SDI 3G Mode
Set this mode if the input is 3G HD SDI. SDI 3G mode support SMPTE standards listed below:
▶ A_MS1_YCbCr422_10
10
Page 11
: 3G SDI Level-A Mapping Structure 1 – YCbCr 4:2:2/10 bit
▶ A_MS2_YCbCr444_10
: 3G SDI Level-A Mapping Structure 2 – YCbCr 4:4:4/10 bit
▶ A_MS2_RGB444_10
: 3G SDI Level-A Mapping Structure 2 – RGB 4:4:4/10 bit
▶ A_MS3_YCbCr444_12
: 3G SDI Level-A Mapping Structure 3 – YCbCr 4:4:4/12 bit
▶ A_MS3_RGB444_12
: 3G SDI Level-A Mapping Structure 3 – RGB 4:4:4/12 bit
▶ A_MS4_YCbCr422_12
: 3G SDI Level-A Mapping Structure 4 – YCbCr 4:2:2/12 bit
▶ B_MS1_YCbCr422_10
: 3G SDI Level-B Mapping Structure 1 – YCbCr 4:2:2/10 bit
▶ B_MS2_YCbCr444_10
: 3G SDI Level-B Mapping Structure 2 – YCbCr 4:4:4/10 bit
▶ B_MS2_RGB444_10
: 3G SDI Level-B Mapping Structure 2 – RGB 4:4:4/10 bit
▶ B_MS3_YCbCr444_12
: 3G SDI Level-B Mapping Structure 3 – YCbCr 4:4:4/12 bit
▶ B_MS3_RGB444_12
: 3G SDI Level-B Mapping Structure 3 – RGB 4:4:4/12 bit
▶ B_MS4_YCbCr422_12
: 3G SDI Level-B Mapping Structure 4 – YCbCr 4:2:2/12 bit
▶ B_2X_DS1_YCbCr422_10
: 3G SDI Level-B Data Stream 1 – YCbCr 4:2:2/10 bit, Dual Link SMPTE-372M
▶ B_2X_DS2_YCbCr422_10
: 3G SDI Level-B Data Stream 2 – YCbCr 4:2:2/10 bit, Dual Link SMPTE-372M
Especially for 3G Level B signals, the format should be set manually. Also, be aware that the format information might be lost on power down.
SDI Switching
Set this mode for smooth SDI switching between two SDIs. (e.g. SDI 1 to SDI 2)
NTSC Setup
Select 0 IRE or 7.5 IRE. 7.5 IRE works on NTSC or SD YUV.
11
Page 12
HDMI UV Swap
Sometimes UV signal might be opposite such input as PC RGB or such resolution as PC’s. Turn this mode on to see correct color when the incorrect color displayed on this kind of input.
SDI Output
Sets SDI Output to either SDI loop-through or HDMI-to-SDI conversion out.
HDMI Output
Sets HDMI Output to either SDI loop-through or HDMI-to-SDI conversion out.
DSLR Camera
Set which DSLR camera you use for DSLR Zoom mode. DSLR Zoom mode can be set by pressing Zoom button in the front.
12
Page 13
DISPLAY 1
Aspect
Set the aspect ratio of the screen. 16:9, 4:3, Native(Original) are selectable.
1:1 Scan
Set this on to display picture in 1:1 pixel mapping.
Anarmorphic
Set this mode to resize the screen to 3.56:1, 2.74:1, 2.59:1, 2.55:1, 2.40:1, 2.39:1,
2.35:1, 1.85:1, 1.75:1, 1.66:1, or 1.37:1.
Waveform Display
Select waveform display mode. Choose Normal to analyze whole screen, choose Line Select to analyze a specific line of the screen.
Waveform Line Select
Select the line when you select Line Select mode for Waveform display.
Waveform Color Mode
Choose either Single or Mixed.
Waveform Intensity
Set waveform color’s intensity between 0~63.
WFM & Vector Size
Set Waveform and Vectorscope size among three kinds.
WFM & Vector Blend
Set transparency of Waveform and Vectorscope window between 0~6.
13
Page 14
YCbCr YCbCr is a digital color reproduction standard. Y is for luminance, Cb is for blue strength, Cr is for red strength.
Timecode Display
Set this mode on to display timecode from SDI signal. Select the appropriate timecode that you wish to display among LTC (Longitudinal Time Code), VITC (Vertical Interval Time Code), DVITC (Digital Vertical Interval Time Code).
Timecode Position
Set Top or Bottom position for timecode.
14
Page 15

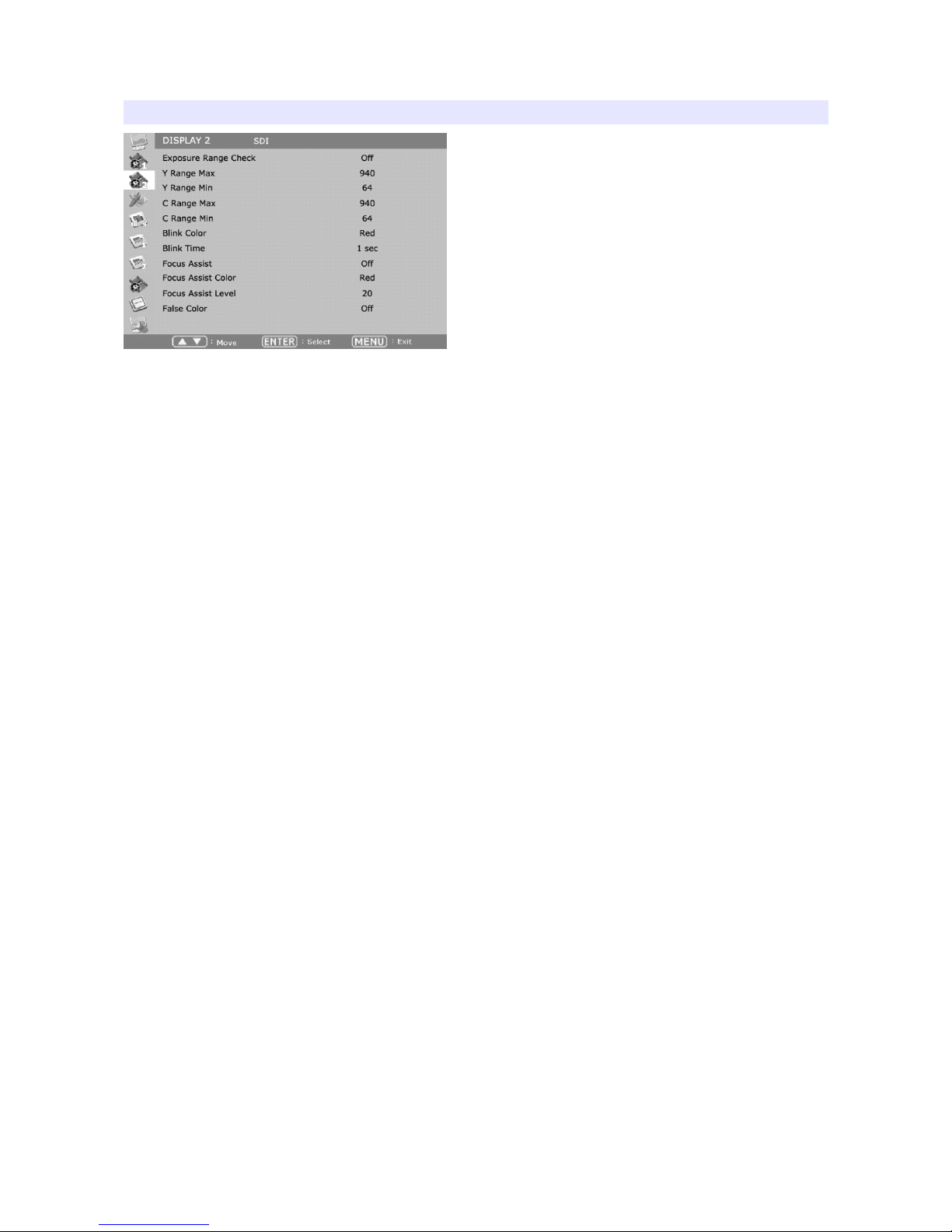

DISPLAY 2
Exposure Range Check (Video Range Check)
Checks Y, C level and displays over-exposed or under-exposed area on screen. The base value can be Y, Cb, or Cr.
Y Range Max / Min
Set Y range value for range check.
C Range Max / Min
Set C range value for range check.
Blink Color
The filled area color by range check can be either Black, Blue, Green or Red.
Blink Time
Set blinking time of the area between 1 to 5 seconds.
Focus Assist
Turns on Focus Assist mode. This mode can be set also by pressing Focus Assist button in front.
Focus Assist Level (Sensitivity)
The sensitivity of the focus assist function can be set between 0 to 48.
Focus Assist Color
Set brush color of focus assist mode among Blue, Green, and Red.
False Color
Shows pictures in specific colors as its luminance level other than the original
15
Page 16
colors. Much exposed area is filled with red while little exposed area is purple.
* 10-bit, 12-bit Dithered gradient pattern might not be displayed clearly in this mode.
16
Page 17

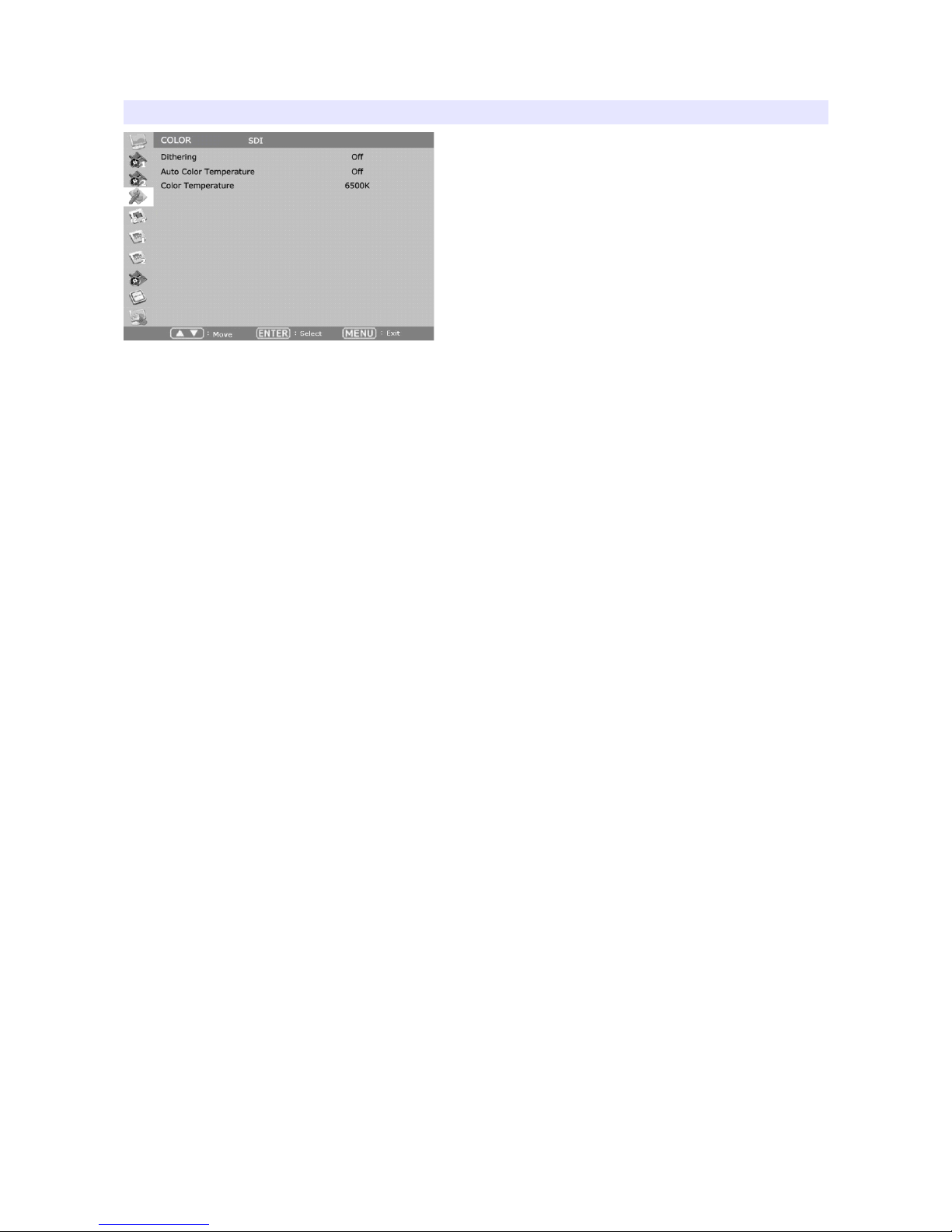

COLOR
Dithering
Set this mode on to display gradient more smoothly.
Auto Color Temperature
Set this mode on to adjust color temperature by temperature change. Its output might incorrect on some harsh environment.
Color Temperature
VAR, 3200K, 5400K, 6500K, 9300K color temperatures are preset and selectable by user. On User mode, user can adjust RGB gain and bias. Adjusting on User mode is recommended to professional users.
17
Page 18

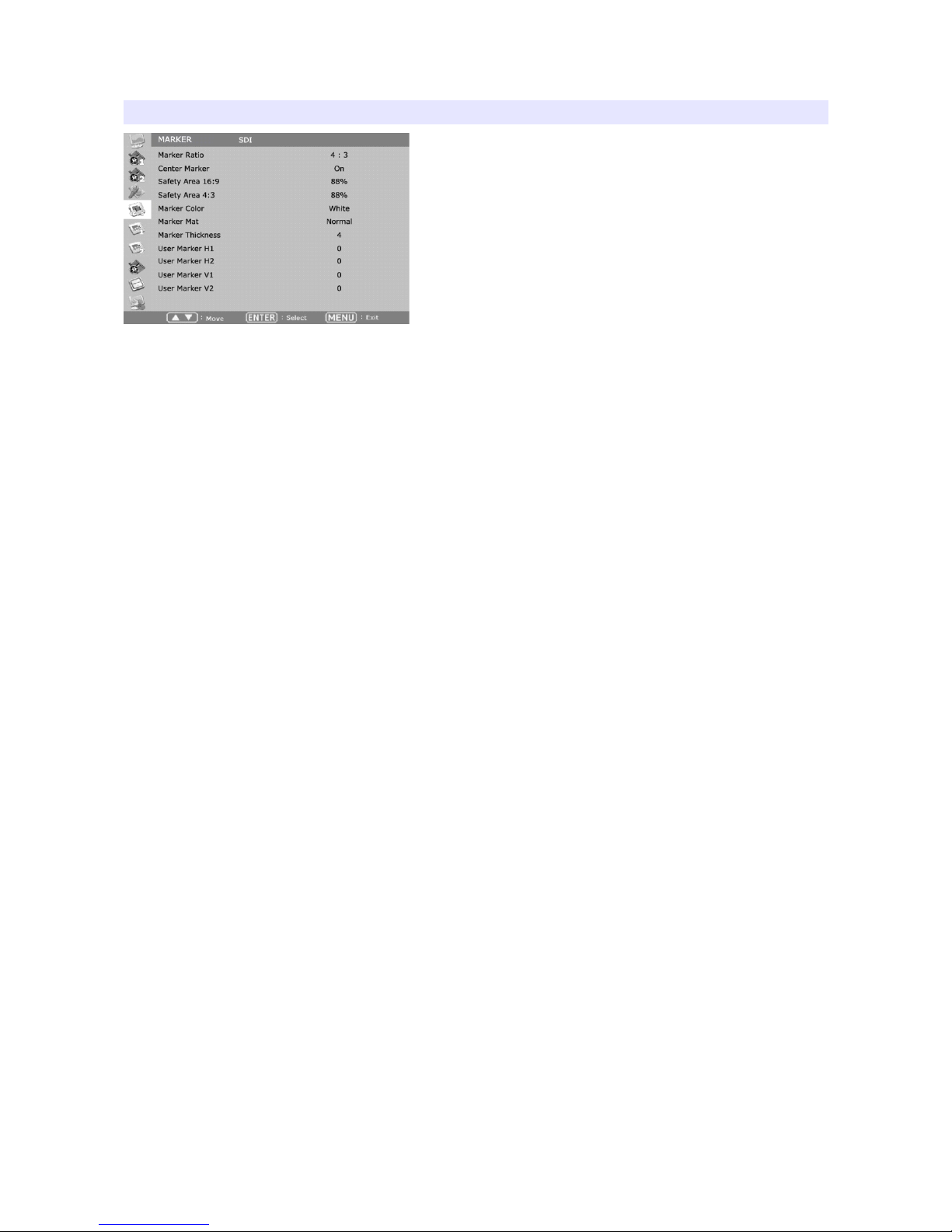

MARKER
Marker Ratio
Select one of preset markers or user marker. To display marker, press Marker button in front of the monitor.
Center Marker
Set preference to display center marker or not.
Safety Area 16:9
Adjust size of the safety area when marker displayed on 16:9 screen.
Safety Area 4:3
Adjust size of the safety area when marker displayed on 4:3 screen.
Marker Color
Select marker’s color among White, Red, Green, Blue, Gray and Black.
Marker Mat
Set how to display outside of the safety area. Normal, Half(Gray), Black are selectable.
Marker Thickness
Set marker thickness between 1 to 10.
User Marker H1 / User Marker H2 / User Marker V1 / User Marker V2
Set user marker’s position. H1 for left, H2 for right, V1 for top, V2 for bottom. The positions are saved as the selected marker name such as USER1.
18
Page 19

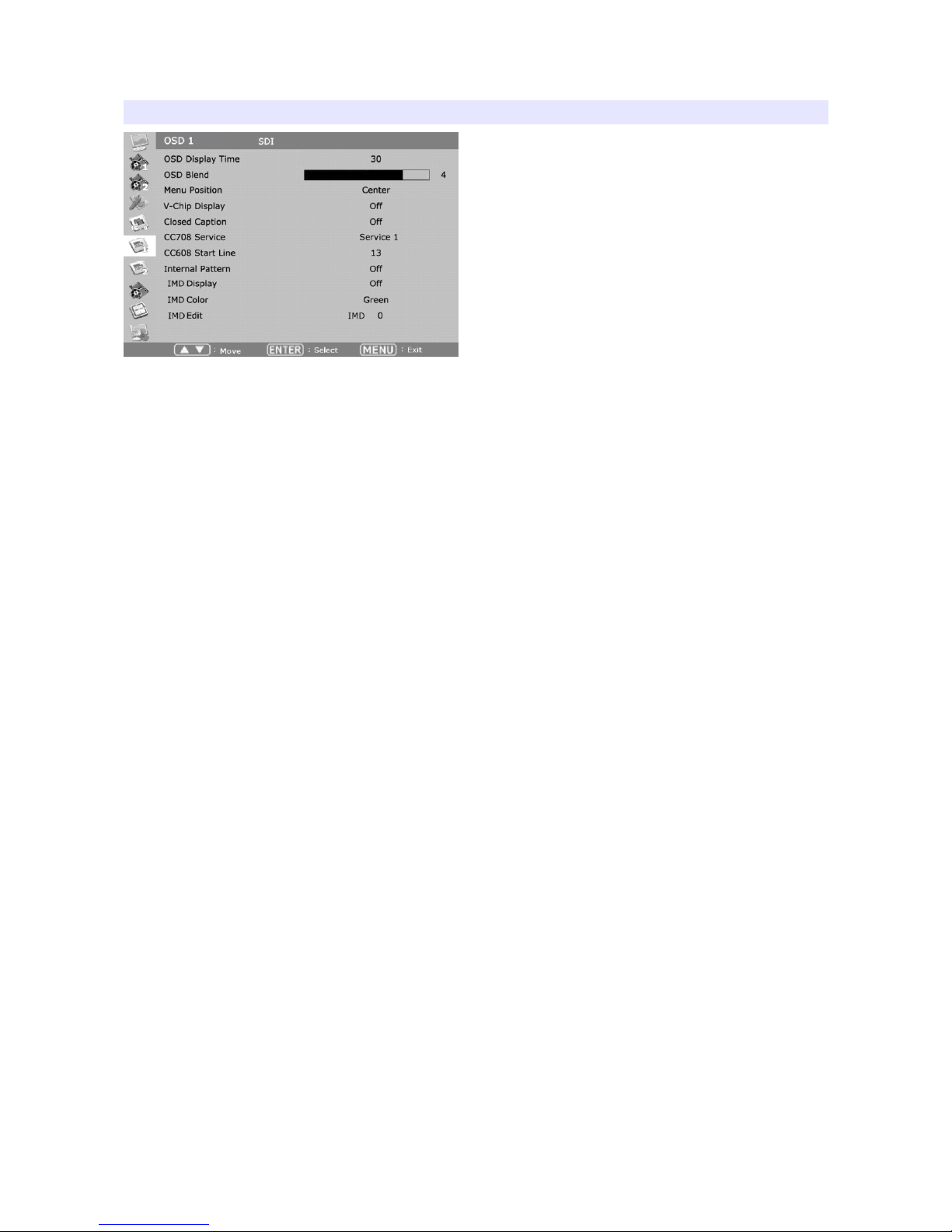

OSD 1
OSD Display Time
Set OSD menu display time. Choose 0 for infinite.
OSD Blend
Set transparency of the menu between 0 to 5.
OSD Position
Set menu position among Left Top, Right Top, Left Bottom, Right Bottom and Center.
V-Chip
SD-SDI, Composite signal might contain V-Chip data. Turn this mode on to display V-Chip information on screen.
Closed Caption
Select one of 608 Line 21, 608 VANC, 608 Transcoded, 708 to display Closed Captions. In special condition such as menu display status, captions are not displayed.
CC708 Service
Select one of CC service as your preference.
Service 1: general captions.
Service 2: translated captions.
Service 3,4: not assigned.
CC608 StartLine
Display line of captions are selectable by user. (e.g. 13)
19
Page 20
Internal Pattern
To test monitor display without signal, turn this mode on. Several patterns such as Color Bars, Blue, Green, Red, White and Black are selectable.
IMD Display
Set this mode on to display IMD text on screen.
IMD Color
Select IMD text color among Red, Green, and Amber.
IMD Edit
Set the IMD source ID to display on screen.
20
Page 21

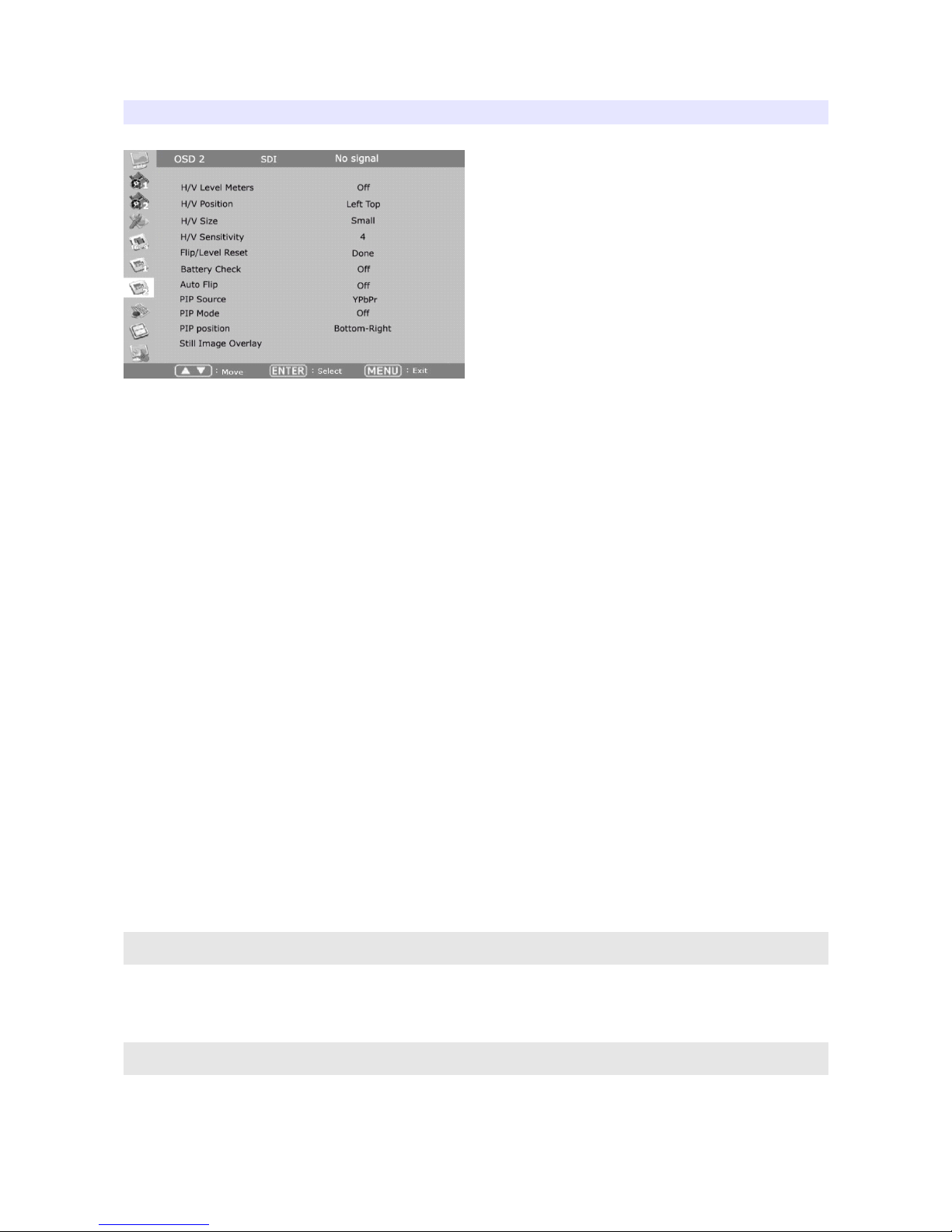

OSD 2
H/V Level Meters
Displays the horizontal and vertical angle on screen.
H/V Position
Arranges Level Meters' position.
H/V Size
Adjusts Level Meters' size.
H/V Sensitivity
Adjusts Level Meters' sensitivity.
Flip/Level Reset
Resets the flip and angle meters.
Battery Check
Turns on battery checker display.
Auto Flip
Sets Auto Flip on/off.
* If you use 'Still Image Overlay' feature often, please make sure 'Still Image Overlay' is turned off before using Auto Flip.
PIP Source (Analog & SDI)
Sets the source input for Picture in Picture function.
* Please note that only 1 Analog - 1 SDI combination can be displayed as Picture-in-Picture.
21
Page 22
PIP Mode
Selects PIP mode among Large PIP, Small PIP, Side by Side.
PIP Position
Sets PIP position.

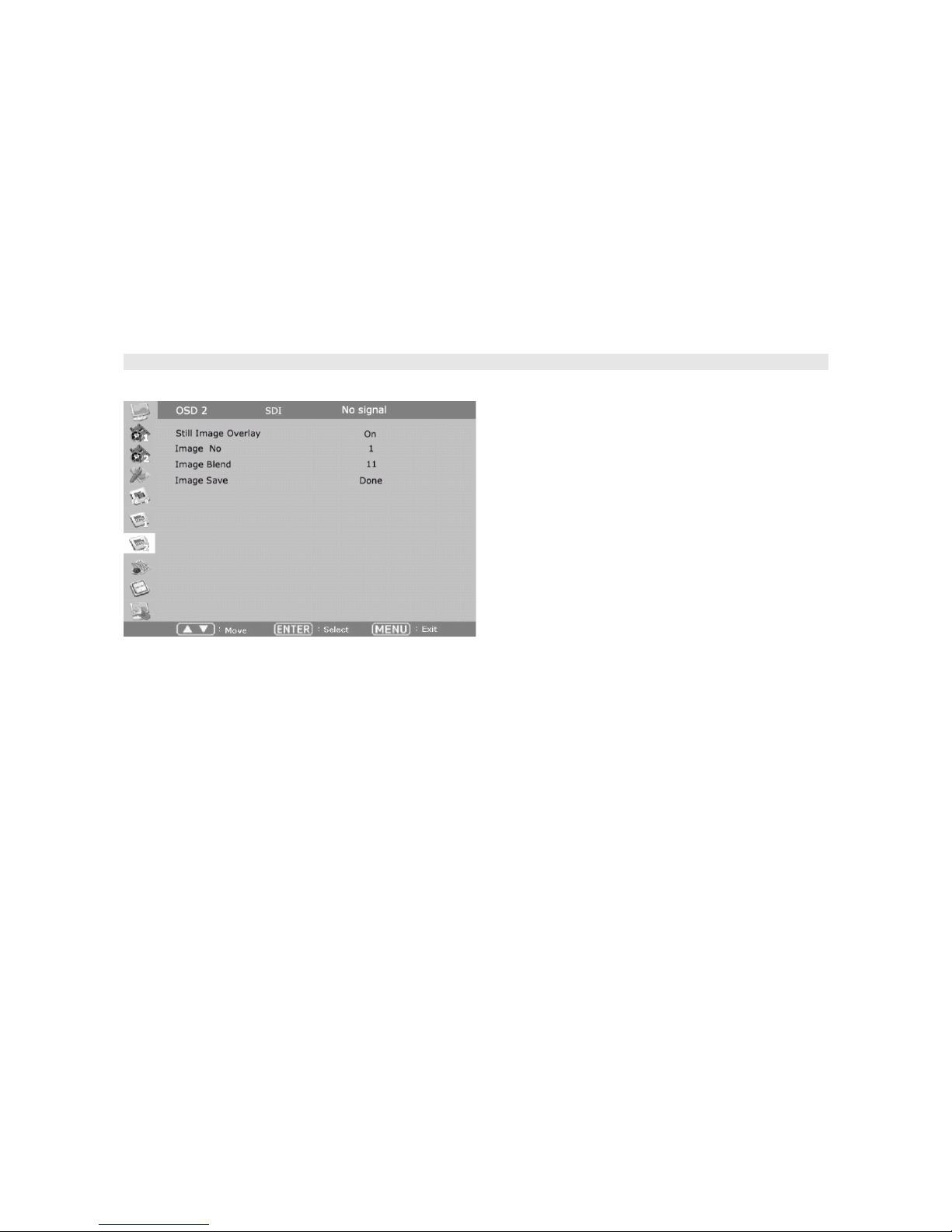

Still Image Overlay (SDI)
Turns on this feature to overlays the stored picture. After it turned on, additional menus will be displayed as a new page on the screen like below.
To store a picture or for configuration, use these 4 menus appeared on the screen.
* Please note that only SDI picture can be stored.
Image No.
User can save up to 4 pictures for Still Image Overlay. Set the image number from 1 to 4 on this menu.
Image Blend
Sets the image's transparency when it overlays on the screen.
Image Save
This menu is the trigger to save image. Select 'Apply' to save current screen to overlay it later.
22
Page 23

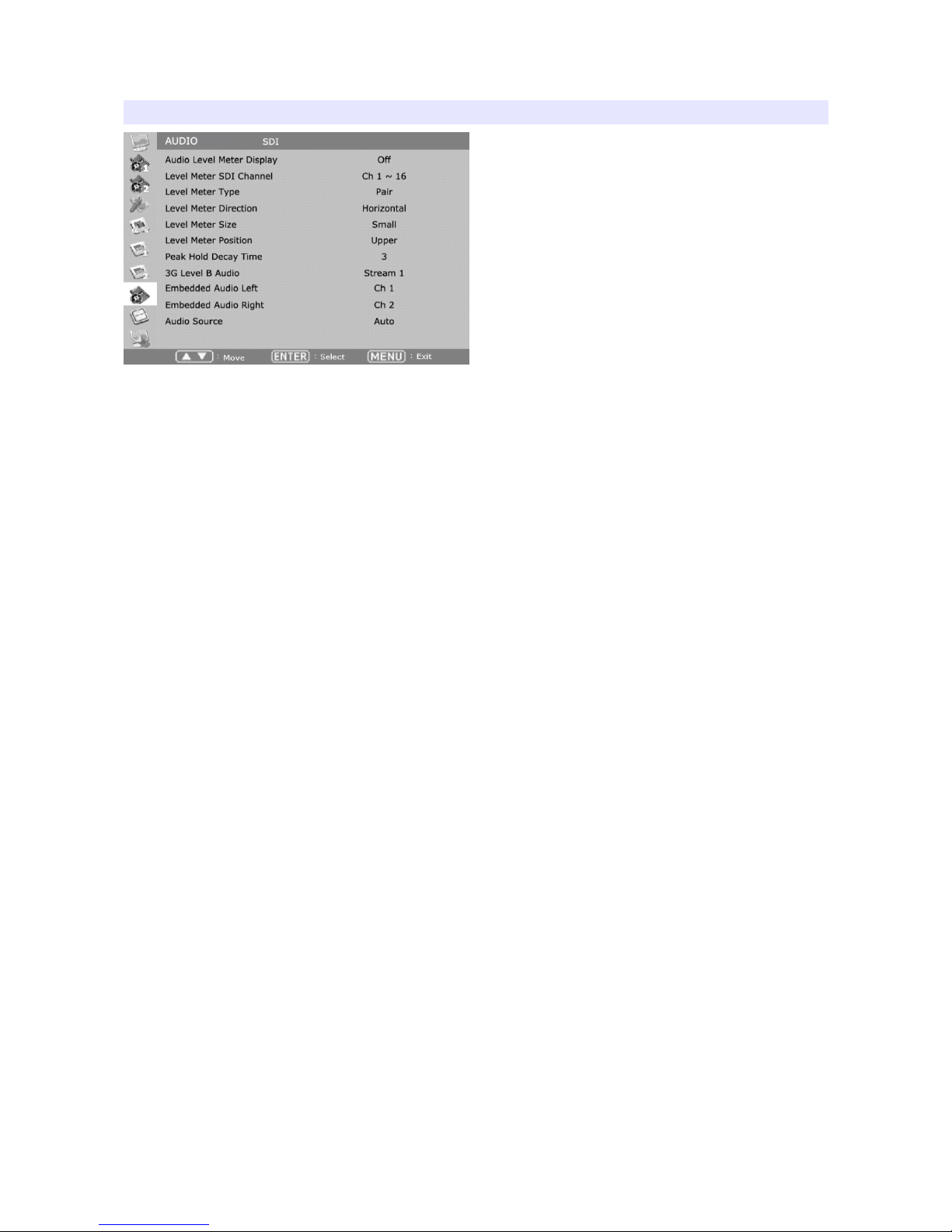

AUDIO
Audio Level Meter
Turns on/off audio level meters.
Level Meter SDI Channel
Set the audio channels to display.
Level Meter Type
Select one of two types: pair or group.
Level Meter Direction
Select one of two orientations : Horizontal or Vertical.
Level Meter Size
Select the size of the meters : Small or Large.
Level Meter Position
Select the position of the meters : Upper or Lower.
Peak Hold Decay Time
Set the decay time of the meters.
3G Level B Audio
Select one audio signals when there are two inputs.
Embedded Audio Left
Select audio channel for left (Ch 1 ~ 15)
23
Page 24
Embedded Audio Right
Select audio channel for right (Ch 2 ~ 16)
Audio Source
Select audio source among Auto / SDI / Line In / HDMI
Audio Output
Select audio output among Left, Right, Left/Right.
24
Page 25

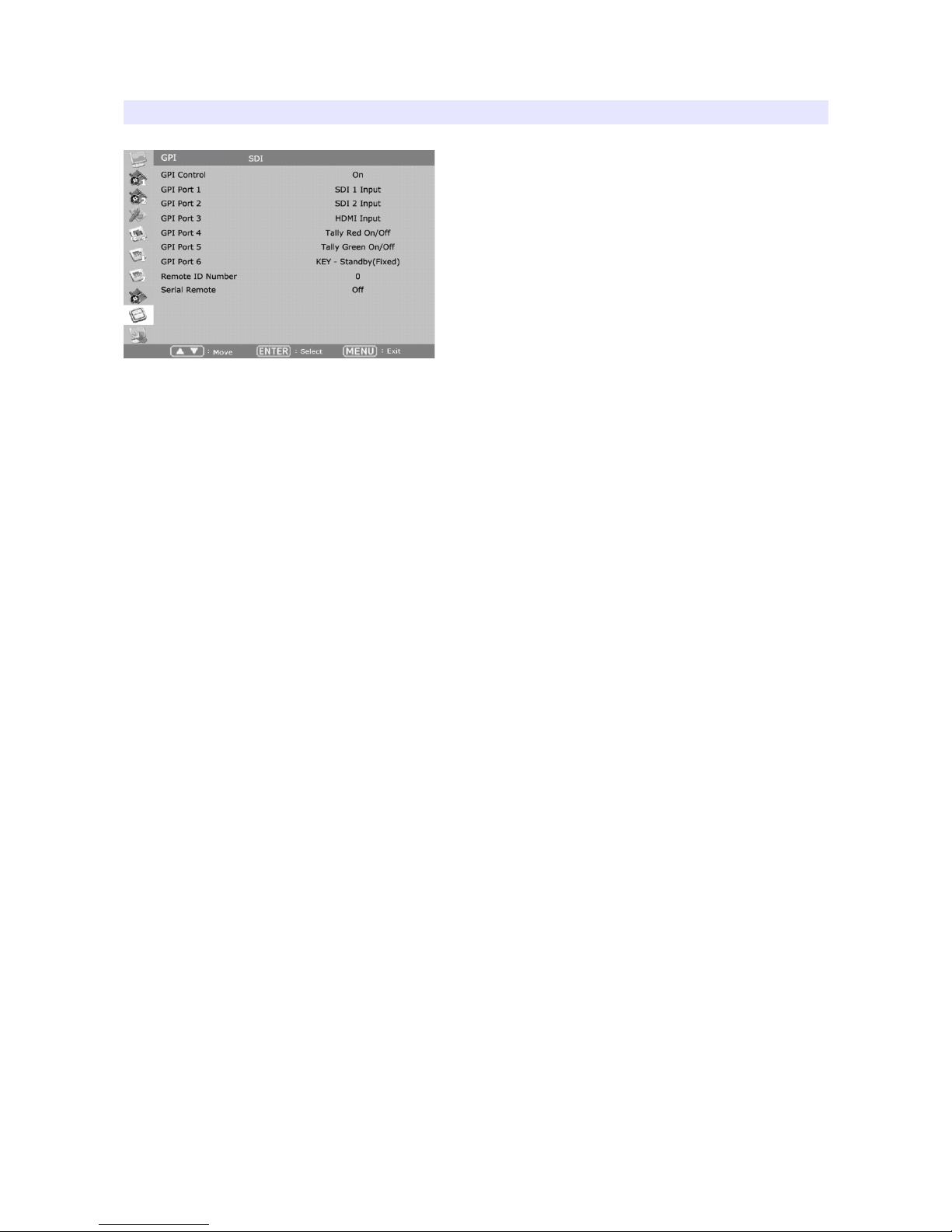

GPI
GPI Control
Turns on/off external monitor control function.
GPI Port 1,2,3,4,5,6
Assigns each GPI port’s function. (e.g. SDI 1 input, HDMI input, Tally Red) See EXTERNAL REMOTE CONTROLLING section for details.
Remote ID Number
Assigns the ID for the monitor to control through serial port. 0 to 99 can be assigned.
Serial Remote
Turns serial remote function on. All front buttons are locked on this mode. To exit from this mode, press and hold Menu button for 3 seconds.
25
Page 26

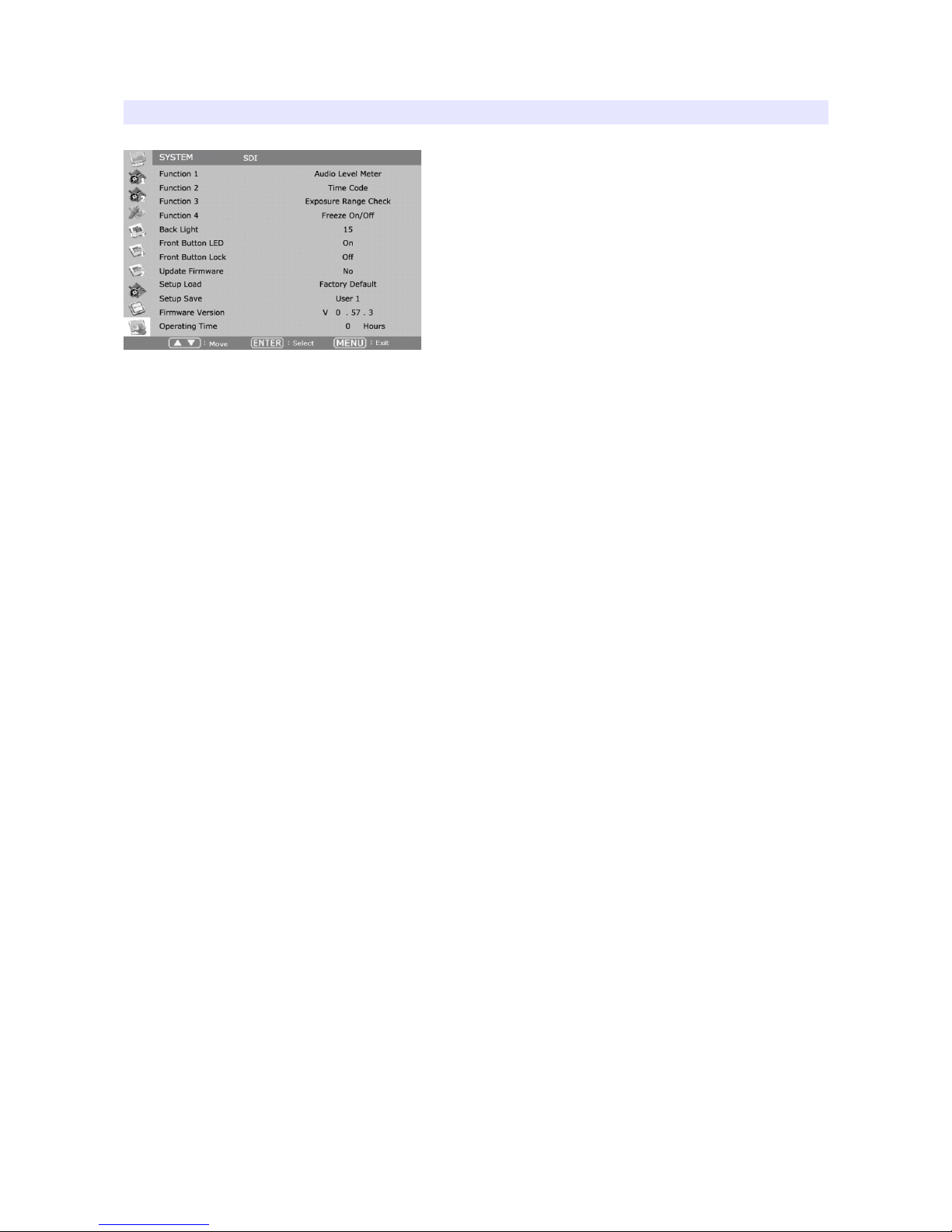

SYSTEM
Function 1,2,3,4
Assigns a function to each function button. See FRONT section for detail.
Backlight
Set the backlight intensity from 0 to 40. An LCD panel requires more than 30 minutes to be settled to a new backlight value.
Front Button LED
Set front LEDs on/off status.
Font Button Lock
Locks front buttons not to work. Press and hold Menu button for 3 seconds to exit from this mode.
Update Firmware
Turns update mode on. Select Serial or USB port for update. After firmware update, the monitor should be turned off/turned on, and Factory Default should be loaded before use.
Setup Load
Load monitor settings from Factory Default, User 1/2/3/4.
Setup Save
Save current monitor setting to use later. 4 settings can be saved.
Firmware Version
This version number is required when you request for service.
26
Page 27
Operating Time
This indicates total hours that the monitor operated.
27
Page 28
External Remote Control
Connecting GPI Port(RJ-45)
Turning the monitor off is recommended before cable connection. Assignable functions are listed below.
Function Name Description
SDI-1 Input
Switches the input to SDI-1
SDI-2 Input
Switches the input to SDI-2
HDMI Input
Switches the input to HDMI
YPbPr Input
Switches the input to YPbPr
CVBS-1 Input
Switches the input to CVBS-1
CVBS-2 Input
Switches the input to CVBS-2
CVBS-3 Input
Switches the input to CVBS-3
KEY-UP ▲
CURSOR UP on Menu Control.
KEY-DOWN ▼
CURSOR DOWN on Menu Control.
KEY- MENU
Menu On/Off
KEY-ENTER
Enter Button
Aspect
Aspect On/Off
1:1 Scan On/Off
1:1 SCAN Function On/Off
H/V Delay On/Off
H/V Delay Function On/Off
TC Display On/Off
TC Display On/Off
ALM Display On/Off
Audio Level Meters Display On/Off
Freeze On/Off
Freeze Frame On/Off
Front Button LED On/Off
Front Button LED On/Off.
Tally Red On/Off
Tally Red LED On/Off
Tally Green On/Off
Tally Green LED On/Off
Backlight
Set the backlight intensity from 0 to 40. An LCD panel requires more than 30 minutes to be settled to a new backlight value.
Front Button LED
Set front LEDs on/off status.
28
Page 29
List of Compatible Video Formats (HDMI/Composite)
NO
Signal Input
Formats
INPUT OUTPUT
Composite
SD-YPbPr
HD-YPbPr/HDMI HDMI to SDI
(Convert)Normal
Convert
1 NTSC O O O O
2 PAL O O O X
3 720*576/50i X O O O
4 720*480/59.94i X O O O
5 720*480/60i X O O O
6 720*576/50p
X
O O X
7 720*480/59.94p
X
O O O (480i)
6 720*480/60p
X
O O O (480i)
8 1280*720/23.98p
X
O O X
9 1280*720/24p
X
O O X
10 1280*720/25p
X
O O X
11 1280*720/29.97p
X
O O X
12 1280*720/30p
X
O O X
13 1280*720/50p
X
O O O
14 1280*720/59.94p
X
O O O
15 1280*720/60p
X
O O O
16 1920*1080/50i
X
O O O
17 1920*1080/59.94i
X
O O O
18 1920*1080/60i
X
O O O
19 1920*1080/23.98p
X
O O O
20 1920*1080/24p
X
O O O
21 1920*1080/25p
X
O O O
22 1920*1080/29.97p
X
O O O
23 1920*1080/30p
X
O O O
24 1920*1080/50p
X
O O O
29
Page 30
25 1920*1080/59.94p
X
O O O
26 1920*1080/60p
X
O O O
30
Page 31
List of Compatible Video Formats (SDI)
NO
Input Signal
Formats
HD/SD-SDI
Single
3G
YUV4:2:2
3G
YUV4:4:4
3G
RGB444
1 NTSC
√
- - -
2 PAL
√
- - -
3 525/60i (SD)
√
- - -
4 625/50i (SD)
√
- - -
5 720*480/59.94p - - - -
6 720*576/50p - - - -
7 1280*720/23.98p - - - -
9 1280*720/24p - - - -
9 1280*720/50p
√
-
√ √
10 1280*720/59.94p
√
-
√ √
11 1280*720/60p
√
-
√ √
12 1920*1035/59.94i
√
-
√ √
13 1920*1035/60i
√
-
√ √
14 1920*1080/50i
√
-
√ √
15 1920*1080/59.94i
√
-
√ √
16 1920*1080/60i
√
-
√ √
17 1920*1080/23.98p
√
-
√ √
18 1920*1080/23.98psf
√
-
√ √
19 1920*1080/24p
√
-
√ √
20 1920*1080/24psf
√
-
√ √
21 1920*1080/25p
√
-
√ √
22 1920*1080/25psf
√
-
√ √
23 1920*1080/29.97p
√
-
√ √
24 1920*1080/29.97psf
√
-
√ √
25 1920*1080/30p
√
-
√ √
26 1920*1080/30psf
√
-
√ √
27
1920*1080/50p -
√
- -
28
1920*1080/59.94p -
√
- -
29
1920*1080/60p -
√
- -
31
Page 32
30
2048*1080/23.98p
√
- -
√
31
2048*1080/23.98psf
√
- -
√
32
2048*1080/24p
√
- -
√
33
2048*1080/24psf
√
- -
√
34
2048*1080/25p - - -
√
35
2048*1080/25psf - - -
√
36
2048*1080/29.97p - - -
√
37
2048*1080/30p - - -
√
32
Page 33
Specifications
Input
2 x BNC HD/SD-SDI, 3G/1.485G/270M
1 x HDMI HDMI, (with HDCP v.1.1), 19pin Female
3 x RCA Analog(YPbPr/CVBS)
Output
1 x BNC SDI Loop-through or HDMI-to-SDI Conversion Out
1 x HDMI HDMI (with HDCP v.1.1), 19-pin Female
Format
SMPTE 425M AB
1080p (60,59.94,50), Direct Mapping(MS1,2,3,4)
2 x HD-SDI(3G), 2 x SMPTE 292M
SMPTE 274M
1080i /60, 59.94, 50 /24sf, 23.98sf
1080p /30, 29.97, 25, 24, 23.98
SMPTE 296M 720p / 60, 59.94, 50
SMPTE 260M 1035i / 60, 59.94
SMPTE 259M,125M 480i / 60, 59.94
ITU R-BT.656 576i / 50
HDMI up to 1080 / 60i
Analog (Composite) 1.0Vp-p(with sync), NTSC/PAL
AUDIO
1 x Phone Jack In Line In(Stereo)
1 x Phone Jack Out Headphone Out(Stereo)
Speakers 0.5W, Mono
I/O Port
1x GPIO Port TTL Level, RJ-45 port
1x USB Port for Firmware Update
Tally Output Control Sink Current 0.5A max, with RJ-45 port
LCD
Size 7.0”
Resolution 1024 x 600
Pixel Pitch 0.15 x 0.15 mm
Color Depth 8 bits (6 bits + 2 bits FRC)
Viewing Angle R/L:170, U/D:170 degree
Luminance of White 1.100 cd/m²
Contrast 800 : 1
Display Area (H x V) 153.6 x 90.0 mm (6.1 x 3.5 inches)
Operation
Environme
nt
Power Requirements
DC 7V ~ 24V, AC 100 - 230V (50Hz/60Hz)
Power Consumption
18W
Temperature -10°C ~ 40°C
Humidity 20% ~ 80% RH
Appearance
Weight 1.3kg (2.86 lbs), without stand
Dimensions 210 x 151 x 78 mm (8.3 x 6.0 x 3.1 inches)
Accessories Manual (CD), Cleaner, DC Adapter, AC Power Cord
Options
Acrylic Protector, Sun Hood, Pouch, DV Battery Mount, V-Mount, Anton Bauer Mount, D-Tap Power Cable, Stand
33
Page 34
This specifications are subject to change without prior notice for product improvement.
34
Page 35

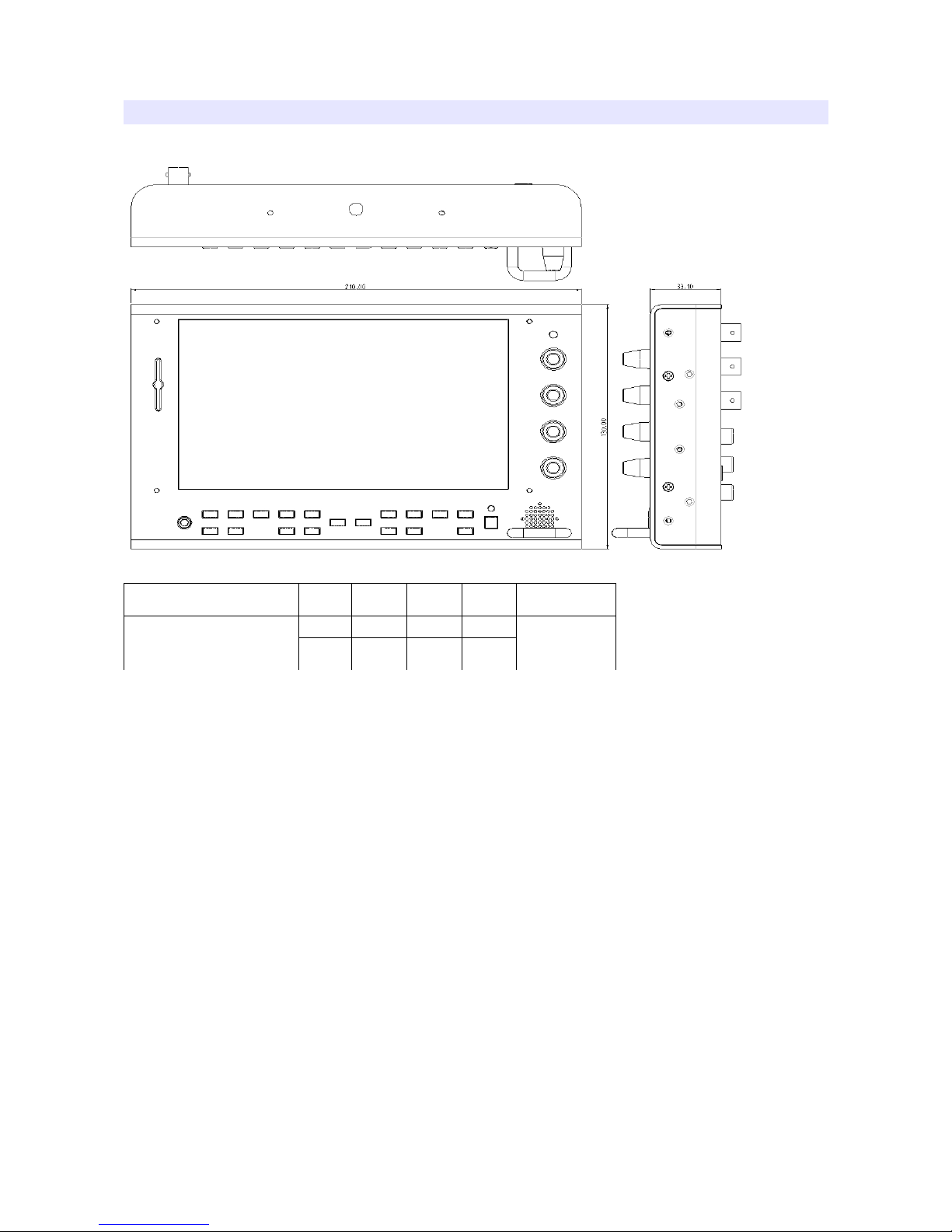

Dimensions
MODEL Unit W H D Remark
FM-073SCH
mm
210.0
151.0 78.3 without stand
inches 8.3 6.0 3.1
35
Page 36

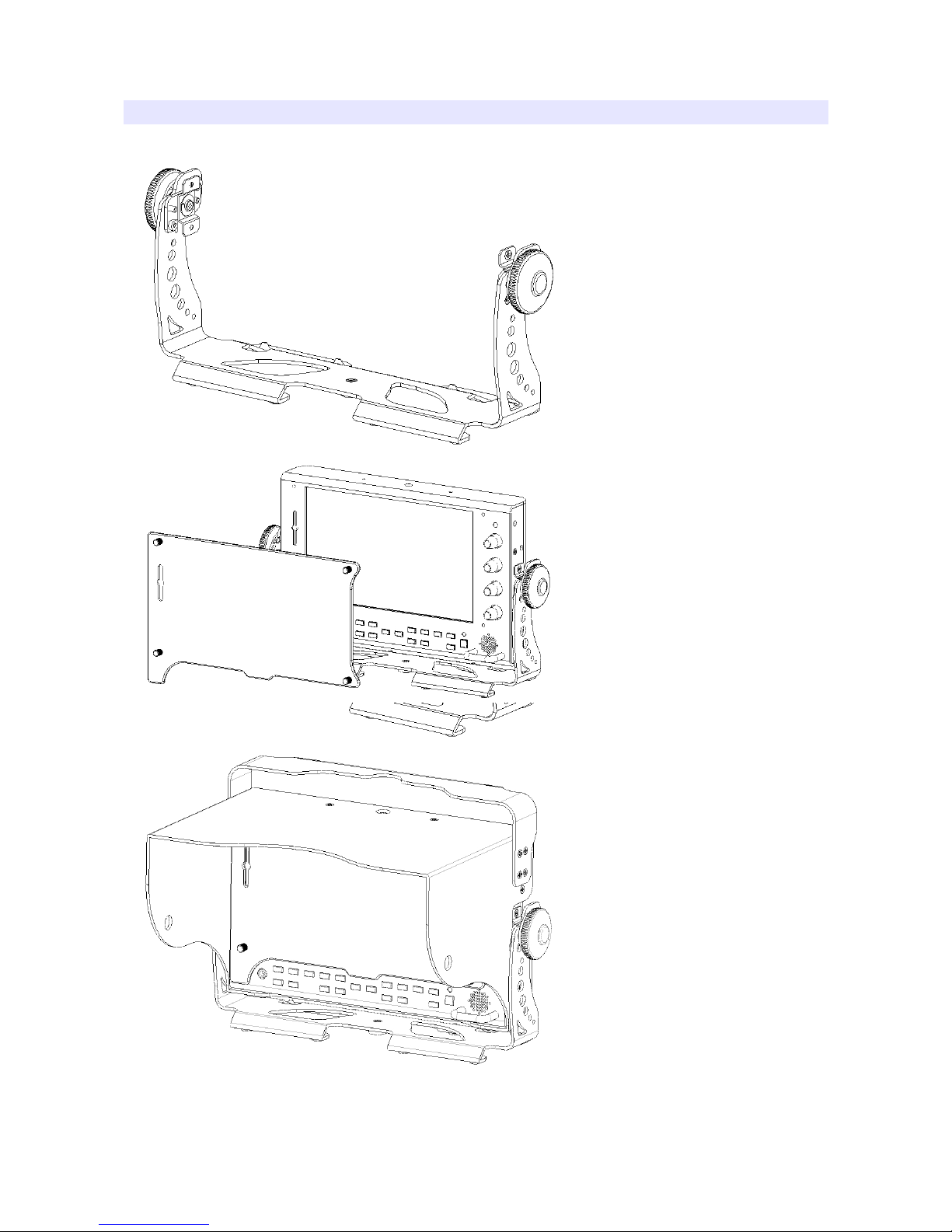

Accessories
Stand
Acrylic Protector
Hood
36
Page 37
Troubleshooting
Try these if you have trouble in using the monitor. Call for Service if you can't solve the problem even after you tried these solutions.
Symptom Solution
Power isn't turned on
Check Connectivity of Power Cable between Outlet and the Monitor. Press and Hold Power button for more than one second. Try with Other Monitor or Electric Device using the same Power Cable.
Check if battery voltage is above 7V when the monitor powered by battery.
Screen is Black and All Button Lights are On in startup process
Reconnect the Power and Restart the Monitor. (Call for Service if the Symptom appeared more than 3 times)
Screen is Black on Startup and there's neither BON Logo nor "No Signal" Display, but Buttons are Working
Reconnect the Power and Restart the Monitor. (Call for Service if the Symptom appeared more than 3 times)
There's a delay in BON Logo Display on Startup
It is normal and No Reaction Required.
BON Logo appeared on Startup, but No Screen Output when Input Signal Connected
Remove Input Cable and Check if "No Signal" appears on Screen.
- restart the Monitor if you can't see "No Signal"
- Make Monitor "Factory Default" and Try again and Try again
- Check the Cable Connectivity
- Try with Different Cable
- Check the Input Format and Frequency
- Try with Different Input Device. If successful, the Failed Input Device may Generate Non-Standard Signal (Please Inform Us its Model Name).
"No Signal" appears on the Screen
Check the Input Selection. Make Monitor "Factory Default" and Try again. Try with Different Input Cable. Check the Cable Connection. Check if the Input Format and Frequency is Supported. Try with Different Input Device. If successful, the Failed Input Device may Generate Non-Standard Signal (Please Inform Us its Model Name).
37
Page 38
Strange Color on BON Logo on Startup
Reconnect the Power and Restart the Monitor. (Call for Service if the Symptom appeared more than 3 times)
the Startup Logo Color was ok but Strange Color on Active Screen
Make Monitor "Factory Default" and Try again.
Select Test Pattern(Internal Pattern) in the menu and See if R,G,B Color is Correct.
Check the Input Selection. Try with Different Cable.
Check if Each Cable is correctly Connected when you use Component as Input.
Screen Position Mismatch
Make Monitor "Factory Default" and Try again. Reconnect the Power and Restart the Monitor. Try with Different Input Device. If successful, the Failed Input Device may Generate Non-Standard Signal (Please Inform Us its Model Name).
No Audio Output
Check if the Volume level is 0. Display the Audio Level Meters and See its output.
Colors look different between different models
Give your Monitor 1 hour warmup time. Because Different Panels have different Characteristics, Colors might look Different.
Colors look different between same models
Give your Monitor 1 hour warmup time. Same Panels are not exactly same but they have a tolerance range among them by the Panel Manufacturer, so Colors might look Different. * The tolerance range is in Panel Standard Document included in CD
38
Page 39
Warranty Information
Free Service
If the product needs to be repaired in 12 months from the purchase.
Exceptions
• damage caused by accident, abuse, misuse, water, flood, fire, or other acts of nature or external causes
• damage caused by service performed by anyone who is not an authorized service provider
• damage to a product that has been modified or altered without the written permission of BON
Service to be Charged
If the product needs to be repaired after 12 months from the purchase.
Modification of Product
Dimensions, specifications or design of the product are subject to change without prior notice for product improvement.
Caution on Menu Operation
OSD Menu might be freezed or broken on very high-quality or complicated pictures input. In that case, turn off the power for 5 seconds and turn it on to make Menu works.
Caution for Monitor Placement
For long lifetime and proper operation of the monitor, all surface of the monitor should not be blocked by any material for ventilation.
39
Page 40
Corporate Headquarters
Tresebelle-Sky 2F, 1479 Gayang-2, Gangseo-gu, Seoul, South Korea
Research / Service Center
Vision Tower 7F, 1481 Gayang-2, Gangseo-gu, Seoul, South Korea
Telephone
+82 2 2659 0333
FAX
+82 2 2659 8133
Web
http://www.bon.co.kr
Email
[email protected]
40
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
