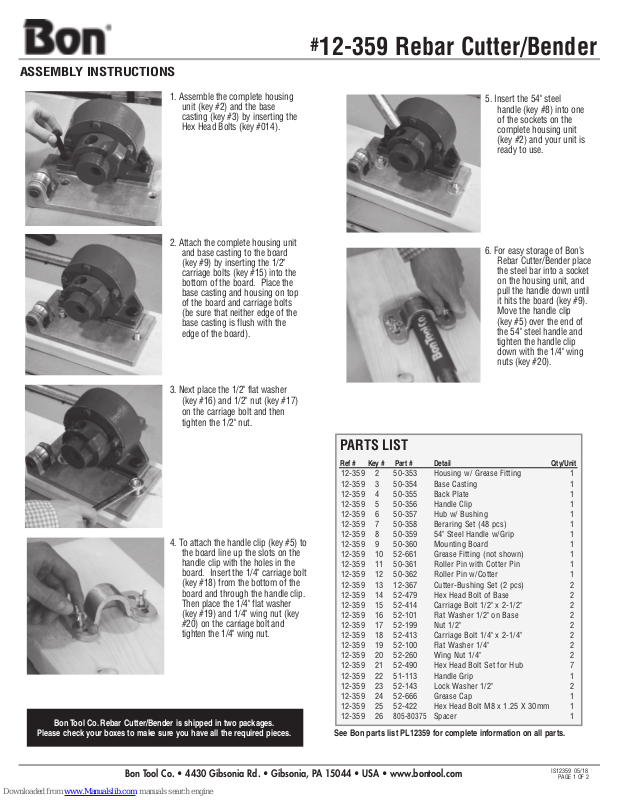

ASSEMBLY INSTRUCTIONS
#
12-359 Rebar Cutter/Bender

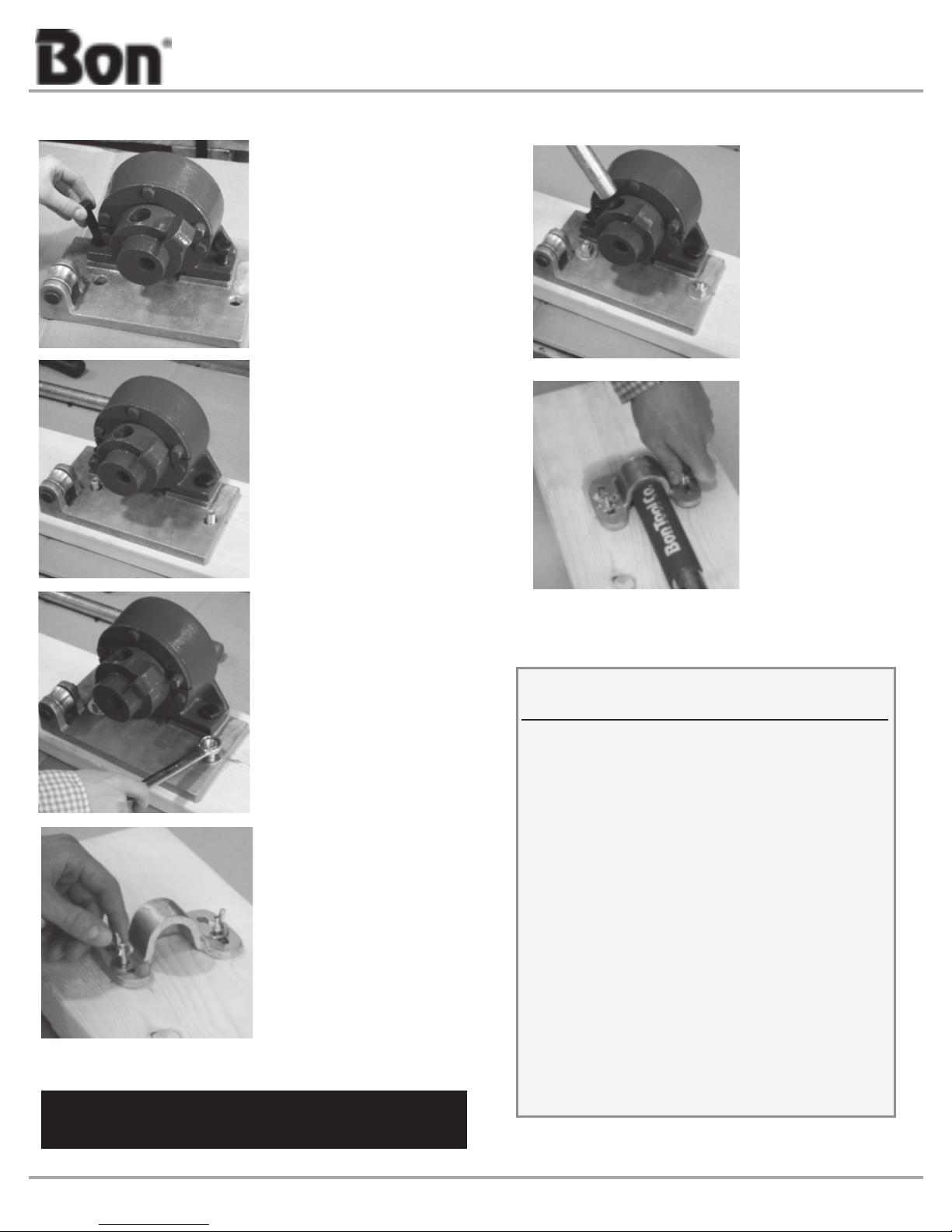

1. Assemble the complete housing
unit (key #2) and the base
casting (key #3) by inserting the
Hex Head Bolts (key #014).
2. Attach the complete housing unit
and base casting to the board
(key #9) by inserting the 1/2"
carriage bolts (key #15) into the
bottom of the board. Place the
base casting and housing on top
of the board and carriage bolts
(be sure that neither edge of the
base casting is flush with the
edge of the board).
5. Insert the 54" steel
handle (key #8) into one
of the sockets on the
complete housing unit
(key #2) and your unit is
ready to use.
6. For easy storage of Bon’s
Rebar Cutter/Bender place
the steel bar into a socket
on the housing unit, and
pull the handle down until
it hits the board (key #9).
Move the handle clip
(key #5) over the end of
the 54" steel handle and
tighten the handle clip
down with the 1/4" wing
nuts (key #20).
3. Next place the 1/2" flat washer
(key #16) and 1/2" nut (key #17)
on the carriage bolt and then
tighten the 1/2" nut.
4. To attach the handle clip (key #5) to
the board line up the slots on the
handle clip with the holes in the
board. Insert the 1/4" carriage bolt
(key #18) from the bottom of the
board and through the handle clip.
Then place the 1/4" flat washer
(key #19) and 1/4" wing nut (key
#20) on the carriage bolt and
tighten the 1/4" wing nut.
Bon Tool Co. Rebar Cutter/Bender is shipped in two packages.
Please check your boxes to make sure you have all the required pieces.
PARTS LIST
Ref # Key # Part # Detail Qty/Unit
12-359 2 50-353 Housing w/ Grease Fitting 1
12-359 3 50-354 Base Casting 1
12-359 4 50-355 Back Plate 1
12-359 5 50-356 Handle Clip 1
12-359 6 50-357 Hub w/ Bushing 1
12-359 7 50-358 Beraring Set (48 pcs) 1
12-359 8 50-359 54" Steel Handle w/Grip 1
12-359 9 50-360 Mounting Board 1
12-359 10 52-661 Grease Fitting (not shown) 1
12-359 11 50-361 Roller Pin with Cotter Pin 1
12-359 12 50-362 Roller Pin w/Cotter 1
12-359 13 12-367 Cutter-Bushing Set (2 pcs) 2
12-359 14 52-479 Hex Head Bolt of Base 2
12-359 15 52-414 Carriage Bolt 1/2" x 2-1/2" 2
12-359 16 52-101 Flat Washer 1/2" on Base 2
12-359 17 52-199 Nut 1/2" 2
12-359 18 52-413 Carriage Bolt 1/4" x 2-1/4" 2
12-359 19 52-100 Flat Washer 1/4" 2
12-359 20 52-260 Wing Nut 1/4" 2
12-359 21 52-490 Hex Head Bolt Set for Hub 7
12-359 22 51-113 Handle Grip 1
12-359 23 52-143 Lock Washer 1/2" 2
12-359 24 52-666 Grease Cap 1
12-359 25 52-422 Hex Head Bolt M8 x 1.25 X 30mm 1
12-359 26
See Bon parts list PL12359 for complete information on all parts.
805-80375
Spacer 1
Bon Tool Co. • 4430 Gibsonia Rd. • Gibsonia, PA 15044 • USA • www.bontool.com
IS12359 05/18
PAGE 1 OF 2
Page 2

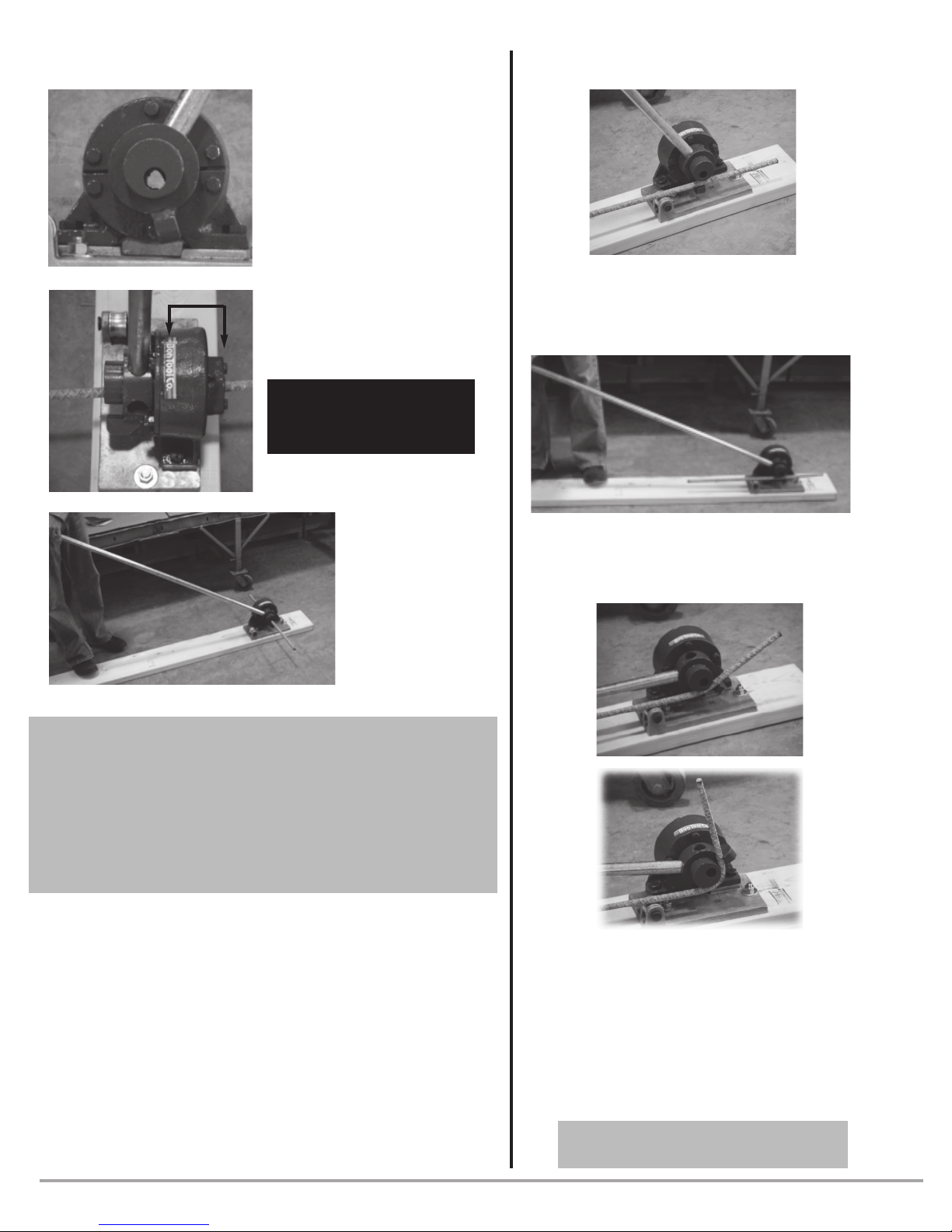

CUTTING INSTRUCTIONS
2
Unit is equipped with 3/4" opening
which will cut up to 5/8" rebar.
1. Line up the bending arm to its lowest
position so that cutter-bushings
(key #13) are in cutting position.
2. Insert the rebar through the cutting
hole in the hub w/bushing to the
desired length (add two inches from
the back plate (key #4) for actual
cutting length).
NOTE: BE SURE NOT TO CUT
NO GRADE REBAR WITH THIS
CUTTER AS THIS WILL VOID
WARRANTY.
BENDING INSTRUCTIONS
1. Line up the bending arm so that it is in its lowest
position (parallel to the roller (key #11)), and then
slide the rebar on the roller and into the bending
arm.
3. While standing on the
board (key #9) exert
sufficient downward
pressure on the
handle (key #8) to cut
the rebar.
SAFETY INSTRUCTIONS
• Always operate unit on a solid, level area
• Make sure that nuts and bolts are tight and secure before using
• Operator should have solid footing when using the rebar cutter/bender, once
rebar is cut pressure is suddenly released
• Always wear eye protection when operating unit
ALWAYS WEAR SAFETY GLASSES WHEN OPERATING
MAINTENANCE
• Unit should be greased everyday when in use, using the grease fitting (key #10)
• After use unit should be cleaned of all debris
• Disassemble as often as necessary to clean and repack the bearing set (key #7)
with grease
• Replace broken or badly worn parts as soon as possible to keep unit in good
working condition. Call (724) 443-7080 for replacement parts.
• If cutter-bushings (key #13) become chipped or dulled change cutting side of
the cutter-bushing by removing and flipping cutting edge to other side.
REBAR CUTTER/BENDER COMES WITH A ONE YEAR WARRANTY ON
PARTS AND WORKMANSHIP. WARRANTY IS VOID IF ATTEMPTING TO
CUT NO GRADE REBAR, OR OTHER MATERIALS IN WHICH UNIT IS
NOT INTENDED
2. Position your rebar to desired length and then exert
enough downward pressure on the handle
(key #8).
3. In order to make tighter bends remove handle from
one socket and position in another socket and
continue to bend rebar.
For more information, contact your nearest
Bon Tool Co. authorized distributor or
Bon Tool Co. at 724-443-7080
ALWAYS WEAR SAFETY GLASSES WHEN OPERATING
UNIT TO AVOID INJURY.
Bon Tool Co. • 4430 Gibsonia Rd. • Gibsonia, PA 15044 • USA • www.bontool.com
IS12359 05/18
PAGE 2 OF 2
