Bome's Midi Translator
Tutorial: SCS.3 Quick Start

Bome's Midi Translator: Tutorial: SCS.3 Quick Start 1 Overview
1 Overview
This is a tutorial for Bome's Midi Translator and Stanton SCS.3 devices.
2 Plugin SCS.3 Devices
Plugin SCS.3 devices and open Bome´s Midi Translator. Then save the
project as SCS.3 quick start.
3 Create aliases
Go to Project-->Properties-->Project Default Midi Ports and create the
Aliasas for the Devices for in and out communication.
And one for the output communication to the Midi target aplication:
(c) 2010 by Bome Software Page 1/14

Bome's Midi Translator: Tutorial: SCS.3 Quick Start 3 Create aliases
In the result, you should have this (don´t edit the names. For running in
DaRouter [see chapter 6] the names must be as described here):
Alias Type Device Description
From SCS.3d 1 MIDI INPUT SCS.3 Deck 1 MIDI from Deck 1
From SCS.3d 2 MIDI INPUT SCS.3 Deck 2 MIDI from Deck 2
From SCS.3m 1 MIDI INPUT SCS.3 Mixer 1 MIDI from Mixer
To SCS.3d 1 MIDI OUTPUT SCS.3 Deck 1 MIDI to Deck 1
for controlling
LED´s
To SCS.3d 2 MIDI OUTPUT SCS.3 Deck 2 MIDI to Deck 2
for controlling
LED´s
To SCS.3m 1 MIDI OUTPUT SCS.3 Mixer 1 MIDI to Mixer 1
for controlling
LED´s
To Application MIDI OUTPUT Virtual MIDI
Device
MIDI to target
Application
(c) 2010 by Bome Software Page 2/14

Bome's Midi Translator: Tutorial: SCS.3 Quick Start 4 Start Preset editing
4 Start Preset editing
4.1 Play Deck A:
1. Create a Preset with name: A: Global Buttons - To Application
2. Then, you have to overwrite the Alias settings for this Preset:
You have to do this, because we want the Preset only to react on ONE
SCS.3d.

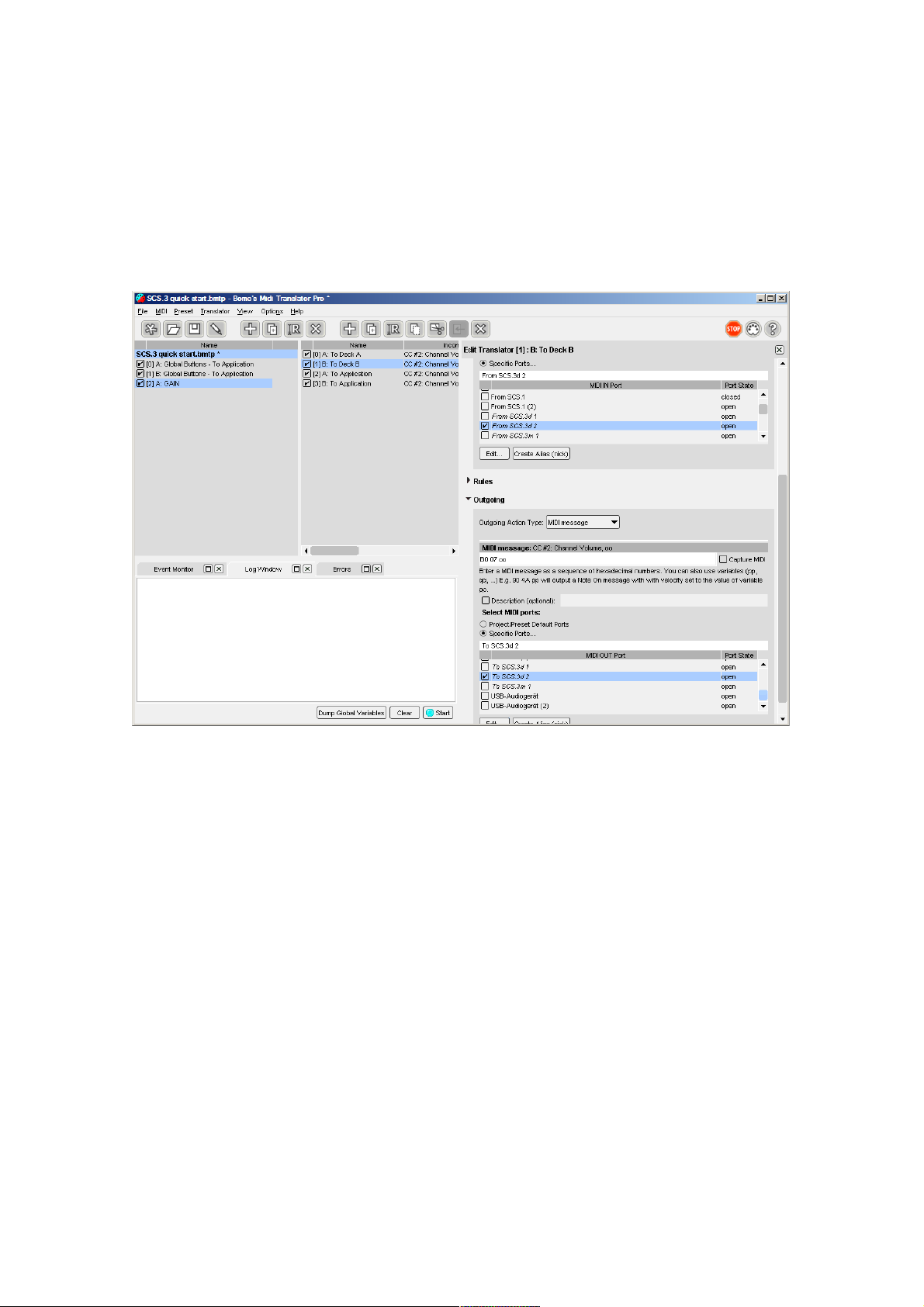

3. Create a Translator: Play
4. Edit Translator: Go to: Translator-->Edit translator
5. Select Incoming Action: MIDI
6. Capture MIDI and Press Button Play
7. As Outgoing Action we select KeyStroke Out, cause we have no
target MIDI Application at this point. Enter: A: Play Return
(c) 2010 by Bome Software Page 3/14
