BOMBARDIER safari, mirage iii Operator's Manual

model

V.I.N.

purchase date
warranty expiry date

To be

completed

by dealer at

time

of

sale

DEALER IMPRINT AREA

MOTO-SKI
FUTURA
SPIRIT
NUVIK
MIRAGE
SUPER SONIC
ULTRA SONIC

SONIC
FORMULA

AFTER SALES SERVICE
BOMBARDIER INC.
VALCOURT, QUEBEC

CANADA,

JOE 2LO

fi

- -

~

Quality

I I

Service

The following are trademarksofBom­bardier Inc.

BOMBARDIER EVEREST
SKI-DOO CITATION
ALPINE OLYMPIQUE
BLIZZARD

T'NT
CARRY-BOOSE SKANDIC
ELAN NORDIK
ELITE SAFARI

GRAND PRIX SPECIAL

lithoid

in Canada

@*Trademarks of Bombardier Inc.

AU rights reserved c Bombardier Inc.

FOREWORD _

The operator manual and the Snow­mobile Safety Handbook have been pre­pared to acquaint the owner / operator
of a new snowmobile with the various
vehicle controls, maintenance and safe
operating instructions. Each is indis­pensable for the proper use of the pro­duct, and should be kept with the vehi-

cle at all times.
Should you have any questions per-

taining to the warranty and its applica­tion, please consult the

"Often

Asked
Questions" section of this manual, or
your selling dealer.

This manual uses the following sym-

bols.

•

WARNING: Identifies an instruc­tion which, if

not

followed, could

cause personal injury.

_ CAUTION: Denotes an instruction

Y which, if

not

followed, could se-

verely damage vehicle components.

O

NOTE: Indicates supplementary
information needed to fully com-

plete an instruction.
Although the mere reading of such in-

formation does not eliminate the haz-

ard, your understanding of the infor­mation will promote its correct use.

•

WARNING: The engines and

the

corresponding components iden-

tifiedinthis

manual should

not

be

uti-

lized on

productts)

other

than

those

mentioned on

the

cover page

of

this

manual.

Most specifications are given in both metric and customary units. Where precise

accuracy is not required, some conversions are rounded to even numbers for easier

use.
A shop manual can be obtained for complete service, maintenance and repair in-

formation.

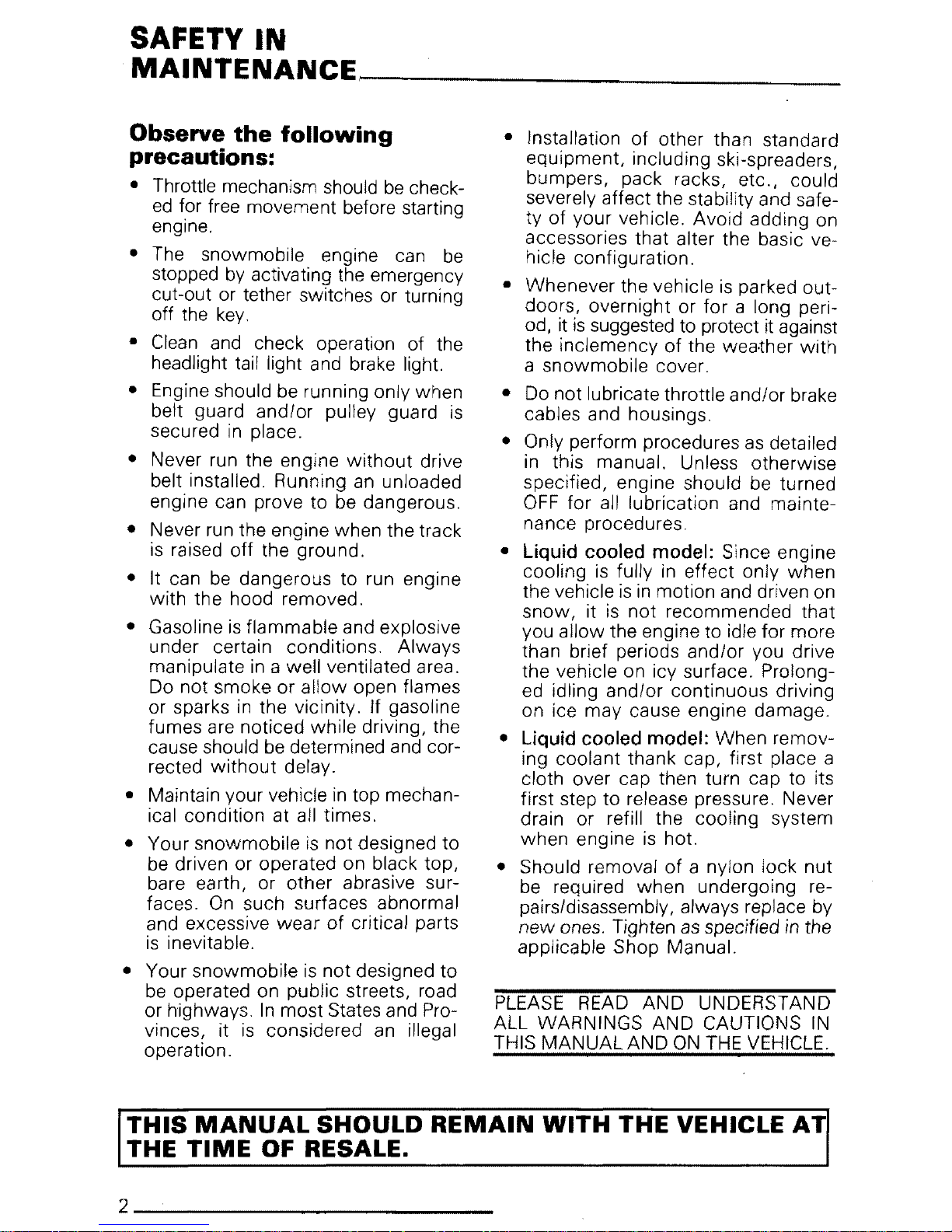

SAFETY IN

MAINTENANCE _

Observe

the

following

precautions:

• Throttle mechanism should be check­ed for free movement before starting
engine.

• The snowmobile engine can be
stopped by activating the emergency

cut-out or tether switches or turning
off the key.

• Clean and check operation of the

headlight tail light and brake light.

• Engine should be running only when

belt guard and/or pulley guard is
secured in place.

• Never run the engine

without

drive
belt installed. Running an unloaded
engine can prove to be dangerous.

• Never run the engine when the track
is raised

off

the ground.

• It can be dangerous to run engine
with the hood removed.

• Gasoline is flammable and explosive
under certain conditions. Always
manipulate in a well ventilated area.
Do not smoke or allow open flames
or sparks in the vicinity. If gasoline
fumes are noticed while driving, the
cause should be determined and cor­rected

without

delay.

• Maintain your vehicle in top mechan­ical condition at all times.

• Your snowmobile is not designed to

be driven or operated on black top,
bare earth, or other abrasive sur-

faces. On such surfaces abnormal
and excessive wear of critical parts
is inevitable.

• Your snowmobile is not designed to
be operated on public streets, road

or highways. In most States and Pro­vinces, it is considered an illegal
operation.

• Installation of other than standard
equipment, including ski-spreaders,
bumpers, pack racks, etc., could
severely affect the stability and safe­ty of your vehicle. Avoid adding on
accessories that alter the basic ve­hicle configuration.

• Whenever the vehicle is parked out­doors, overnight or for a long peri­od, it is suggested to protect it against
the inclemency of the weather with
a snowmobile cover.

• Do not lubricate throttle and/or brake
cables and housings.

• Only perform procedures as detailed
in this manual. Unless otherwise

specified, engine should be turned
OFF for all lubrication and mainte­nance procedures.

• Liquid cooled model: Since engine

cooling is fully in effect only when
the vehicle is in motion and driven on
snow,

it is not recommended that
you allow the engine to idle for more
than brief periods and/or you drive
the vehicle on icy surface. Prolong­ed idling and/or continuous driving
on ice may cause engine damage.

• Liquid cooled model: When remov-

ing coolant thank cap, first place a
cloth over cap then turn cap to its

first step to release pressure. Never
drain or refill the cooling system
when engine is hot.

• Should removal of a nylon lock nut
be required when undergoing re-

pairs/disassembly, always replace by

new

ones. Tighten as specified in the

applicable Shop Manual.

PLEASE

READ AND UNDERSTAND

ALL WARNINGS AND CAUTIONS IN

THIS MANUAL AND ON THE VEHICLE.

THIS

MANUAL

SHOULD

REMAIN

WITH

THE

VEHICLE AT

THE

TIME

OF RESALE.

2 _

INDEX _

THE

1985

"LIMITED

WARRANTY"

OFTEN

ASKED

QUESTIONS

. . . . .

LISTING

OF

AREA

DISTRIBUTORS.

HOW

TO

IDENTIFY

YOUR

SNOWMOBILE

CONTROLSIINSTRUMENTS

Throttle lever, brake lever, ignition switch, light switch, headlamp dimmer
switch, emergency cut-out switch, tether cut-out switch, rewind starter han­dle, primer, adjustable steering handle, speedometer, tachometer, temper­ature gauge, injection oil level pilot lamp, high beam pilot lamp, fuel gauge!
tank cap, electric fuel gauge, hood opening, retractable headlamp lever, seat
belt, tool box, fuse holders.

. . . . . . . . . . . . . . . . . . .

BREAK~IN

PERIOD

Break-in, 10 hour-inspection, inspection check list .

FUEL

Recommended gasoline, recommended oil, oil injection system.

PRE-START

CHECK

Check points .

STARTING

PROCEDURE

Manual starting, electric starting, before riding, emergency starting

....

LUBRICATION

Frequency, steering mechanism, drive axle, slide suspension, chaincase oil
level, oil injection system, rotary valve system

: .

MAINTENANCE

Maintenance chart, belt guard removal, drive belt removal, drive belt condi­tion,

new

drive belt, brake condition, brake adjustment, spark plugs, bat-

tery, suspension condition, stopper strap condition, suspension adjustment,

track condition, track tension and alignment, drive pulley, steering mecha-

nism, steering adjustment, muffler attachments, engine head nuts, engine
mount

nuts, carburetor adjustment, oil injection system, cooling system,

fan belt, headlamp beam aiming, bulb replacement, general

inspection.

STORAGE

Track, suspension, skis, controls, chaincase, drive pulley, cooling system,
engine and primer lubrication, fuel tank and carburetor, battery, chassis,
general inspection

.

PRE~SEASON

PREPARATION

Pre-season preparation chart .

TROUBLE

SHOOTING

GUIDE.

. . . . . . . . .

TOOLS .
SPECIFICATIONS.

. . . . . . . . . . . . . . . . .

WIRING

DIAGRAMS

.

SI

INFORMATION

GUIDE

.

CHANGE

OF

ADDRESS

OR

OWNERSHIP

.

4

6
8
9

10

14

16

17

18

19

22

31

36

37

39

40

42

45
47

_____________

3

THE

1985

LIMITED

WARRANTY

_

1 -

PERIOD

BOMBARDIER® INC. as manufacturer,

warrants

FROM THE DATE OF FIRST

CONSUMER SALES, every

1985

BOMBARDIER®

snowmobile,

sold as NEW

AND UNUSED, by an authorized BOMBARDIER dealer

for

a period of:

•

12

consecutive

months.

2 -

WHAT

BOMBARDIER

WILL

DO

BOMBARDIER

will

repair and/or replace, at its

option,

components

defective

in material and/or

workmanship

(under normal use and service,)

with

a ge-

nuine BOMBARDIER component

without

charge

for

parts or labour, at any au-

thorized BOMBARDIER dealer during said

warranty

period.

3 -

CONDITION

TO HAVE

WARRANTY

WORK PERFORMED

Presenttothe

servicing dealer,

the

hard

copyofthe

BOMBARDIER

Warranty

Registration card received by

the

customer

from

the

selling dealer at

time

of

purchase.

4 -

WARRANTY

TRANSFER

This

warranty

is transferable

to

subsequent owner(s)

for

remainder of

war-

ranty

period

from

original date of sale.

5 -

EXCLUSIONS

- ARE

NOT

WARRANTED

• Normal

wear

on all

items

such as,

but

not

limited

to:

- drive belts

- slider shoes

- spark plugs

- bulbs

- runners on skis

• Replacement parts and/or accessories

which

are

not

genuine BOMBARDIER

parts and/or accessories.

• Damage resulting

from

installation of parts other

than

genuine BOMBAR-

DIER parts.

• Damage caused by failure

to

provide proper maintenance as detailed in

the

Operator Manual. The labour, parts and lubricants costs of all maintenance

services, including tune-ups and adjustments will be charged

to

the

owner.

•

Wet

cells

battery.

• Vehicles designed and/or used

for

racing purposes.

•

All

optional accessories installed on

the

vehicle.

..

.

(The normal

warranty

policy

for

parts and accessones, If any, applies).

• Damage resulting

from

accident, fire or other casualty, misuse, abuse or

neglect.

• Damage resulting from operation of

the

snowmobile on surfaces other than

snow.

4 _

• Damage resulting

from

modification to the snowmobile

not

approved in

writ-

ing by BOMBARDIER.

• Losses incurred by the snowmobile

owner

other than parts and labour, such

as,

but

not

limited

to,

transportation,

towing,

telephone calls,

taxis,

or any

other

incidental or consequential damages.

6 -

BATTERY

WARRANTY:

•

12

consecutive

months.

(Pro-rated.)

100%

warranty

coverage

will

start

on

the

date

the

snowmobile

was

pur-

chased and run

to

the

following

April

30th.

The remainderofthe 12

months

period

will

be pro-rated as

follows:

-

50%

from

April

30th

to

December 1

st.

-

40%

from

December

1st

to

December

31st.

-

30%

from

January

1st

to

end

of

warranty.

7 - EXPRESSED OR

IMPLIED

WARRANTIES

This

warranty

gives you specific rights,

and

you

may

also

have

other

legal rights

which

may

vary

from

statetostate,

or province to province.

Where

applicable

this

warranty

is expressly in lieu

of

all

other

express-

ed

or

implied

warranties

of

BOMBARDIER,

its distributors

and

the

seil-

ing

dealer,

including

any

warranty

of

merchantability

of

fitness

for

any

particular purpose; otherwise the implied

warranty

is limited to

the

dura-

tion

of

this

warranty.

However,

some

states

or provinces

do

not

allow

limitations

on

how

long

an

implied

warranty

lasts, so

the

above

limita-

tion

may

not

apply.

Neither

the

distributor,

the

selling dealer,

nor

any

other

person has been

authorized to

make

any

affirmation,

representation

or

warranty

other

than

those

contained

in this

warranty,

andifmade,

such affirl)1ation,

representation or

warranty

shall

not

be

enforceable

against

BOMBAR-

DIER

or

any

other

person.

Some

statesorprovinces do

not

allow

the

exclusionorlimitation

of

in-

cidental or consequential

damages,

so

the

above limitation or exclusion

may

not

apply.

BOMBARDIER

INC.

reserves

the

right to

modify

its

warranty

policy

at

any

time,

being understood

that

such

modification

will

not

alter

the

war-

ranty

conditions

applicable

to vehicles sold

while

the

above

warranty

is in

effect.

8 -

CONSUMER

ASSISTANCE

If

a servicing problem or

other

difficulty

occurs,

we

suggest

the

following:

1.

Try

to

resolve

the

problem at

the

dealership

with

the

Service Manager or

Owner.

2. If

this

fails,

contact

your

area

distributor

listed in

the

Operator Manual.

3. Then

if

your

grievance still remains unsolved, you

may

write

to

us:

Bombardier Inc.
Service

Department
Recreational Products Division
Valcourt,

Quebec, Canada, JOE 2LO

February

1984
Bombardier Inc.
Valcourt,

Quebec, Canada, JOE 2LO

"'·Trademarks

of Bombardier Inc.

______________5

OFTEN ASKED

QUESTIONS

_

Q:

Why

must my snowmobile be registered? After

alii

do have my original invoice

as proof of when I purchased my snowmobile.

A:

Your warranty is valid at any authorized dealerofthe product. Yourregistra-

tion is the key element in providing the servicing dealer with the necessary

data to complete warranty claim forms. This information is also used to

notify

owners in the event

of

a safety recall.

Q: I bought my snowmobile in O'King County but I snowmobile in Washington

County. Can the dealer in Washington County accept to perform warranty

work

on my snowmobile?

A:

Yes,

any authorized dealer in North America can perform warranty repairs,

providing the customer warranty registration card is presented.

Q: Where can I find information on the lubrication and maintenance of my

snowmobile?

A:

In this Operator Manual provided with the vehicle at the time

of

first sale.

Q: Will the entire warranty be void or cancelled, if I do not operate or maintain

my new snowmobile exactly as specified in the Operator's Manual?

A: The warranty

of

the

new

snowmobile cannot be

"Voided"

or "Cancell-

ed".

However,ifa particular failure is caused by operation

or

maintenance

otherthan is shown in the Operator Manual, THAT

failure

may

not

be covered

under warranty. This includes service work

performed

by the customer,

especially the criticaladjustments to ignition, timing, carburation

and

oil injec-

tion/or oil mixture.

Q: Would you give some examples of abnormal use or strain, neglect or abuse?

A:

These terms are general

and

overlap each other in areas. Some specific

examples

may

include: running the machine

out

of

oit,

chain failure caused

by a lack

of

lubrication, operating the machine with a broken or damaged

part

which causes another

part

to telt,

and

so on.

If

you have any specific ques-

tions on operation or maintenance, please contact your dealer for advice.

Q: What costs are my responsibility during the warranty period?

A: The customer's responsibility includes all costsofnormal

maintenance ser-

vices, non-warranty repairs, accidents

and

collision damage, as well as oils,

and

sparkplugs,

and

incidentalorconsequentialdamages costs as explained

in the warranty.

6 _

Q: Are

"Genuine"

Bombardier replacement parts used in warranty repairs covered

by warranty?

A:

Yes.

When installed by an authorized dealer, any

"genuine"

Bombardier

part

used in warranty repairs assumes the remaining warranty that exists on

the machine.

Q:

If

I sell

my

snowmobile within the warranty period, WIJl the

new

owner

qualify

for the balance

of

the warranty?

A:

Yes,

provided

the

unit

has already been registered with the manufacturer.

Note

that

the changeofownership

card

in this

manual

should be

completed

and

sent to Bombardier Inc.

Q:

How

can I receive the best

owner

assistance?

A: The satisfaction

and

goodwill

of

the owners

of

Bombardier

products

are

of

primary concern to your dealer

and

BombardierInc. Normally, any problems

that arise in connection with the sales transaction or the operation

of

your

snowmobile

will

be handled

by

your Dealers Sales or Service Departments.

It is recognized, however, that despite the

best

intentions

of

everyone con-

cerned, misunderstandings

will

sometimes occur.Ifyou have a

problem

that

has

not

been handled to your satisfaction through

normal

channels, we sug-

gest

that you discuss your problem with a

memberofdealership management.

Frequently, complaints are the resultofa breakdown in communications

and

can quickly be resolved by a

member

of

the dealership management.Ifthe

problem already has been reviewed with the SalesManageror Service Manager,

contact

the Dealer

himself

or the General Manager.

____________

---.7

LISTING

OF AREA

DISTRIBUTORS

_

CANADIAN

DISTRIBUTORS

BOMBARDIER

INC.

EASTERN

CANADA DISTRIBUTION DIVISION
Atlantic Branch
P.O. Box 670
Shediac, New Brunswick,

EOA

3GO
[phone]
Magdalen Island, Nova Scotia, New
Brunswick, Prince Edward Island

Quebec Branch

1350 Nobel Boulevard
Boucherville, Quebec, J4B 1A1
[phone]
Province of Quebec

Ontario Branch
230 Bayview Drive

Barrie, Ontario, L4N 4Y8

[phone]
Province of Ontario

BROOKS

EQUIPMENT

LIMITED

1616 King, Edward Street
P.O. Box 985
Winnipeg, Manitoba, R3C 2V8
[phone]

British Columbia, Manitoba, Saskatchewan,

Alberta, Yukon
CHARLES

R. BELL LIMITED

Newfoundland, Labrador
Offices

- Riverside Drive

P.O. Box 1050
Corner Brook, Newfoundland, A2H 6J3

[phone]

- 81 Kenmount Road
P.O. Box

8127

St-John's, Newfoundland,

AlB

3N1

[phone]

HUDSON'S BAY CO LTD.

165 Hymus Blvd
Pointe-Claire, Quebec, H9R 1G2
[phone]
North-West Territories, Franklin

District

&

Keewatin

AMERICAN DISTRIBUTORS

BOMBARDIER

CORPORATION

All States (excluding Alaska)
SERVICE

OFFICES

- P.O. Box 670
Shediac, New Brunswick, EOA 3GO
[phone]

- 4505 West Superior Street
P.O. Box 6106
Duluth, Minnesota 55806
[phone]

• PO. Box 1569
Idaho Falls, Idaho, 83401

[phone]

NATIONAL

SALES

OFFICE

- O'Hare Lake Plaza

2350 Devon Avenue
Suite 150
Des Plaines, Illinois 60018
[phone]

MILLER

EQUIPMENT

AND

RECREATIONAL

CENTER

1049 Whitney Road
Anchorage, Alaska 99501
[phone]
Alaska

8 _

HOW

TO IDENTIFY

YOUR SNOWMOBILE _

The main components of your snowmo-

bile (engine, track and frame) are iden-

tified by different serialnumbers. It may

sometimes become necessary to locate
these numbers for warranty purposesor
to trace your snowmobile in the event
of theft.

FAN COOLED

ENGINE
SERIAL
NUMBER

LIQUID COOLED

TRACK

~~;~~~~~

SERIAL

------'

NUMBER

VEHICLE SERIAL NUMBER

O

NOTE: We strongly recommend that you take note of all the serial numbers
on your vehicle and supply them to your insurance company. It

will surely

help in the event a snowmobile is stolen.

_____________

9

CONTROLS/INSTRU

MENTS

_

A) Throttle lever

B) Brake lever

C) Ignition

switch

D)

Light

switch

(Electric model)

E) Headlamp dimmer

switch

F) Emergency

cut-out

switch

G) Tether

cut-out

switch
H) Rewind starter handle
/) Primer

J)

Adjustable steering handle

K) Speedometer (Optional on some

models)

L) Tachometer (Optional on some

models)

A)

Throttle

Lever

Located on the right side of handlebar.
When compressed, it controls the en­gine speed and the engagement of the
transmission. When released, engine
speed returns automatically to idle.

M) Temperature gauge (On liquid

cooled

model

only)

N)

Injection oil level

pi/at

lamp

(Optional on some models)

0)

High beam

pi/at

lamp

(Optional on some models)

P) Fuel Gauge/Tank Cap

Q)

Hood

opening

RJ

Retractable headlamp lever
(Not applicable for Mirage

1/1)

B) Brake Lever

Located on the left side of handlebar.
When compressed, the brake is applied.
When released, it automatically returns
to its original position. Braking effect is
proportionate to the pressure applied on
the lever and to the type of terrain and
its

snow

coverage.

10 _

F) Emergency Cut-Out Switch

To stop the engine in an emergency,
push the button to the lower

off

posi-

tion and simultaneously apply the

brakes.
To start engine, button must be at the
upper on position.

tON

+-

OFF

~

~

~~

The driver of this vehicle should famil-

iarize himself with the function of this
device by using it several times on first
outing. Thereby being mentally pre-

pared for emergency situations re-

quiring its use.

•

WARNING: If

the

switch

has

been used in an emergency situa-

tion the source of malfunction should

be determined and corrected before re-

starting engine.

G)

Tether

Cut-Out

Switch

Attach tether cord to wrist or other con-

venient location of the driver's clothing.

Snaptether cut-out cap over receptacle

before starting engine

If emergency

engine"

shut

off"

is re­quired, completely pull cap from safety
switch and engine power will be auto-

matically shut

"off".

O

NOTE: The cap must be installed
on the safety switch at all times in

order to operate the vehicle.

•

WARNING: If the

switch

is used

in an

emergency

situation

the

source

of

malfunction

should be de­termined and corrected before restart­ing engine.

Lower position

to stop engine

Upper position
Before starting

Keyoperated 3 position switch. To start

engine,firstturn keyclockwiseto ON po­sition. To stop engine, turn key counter­clockwise to

OFF

position.

To put lights on while engine is runn-

ing, turn key to LIGHT position.

Electric model

OFF

CB~S~:RT

E)

Headlamp

Dimmer

Switch

The dimmer switch allows correct
selection of headlamp beam. To obtain
high or

low

beam simply flick switch.

D) Light

Switch

(Electric model)

To illuminate headlamp and taillight, pull
switch knob. (Ignition switch must be
turned to ON position).

C)

Ignition

Switch

Manual

model

OFF

~~ON

~~lIGHT

Key operated, 3 position switch. To
start engine, turn keyfully clockwise to
5TART position and hold. Return key to
ON position immediately when engine

has started. To stop engine, turn key

counter-clockwise to

OFF

position.

_ CAUTION: Holding key in START

....

position when engine has started

could damage

starter

mechanism.

_____________

11

H)

Rewind

Starter

Handle

Auto rewind type located on right hand
side of vehicle. To engage mechanism,
pull handle.

I)

Primer

Pull and push button (2-3 times) to ac­tivate primer. The primer should always
be used for cold engine starts. After
engine is warm however, it is not
necessary to use primer when starting.

J)

Adjustable Steering Handle

- Remove steering pad.

- Loosen the four

(4) retaining screws.

- Adjust the handle to the desired po­sition.

•

WARNING: Do

not

adjust

too

high as the brake lever

may

con-

tact

the windshield

when

turning.

- Lock the steering handle in place by
tightening the four

(4)

retaining

screws to 26

N-m

(19 lbt-ft).

- Reinstall steering pad.

K)

Speedometer

(Optional

on

some

models)

The speedometer is linked directly to the
drive axle. Direct-reading dial indicates
the speed of the vehicle. Odometer re­cords the total distance travelled in
kilometers.

l)

Tachometer

(Optional

on

some

models)

The tachometer registers the impulses
of magneto. Direct-reading dial indi­cates the number of revolutions per

minute (RPM) of the engine.

...

CAUTION: The

tachometer

is

.".

protected

by a fuse, if

tachom-

eter stops operating check fuse condi-

tion and if necessary replace. The fuse
is 0.1 amp. Do

not

use a higher rated
fuse as this can cause severe damage
to the tachometer.

M)

Temperature

gauge

(On liquid cooled

model

only)

The gauge indicates engine coolant
temperature. Normal operating tem­perature is

50°C

(120°F). However,
coolant temperature can vary depen­ding on driving condition. If coolant

temperature exceeds

95°C

(200°F) re-

duce speed and run vehicle in loose

snow or stop engine immediately.

•

WARNING: To remove

coolant

tank

cap, place a

cloth

over the

cap and

unscrew

it to the

first

step

to

release the pressure. If

this

notice

is
disregarded, loss of fluid and possible
severe burns could occur.

N)

Injection

Oil Level Pilot

Lamp

(Optional on

some

models)

Will light up when injection oil level is
low. Check level and replenish as soon
as possible.

...

CAUTION: Do

not

run engine

.".

until it is

out

of oil. Serious en-

gine damage

will

occur.

Whenever brake lever is compressed,
oil level pilot lamp should light up. If not,
replace lamp.

0)

High

Beam

Pilot

Lamp

(Optional

on

some

models)

Lights up when headlamp is on high
beam.

12 _

P) Fuel

Gauge/Tank

Cap

Unscrew fuel tank cap and withdraw
dipstick to check fuel level.

+

WARNING: Never use a lit match

or open flame to check

fuel level.

Q)

Hood

Opening

Pull down the latches to unlock the
hood from the anchor.

O

NOTE: Always lift hood gently up
until stopped by restraining device.

+

WARNING: It isdangerous to run

an engine with the hood open,
unfastened or removed. Personalinjury
could result.

R) Retractable

Headlamp

Lever

(Not

applicable

for

Mirage

III)

Pushleverforward to expose headlamp.

To retract, pull lever backward.

Seat

belt

Located in middle of seat on 2 (two)
passengers model

ToolBox

Located under the hood. To gain ac­cess, tilt hood. Ideal location for spare
plugs, rope, first aid kit, flashlight, etc...

Fuse Holders

Starter

(electric model)

Starting system is protected with a 30
amperes rated fuse. Fuse holder is lo­cated near the starter. If starter does not
operate, check fuse condition and if ne­cessary replace.

Ignition switch (electric model)

Ignition switch and instruments are pro­tected with a 15 amperes rated fuse.

Fuseholder is located near the injection
oil tank. If instruments stop operating,
check fuse condition and if necessary
replace.

Tachometer

(optional on some

models)

The tachometer is protected with 0.1
ampere rated fuse. Fuse holder is lo-

cated under the hood behind the ta-

chometer. If it stops operating, check
fuse condition and replace if necessary.

____________

13

BREAK-IN PERIOD _

Engine

With Bombardier-Rotax snowmobile
engines, a break-in period is required
before running the vehicle at full throt­tle. Engine's manufacturer recommen­dation is 10 to 15 operating hours. Dur­ing this period, maximum throttle
should not exceed

3/4,

however, brief
full acceleration and speed variations
contribute to a good break-in. Conti­nued wide open throttle accelerations,
prolonged cruising speeds, and lugging

are detrimental during the break-in

period.

_ CAUTION: Remove and clean

...

spark

plugs

after

engine

break-in.

Belt

A new drive belt requires a break-in pe-

riod of 15-25 km (10-15 miles).

1

O~Hour

Inspection

As with any precision piece of mechani­cal equipment, we suggest that after the
first 10 hours of operation or 30 days af­ter the purchase, whichever comesfirst,
your vehicle be checked by your dealer.
This inspection will give you the oppor­tunity to discuss the unanswered ques­tions you may have encountered during
the first hours of operation. Remember
that it iseasierto remedyat this time than
to allow the snowmobile to operate until
a possible failure occurs.

The 10 hour inspection is at the expense
of the vehicle owner.

14 _

10

...

HOUR

INSPECTION

CHECKLIST

Y'"

Engine timing
Fan belt tension
Spark plugs condition: (Remove and clean)
Carburetor adjustment
Oil injection pump adjustment
Engine head nuts
Engine

mount

nuts
Muffler attachment
Chaincase oil level

Injection system oil level
Rotary valve oil level
Engine coolant level
Brake operation and lining condition

Ski alignment (runners condition)

Steering arm, retorque

to

50

N.m

(37

Ibf·ft)

Handlebar bolts, retorque to

26

N.m

(19

lbf-ftl

Pulley alignment and drive belt condition

Track condition, tension and alignment

Lubrication (steering, suspension, drive axle)

Electrical wiring (loose connections, stripped wires, damaged insula-

tionl, tighten all loose bolts, nuts and linkage

Operation of lighting system (HI

I LO beam, brake light, etc.),

test

operation of emergency cut-out

switch

and tether

switch

Battery electrolyte level

We recommend that you have your dealer sign this inspection list.

Date of

10

hour inspection

Dealer signature

______________

15

FUEL

_

.Maximum 13 mm

from top

Liquid cooled model

_ CAUTION: Check level and refill

.".

every time you refuel.

O

NOTE: To assure additional pro-

tection during the initial engine

break-in,

500

ml (18 imp. oz.) of BLIZ­ZARD OIL should be added to the first
full fuel tank filling.

Fan cooled model

Oil

Injection

System

Always maintain a sufficient amount of

Bombardier Snowmobile injection oil in

the injection oil tank.

Recommended

Gasoline

Use regular leaded gasoline available

from all service stations.

_ CAUTION:Neverexperiment with

.".

different fuel or fuel ratios. Never
use naphtha, methanol, gasohol or
similar products.

•

WARNING: Never

"top

up"

the

gas tank before placing the vehi­cle in a warm area.

At

certain temper-

atures, gasoline will expand and over-

flow.

Always

wipe

off

any gasoline

spillage from the snowmobile.

Recommended

Oil

Use "Bombardier Snowmobile Injection
Oil"

(PIN

496

013300

- 1 liter) avail­able from your dealer. This type of oil
will

flow

at temperatures as low as mi-

nus 40

DC

(-40

DF).

If "Bombardier Snowmobile Injection
Oil" is unavailable, substitute with BLIZ­ZARDOIL.

(PIN

496 0135 00 - 500 mil.

_ CAUTION: Never use outboard

.".

or straight mineral oils.

16 _

PRE-START

CHECK

_

Check

Points

• ACTIVATE THE THROTTLE CON­TROL

LEVER

SEVERAL TIMES to
check that it operates easily and
smoothly. The throttle control lever
must return to idle position when re­leased.

• Check that the skis and the track are
not frozen to the ground or snow sur­face and that steering operates free-

ly.

• Activate the brake control lever and

make sure the brake fully applies

be­fore the brake control lever touches
the handlebar grip.

• Check injection oil level.

• Liquid cooled model: Check coolant
level. Liquid should be 25 mm (1 in.)
below filler neck. If additional coolant
is necessary or if entire system has

to be refilled, usea solution of 3 parts

of anti-freeze for 2 parts of water
(60% anti-freeze,

40%

water), See

cooling system in storage.

O

NOTE: Always use ethylene-glycol

anti-freeze containing corrosion
inhibitors specifically recommended for
aluminum engines.

•

WARNING: Before removing the

radiator pressure cap place a

cloth

over the cap and

unscrewitto

the

first

steptorelease

the

pressure.
Neverdrain or refill the cooling system
when

engine is

hot.

Loss

of

fluid and

possibility

of

severe burns could oc-

cur, if

this

notice

is disregarded.

• Check fuel level.

• Verify that the path ahead of the ve­hicle is clear of bystanders and

ob-

stacles.

•

WARNING: Only start your snow­mobile once all components are

checked and functioning properly.

____________

17

STARTING

PROCEDURE _

Test throttle control lever.
Check that the emergency cut-out

switch is in the ON position.

Upper position

before

starting engine

Ensure the tether cut-out cap is in posi­tion and that the cord is attached to
your clothing.

Activate the primer (2 or 3 times).

O

NOTE: The use of the primer is
not necessary when the engine is

warm.

Manual

Starting

Insert the key in the ignition and turn to

ON position.
Grasp manual starter handle firmly and

pull slowly until a resistance is felt then
pull vigorously. Slowly release the re­wind starter handle .

•

WARNING:

Do

not

apply

throt-

tle

while

starting.

Electric

Starting

_

CAUTION:

Never

operate

your

....

snowmobile

with

the

battery

re-

moved

or

disconnected.
Insert key in ignition switch.
Turn ignition key clockwise until starter

engages.

_ CAUTION: To avoid starter over-

....

heating, the cranking period should

never

exceed

30

seconds and a rest
period should be observed between the
cranking cycles

to

let startercool

down.

Release

key immediately when engine
has started. If engine does not start on
first try, key must be turned fully back to
OFF

each time.

•

WARNING: Do

not

apply

throttle

while starting.

O

NOTE: If for some reason the vehi-

cle cannot be started electrically,
placeignition key to ON position and start
engine manually.

Before Riding

Check operation of the emergency cut­out switch, and tether switch. Restart
engine.

•

WARNING: If engine does

not

shut-off

when

applying the emer-

gency cut-out

switch

and or

when

pull-

ing the tether

cut-out

cap, stop the en-

gine by turning

off

the

ignition key. Do

not

operate the vehicle further, see

your

dealer.

Allow the engine to warm before oper­ating at full throttle.

18 _

•

WARNING: When starting the ve-

hicle in an emergency situation by

the drive pulley, do

not

make a knot at
the end of the emergency rope and do
do

not

reinstall the belt guard.

Emergency Starting

Should the rewind starter rope fray and
break, the engine can be started with an
emergency starter rope.

•

WARNING:

00

not

start the ve-

hicle by the drive pulley unless it
is a true emergency situation, have the
vehicle repaired as soon as possible.

Attach emergency rope to starter grip.

Remove the belt guard from the vehicle

and wind the emergency rope tight
around the drive pulley between the

sliding half and the rollerguard. Start the

engine as per usual manual starting.

Sliding

half

Starter

grip

Roller
guard

LUBRICATION

_

Frequency

Routine maintenance is necessaryfor all
mechanized products, and the snow­mobile is no exception. A weekly vehi­cle inspection contributes to the life
span of the snowmobile as well as re­tains safe and dependable operation. It
is recommended that the steering sys­tem and suspension be lubricated
monthly or every 40 hours of operation.

If the vehicle is operated in

wet

snow
or in severe conditions these items
should be lubricated more frequently.

•

WARNING: Only

perform

such

procedures as detailed in

this

manual. It is recommended

that

dealer

assistance be periodically obtained on

other components/systems

not

cov­ered in this manual. Unless otherwise
specified, engine should be turned OFF
for all lubrication and maintenance pro­cedures.

Steering

Mechanism

•

WARNING: Do

not

lubricatethrot-

tie and/or brake cables and hous-

ings.
Lubricate the ski legsand spring coupler

bolts at grease fittings until new grease
appears at joints.

Coat spring slider cushion with grease.
Oil ball joints and steering column

bushings.

____________

19

Drive Axle

Lubricate at grease fitting using

low

temperature grease.

..

CAUTION:

When

lubricating

the

...

drive axle bearing, do

not

apply

excessive grease as

the

seal

will

be

pushed

outofits housing. Check seal

position

with

finger.

Slide Suspension

Lubricate idler wheels at grease fittings

until grease appears at joints. Use

low

temperature grease only.

Also lubricate front

& rear arms at

grease fittings.

O

NOTE: A needlefitted onto grease

gun must be usedto lubricate idler

wheels.

-===€3~IP'--'"

-~

+ t

Needle Grease gun

Chaincase Oil Level

Using the spark plug socket, remove the
filler cap then using a rigid wire as a
"dipstick"

check oil level. The oil level

on the

"dipstick"

should be 50-65 mm

(2"

to 2

1/2").

Replenishas necessary.

O

NOTE: The chaincase oil capaci­ty is approximately

200

ml (7 oz.).

20 _

Oil

Injection

System

Always maintain a sufficient amount of
Bombardier Snowmobile Injection Oil in
the injection

oil tank.

Fan cooled model

Liquid cooled model

Maximum 13 mm

from top

_ CAUTION: Check level and refill

.".

every time you refuel.

Rotary

Valve

System

Check reservoir oil level frequently.

Level should be between level lines of
plastic reservoir. If necessary replenish
to maximum oil level line using Bombar­dier snowmobile Injection oil available
from your dealer.

Oil level lines

_____________

,21

MAINTENANCE--------

The following Maintenance Chart indi­cates regular servicing schedules to be
performed by you or your servicing
dealer. If these services are performed
as suggested, your

snowmobile

will

give you many years of

low-cost

use.

•

WARNING:

Only

perform

such

procedures

as

detailed

in

this

manual. It is recommended

that

dealer
assistance be periodically obtained on
othercomponents/systems

not

covered

in

this

manual. Unless

otherwise

spe-

cified, engine should be turned OFF

for

all lubrication and maintenance proce­dures.

"E

"E

s

0

11l

MAINTENANCE

0

Cl

=-

!£

~

E

===

ro

Co

CHART

>CE

~CE

~~..lC

E B

32~..lC

£i~..lC

l1l>gO

~l1l0

§

11l

8

lJl1l g

.!

3:"-.:t

8o~£!

11l

ON

~O<X.l

a::

Drive belt condition

•

23

Brake condition •

24

Brake adjustment

•

24

Spark plugs

•

24

Battery (Electric model)

•

25

Suspension condition

•

25

Suspension stopper strap condition

•

25

Suspension adjustment

(as required)

25

Track condition

•

26

Track tension and alignment

•

26

Drive pulley

•

27

Steering mechanism

•

27

Steering adjustment

•

27

Muffler attachment

•

28

Engine head nuts

•

28

Engine mount nuts

•

29

Carburetor adjustment

•

29

Injection oil filter condition

•

29

Oil injection pump adjustment

•

29

Fan belt (Fan cooled model)

•

30

Cooling system (Liquid cooled model)

•

30

Headlamp beam aiming

•

30

General inspection

•

31

O

NO.TE:The ten hour inspection is a very important part of proper service and
maintenance.

22 _

Belt Guard Removal

+

WARNING: Engine should be

running only when belt guard is

secured in place.

1. Tilt the hood.

2. Pull out both retaining pins.

Retaining pins

3. Lift and remove the belt guard as­sembly.

Drive Belt Removal

+

WARNING: Never start or run

engine without the drive belt in­stalled. Running an unloaded engine
is dangerous..

1. Remove the belt guard.

2. Unlock and raise driven pulley sup-

port.

1

Driven

pulley

support

3. Open the driven pulley by twisting
and pushing the sliding half. Hold

in

fully open position.

4. Slip slackened belt over the top ed­ge of the sliding half.

5. Slip the belt out from the drive pul­ley and remove completely from ve­hicle.

To install the drive belt, reversethe pro­cedure.

Drive Belt Condition

Inspect belt for cracks, fraying or ab­normal wear (uneven wear, wear on
one side, missing cogs, cracked fabric).

If abnormal wear is noted, probable

causecould be pulley misalignment, ex­cessive R.P.M. with frozen track, fast

starts

without

warm-up period, burred
sheave, oil on belt or distorted spare
belt. Contact your dealer.

Check the drive belt width. If less than
32 mm (1

1/4 in), replace the drive belt.

---

23

Strongly pull

Brake pads

3 mm

(1/8")

MINIMUM

thickness

_

CAUTION:

If

spark

plug

condi-

...

tionisnot

ideal,

contact

your

au-

thorized dealer.
Check spark plug gap using a wire feeler

gauge.
Reinstall plugs and connect

wires.

Overheated

(light grey}

After the adjustment, brake should ap­ply fully when lever is approximatively

13 mm

(112")

from

handlebar grip. If

not, do not tamper

with

the brake, con-

tact

your servicing dealer.

.L

t~

3 mm (112")

approx.

Spark Plugs

Disconnect the spark plug wires and
remove the spark plugs.

Check the condition of the plugs.

• A brownish tip reflects ideal condi­tions. (Carburetor adjustments, spark

plug heat range, etc., are

correct.)

• A black insulator tip indicates fouling

caused by: carburetor idle speed

mix-

ture and/or high speed mixture too

rich, incorrect fuel mixture ratio,

wrong type of sparkplug (heat

range),

or excessive idling.

• A light grey insulator tip indicates a

lean mixture caused by: carburetor
high speed mixture adjusted

too
lean, wrong spark plug heat range,
incorrect fuel mixture ratio, or a leak­ing seal or gasket.

New

Drive Belt

When installing a

new

drive belt, break-

in period of

25 km (15 miles) is strong-

ly recommended.

O

NOTE: Always store a spare belt
in a manner to allow its natural

shape to be maintained.

Brake Condition

The brake mechanism on your snow-

mobile is an essential safety device.
Keepthis mechanism in proper working
condition. Above all, do

not

operate

your snowmobile

without

an effective

brake system.

•

WARNING: Brake pads less

than

3

mm

(118") thick must be replac-

ed. Replacement

must

be

performed

by

an authorized dealer.

Brake Adjustment

The brake mechanism is a self-adjusting
type. If a quicker brake response is

de­sired, strongly pull the brake lever sev­eral times, this will actuate the self ad-

justing mechanism.

24 _

Battery

(Electric model)

Check electrolyte level weekly. Electro-

lyte level must be at upper level line on
battery casing.

_ CAUTION: Prior

to

charging

the

".

battery,

always

remove it

from
the vehicletoprevent electrolyte spill­age.

O

NOTE: Always keep battery fully

charged. (To charge, referto "Bat-

tery"

in

"Storage"

section).

If necessary add distilled water. Battery
connections must also be free of corro­sion. If cleaning is necessary remove
corrosion using a stiff brush then clean
with a solution of baking soda and
water. Rinse and dry well.

_ CAUTION: Do

not

allow cleaning

".

solution to enter battery. It will

destroy

the

chemical propertiesofthe

electrolyte.

After reconnecting battery, coat battery
terminals and connectors with petro-

leum jelly to prevent corrosion. Check
that battery iswell secured and that bat-

tery vent tube is not kinked or blocked.

Suspension Condition

Visually inspect all suspension compo­nents including slider shoes, springs,
wheels, etc...

O

NOTE: During normal driving,

snow will act as a lubricant and
coolant for the slider shoes. Extensive
riding on ice or sanded snow, will create
excessive heat build-up and cause
premature slider shoe wear.

Stopper

Strap

Condition

Inspect strap for wear and cracks, bolt

and nut for tightness. If loose inspect

holes for deformation, replace as re­quired. Torque nut to 10

N-m

(7 Ibf-ft).

Suspension

Adjustment

The suspension is adjustable. The front

adjustment for surface condition, the
rearfor driver's weight. Usethe special
key located in tool box.

Adjuster blocks

Surface condition

Driver's weight

•

WARNING:

Vent

tube

must

be

free and open. If

not,itwill

re-

strict

ventilation and create a gas ac-

cumulation

that

could result in an ex-

plosion.

Avoid

skin

contact

with

elec-

trolyte.

____________

25

When the front adjuster blocks are at
the lowest elevation more weight is
distributed on the skis.

At the highest position the weight is
transferred from the skis to the track.
The rear adjuster blocks should be

ad-

justed to suit the driver's preference.

O

NOTE: For deep snow condition

or hill climbing, it is recommended
to place the front adjuster blocks on the
highest position.

_

CAUTION:

Always

turn

the

left

.".

side adjuster

blocks

in a

clock-

wise

direction,

the

right

side blocks in

a

counter-clockwise

direction.

Left

and

right

adjuster

blocks

of

each ad-

justment

must

always

be set at

the

same elevation.

Track

Condition

Lift the rear of the vehicle and support
it off the ground. With the engine off,
rotate the track by hand, and inspect
condition. If worn or cut, or if track
fibers are exposed, or if missing or
defective inserts or guides are noted;
contact your dealer.

•

WARNING: Do

not

operate a

snowmobile

withacut,

torn

or

damaged

track.

Track

Tension and Alignment

Tension:

Lift the rear of vehicle and support with
a mechanical stand. Allow the slide to
extend normally. The gap should be 13
mm 11J2") between the slider shoe and
the bottom inside of the track. If the
track tension is too loose, the track will

have a tendency to thump.

13 mm 1112")

_

CAUTION:

Too

much

tension

.".

will

result in

power

loss and

ex-

cessive stresses on suspension

com-

ponents.
If necessary to adjust; loosen the rear

idler wheel retaining screw and the

ad-

juster bolt lock nut; then loosen or

tighten the adjuster bolts located on the
inner side of the rear idler wheels. If

cor­rect tension is unattainable, contact
your dealer.

Retaining screw

loosen

Lock nut

loosen

O

NOTE: Track tension and align­ment are inter-related. Do not ad-

just one

without

the other.

Alignment

Start the engine and accelerate slightly
so that track turns

slowly.

Check that
the track is well centered; equal dis­tance on both sides between edges of
track guides and slider shoes.

Guides

/JI>

Slider

~

~

'h""~

Equal distance

26 _

26

N.m

(19 Ibf.ft)

•

WARNING: Before

checking

track

alignment, ensure that the track
is free of all particles which could be
thrown out while track is rotating.
Keep hands, tools, feet and clothing
clear of track. Ensureno-one is stand­ing in close proximity to the vehicle.

To correct, stop the engine, loosen the
rear idler wheels retaining screws then
loosen the lock nuts and tighten the ad­juster bolt on side where the slider shoe
is the farthest to the track insert guides.

Steering

Mechanism

Inspect the steering mechanism for
tightness of components (steeringarms,
tie rods, ball joints, spring coupler bolts,
etc.l. If necessary, replace or retighten.

Torque steering arm bolts as illustrated

below:

Tighten lock nuts and recheck the align­ment. Ensure to retighten the idler
wheel retaining screws.

Check the condition of the skis and the
ski runners. Replace if more than half
worn.

Retighten

Steering

Adjustment

Skis should have a toe out of 3 mm

(l/S").

To check, measure the distance

between each ski at the front and rear
of the leaf springs. The front distance
should be 3 mm

(1/8")

more than the

rear when the handlebar is horizontal.

IMPORTANT: Closethe front of the skis

manually to eliminate all slack from the
steering mechanism.

I
I

t 1

3 mm

(118"):

toe out I

~

i

m~~8'+

-j---

- - - - -

~~~¥~~

I
I

I

I

I

I

I

I
I

I

If adjustment is required:
Loosen the lock nuts of the longest tie

rod. Turn the tie rod manually until the
skis are properly aligned. Firmly

re-

tighten the lock nuts.

Maximum free-play

3 mm

(118")

Drive Pulley

Inspect the Duralon bushing condition
by checking the free-play of the sliding
half pulley. This is achieved by restrain­ing the inner half and checking if the
sliding half moves in the direction of the
arrows more than 3 mm

n.a"). If so,

contact your dealer.

_____________

27

The handlebar should also be horizontal
when the skis are pointed toward the
front.

To adjust:

Loosen the lock nuts of the shortest tie
rod. Turn the tie rod manually until the
handlebar is horizontal. Retighten the,
lock nuts firmly .

•

WARNING: The ball

joint

socket

must

run parallel

with

the

steer­ing arm. The socket must be restrained
when

tightening the tie rod end lock

nuts.

Parallel

===r;u~ff~'

Restrain

Tighten

Muffler

Attachment

The engine/exhaust system parts are

vital toward efficient muffler function.
Check all attachments. Replace the
springs and/or tighten if necessary.

_

CAUTION:

Do

not

operate

vehi-

.".

cle

with

muffler

disconnected

otherwise

serious engine damage

will

occur.

Engine

Head

Nuts

With the engine cold, check that the
engine head nuts are tight and equally
torqued as follow:

Engine

type

*

Torque

N-m

(Ibf-ftl

377

FC 21 (15)

447

FC

23 (17)

532

LC

21 (15)

*FC= Fan cooled

LC

= Liquid cooled

Respect tightening sequence as follow:

Fan cooled engine

Liquid cooled engine

IMPORTANT: The engine head nut tor­que should be checked after the first 5
hours of operation.

28

---------

_

--_._----

Engine

Mount

Nuts

Check the engine mount nuts for tight-

ness. Retighten if necessary.

Carburetor

Adjustment

~

CAUTION: Never operate

your

."

snowmobile

with

the air intake
silencer disconnected. Serious engine
damage

will

occur if

this

notice is dis-

regarded.

A)

Air

Screw

Adjustment

Completely close the air screw (until a
slight reseating resistance is felt) then
back

off

screw: 1 1/2 turn.

B) Idle Speed

Adjustment

Turn the idle speedscrew clockwise un-

til it contacts the throttle slide then con-

tinue turning

two

(2) additional turns.

This will provide a preliminary idlespeed

setting. Start engine and allow it to
warm then adjust idle speed to

1800-

2000 R.P.M. by turning idlespeedscrew

clockwise or counter-clockwise.

_ CAUTION: Do

not

attempttoset

."

the

idle speed by using

the

air
screw. Severe engine damage can oc­cur. If idle speed is unattainable

con-

tact

your

authorized dealer.

Oil

Injection

System

Injection Oil Filter Condition

Inspect oil filter at least once a month.
Insure that filter is not obstructed by

foreign particles; if so, see your dealer.

_ CAUTION: An

obstructed

injec-

."

tion oil filter will cause oil starva-

tion

resulting in serious engine

dam-

age.

O

NOTE: After a storage period, it
is

important

that your dealer re­places the injection oil filter and that he
verifies the oil

flow

of the injection

pump.

Injection

Pump

Adjustment

Proper oil injection pump adjustment is

very important. Any delay in the open-

ing of the pump can result in serious en-

gine damage.

_ CAUTION: The carburetor

must

."

be adjusted before adjusting

the

oil injection

pump.

To check adjustment: eliminate the

throttle cable free-play by pressing the
throttle lever until a light resistance is
felt then hold in place. The aligning

marks on the pump casting and lever

must align perfectly. If not, contact your
dealer.

O

NOTE: Injection pump should be
adjusted by your dealer.

____________

29

TOP VIEW

With the suspension correctly adjusted,
the rider seated on the vehicle and the
high beam

ON check that the center of

high intensity zone of high beam is 50

. mm

(2")

below horizontal line of

headlamp height.

Cooling

System

(Liquid

cooled

model)

Check condition and tightness of hoses
and clamps. Using a hydrometer check
that the anti-freeze solution is strong
enough for the temperature in which
the vehicle is operated.

O

NOTE: Should the coolant tem­perature

raise

aboverecommended

range

50°C-95°C

(120

0-200°Fl,

hose

off

grime from the heat exchanger (un-

derneath the frame above the track).

Fan

Belt

(Fan

cooled

modeU

Inspect belt

for

cracks, uneven wear,

etc Check fan belt tension,

9-10

mm

(318")

free-play should exist when de-

flection is correct.

SIDE VIEW

7.6

m 125')

•

Ground

50 mm

Center line

intensity zone

If belt seems damaged or if tension is
incorrect, contact your dealer immedi­ately.

•

WARNING: If fan

protector

is re-

moved, always reinstall after ser-

vicing.

Headlamp Beam

Aiming

The angle of the headlamp beam has
been

pre-adjusted

priorto

delivery.

Should
you wish re-adjustment, place the vehi­cle on a flat surface 7.6 m (25') from a

wall or screen.

To adjust, remove the

four

caps, turn
upper or lower adjusting screws to ob­tain desired beam position.

Adjusting

screw

Adjusting

screw

30 _

Bulb

Replacement

If the headlamp bulb is burnt, tilt hood,
unplug the connector from the head­lamp. Remove the rubber boot and un­fasten bulb retainer clips. Detach the
bulb and replace.

If taillight bulb is burnt, expose the bulb
by removing the red plastic lens. To re­move, unfasten the two (2) screws.

•

WARNING: Always check light

operationafter bulbreplacement.

_ CAUTION: On models whithout

.".

any accessory mounted in dash,

unused female and tab connector

housings (8 circuits) are free inside of

cab.

Do not connect these housings

together.

Electrical problem will oc-

cur.

General

Inspection

Check the electrical wiring and compo­nents, retighten loose connections.
Check for stripped wires or damaged in­sulation. Thoroughly inspect the vehicle

and tighten loose bolts, nuts and lin-

kage. Inspect skis and ski runners for
wear.

STORAGE _

It is during summer, or when a vehicle

is

not

in use for any length of time that

proper storage is a necessity. Storage
of the snowmobile during long period
of inactivity consists of checking and

replacing missing, broken or worn

parts, proper lubrication and treatment
to insure that parts do not become

rusted; cleaning items such as carbu-

retor of oil mixtures, to prevent gum

varnish formation within the carburetor;

and in general, preparing the vehicle so
that when the time comes to use the

snowmobile again it will be in top con-

dition.

•

WARNING: Only perform such

procedures as detailed in this
manual. It is recommended that dealer
assistance be periodically obtained on
other components/systems not

cov-

ered in this manual. Unless otherwise
specified. engine

should

beturned OFF.

Track

Inspect the track for wear, cuts, miss­ing track guides and broken rods. Make
any necessary replacement.

•

WARNING: Do not operate a

snowmobile with a cut, torn or

damage track.

Lift the rear of vehicle until track is clear
of the ground then support with a brace
or trestle. The snowmobile should be
stored in such a way that the track does

not stay in contact with the cement floor
or bare ground.

O

NOTE: The track should be rotat-

ed periodicalIy, (every 40 days).

Do not release track tension.

_____________

31

_ CAUTION: To prevent track dam-

....

age, temperature in the storage

area must

not

exceed

38°C

(100°F).

Suspension

Removeany dirt or rust.

Grease

allcom­ponents equipped with grease fittings.
Wipe

off

surplus. Replace worn slider

shoes.

Skis

Wash or brush all dirt or rust accu­mulation from the skis and springs.

Grease

the ski legsat the greasefittings.

Checkthe condition of the skis, ski run-

ners and leaf springs. Replace if weak
or worn more than half.

Controls

Lubricate the steering mechanism. In-

spect all components for tightness,

(spring coupler bolts, steering arm lock­ing bolts, tie rods, ball joints, etc.)

Tighten if necessary. Oil moving joints

of the brake mechanism.

•

WARNING: Do

not

lubricate

the

throttle

and/orbrake cables and
housings.Avoid getting oil on the brake
pads.

Coat all electrical connections and
switcheswith a

greaseless

metal protec-

tor. If unavailable, use petroleum jelly.

Chaincase

Drain the chaincase and refill to proper

level, using fresh chaincase oil. To

drain, remove the chaincase cover.

Drive Pulley

Inspection and cleaning must be per-

formed by the dealer at the end of each

season.

Cooling System

The engine cooling system should be
drained and refilled with a new coolant
mixture before each storage period.

•

WARNING: Never drain or refill
the cooling system when engine

is hot.
To drain cooling system:

- Usea length of hose long enough to
drain coolant into a container lower
than engine.

- Remove the engine coolant hose
from water pump.

- Connect

"drain

hose"

onto water

pump.

- Put both hose ends into the con­tainer.

- Then, remove coolant tank cap and
lift the rear of the vehicle to drain the
heat exchangers.

- Remove the engine bleed screw.

Bleed screw

_ CAUTION: To prevent rust for-

.... mation or freezing condition, al-

ways

replenish the system

with

60%

antifreeze and

40%

water.

Pure anti-

freeze

without

water

produces pre-

32 _

mature freezing.

Always

use ethylene­glycol antifreeze containing corrosion
inhibitors specifically recommended

for

aluminum engines.

To refill cooling system:

- Remove

"drain

hose"

and reinstall

initial one.

- Put back the rear of vehicle on the
ground.

- Refill coolant tank slowly until
coolant overfills at bleed hole.

- Reinstall bleed screw.

- Continue to pour coolant in the tank
until level reaches 25 mm (1 in)
below filler neck.

- With the coolant tank cap still remov­ed, start engine and let it warm up
to reach its normal operating temper-

ature and thermostat open. Allow it

running a few minutes more.

- Stop engine and check coolant level.

Refill as required then put back the

cap.

Engineand PrimerLubrication

Engineinternal parts must be lubricated

to protect them from possible rust for-

mation during the storage period.
To perform the storage procedures

(engine and primer valve) proceed as

follows:

1. Lift the rear of the vehicle and sup­port it off the ground.

•

WARNING: Ensure

the

track

is

free

of

ails particles

which

could

be

thrown

out

while

it is rotating.

Keep hands, tools,

feet

and clothing

clear of track. Ensure no-one

IS

stand-

ing in close

proximity

to

the

vehicle.

2. Start the engine and allow it to run
at idlespeeduntil the engine

reaches

its operational temperature.

3. Stop the engine.

4. Disconnect the inlet primer hose

from the primer valve.

Inlet (Oblique

hose coupling)

~~~

t

Outlet (Straigh:

hose coupling)

5. Plug inlet primer hose to prevent
gasoline from draining.

6. Using an appropriate hose, connect
one end of the hose to the inlet of
the primer valve and placethe other
end in a Bombardier Snowmobile
Injection Oil container.

7. Activate the primer in order to fill it
with oil.

8. Restart engine and run at idle.

9. Using the primer valve, inject oil

un­til the engine dies or until a suffi­cient quantity of oil has entered the
engine (approximately 25 complete
strokes of the primer).

10. The engine stopped, remove the
spark plugs and pour approximate­ly 85 ml (3 imp. oz.) of oil into the
cylinders.

11. Crank the engine to allow the
crankshaft to turn 2 or 3 revolu-

tions.

_____________

33

12. Reinstall the spark plugs and the in­let primer hose.

Do not run engine during storage peri­od.

Fuel

Tank

and

Carburetor

Remove the cap then using a syphon,
remove the gasoline from tank .

•

WARNING: Gasoline is flamma-

.ble and explosive under certain

conditions.

Always

manipulate in a

well ventilated area. Do not smoke or

allow open flames or sparks in the

vi-

cinity.

Carburetor must be dried out com­pletely to prevent gum formation dur­ing the storage period.

Once the fuel tank is emptied,

remove

the float chamber drain plug from car­buretor. Drain carburetor.

Reinstall plug.
Check all fuel lines, replace if necessary.

Battery

(Electric model)

1. Disconnect the battery cables and

remove the battery retainer cover.

_ CAUTION: Be careful not to

...

groundpositiveterminal with the
chassis. Always disconnect black
negative cable first.

2. Remove the battery vent tube from

the

vent hole.

3. Lift out the battery.

4. Clean outside surface of battery
with solution of baking soda and

water.

Remove all deposits from

posts then rinse with clear tap
water.

_ CAUTION: Do not allow cleaning

...

solution to enter battery interior

since it will destroy the electrolyte.

5. Check electrolyte level. Refill if ne­cessary with distilled water. Fully
charge battery at a maximum rate
of

2.0

amps.

_ CAUTION: Prior to charging the

...

battery,always removeitfromthe

vehicle to prevent electrolyte spillage.

•

WARNING: Gases given off by a

battery being charged are highly
explosive. Always charge in a well
ventilated area. Keep battery

away
from cigarettes or open flames. Avoid
skin contact with electrolyte.

6. Coat electrical connections and

switches

with

a greaseless metal

protector,

if unavailable, use

petroleum jelly.

7. Store unit in a cool, dry place.

34

_

O

NOTE: To prevent battery from

discharging, store it on a wooden
shelf away from moisture. A stored bat­tery must be recharged at least every 40

days.

Chassis

Clean the vehicle thoroughly, removing

all dirt and grease accumulation.

~

CAUTION:

Plastic

alloy

cornpo-

..

nents

such

as

fuel

tank,

wind-

shield,

controls,

etc.,

can be cleaned

using

mild

detergents

or isopropyl al-

cohol. Do

not

use

strong

soaps, de-

greasing

solvents,

abrasive cleaners,

paint

thinners,

etc.

Inspect the hood and repair any dam­age. Clean the frame. Forthe unpainted
aluminum portion use only

"Aluminum

cleaner" and

follow

instructions on the

container.
Touch up all metal spots where paint

has been scratched off. Spray all bare

metal parts

with

metal protector. Wax

the hood and the painted portion of the
frame for better protection.

O

NOTE: Apply wax on glossy fin-

ish only. Protect the vehicle with a
cover to prevent dust accumulation dur­ing storage.

~

CAUTION: If

for

some reason the

..

snowmobile hastobe stored out-

side it is necessary

to

coveritwith

an

opaque

tarpaulin.

This

caution

will

prevent

the

sun rays and

the

grime

from

affecting

the

plastic components

and

the

vehicle

finish.

General

Inspection

Check the electrical wiring and

compo­nents, retighten loose connections.
Check for stripped wires or damaged
insulation.

Thoroughly inspect the vehicle and
tighten loose bolts, nuts and linkage.

O

NOTE: Leave the drive belt

off

the

pulleys for the entire storage

period.

Suspension

Stopper

Strap

Replace annually and/or as condition
dictates. Torque

nut

to 10

N-m

(7

Ibf-

ftl.

____________

35

PRE-SEASON
PREPARATION _

To simplify the pre-season preparation
we have drawn up a small chart. The
chart indicates servicing points to be
performed by you and your servicing
dealer. If these services are performed
assuggested, your vehicle will give you
many hours of fun and low cost use.

IMPORTANT: Observe all Warnings
and Cautions mentioned

throughout

this manual

which

are pertinenttothe

item being checked. When component

conditions seem less than satisfactory,
replace

with

genuine Bombardier parts

or suitable equivalents.

PRE-SEASON

TO BE PERFORMED BY DEALER

•

PREPARATION

CHART

TO BE PERFORMED BY OWNER

0

Change spark

plugs*

0

Check chaincase oil level

0

Check rotary valve oil level

0

Replace fuel

filter

(located inside fuel tank)

0

Check

track

tension and alignment

0

Lubricate suspension

0

Inspect drive belt and install

0

Check steering alignment and ski runner condition

0

Inspect condition of starting rope

0

Check tightness of all bolts, nuts and linkage

0

Refill gas

tank

0

Check

throttle

cable

for

damage and free operation

•

Check electrical

wiring

(broken wire, damaged insulation)

0

Inspect seals for possible

cuts

or leaks

•

Check coolant condition and level

0

Replace injection oil

filter

•

Refill injection oil

tank

•

Inspect brake condition and operation

•

Set engine timing

•

Check pulleys,

verify

components and clean. Lubricate.

•

Adjust

carburetor

•

Adjust

oil injection pump

•

O

*NOTE: Before installing new spark plugs, it is suggested to burn the excess

storage oil by starting the engine, using the old spark plugs.

~

CAUTION: Only perform this procedure in a

well

ventilated area.

36 _

TROUBLE SHOOTING

GUIDE _

O

NOTE: The possible causes have been listed in an order of frequency. There­fore, items should be checked out in the same order as mentioned in the trouble

shooting guide.

SYMPTOMS

POSSIBLE

CAUSES

SOLUTIONS

Engine turns over but 1. No fuel to the engine

Check

the

tank

level

and

fiUitup.

Check

for

fails to

startorstarts

possible

cloggingoffuel

line,

item

4.

with difficulty

2. Flooded engine

Remove

wet

spark

plugs,

tum

ignitiontoOFF

and

crank

engine

several

times.

Install

clean

dry

spark

plugs.

Slart

engine

following

usual

Slarting

procedure.Ifengine

continuestoflood,

see

your

dealer.

3. Spark plug/ignition

Check

for

fouledordefective

spark

plug.

Dis-

connect

spark

plug

wire,

unscrew

plug

and

re-

move

from

cylinder

head.

Reconnect

wire

and

ground

exposed

plugonengine

cowl,

being

CIlIfuItohold

IWIY

from

...

plug

hole,

Follow

engine

starting

procedure

and

check

for

spark.Ifno

sparks

appear,

replace

spark

plug.Iftrouble

persists,

contact

your

dealer.

4. Clogged fuel line (water or

Remove

and

clean

the

fuel

filter.

Change

filter

dirt)

cartridgeifnecessary.

Check

condition

and

connectionsoffuel

lines.

Check

the

cleanliness

of

fuel

tank.

5.

Incorrect carburetor

Contact

your

dealer.

adjustment

6.

Incorrect injection pump

Contact

your

dealer.

adjustment

7.

Engine timing

Engine

timing

maybeincorrectoroutofad·

justment.

Contact

your

dealer.

8. Poor engine compression

Running

withalean

fuel

mixture

may

produce

excessive

engine

VYear

resultinginpoor

engine

compression.Ifthis

occurs,

contact

your

dealeratonce.

Engine will not turn

1. Seized engine

In

the

case

ofa

seized

engine

contact

your

manually

dealer.

_____________

37

SYMPTOMS

POSSIBLE

CAUSES

SOLUTIONS

Engine lacks accelera-

1. Fouled or defective spark

Check

item

3 of

"Engine

turns

over

but

fails

tion or power

plug

to

startorstarts

with

difficulty"

2.

Clogged fuel line (water or

Check

fuel

line

condition.

{See

item

4of

"En-

dirt}

gine

turns

over

but

failstostartorstarts

with

difficulty"1.

3.

Carburetor

Contact

your

dealer.

4. Ignition

First

check

item2and

3of

"Engine

turns

over

but

failstostartorstarts

with

difficulty".Ifthe

ignition

system

still

seems

faulty,

contact

your

dealer.

5.

Engine If

unabletolocate

specific

symptoms,

contact

your

dealer.

Engine continually

1. Spark plug

Check

item

3of

"Engine

turns

over

but

fails

to

backfires

startorstarts

with

difficulty".

2.

Overheated

Carburetor

too

lean,

see

your

dealer.

3.

Engine timing incorrectlyset

Contact

your

dealer.

Snowmobile cannot

1. Drive Belt

Check

for

damagedorworn

drive

belt.

Replace

reach full speed if

necessary.

2. incorrect track adjustment

Check

track

tension

and

alignment.

Readjust

to

specifications.

(See

Maintenance

Sectionl.

3.

Engine

Check

item

1 to 5 of

"Engine

lacks

accelera-

tionorpower.".

4. Pulley misaligned

Contact

your

dealer.

38 _

TOOLS _

As standard equipment each new snow­mobile is supplied with basic tools such
as screwdriver, wrenches, emergency
starter rope, etc...

Standard Tools

G

s;

.'"

B

Q

()

c

D

F

A. Screwdriver
B. Socket

10/13

mm

C. Open end wrench

10/13

mm

D. Socket wrench handle

E. Starter rope
F. Socket

21/26

mm

G. Hexagonal wrench

_____________

39

SPECIFICATIONS

_

Safari

377,

377E

Safari

447

Safari

Mirage

III

Grand Luxe LC

ENGINE

Type

377

447

532

No. of cylinders

2 2 2

Bore

62 mm (2.441

")

67.5

mm

(2.657")

72

(2.835")

Stroke

61 mm (2.401

")

61 mm

(2.401")

64 mm

(2.520")

Displacement

368.3

cm3(22.48 in

3)

436.6

cm3(26.64 in

3)

521.2 cm3(31.80 in

3)

Compression ratio

6.9:1 6.3:1 6.8:1

(corrected)

Maximum R.P.M.

7500 7500 7500

Carburetor type

Mikunl VM

34-309

Mikuni VM

34-310

Mikuni VM

34-312

Carburetor adjustment:.

- air screw 1 1/2 turn

1

1/2 turn

1

112

turn

- idle speed

1800-2000

R.P.M.

1800-2000

R.P.M.

1800-2000

R.P.M.

Fan belt free-play

9-10

mm

(3/8")

9-10

mm

(3/8")

N.A.

Rotary valve oil

- SI

N.A.

.

N.A. 568 ml

reservoir

- Imp. N.A.

N.A.

200z

Cooling system

- SI N.A. N.A.

4.5

L

capacity

- Imp.

N.A. N.A.

1600z

- U.S. N.A. N.A.

1540z

Antifreeze/water mixture

N.A.

N.A.

60/40

(%

by volume)

Thermostat

N.A. N.A.

43°C

(110°F)

Radiator pressure cap N.A. N.A. 1.9 kPa (13 Ib/in

2

)

Torque:

- engine head nuts

M8: 21 Nom (15 Ibfoft) M8: 23 Nom (17 Ibfoft)

M8: 21 Nom (17 Ibfoft)

- crankcase nuts

M6: 9 Nom (7 Ibfoft) M6: 9 Nom (7 Ibfoft)

M6: 9 Nom (7 Ibfoft)

M8: 21 Nom (15 Ibfoft) M8: 21 Nom (15 Ibfoft)

M8: 21 Nom (15 Ibfoft)

- magneto ring nut

M22: 85 Nom (63 Ibfoft) M22: 85 Nom (63 Ibfoft)

M22: 85 Nom (63 Ibfoft)

- fan nut

M16: 65 Nom (48 Ibfoft) M16: 65 Nom

(48lbf

oft)

N.A.

- crankcase engine support

Ml0:

38 Nom

(28Ibf

oft)

Ml0:

38 Nom (28Ibf

oft)

Ml0:

38 Nom

(28Ibf

oft)

nuts

-

exhaust manifold bolts

M8: 21 Nom (15 Ibfoft)

M8: 21 Nom (15 Ibfoft)

M8: 21 Nom (15 Ibfoft)

- electrical

starter bolts

M8: 21 Nom (15 Ibfoft)

N.A.

M8: 21 Nom (15 Ibfoft)

M5: 4 Nom (3 Ibfoft)

N.A.

M5: 4 Nom (3 Ibfoft)

CHASSIS

Overall length

266.7 cm (105") 279.4 cm (110")

279.4 em (110")

Overall width

96.5 em

(38")

96.5 em

(38")

96.5 em

(38")

Overall height

Safari: 96.5 em

(38")

96.5 cm

(38")

96.5 em (38")

Mirage III: 99 em

(39")

Ski stance (center to center)

81.9 em (32.25")

81.9 cm (32.25")

81.9 em (32.25")

Ski alignment (toe out)

3 mm

(1/8") 3 mm

(1/8")

3 mm (118")

Torque:

- steering armlski leg bolt

50 Nom (37 Ibfoft) 50 Nom (37 Ibfoft)

50 Nom (37 Ibfoft)

- steering columnlhandlebar

26 Nom (19 Ibfoft)

26 Nom (19 Ibfoft)

26 Nom (19 Ibfoft)

Weight

177 kg (390 Ib) manual

182 kg (402 Ib)

209 kg (460 lb)

191 kg (422 Ib) electric

7594 cm2(1177 in

2)

Bearing area

6645

cm2(1030 in

2)

7594 cm2(1177 in

2)

manual
7065 cm2(1095 In

2)

electric

Ground pressure

2.61 kPa (.379 Iblin

2)

2.36 kPa (.342 Iblin

2)

2.70 kPa (.391 Ib/in

2)

manual

2.65 kPa (.385 Iblin

2)

electric

40 _

Safari

377,

377E

Safari

447

Safari

Mirage

III

Grand Luxe LC

POWER

TRAIN

Track:

- width

38.1 em

(15"1 manual

41.9

em (16 112")

41.9

cm (16 112")

41.9 cm (16 112") electric

-

length

290 em (114'" 315 em (124")

315 em (124'"

- tension

13 mm

(1/2'" gap between slider shoe and bottom Insideof track.

- alignment

Equaldistance

between edges of track

guides

and slider shoes.

Standardgear ratio

16/34 19/39 21/37

Drive belt:

- number

414523300 414523300 414523300

- Mal(, width

34.9

mm (1 3/S") 34.9 mm (1

3/S")

34.9 mm (1 3/S'"

~

Min. width

31.7 mm (1

1/4")

31.7 mm (1 1/4") 31.7 mm (1

1/4")

Chaincase

oil 200 ml (702)

200 ml (7

oz)

200 ml (7

021

ELECTRICAL

lighting system (output)

12V.160W

12 V. 160 W

12V.160W

Bulb:

-

headlamp

60/60 W

60/60 W

60/55 W hal.

-

ta~/stop

5/21 W

5/21 W

5/21 W

-

speedometer

NA

5W

5W

- tachometer N.A.

N.A.

5W

- temperature gauge

NA

N.A.

5W

Fuse:

- ignition switch

lSA

(electric model) N.A.

15 A

- starter

soIenoiCl

30A (electric model) N.A.

30A

- tachometer N.A.

N.A.

0.1 A

Spark plug

- type

Nippondenso

W24ESRU

Nippondenso W24ESRU NGK BR8ES

- gap

0.4

mm

(0.016")

0.4

mm

(0.016")

0.4

mm

(0.016")

Ignition timing:

- timing mark (B.T.D.C.)

2.31mm

(.091")

1.88

mm

(.074")

1.75

mm

(.069")

- stroboscopic timing

20°@6000

R.P.M.

18°@6000

R.P.M.

17°@6000

R.P.M.

FUEL

Gas type

Regular leaded or unleaded

Fuel tank capacity

SI

28.6

liters

28.6

liters

28.6

liters

- Imp.

6.3

gals

6.3

gals

6.3

gals

- U.S.

7.6 gals

7.6 gals

7.6 gals

Injaction oil
Type

Bombardier snowmobile injection oil

Tank capacity

- SI

2.6 liters

2.6

liters

2.6

liters

-Imp.

920z

920z

920z

- U.S.

880z

880z

880z

BRAKE

Type

Disc, self-adjusting

Disc, self-adjusting

Disc self-adjusting

Lining minimum thickness

3 mm

(lIS")

3mm

(liS'"

3mm

(liS")

Control lever adjustment

13 mm

(1/2")

minimum distance from handlebar grip when fully applied.

N.A.: Not applicable
Hal.: halogen

Bombardier Inc. reserves the right to make changes in design and specifications and/or to make additions to, or

improvements in its

product

without

imposing any obligation upon

itself

to install them on its products previously

manufactured.

_____________

41

g»~

...

-

•

ON

IGNlTlON

m

:a

SWITCH

...

LIGHT

:3.

-

TETHER

w

2

CUT -OUT SWITCH

.....

Q

EMERGENCY

.....

CUT 'QUT SWITCH

..

C

DIMMER

~-

SWITCH

~:J>

BRAKE

.....

Q

LIGHT

SWITCH

AO:a

s::J>

:;'

~

m

fa

CD

-

-

-

"

"

GN

RelYL R

FUELGAUGe

"

lOPTIONALI

Y

Oil LEVEL

1~T10NAl

FOR 377 &

MtRAGE

fin

HIGH BEAM

IOPTlQNAl

fOR 377 & MIRAGE

1111

YL

WH

Bl<lYl

BK/'I'L

Be

WHI8L

MEAQLAMP

H

WH

"

.,

ROlYt

OIL lEVEL SENSOR

IOPTIONAL FDA 377 "

MII'lAGEltll

GN - GREEN

GY - GREY

VI - VIOLET

OR - ORANGE

BR - BROWN

BK -

BLACK

WH -

WHITE
RD - RED
BL - BLUE
YL - YELLOW

COLOUR CODE

VOLTAGE

REGULATOR

FUELLEVEL SENSOR

(OPTIONAL)

+

WARNING: Ensure all terminals

are properly crimped on the wires
and all connector housings are proper­ly fastened.

G)L1GHTING COIL (160W)
@GENERATOR COIL
®IGNITION

COIL
@AMPLIFIER
@BULB

5-21W

,®BULB

60-60W

(j)BULB

5W

;

LAMP

10W

9 FUSE 0.1 A

10

RESISTOR

30

n

11BULB 2W

~:e

....

-

1»:11

~.

-

wZ

"G')

"

mo

-

)I.

G')

:II

)I.

I:

s
s

p p

9

Iy fastened.

BKIYL

OK

~fF

IGNITION

~

ON

SWITCH

.

V,

B START

RDIGN

OR/Bit OR/Bit

SPARK PLUGS

BKIVL 1

BKNl

"K

OK

I~

2

l.

'='

L..!LW"i

CIJT

.J~~H:';mCH

~Hr

~.

i5i

-

y It 7 Y

BKIYL

VliWH

r

3

It

l..ft--::,

:

,

EMERGENCY

Yl

CUT-OUT SWJTCH

3 "

dJ

6l

~

OY

~O'MMEA

WH

Bl ,

Y ,

SWITCH

2 , WH e

,..-

!1-

WH

WH

~;

WH

.,.."

""""

ROIGN

RDIBl

~

LIGHT SWITCH

(,

RD 30,4,

RD

R

ROI8L 3

RD

~------I

~~

~

OR ! UGHT

• SWITCH

I

ENGINE I

" -

i

L

_______

I

"

"

ROIYL

ROIYl I

"flit""-=' •

(f)

"

~2

-Ill--'

I

4'

___

"'

r-

(~

T~CHOMETH'

I@

F~t=r(:[-L-

~t

"~K

ON

IOPTlONAL

,

Y

"

.~~

RM'

~

Vv'

~

~

RDNL

B "

\

~:'~K

SPEEDOMETER

P~~-(irb

(OPTIONAL)

"'"

WHiAn

WHIRO

-r-

~

7-ROlYl

'-.!'.~

DOlLEVEl

K !OPTIONALI

~

1

VLlBI': 8

""""""@RO

B'

'--U"

r=m

TACHOMETER

Bl

(OPTIONALI

RDI L

~

[VEL

~

SDR ,

ONAll WHIRO

ROiYL

·

WHIRD

r

=/

YO

,

·

LEVEL

" ~

OK

B.

BK

·

SDR

~

B

NAl!

OY

OY

roy

I

~2

ON

~

I

l

ReNL 3

-{!)

jij

~ ~ ~

I

ROI8L

FUELGAUGE

7

IOPTtO'*ALI

Y

B

REEN

~

• WARNING: Ensure all terminal

GREY

are properly crimped on the wire

OLET

NGE

and all connector housin

s are ro er

GN - G

GY -

VI-

VI

OR - ORA

BR -

BROWN

BK -

BLACK

WH -

WHITE
RD - RED
BU

- BLUE

YL -

YELLOW

COLOUR CODE

FUEL

SEN

(OPTIO

DOlL

SEN

(OPT!

®

CD

LIGHTING COIL

(160

W)

(3)

GENERATORCOIL

CD

IGNITION COIL

@)AMPLIFIER

®BULB

5-21W

5

®BULB

60-60W

f

(j)BULB

5W ..

@LAMP

10W

@BULB

2W

~

o

STARTER

11

SOLENOID SWITCH

12 FUSE

@BATTERY

@ REGULATOR -

RECTIFIER

@FUSE

0.1 A

@ DIODE I-N-4585

FUll

C;"'OOE

IOPTIOIUol,.l

, '""

,-'I.

•

TtTHEA

CUT-ourswlTCl-l

~

-----

I

I llGlfT

1-t~SW"CM

II

L..J I I

,",~_

...

I

Itt

~i

'"""

'

II<

I

~

'hi·"'·

,-----,,/

'DIY'

3~..r;!)

I

I

..

and all connector housings are proper-

ly fastened.

+

WARNING: Ensure all terminals
areproperly crimped on the wires

-

~

"DIGN

,

!

"m,

'"""

'Dm

,VL

5

ylJii1

,

._~

3

~v,

,'---"'--

-,

L-:::::.:...J

'r

'0

L

WM'"

GN -

GREEN

GY - GREY

VI - VIOLET

OR

-

ORANGE

BR - BROWN

FUEL LEVel

SENSOR

rOPTIONAL)

Oil LE\lEL

SENSOR

COLOUR CODE

(i)L1GHTING COIL

(160

Wj

0GENERATOR

COIL

@IGNITION

COIL

@AMPLIFIER

@BULB

5-21W

@BULB

60-55W

GBULB

5W

®LAMP

lOW

9 BULB 2W

10 STARTER

11 SOLENOID SWITCH

12

FUSE

13

BATTERY

@REGULATOR -

RECTIFIER

@FUSE

0.1 A

®DIODE

I-N-4585

(j])TEMPERATURE

SENSOR

BK - BLACK
WH - WHITE
RD - RED
BL -

BLUE

YL - YELLOW

81*

INFORMATION GUIDE _

BASE

UNITS

DESCRIPTION

length
mass
liquid

temperature

pressure

torque

speed

UNIT

meter
kilogram
liter
celsius
kilopascal
Newton meter
kilometer per hour

SYMBOL

m

kg

L

°C

kPa

N-m

km/h

PREFIXES

PREFIX SYMBOL

MEANING VALUE

kilo k one thousand

1,000

centi

c

one hundredth of a 0.01

milli m one thousandth of a 0.001

*THE INTERNATIONAL SYSTEM OF UNITS (SYSTEME

INTERNATIONAl)

ABRE-

VIATES

"SI"

IN ALL LANGUAGES.

_____________

,45

NOTES!-

_

CHANGE

OF ADDRESS

OR

OWNERSHIP

_

Any change in address or ownership should be brought to the attention of the
manufacturer by completing and sending

out

the card supplied below.

NOTICE TO

ALL

NEW OWNERS: Make sure to receive the warranty registra-

tion card from the previous owner, at the time the ownership is transferred.

Also enclose a photocopy of this registration card when informing of a change

of ownership.

r----------------------------------------------------~

: CHANGE OF ADDRESS

L

VEHICLE IDENTIFICATION NUMBER

OLD ADDRESS:

NAME

NEW ADDRESS:

NO

CITY

NO

STREET

STATE/PROVINCE

NAME

STREET

APT

ZIP /

POSTAL

CODE

APT

CiTY ST

ATF/PROVINCE

ZIP /

POSTAL

CODE

-----------------------------------------------------~

CHANGE OF OWNERSHIP

VEHICLE IDENTIFICATION NUMBER

The ownership of this vehicle is transferred
FROM: _

NAME

TO:

NO

CITY

NO

CITY

STREET

ST

ATE/PROVINCE

NAME

STREET

STATE/PROVINCE

APT

ZIP

I POSTAL CODE

APT.

ZIP / POSTAL CODE

----------_._---------------------------------------------

BOMBARDIER

INC.

ATT.: WARRANTY DEPARTMENT
VALCOURT, QUEBEC
CANADA,

JOE

2LO

-----------------------------------------._---------------

BOMBARDIER

INC.

ATT.:

WARRANTY

DEPARTMENT

VALCOURT, QUEBEC

CANADA,

JOE

2LO
