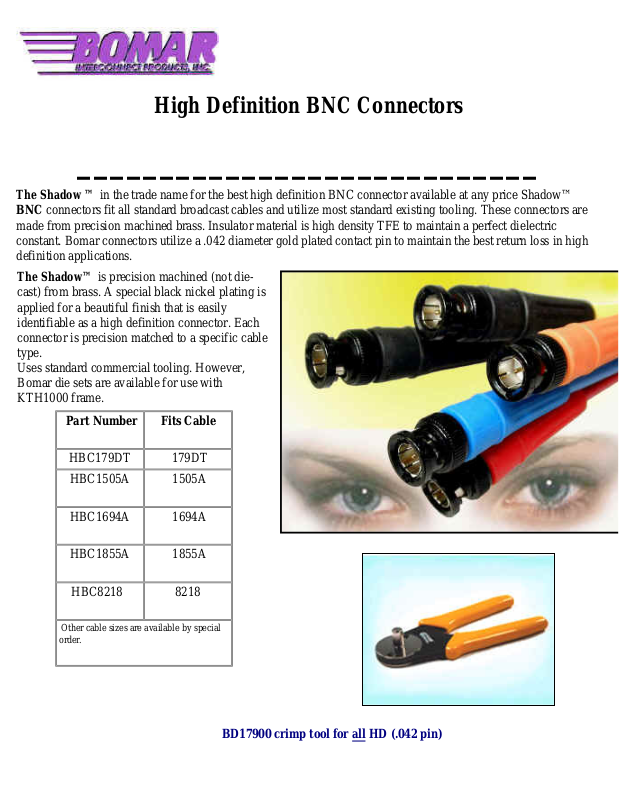

High Definition BNC Connectors

____________________________

The Shadow ™ in the trade name for the best high definition BNC connector available at any price Shadow™

BNC connectors fit all standard broadcast cables and utilize most standard existing tooling. These connectors are
made from precision machined brass. Insulator material is high density TFE to maintain a perfect dielectric
constant. Bomar connectors utilize a .042 diameter gold plated contact pin to maintain the best return loss in high
definition applications.

The Shadow™ is precision machined (not die­cast) from brass. A special black nickel plating is
applied for a beautiful finish that is easily
identifiable as a high definition connector. Each
connector is precision matched to a specific cable
type.
Uses standard commercial tooling. However,
Bomar die sets are available for use with
KTH1000 frame.

Part Number Fits Cable

HBC179DT 179DT

HBC1505A 1505A

HBC1694A 1694A

HBC1855A 1855A

HBC8218 8218

Other cable sizes are available by special
order.

s

BD17900 crimp tool for all HD (.042 pin)

In an independent test The Shadow™ proved to have the best
return loss results at 3GHz.

Return Loss

Freq in GHz

(No Cable)

xxx Bomar K-Brand A-Brand AM-Brand T-Brand

2.0 - 29.4 dB - 22.6 dB - 23.3 dB - 44.8 dB - 21.4 dB

2.6 - 26.6 dB - 20.3 dB - 20.9 dB - 22.3 dB - 20.2 dB

3.0 - 23.1 dB - 18.0 dB - 17.4 dB - 20.0 dB - 19.0 dB

Bomar P/N HBC1694A HP8648C, Slotted Line (Connector Only Used For True Results.)

Return Loss
(No Cable)

Return Loss

(No Cable)

Return Loss

(No Cable)

Return Loss

(No Cable)

____________________________

Once cable is applied . . .

____________________________
