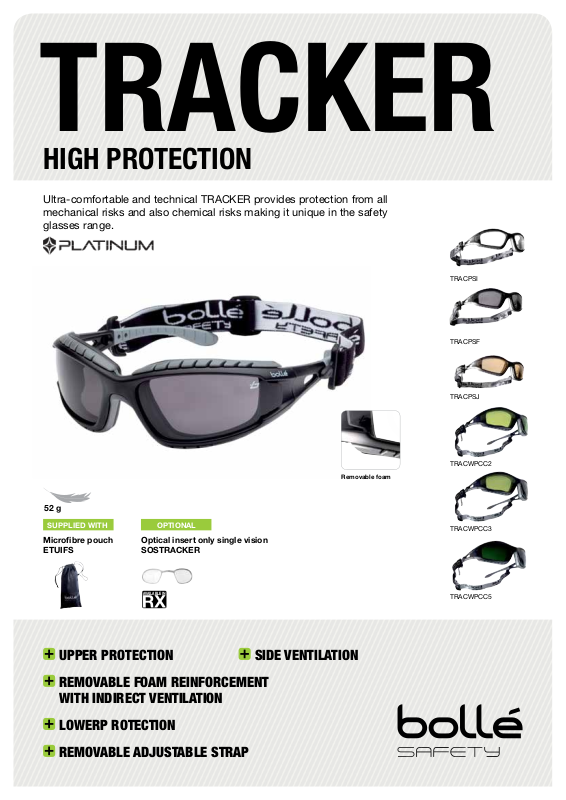

Page 1
TRACKER
HigH PRoTECTion
Ultra-comfortable and technical TRACKER provides protection from all
mechanical risks and also chemical risks making it unique in the safety
glasses range.
TRACPSI
TRACPSF
TRACPSJ
52 g
SUPPLIED WITH
Microfibre pouch
ETUIFS
UPPER PROTECTION
REMOVABLE FOAM REINFORCEMENT
WITH INDIRECT VENTILATION
LOWER P ROTECTION
OPTIONAL
Optical insert only single vision
SOSTRACKER
AVAILABLE IN
TRACWPCC2
Removable foam
TRACWPCC3
TRACWPCC5
SIDE VENTILATION
REMOVABLE ADJUSTABLE STRAP
Page 2
TRACKER
HigH PRoTECTion
MODEL VERSIONS REFERENCES LENS MARKING FRAME MARKING COATINGS
TRACPSI
TRACPSF
TRACPSJ
TRACWPCC2
TRACWPCC3
TRACWPCC5
- -
TRACKITFS - -
SOSTRACKER - -
TRACKER
Temple version
TRACKER
Strap version
SOS TRACKER
Clear Anti-scratch /Anti-fog ( )
Smoke
Yellow
Welding shade 1,7 Anti-scratch
Welding shade 3 Anti-scratch
Welding shade 5 Anti-scratch
With strap -
Kit Foam and strap
Optical insert
LENS MARKING
Optical class symbols:
1. Continuous work
Mechanical strength symbols:
F. Low energy impact, resists a 6 mm, 0.86 g ball at 45 m/s
Maximum protection for glasses.
T. The letter T, immediately after the mechanical strength symbol,
authorises use for high speed particles at extreme temperatures.
B. Impact à moyenne énergie, résiste à une bille de 6 mm
et de 0,86 g à 120 m/s.
Others symbols:
K. Resistance to surface damage by ne particles (optional)
N. Resistance to fogging (optional)
European standard Manufacturer name
2C-1,2
5-2,5
5-1,4
1 BT KN EN166 FT
1 BT KN EN166 FT
1 BT KN EN166 FT
1 FT EN166 FT
1,7
1 FT EN166 FT
3
1 FT EN166 FT
5
EN166 3 4 BT
FRAME MARKING
EN 166: guaranteed minimum resistance of the protective eyewear against
everyday risks including dropping the protective eyewear onto the ground,
ageing by light exposure, exposure to heat or corrosion etc.
3. Liquid droplets or splashes.
4. Large dust particles > 5 microns.
F. Low energy impact, resists a 6 mm, 0.86 g ball at 45 m/s
Maximum protection for glasses.
T. The letter T, immediately after the mechanical strength symbol, authorises
use for high speed particles at extreme temperatures.
B. Medium energy impact, resists a 6 mm, 0.86 g ball at 120 m/s.
European standard Manufacturer name
Bollé Safety product approval certificates to CE standards will be
sent on request.
Anti-scratch /Anti-fog ( )
Anti-scratch /Anti-fog ( )
-
TECHNOLOGY
This permanent coating on both sides of the lens gives them a
high resistance to scratching (1.4 cd / m²), to the most aggressive
chemicals and delays the onset of fogging for 2 minutes.
In all circumstances and at all times the PLATINUM lens innovation
guarantees your eyes improved protection.
Europe Bollé Safety
95 rue Louis Guérin
69100 Villeurbanne - France
Tél. : 00 33 (0) 4 78 85 23 64
Fax : 00 33 (0) 4 78 85 28 56
[email protected]
bolle-safety.com
U.K. Bollé Safety
Unit C83 - Barwell Business Park Leatherhead Road - Chessington
Surrey - KT9 2NY
Tél. : 00 44 (0)208 391 4700
Fax : 00 44 (0)208 391 4733
e-mail : [email protected]
CLEANING AND STORAGE
CLEANING: The lenses should be cleaned regularly with a mild soap detergent or optical
solution.
MAINTENANCE: Pitted, scratched or damaged lenses must be replaced by replacing the
complete product. If the frame is damaged also replace the complete product. After each
use it is recommended to keep the spectacles or goggles in a microfiber pouch or rigid case.
STORAGE: Store between 5 and 40 °, humidity <90%.
Page 3
TRACKER
HigH PRoTECTion
CHARACTERISTICS
LEnsEs
FRAmE
TEmPLEs
sTRAP
FoAm
Individual plastic
bag
10 safety spec-
tacles per inner box
240 safety
spectacles per
outer pack
C
PC - 2,2 mm - Curve 8
PC
PC
Nylon
EVA
PACKAGING AND EAN13 CODE
TRACPSI TRACPSF TRACPSJ TRACWPCC2 TRACWPCC3 TRACWPCC5 TRACKKITFS SOSTRACKER
3660740004828 3660740004835 3660740004842 3660740000400 3660740000417 3660740000424 3660740000257 3660740000028
3660740104825 3660740104832 3660740104849 3660740100407 3660740100414 3660740100421 3660740100254 3660740100025
3660740204822 3660740204839 3660740204846 3660740200404 3660740200411 3660740200428 3660740200251 3660740200022
Europe Bollé Safety
95 rue Louis Guérin
69100 Villeurbanne - France
Tél. : 00 33 (0) 4 78 85 23 64
Fax : 00 33 (0) 4 78 85 28 56
[email protected]
bolle-safety.com
01/10/2013
U.K. Bollé Safety
Unit C83 - Barwell Business Park Leatherhead Road - Chessington
Surrey - KT9 2NY
Tél. : 00 44 (0)208 391 4700
Fax : 00 44 (0)208 391 4733
e-mail : [email protected]
