Page 1

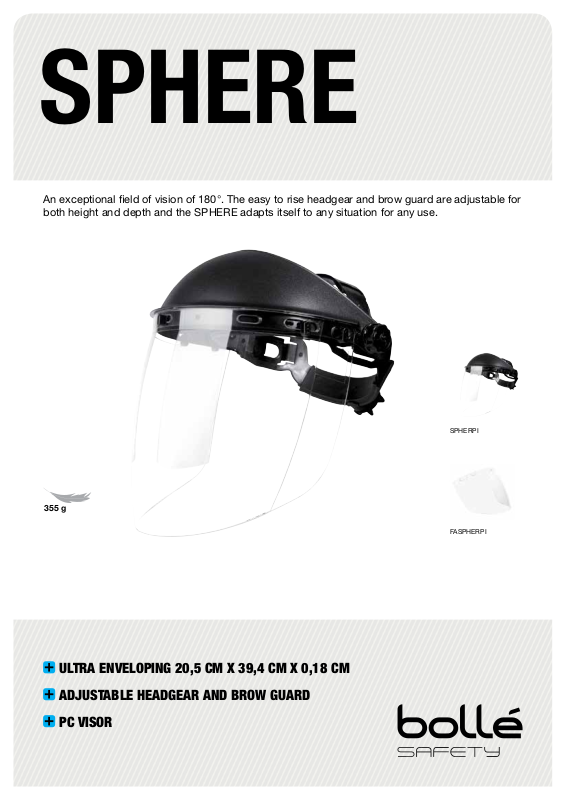

SPHERE
An exceptional field of vision of 180°. The easy to rise headgear and brow guard are adjustable for
both height and depth and the SPHERE adapts itself to any situation for any use.
355 g
ULTRA ENVELOPING 20,5 CM X 39,4 CM X 0,18 CM
ADJUSTABLE HEADGEAR AND BROW GUARD
SPHERPI
FASPHERPI
PC VISOR
Page 2
SPHERE
MODEL VERSIONS REFERENCES LENS MARKING FRAME MARKING COATINGS
SPHERE
Polycarbonate -
Polycarbonate -
SPHERPI
FASPHERPI
LENS MARKING
Optical class symbols:
1. Continuous work
Use symbols:
8. Electrical short circuit arc
9. Molten metal and hot solids
Mechanical strength symbols:
B. Medium energy impact, resists a 6 mm, 0.86 g ball
at 120 m/s
T. The letter T, immediately after the mechanical strength symbol,
authorises use for high speed particles at extreme temperatures.
Others symbols:
European standard Manufacturer name
2C-1,2
2C-1.2
1 BT 8 9 EN166 8 3 9 BT
1 BT 8 9
-
FRAME MARKING
EN 166: guaranteed minimum resistance of the protective eyewear against
everyday risks including dropping the protective eyewear onto the ground,
ageing by light exposure, exposure to heat or corrosion etc.
3. Liquid droplets or splashes.
8. Electrical short circuit arc
9. Molten metal and hot solids
B. Medium energy impact, resists a 6 mm, 0.86 g ball
at 120 m/s
T. The letter T, immediately after the mechanical strength symbol, authorises
use for high speed particles at extreme temperatures.
European standard Manufacturer name
Bollé Safety product approval certificates to CE standards will be
sent on request.
CLEANING AND STORAGE
CLEANING: The lenses should be cleaned regularly. Bollé Safety recommends only using
the B-clean lens cleaning system.
MAINTENANCE: Pitted, scratched or damaged lenses must be replaced by replacing the
complete product. If the frame is damaged also replace the complete product. After each
use it is recommended to keep the spectacles or goggles in a microfiber pouch or rigid case.
STORAGE: All products must be stored in a dry and clean environment.
PACKAGING AND EAN 13 CODE
SPHERPI FASPHERPI
Individual packaging
5 face shields per
outer pack - 50
spare lenses per
outer pack
Europe Bollé Safety
95 rue Louis Guérin
69100 Villeurbanne - France
Tél. : 00 33 (0) 4 78 85 23 64
Fax : 00 33 (0) 4 78 85 28 56
[email protected]
bolle-safety.com
3660740001186 3660740001193
3660740201180 3660740201197
U.K. Bollé Safety
Unit C83 - Barwell Business Park Leatherhead Road - Chessington
Surrey - KT9 2NY
Tél. : 00 44 (0)208 391 4700
Fax : 00 44 (0)208 391 4733
e-mail : [email protected]
LEnSES
FRamE
TEmPLES
STRaP
Foam
SPa RE LEnSES
C CHARACTERISTICS
C
PC - 2.0 mm
PP
Non applicable
Non applicable
Non applicable
FASPHERPI
01/10/2013
