Page 1
1
2 Series HD SDI+IP
Dual Output USB PTZ Camera
USER MANUAL
VERSION: VCC-2HD-M-082019
VCC-M2H10BI-4FN1
VCC-M2H10BI-4FN2
© 2019 Bolin Technology
Page 2
2
Contents
IMPORTANT INFORMATION ..................................................................................................................................................... 3
WHAT’S IN THE BOX ................................................................................................................................................................. 6
OVERVIEW ................................................................................................................................................................................ 7
CAMERA DIAGRAMS ................................................................................................................................................................. 8
REMOTE CONTROLLER ........................................................................................................................................................................ 9
SYSTEM CONFIGURATION ....................................................................................................................................................... 10

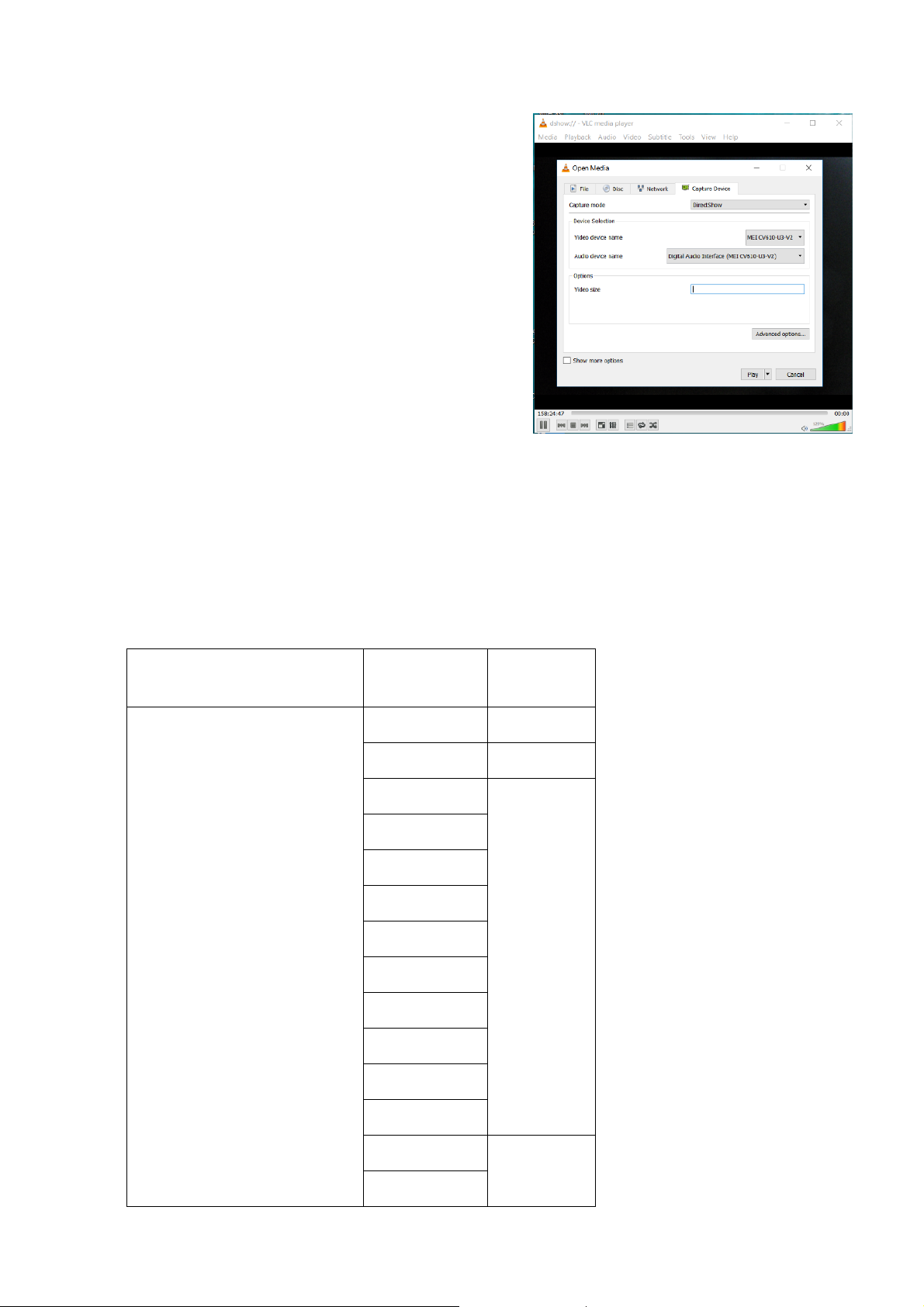

OBTAIN VIDEO SIGNAL ..................................................................................................................................................................... 11

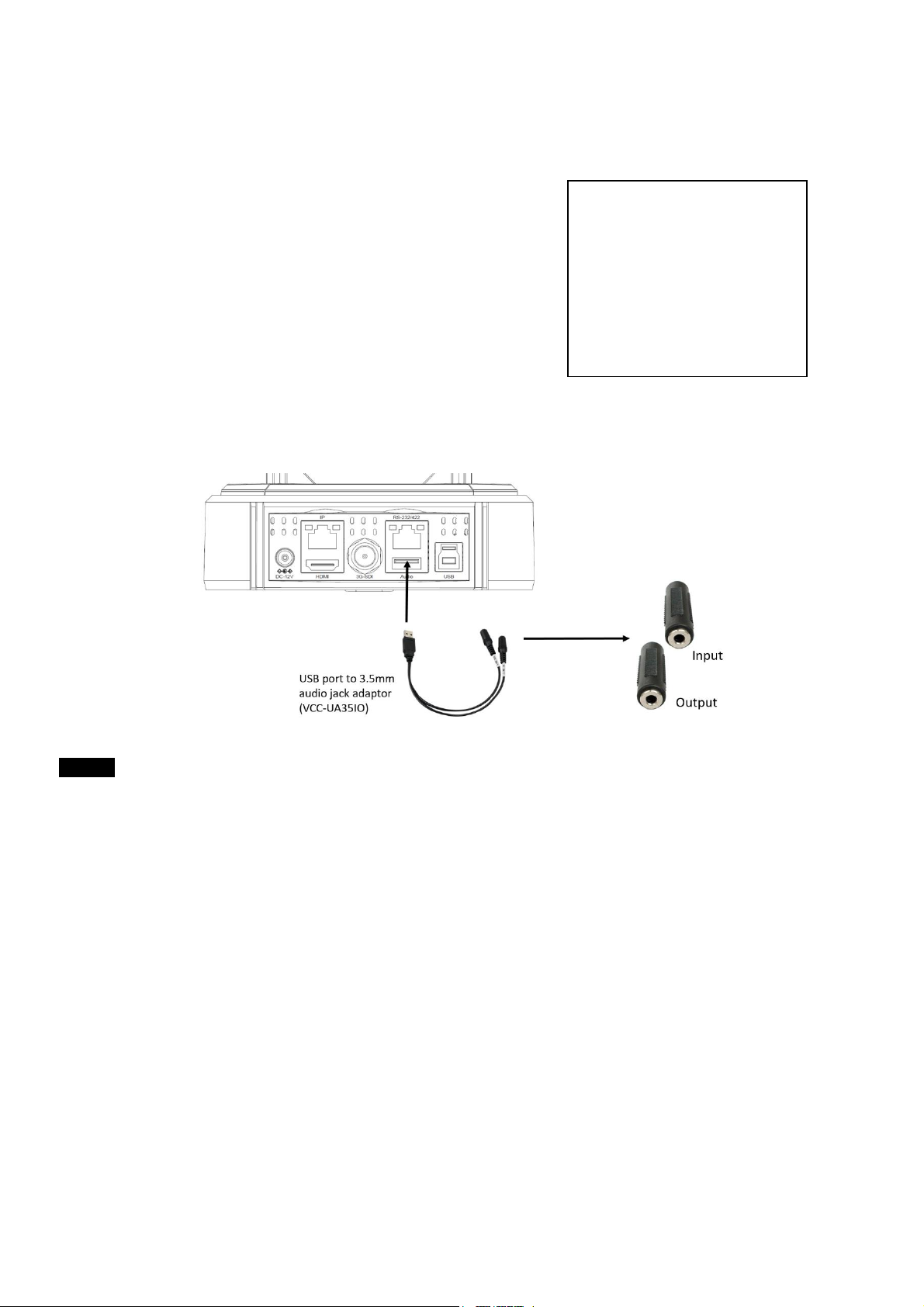

AUDIO IN / OUT ............................................................................................................................................................................ 14
CAMERA CONTROL METHODS AND SYSTEM CONFIGURATIONS ............................................................................................. 15
USE THE INFRARED REMOTE CONTROLLER ............................................................................................................................................ 15
USE RS-232 (VISCA) ...................................................................................................................................................................... 15
USE RS-422(VISCA) / RS485 (PELCO P/D) ..................................................................................................................................... 17

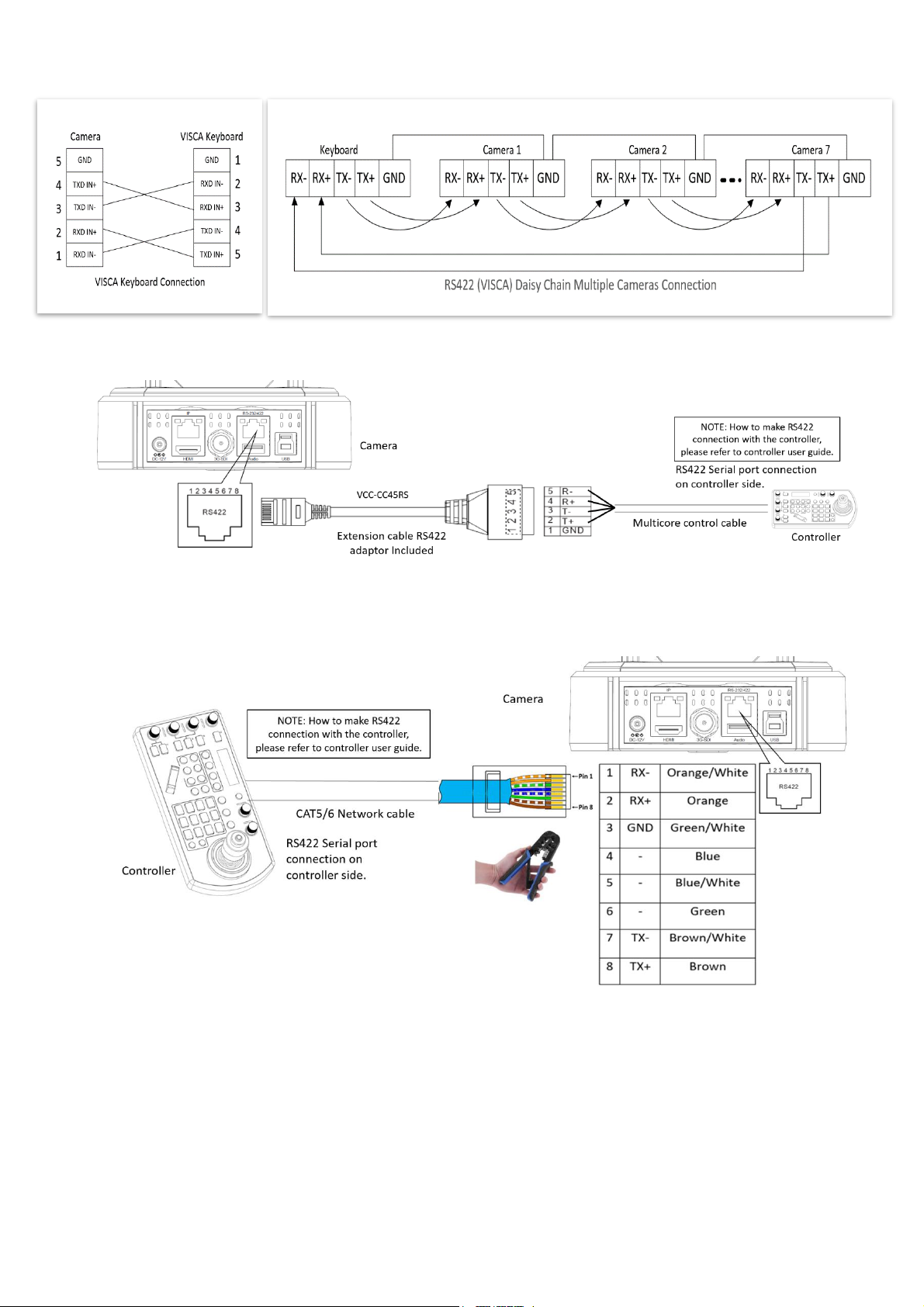

RS422 (VISCA) CONNECTION ........................................................................................................................................................... 17

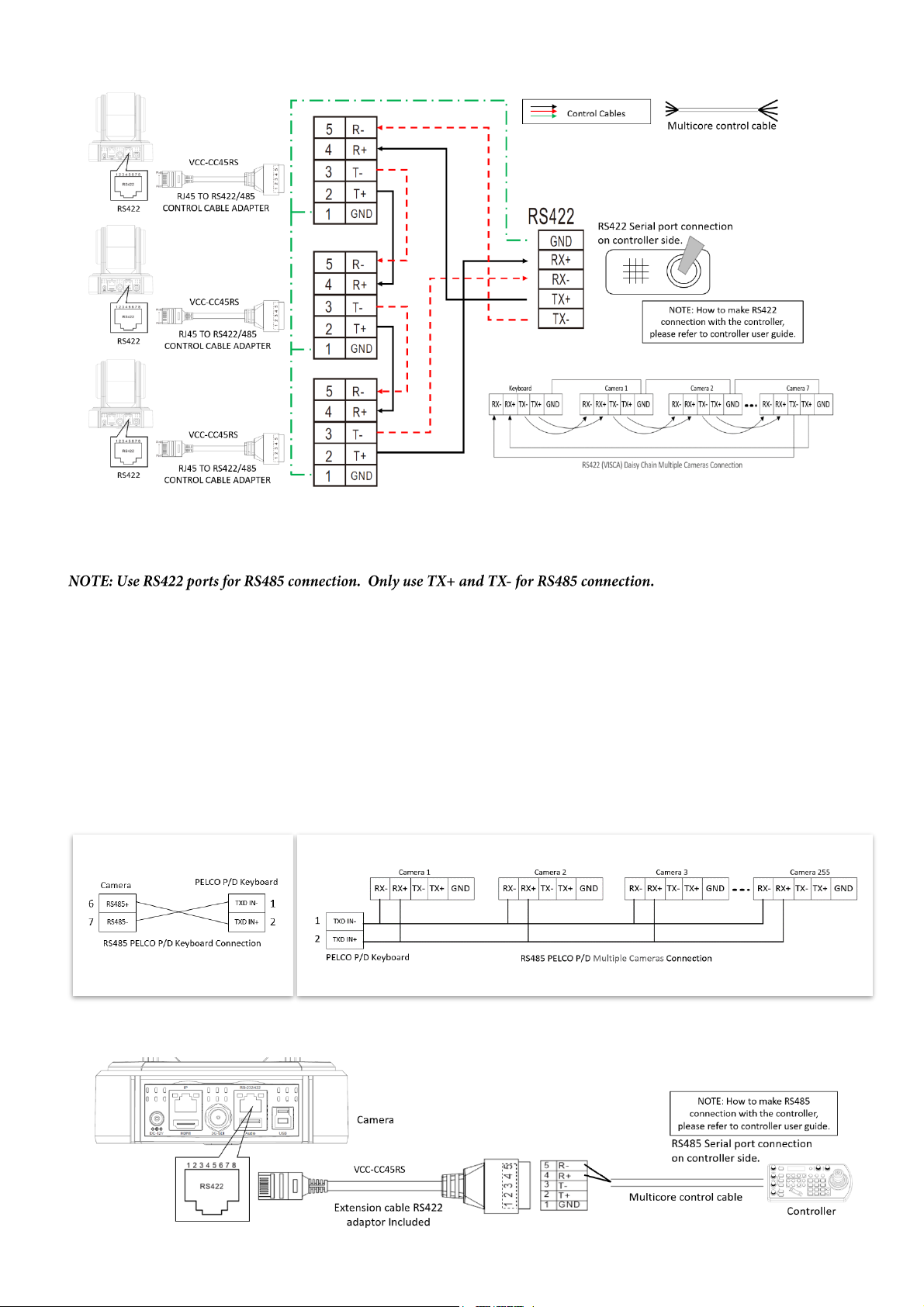

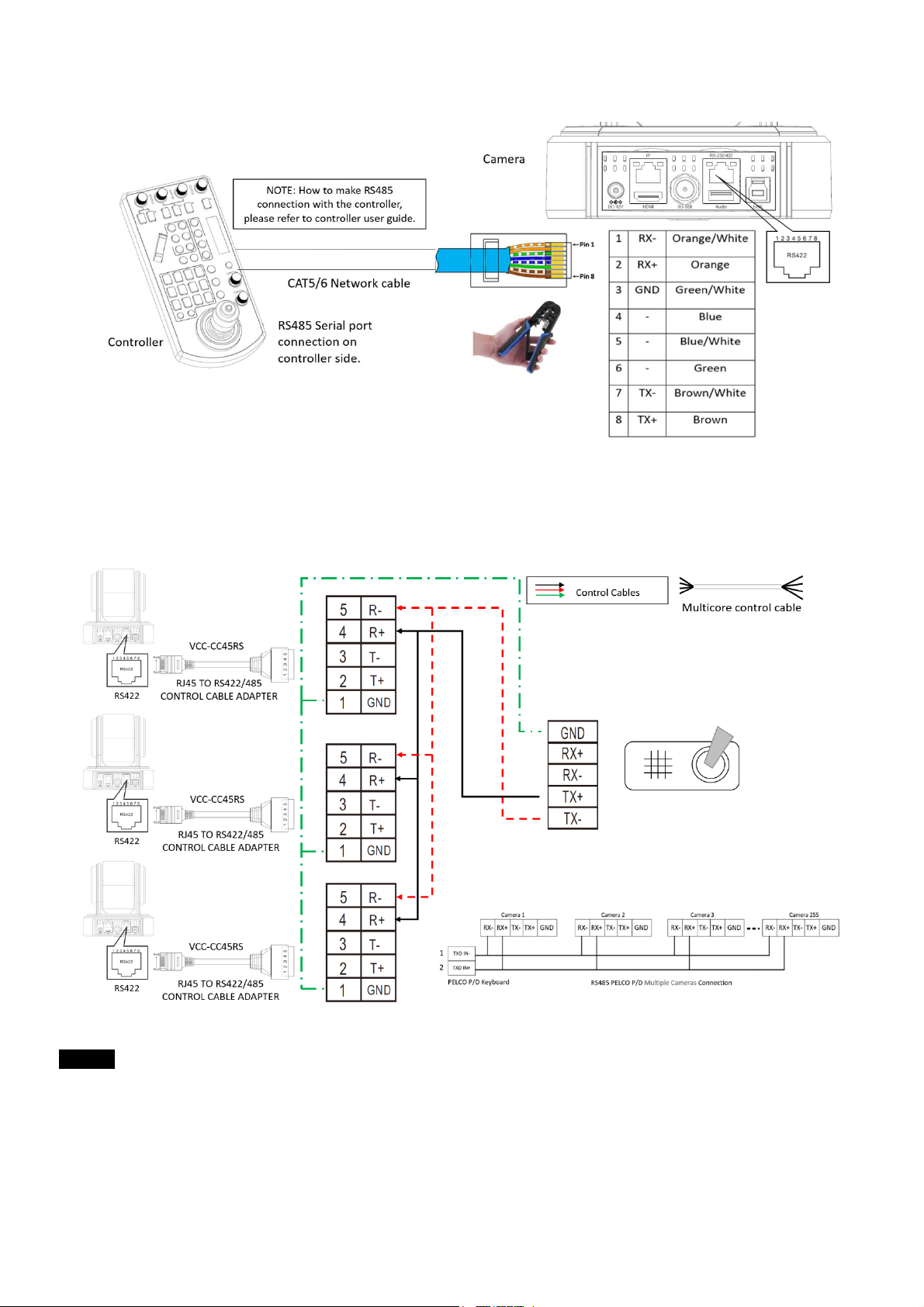

PELCO P/D KEYBOARD RS485 CONNECTION ...................................................................................................................................... 19
HOW TO MAKE THE CONNECTION WITH BOLIN PRODUCTS ...................................................................................................................... 21

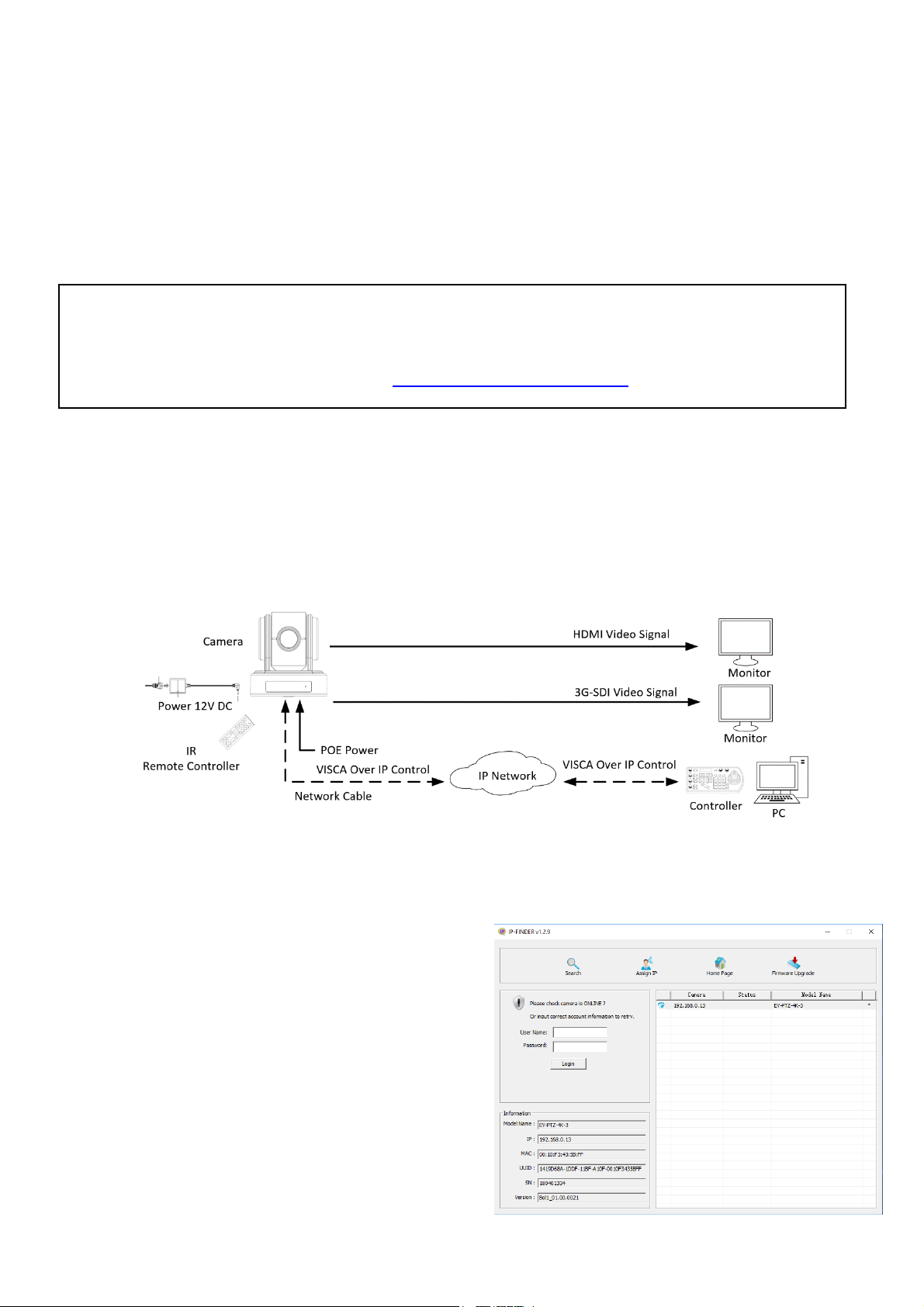

VISCA OVER IP CONTROL ................................................................................................................................................................. 21
VISCA OVER IP NETWORK CONFIGURATION ......................................................................................................................................... 21

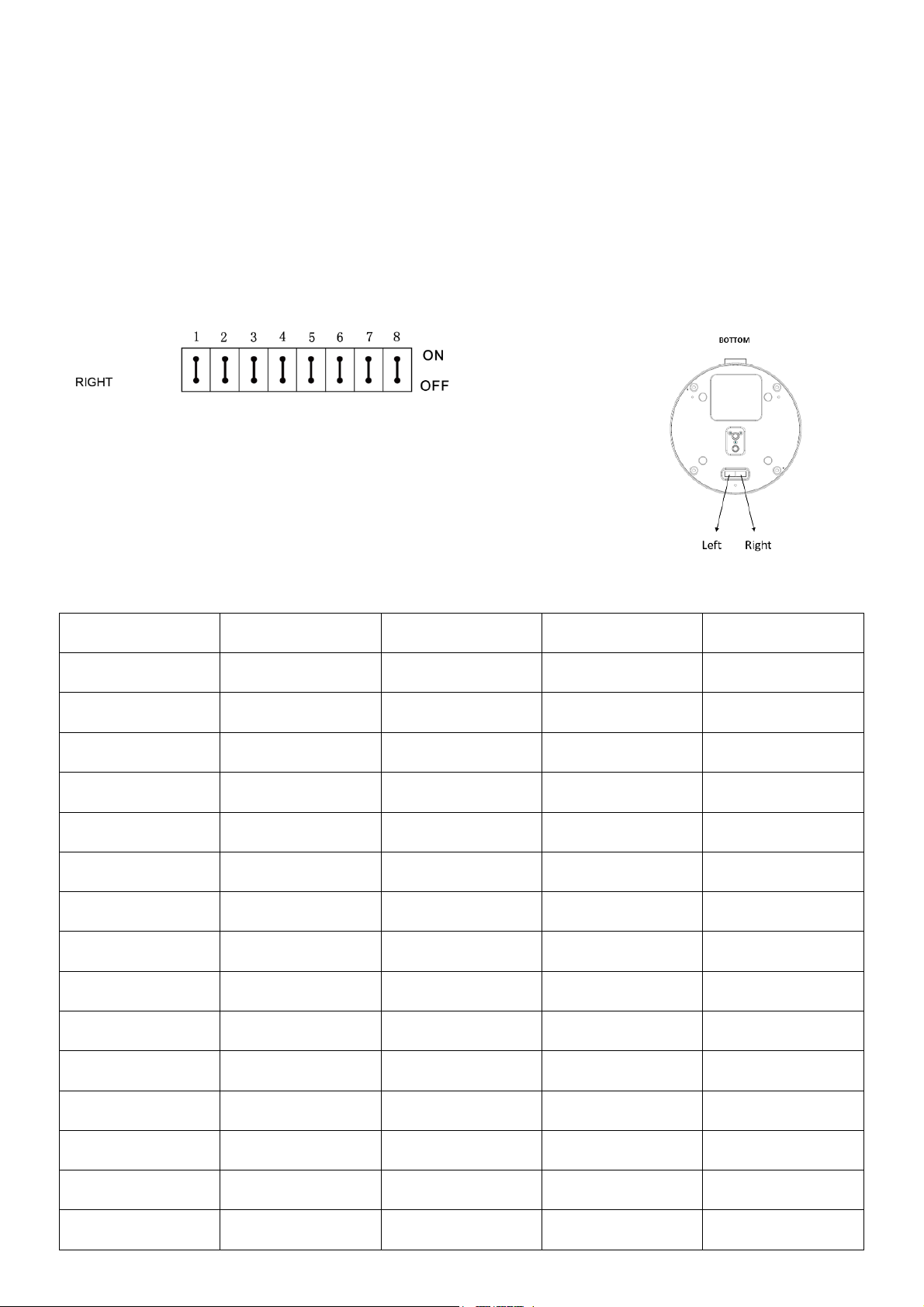

DIP SWITCH SETTINGS ............................................................................................................................................................ 22
ADJUSTING AND SETTING WITH MENUS................................................................................................................................. 25
EXPOSURE MENU ......................................................................................................................................................................... 26
WHITE BALANCE MENU ................................................................................................................................................................ 27
PICTURE MENU............................................................................................................................................................................. 28
PAN TILT ZOOM MENU ................................................................................................................................................................. 28
SYSTEM MENU.............................................................................................................................................................................. 29

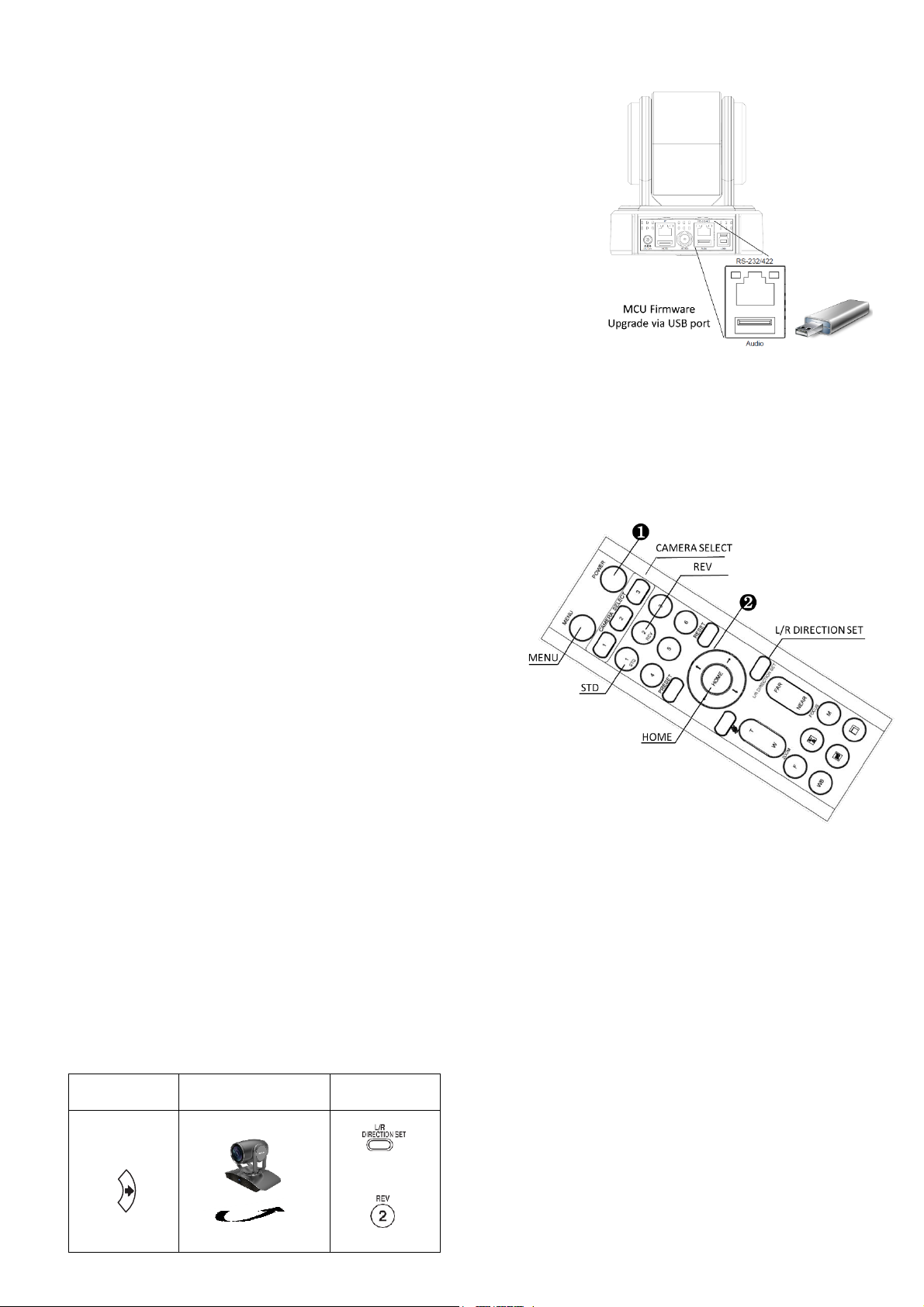

UPGRADING MCU FIRMWARE ........................................................................................................................................................... 30
OPERATION USING THE INFRARED REMOTE CONTROLLER ..................................................................................................... 30
PAN/TILT AND ZOOM OPERATION ...................................................................................................................................................... 30
OPERATING MULTIPLE CAMERAS WITH THE INFRARED REMOTE CONTROLLER .............................................................................................. 31
ADJUSTING THE CAMERA ................................................................................................................................................................... 31

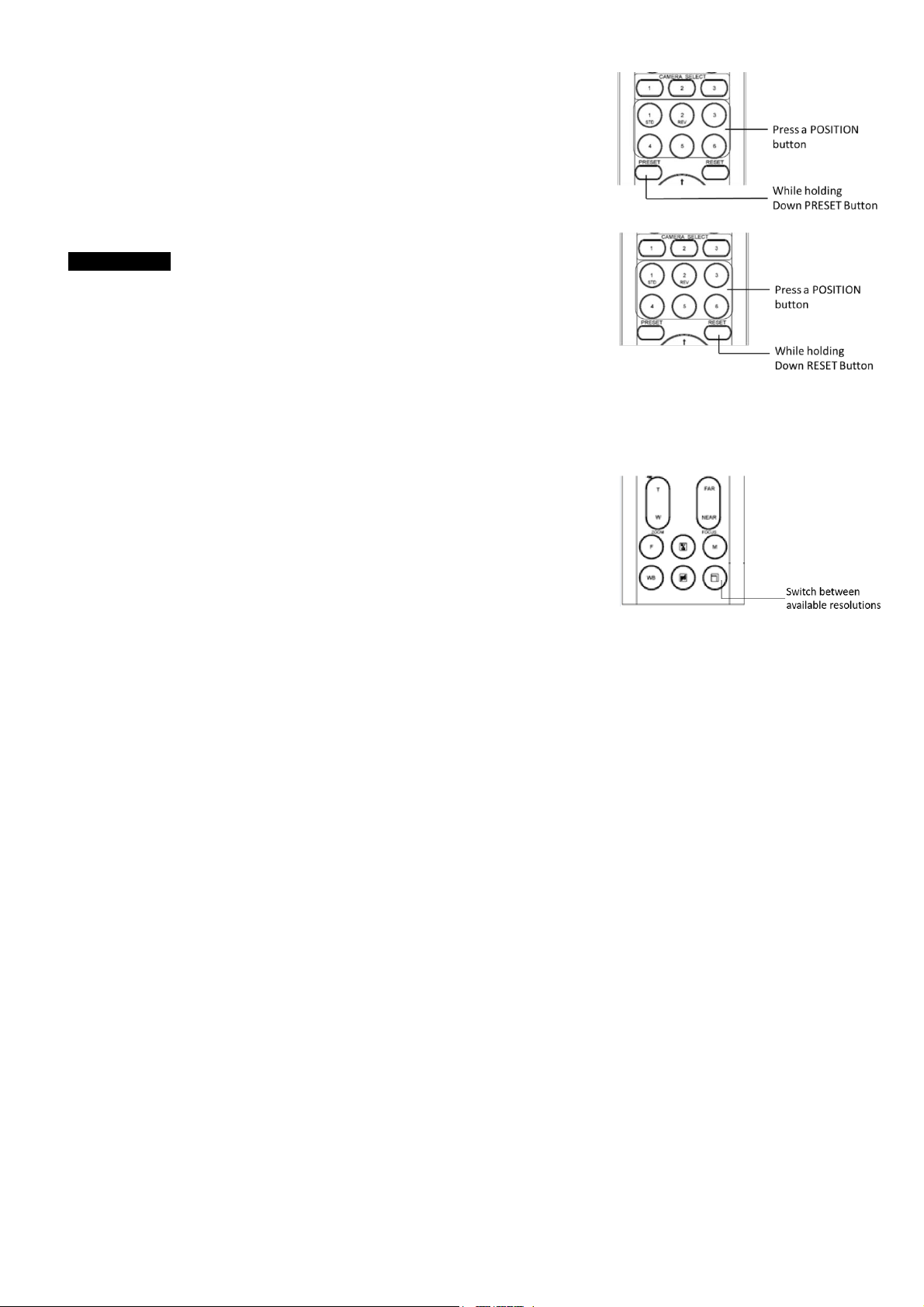

STORING THE CAMERA SETTINGS IN MEMORY — THE PRESETTING FEATURE ............................................................................................... 32
MENU CONFIGURATION ......................................................................................................................................................... 33

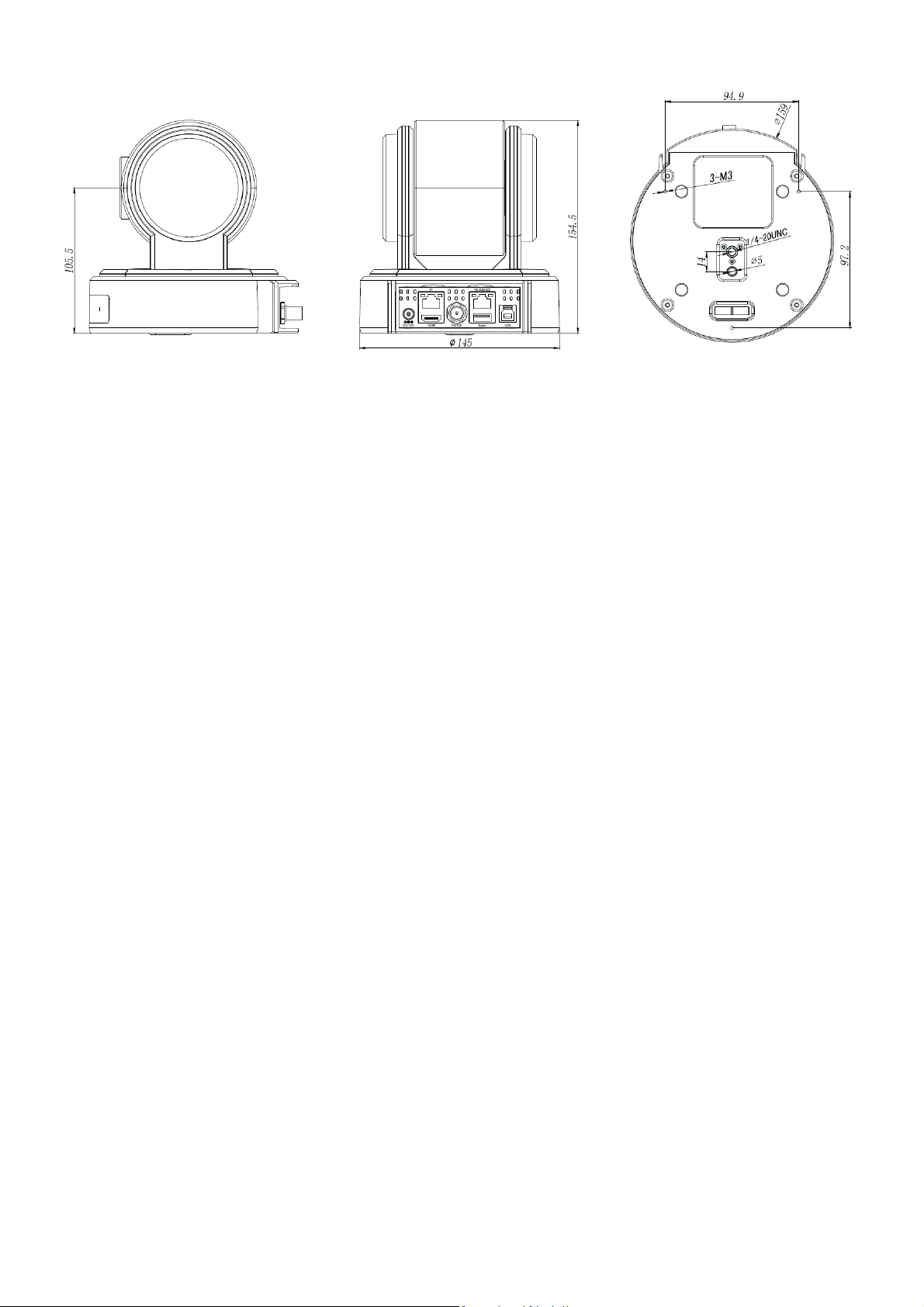

DIMENSION ............................................................................................................................................................................ 34
Page 3
3
Operating Instructions
Thank you for purchasing our product. If there are any questions, please contact the authorized dealer.
Before operating the unit, please read this manual thoroughly and retain it for future reference.
Copyright
Copyright 2015-2018 Bolin Technology all rights reserved. No part of this manual may be copied, reproduced,
translated, or distributed in any form or by any means without prior consent in writing from our company.
Trademark Acknowledgement
and other Bolin's trademarks and logos are the property of Bolin Technology Other trademarks,
company names and product names contained in this manual are the property of their respective owners.
Trademarks and Registered Trademark Acknowledgement
Microsoft, Windows, ActiveX, and Internet Explorer are registered trademarks of Microsoft Corporation in the
U.S. and/or other countries.
HDMI, the HDMI logo and High-Definition Multimedia Interface are the trademarks or registered trademarks of
HDMI Licensing, LLC in the United States and other countries.
The Software may contain h.264/AVC video technology, the use of which requires the following notice from
MPEG-LA, L.L.C.:
THIS SOFTWARE IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND
NON-COMMERCIAL USE OF A CONSUMER TO (I) ENCODE VIDEO IN COMPLIANCE WITH THE AVC
STANDARD ("AVC VIDEO") AND/OR (II) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO
PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR
ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE
http://www.mpegla.com.
HEVC/h.265 Covered by one or more claims of patents listed at patentlist.hevcadvance.com
HDBaseT is a trademark of the HDBaseT Alliance.
ONVIF trademarks and logos are to be used per the guidelines established in this and other ONVIF policies and
documents including the ONVIF Rules of Membership and the ONVIF Logo Guidelines1.
Other trademarks, company names and product names contained in this manual are the property of their respective
owners.
IMPORTANT INFORMATION
Legal Notice
Attention:
To ensure account security, please change the password after your first login. You are recommended to set a strong
password (no less than eight characters). Password login does not apply to some models that do not need password login.
The contents of this document are subject to change without prior notice. Updates will be added to the new version of this
manual. We will readily improve or update the products or procedures described in the manual.
Page 4
4
Best effort has been made to verify the integrity and correctness of the contents in this document, but no statement, information,
or recommendation in this manual shall constitute formal guarantee of any kind, expressed or implied. We shall not be held
responsible for any technical or typographical errors in this manual.
The product appearance shown in this manual is for reference only and may be different from the actual appearance of your
device.
This manual is a guide for multiple product models and so it is not intended for any specific product.
In this manual, the illustrations of displayed interface, parameters displayed, drawings and value ranges may vary with models.
Please see the actual product for details.
Due to uncertainties such as physical environment, discrepancy may exist between the actual values and reference values
provided in this manual.
Use of this document and the subsequent results shall be entirely on the user’s own responsibility.
Symbols
Symbol
Description
WARNING!
Contains important safety instructions and indicates situations that may cause bodily injury.
CAUTION!
User must be careful and improper operations may cause damage or malfunction of product.
NOTE!
Indicates useful or supplemental information about the use of product.
Safety Information
WARNING!
Installation and removal of the unit and its accessories must be carried out by qualified personnel. You must read all of
the Safety Instructions supplied with your equipment before installation and operation.
Warnings:
If the product does not work properly, please contact your dealer. Never attempt to disassemble the camera yourself.
(We will not assume any responsibility for problems caused by unauthorized repair or maintenance.)
This installation should be made by a qualified service person and should conform to all the local codes.
When shipping, the camera should be packed in its original packaging.
Make sure the power supply voltage is correct before using the camera.
Do not drop the camera or subject it to physical shock.
Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit of ethanol and wipe it
gently. If the camera will not be used for an extended period of time, put on the lens cap to protect the sensor from dirt.
Do not aim the camera lens at the strong light such as sun or incandescent lamp. The strong light can cause fatal
damage to the camera.
Maintenance Precautions:
If there is dust on the front glass surface, remove the dust gently using an oil-free brush or a rubber dust blowing
ball.
If there is grease or a dust stain on the front glass surface, clean the glass surface gently from the center outward
Page 5
5
using anti-static gloves or an oil-free cloth. If the grease or the stain still cannot be removed, use anti-static
gloves or an oil-free cloth dipped with detergent and clean the glass surface gently until it is removed.
Do not use organic solvents, such as benzene or ethanol when cleaning the front glass surface.
Regulatory Compliance
FCC Part 15
This equipment has been tested and found to comply with the limits for digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.
LVD/EMC Directive
This product complies with the European Low Voltage Directive 2006/95/EC and EMC Directive
2004/108/EC.
WEEE Directive–2002/96/EC
The product this manual refers to is covered by the Waste Electrical & Electronic Equipment (WEEE)
Directive and must be disposed of in a responsible manner.
Page 6
6

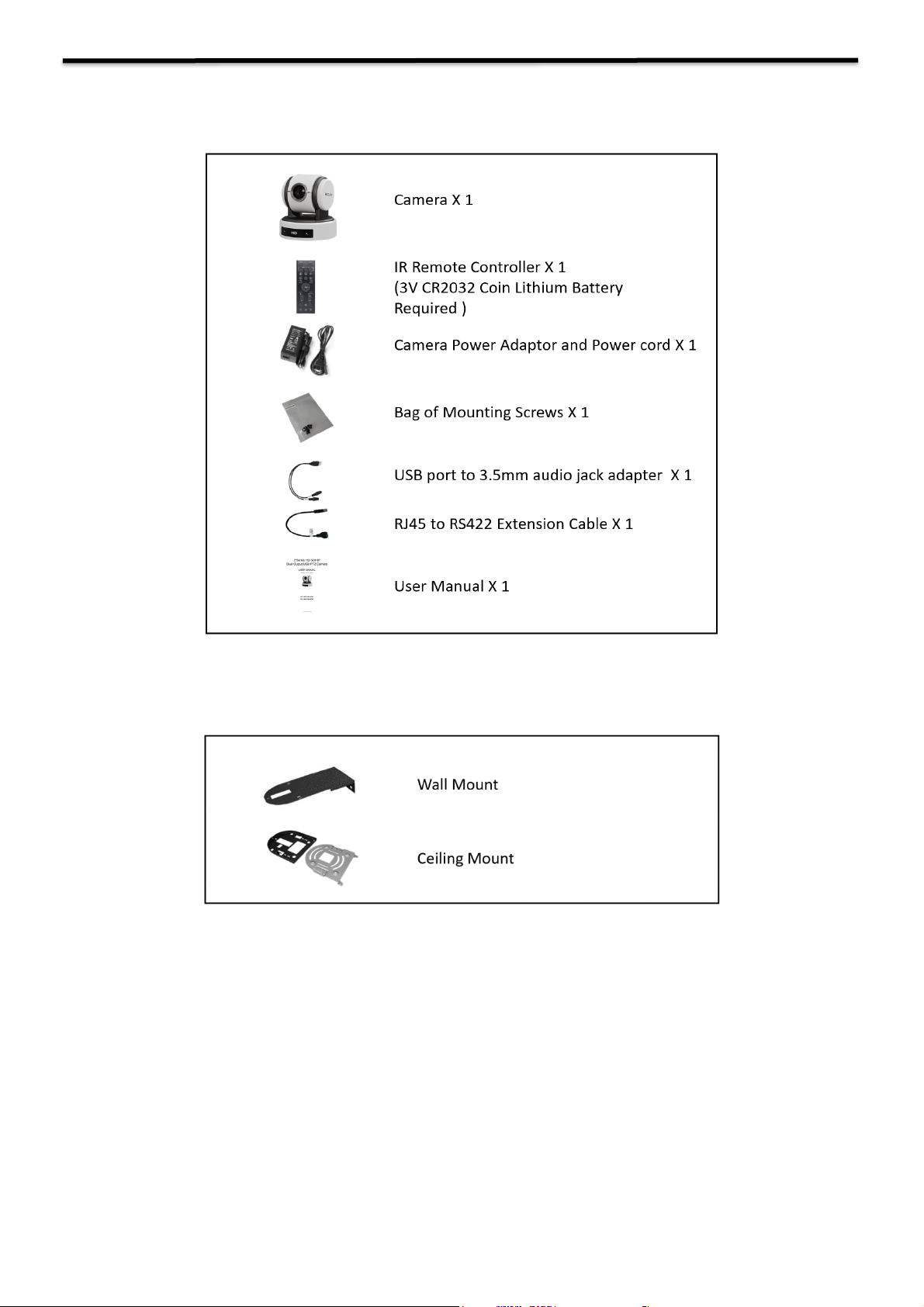

WHAT’S IN THE BOX
Note: The camera color may be in white or black per the item that is purchased.
Accessories (Optional)
Page 7
7
Overview
This user guide is suitable for the following models:
VCC-M2H10BI-4FN1
VCC-M2H10BI-4FN2
Features
Resolution: Up to 1080P60, 1080i59.94
IP Resolution: Up to 1080P60, 1080P30
USB Resolution: Up to 1080p30 adaptive
Zoom: Optical 10X
Video Output: HDMI, 3G-SDI, IP, USB2.0 simultaneous
±350-degree continuous pan, ±120-degree continuous tilt
128 presets, Speed up to 150 degrees/sec
Standard mounting and ceiling mounting with E-Flip function
Control supports RS-232 control, RS-422/485 control, VISCA-over-IP, IP-Onvif, , UVC, IR Remote
Controller
Presets store camera directions and image parameters. (Up to 6 presets on remote controller or
128 presets via protocol programming.)
Image parameter setting restore with presets and quick access operation
IP Protocol RTSP, RTMP for online video streaming.
Supports Audio input, Audio output with IP streaming.
Power: DC 12V, PoE+(IEEE802.3at)
Firmware upgrade via USB2.0 or IP
Page 8
8

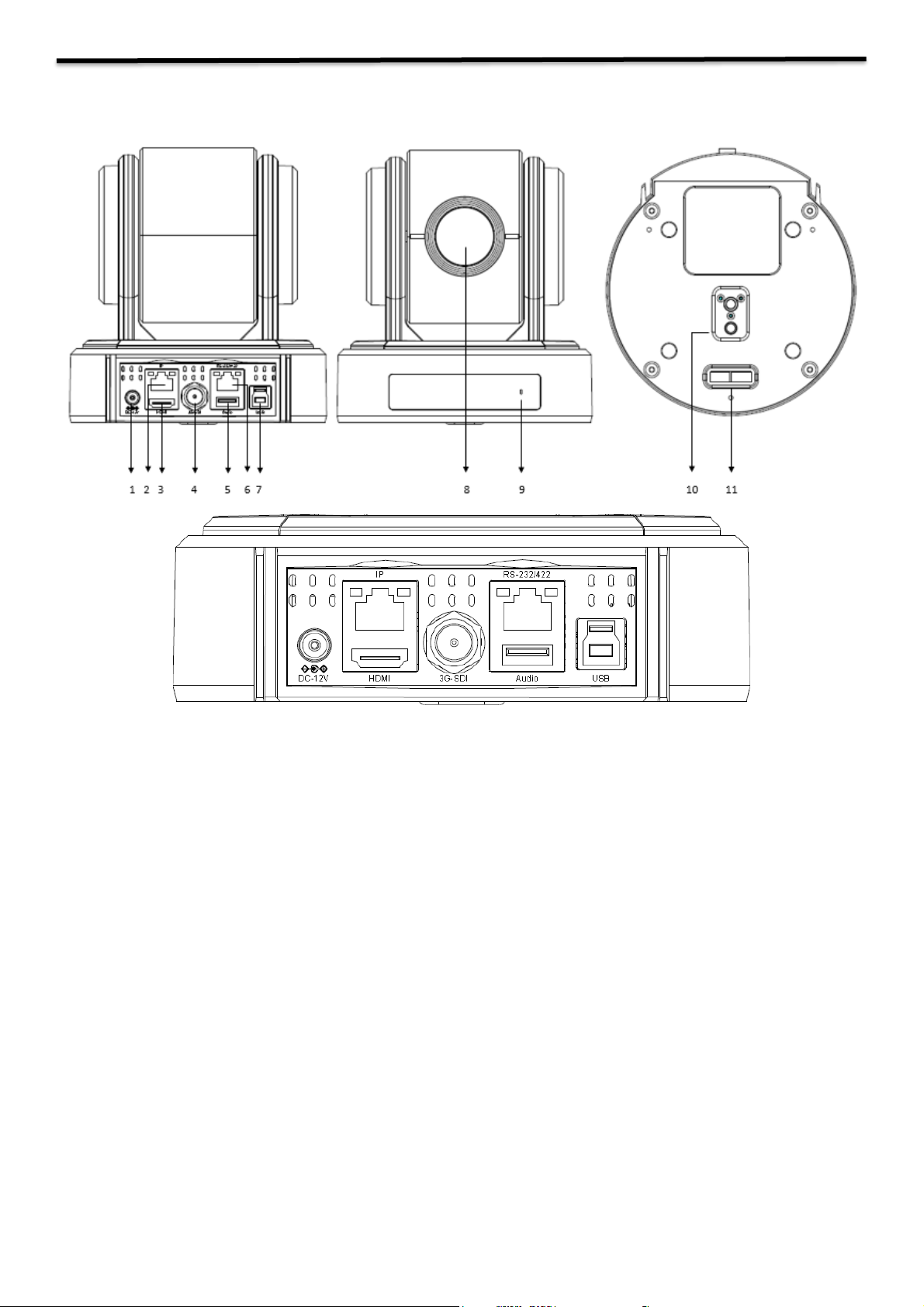

Camera Diagrams
1. 12V DC Power Port
Connect the supplied DC power adaptor and cord.
2. IP Network RJ45 Port
For VISCA over IP control and IP video streaming, with POE+(IEEE802.3at).
3. HDMI Port (HDMI 1.4)
4. 3G-SDI Video Output
5. USB Port
For firmware upgrade.
Used for audio input/output, USB port to 3.5mm audio jack adapter included.
6. RS232/RS422 Control Port (RJ45)
RJ45 to RS422 adapter cable is provided. (RS232 connection refers to user guide)
7. USB Connector (TYPE B)
USB2.0 video output.
8. Lens
This is a 10X magnification optical zoom lens
9. IR Remote Controller Sensors
These are sensors to receive commands from infrared remote controller.
10. Tripod mounting holes
11. Bottom DIP Switch
Page 9
9

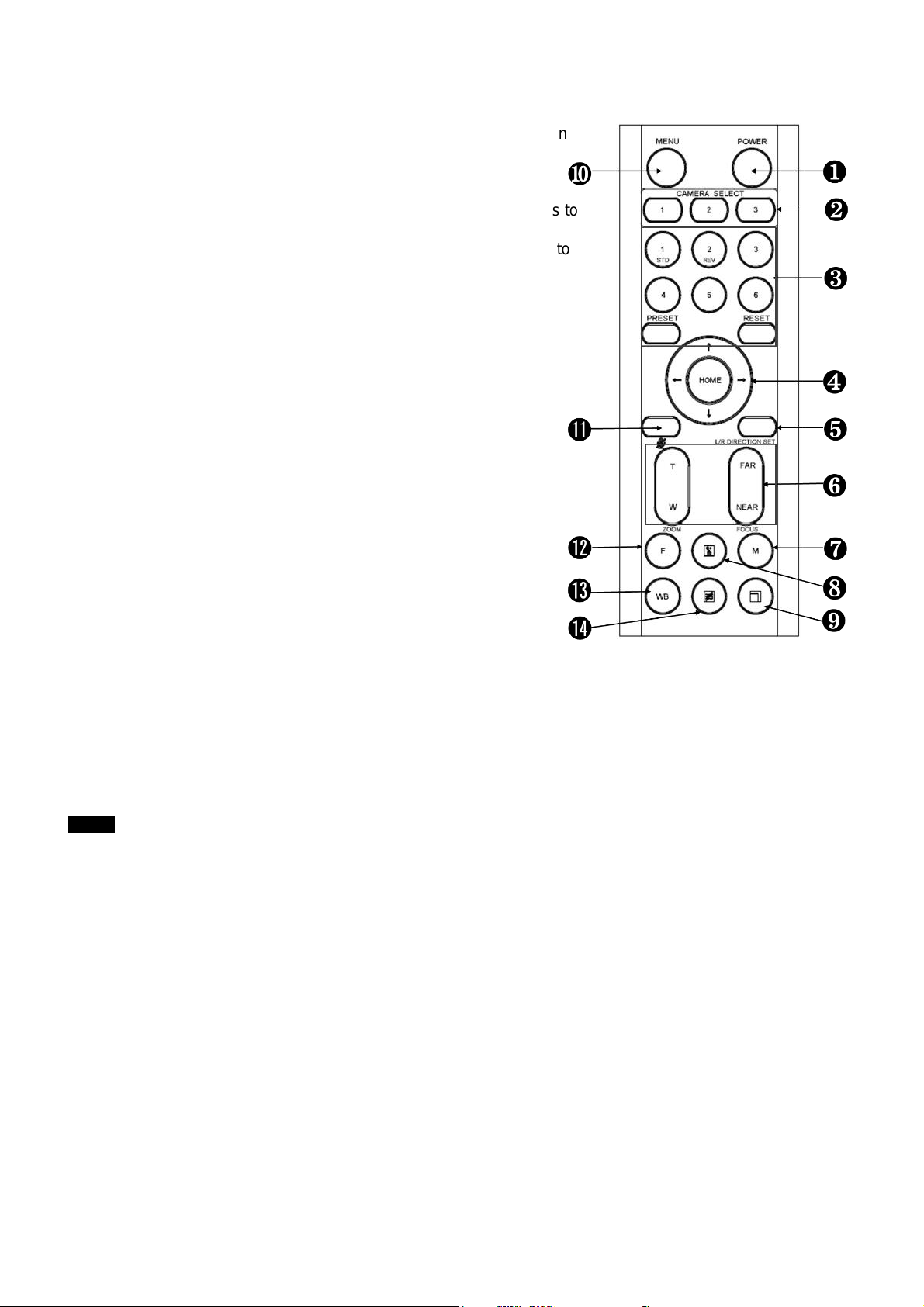

Remote Controller
1. Power
Power ON the camera to turn the camera in operation
status.
Power OFF the camera to turn the camera in
standby status.
When the camera is powered OFF, the camera turns to
the back and would be on standby mode.
When the camera is powered ON, the camera turns to
the front.
Powering the camera ON/OFF would not restart the
camera.
2. Camera ID (Total 3) Selector
3. Preset Position (Total 6) Calling and Setting
4. PAN-TILT
Pan and Tilt direction control
HOME: Home position, Resolution reset
5. L/R Direction Set
Left and right orientation setting
6. ZOOM/FOCUS
Far
Near
7. Auto/Manual Focus
8. Back Light
9. Video Format Switching
You can change the video format by keep pressing
the button. (When video format is changed, the
camera would restart and the screen turns black
for few seconds.)
10. MENU
On screen menu display ON/OFF
11. Audio Switch
You can turn the Mic built in the camera Off/ON by pressing the button once.
12. Fast/Slow Zooming Speed Switching
13. White Balance
Change the White Balance setting by pressing the button.
14. De-Flicker
When you find the video flicking, press the button once to eliminate the flickers.
Notes
3V CR2032 Coin lithium Battery is not included with the remote controller.
3V CR2032 Coin lithium batteries are not re-changeable.
Page 10
10

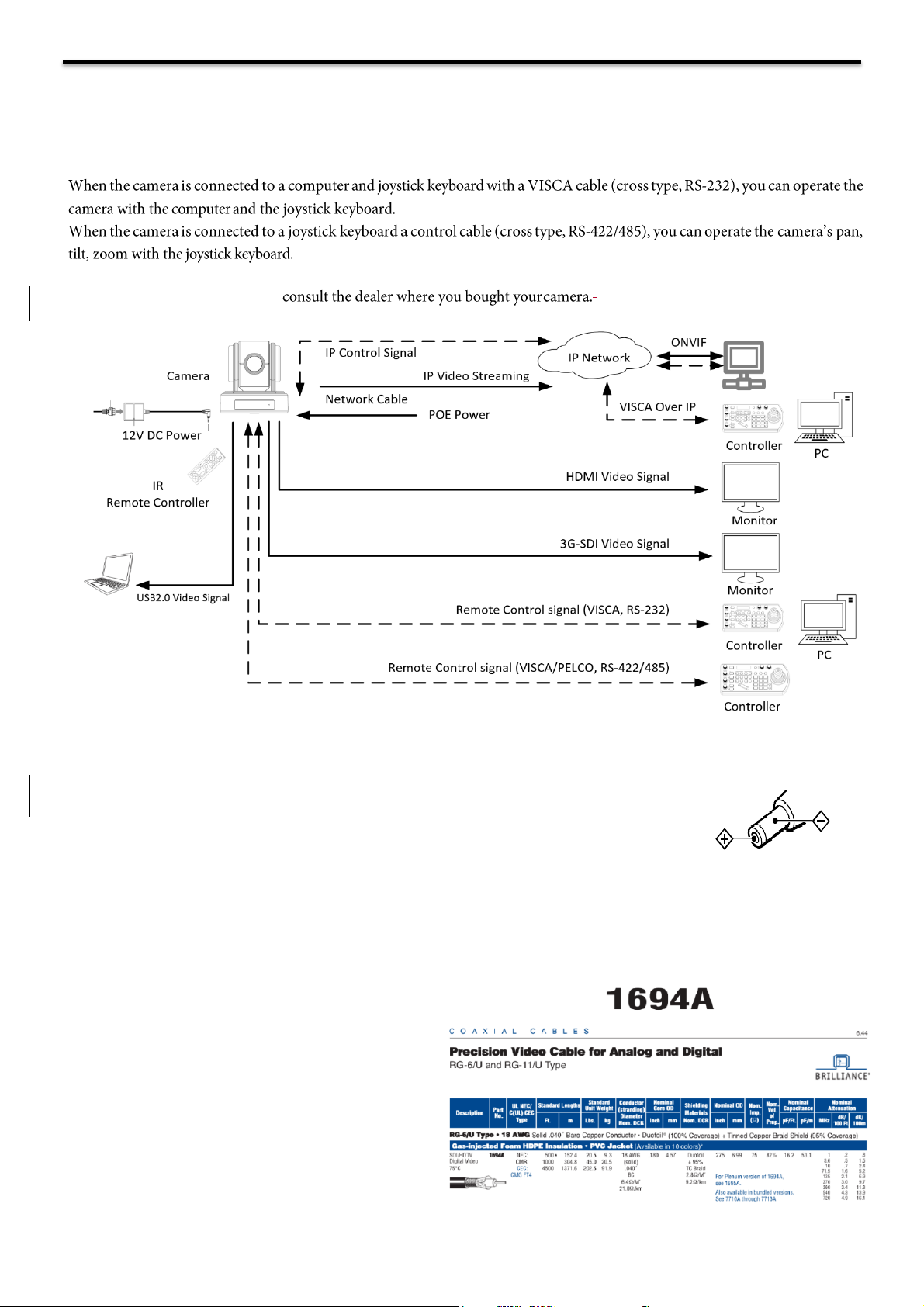

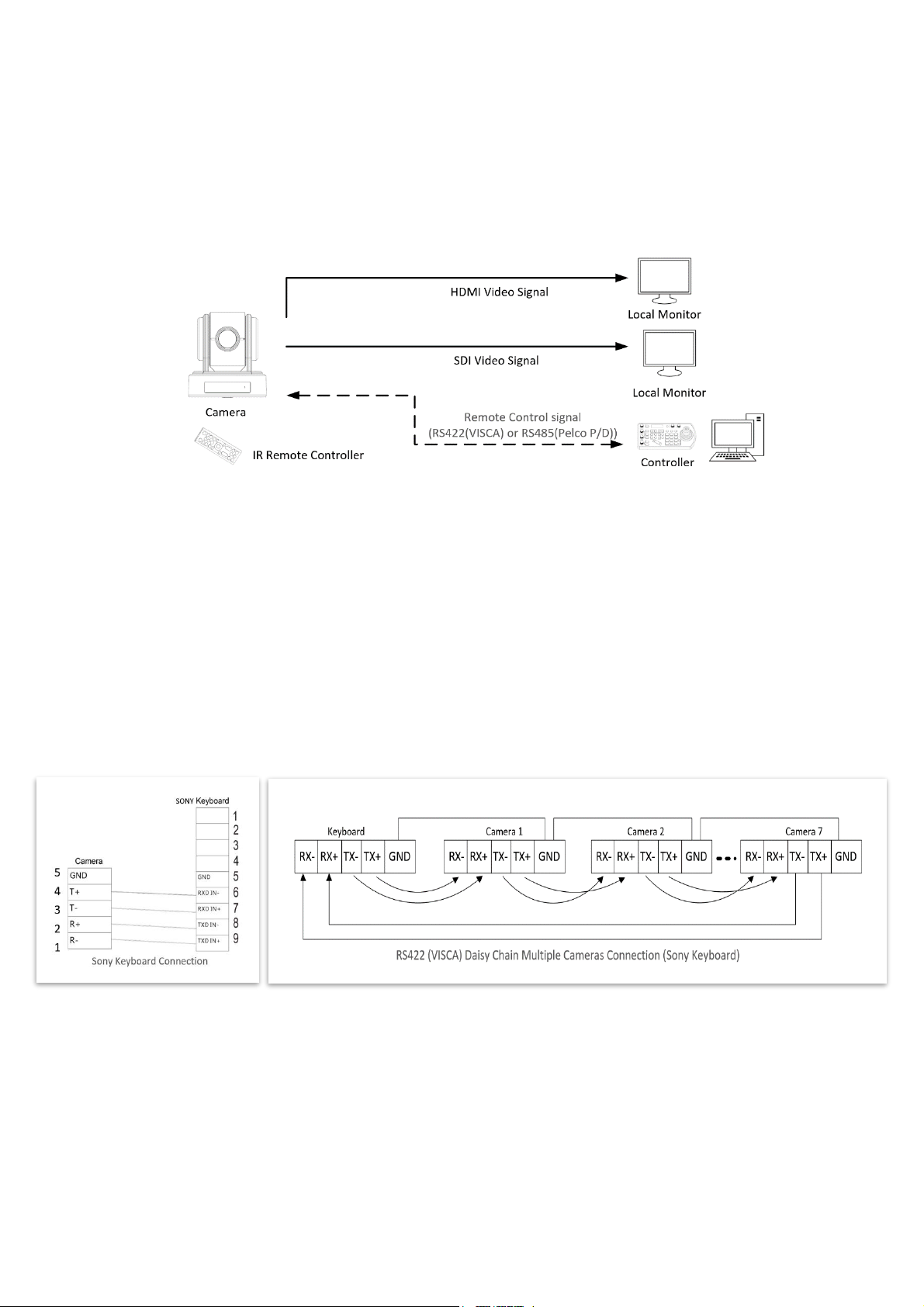

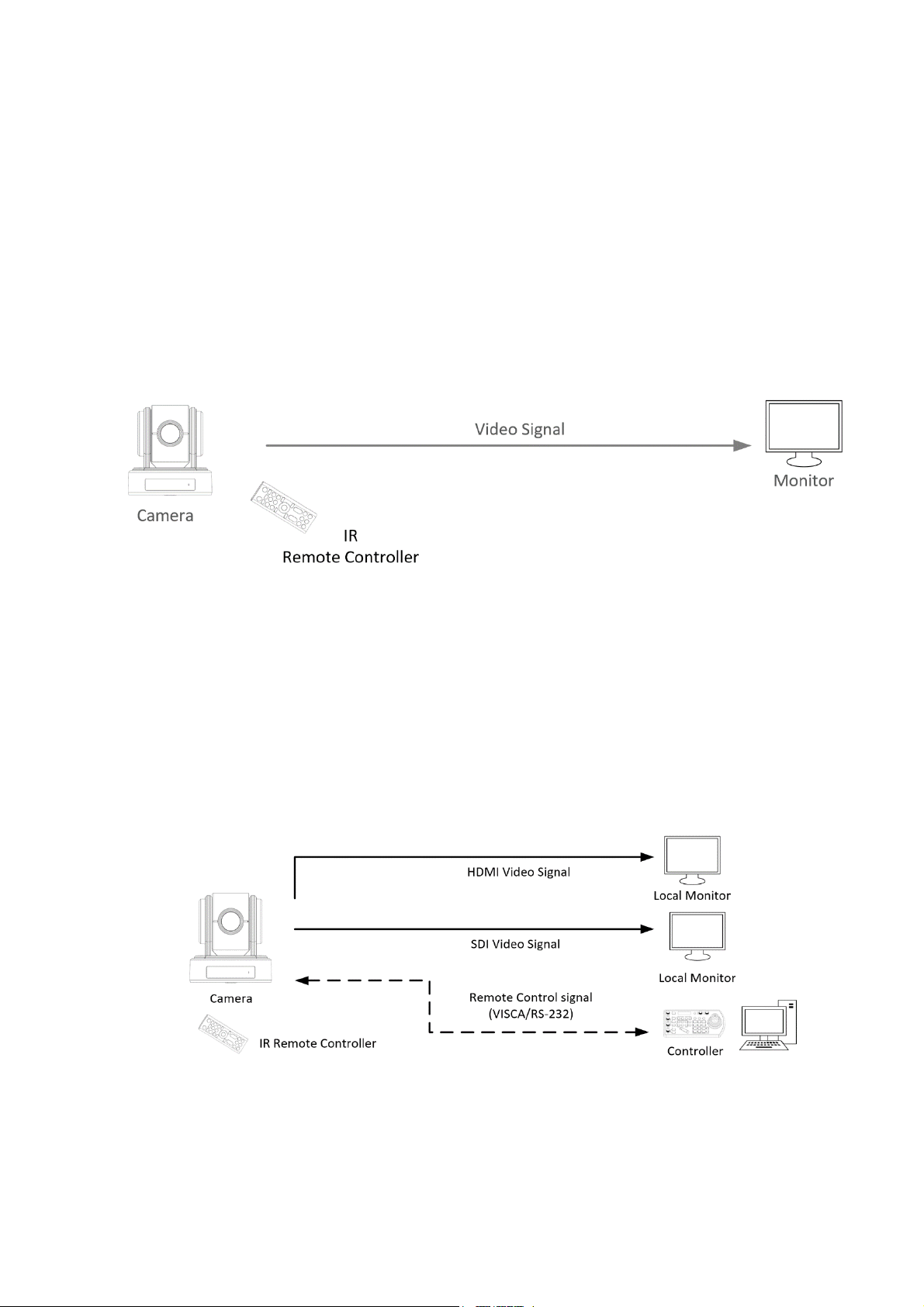

System Configuration
Connection
In this connection configuration, HDMI cable, SDI video cable, data cable, Network cable is required. To obtain these thirdparty components or accessories,
Power
Use only the DC power adaptor (JEITA type4) supplied with the unit. Do not use any
other DC power adaptor.
If using POE to power the camera, PoE+(IEEE802.3at) is supported
Ensure that the POE power source has sufficient power budget to power the camera, or some features may not
function properly.
Cable Requirements
Network Cable: 10/100 Mbps Ethernet CAT
5/5E/6 UTP cables are applicable to the
ANSI/EIA/TIA-568A/B and ISO/D. Eight
wires in the network cable need to be
inserted in parallel into the top of the cable
connector. The cable connector needs to be
crimped in position. When the cable
connector is in position, ensure that the metal
pieces of the cable connector are parallel to
each other and the clamp of the cable
connector is intact.
SDI Cable: For broadcast use,
Belden1694A/5CFB is a suitable cable to
transmit broadcast-quality video:
Page 11
11
Conductor:
AWG
Stranding
Material
Nominal Diameter
18
Solid
Bare Copper
0.04 in.
Shield Material
Nom. Capacitance
Conductor to shield
Nom. Inductance
Nom. Char. Impedance
16.2 pF/ft
0.106 µH/ft
75 Ohm
Obtain Video Signal
The camera can simultaneously have SDI video output and HDMI video output and IP video output.
HDMI HD Video signal
1. Connect the camera to a HD monitor/TV using HDMI cable.
2. Turn on the camera, video will display on the monitor after running initializing.
3. Information of the camera initial setting status will display for 5 seconds.
4. You can set the video format of the camera to the one you want to display.
SDI Video Signal
The camera can simultaneously stream SDI video output with HDMI video output.
1. Connect SDI cable in between the camera your SDI Device/display.
2. You now have SDI video output.
3. SDI video only supports 1080P.
IP Video Signal
The camera can simultaneously stream IP video output and SDI video output and HDMI video output.
1. Connect the camera to the network using Cat5/Cat6 network cable.
2. You need to have a web browser or VMS client software ready for IP video streaming.
3. PELCO address and Baud Rate setting on the camera must be as same as the setting on camera IP WEB
interface.
4. To obtain IP video and configure IP video, please refer to Network Camera User Manual Part Two.
USB Video Signal
This camera supports USB2.0 only.
System Requirements for your PC
1. Operating System: Microsoft Windows 10/Windows 8/Windows 7, Linux Ubuntu 16.04LTS, macOS Sierra,
Microsoft Windows 7 (32-bit) or above is recommended.
5. CPU: 2.0 GHz or higher, dual-core. Intel i3 CPU or higher are recommended.
6. Memory: At least 1 GB. 2 GB (or higher) is recommended.
7. Graphic Card: At least 128 MB display memory. Mainstream discrete graphics with more than 1 GB display
memory are recommended. Make sure that the latest driver is installed on graphic card.
8. Sound Card: The intercom and voice broadcast require the latest driver on sound card.
9. Network Card: Gigabit Ethernet network cards (or higher) are recommended.
Type
Layer
Material
Coverage
Tape
1
Aluminum / Polyester / Aluminum
100%
Braid
2
Tinned Copper
95%
Page 12
12
USB2.0 Video Signal
1. Install video client software on the computer that you
want to use the camera on.
2. Use the USB cable to connect the camera to the
computer. Connect the power adapter to the camera
and the power outlet.
3. Power on the camera, wait for a while, the camera will
be recognized and installed automatically by the
computer. USB2.0 drivers are not required for the
camera.
4. Open the video client software (Here, we use VLC
Media Player for example), under “Media”, select
“Capture Device”. Under Video device name, “USB
Video Camera” will be listed. Under the Audio device
name, “Digital Audio Interface” will be listed. Select
both devices to use.
5. Check the box “show more options”, Select Caching to
500ms.
6. Interface of the setting page and terminology of the setting items may vary according to the video
client software you are using.
7. Click “Play” or “Apply” the selections and the video will be displayed on the screen.
The camera is compatible with USB2.0 port. The camera USB port will output at the lower resolution while
connecting PC USB2.0 port. The following tables are list all available output format for USB2.0.
When the camera setting HDMI video format at 1080P60/1080P30/720P60, USB2.0 resolution with frame
rate are available as following list.
HDMI FORMAT
USB2.0
Resolution
Frame Rate
1080P60/1080P30/720P60
1920x1080
10P
1280x720
25P/15P
1024x768
30P/15P
960x540
850x480
800x600
768x448
720x576
720x540
720x480
720x404
640x480
640x360
60P/30P/15P
352x288
Page 13
13
When the camera setting HDMI video format at 1080P50/1080P25/750P50, USB2.0 resolution with frame
rate are available as following list.
HDMI FORMAT
USB2.0
Resolution
Frame Rate
1080P50/1080P25/720P50
1920x1080
10P
1280x720
25P/10P
1024x768
960x540
850x480
800x600
768x448
720x576
720x540
720x480
720x404
640x480
640x360
50P/25P/10P
352x288
Page 14
14
Camera Initial setting status Information
Information of the camera initial setting status will display for 5 seconds.
1. Camera PELCO ID for RS-485 control
2. Camera ID for IR Remote Controller
3. IR remote control signal receive current setting
4. Baud Rate current setting
5. Control COMM Port current setting
6. Video format current setting
7. HDMI current setting
8. Model number
9. Firmware version
Audio IN / OUT
Use the USB port to 3.5mm audio jack adaptor (VCC-UA35IO) to connect audio source.
Note
The USB port is only used for Audio physical input and output signal connection. The audio signal can be used for IP
video streaming, USB video streaming, HDMI/SDI?
A microphone can be connected to the Audio IN port, which feeds audio into the camera. (It does not support
power supply to microphone).
A speaker can be connected to the Audio OUT port, which will output any audio that is captured on the Audio
In port
See Manual part 2 for more information about Audio capture
PELCO ID 001
IR ID 01
IR-RECEIVE ON
BAUD RATE 9600
COMM TYPE 422
FORMAT 1080P29.97
HDMI OUT YUV
MODEL TYPE ---SV: V0B1100S36040AD04
Camera Status Info Display
Page 15
15
Camera Control Methods and System Configurations
This unit has multiple ways of controlling the camera and various system configuration capabilities using optional
products. This section describes the ways of controlling and typical system examples with the required components and
usage of each system.
1. Use the Infrared Remote Controller
2. Use RS-232 (VISCA)
3. Use RS-422/485 (VISCA/PELCO P/D)
4. IP Control (See Network Camera User Manual)
Use the Infrared Remote Controller
To operate the camera from a short distance.
For IR remote control details, refer to Operation Using the Infrared Remote Controller.
Use RS-232 (VISCA)
You can use RS-232 port to connect to optional controllers, such as joystick control keyboard, control PC station, to
operate the camera.
To perform pan/tilt and zoom operations using the joystick of the control keyboard, and to perform the Preset operation
using the control buttons.
An application software that supports this unit is needed if you use PC station.
Page 16
16
RS232 Connection
1. Set RS232 control method on Bottom Dip Switch.
2. Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using.
3. Set specific camera address that you want to control the camera for on Bottom Dip Switch.
4. If you want to have the camera address to be automatically assigned by VISCA controller, set camera Dip Switch address to
0.
5. Reboot the camera by turning it Off/On after the Bottom Dip Switch has been set up correctly.
6. Camera supports Daisy Chain connection up to 7 cameras.
7. The controller must be VISCA compatible.

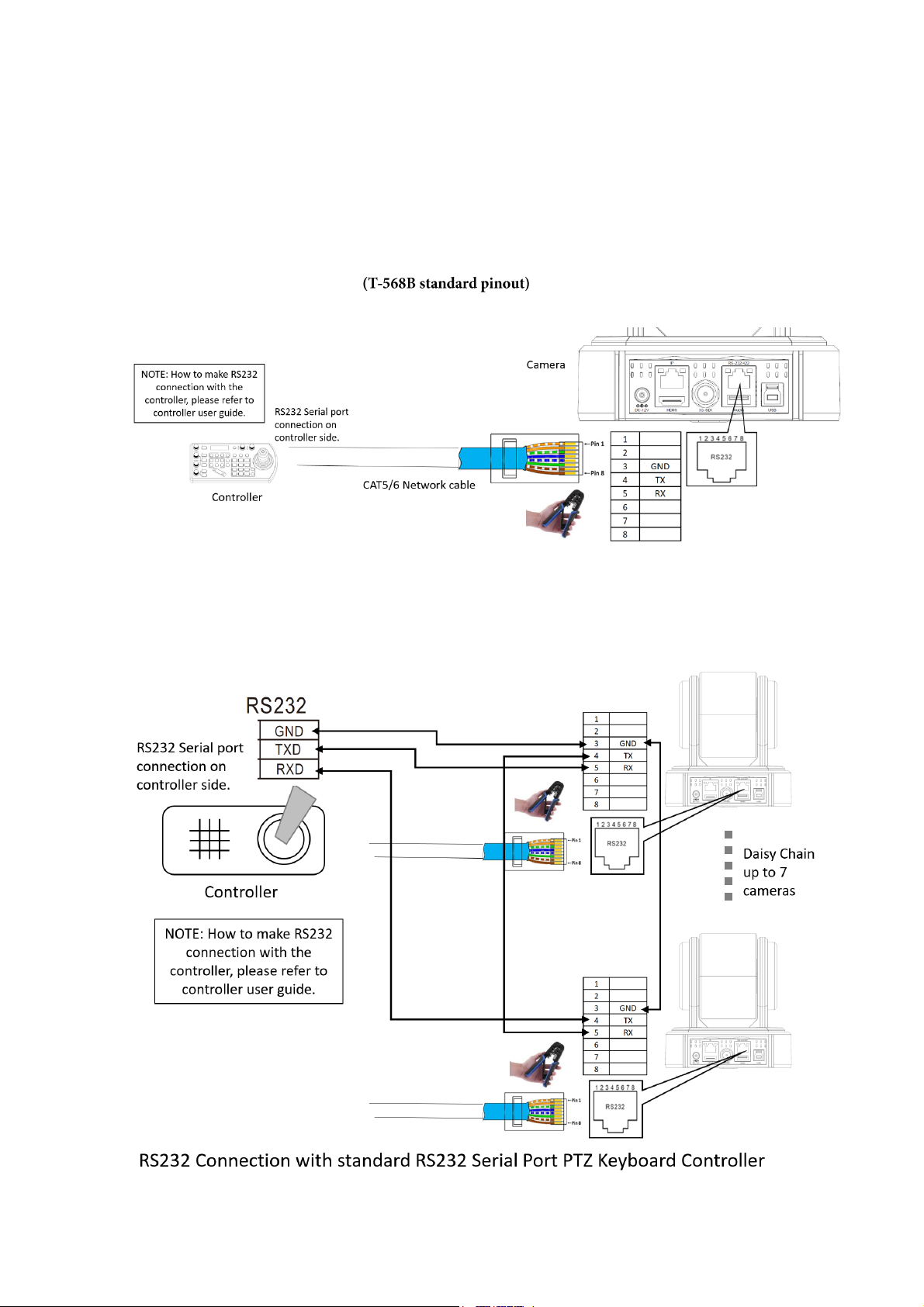

8. You can use CAT5/6 network cable to make RS232 connection by following the pin
definition below:
9. How to make RS232 Daisy Chain multiple camera connection with standard RS232 serial port controller as
below:
Page 17
17
Use RS-422(VISCA) / RS485 (PELCO P/D)
You can use RS-422/485 port connect to optional controllers, such as joystick control keyboard, control PC station, to
operate the camera.
To perform pan/tilt and zoom operations using the joystick of the control keyboard, and to perform the Preset operation
using the control buttons.
An application software that supports this unit is needed if you use PC station.
RS422 (VISCA) connection
1. Set RS422 control method on Bottom Dip Switch.
2. Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using.
3. Set specific camera address that you want to control the camera for on Bottom Dip Switch.
4. If you want to have the camera address to be automatically assigned by VISCA controller, set camera Dip Switch address to
0.
5. Reboot the camera by turning it Off/On after the Bottom Dip Switch has been set up correctly.
6. Use the RJ45 to RS422 control cable. The controller must be VISCA compatible.
7. Camera supports Daisy Chain connection up to 7 cameras.
8. The connection of SONY keyboard is different than other VISCA (Non-Sony) keyboard.
9. How to make RS422 connection and RS422 Daisy Chain multiple cameras connection with SONY controller as below
SONY Keyboard RS422 Connection
10. How to make RS422 connection and RS422 Daisy Chain multiple cameras connection with Non-Sony controller as below:
Page 18
18
VISCA (Non-Sony) Keyboard RS422 Connection
11. Use extension cables RJ45 to RS422 Phoenix connecter adaptor included to make RS422 connection for your control device.
12. Or you can use CAT5/6 T-568B Standard Ethernet cable direct connect between the camera and the controller to make
RS422 connection by following the pin definition below:
13. How to make RS422 Daisy Chain multiple camera connection with RS422 standard serial port controller:
Page 19
19
PELCO P/D Keyboard RS485 Connection
Set RS422 control method on Bottom Dip Switch.
Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using.
Set the camera ID on OSD menu by remote controller
Reboot the camera by turning it Off/On after the Bottom Dip Switch has been set up correctly.
Use PELCO P/D compatible keyboard.
Use preset 95# on the keyboard to bring up/exit camera OSD menu.
Use joystick and Button “OPEN” or “CLOSE” to navigate OSD menu.
To operate keyboard, please refer to the user manual of the keyboard you are using.
PELCO RS485 Connection
Use extension cables included RJ45 to RS422 Phoenix connecter adaptor to make RS485 connection for your control device.
Page 20
20
Or you can use CAT5/6 T-568B Standard Ethernet cable direct connect between the camera and the controller to make
RS485 connection by following the pin definition below:
How to make RS485 multiple cameras connection with RS485 standard serial port controller:
Note
For RS-232 VISCA control, this unit supports daisy chain connection for using multiple cameras.
For control details, refer to Operating Instructions of control keyboard/station software.
You need to match the communication speed (Baud Rate) between the camera and the joystick controller.
You cannot use the RS-232 connections while you are using the RS422/485 connection.
Operating Multiple Cameras Using RS-232,422/485
Using RS-232 (VISCA), you can connect to 7 cameras.
Using RS-422 (VISCA), you can connect to 7 cameras.
Using RS-485 (PELCO), you can connect to 255 cameras.
Page 21
21
Using RS-485 (PELCO), all camera addresses must be set up before the connection. You can set the camera
address by operating OSD menu, or by setting the Dip Switch on the bottom of the camera. In this case, you can
use multiple control keyboards.
VISCA over IP Control
With VISCA over IP function, you can control the camera using VISCA protocol on a controller equipped with
IP communication capabilities via LAN.
The communication specifications of VISCA over IP are followings:
Interface: RJ-45 10/100M
Interface protocol: IPv4
Transport protocol: UDP
IP address: 192.168.0.13 By default
Port: 52381
VISCA over IP Network Configuration
Re-assign the camera
The default information of the IP camera is following:
Static IP: 192.168.0.13
Subnet mask: 255.255.255.0
Gateway: 192.168.0.1
VISCA over IP control port: 52381.
The camera IP address needs to be assigned to the IP address that works with your local network.
How to make the connection with BOLIN products
Please see the User Guide “BOLIN Camera and Keyboard Controller Connection”
that you can download it at www.bolintechnology.com product pages.
Page 22
22
Controlling via VISCA over IP
Connect the network port on the camera to the network switch.
Set the IP address and other network information appropriately to communicate on your network
Connect the VISCA over IP-compatible controller to the network
Configure the controller to access the camera’s IP address and VISCA over IP port
The IP port within on your control must be set to 52381 to communicate with the camera.
Select VISCA protocol on your IP control device.
Recommended way to re-assign the IP address:
1. Create a local network within which the camera and your PC/Laptop are connected.
2. Install and run the IP-FINDER tool (You can contact Bolin Technical support team for tool requirements)
3. The IP-FINDER can find the camera IP address, which is the default :192.168.0.13
4. Click the search button, select the camera you want to Assign IP address, edit the IP address to the one that matches your
local network credential.
5. Once the IP address has been changed successfully, you can access the IP camera via your local network.
Note
How to re-assign the IP address to the camera, please refer to user manual Part Two-IP Camera user
guide.
DIP SWITCH SETTINGS
The bottom dip switch is for setting the camera configuration for following items:
1. Camera ID Address for RS-485 PELCO protocol
2. Video output / Video color space
3. RS-232 / RS-422/485 selection
4. RS-232 / RS-422/485 baud rate
5. Video resolutions selection
6. IR remote controller ID
Setting of the BOTTOMDIP Switches
Turn off power to the camera before changing the DIP switch settings.
Power on the camera to have the new Dip Switch setting activated.
From the above list, No.1 Camera ID address and NO.2 Video resolution settings can be set in camera OSD menu as
well. The camera takes either the way of OSD menu setting or the way of bottom DIP switch setting. They override each
other. After the camera is turned on, the camera takes the last setting before it is turned on, either set through the OSD or
bottom DIP switch.
The Bottom DIP Switch Settings
SWI: Factory Default Setting: ON, OFF, OFF, OFF, OFF, OFF, OFF, ON.
Bit1~3: Camera Address setting for VISCA protocol
Bit4: Video Output/Video Color Space
Bit5: Reserve
Bit6: RS-232/RS-422
Bit7~8: RS-232/RS-422 Baud Rate
1. Camera Address setting for VISCA protocol
Page 23
23
B1
B2
B3
Address
ON
OFF
OFF
1 (Default)
OFF
ON
OFF
2
ON
ON
OFF
3
OFF
OFF
ON 4 ON
OFF
ON 5 OFF
ON
ON 6 ON
ON
ON
7
2. Video Output/Video Color Space
When using HDMI output to display on HDMI device, set the Dip switch B4 to OFF.
When using HDMI to DVI convertor to have DVI video output, set the Dip switch B4 to ON.
3. RS-232 / RS-422 Setting
B6
RS-232 / RS-422
OFF
RS-232
ON
RS-422
4. RS-232 / RS-422 Baud Rate Setting
B7
B8
RS-232 / RS-422 Baud Rate Setting
OFF
OFF
2400 bps
ON
OFF
4800 bps
OFF
ON
9600 bps (Default)
ON
ON
38400 bps
B4
Color Space Setting
OFF
YUV
ON
RGB
Page 24
24
SW2: Factory Default Setting: OFF, OFF, OFF, ON, OFF, OFF, OFF, OFF
Bit 1~4: Video resolution setting
Bit5~6: Reserve
Bit7~8: IR remote controller ID setting
1. Video Resolution Setting
B1
B2
B3
B4
Video Resolution
OFF
OFF
OFF
OFF
1080i59.94
OFF
OFF
OFF
ON
1080p29.97
OFF
OFF
ON
OFF
720p59.94
OFF
OFF
ON
ON
1080p59.94
OFF
ON
OFF
OFF
Empty
OFF
ON
OFF
ON
1080i60
OFF
ON
ON
OFF
1080p30
OFF
ON
ON
ON
1080p60
ON
OFF
OFF
OFF
1080i50
ON
OFF
OFF
ON
1080p25
ON
OFF
ON
OFF
720p50
ON
OFF
ON
ON
1080p50
ON
ON
OFF
OFF
Empty
ON
ON
OFF
ON
Empty
ON
ON
ON
ON
720p60
Page 25
25
2. IR Remote Controller ID Setting
B7
B8
IR Remote Controller ID
OFF
OFF
1
ON
OFF
2
OFF
ON
3

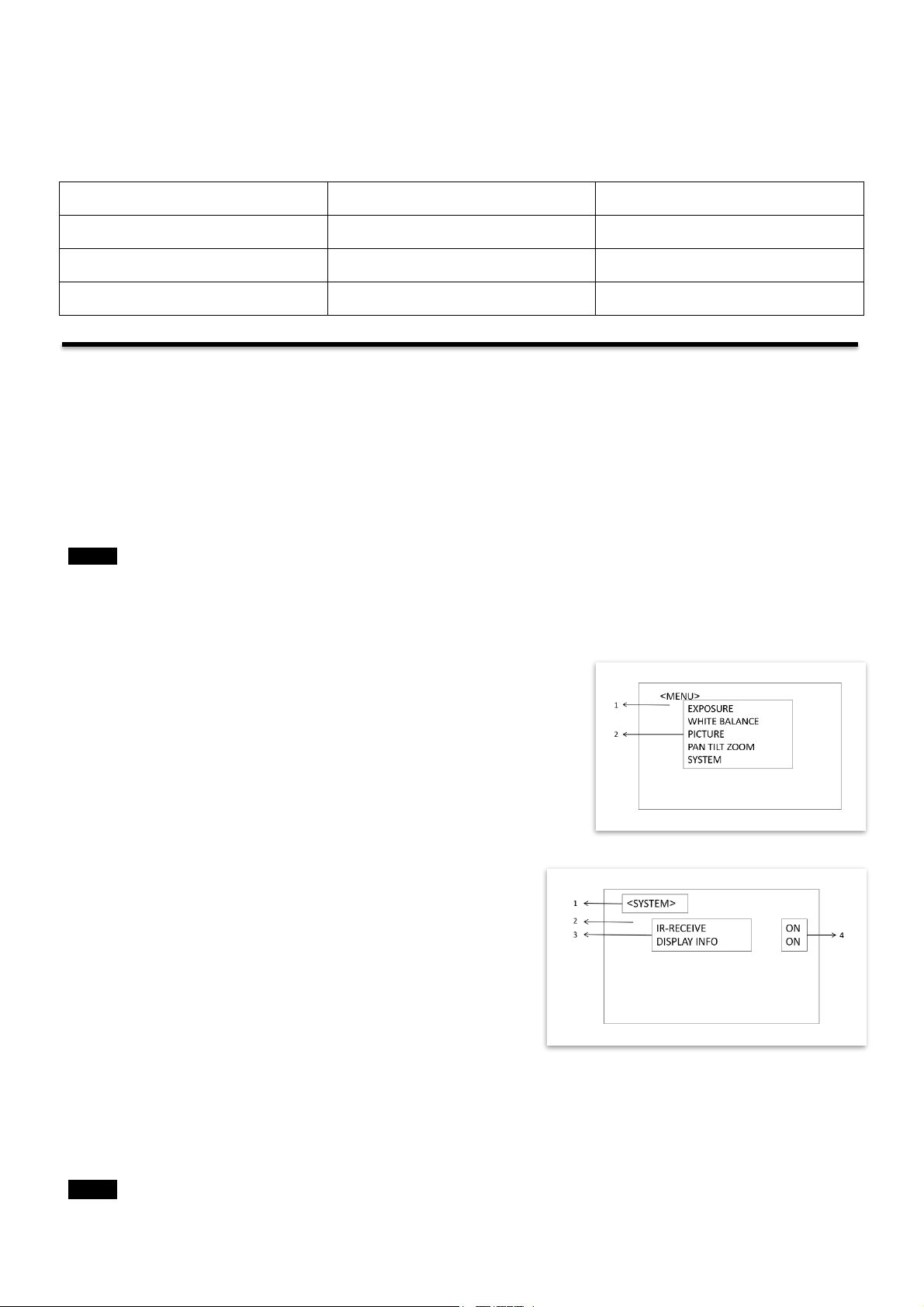

Adjusting and Setting with Menus
About On-Screen Menus
You can change various settings, such as shooting conditions and system setup of the camera, while observing menus
displayed on a connected computer screen.
This section explains how to read the on-screen menus before starting menu operations.
The menu parameters may vary according to the different product model numbers.
For a complete configurations menu, see “Menu Configuration” (page 25).
Note
You cannot perform pan/tilt operations while the menu is displayed.
Main Menu
To display the main menu, press the DATA SCREEN button on the supplied infrared remote controller.
1.
Selected Items
Selects a setting menu.
The selected item is shown by the cursor. The cursor moves up or down by
pressing the “↑, ↓” button on the infrared remote controller.
2.
Menu Items
To display a setting menu, select one using the “↑, ↓” button on the infrared
remote controller and press the HOME button on the infrared remote
controller.
Setting Menus
The setting menu selected on the main menu is displayed.
1.
Setting Menu
The name of the setting menu currently selected is displayed here.
2.
Selected Item
Selects a setting item.
The selected item is shown by the cursor.
Move the cursor up or down by pressing the “↑, ↓” button on the
infrared remote controller.
3.
Setting Items
The setting items for this setting menu are displayed. Select the setting item using the “↑, ↓” button on the infrared remote
controller.
4.
Set Value
The currently set values are displayed.
To change a set value, use the “←, →” button on the infrared remote controller.
In some product models, only use “←” button on the infrared remote controller to change the value. To confirm the value,
you can use either “→” button or HOME button.
Note
Page 26
26

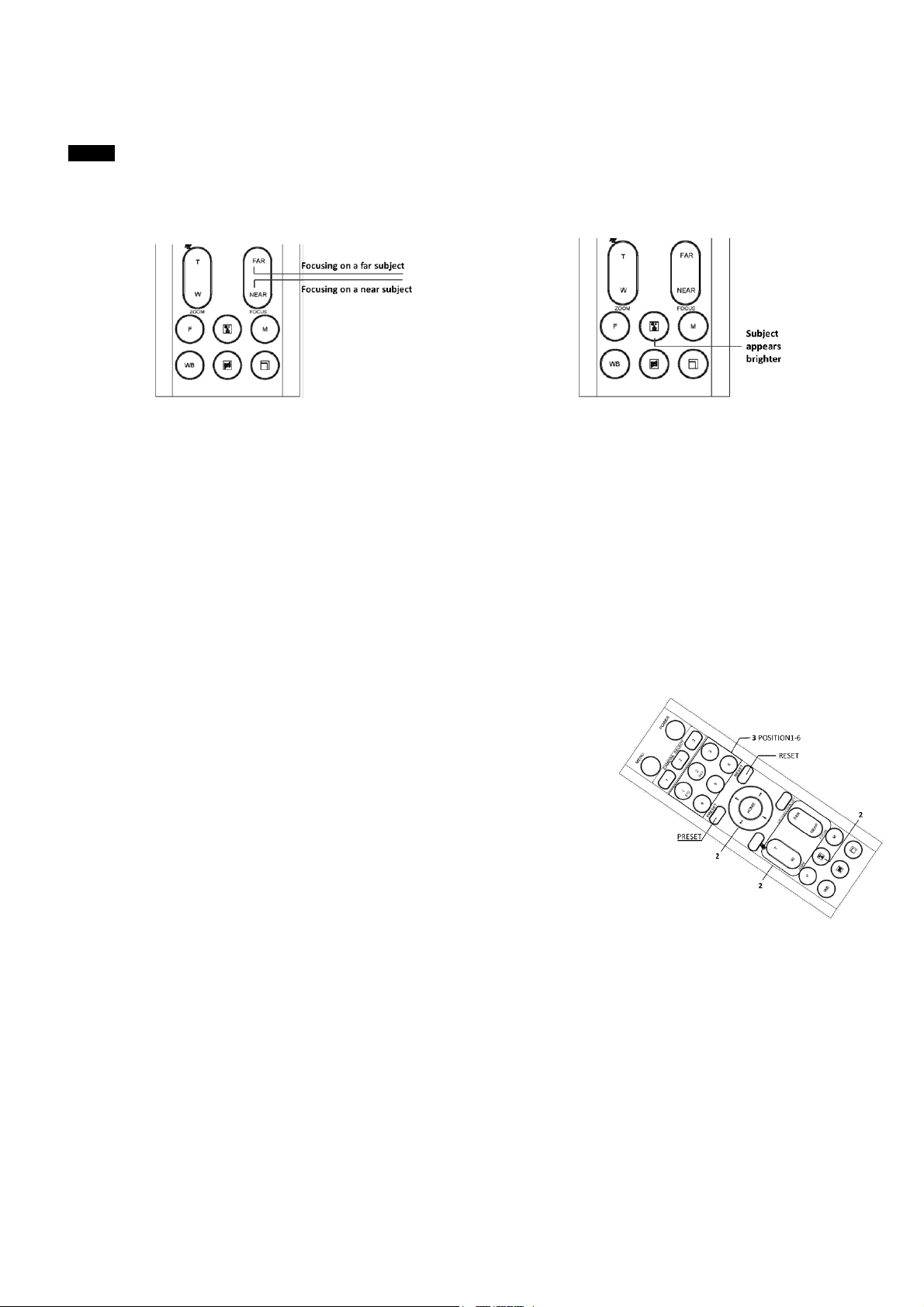

Control Button
You can select the item by pressing “↑, ↓, ←, →” and HOME button.
1.
You can select a menu item by
“↑, ↓”
button on the infrared remote
controller
. The selected item is shown by the
cursor (Color change).
You can change the value of the item by pressing “←, →” button.
2.
You can move to the next layer by
pressing the HOME button.
3.
You can return to the normal display by
pressing the DATA SCREEN button.
When you are operating the menu using the infrared remote controller, you cannot set IR- RECEIVE in the SYSTEM
menu to OFF. To set IR- RECEIVE to OFF, use the appropriate VISCA command.
EXPOSURE Menu
The EXPOSURE menu is used to set the items related to exposure.
MODE (Exposure Mode)
FULL AUTO: The exposure is adjusted
automatically using the values set for EX-COMP
(Exposure Compensation).
MANUAL: Adjust the GAIN, electronic shutter
speed (SPEED), iris (IRIS) manually.
IRIS PRI: Iris Priority mode. The exposure is
adjusted automatically using the values manually set
for iris (IRIS) and EX-COMP.
SHUTTER PRI: Shutter Priority mode. The
exposure is adjusted automatically using the values manually set for electronic shutter speed (SPEED) and EXCOMP.
Bright: Bright Priority mode. The exposure is adjusted automatically using the values manually set for electronic
brightness level.
When you select one from various exposure modes, some of the following setting items that are required for the selected
mode will appear.
GAIN: Select the gain from the following:
0dB, 3.6 dB, 7.1 dB, 10.7 dB, 14.3 dB, 17.8 dB, 21.4 dB, 25 dB, 28.6 dB, 32.1 dB, 35.7 dB, 39.3 dB, 42.8 dB, 46.4 dB,
50 dB
SPEED: Select the electronic shutter speed from the following:
When video format is set to 720P25, 1080P50, 1080i50, 1080P25, 720P50, Speed can be selected from the following:
1/1, 1/2, 1/3, 1/6, 1/12, 1/25, 1/50, 1/75, 1/100, 1/120, 1/150, 1/215, 1/300, 1/425, 1/600, 1/1000, 1/1250, 1/1750, 1/2500,
1/3500, 1/6000, 1/10K.
When video format is set to 720P30, 1080i59.94, 1080P29.97, 720P59.94, 1080P59.94, 1080I60, 1080P30, 1080P60,
Note
MODE MANUAL
GAIN 12dB
SPEED 1/60
IRIS F1.6
EXPOSURE MENU: MANUAL
>EXPOSURE
>WHITE BALANCE
>PICTURE
PAN TILT ZOOM
>SYSTEM
OSD
MODE FULL AUTO
>EX COMP OFF
EXPOSURE MENU: FULL AUTO
MODE IRIS PRI
IRIS F1.6
EX-COMP OFF
EXPOSURE MENU: IRIS PRI
MODE SHUTTER PRI
SPEED 1/60
EX-COMP OFF
EXPOSURE MENU: SHUTTER PRI
MODE BRIGHT
LEVEL 7
EXPOSURE MENU: IRIS PRI
Page 27
27
720P60, Speed can be selected from the following:
1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000,
1/4000, 1/6000, 1/10K.
IRIS: Select the iris the following: CLOSE, F14, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4, F2.0, F1.6
EX-COMP: (Exposure Compensation)
When MODE is set to one of FULL AUTO, SHUTTER PRI or IRIS PRI, set this item to ON to enable exposure
compensation. When you set EX-COMP to ON, LEVEL appear and you can select the exposure compensation
level from the following:
–10.5, –9, –7.5, –6, –4.5, –3, –1.5, 0, +1.5, +3, +4.5, +6, +7.5, +9, +10.5
If you set the level to 0, exposure compensation will be disabled. Level +10.5 is the brightest and –10.5 is the
darkest compensation value.
When EX-COMP is set to OFF, exposure compensation does not function.
WHITE BALANCE Menu
The WHITE BALANCE menu is used to select the white balance mode.
MODE (white balance mode)
Select the white balance mode from the following:
AUTO: This mode computes the white balance
value output using color information from the entire
screen. It outputs the proper value using the color
temperature radiating from a black subject based on
a range of values from 2500K to 7500K. This mode
is the initial setting.
INDOOR: 3200K Base Mode
OUTDOOR: 5800K Base Mode
OPW (One Push White Balance): The One Push White Balance
mode is a fixed white balance mode that may be automatically
readjusted only at the request of the user (One Push Trigger),
assuming that a white subject, in correct lighting conditions, and
occupying more than 1/2 of the image, is submitted to the camera.
One Push White Balance data is lost when the power is turned off. If
the power is turned off, reset One Push White Balance.
NOTE: When you select the OPW (One Push White
Balance)
Perform the following operations:
1. Place an image of white subject (For example: A piece of
white paper) in the center of the screen.
2. Press the HOME button of the infrared remote controller.
The one-push white balance adjustment is activated.
ATW (Auto Tracking White Balance): Auto Tracking White
balance (2000K to 10000K), allows the camera to adjust the tone
according to the temperature of the light source illuminating the
subject
USER: This is a mode that enables you to manually set the control of
R and B gain up to 256 steps.
NOTE: When you select USER, R. GAIN (red gain) and B. GAIN
(blue gain) appear. You can select each item in the range from 0 to
255.
EXPOSURE
>WHITE BALANCE
>PICTURE
PAN TILT ZOOM
>SYSTEM
OSD
WB MODE AUTO
>
WHITE BALANCE MENU
WB MODE INDOOR
WHITE BALANCE MENU
WB MODE OUTDOOR
WHITE BALANCE MENU
WB MODE OPW
WHITE BALANCE MENU
WB MODE USER
R GAIN 106
B GAIN 217
WHITE BALANCE MENU
WB MODE ATW
WHITE BALANCE MENU
Page 28
28
OUTDOOR AUTO: This is an auto white balance mode specifically
for outdoors. It allows you to capture images with natural white
balance in the morning and evening.
PICTURE Menu
SHARPNESS:
Picture sharpness value ranges from 0 to 15. You can enjoy
emphasized edge and high-resolution images.
EFFECT: (Picture Effect)
It consists of the following functions:
Image effect from Off, B&W
NOISE REDUCTION:
Noise reduction - you can enjoy clearer images by removing unnecessary noise. You can select 6 levels from OFF (MIN),
1 to 5 (MAX).
FLIP:
Image E-Flipper – Used when ceiling mounting or upright mounting. Set to OFF is upright mode, set to ON is for ceiling
mount.
MIRROR:
You can have the image as seen in a mirror, with the right side as though it were the left.
DE-FLICKER:
You can turn it ON if the Video output format frame rate is difference from your country’s electricity Frequency.
GAMMA:
In this mode, the gamma can be set to value from 0 to 1.
WDR: (Wide dynamic range mode): WDR feature is available on certain product models.
Wide Dynamic: ON, OFF. The camera distinguishes light and dark areas within the same scene, adjusts the brightness
for dark areas, and also controls the blown-out highlights.
You can select the wide dynamic range mode between ON and OFF
SATURATION
You can configure the color gain from 1-15. Use this setting when bright color is particularly important.
CONTRAST
You can adjust the contrast level in the range from 0 (00h) to 255 (FFh). The initial setting is 128 (80h). The smaller the
value is, the lower the contrast becomes, and the larger the value is, the higher the contrast becomes.
PAN TILT ZOOM Menu
The PAN TILT ZOOM menu is used to select the pan/tilt/
zoom mode.
DIGITAL ZOOM:
Set to DIGITAL ZOOM ON, 2X digital zoom is activated.
You can set digital zoom to ON or OFF. When set to OFF,
digital zoom does not operate, and only optical zoom is
available.
When digital zoom is available, the resolution decreases
ZOOM RATIO OSD (Zoom times display):
Set Ratio OSD to ON, the number of the zoom ratio that
you are operating displays on screen.
ADAPTIVE P/T:
Set to ON, Pan Tilt speed would be adaptive with the zoom range.
Turn ON to automatically adjust the Pan and Tilt speed with various zoom ratios. For example, the higher
zoom ratio you use, the slower the speed of P/T.
MF SPEED:
Manual Focus variable speed, that has eight speed levels.
P/T SPEED:
Set P/T Speed value to from 0 to 5 (The speed from low to high), to change the speed of P/T on remote controller.
EXPOSURE
WHITE BALANCE
>PICTURE
PAN TILT ZOOM
>SYSTEM
OSD
SHARPNESS 3
EFFECT 0FF
NOISE REDUCTION 3
FLIP OFF
MIRROR OFF
DE-FLICKER OFF
GAMMA 0
WDR OFF
SARURATION 5
CONTRAST 7
PICTURE MENU
EXPOSURE
WHITE BALANCE
>PICTURE
>PAN TILT ZOOM
>SYSTEM
OSD
DIGITAL ZOOM OFF
ZOOM RATIO OSD 0FF
ADAPTIVE PT ON
MF SPEED 2
P/T SPEED 3
PRESET SPEED 5
PAN DIR NORMAL
TILT DIR NORMAL
PAN TILT ZOOM MENU
WB MODE OUTDOOR AUTO
WHITE BALANCE MENU
Page 29
29
PRESET SPEED:
Set preset speed value from 0 to 5 to change the preset speed.
PAN DIR:
Camera horizontal Left and right orientation setting, option: Normal/Invert
TILT DIR:
Camera tilt up and down orientation setting, option: Normal/Invert
SYSTEM Menu
PELCO ID
When using RS485 (PELCO P/D) control, Set Camera ID to the address that you want to control to. This value is from
001-255.
IR-RECEIVE (Infrared Signal Reception)
When this is set to OFF, the camera does not receive the
signal from the infrared remote controller.
Be sure to keep it set to ON when you use the infrared
remote controller.
Note
You cannot set IR-RECEIVE to OFF when you operate
the menu using the infrared remote controller. To set it to
OFF, use the appropriate VISCA controller.
DISPLAY INFO
When this item is set to ON, the message of the camera configuration appears for about 3 seconds on the
screen, after the camera is powered on or rebooted.
PRESET MEMORY:
This feature allows you to save the image parameter to PRESET memory, turn it on to save most image
parameters like as picture, white balance, exposure, focus mode, zoom positions when you call the preset.
FACTORY RESET
You can select this item to set camera back to Factory Default setting by pressing HOME button to confirm the action.
All data of the camera that have been set will be deleted.
RELOAD PRESET 1:
When this item is set to ON, preset 1 is set to Home position. The camera goes to Home position when it is powered on
or reset.
VIDEO FMT:
You can change the video format(SDI/HDMI) by adjusting this item. Select the item, press “←” button to choose the
video format you want to set to, then press “→” (Pressing “→” button changes value on some product models) or HOME
button to confirm it. After you confirm your choice, press HOME button again to restore it. The camera will reboot by
itself. The new video format is activated.
You can cancel it by pressing the DATA SCREEN button.
Depending on the video client software you are using, some video software may need to be restarted to obtain the new
video format.
The SDI/HDMI video formats that you can select from are: 1080P:60/59.94/50/30/29.97/25, 1080I:60/59.94/50,
720P:60/59.94/50/30/25
SV:
Software Version Number that is currently running on the camera, you may need this information for technical support.
Note
The camera video format can be changed by setting bottom DIP switch as well.
EXPOSURE
WHITE BALANCE
>PICTURE
PAN TILT ZOOM
>SYSTEM
OSD
PELCO ID 001
IR-RECEIVE ON
DISPLAY INFO ON
PRESET MEMORY ON
FACTORY RESET
RELOAD PRESET 1 ON
VIDEO FMT: 1080P29.97
SV: V0B1100S36040AD04
SYSTEM MENU
Page 30
30
Upgrading MCU Firmware
MCU Firmware can be upgraded by following these steps:
1. Load the .bin file onto a flash drive (Formatted as FAT32), and name
the file “HD20.bin”
2. With the camera powered off, insert the flash drive to the USB port on
the back panel of the camera
3. Apply power to the camera
The green indicator light above the lens will turn red for a few seconds while
the upgrade takes place. Once the upgrade is finished, the light will turn green,
and the camera will proceed through a normal boot cycle. Check the data on the
OSD boot screen
NOTE:
The firmware upgrade process is intended to be performed under the supervision of a BOLIN-Authorized repair
technician. For assistance with this, please contact your authorized BOLIN Technology dealer, installer, or integrator.
BOLIN Technology Technical Support can also be reached for assistance with this process.
Operation Using the Infrared Remote Controller
Pan/Tilt and Zoom Operation
Panning and Tilting
1. Press the POWER switch.
The camera will turn on and perform the pan/tilt reset operation
automatically.
2. Press the arrow button to pan or tilt the camera.
While checking the picture on the screen, press the desired arrow
button.
To move the camera in short increments, press the button just for
a moment.
To move the camera in long increments, press and hold the
button.
To move the camera diagonally, press the “←, →” button while
holding down the “↑, ↓” button.
Restore to starting position
Press the HOME button.
If the camera moves in a different direction from the one that you intended
The camera is preset so that the image output from the camera is rotated toward the right whenever you press
the “←, →” button.
To face the camera toward the opposite direction
You might wish to face the camera toward the opposite direction from that of the button you pressed, for example, when
you change the direction of the camera while checking the picture on the screen. In such a case, press the 2 (REV) button
while holding down the L/R DIRECTION SET button.
Arrow button
Movement of the
camera
Setting
While holding
down
Press
Page 31
31
To reset the setting
To reset the setting, press the 1 (STD) button while holding down the L/R DIRECTION SET button.
Arrow button
Movement of the
camera
Setting
While holding
down
Press
Note
The above setting only changes the signal emitted from the infrared remote controller, and does not change the setting of
the camera itself. Therefore, repeat the setting for each infrared remote controller if you are using more than one infrared
remote controller.
When the STANDBY lamp is blinking
If the camera is moved forcibly, or a finger or other object interferes with camera movement, the camera may fail to
memorize the pan/tilt position.
Press the PAN-TILT RESET button to reset the pan/tilt position.
Zooming
Button [T] - Zoom-IN and [W] - Zoom-OUT.
Button [F] – FAST mode.
Press once and the LED turns red to activate the Fast Zoom Speed Mode,
press again to go back to normal Zoom Speed mode.
Operating Multiple Cameras with the Infrared Remote Controller
1. Set the DIP Switch on the bottom of the camera to the number of camera you want to operate to 1, 2 or 3.
(See bottom DIP Switch setting instruction)
2. Press the CAMERA SELECT button on the infrared remote controller that
corresponds to the number set in step
Then, you can operate the camera(s) specified by number. Every time you operate the camera(s) using the infrared remote
controller, the CAMERA SELECT button pressed in step 2 lights.
Adjusting the Camera
Focusing on a Subject
Focusing the camera on a subject automatically
Press the AUTO button.
The camera focuses on the subject at the center of the screen
automatically.
Focusing the camera on a subject manually
After pressing the MANUAL button, press either the FAR or the NEAR
button to have the camera focus on the subject.
Shooting with Back Lighting
Page 32
32
When you shoot a subject with a light source behind it, the subject becomes dark. In such a case, press the BACK LIGHT
button.
To cancel the function, press the BACK LIGHT button again.
Note
The BACK LIGHT function is effective if MODE is set to FULL AUTO in the EXPOSURE menu of the camera.
Storing the Camera Settings in Memory — the Presetting Feature
Memory (Preset)
Using the preset function, 6 sets of camera shooting conditions can be stored and recalled. 6 sets of camera shooting
conditions can be stored and recalled by using remote controller. Up to 128 presets via protocol programming.
This function allows you to achieve the desired status instantly, even without adjusting the following items each time.
Pan/Tilt Position
Zoom Position
Focus Auto/Manual
Focus Position
AE Mode
Shutter control parameters
Bright Control
Iris control parameters
Gain control parameters
Exposure Compensation On/Off
Exposure Level
Backlight Compensation On/Off
White Balance Mode
R/B Gain
Aperture Control
WD Parameter
The settings stored using this function are recalled when the power is turned on.
1. Press the PAN-TILT RESET button to reset the pan/ tilt position.
2. Adjust the position, zooming, focusing and backlighting of the camera.
While holding down the PRESET button, press any of the POSITION buttons, 1 to 6, in which you want to store the
settings.
Page 33
33
Recalling the stored settings
Press any of the POSITION buttons, 1] to [6], in which you have stored the
settings.
Cancelling the preset memory
While holding down the RESET button, press the POSITION button from
which you want to cancel the settings.
Notes
When the power is turned on, the camera starts with the settings
stored in POSITION 1.
If you want to retain the previous pan and tilt positions, etc. before
the power is turned off and turned on again, store those positions
in POSITION 1.
When you are storing or cancelling the settings in one POSITION,
you cannot call up, store or cancel the settings in another POSITION.
When the menu is displayed on the screen, you cannot perform the operation for storing, recalling, or
cancelling the setting. Be sure to return to the normal display before starting these operations.
Changing Resolutions
Press the Video Format Switching button to populate a menu
where you can switch resolutions
Use the arrow keys to navigate
Press Home to select
Screen will show ‘CHANGING…”
Press Menu to exit
Menu Configuration
The menus of the camera are configured as described below. The initial settings of each item are in
bold.
Page 34
34
SDI Menu Configuration
Dimension
Unit: mm
Menu EXPOSURE MODE FULL AUTO SLOW SHUTTER ON, OFF
MANUAL GAIN 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28 Db
SPEED
1/1, 1/2,1/4, 1/8, 1/15, 1/30, 1/60, 1/90, 1/100, 1/125, 1/180,
1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000,
1/4000, 1/6000, 1/10K sec
IRIS
CLOSE, F14, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4,
F2.0, F1.6
IRIS
IRIS PRI
IRIS
CLOSE, F14, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4,
F2.0, F1.6
SHUTTER PRI
SPEED
1/1, 1/2,1/4, 1/8, 1/15, 1/30, 1/60, 1/90, 1/100, 1/125, 1/180,
1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000,
1/4000, 1/6000, 1/10K sec
EX-COMP OFF , ON
WHITE BALANCE MODE AUTO
INDOOR
OUTDOOR
OPW
ATW
USER R GAIN 0-255
B GAIN 0-255
PICTURE SHARPNESS 0-15
EFFECT OFF , B&W
NOISE REDUCTION OFF, 1-5
FLIP OFF, ON
MIRROR OFF, ON
DE-FLICKER OFF, ON
GAMMA 0, 1
WDR OFF, ON
COLOR 1-15
CONTRAST 0-255
PAN TILT ZOOM DIGITAL ZOOM OFF, ON
ZOOM RATIO OSD OFF, ON
ADAPTIVE PT OFF, ON
MF SPEED 0 - 7
P/Z SPEED 0-5
PRESET SPEED 0-5
PAN DIR NORMAL, INVERT
TILT DIR NORMAL, INVERT
SYSTEM PELCO ID 001 -255
IR-RECEIVE OFF, ON
DISPLAY INFO OFF, ON
PRESET MEMORY OFF , ON
FACTORY RESET
RELOAD PRESET 1 OFF, ON
VIDEO FMT
1080p:60/59.94/50/30/29.97/25; 1080i:60/59.94/50;
720p:60/59.94/50/30/25
SV: V0B1100S36040AD04
Page 35
35
Page 36
36
www.bolintechnology.com
2082 TECHNOLOGY LLC
dba
BOLIN TECHNOLOGY
Loading...
