7 Series HD PTZ Camera

USER MANUAL

VERSION: VCC-7HD-M-09082017

VCC-7HD20S-2SMC VCC-7HD30S-2SMC

Page 2

Contents

IMPORTANT INFORMATION ..................................................................................................................................................... 3

WHAT’S IN THE BOX ................................................................................................................................................................. 5

OVERVIEW ................................................................................................................................................................................ 6

CAMERA VERSION .............................................................................................................................................................................. 6

FEATURES ........................................................................................................................................................................................ 6

CAMERA DIAGRAMS ................................................................................................................................................................. 7

CAMERA .......................................................................................................................................................................................... 7

REMOTE CONTROLLER ........................................................................................................................................................................ 8

SYSTEM CONFIGURATION ......................................................................................................................................................... 9

CONNECTION .................................................................................................................................................................................... 9

OBTAIN VIDEO SIGNAL ..................................................................................................................................................................... 10

CAMERA CONTROL METHODS AND SYSTEM CONFIGURATIONS ................................................................................................................. 11

DIP SWITCH SETTINGS ............................................................................................................................................................ 15

ADJUSTING AND SETTING WITH MENUS................................................................................................................................. 17

EXPOSURE MENU ......................................................................................................................................................................... 18

WHITE BALANCE MENU ................................................................................................................................................................ 18

PICTURE MENU............................................................................................................................................................................. 19

PAN TILT ZOOM MENU ................................................................................................................................................................. 19

SYSTEM MENU.............................................................................................................................................................................. 20

OPERATION USING THE INFRARED REMOTE CONTROLLER ..................................................................................................... 21

PAN/TILT AND ZOOM OPERATION ...................................................................................................................................................... 21

OPERATING MULTIPLE CAMERAS WITH THE INFRARED REMOTE CONTROLLER .............................................................................................. 22

ADJUSTING THE CAMERA ................................................................................................................................................................... 22

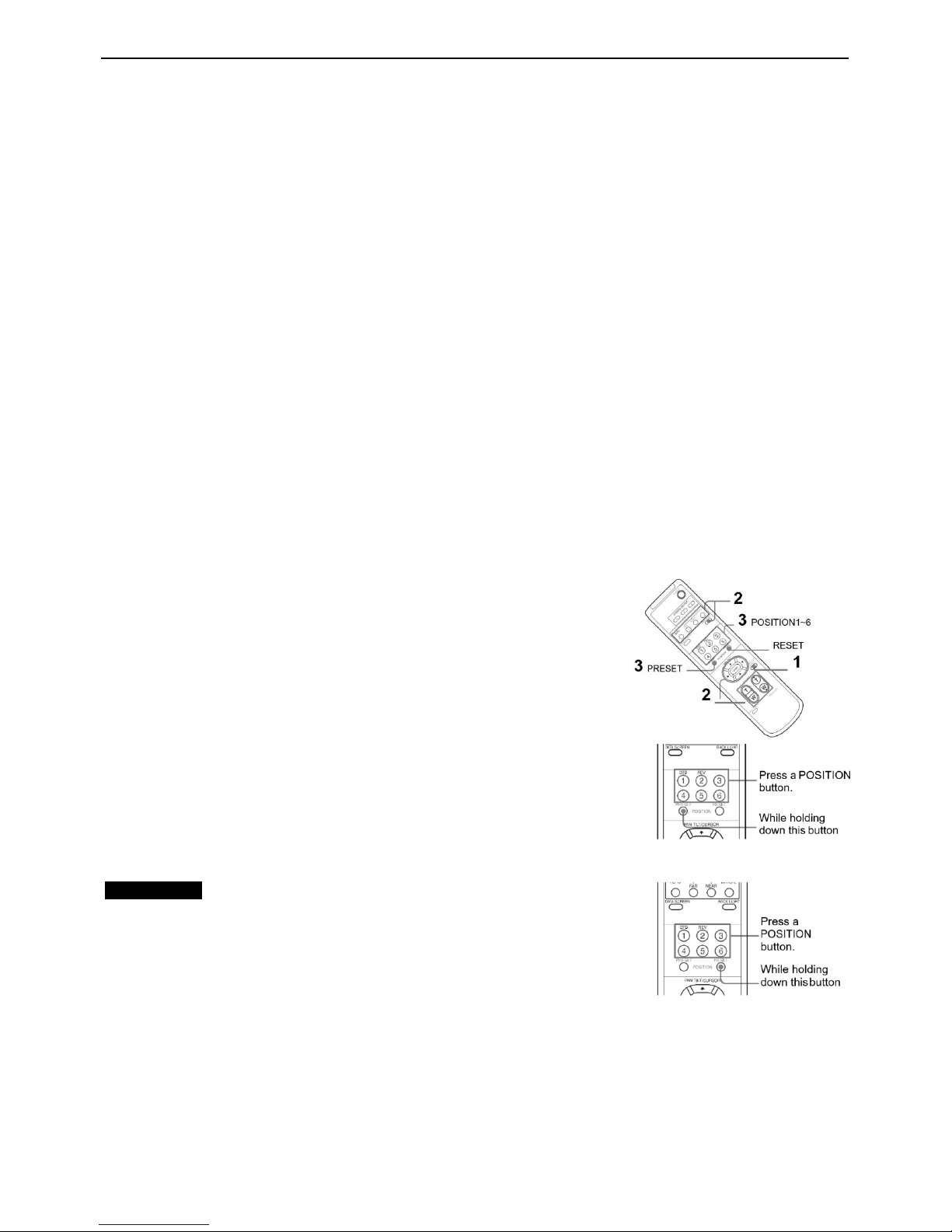

STORING THE CAMERA SETTINGS IN MEMORY — THE PRESETTING FEATURE ............................................................................................... 23

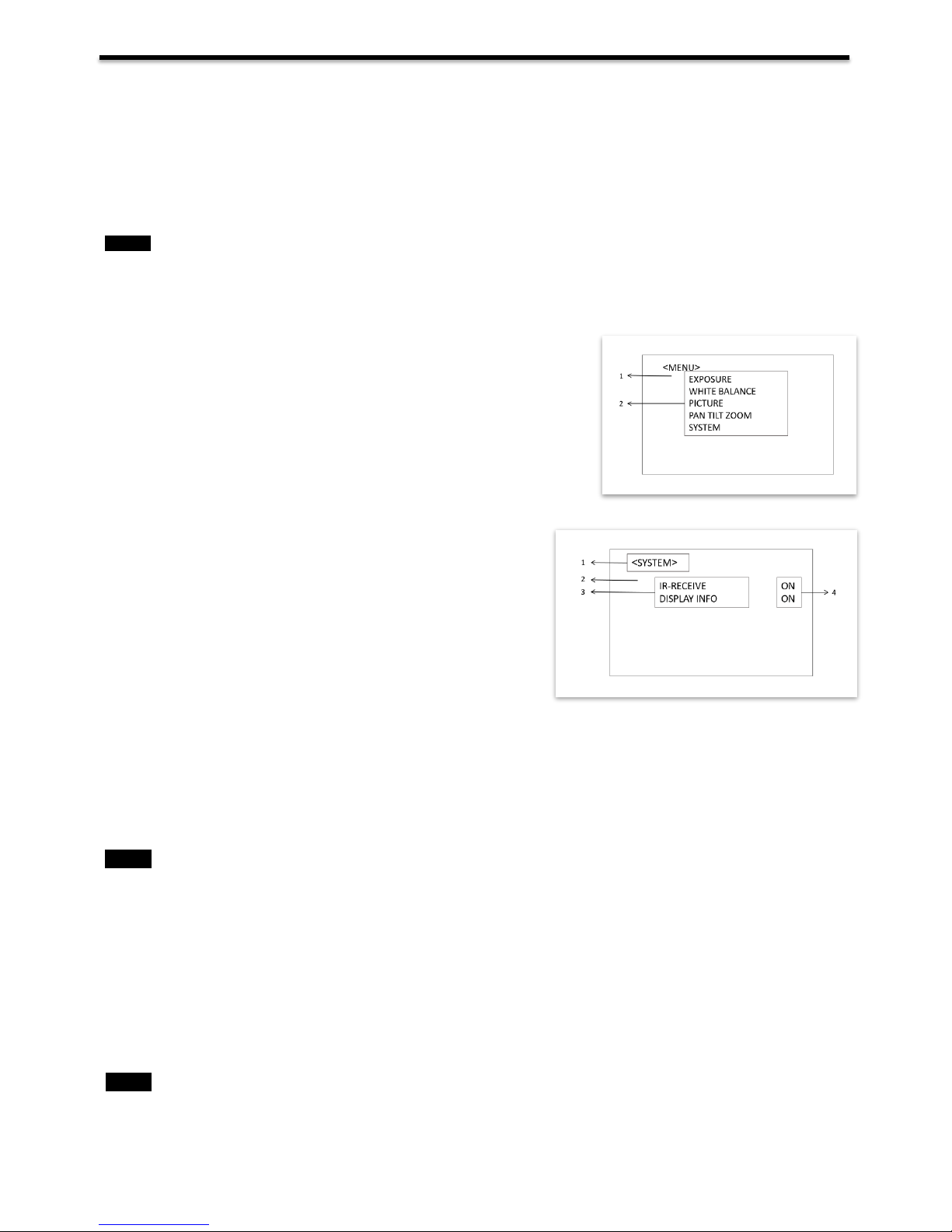

MENU CONFIGURATION ......................................................................................................................................................... 24

DIMENSION ............................................................................................................................................................................ 25

SPECIFICATIONS ...................................................................................................................................................................... 26

Page 3

Operating Instructions

Thank you for purchasing our product. If there are any questions, please contact the authorized dealer.

Before operating the unit, please read this manual thoroughly and retain it for future reference.

Copyright 2015-2016 Bolin Technology all rights reserved. No part of this manual may be copied, reproduced, translated, or distributed in any form or by any means without prior consent in writing from our company.

Trademark Acknowledgement

and other Bolin's trademarks and logos are the property of Bolin Technology. Other trademarks,

company names and product names contained in this manual are the property of their respective owners.

IMPORTANT INFORMATION

Legal Notice

Attention: To ensure account security, please change the password after your first login. You are recommended to set a strong password (no less than eight characters).

The contents of this document are subject to change without prior notice. Updates will be added to the new version of this manual. We will readily improve or update the products or procedures described in the manual. Best effort has been made to verify the integrity and correctness of the contents in this document, but no statement, information, or recommendation in this manual shall constitute formal guarantee of any kind, expressed or implied. We shall not be held responsible for any technical or typographical errors in this manual. The product appearance shown in this manual is for reference only and may be different from the actual appearance of your device. This manual is a guide for multiple product models and so it is not intended for any specific product. In this manual, the illustrations of displayed interface, parameters displayed, drawings and value ranges may vary with models. Please see the actual product for details. Due to uncertainties such as physical environment, discrepancy may exist between the actual values and reference values provided in this manual. Use of this document and the subsequent results shall be entirely on the user’s own responsibility.

Safety Information

WARNING!

Installation and removal of the unit and its accessories must be carried out by qualified personnel. You must read all of the Safety Instructions supplied with your equipment before installation and operation.

Warnings:

 If the product does not work properly, please contact your dealer. Never attempt to disassemble the camera yourself.

(We will not assume any responsibility for problems caused by unauthorized repair or maintenance.)

 This installation should be made by a qualified service person and should conform to all the local codes.  When shipping, the camera should be packed in its original packaging.  Make sure the power supply voltage is correct before using the camera.  Do not drop the camera or subject it to physical shock.  Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit of ethanol and wipe it

gently. If the camera will not be used for an extended period of time, put on the lens cap to protect the sensor from dirt.

 Do not aim the camera lens at the strong light such as sun or incandescent lamp. The strong light can cause fatal

damage to the camera.

Page 4

Maintenance Precautions:

 If there is dust on the front glass surface, remove the dust gently using an oil-free brush or a rubber dust blowing

ball.

 If there is grease or a dust stain on the front glass surface, clean the glass surface gently from the center outward

using anti-static gloves or an oil-free cloth. If the grease or the stain still cannot be removed, use anti-static gloves or an oil-free cloth dipped with detergent and clean the glass surface gently until it is removed.

 Do not use organic solvents, such as benzene or ethanol when cleaning the front glass surface.

Regulatory Compliance FCC Part 15

This equipment has been tested and found to comply with the limits for digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.

LVD/EMC Directive

This product complies with the European Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC.

WEEE Directive–2002/96/EC

The product this manual refers to is covered by the Waste Electrical & Electronic Equipment (WEEE) Directive and must be disposed of in a responsible manner.

Page 5

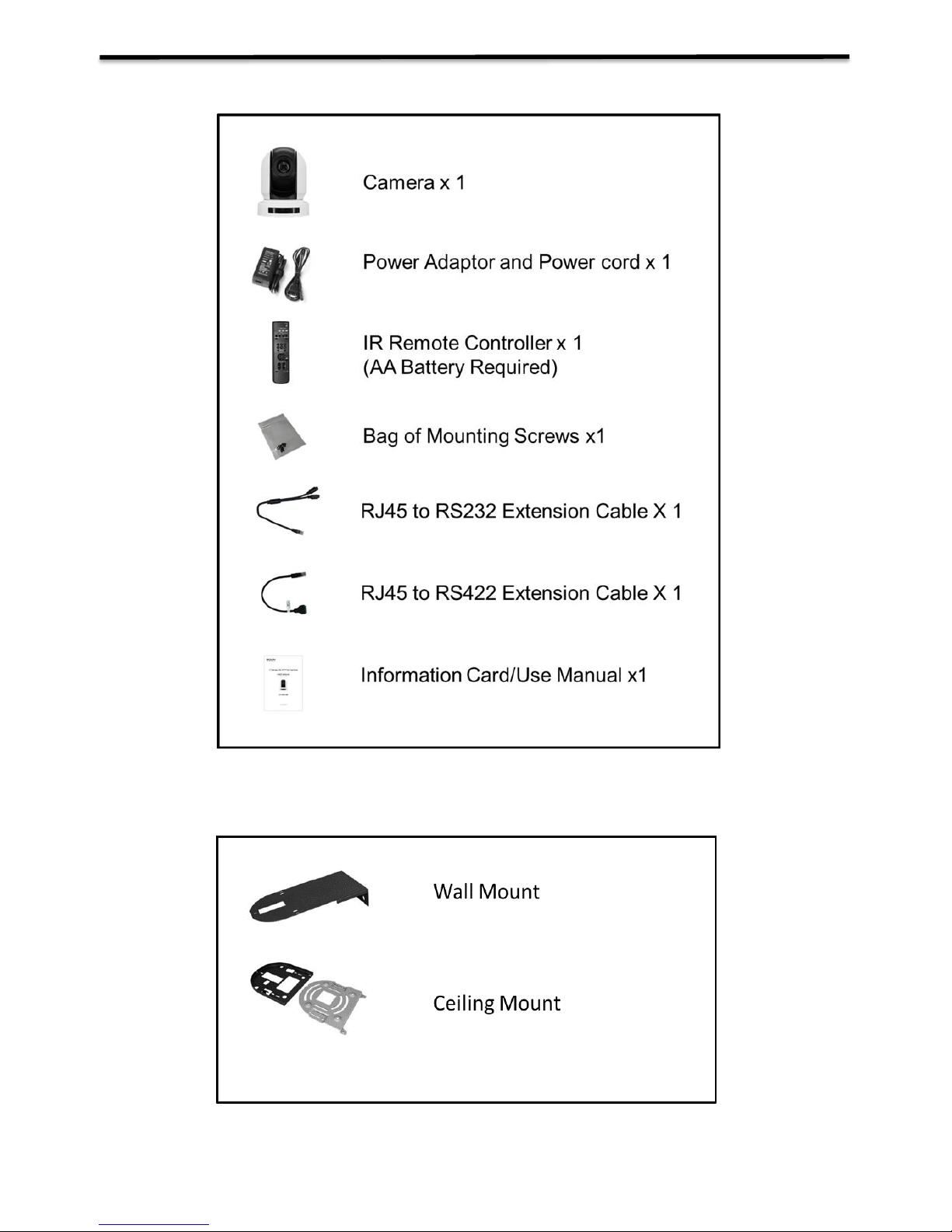

WHAT’S IN THE BOX

Accessories (Optional)

Page 6

Overview

Camera Version

Hardware: HV:V.0B.00egijkl.02.00S.07.A01 Software： SV:V0B0100S050407A04 FCB-CV7320(20X) SV: V0B0100S090401A04 FCB-CV7520(30X)

This user guide is suitable for the following models:

 VCC-7HD20S-2SMC  VCC-7HD30S-2SMC

Features

 Resolution: 1080P,720P  Zoom: Optical 20X, 30X  Video Output: HDMI, 3G-SDI, CVBS,  The camera can simultaneously have SDI video output and HDMI video output and CVBS video

output.

 Power: DC 12V  ±350-degree continuous pan, ±120-degree continuous tilt  128 presets, Speed up to 150 degrees/sec  Standard mounting and ceiling mounting with E-Flip function  IR remote control, RS-232 control, RS-422/485 control  You can use the infrared remote controller to set the camera and also to select panning, tilting and

zooming from the setting menu.

 You can store up to 6 presets of camera direction and camera parameters into the camera. (Up to 6

presets on remote controller or 128 presets via protocol programming.)

Page 7

Camera Diagrams

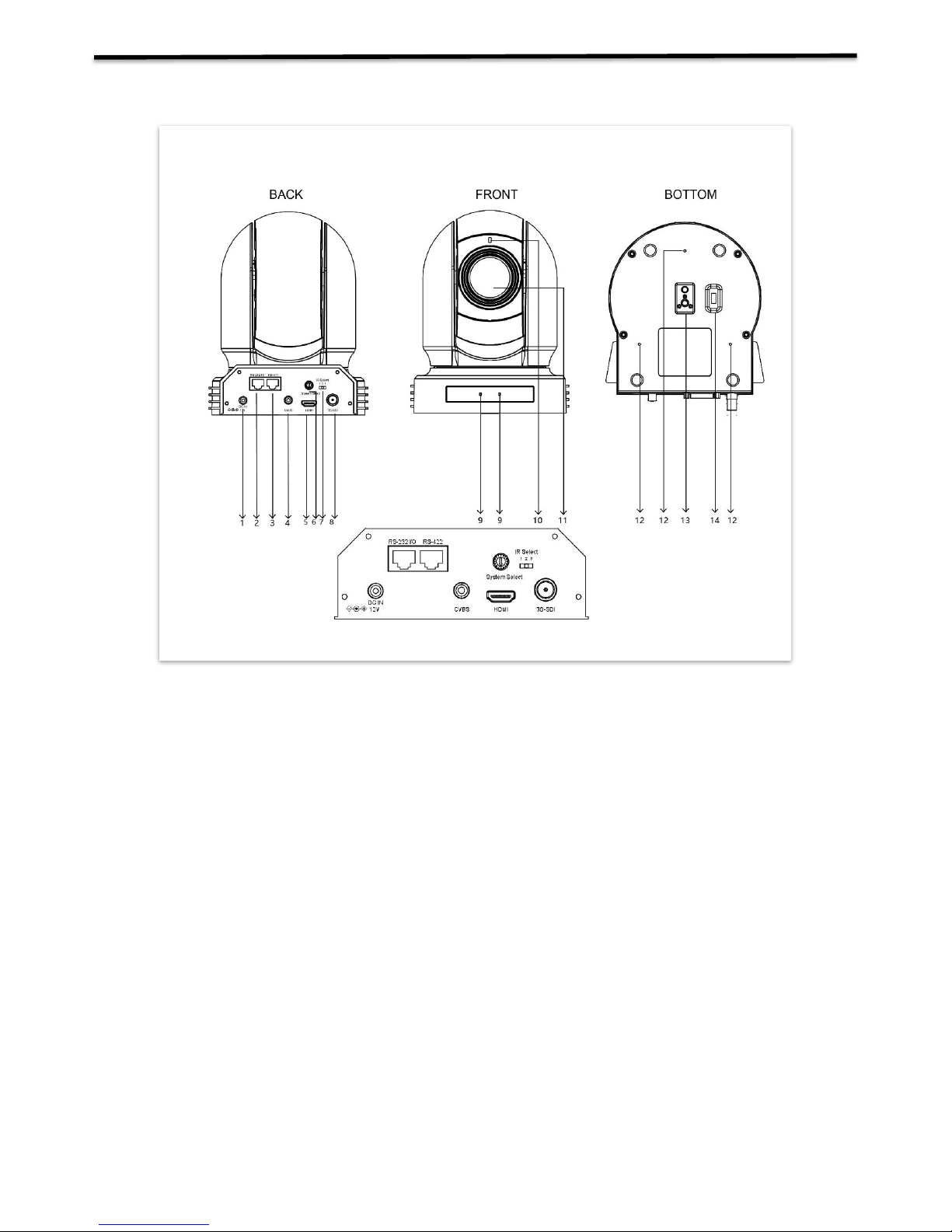

Camera

1. 12V DC Power Port

Connect the supplied AC power adaptor and cord.

2. RS-232 Control Port IN

RJ45 to RS232 control port.

3. RS-422 Control Port IN

RJ45 to RS422 control port.

4. CVBS Video output

5. HDMI Port

HDMI 1.4

6. System Selector

For video format selection

7. IR Remote ID Selector

Camera ID for IR remote controller

8. SDI Port

3G-SDI

9. IR Remote Controller Sensors

These are sensors to receive commands from infrared remote controller.

10. Power LED Indicator

Turns green when the camera is connected to power outlet. When the power is turned on, it takes about 15 to 30 seconds to display the image after LED turns on.

11. Lens

This is a 20X/30X magnification optical zoom lens.

12. Fix mounting holes

For original wall/ceiling mount bracket

13. Tripod mounting holes

14. Bottom DIP Switch

Page 8

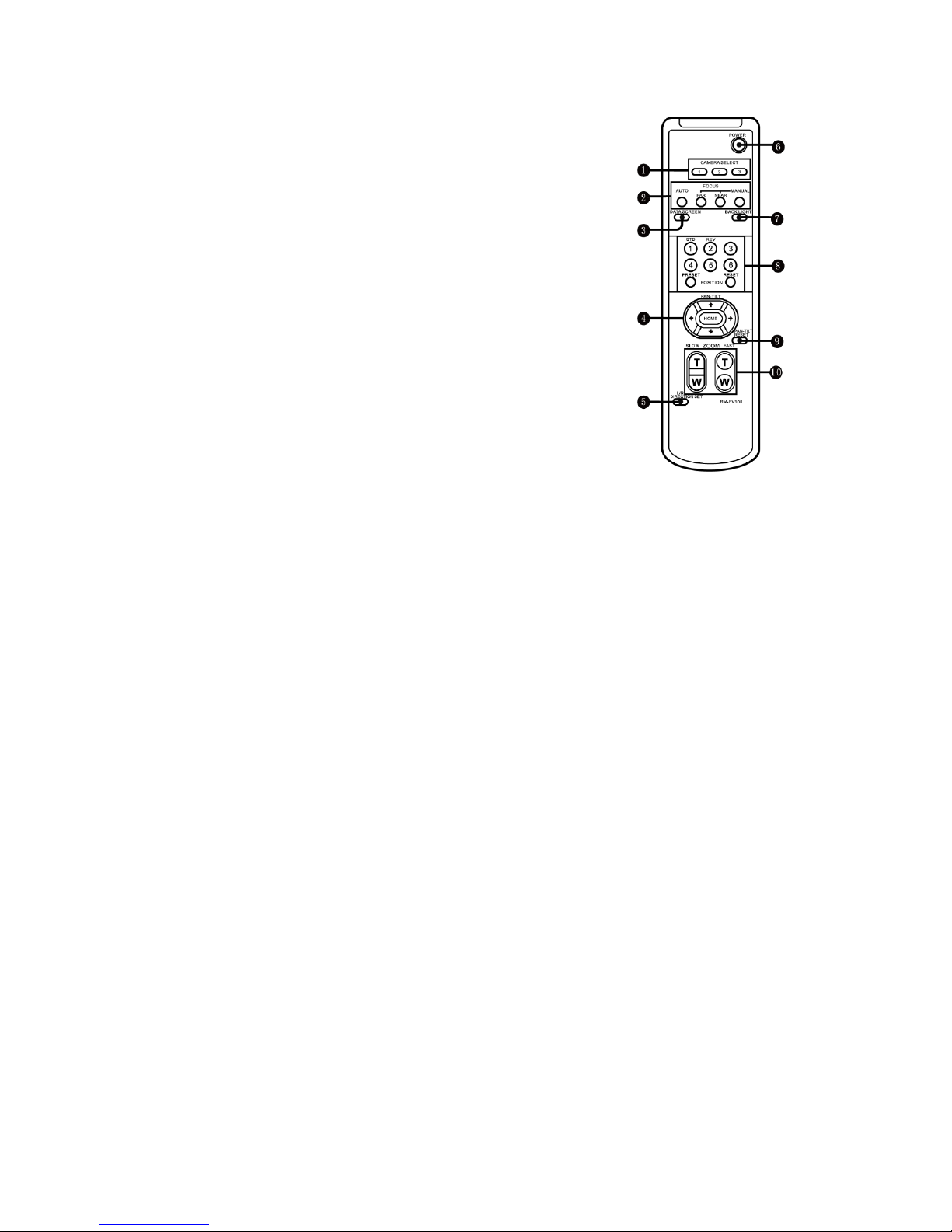

Remote Controller

1. CAMERA SELECT

2. FOCUS

 Auto  Far  Near  Manual

3. DATA SCREEN  On screen menu display ON/OFF

4. PAN-TILT

 Pan and Tilt direction control  HOME: Home position, Resolution reset

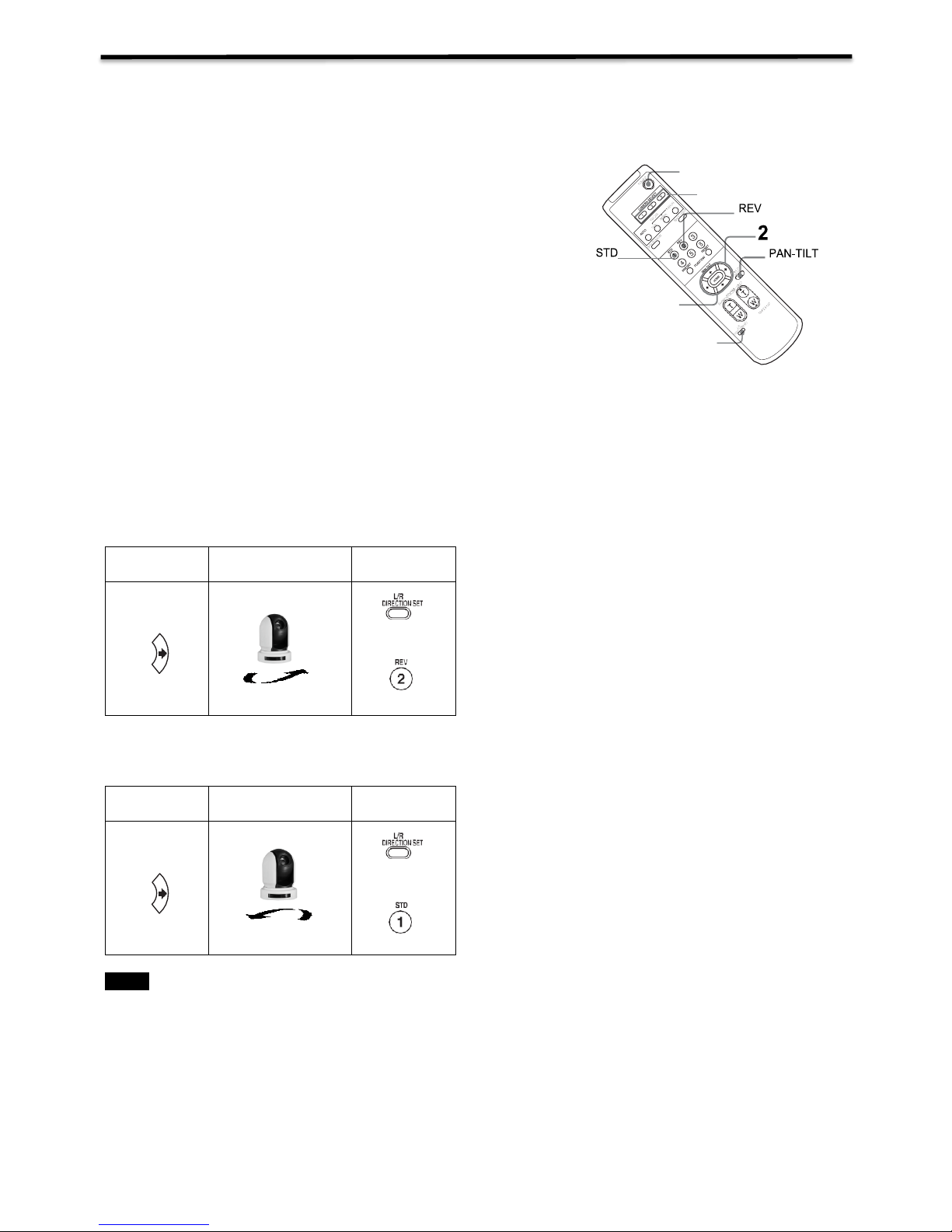

5. L/R DIRECTION SET  Left and right orientation setting

6. POWER

7. BACK LIGHT

8. PRESET/RESET POSITION

9. PAN-TILT RESET

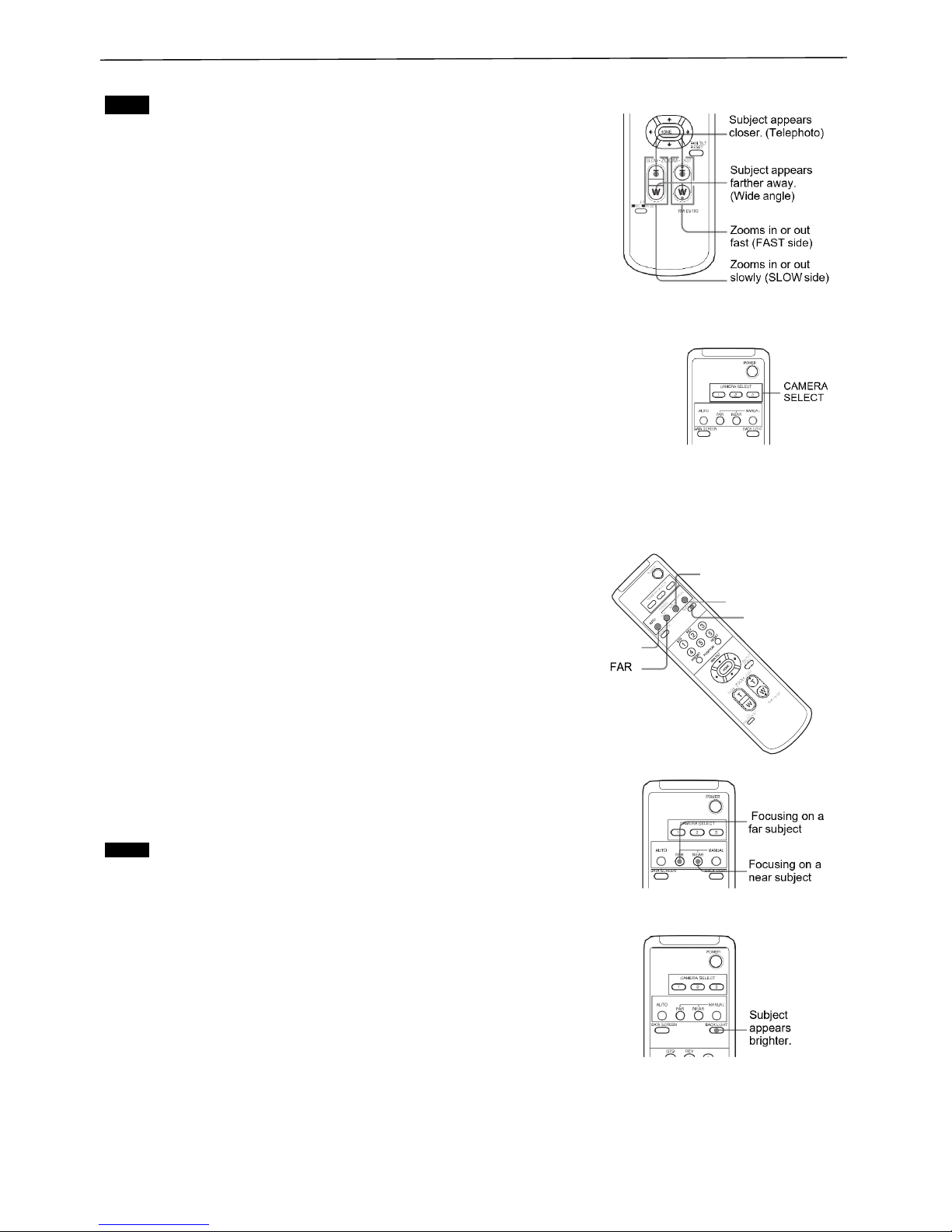

10. ZOOM IN/OUT

 Slow T  Slow W  Fast T  Fast W

Page 9

System Configuration

Connection

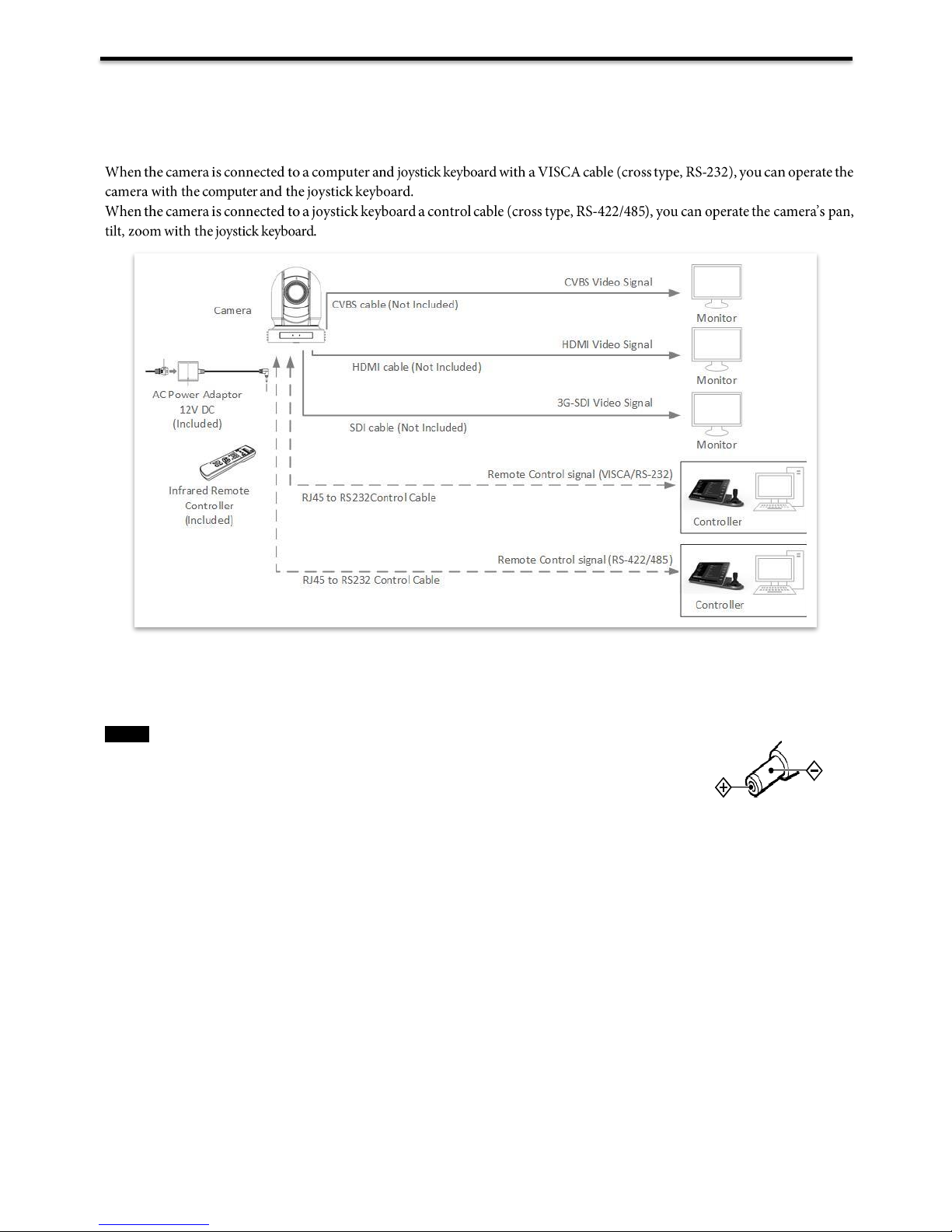

In this connection configuration, HDMI cable, SDI video cable, CVBS video cable and control cable is required. To obtain these third party components or accessories, consult the dealer where you bought your camera.

Notes

 Use only the DC power adaptor (JEITA type4) supplied with the unit. Do not use any other

DC power adaptor.

 Polarity of the plug

 You have to set the video format of the signal to output from the camera. For detailed information on how to set

the video format, see “SYSTEM SELECT switch” on page 16 or 20.

Page 10

Obtain Video Signal

The camera can simultaneously have SDI, HDMI and CVBS video output.

HDMI Video signal

1. Connect the camera to a HD monitor/TV using HDMI cable.

2. Turn on the camera, video will display on the monitor after running initializing.

3. Information of the camera initial setting status will display for 5 seconds.

4. You can set the video format of the camera to the one you want to display. (How to set video format, see page

20)

SDI Video Signal

The camera can simultaneously stream SDI video output with HDMI video output.

1. Connect SDI cable in between the camera your SDI Device/display.

2. You now have SDI video output.

CVBS Video Signal

1. Connect CVBS cable in between the camera and your CVBS Device/display.

2. You now have CVBS video output.

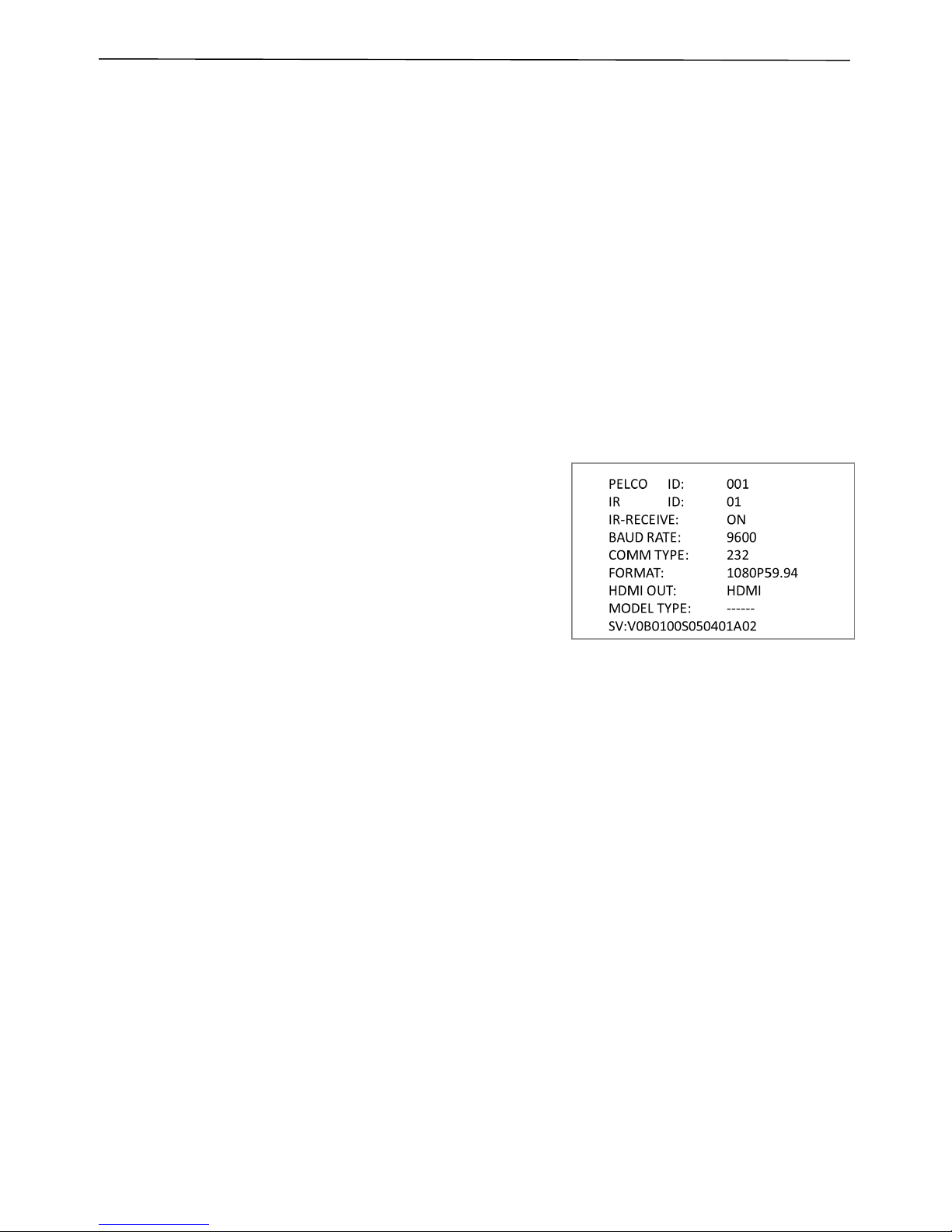

Camera Initial setting status Information

Information of the camera initial setting status will display for 5 seconds.

1. Camera physical ID for RS-422/485 control

2. Camera ID for IR Remote Controller

3. IR remote control signal receive current setting

4. Baud Rate current setting

5. Control COMM Port current setting

6. Video format current setting

7. HDMI current setting

8. Model number

9. Firmware version

Page 11

Camera Control Methods and System Configurations

This unit has multiple ways of controlling the camera and various system configuration capabilities using optional products. This section describes ways of controlling and typical system examples with the required components and usage of each system.

1. Use the Infrared Remote Controller

2. Use RS-232 (VISCA)

3. Use RS-422/485 (PELCO P/D), need to use Extension Cable.

Use the Infrared Remote Controller

To operate the camera from a short distance.

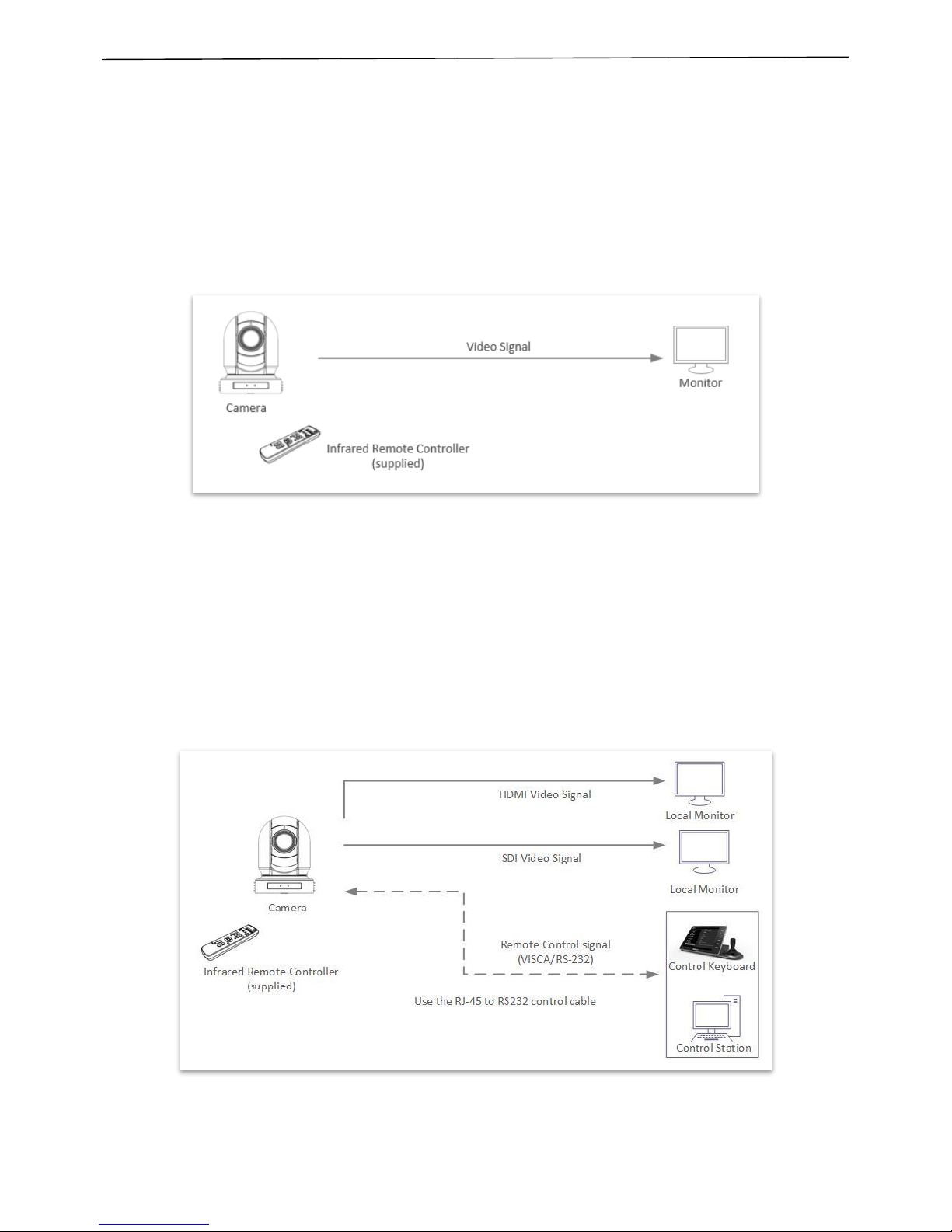

System Configuration A

For IR remote control details, refer to Operation Using the Infrared Remote Controller, see page 21.

Use RS-232 (VISCA)

You can use RS-232 port to connect to optional controllers, such as joystick control keyboard, control PC station, to operate the camera. To perform pan/tilt and zoom operations using the joystick of the control keyboard, and to perform the Preset operation using the control buttons. An application software that supports this unit is needed if you use PC station.

System Configuration B

Page 12

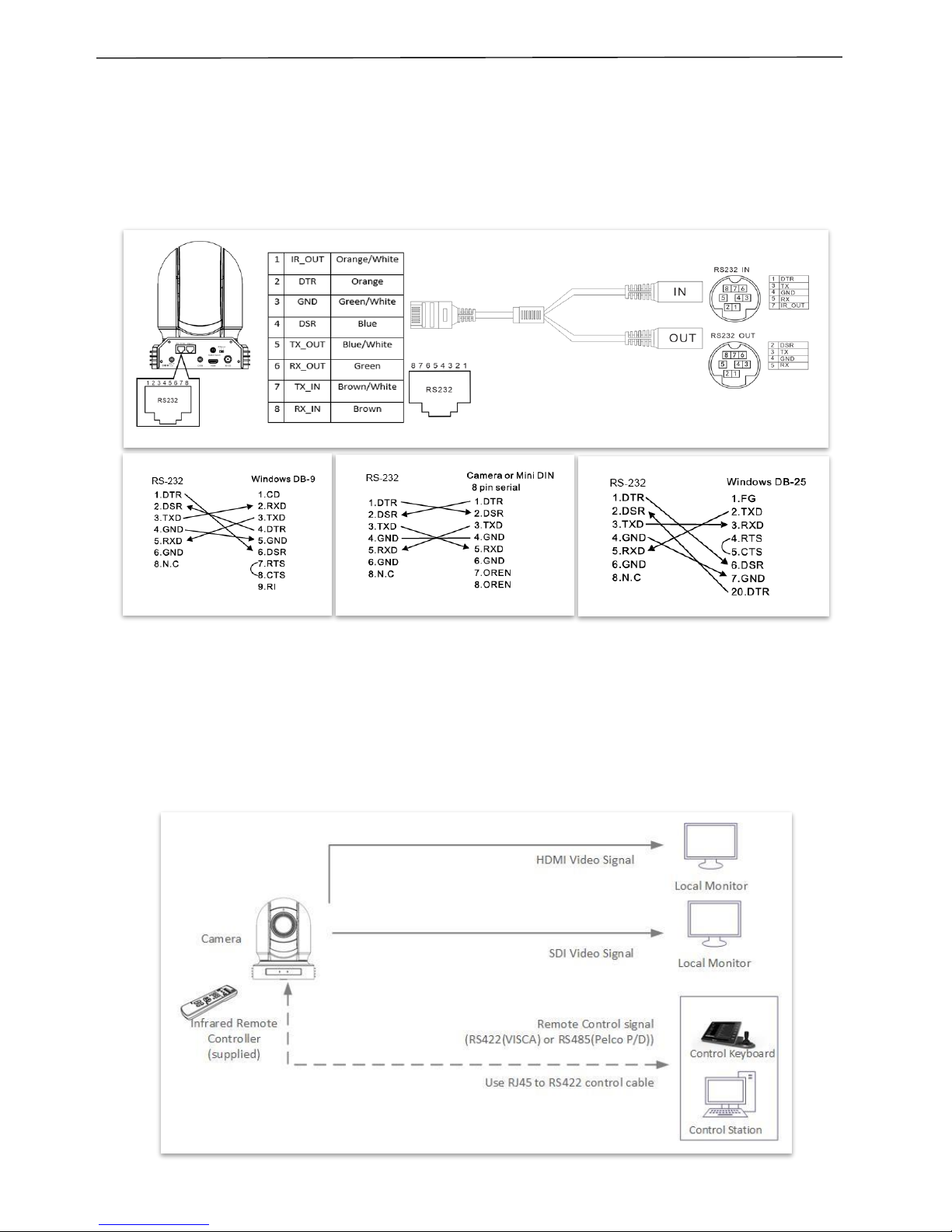

RS232 Connection

1. Set RS232 control method on Bottom Dip Switch. (See page 15).

2. Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using. (See page 16).

3. Reboot the camera by turning it Off/On after the Bottom Dip Switch has been set up correctly.

4. Does not need setting camera address in way of RS232 controlling.

5. Use the RJ45 to RS232 (VISCA) control connection cable. The controller must be VISCA compatible.

6. Camera supports Daisy Chain in RS232 control mode. Use RS232 IN and RS232 OUT to make Daisy Chain link, up to 7

cameras.

7. You can make RS232 connection cable if you have the following applications:

Use RS-422(VISCA) / RS485 (PELCO P/D)

You can use RS-422/485 port connect to optional controllers, such as joystick control keyboard, control PC station, to operate the camera. To perform pan/tilt and zoom operations using the joystick of the control keyboard, and to perform the Preset operation using the control buttons. An application software that supports this unit is needed if you use PC station.

System Configuration C

Page 13

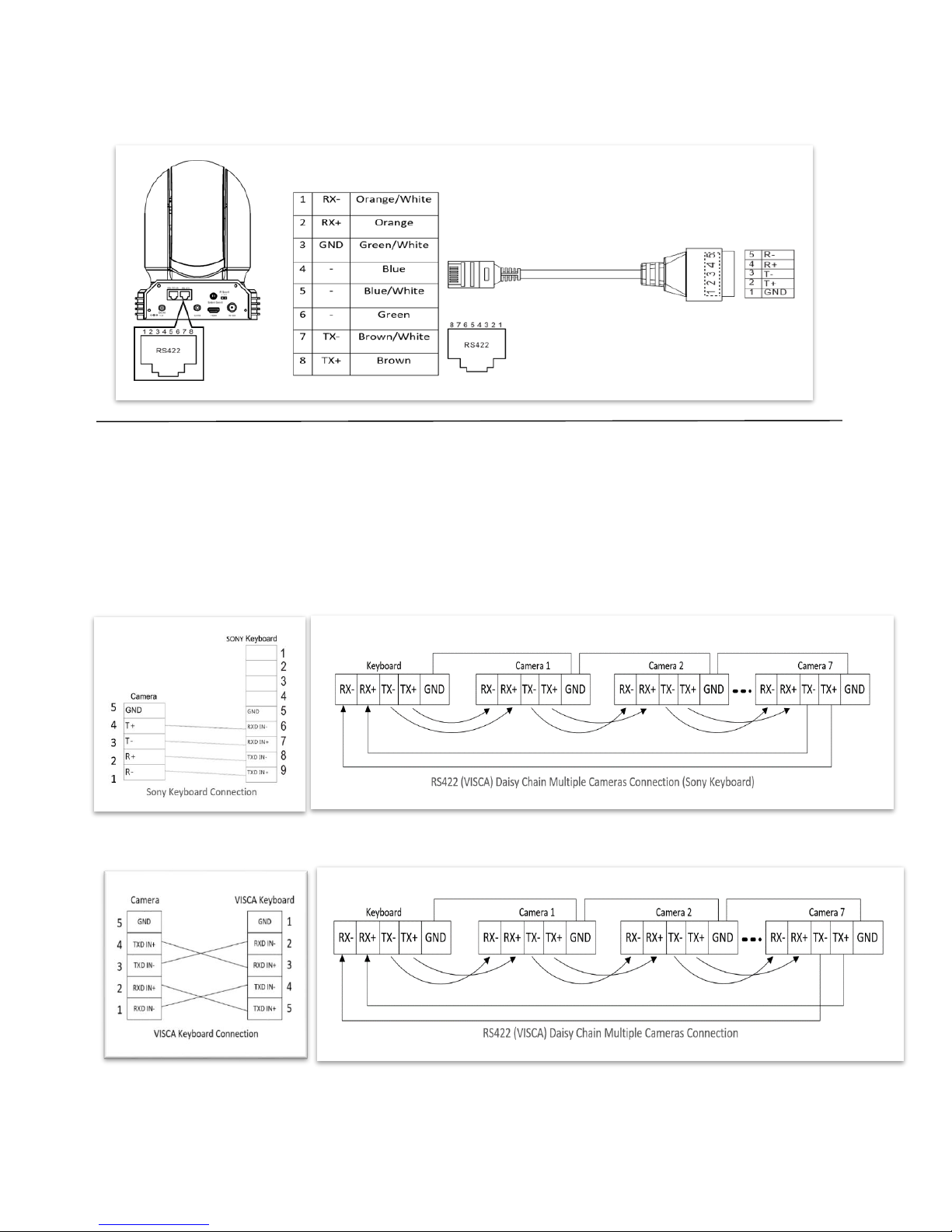

You can also make RS422/485 cable following the layout:

RS422 (VISCA) connection

1. Set RS422 control method on Bottom Dip Switch (See page 15).

2. Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using. (See page 16).

3. Reboot the camera by turning it Off/On after the Bottom Dip Switch has been set up correctly.

4. Does not need setting camera address in way of RS422 (VISCA) controlling.

5. Use the RJ45 to RS422 control cable. The controller must be VISCA compatible.

6. Camera supports Daisy Chain connection up to 7 cameras.

7. The connection of SONY keyboard is different than other VISCA (None-Sony) keyboard.

SONY Keyboard RS422 Connection

VISCA (None-Sony) Keyboard RS422 Connection

Page 14

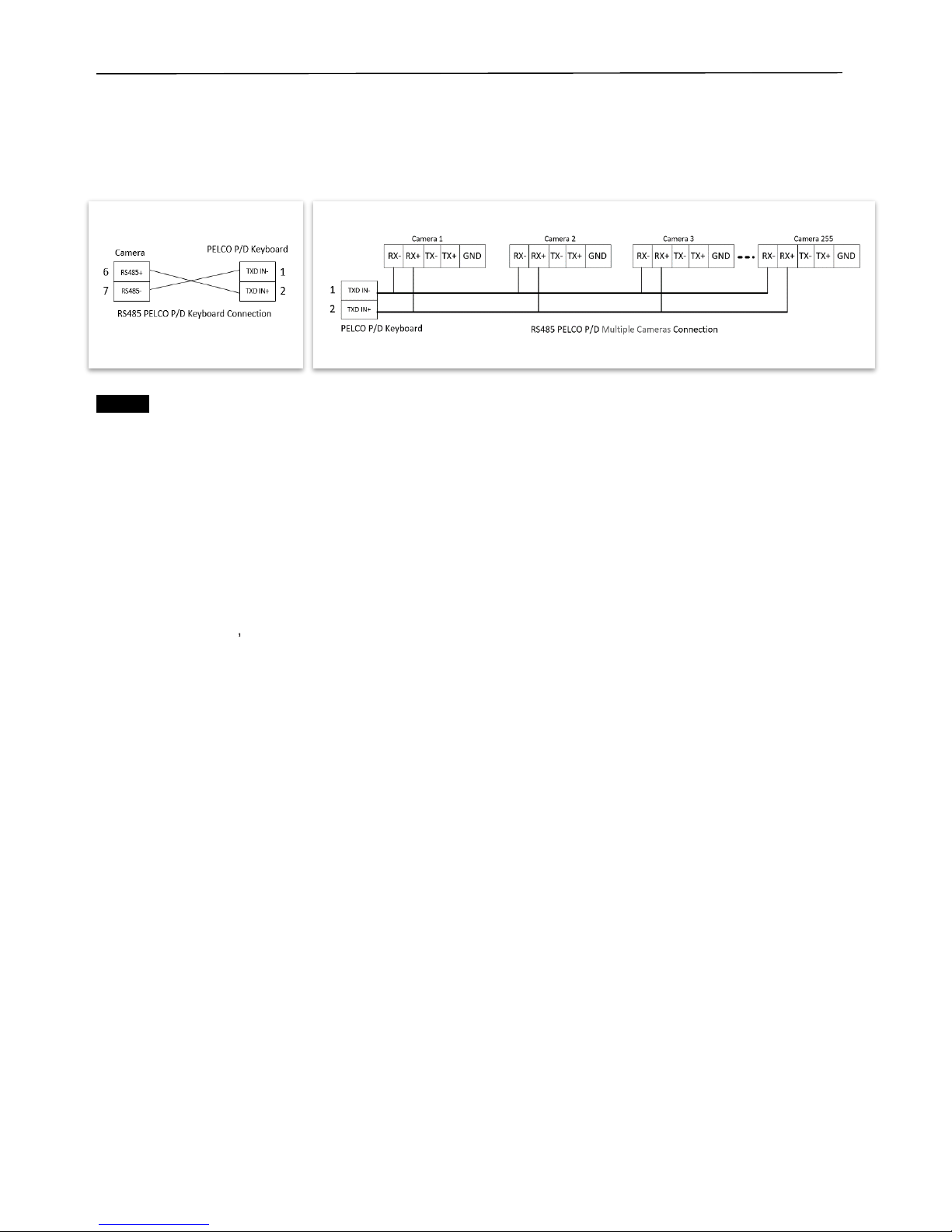

PELCO P/D Keyboard RS485 Connection

1. Use PELCO P/D compatible keyboard.

2. Use preset 95# on the keyboard to bring up/exit camera OSD menu.

3. Use joystick and Button “OPEN” or “CLOSE” to navigate OSD menu.

4. To operate keyboard, please refer to the user manual of the keyboard you are using.

Note

For RS-232 VISCA control, this unit supports daisy chain connection for using multiple cameras up to 7 cameras. For control details, refer to Operating Instructions of control keyboard/station software.

 You need to match the communication speed between the camera and the joystick controller.  You cannot use the RS-232 connections when using the RS422/485 connection.

Operating Multiple Cameras Using RS-422/485

 Using RS-422 (VISCA), you can connect up to 7 cameras.  Using RS-485 (PELCO), you can connect up to 255 cameras.  Using RS-485 (PELCO), all camera addresses must be set up before the connection. You can set the camera

address by operating OSD menu, or by setting the Dip Switch on the bottom of the camera.

 In this case, you can use multiple control keyboards.  The joystick of the remote keyboard controller allows comfortable pan/tilt and zoom operations.

Precautions for Preventing Access to the Camera by an Unintended Third Party

The camera can be fraudulently accessed in a network environment where a device is connected or connectable to the

network without the administrator’s permission, or a PC or other network device connected to the network can be used

without any permission. If the computer to check USB images is connected to a network, there may be a risk of information leaks, obstructed viewing due to infection by a virus, or other risks. Connect to these environments at your own risk.

Page 15

DIP SWITCH SETTINGS

The Dip switches are for setting the camera configuration for following items:

1. Camera ID Address for RS-485 PELCO protocol

2. Video output / Video color space

3. RS-232 / RS-422/485 selection

4. RS-232 / RS-422/485 baud rate

5. Video resolutions selection

6. IR remote controller ID

Setting of the BOTTOM DIP Switches

Turn off power to the camera before changing the DIP switch settings.

Power on the camera to have the new Dip Switch setting activated.

From the above list, No.1 Camera ID address and NO.2 Video resolution settings can be set in camera OSD menu as well. The camera takes either the way of OSD menu setting or the way of bottom DIP switch setting. They override each other. After the camera is turned on, the camera takes the last setting before it is turned on, either set through the OSD or bottom DIP switch.

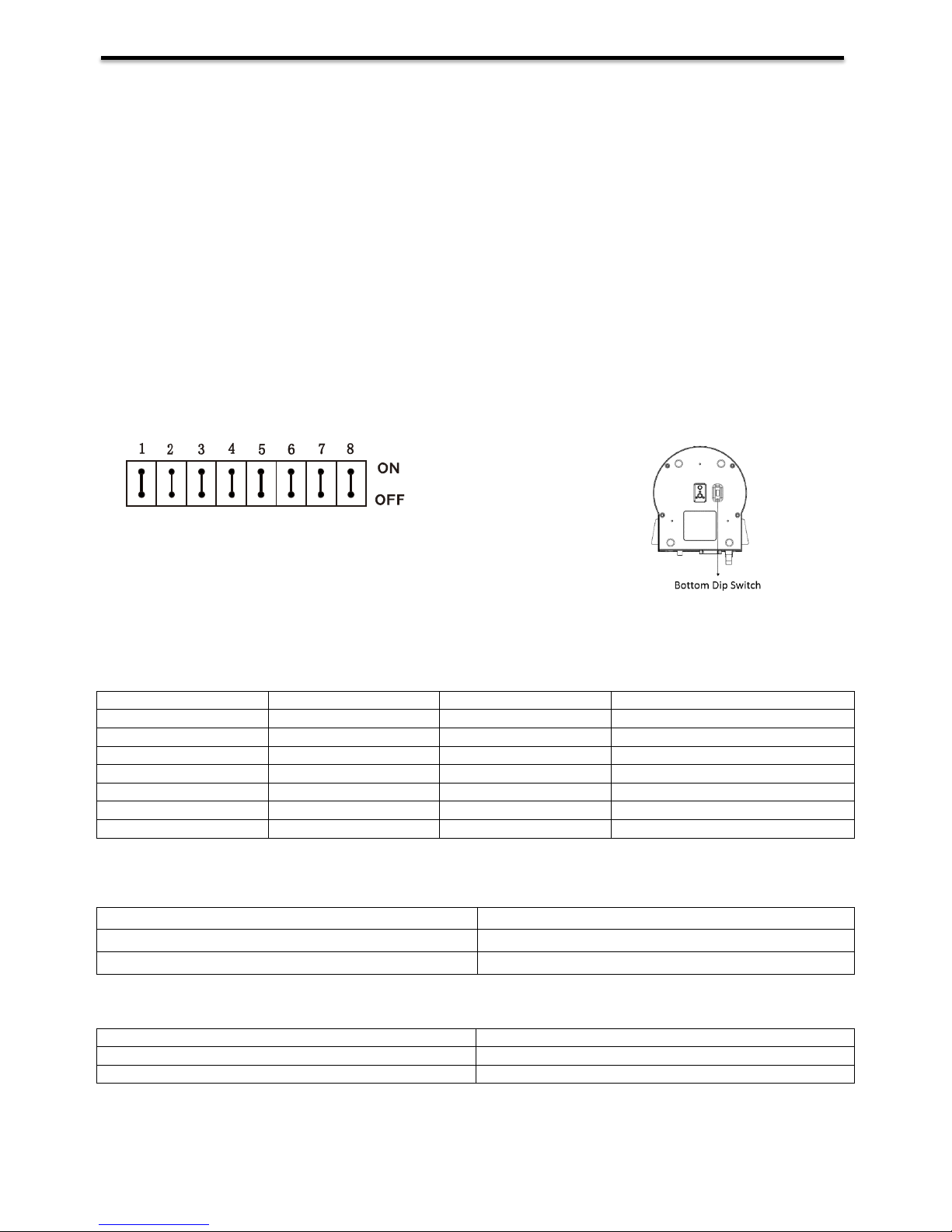

The Bottom DIP Switch Settings

Switch: Factory Default Setting: ON.OFF.OFF.OFF.OFF.OFF.OFF.ON Bit 1~3: Camera Address setting for VISCA protocol Bit 4: Video Output/Video Color Space Bit 5: Reserve Bit 6: RS-232/RS-422 Bit 7~8: RS-232/RS-422 Baud Rate

1. Camera Address setting for VISCA protocol

Address

OFF

1(Default)

OFF

OFF 2 ON

OFF

2. Video Output/Video Color Space Note: Select the color space which display device supported.

3. RS-232 / RS-422 Setting

RS-232 / RS-422

OFF

RS-232

RS-422

Color Space Setting

OFF

YUV Output

RGB Output

Page 16

4. RS-232 / RS-422 Baud Rate Setting

RS-232 / RS-422 Baud Rate Setting

OFF

2400 bps

OFF

4800 bps

OFF

9600 bps(Default)

38400 bps

Setting of the back panel Rotate DIP Switches

The Rotate Dip Switch is for setting video format. Use small screw driver to turn the switch, the arrow points to the Numbers or the Letters. The video format that the Number or Letter stands for refer to the video format as the chart following:

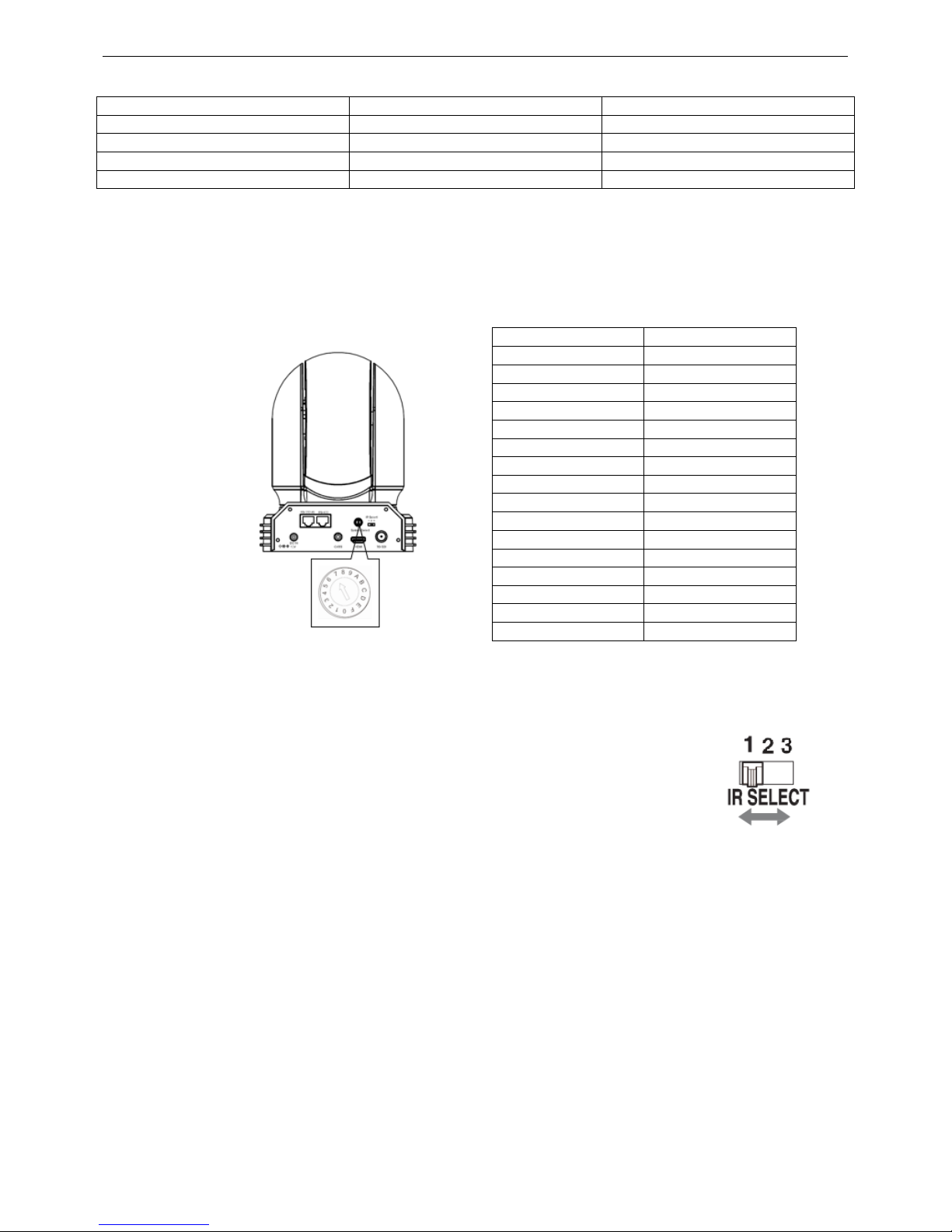

IR Remote Controller ID Setting

Set the IR SELECT switch on the back panel of the camera to 1, 2 or 3, which is the camera ID number that you want to operate on the Remote Controller.

Numbers & Letters

Video Resolution

1080i59.94

1080P29.97

720P59.94

1080P59.94

1080P50

1080I60

1080P30

1080P60

1080I50

1080P25

720P50

1080P50

720P25

720P30

720P60

Page 17

Adjusting and Setting with Menus

About On-Screen Menus

You can change various settings, such as shooting conditions and system setup of the camera, while observing menus displayed on a connected computer screen. This section explains how to read the on-screen menus before starting menu operations. The menu parameters may vary according to the different product model numbers. For a complete configurations menu, see “Menu Configuration” (page 24).

Note

You cannot perform pan/tilt operations while the menu is displayed.

Main Menu

To display the main menu, press the DATA SCREEN button on the supplied infrared remote controller.

Selected Items Selects a setting menu. The selected item is shown by the cursor. The cursor moves up or down by pressing the “↑, ↓” button on the infrared remote controller.

Menu Items To display a setting menu, select one using the “↑, ↓” button on the infrared remote controller and press the HOME button on the infrared remote controller.

Setting Menus

The setting menu selected on the main menu is displayed.

Setting Menu The name of the setting menu currently selected is displayed here.

Selected Item Selects a setting item. The selected item is shown by the cursor. Move the cursor up or down by pressing the “↑, ↓” button on the infrared remote controller.

Setting Items The setting items for this setting menu are displayed. Select the setting item using the “↑, ↓” button on the infrared remote controller.

Set Value The currently set values are displayed. To change a set value, use the “←, →” button on the infrared remote controller.

In some product models, only use “←” button on the infrared remote controller to change the value. To confirm the value,

you can use either “→” button or HOME button.

Control Button

You can select the item by pressing “↑, ↓, ←, →” and HOME button.

You can select a menu item by

“↑, ↓”

button on the infrared remote

controller

. The selected item is shown by the

cursor (Color change).

You can change the value of the item by pressing “←, →” button.

You can move to the next layer by

pressing the HOME button.

You can return to the normal display by

pressing the DATA SCREEN button.

When you are operating the menu using the infrared remote controller, you cannot set IR- RECEIVE in the SYSTEM menu to OFF. To set IR- RECEIVE to OFF, use the appropriate VISCA command.

Note

Page 18

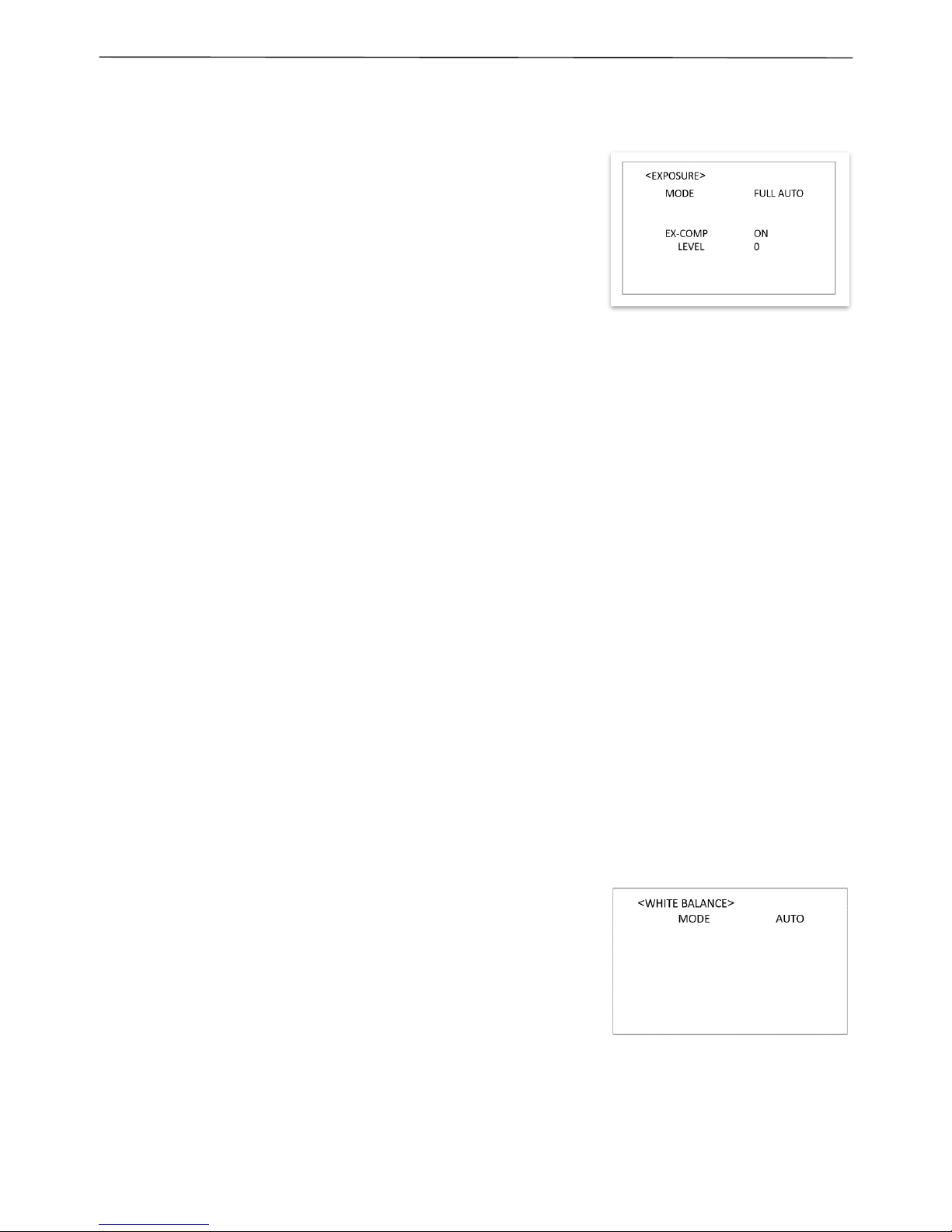

EXPOSURE Menu

The EXPOSURE menu is used to set the items related to exposure.

MODE (Exposure Mode)

FULL AUTO: The exposure is adjusted automatically using the sensitivity, electronic shutter speed, and iris.

BRIGHT: Adjust the brightness level (LEVEL) manually. SHUTTER PRI: Shutter Priority mode. The exposure is adjusted

automatically using the sensitivity and iris. Adjust the electronic shutter speed (SPEED) manually. IRIS PRI: Iris Priority mode. The exposure is adjusted automatically using the sensitivity and electronic shutter speed. Adjust the iris (IRIS) manually. MANUAL: Adjust the sensitivity (GAIN), electronic shutter speed

(SPEED) and iris (IRIS) manually.

When you select one from various exposure modes, some of the following setting items that are required for the selected mode appear.

GAIN: Select the gain from the following:

-3, 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28 dB SPEED: Select the electronic shutter speed from the following: When video format is set to 720P25, 1080P50, 1080i50, 1080P25, 720P50, Speed can be selected from the following: 1/1, 1/2, 1/3, 1/6, 1/12, 1/25, 1/50, 1/75, 1/100, 1/120, 1/150, 1/215, 1/300, 1/425, 1/600, 1/1000, 1/1250, 1/1750, 1/2500, 1/3500, 1/6000, 1/10K. When video format is set to 720P30, 1080i59.94, 1080P29.97, 720P59.94, 1080P59.94, 1080I60, 1080P30, 1080P60, 720P60, Speed can be selected from the following: 1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10K. IRIS: Select the iris the following: CLOSE, F14, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4, F2.0, F1.6 LEVEL: Select the brightness level from 0, 5 to 31.

EX-COMP (Exposure Compensation)

When MODE is set to one of FULL AUTO, SHUTTER PRI or IRIS PRI, set this item to ON to enable exposure compensation. When you set EX-COMP to ON, LEVEL appear and you can select the exposure compensation level from the following:

–10.5, –9, –7.5, –6, –4.5, –3, –1.5, 0, +1.5, +3, +4.5, +6, +7.5, +9, +10.5 If you set the level to 0, exposure compensation will be disabled. Level +10.5 is the brightest and –10.5 is the darkest compensation value. When EX-COMP is set to OFF, exposure compensation does not function.

WHITE BALANCE Menu

The WHITE BALANCE menu is used to select the white balance mode.

MODE (white balance mode)

Select the white balance mode from the following: AUTO, IN DOOR, OUT DOOR, OPW (One Push White Balance), ATW (Auto Tracing White Balance), USER.

When you select USER, R. GAIN (red gain) and B. GAIN (blue gain) appear. You can select each item in the range from 0 to 255.

When you select the OPW (One Push White Balance)

Perform the following operations:

1. Place an image of white subject (For example: A piece of white paper) in the center of the screen.

2. Press the HOME button of the infrared remote controller.

The one-push white balance adjustment is activated.

Page 19

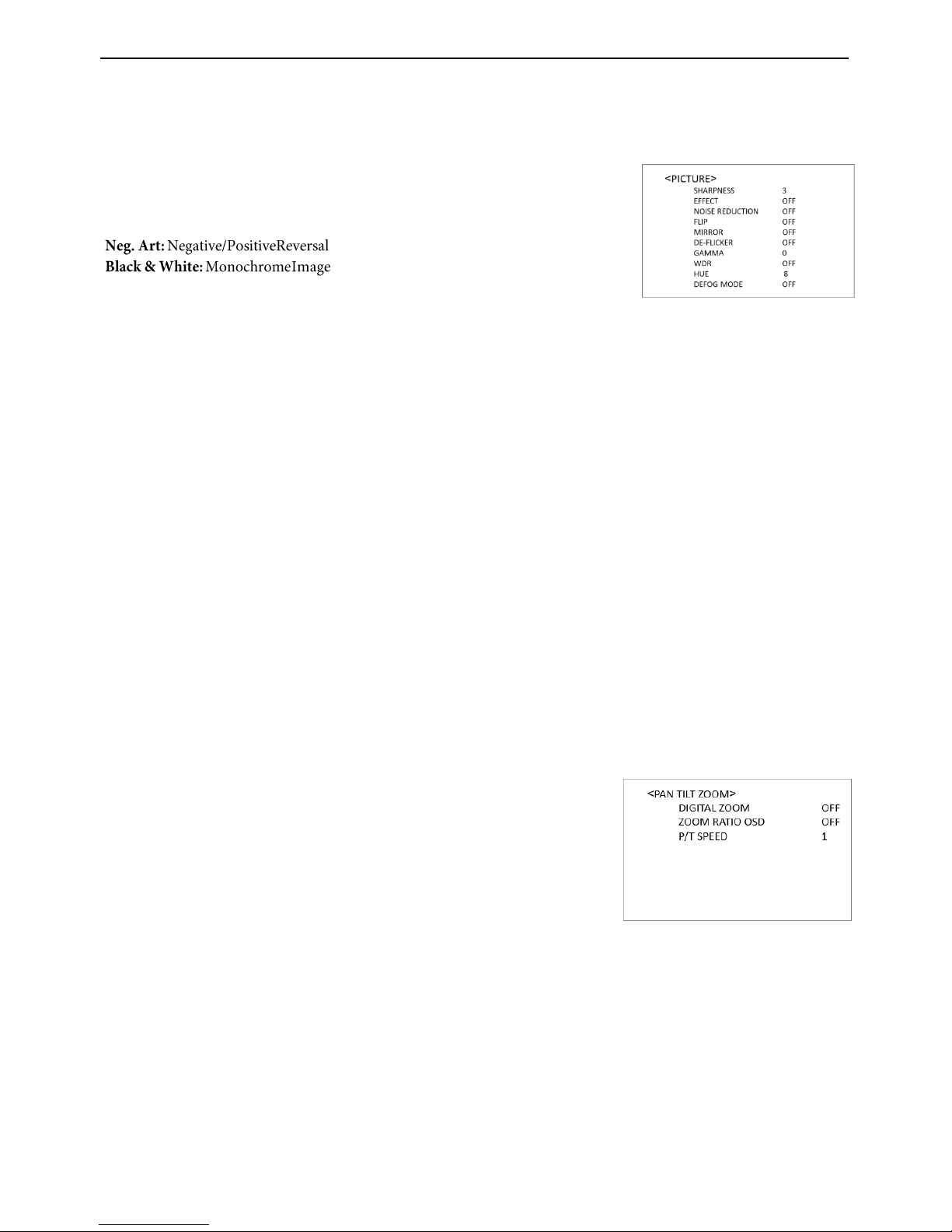

PICTURE Menu

The PICTURE menu is used to set the items related to the picture.

SHARPNESS:

Picture sharpness value ranges from 0 to 15. You can enjoy emphasized edge and high-resolution images.

EFFECT: (Picture Effect)

It consists of the following functions:

Image effect from Off, B&W, NEG.ART

NOISE REDUCTION:

Noise reduction - you can enjoy clearer images by removing unnecessary noise. You can select 4 levels from OFF (MIN), 1 to 5 (MAX).

FLIP:

Image E-Flipper – Used when ceiling mounting or upright mounting. Set to OFF is upright mode, set to ON is for ceiling mount.

MIRROR: You can use it to horizontally flip video. DE-FLICKER:

You can turn it ON if the Video output format frame rate is difference from your country’s electricity Frequency.

GAMMA:

In this mode, the gamma can be set to value from 0 to 2.

WDR: (Wide dynamic range mode): WDR feature is available on certain product models.

Wide Dynamic: ON, OFF. The camera distinguishes light and dark areas within the same scene, adjusts the brightness for dark areas, and also controls the blown out highlights. You can select the wide dynamic range mode between ON and OFF

COLOR

You can configure the color gain from 1-15. Use this setting when bright color is particularly important.

HUE

You can adjust color phase from 1-15.

Defog mode (OFF/LOW/MID/HIG)

When the surrounding area of the subject is foggy and low contrast, the defog mode will make the subject appear clearer.

When it is set to ON, you can select from three levels: LOW, MID, HIG.

PAN TILT ZOOM Menu

The PAN TILT ZOOM menu is used to select the pan/tilt/ zoom mode.

DIGITAL ZOOM:

Set to DIGITAL ZOOM ON, 12X digital zoom is activated. You can set digital zoom to ON or OFF. When set to OFF, digital zoom does not operate, and only optical zoom is available. When set to ON, digital zoom takes over after optical zoom reaches MAX (20X/30X). Up to 200X/300X can be zoomed digitally. When digital zoom is available, the resolution decreases

P/T SPEED:

Set P/T Speed value to from 1 to 5 (The speed from low to high), to change the speed of P/T on remote controller.

ZOOM RATIO OSD (Zoom times display):

Set Ratio OSD to ON, the number of the zoom times that you are operating displays on screen.

Page 20

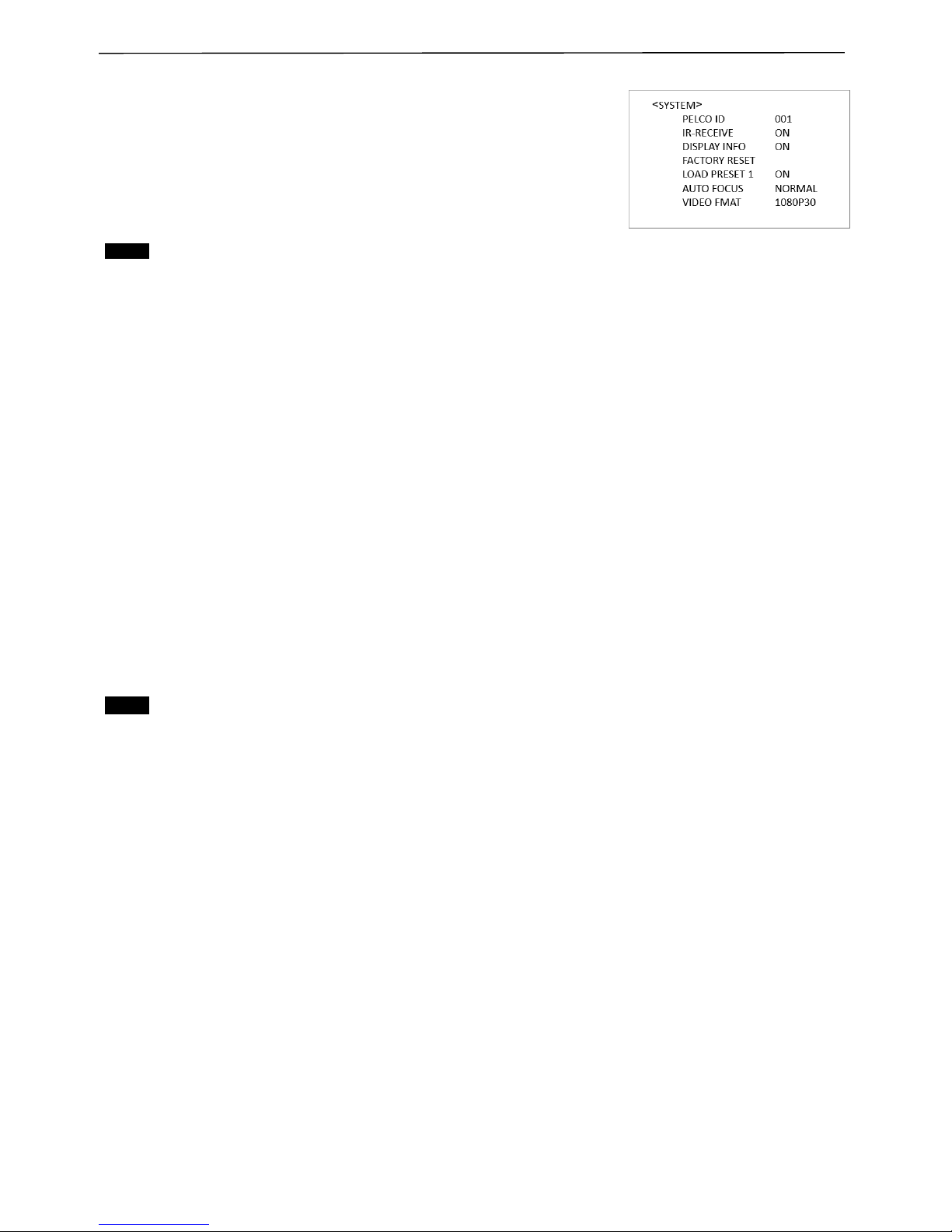

SYSTEM Menu

PELCO ID

When using RS485 (PELCO P/D) control, Set Camera ID to the address that you want to control to. This value is from 001-255.

IR-RECEIVE (Infrared Signal Reception)

When this is set to OFF, the camera does not receive the signal from the infrared remote controller. Be sure to keep it set to ON when you use the infrared remote controller.

Note

You cannot set IR-RECEIVE to OFF when you operate the menu using the infrared remote controller. To set it to OFF, use the appropriate VISCA controller.

DISPLAY INFO

When this item is set to ON, the message of the camera configuration appears for about 3 seconds on the screen, after the camera is powered on or rebooted.

FACTORY RESET

You can select this item to set camera back to Factory Default setting by pressing HOME button to confirm the action. All data of the camera that have been set will be deleted.

RELOAD PRESET 1:

When this item is set to ON, preset 1 is set to Home position. The camera goes to Home position when it is powered on or reset.

AUTO FOCUS

Set speed of auto-focusing from Low to Normal.

VIDEO FORMAT:

You can change the video format by adjusting this item. Select the item, press “←” button to choose the video format you want to set to, then press “→” (Pressing “→” button changes value on some product models) or HOME button to confirm

it. After you confirm your choice, press HOME button again to restore it. The camera will reboot by itself. The new video format is activated. You can cancel it by pressing the DATA SCREEN button. Depending on the video client software you are using, some video software may need to be restarted to obtain the new video format. The video formats that you can select from are: 1080P:60/59.94/30/29.97/25, 1080I:60/59.94/50, 720P:60/59.94/50/30/25

Note

The camera video format can be changed by setting bottom DIP switch as well. For detail, see page 16.

Page 21

Operation Using the Infrared Remote Controller

Pan/Tilt and Zoom Operation

Panning and Tilting

1. Press the POWER switch. The camera will turn on and perform the pan/tilt reset operation automatically.

2. Press the arrow button to pan or tilt the camera. While checking the picture on the screen, press the desired arrow button. To move the camera in short increments, press the button just for a moment.

To move the camera in long increments, press and hold the button. To move the camera diagonally, press the “←, →” button while holding

down the “↑, ↓” button.

Restore to starting position

Press the HOME button.

If the camera moves in a different direction from the one that you intended

The camera is preset so that the image output from the camera is rotated toward the right whenever you press the “←, →” button.

To face the camera toward the opposite direction

You might wish to face the camera toward the opposite direction from that of the button you pressed, for example, when you change the direction of the camera while checking the picture on the screen. In such a case, press the 2 (REV) button while holding down the L/R DIRECTION SET button.

Arrow button

Movement of the

camera

Setting

While holding down

Press

To reset the setting

To reset the setting, press the 1 (STD) button while holding down the L/R DIRECTION SET button.

Arrow button

Movement of the

camera

Setting

While holding down

Press

Note

The above setting only changes the signal emitted from the infrared remote controller, and does not change the setting of the camera itself. Therefore, repeat the setting for each infrared remote controller if you are using more than one infrared remote controller.

When the STANDBY lamp is blinking

If the camera is moved forcibly, or a finger or other object interferes with camera movement, the camera may fail to memorize the pan/tilt position. Press the PAN-TILT RESET button to reset the pan/tilt position.

CAMERA SELECT

RESET

HOME

L/R DIRECTION

SET

Page 22

Zooming

Press either of the ZOOM buttons.

Note

When you perform pan/tilt operation while the camera is in the telephoto mode, the moving speed of the image on the screen may be a little jerky.

Operating Multiple Cameras with the Infrared Remote Controller

1. Set the DIP Switch on the bottom of the camera to the number of camera you

want to operate to 1, 2 or 3. (See bottom DIP Switch setting instruction)

2. Press the CAMERA SELECT button on the infrared remote controller that

corresponds to the number set in step 1.

Then, you can operate the camera(s) specified by number. Every time you operate the camera(s) using the infrared remote controller, the CAMERA SELECT button pressed in step 2 lights.

Adjusting the Camera

Focusing on a Subject

Focusing the camera on a subject automatically

Press the AUTO button. The camera focuses on the subject at the center of the screen automatically.

Focusing the camera on a subject manually

After pressing the MANUAL button, press either the FAR or the NEAR button to have the camera focus on the subject.

Shooting with Back Lighting

When you shoot a subject with a light source behind it, the subject becomes dark. In such a case, press the BACK LIGHT button. To cancel the function, press the BACK LIGHT button again.

Note

The BACK LIGHT function is effective if MODE is set to FULL AUTO in the EXPOSURE menu of the camera.

NEAR

MANUAL

BACK LIGHT

AUTO

Page 23

Storing the Camera Settings in Memory — the Presetting Feature

Memory (Preset)

Using the preset function, 6 sets of camera shooting conditions can be stored and recalled. 6 sets of camera shooting conditions can be stored and recalled by using remote controller. Up to 128 presets via protocol programming.

This function allows you to achieve the desired status instantly, even without adjusting the following items each time.

 Pan/Tilt Position  Zoom Position  Digital Zoom On/Off  Focus Auto/Manual  Focus Position  AE Mode  Shutter control parameters  Bright Control  Iris control parameters  Gain control parameters  Exposure Compensation On/Off  Exposure Level  Backlight Compensation On/Off  White Balance Mode  R/B Gain  Aperture Control  WD Parameter

The settings stored using this function are recalled when the power is turned on.

1. Press the PAN-TILT RESET button to reset the pan/ tilt position.

2. Adjust the position, zooming, focusing and backlighting of the camera.

While holding down the PRESET button, press any of the POSITION buttons, 1 to 6, in which you want to store the settings.

Recalling the stored settings

Press any of the POSITION buttons, 1 to 6, in which you have stored the settings.

Cancelling the preset memory

While holding down the RESET button, press the POSITION button from which you want to cancel the settings.

Notes

 When the power is turned on, the camera starts with the settings

stored in POSITION 1.

 If you want to retain the previous pan and tilt positions, etc. before the

power is turned off and turned on again, store those positions in POSITION 1.

 When you are storing or cancelling the settings in one POSITION,

you cannot call up, store or cancel the settings in another POSITION.

 When the menu is displayed on the screen, you cannot perform the operation for storing, recalling, or

cancelling the setting. Be sure to return to the normal display before starting these operations.

Page 24

Menu Configuration

The menus of the camera are configured as described below. For more details, refer to the pages in parentheses. The initial settings of each item are in bold.

DATA SCREEN EXPOSURE MODE

FULL AUTO

IRIS PRI

CLOSE, F14, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4, F2.0, F1.6

SHUTTER PRI

1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000 sec. See Page 18

BRIGHT 0, 5-31

MANUAL GAIN -3, 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24,26, 28 dB

SPEED

1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000 sec. See Page 18

IRIS

CLOSE, F14, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4, F2.0, F1.6

EX-COMP

OFF

ON LEVEL

–10.5, –9, –7.5, –6, –4.5, –3, –1.5, 0, +1.5, +3, +4.5, +6, +7.5, +9,

+10.5

WHITE BALANCE MODE

AUTO

INDOOR

OUTDOOR

OPW

ATW

USER R GAIN 0-255

B GAIN 0-255

PICTURE SHARPNESS 0, 1, 2,

-15

EFFECT

OFF

, B&W, NEG.A

NOISE REDUCTION

OFF,

1-5

FLIP

OFF,

DE-FLICKER

OFF,

GAMMA

-2

WDR

OFF,

COLOR

1-15

HUE

1-15

DEFOG MODE

OFF,

ON (HIG, MID, LOW)

PAN TILT ZOOM DIGITAL ZOOM

OFF,

ZOOM RATIO OSD

OFF,

ADAPTIVE PT OFF, ON

1~5

PRESET SPEED 1~5

SYSTEM IR-RECEIVE OFF,

DISPLAY INFO OFF,

FACTORY RESET

LOAD PRESET 1 OFF,

AUTO FOCUS

NORMAL

, LOW

VIDEO FMT

1080P:60/59.94/30/29.97/25, 1080I:60/59.94/50, 720P:60/59.94/50/30/25 See Pa ge 20.

P/T SPEED

Page 25

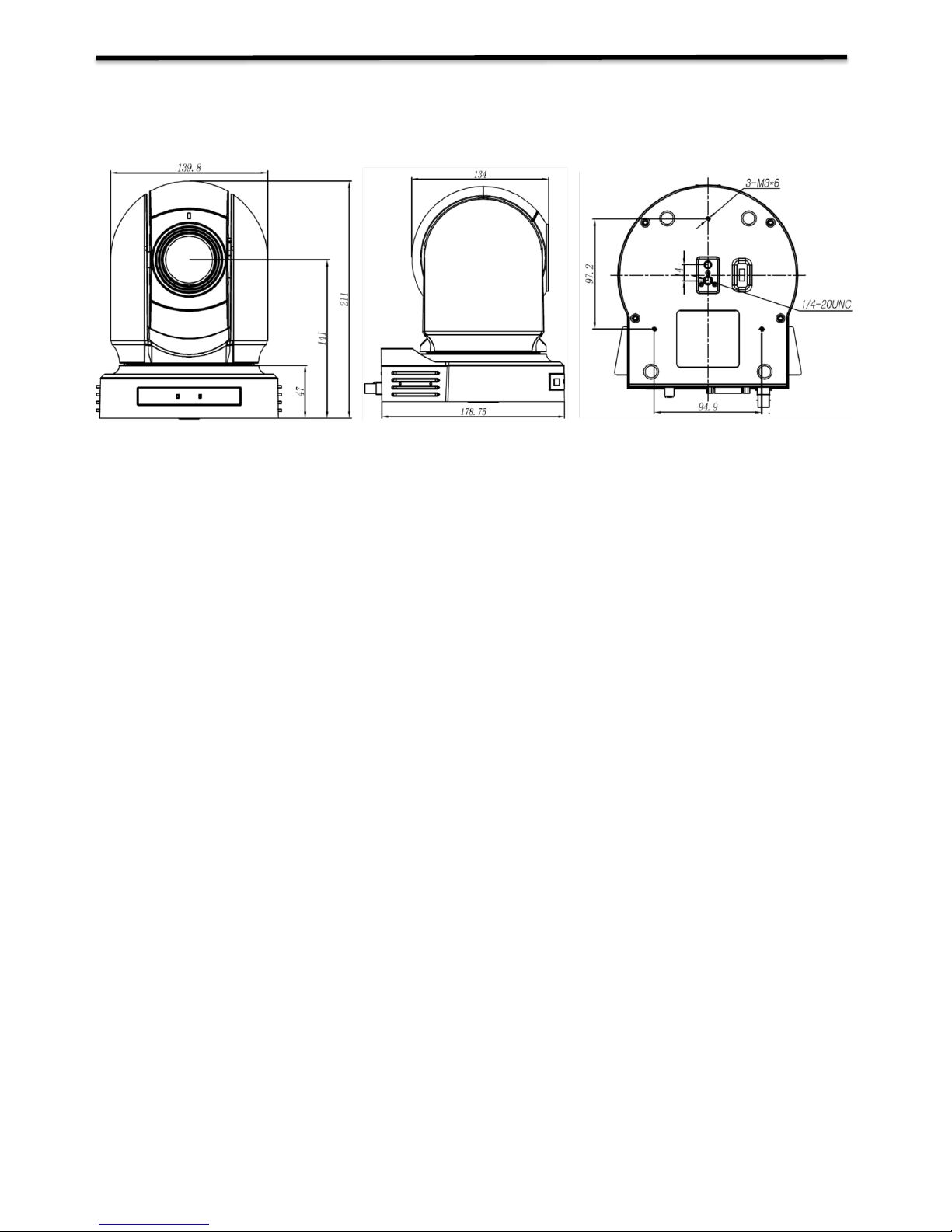

Dimension

Unit: mm

Page 26

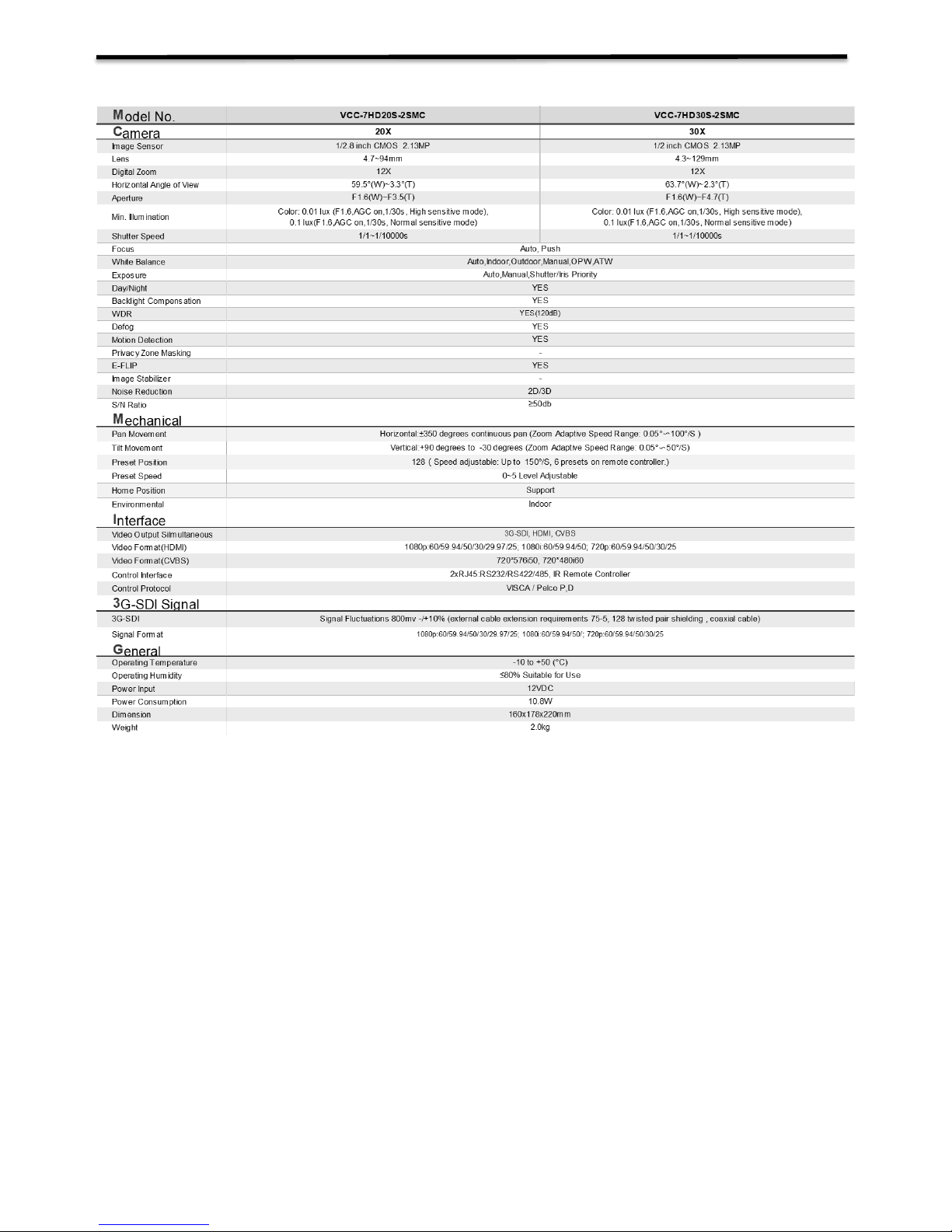

Specifications

Page 27

www.bolintechnology.com

2082 TECHNOLOGY LLC

dba

BOLIN TECHNOLOGY
