bolid EFIR-K User Manual

1

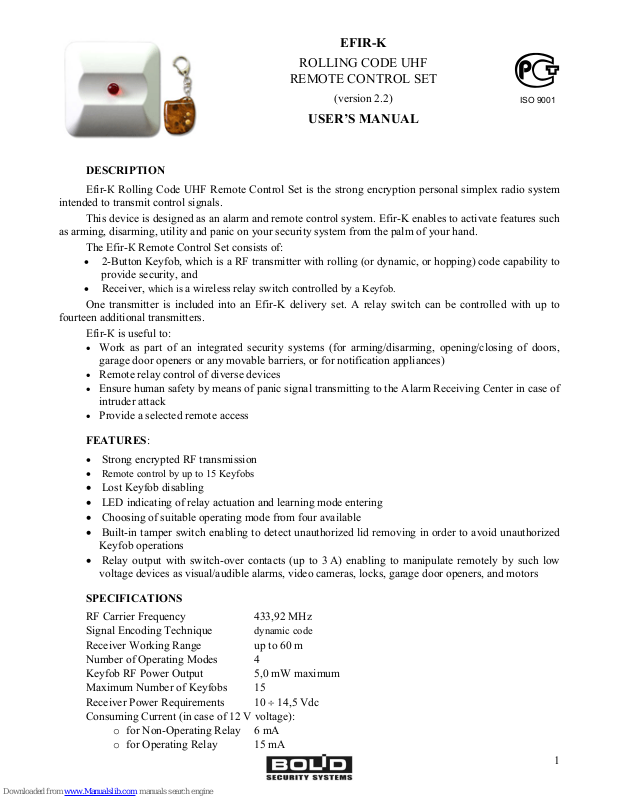

EFIR-K

ROLLING CODE UHF

REMOTE CONTROL SET

(version 2.2)

USER’S MANUAL

DESCRIPTION

Efir-К Rolling Code UHF Remote Control Set is the strong encryption personal simplex radio system

intended to transmit control signals.

This device is designed as an alarm and remote control system. Efir-K enables to activate features such

as arming, disarming, utility and panic on your security system from the palm of your hand.

The Efir-К Remote Control Set consists of:

• 2-Button Keyfob, which is a RF transmitter with rolling (or dynamic, or hopping) code capability to

provide security, and

•

Receiver, which is a wireless relay switch controlled by a Keyfob.

One transmitter is included into an Efir-K delivery set. A relay switch can be controlled with up to

fourteen additional transmitters.

Efir-К is useful to:

• Work as part of an integrated security systems (for arming/disarming, opening/closing of doors,

garage door openers or any movable barriers, or for notification appliances)

• Remote relay control of diverse devices

• Ensure human safety by means of panic signal transmitting to the Alarm Receiving Center in case of

intruder attack

• Provide a selected remote access

FEATURES:

• Strong encrypted RF transmission

• Remote control by up to 15 Keyfobs

• Lost Keyfob disabling

• LED indicating of relay actuation and learning mode entering

• Choosing of suitable operating mode from four available

• Built-in tamper switch enabling to detect unauthorized lid removing in order to avoid unauthorized

Keyfob operations

• Relay output with switch-over contacts (up to 3 A) enabling to manipulate remotely by such low

voltage devices as visual/audible alarms, video cameras, locks, garage door openers, and motors

SPECIFICATIONS

RF Carrier Frequency 433,92 MHz
Signal Encoding Technique

dynamic code

Receiver Working Range up to 60 m
Number of Operating Modes 4
Keyfob RF Power Output 5,0 mW maximum
Maximum Number of Keyfobs 15
Receiver Power Requirements 10 ÷ 14,5 Vdc
Consuming Current (in case of 12 V voltage):

o for Non-Operating Relay 6 mA
o for Operating Relay 15 mA

ISO 9001

2

Output NO/COM/NC Contacts 2А@120 Vac, 3A@24 Vdc
Operating Temperature Ranges:

o Keyfob −10 C to +40 C
o Receiver −30 C to +40 C

WHAT’S INCLUDED

Receiver (without power supply) 1 pcs
RF Keyfob with built-in accumulator 1 pcs
User’s Manual 1 pcs
Package 1 pcs
Screw 2 pcs
Dovel 2 pcs

Additional Keyfobs (up to 14) can be supplied in separate order.

OPERATING DIRECTIVES

The Receiver PC board layout and 2-Button Keyfob view are demonstrated in Figure 1.

Terminals are:

−12 V - Power supply negative pole input
+12 V - Power supply positive pole input
Tamper - Built-in tamper switch contacts
NO - Normally opened dry relay contact
COM - Common dry relay contact
NC - Normally closed dry relay contact
SC - reserved for use in future

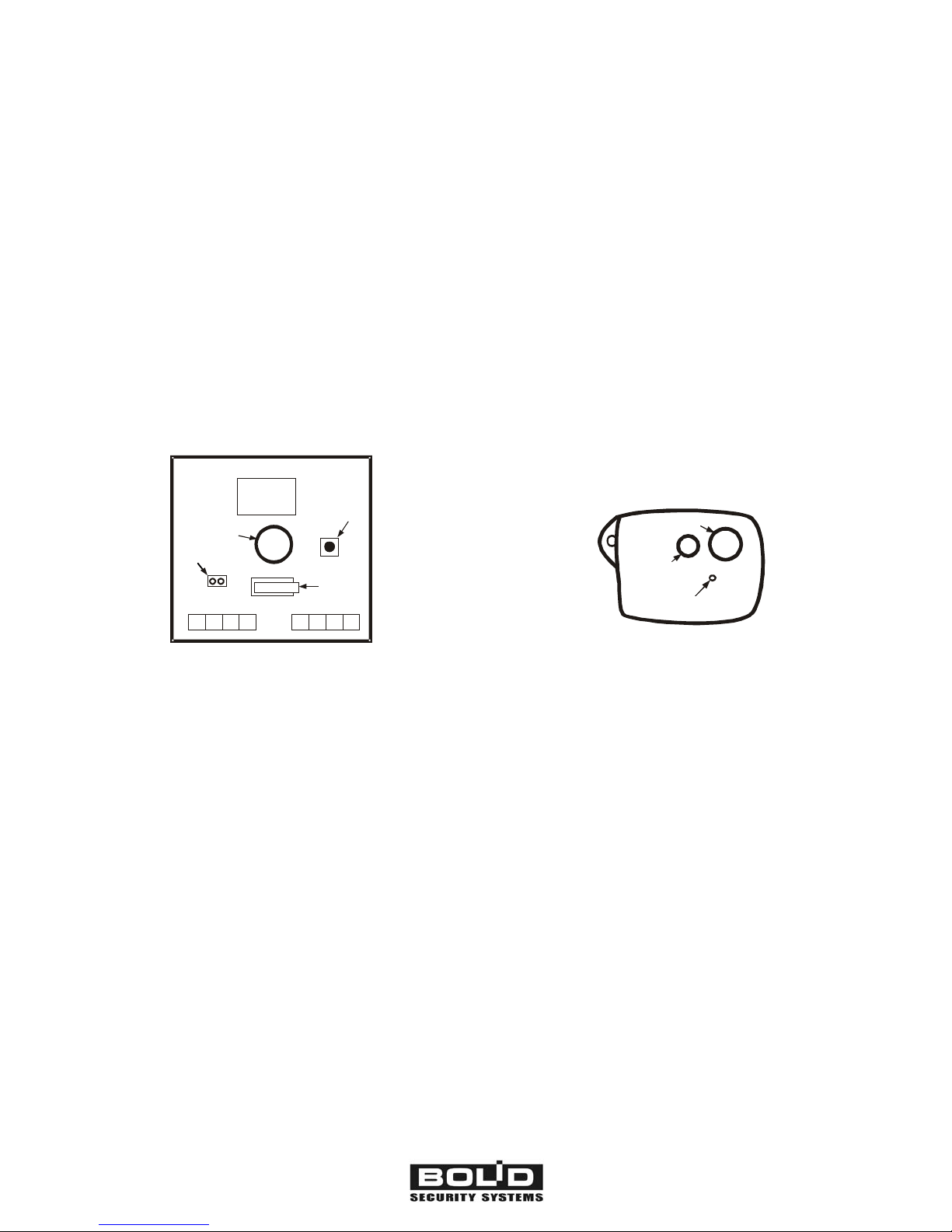

Figure 1: Efir-K Remote Control Set

RECEIVER MOUNTING

Receiver overall and mounting dimensions in mm are represented in Figure 2.

Caution: The Receiver operating range is strongly dependent on its location, as well as on relative
receiver-transmitter position. Large building constructions and metal objects, power lines, vehicles as well as
humans can disturb RF propagation. Landscape details and surrounding vegetation can also attenuate the
signal.

In order to improve range of performance attach the Receiver upright away from strong thermal
sources, air conditioners, direct sunlight, places likely to cause water drops within the Receiver.

Technogenic/human factors should be minimized; particularly the RF sources other than signal from
Receiver. Avoid locations with constant strong electromagnetic fields.

Do not let the Receiver to touch metal objects or to be situated behind metal blinds.

Do not install the receiver close to concrete-steel constructions (less than 0,5 m apart). In case of fixing
to a concrete-steel wall use nonmetallic brackets or some other means so that there will be a distance between
a Receiver and a wall no less than 10 cm.

Радиобрелок

кнопка 1

кнопка 2

индикатор

2-Button Keyfob

Small Button

Large Button

Light Indicator

1 2 3 4 1 2 3 4

12V+ 12V-Tampe

r

NO

SC COM

NC

LEARN

button

Receiver LED

Tamper

switch

Jumper J

Плата приемника

Receiver PCB

Relay

3

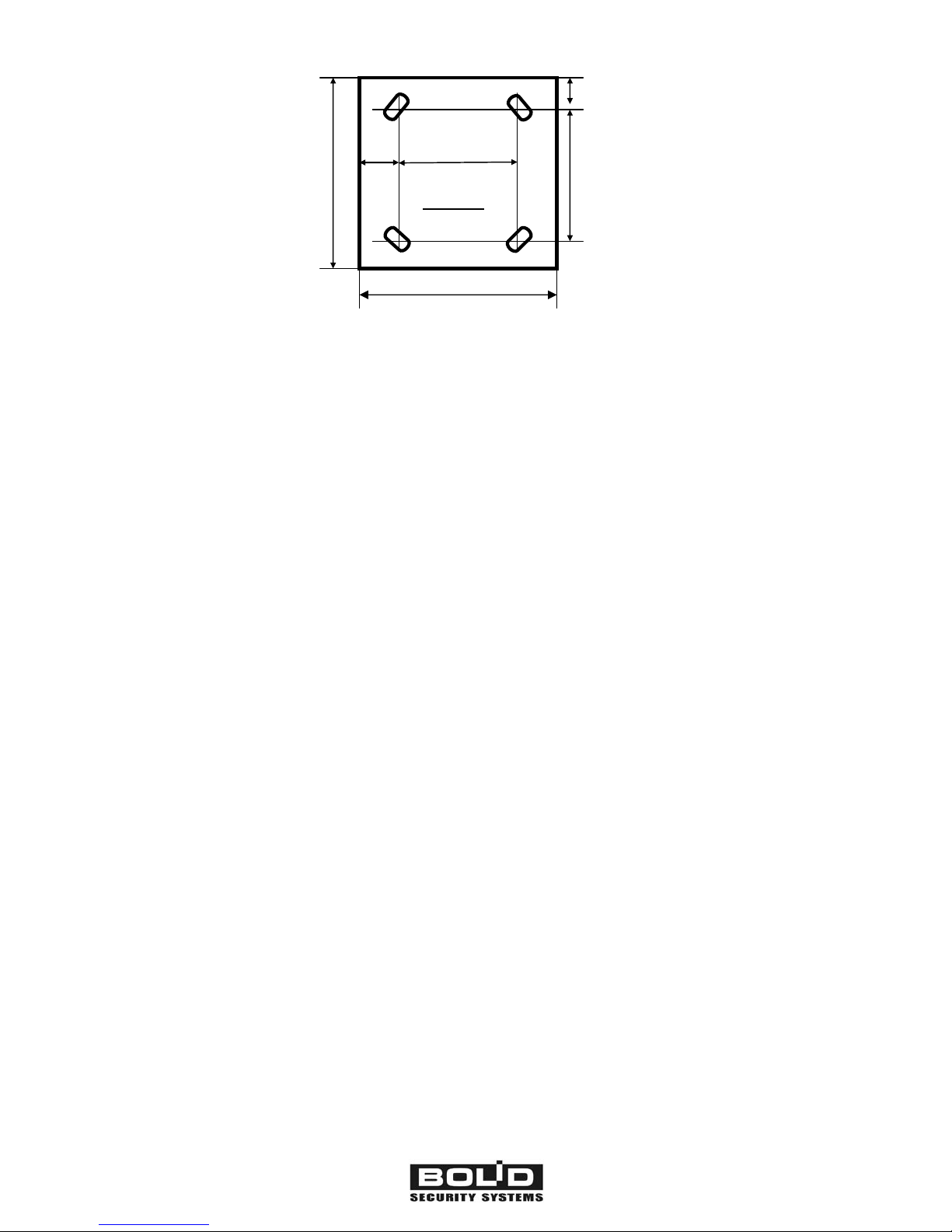

Figure 2: Overall and Mounting Dimensions

The line of sight between a Receiver and a Keyfob should be free of obstacles.

Inspect the Receiver being placed at selected point detects the signals from all possible user locations.

In order to eliminate deadzones or to increase the operating range it can be possible to locate several
Receivers at various locations, the same Keyfobs being to be registered by each of them. In such a case
Receiver relay outputs can be connected either to the same or to diverse executive devices.

A Receiver mounting procedure is as follows.

1. Select the suitable location keeping in mind all recommendations mentioned above.

2. Take off the Receiver lid.

3. Firmly fix the Receiver base with supplied screws and dowels.

4. Wire the corresponding Receiver terminals to a power supply and an executive device in agreement
with required electrical scheme. Some typical application examples are specified below.

5. If necessary connect the Receiver tamper terminals to an available tamper alarm zone. The Receiver
tamper is brought into a scheme along with EOL resistor in series. The value of EOL resistor is
strongly dependent on specified connecting scheme and the equipment the tamper to be connected
to, so, this subject is beyond the scope of this manual.

6. Replace the Receiver lid.

7. Power up the Receiver and the executive device.

RECEIVER OPERATING MODES

A short pressing on the large Keyfob button activates the relay, while a short pressing on the small one
close the relay operation. The Keyfob light indicator lights up when a button is pressed (that is, the relay is
activated).

The relay can operate by four different ways (or modes) depending on the executive device required
behavior. The minimal relay actuating time shall not be less than 2 seconds irrespective of operating mode.

Mode #1: The relay is actuated by a large button pressing and remains on until the small Keyfob button

has not been pressed.

Mode #2: The relay is actuated by pressing on both large and small Keyfob buttons and remains on

until they have been released.

Mode #3: The relay is actuated by pressing on large Keyfob button and remains on until it has been

released.

Mode #4: The relay is actuated by a large button long pressing (more than 3 seconds) and remains on

until the small Keyfob button has not been pressed.

56

14

84 56

14

4 holes 3х8

84

4

RECEIVER OPERATING MODE PROGRAMMING

1. Power off the Receiver and remove the Receiver lid.

2. Put on the jumper J.

3. Connect a 12 Vdc power supply to the Receiver.

4. Power on the Receiver.

5. Consider the Receiver periodically blinking. The number of flashes in sets (singly, by twos, in trees

or in fours) denotes the current operating mode number.

6. To increase the operating mode number press the large Keyfob button. Inversely, to decrement the

operating mode number press the small Keyfob button.

7. Power off the Receiver.

8. Take off the jumper J in order to save the changes.

ADDITIONAL KEYFOB PROGRAMMING

1. Take off the Receiver lid.

2. Connect the Receiver to a 12 ± 2 V direct power supply. Power on the Receiver.

3. Ensure there are no other operating RF transmitters closer than 50 meters.

4. Shortly (within no more than 2 seconds) press the LEARN button located on the Receiver PC board

to program a new Keyfob. The Receiver LED shall light up indicating programming mode initiating.

DCaution: Holding the LEARN button for more than 8 seconds will erase the Receiver memory so

that data about all Keyfobs programmed before will be lost.

5. Shortly press large or small Keyfob button and ensure the Receiver LED goes off. If the LED has no

gone off then the RF relationship between Receiver and Keyfob is not created.

DCaution: If the programming Keyfob button is not pressed within 30 second interval, having been

expired since Receiver programming mode initiating (pressing of the PC board LEARN button), the

programming mode will be prohibited. To resume the programming procedure return to the step 4.

6. In case of programming having been successful (the Receiver LED has gone off after pressing a

Keyfob button) press the Keyfob button once more.

7. To program another Keyfob (no more than 14 additional ones can be programmed) repeat the steps

from 4 to 6.

8. Bring the lid back onto the Receiver base.

9. Ensure all programmed Keyfobs are capable to operate properly having been located at the ordinary

places.

RECEIVER MEMORY CLEARING

Remove the Receiver lid and keep LEARN button pushed for more than 8 seconds. All Keyfobs data
having been already registered will be deleted.

5

TYPICAL APPLICATION

How to Use the Efir-K as a Panic Alarm System

1. Make your election of a required Receiver operating mode and program it as explained above.

2. Program the needful number of Keyfobs to be in use.

3. Attach the Receiver at a suitable location where all programmed Keyfobs are operating. Do not place
the Receiver behind metal blinds, near large metal objects, power lines, air conditioners and sources
of the electromagnetic, thermal and RF fields.

4. Include the Receiver into available security system connecting switch-over relay dry contacts to the
Security Station communication line. The Receiver wiring diagram for such an application is shown
in Figure 3.

5. Connect the Receiver to a usable power supply.

Such a system operates as follows.

As needing help any security system owner sends out an encoding panic signal by means of

corresponding Keyfob button pressing.

The Receiver detects the signal and decrypts it. If the signal is authentic Receiver opens the relay dry
contacts connected to the communication line. As a result Security Station alarm is activated signaling alarm
conditions having occurred.

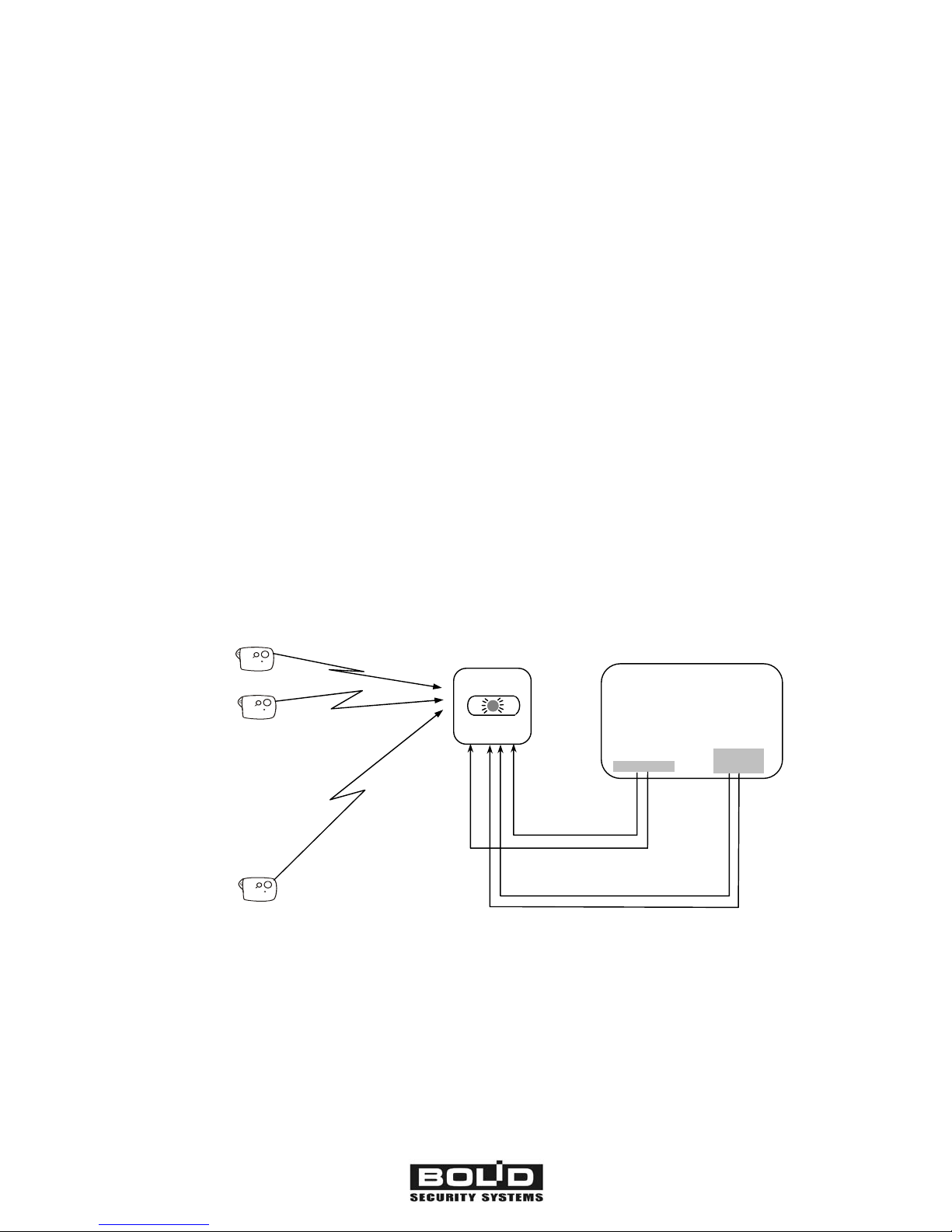

Figure 3: Using the Efir-K for Panic Signal Transmitting

…………

Keyfob 1

Keyfob 2

Keyfob 15

Receiver

Signal is transmitted to a Security Station

6

How to Use the Efir-K for Arming/Disarming

The Efir-K Set can be used as a part of burglary alarm system for remote arming and disarming of
protected premises being co-operated with any control and indicating equipment.

Let us consider the Efir-K Set integrating into the security system based on BOLID Company
manufactured control and indicating equipment such as SIGNAL-VKA, SIGNAL-VK2, SIGNAL-VK-4P,
SIGNAL-VK4 iss.05 and SIGNAL-VK6. To use the Efir-K in such a manner:

1. Program the Receiver to be of operating mode #1 as explained before.

2. Program the needful number of Keyfobs to be in use.

3. Attach the Receiver at a suitable location where all programmed Keyfobs are operating. Do not place
the Receiver behind metal blinds, near large metal objects, power lines, air conditioners and sources
of the electromagnetic, thermal and RF fields.

4. Wire the Receiver to your SIGNAL equipment according with the scheme in Figure 4 and directions
from Table 1.

Such a system operates as follows.

Being coming out of premises an owner closes the door and presses on the large Keyfob button. An
encoded control signal is sent out at once. The signal is detected and decoded by Receiver. In case of
authorization having been successful, the Receiver relay is switched on forcing the SIGNAL device for
arming. The Receiver LED shall light by red.

In order to go inside the premises an owner presses on the small Keyfob button. If the owner stands
within Receiver reach then the Receiver returns the relay to its initial state and the LED goes down. The
SIGNAL device stops monitoring for protecting zones enabling entering inside object without any alarm.

Connecting of an Efir-K Receiver to a SIGNAL control and indicating equipment is specified in Table

1

.

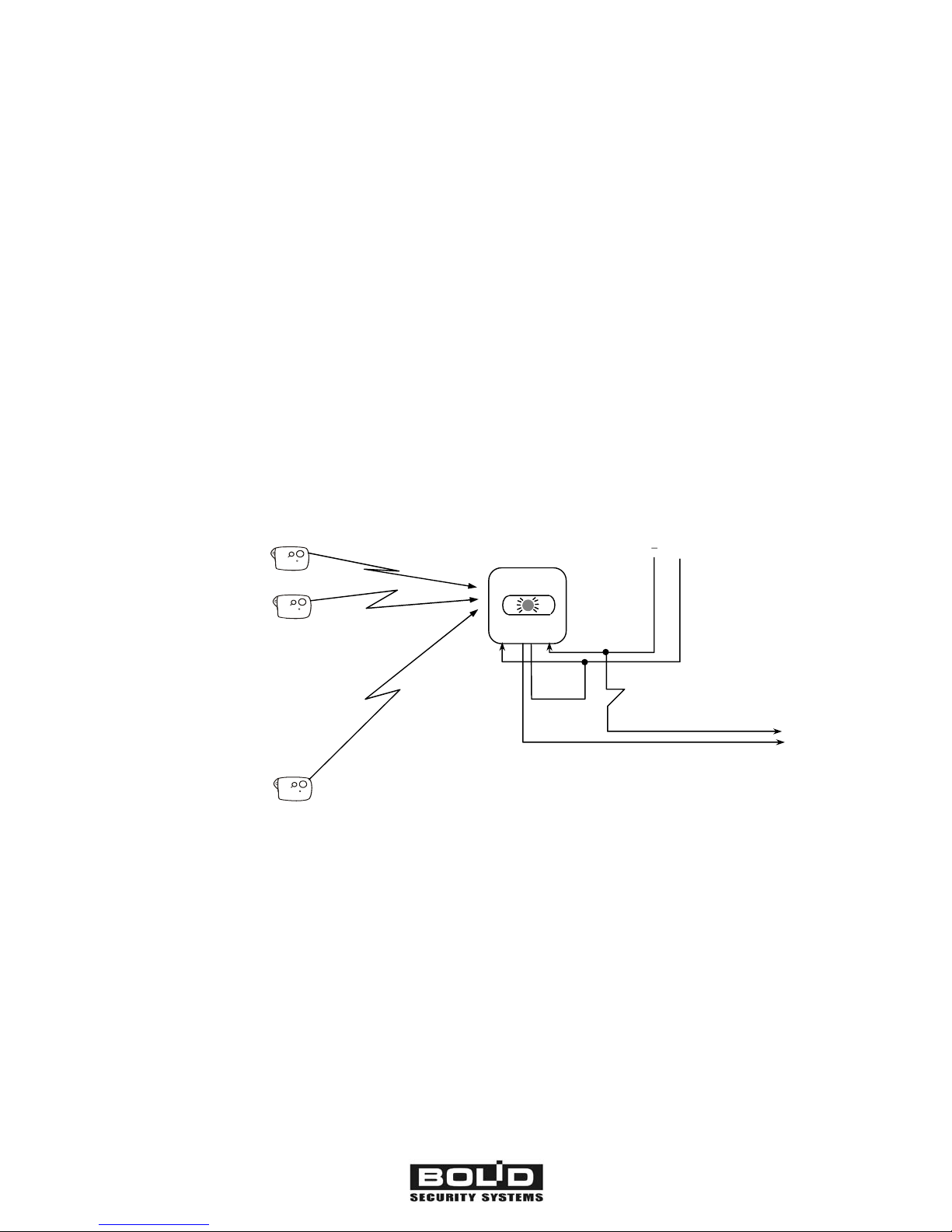

Figure 4: Using the Efir-K for Arming and Disarming

…………

Keyfob 1

Keyfob 2

Keyfob 15

Receiver

12 VDC OUT

Burglary

Zone

to COM

SIGNAL

7

Table 1: Connecting Efir-K Receiver to a SIGNAL Control and Indicating Equipment

Control and Indicating Equipment Efir-K Receiver

Model Name

Terminal

Block

Contact Contact

Terminal

Block

Remarks

+12V 8 2 СОМ (common)

armed/

disarmed

11 3 NС (closed)

0V 7 4 -12V

ХТ2

SIGNAL-VKA ХТ2

+12V 8 2 +12V ХТ1

ARMED/DISARMED

button

of SIGNAL-VKA

has to be set to

ARMED position,

that is

has to be pushed

Solder to the contacts 1 and 2 of

S3 switch

1 NO (opened)

ХТ2.3 -12V 12 2 СОМ (common)

ХТ2

+12V 11 2 +12V ХТ1

SIGNAL-VK2

ХТ2.3

ХТ2

-12V 12 4 -12V ХТ2

Armed/

disarmed

11 2 СОМ (common)

ХТ3

Armed/

disarmed

12 3 NС (closed)

ХТ2

+12V 11 2 +12V XT1

SIGNAL-VK-4P

ХТ2

-12V 12 4 -12V ХТ2

Crypto Device - 1 NO (opened)

ХТ5

Crypto Device - 2

СОМ (common)

ХТ2

+12V 9 2 +12V XT1

SIGNAL-VK4 iss. 05

ХТ2

-12V 10 4 -12V ХТ2

Armed/

disarmed

1 3 NС (closed)

ХТ21

Armed/

disarmed

2 2 СОМ (common)

ХТ2

+12V 1 2 +12V ХТ1

SIGNAL-VK6

ХТ10

-12V 2 4 -12V ХТ2

8

How to Use the Efir-K for Electromechanical Device Manipulation

1. Program the Receiver to be of operating mode #3 as explained before.

2. Program the needful number of Keyfobs to be in use.

3. Attach the Receiver at a suitable location where all programmed Keyfobs are operating. Keep in
mind all mounting recommendations given on page 3.

4. Wire the Receiver in accordance with the connecting diagram presented in Figure 5.

Let’s consider the specific example of such a system operating for an electromagnetic lock. In case of

sound or visual alarm, motor or video camera manipulations the process is similar.

Initially an entrance door is closed, and the lock is switched on. When an owner is about going away,
he presses and holds the large Keyfob button sending out an encrypted executive signal. The Receiver detects
the signal and decodes it. If the signal is authorized the switch-over dry contacts are opened following by the
lock opening. In such a process the Receiver LED shall light by red.

After having gone from the object the owner closes the door and releases the large Key button. The
Receiver LED shall go out. The lock switches on blocking the door.

Coming back the owner repeats actions described before. If he stands within coverage area the
Receiver opens the door, the Receiver LED lighting by red. After having entered the owner releases the large
button, after which the lock is closed and the LED goes out.

Dwelling within the building an owner in such a manner can provide a selective access control or
garage door opener (or any movable barrier) manipulating.

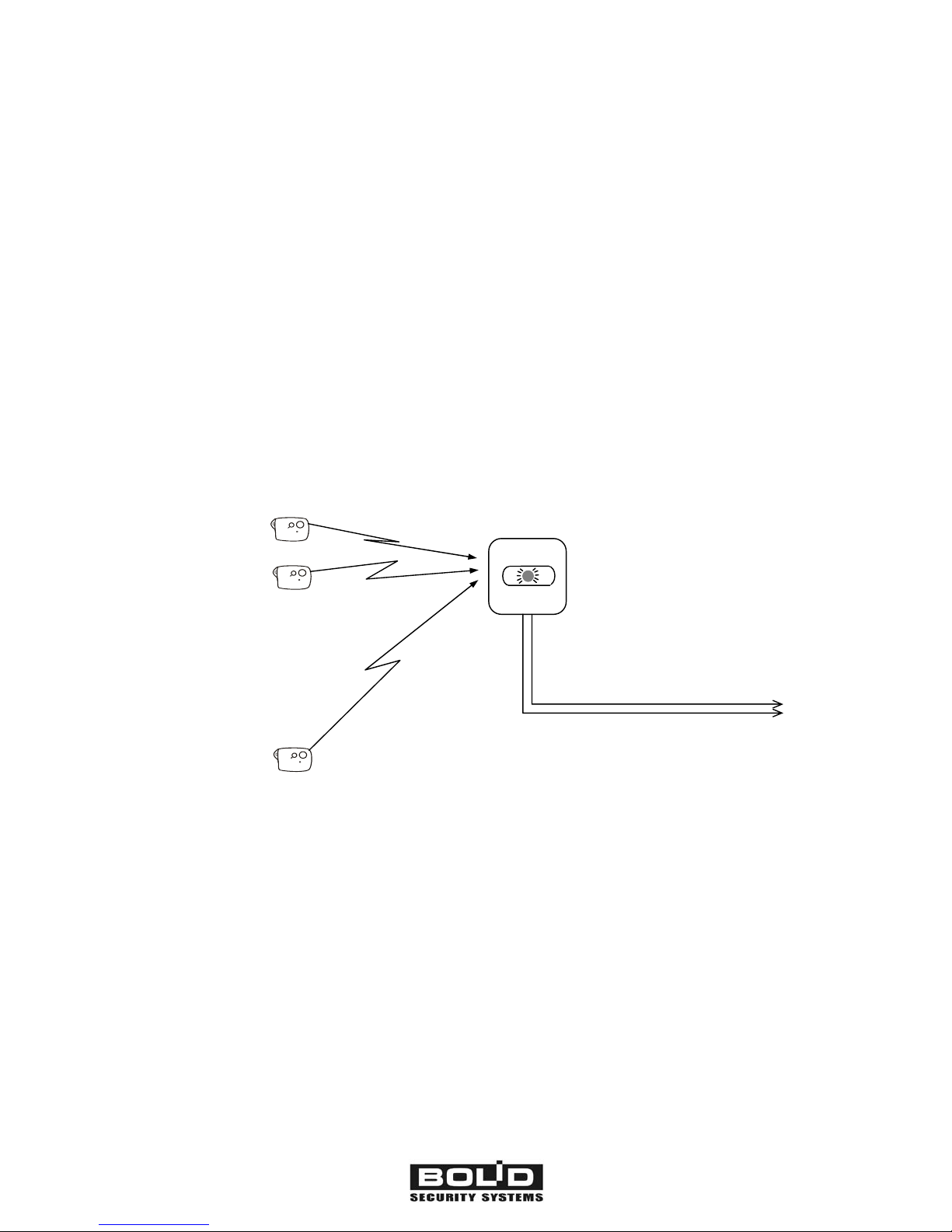

Figure 5: Using the Efir-K for Low Voltage Device Remote Control

…………

Keyfob 1

Keyfob 2

Keyfob 15

Receiver

To the electromagnetic lock

COM

N

C

12 Vdc UPS

End switch

9

WARRANTY

Manufacturer warrants its Efir-K Remote Control Set to be in conformance with specification under
normal transportation, storage, mounting and maintenance. The Efir-K Set average operating life is at least
10 years.

Manufacturer warrants its product to be free from defects in materials and workmanship for 12 months
since putting the Efir-K into operation, but no more then 18 months since production under normal use and
service.

Sending off the Efir-K to the manufacturer for repairing accompany those with a damage certificate
describing the defect. Send your complaints to the manufacturer at the following address:

ZAO NVP BOLID

#4, Pionerskaya street, Korolyov, Moscow Region, Russia, 141070

Tel./fax [phone].

E-mail: [e-mail], Web-site: http://www.bolid.ru.

10

ACCEPTANCE CERTIFICATE

Efir-K Rolling Code UHF Remote Control Set
Product Designation Serial Number

Produced, tested by quality control department in compliance with state standards and specifications, packed

by NVP BOLID Company and qualified as deliverable.

Q.C.
STAMP _____________________ ____________________________
Name Date
