Revolution

SP5634

Please carefully check the unit and make sure there is no damage when you open the carton

QUESTIONS, PROBLEMS, OR MISSING PARTS?

Please Contact Customer Service Before Returning to Store

www.soupro.com

USER MANUAL

[email protected]

Keep this manual for future reference

Download App

+1-800-239-0689

Page 2

Table of Contents

• GENERAL INFORMATION

Package Contents

Safety Instructions

Warranty

• ASSEMBLY INSTRUCTIONS

Preparation

Assembly

• FIREBOX OPERATIONS

FCC/IC Information

Safety Information

Operating Instructions

Fireplace Remote App

Care And Maintenance

Troubleshooting

Package Contents

Fireplace Mantel

SP5634

2 3

Firebox

SP2618-IR-FGPBBT Remote Control

Page 3

Safety Instructions

Please read and understand this entire manual before attempting to assemble, operate or install the product.

IMPORTANT NOTICE

When using electrical appliances, basic precautions should always be followed to reduce the risk of re, electric shock

and injury to persons, including the following:

WARNING: Place this unit in a location that avoids direct sunlight and high temperatures.

WARNING: Plastic bags, nails, etc. should be kept out of reach of children.

WARNING: This appliance is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. Keep

combustible material, such as furniture, pillows, bedding, papers, clothes and curtains, at least 3 feet from the front of the heater and keep them away from the side and rear.

WARNING: Extreme caution is necessary when any heater is used by or near children or individuals with

disabilities and whenever the replace is left operating and unattended.

WARNING: DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar covering. Do not route cord under furniture or appliances. Arrange cord away from traffic areas and where it will not be tripped over.

WARNING: DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause

an electric shock or re, or damage the appliance.

WARNING: This appliance has hot and arcing or sparking parts inside. DO NOT use it in areas where gasoline,

paint or ammable vapors or liquids are used or stored. This replace should not be used as a drying rack for

clothing. Christmas stockings or decorations should not be hung in the area of it.

Page 4

Warranty

1-YEAR LIMITED WARRANTY

Source Pro USA Inc. (hereinafter referred to collectively as “the Company”) warrants that your new Bold Flame Electric

Fireplace is free from manufacturing and materials defects for a period of one (1) year from date of purchase. Subject to the following conditions and limitations:

1. The electric fireplace must be installed and operated at all times in accordance with the installation and operating instructions furnished with the product. Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.

2. This warranty is non-transferable, and is made to the original owner, provided that the purchase was made through an authorized supplier of the Company.

3. The warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship – provided that such part(s) have been subjected to normal conditions of use and service –

after said defect is conrmed by the Company’s inspection. All replacement parts or products will be new,

remanufactured, or refurbished.

4. The Company may, at its discretion, require that any defective part(s) be returned in exchange for the replacement part(s).

5. The Company may, at its discretion, fully discharge all obligations with respect to this warranty by refunding the wholesale price of the defective part(s).

6. This warranty does not cover the LED light bar included with the electric replace.

7. Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s), repair, replacement, or otherwise of same, will not be covered by this warranty, nor shall the Company assume responsibility for the same.

8. The owner/user assumes all other risks – if any – including but not limited to the risk of any direct, indirect or consequential loss or damage arising out of the use, or inability to use the product, except as provided by law.

9. All other warranties – express or implied – with respect to the unit, its components and accessories, or any obligations/liabilities on the part of the Company are hereby expressly excluded.

10. The Company neither assumes, nor authorizes any third party to assume on its behalf, any other liabilities with respect to the sale of the unit.

11. The warranties as outlined within this document do not apply to non-accessories used in conjunction with the installation of this product.

12. This warranty gives you specic legal rights, and you may also have other rights which vary from state to

state.

This warranty is void if:

(a) The replace is subjected to prolonged periods of dampness or condensation.

(b) Any unauthorized alteration, willful abuse, accident, or misuse of the product. (c) You do not have the original purchase receipt.

IF WARRANTY SERVICE IS NEEDED

Please Contact Customer Service

www.soupro.com

Make sure you have the following information ready:

• Warranty

• Sales Receipt

• Product Model/Serial Number

• Date of Purchase

• Location of Purchase

4 5

[email protected]

+1-800-239-0689

Page 5

Preparation

IMPORTANT INFORMATION

1. Before you begin, locate the instructions and hardware. Be sure you have all of the parts and can identify

them.

2. To avoid scratching the finish, assemble the product on a soft, non-abrasive surface such as carpet or

cardboard.

3. Assembly of this product may require more than one person.

Tools Required

Philips Screwdriver Hand Drill Hex Key

Hardware Identication

Number of spare hardware is indicated in ( ).

BB x 39+(4)AA x 8+(1) DD x 2 EE x 18 FF x 2CC x 24+(3)

GG x 1

NN x 4+(2)

Use the Touch-up Pen to cover surface scratches.

WARNING: The included plastic wall anchors (OO) are intended for use with solid wall applications only (tile and concrete). DO NOT USE WITH DRYWALL OR OTHER HOLLOW WALL APPLICATIONS.

II x 16+ (2)

OO x 2

JJ x 1

Touch-up Pen

HH x 1

KK x 2 LL x 2+(1)

MM x 2+(1)

Page 6

Preparation

Parts List

Top Panel

Insert Top Front Trim

Left Side Panel

Inner Side Panel

Right Side Panel

x 1

x 2

x 1

Door

Base

Back Panel

Adjustable Shelf

Insert back Panel

x 2

x 1

x 2

x 1

6 7

Page 7

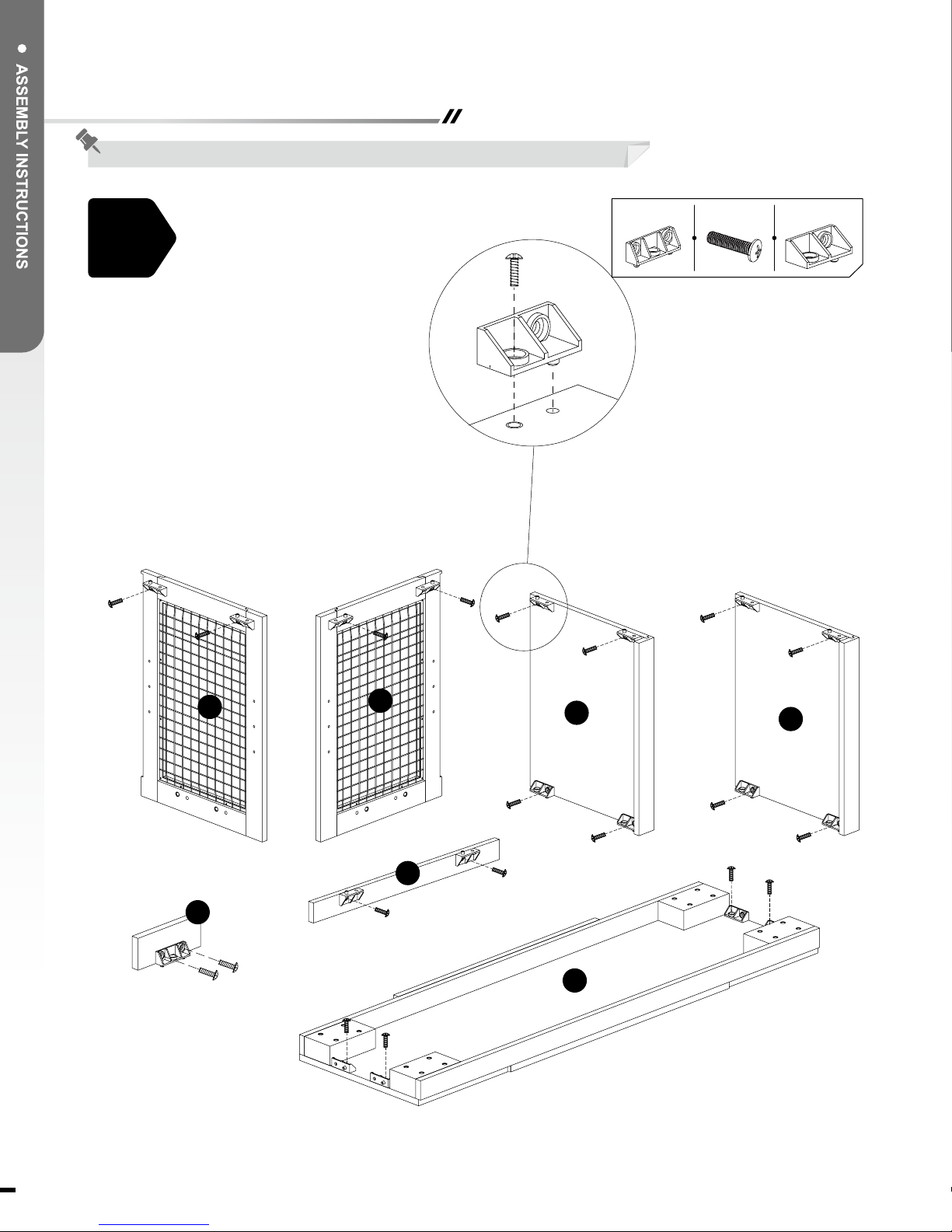

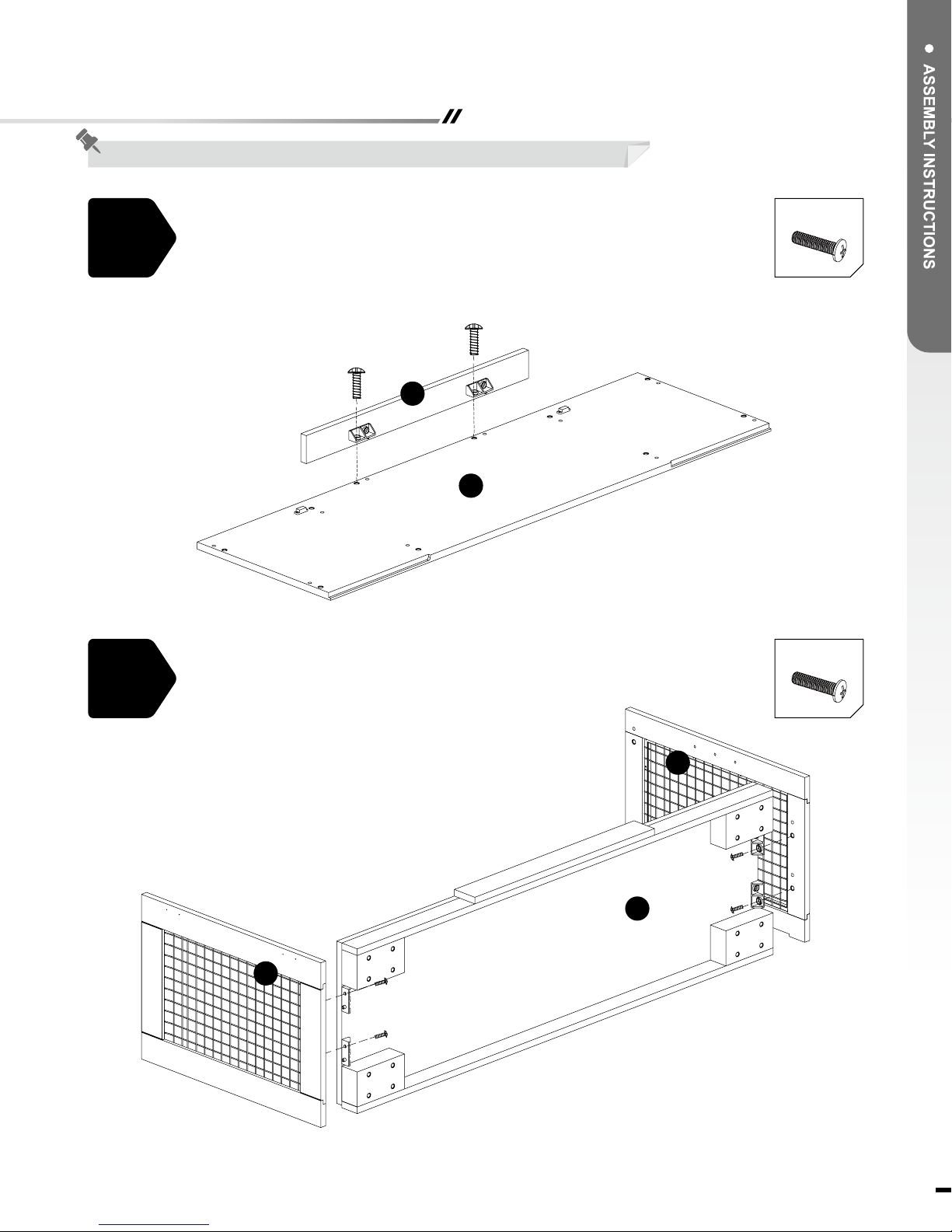

Assembly

Do not fully tighten screws during assembly. Only tighten when all parts are installed in place.

Unscrew two screws from each side, located behind the side

anges. Keep them for later use.

Caution: Do Not let front face panel fall forward once the

screws are removed. This could break the glass or lead to damage or injury.

Gently lean the top of the face panel away from the body. Make sure to support the face panel so it does not drop totally forward. Unplug the wires that connect the control panel.

Spread the Acrylic Shards onto the emberbed area.

Then Re-Install the face frame. Align the front frame with the

body, plug in the wire bundle to the control panel. Install the four screws.

Page 8

Assembly

Do not fully tighten screws during assembly. Only tighten when all parts are installed in place.

EE EE

JJ x 1

CC x 18BB x 20

8 9

Page 9

Assembly

Do not fully tighten screws during assembly. Only tighten when all parts are installed in place.

BB x 2

BB x 4

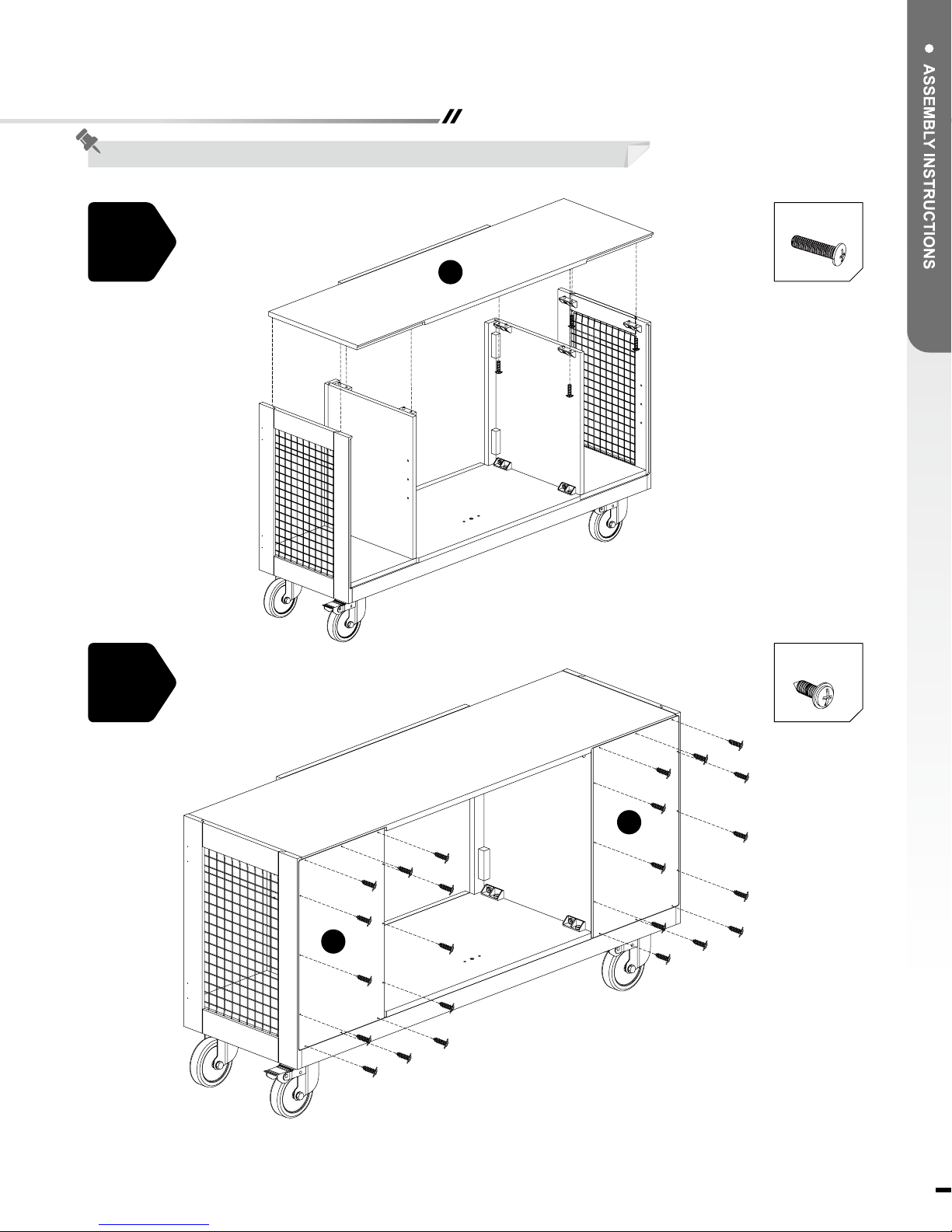

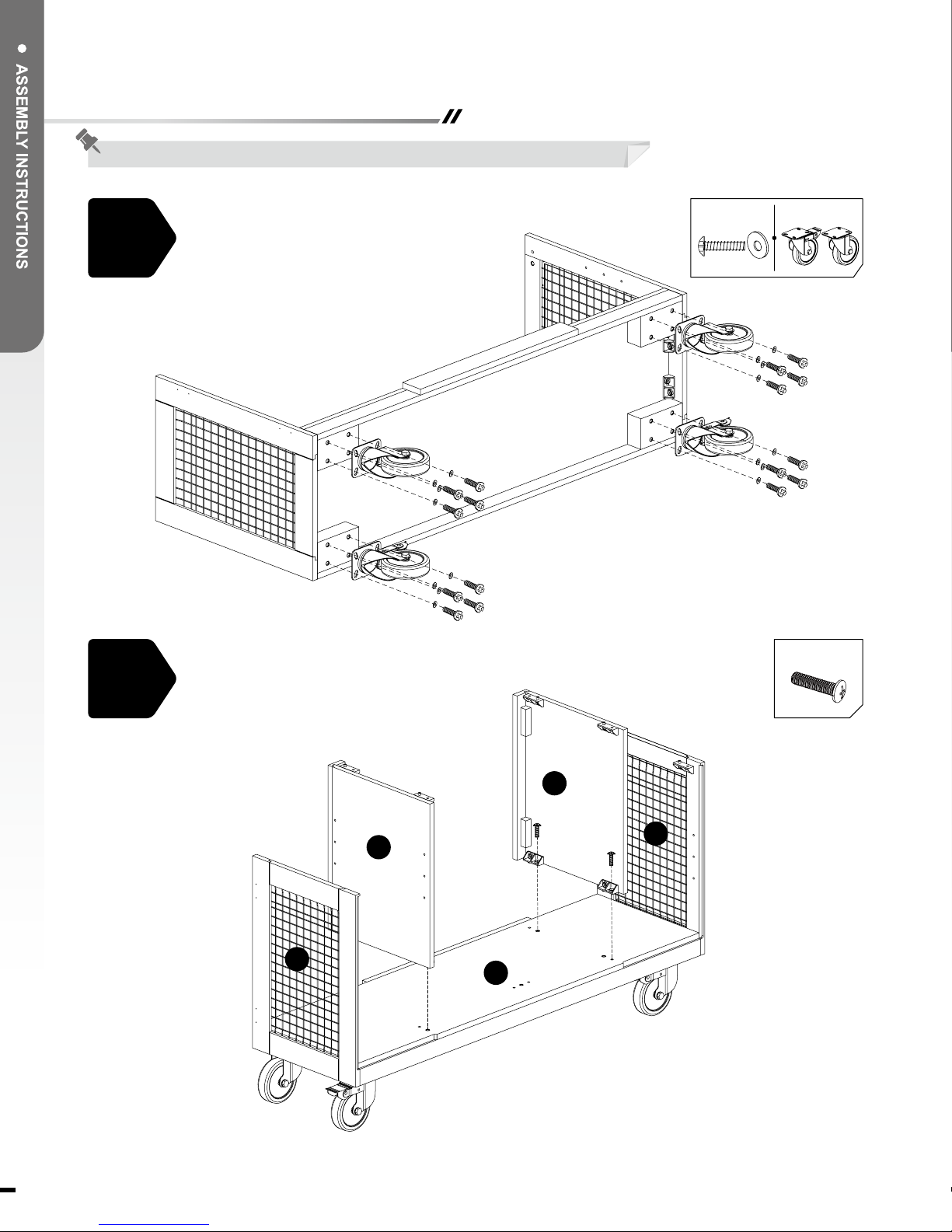

Page 10

Assembly

Do not fully tighten screws during assembly. Only tighten when all parts are installed in place.

FF x 2II x 16

BB x 4

10 11

Page 11

Assembly

Do not fully tighten screws during assembly. Only tighten when all parts are installed in place.

BB x 8

10.

CC x 24

Page 12

Assembly

Do not fully tighten screws during assembly. Only tighten when all parts are installed in place.

11.

AA x 8

12.

DD x 8

12 13

Page 13

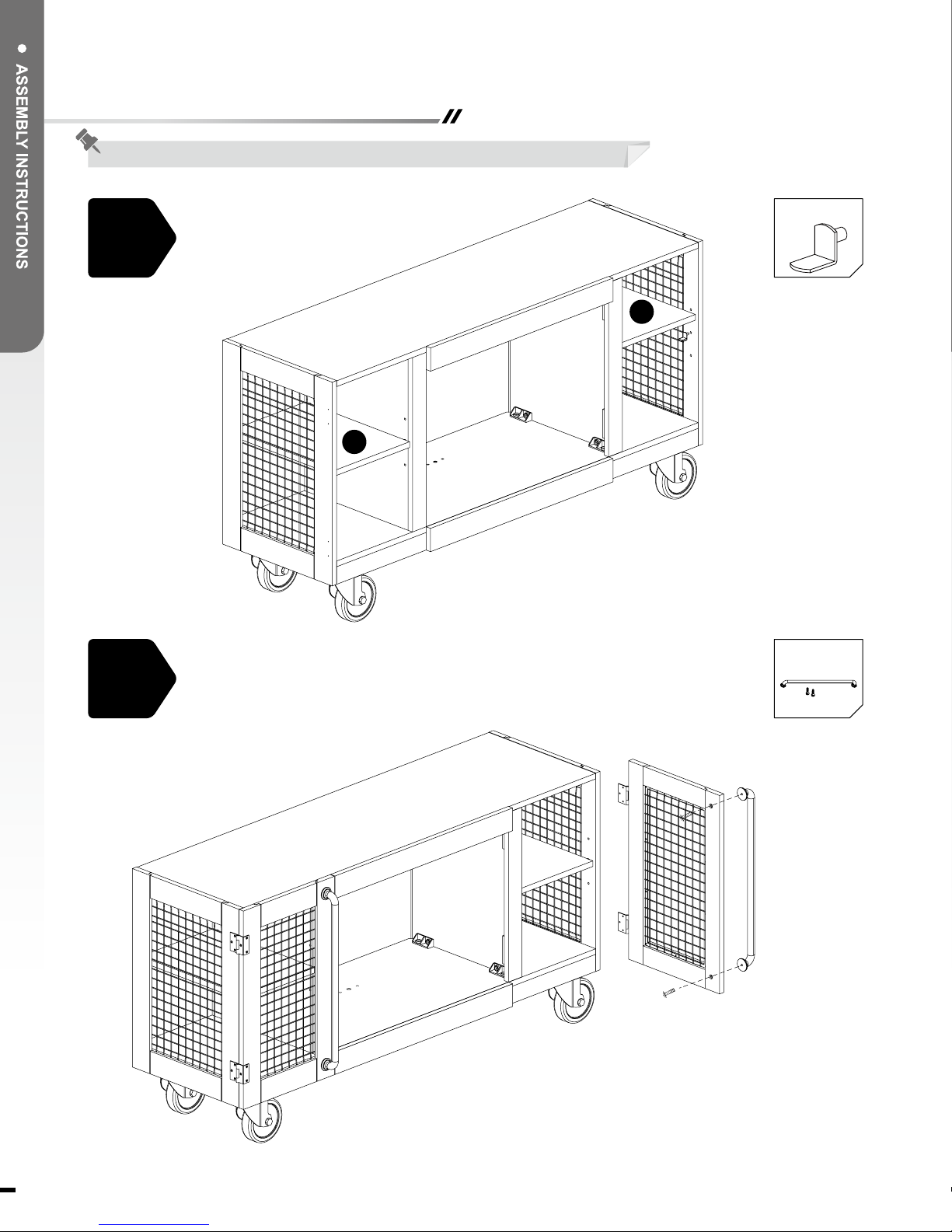

Assembly

Do not fully tighten screws during assembly. Only tighten when all parts are installed in place.

13.

14.

BB x 1

Page 14

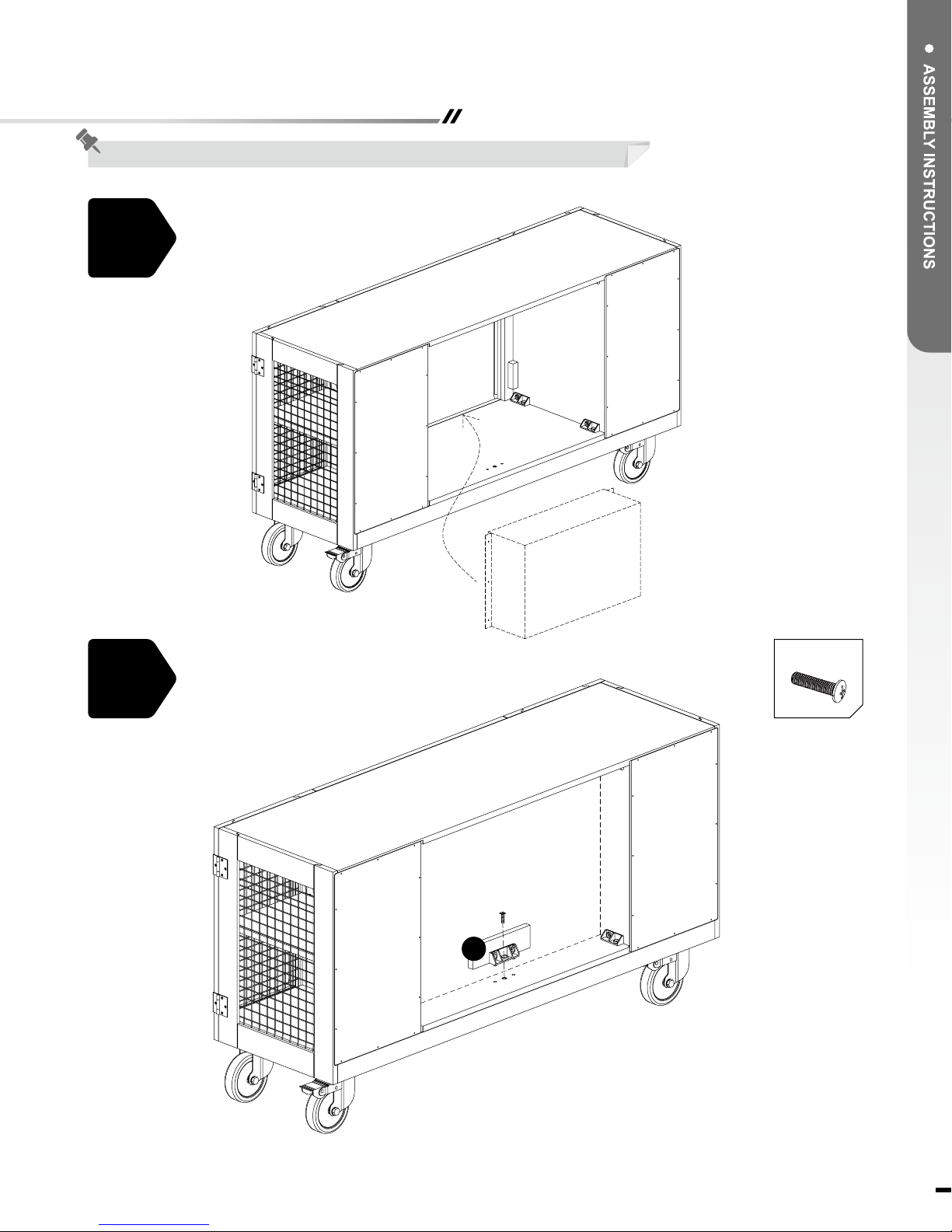

Assembly

Do not fully tighten screws during assembly. Only tighten when all parts are installed in place.

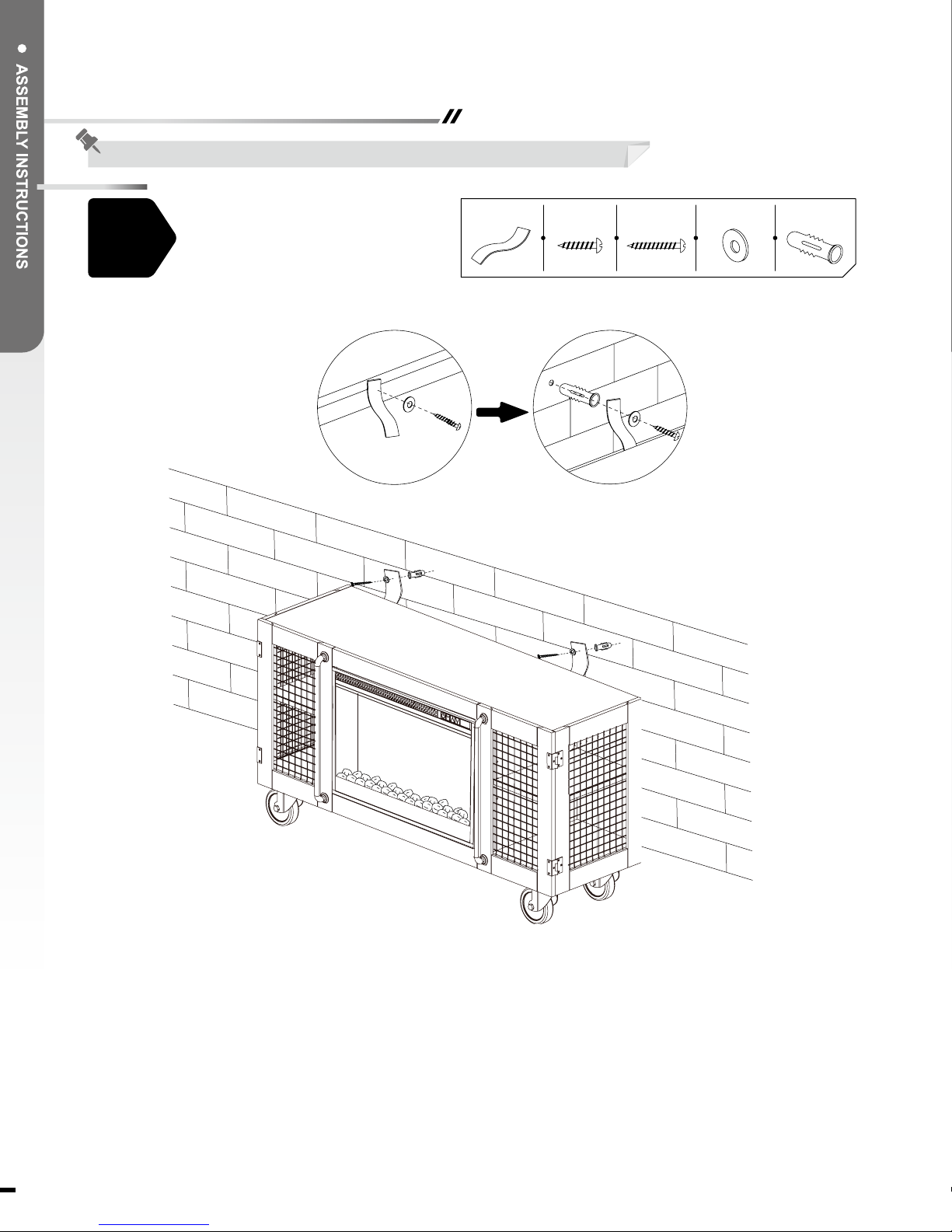

Anti-Tipping Device

LL x 2KK x 2 MM x 2 NN x 4 OO x 2

15.

14 15

Page 15

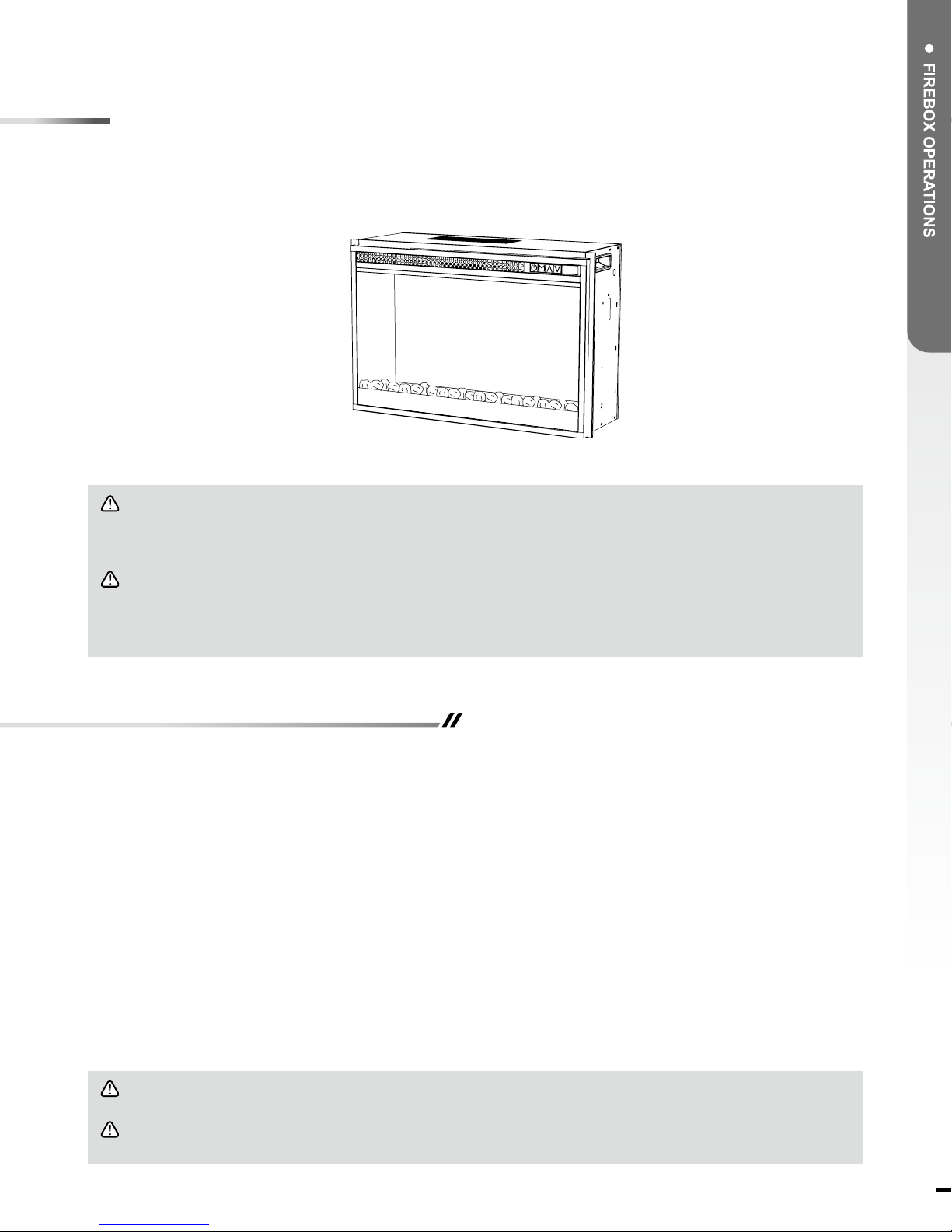

Firebox Model

SP2618-IR-FGPBBT

ATTENTION:

• Find a location for the rebox that is protected from direct sunlight.

• Failure to read all instructions may result in a possible electric shock, re hazard and/or injury and will void

the warranty.

WARNING:

• If the information in this manual is not followed exactly, an electric shock or re may result causing property

damage, personal injury or loss of life.

• Do not store or use gasoline or other ammable vapors or liquids in the vicinity of this appliance.

FCC / IC Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and the receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Industry Canada License-exempt RSS-210. Operation is subject to the following two condtions: (a) this device may not cause interference, and (b) this device must accept any interference, including interference that may cause undesired operation of the device.

CAUTION: To maintain compliance with the RF exposure guidelines, place the base unit at least 20cm from nearby persons.

WARNING: Modication of this device to receive cellular radiotelephone service signals is prohibited under FCC rules, IC license and federal law.

Page 16

Safety Information

Use this rebox only as described in the manual. Any other use is NOT recommended by the manufacturer and may cause re, electric shock or injury to persons.

CAUTION:

• If possible, ALWAYS unplug this rebox when not in use.

• DO NOT operate any rebox with a damaged cord or plug or after the heater malfunctions.

• DO NOT operate any rebox if it has been dropped or damaged in any manner. Disconnect power at service panel and have rebox inspected by a reputable electrician before reusing.

• Any repairs to this unit should be carried out by appropriately qualied service personnel.

• Under no circumstances should this unit be modied. Parts having to be removed for servicing must be replaced prior to operating this unit again.

• DO NOT use outdoors.

• This unit is not intended for use in bathrooms, laundry areas and similar indoor locations. NEVER place heater where it may fall into a bathtub or other water container.

• To disconnect this unit, turn all controls to the OFF position, then remove plug from outlet.

• ONLY connect to properly grounded outlets.

• This appliance, when installed, must be electrically grounded in accordance with local codes, with the current CSA C22.1 Canadian Electrical Code or, for USA installations, follow the National Electrical Code, ANSI/NFPA NO.70.

• To prevent a possible re, DO NOT block any air intakes or exhaust in any manner. DO NOT use on soft surfaces, like a bed, where opening may become blocked.

• ALWAYS plug this unit directly into a wall outlet/receptacle. NEVER use with an extension cord or relocatable power tap (outlet/power strip).

• This heater includes an automatic protection system that will shut off the unit to prevent overheating. If the unit is at risk of overheating, the front panel will display "E1" and a thermal cut out will shut off the heater to prevent damage or risk of re.

• DO NOT slide rebox on top of wood to avoid scratching wood surface.

• DO NOT place any objects on top of rebox and top air intake vents as this will cause the unit to overheat and can cause a re.

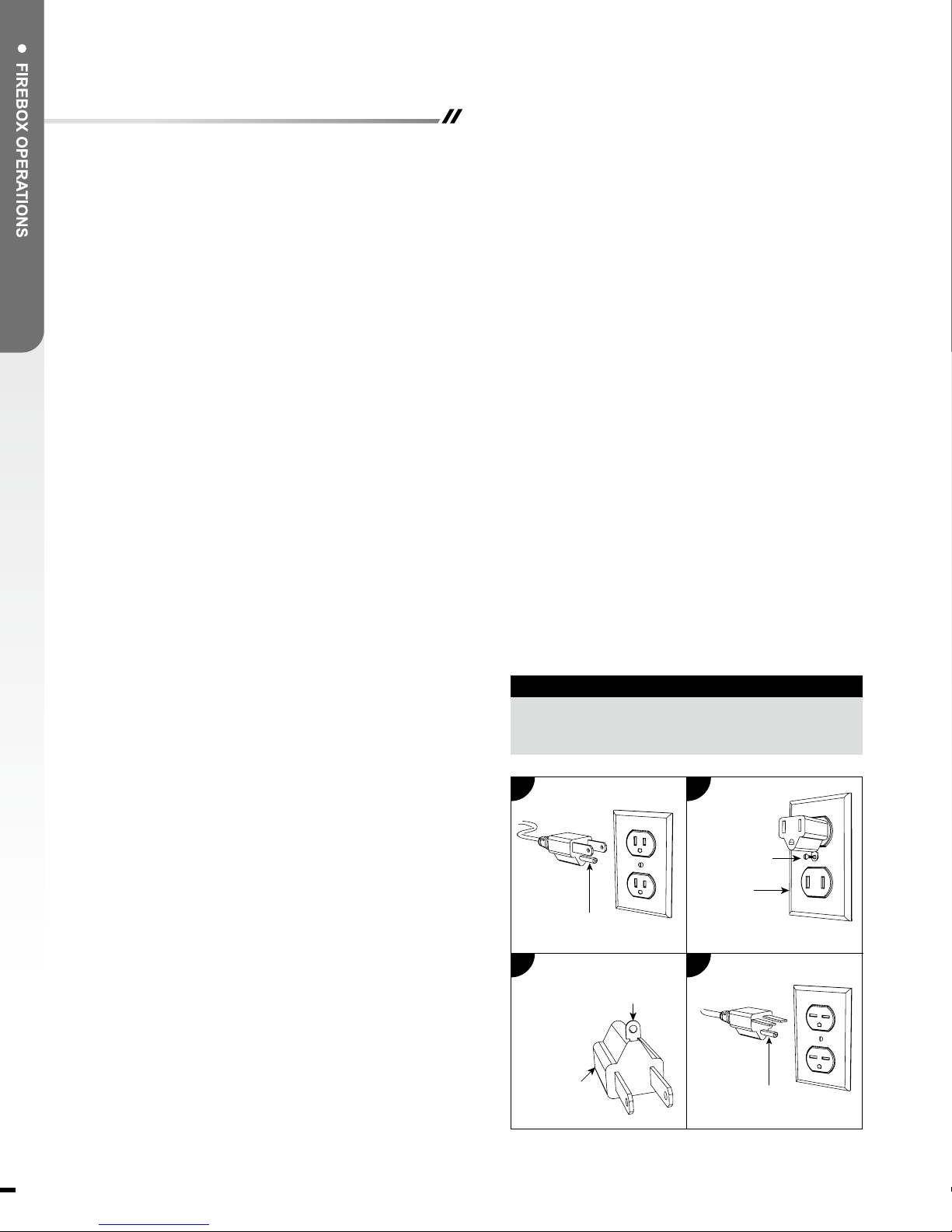

ELECTRICAL CONNECTION:

• A 15-amp, 120-volt, 60 Hz circuit with a properly grounded outlet is required. Preferably, the fireplace will be on a dedicated circuit as other appliances on the same circuit may cause the circuit breaker to trip or the fuse to blow when the heater is in operation. The unit comes standard with 6-ft. three-wire cord, exiting from the rear of the fireplace. DO NOT exceed the current rating of the current tap. ALWAYS plug this unit directly into a wall outlet/receptacle. NEVER use with an extension cord or relocatable power tap (outlet/power strip).

• This rebox is for use on 120 volts. The cord has a plug as shown below. See illustration for grounding instruction. An adapter as shown at C is available for connecting threeblade grounding type plugs to two-slot receptacles. The green grounding lug extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle is available.

Grounding Pin

Grounding Means

Adapter

ELECTRICAL SPECIFICATIONS

Voltage: Amps: Watts:

120 VAC, 60 Hz

12.5 Amps 1500 Watts

Metal Screw

Cover of Grounding Box

Grounding Pin

16 17

Page 17

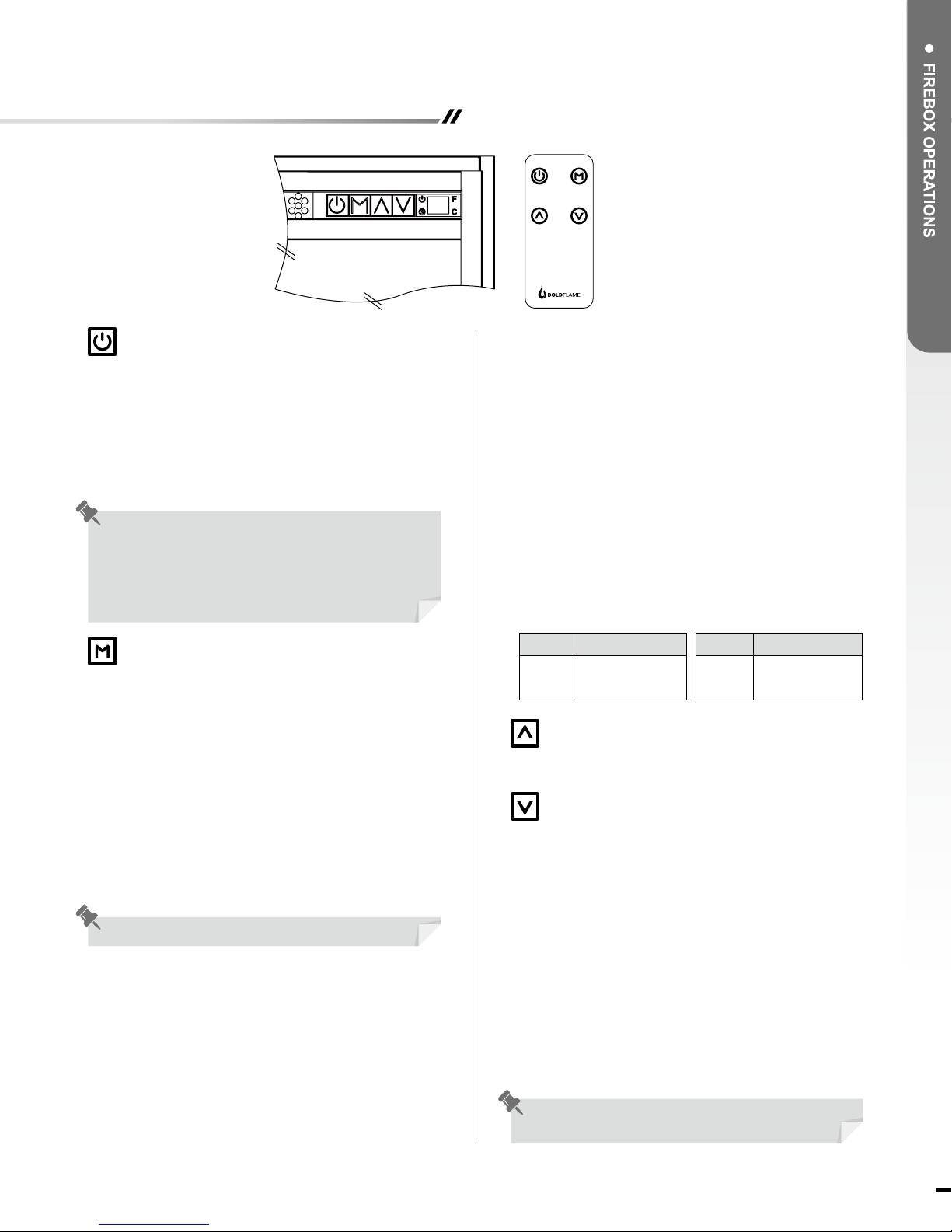

Operating Instructions

Power Button

• Press the POWER button to turn ON or OFF the unit.

• When the unit is in ON mode, the power icon indicator light will be shown green.

• When the unit is in OFF mode, the power icon indicator light will be shown red. When power OFF, unit will be stopped, if heater is working before power OFF the unit, fan will have 20 seconds delay to ensure heat will not be trapped inside the unit.

Each time the rebox is plugged in, a 5-second fan and heater will turn on for internal check program.

The unit has a memory function with last settings for heating level and ame brightness effect, unless the main power to the unit has been interrupted.

Mode Button

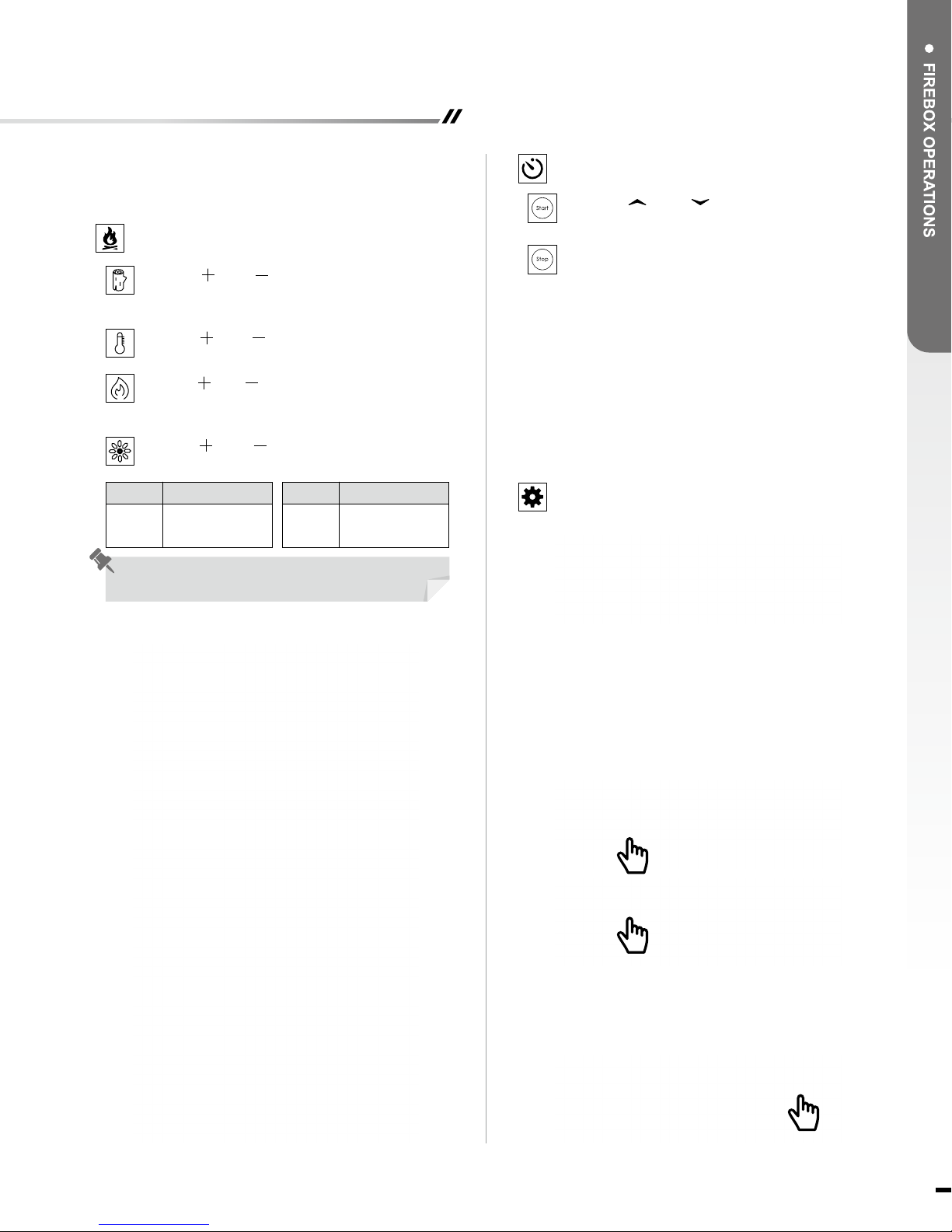

• Press the MODE button to cycle through the different functions. Each time the MODE button is pressed, the mode will enter the next function – Temperature, Timer, Ember Bed Brightness, Flame Brightness, or Flame Color.

Temperature Mode

• The Temperature Mode controls the heater’s thermostat setting.

• Press UP arrow button or DOWN arrow button to scroll through temperature settings: 59°F – 86°F (15°C – 30°C), ON, OF (OFF).

• Hold the MODE button for 3 seconds; this toggles the temperature unit between °C or °F.

This function is only available if using the control panel.

• When the ambient temperature is higher than the set temperature, heater will turn off automatically.

Timer Mode

• The Timer Mode sets the fireplace to automatically shutoff.

• Press UP arrow button or DOWN arrow button to adjust the timer setting from 0 hour (OFF) to 9 hours with 0.5 hour intervals.

Ember Bed Brightness Mode

• The Ember Bed Brightness Mode sets the ember bed brightness.

• Use the UP arrow button or DOWN arrow button to scroll through the log brightness settings: L0 (dimmest), L1, L2, L3, L4, L5 (brightest).

Flame Brightness Mode

• The Flame Brightness Mode sets the ame brightness.

• Use UP arrow button or DOWN arrow button to scroll through the flame brightness settings: F0 (no flame), F1, F2, F3, F4, F5 (brightest).

Flame Color Mode

• The Flame Color Mode should be used to set the ame color.

• Use UP arrow button or DOWN arrow button to scroll through the ame color settings: C1, C2, C3, C4.

Setting Color

C1 C2

Orange

Blue

Setting Color

C3C4Orange + Blue

Color Rotation

Up Arrow Button

• Use UP arrow button to increase the setting of the selected function.

Down Arrow Button

• Use DOWN arrow button to decrease the setting of the selected function.

Child Lock

Activate Child Lock

• When the unit is ON, hold the POWER button for 10 seconds to activate the Child Lock function. "E3" will be displayed and a "beep" will sound 3 times to indicate the Child Lock function is activated. Then, all function keys are locked. When pressing any button, "E3" will be displayed to indicate the Child Lock function has been activated.

Deactivate Child Lock

• To deactivate the Child Lock function, hold the POWER button for 10 seconds. Then, all functions keys are unlocked.

Child Lock function is only available if using the control panel.

Page 18

Fireplace Remote App

To Connect

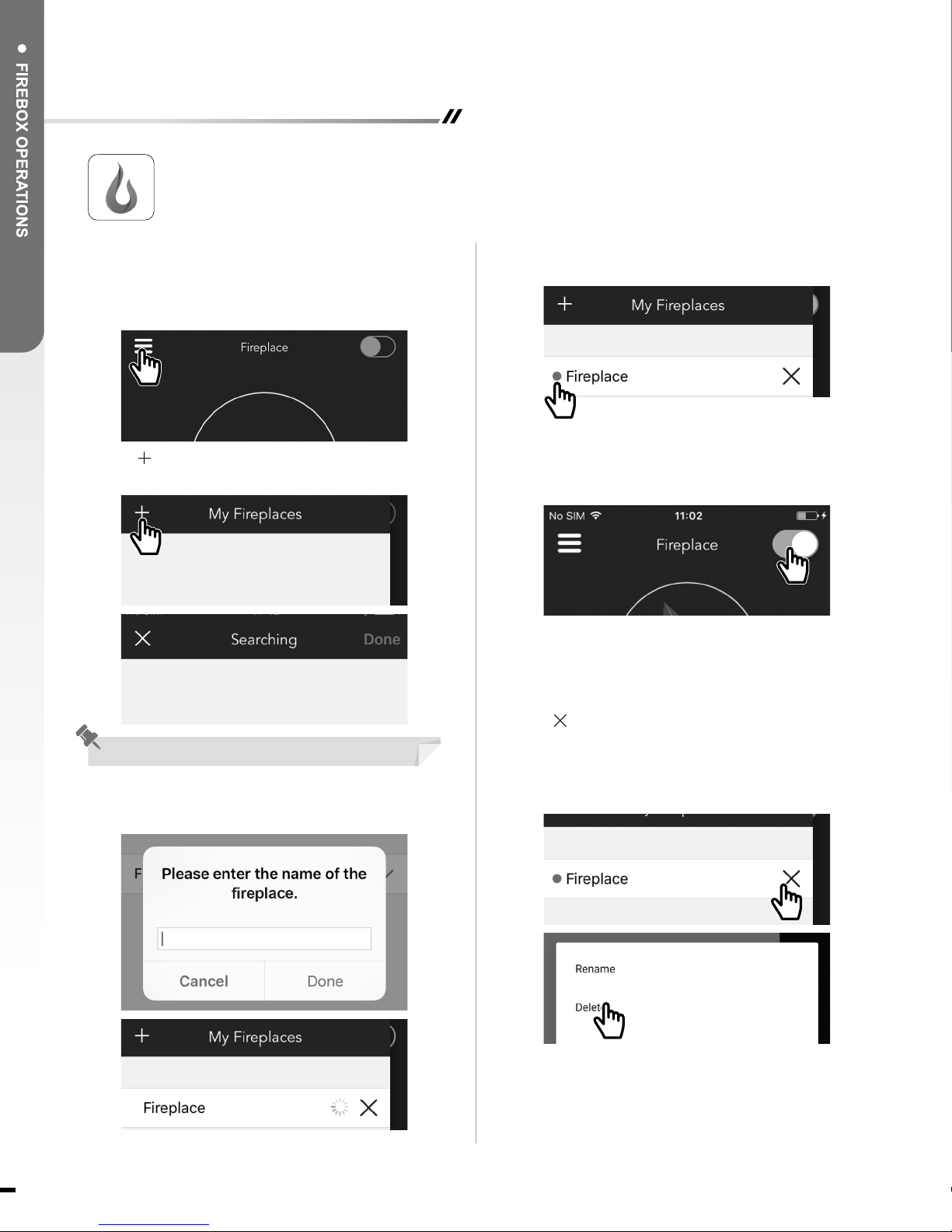

1. Turn on the replace

2. Switch on Bluetooth on your mobile device

3. Tap the side menu icon (Fig. 1)

Fig. 1

4. Tap " " or "Add" icon (Fig. 2) and start searching for the replace nearby (Fig. 3)

Fig. 2

Fig. 3

You can use this app to connect to multiple replaces.

5. Tap “FirePlace” in the result. Enter the name of the replace (Fig. 4) and wait for it to connect (Fig. 5).

6. Blue dot next to the fireplace name indicates that the replace is connected properly and ready to use (Fig. 6)

Fig.6

7. Return to main page by tapping the side menu icon

8. Make sure that the top right corner icon is switched "ON" (Fig. 7)

Fig. 7

To Disconnect

• To remove your replace from your Apple device, tap

the " " next to the fireplace name that you want to remove. (Fig. 8)

• To remove your fireplace from your Android device,

hold down on to the name until the options appear, then select "Delete". (Fig. 9)

Fig. 8

Fig. 4

Fig. 9

Fig. 5

18 19

Page 19

Fireplace Remote App

Operating Instructions

You can remotely adjust your fireplace settings in the following ways:

Control Screen (Fig. 10)

• Press " " or " " to adjust the Ember Bed Brightness settings: L0 (dimmest), L1, L2, L3, L4, L5 (brightest).

• Press " " or " " to adjust the Temperature settings: 59°F – 86°F (15°C – 30°C), ON, OFF.

• Press " " or " " to adjust the Flame Brightness settings: F0 (no flame), L1, L2, L3, L4, L5 (brightest).

• Press " " or " " to adjust the Flame Color settings: C1, C2, C3, C4.

Setting Color

C1 C2

As you change the ame color, the ame showing on Control Screen will change its color accordingly.

Orange

Blue

Setting Color

C3C4Orange + Blue

Color Rotation

Timer Screen

• Press " " or " " to set the Timer from 00:00 to 09:00 in 30-minute intervals. Press "Start" to begin. (Fig. 11)

• When the timer reaches 00:00, the fireplace will automatically turn off. To stop the timer, press "Stop". (Fig. 12)

Fig. 12Fig. 11

Settings Screen

• Change the temperature unit to °F or °C. (Fig. 13)

Fig. 13

Edit Fireplace Name

• To edit the replace name on your Apple device, hold

down on its name until the cursor blinks inside the text

box, then retype. (Fig. 14)

• To edit the replace name on your Android device, hold down on to its name until the "Rename" option appears, then select and retype. (Fig. 15)

Fig. 14

Fig. 15

Turn Off Fireplace

• Turn off your replace by tapping the switch off the top right corner. (Fig. 16)

Fig. 10

Fig. 16

Page 20

Care And Maintenance

CLEANING INFORMATION:

• Make sure the unit is turned off, unplugged and the heating elements of heater are cool whenever you are cleaning the

heater.

• Clean the metal trim using a water-dampened, soft, and clean cloth. DO NOT use brass polish or household cleaners as

these products will damage the metal trim.

• The motors used on the fan and the flame generator assembly are pre-lubricated for extended bearing life and

require no further lubrication. However, periodic cleaning/vacuuming of the fan/heater and air intake/output vents is recommended.

GLASS INFORMATION:

• Under no circumstances should this product be operated with broken glass.

• Do not strike or slam the glass.

• Do not use abrasive cleaners to clean the glass.

• This product uses tempered glass. Replacement of the glass supplied by the manufacturer should be done by a qualied

service personnel.

WARNING: Make sure the power is turned off before proceeding. Any electrical repairs or rewiring of this unit should be carried out by a licensed electrician in accordance with national and local codes.

If repairing or replacing an electrical component or wiring, the original wire routing, color coding and securing locations must be followed.

WARNING: Electrical outlet wiring must comply with local building codes and other applicable regulations to

reduce the risk of re, electrical shock and injury to persons.

WARNING: Do not use this replace if any part of it has been under water. Immediately call a qualied service technician to inspect the replace and replace any part of the electrical system.

WARNING: Disconnect the power before attempting any maintenance or cleaning to reduce the risk of re,

electrical shock or personal injury.

WARNING: During any service of this appliance, the power to the unit must be turned off. First turn the main power switch to the "OFF" position. Then remove the electrical plug from the wall outlet.

NOTE: When the heater is not in use, it should be stored in a dry location, away from possible damage. The power cord should be stored properly to avoid contact with hot or sharp objects.

REPLACING THE REMOTE CONTROL BATTERY:

When the remote control stops operating or its range seems reduced, it is time to replace the batteries.

NOTE: The batteries should be removed if the product is to be left unused for a long time.

CAUTION:

Non-rechargeable battery is not to be recharged. Exhausted battery is to be removed from the product:

1. The battery compartment is located on the back end of the remote control.

2. Press the small tab inward as you slide the battery door open and remove the old battery.

3. Insert a new CR2025 lithium battery (not included), ensuring the polarities of the battery match the inside of the battery compartment.

4. Re-insert the battery door.

20 21

Page 21

Care And Maintenance

DISPOSAL OF USED BATTERY:

A battery may contain hazardous substances that could be endangering to the environment and human health.

• This symbol marked on the battery and/or packaging indicates that used battery shall not be

treated as municipal waste. Instead it shall be left at the appropriate collection point for recycling.

• By ensuring the used battery is disposed of correctly, you will help prevent potential negative

consequences for the environment and human health. The recycling of materials will help to conserve natural resources.

For more information about collection and recycling of used batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased this item.

Troubleshooting

Problems

1. No power, logs do not glow.

2. "E1" is displayed on control panel.

3. "E2" is displayed on control panel.

4. "E3" is displayed on control panel.

5. Fan motor continues to blow after unit is powered off.

6. Power cord gets warm to the touch.

Possible Causes

1. The unit does not have power.

2. The overheat protection device has been engaged.

3. The ambient temperature sensor is broken or not working correctly.

4. Child Lock function is activated.

5. Normal operation.

6. Normal operation.

Solutions

1. Check that unit is plugged into a standard 120 volt outlet. Then make sure power is set at "ON" position.

2. Unplug unit, wait 5-10 minutes, then the sensor will reset itself. Plug the unit back in and turn on the heater. If the problem persists, call customer service.

3. Unplug unit, wait 5-10 minutes, then the sensor will reset itself. Plug the unit back in and turn on the heater. If the problem persists, call customer service.

4. To inactivate the Child Lock function, hold the POWER button for 10 seconds.

5. This is a standard feature; the blower runs for an additional 20 seconds to ensure heat will not be trapped inside the unit.

6. This is normal for a heater appliance as it requires more current to operate. Check the connections of the appliance cord and the outlet. Make sure the plug fits tightly into the outlet. During use, check the plug and outlet frequently to determine if it is HOT; if so, discontinue use of the appliance and

consult with a qualied electrician to check

or change the overheating outlet(s).

Page 22

DOWNLOAD THE FIREPLACE REMOTE APP

Fireplace Remote

Free replace remote app gives you full access and control of your replace

1. Go to Apple Store or Google Play Store

2. Type “replace remote” on the search bar

3. Click “INSTALL” button

4. Enter your account and password if necessary

5. Installation will be completed automatically

Scan QR Code to Download App

QUESTIONS, PROBLEMS, OR MISSING PARTS?

Please Contact Customer Service Before Returning to Store

www.soupro.com

Ver. 2

Distributed by Source Pro USA Inc., 26300 SC HWY 121, Whitmire, SC 29178 USA

[email protected]

Crafted in China

+1-800-239-0689
