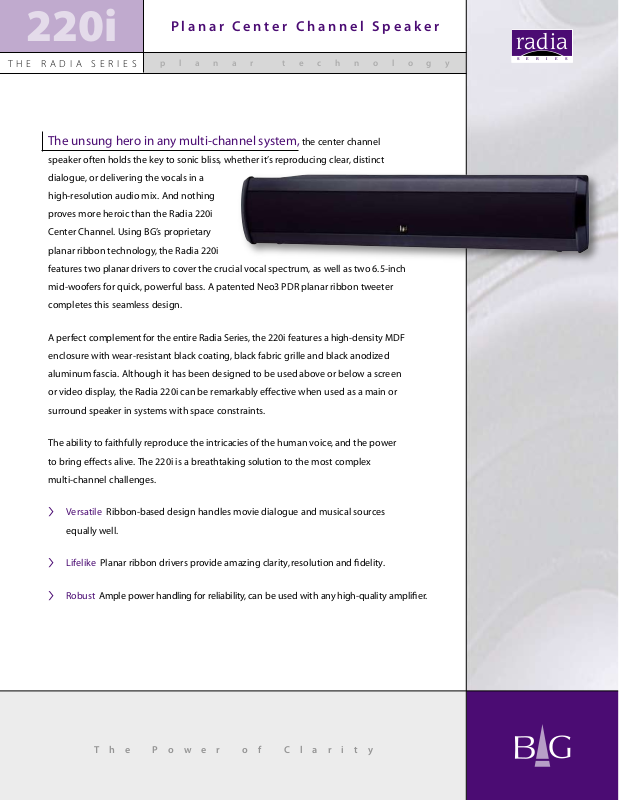

Bohlender Graebener 220-I Brochure
radia
S E R I E S
220i
P l a n a r C e n t e r C h a n n e l S p e a k e r
T H E R A D I A S E R I E S
The unsung hero in any multi-channel system, the center channel
speaker often holds the key to sonic bliss, whether it’s reproducing clear, distinct
dialogue, or delivering the vocals in a
high-resolution audio mix. And nothing
proves more heroic than the Radia 220i
Center Channel. Using BG’s proprietary
planar ribbon technology, the Radia 220i
features two planar drivers to cover the crucial vocal spectrum, as well as two 6.5-inch
mid-woofers for quick, powerful bass. A patented Neo3 PDR planar ribbon tweeter
completes this seamless design.
A perfect complement for the entire Radia Series, the 220i features a high-density MDF
p l a n a r t e c h n o l o g y
enclosure with wear-resistant black coating, black fabric grille and black anodized
aluminum fascia. Although it has been designed to be used above or below a screen
or video display, the Radia 220i can be remarkably effective when used as a main or
surround speaker in systems with space constraints.
The ability to faithfully reproduce the intricacies of the human voice, and the power
to bring effects alive. The 220i is a breathtaking solution to the most complex
multi-channel challenges.
Versatile Ribbon-based design handles movie dialogue and musical sources
›
equally well.
Lifelike Planar ribbon drivers provide amazing clarity, resolution and fidelity.
›
Robust Ample power handling for reliability, can be used with any high-quality amplifier.
›
T h e P o w e r o f C l a r i t y
P l a n a r C e n t e r C h a n n e l S p e a k e r
41"
8.25"
37.40"
12"
radia
S E R I E S
220i
p l a n a r t e c h n o l o g y
The loudspeaker consists of an MDF enclosure housing the system’s
drivers and crossover components. An aluminum fascia is attached to
the front of the enclosure and supports the grille.
The enclosure has a durable black coating, black fabric grille and black
anodized fascia.
The internal crossover divides frequencies between the mid-bass and
planar drivers at 350 Hz and between the planar drivers and the
patented Neo3 PDR planar ribbon tweeter at 2,500 Hz. Speaker cables
are attached via heavy-duty gold-plated binding posts.
The Radia 220i is designed to be used full-range with response above 80 Hz.
Best results will be obtained in systems that incorporate a high-quality
subwoofer such as the Radia 210i. Ideal for use in large-scale home theater
installations and can be driven with any high-quality amplifier or receiver.
T H E R A D I A S E R I E S
M A X I M U M P O W E R H A N D L I N G :
›
50-250 watts
F R E Q U E N C Y R E S P O N S E :
›
(-6 dB, half space)
50 Hz-25 kHz
R A T E D I M P E D A N C E :
›
4 ohms
(compatible with
8 ohm systems)
S E N S I T I V I T Y :
›
88 dB/1W/1m
D R I V E R C O M P L E M E N T :
›
2 - 6.5” woofers
2 - 8” planar midrange drivers
1 - 3” planar ribbon tweeter
D I M E N S I O N S :
›
8.25” x 41” x 12”
W E I G H T :
›
52 lbs.
F I N I S H E S :
›
Black
W A R R A N T Y :
›
Lifetime (limited)
3535 Arrowhead Drive · Carson City, NV 89706 ·
internet:
www.bgcorp.com ·
© Copyrigh t 2006 BG Corp. All rights res erved. Products, features and spe cications sub ject to change without notice.
phone:
775-884-1900 ·
email:
sales@bgcorp.com
toll free:
888-8PLANAR (888-875-2627)
03/06
