Unpacking

Packing List

The ProMatrix carton contains the following components:

1 - ProMatrix unit

1 - Removable Control Panel*

1 - Wireless Infrared Remote Controller

2 - AAA Batteries

1 - 25-foot Control Panel Cable

1 - AC Power Cord

2 - Wall Anchors

1 - User Manual

1 - Product Registration Card

*The control panel must be connected to the amplifier chassis prior to operation. See page 4 to install control panel.

Accessories

A front panel mount kit and rack mount kit are available for this product.

• The front panel mounting kit lets you customize installation by locating the control panel remotely from the amplifier chassis (up to 250 feet when inwall wiring is used). Front Panel Mounting Kit Part No.: RMPWMK3

• The rack kit permits installation of the amplifier chassis in standard equipment racks. Rack Panel Kit Part No.: RPK79

Conventions

This users guide covers the ProMatrix amplifier, model PM-3180 and the ProMatrix Preamplifier, model PM-3000. Each of these units incorporates three channels — amplifier channels in PM-3180 and preamplifier channels in PM-3000. This manual refers to the three channels as amp/channels to indicate that the instruction refers to either the three amplifier channels or three preamplifier channels.

Introduction

Description

The ProMatrix products are designed for sound reinforcement/distribution in multi-room applications. The PM-3180 consists of three independent amplifiers, rated at 20, 60 and 100 watts. The PM-3000 is a three channel preamplifier unit designed to offer the flexibility for applications with power requirements that exceed the limits of the PM-3180. Both units have a programmable interface that lets you selectively assign priority levels to inputs and custom configure features. As inputs become active or inactive they are automatically switched onto or off of the channel.

Four Aux inputs and two Mic inputs lets you connect to a wide variety of program sources. One of the Mic inputs can be set to accept input from a telephone paging interface. The PM-3180 has outputs for 4- and 8-ohm loads as well as 25V and 70V distributed systems, and includes provisions to connect external signal processing equipment. The PM-3000 provides both balanced and unbalanced line level output for each channel.

Here is an application example for a typical restaurant/bar establishment using the PM-3180 amplifier: The 20-watt amp channel plays to the

entrance area/waiting room, the 60-watt amp channel to the dining area, and the 100-watt amp channel to the bar/lounge. The area served by each amp channel hears program material according to the priority level for the inputs assigned to the amp channel. This example is illustrated below:

Amplifier Channel Amp 1 (100W) Amp 2 (60W) Amp 3 (20W) Area Served Lounge Dining Area Waiting Room

PM-3180 Audio Input Source Assigned Input Priorities

Aux A Juke Box 3 — — Aux B CD Player 4 2 3 Aux C Radio 5 3 4 Aux D TV Feed 6 — Mic A Emerg. Mic 1 1 1 Mic B Page Mic 2 — 2

1 = Highest Priority, 6 = Lowest Priority, — = Input not assigned to amp.

The lounge audio sources and microphones are prioritized as shown, with the Mics having the highest priorities and the music source with descending priorities. The dining area has completely different audio needs where certain audio sources (like the paging mic and juke box) are inhibited from use in that area while the CD and radio are permitted to play. Likewise for the waiting area where the inputs are assigned and prioritized for that area.

—

Introduction

Features

The ProMatrix units have the following features:

• 2 Lo-Z balanced Mic inputs (Mic A is female XLR, Mic B is screw termi-

nals). Mic B can be configured as a 600-Ohm transformer balanced input for telephone paging applications.

• Automatic level control for Mic inputs.

• Choice of microphone precedence activation (VOX, Normally Open,

Normally Closed).

• Phantom power for use with condenser microphones.

• 4 Aux inputs (RCA unbalanced).

• Aux Input trim controls to adjust for differing audio source input levels.

• Automatic switching of inputs based on input activity.

• Flexible priority assignments for each input on each amplifier channel

• Fade-in of audio source after Mic page or when switching to a lower

priority input.

• Adjustable paging over music level.

• Wireless infrared remote control unit with the same functions as the

control panel.

• Front-mounted, removable control panel with soft-touch buttons to:

— select a channel — provide manual override selection of input source — control volume, treble and bass. — program unit functions

• Preset power-up volume level of each input for each channel.

• Password protected programming mode.

• Preset bass and treble response of each input on each channel (the

same input can have different EQ settings on different channels).

• Preset maximum volume level the user can achieve.

• Lock out or inhibit volume bass and treble controls for each channel.

• Non-volatile memory to retain user control settings.

• Change the access code.

• Create custom display names for input sources.

• Front panel mounted LED output level meters for each amp channel.

• Reset to factory default values.

The PM-3000 includes:

• Balanced & unbalanced Line Level outputs for each channel

• Ground lift switch

The PM-3180 has these additional features

• Independent 20, 60 & 100 watt amplifiers in one package.

• 4, 8Ω, 25V & 70V outputs on each amp.

• Thermostatically-controlled cooling fan.

• Audio process links permit installation of signal processing equipment.

Quick Start

This Quick Start section is intended to assist you in getting the ProMatrix unit up and running quickly so that you can become familiar with it.

Important: Do not place any objects directly on top of the unit. Leave at least 2 inches of space above the unit to assure proper ventilation. When locating the PM-3180, be sure to leave at least 2 inches of space on the right side of the unit to allow for fan exhaust.

Install Control Panel

The unit is shipped with the control panel disassembled from the chassis. You have the option of attaching the control panel to the front panel or mounting it in a convenient location and connecting it to the unit using the 25-foot telephone cable included. For longer cable runs, use accessory RMPWMK3 for secure and attractive mounting of the front panel up to 250 feet from the main unit.

Warning: Use only the telephone cable supplied. Use of any other cable may damage the unit.

To attach the control panel to the chassis, position the panel as shown. Line up the tabs on the control panel with the slots on the chassis. Push in on the grooved areas on each side of the plastic panel and push the control panel onto the chassis to engage the locking tabs.

Tabs Slots

To mount the control panel in a remote location:

1. Install two wall anchors 4-inches apart and level in the desired location. The screws should protrude 1/2”.

2. BE SURE THAT POWER IS OFF WHEN YOU INSTALL OR REMOVE THE CONTROL PANEL. Plug one end of the 25-foot remote cable into the jack on the bottom right corner of the control panel. Plug the other end into the jack labeled REMOTE on the rear panel of the ProMatrix unit.

3. Place the control panel keyhole slots over the protruding screw heads and pull down slightly to secure the panel.

Note: The panel must be oriented vertically to ensure proper cooling of the internal electronic components.

Fan Outlet (PM-3180 only) Do Not Block

Quick Start

Basic Wiring

1. Temporarily set the AUX INPUT TRIM

controls on the rear panel to their full counterclockwise position. Trims will be adjusted later.

2. Be sure that the voltage select switch

is set correctly. Connect the power cord to the AC LINE INPUT

3. Connect outputs.

For the PM-3000, connect the correct style output (balanced or unbalanced) to the input of the external amp or other signal processing equipment. Refer to page 15 for wiring balanced or unbalanced outputs.

For the PM-3180, connect loads between COM and the desired output tap (8Ω, 25V or 70V). If connecting a 4-ohm load, refer to the Wiring Information section on page 16 for information on the 4Ω link.

4. Connect unbalanced music input

sources. The lines from the sources to the amplifier should be terminated with RCA-type plugs.

5. Connect balanced, low-impedance

microphones. For the 3-pin Mic A connector, pin 1 is ground (shield).

6. Plug the ProMatrix into a properly

grounded wall outlet.

Quick Start

Factory Programmed Configuration

When the ProMatrix unit is first powered up, the factory default settings are loaded.

The factory default priority table is listed below. If you want to change any of these priority levels, you will have to use the ASSIGNMENT function in the programming mode. See the Programming section of these instructions (Page 22) to set priority levels.

Input Priority Level

MIC A 1 MIC B 2 AUX A 3 AUX B 4 (1 = highest, 6 = lowest) AUX C 5 AUX D 6

The microphone input settings are listed below:

Microphone Feature Default Options MIC 1 Precedence VOX N.O., N.C., VOX

ALC ON ON, OFF Phantom ON OFF, ON

MIC 2 Precedence VOX N.O., N.C., VOX

ALC ON ON, OFF MIC/TEL MIC MIC, TEL Phantom ON OFF, ON

See the Programming section of these instructions (starts on page 22) if you want to configure the microphones for other than the default values.

Quick Start

Basic Operation

This section will show you how to:

• Apply power to the unit

• Understand the Control Panel (See page 12 for full description)

• Select which channel the control panel affects

• Change volume

• Change Bass and Treble response

• Manually select an input or allow priority-based switching

• Adjust Aux Input Trim Controls

To Apply Power to the Unit

Important Note: For PM-3000, make sure any power amplifiers connected to the unit are off when the unit is first plugged in.

Connect the AC supply cord to the unit and plug it into an outlet (the unit will turn on and display the software part number for 2 seconds and then the unit will shut down). To apply power, press the button labeled POWER on the control panel or on the wireless infrared remote controller.

Understanding the Control Panel

The ProMatrix unit consists of 3 channels but only one control panel. Therefore, you must select the channel that the panel will effect. Once the unit is powered, a number of indicators will light and the alphanumeric panel will display status information.

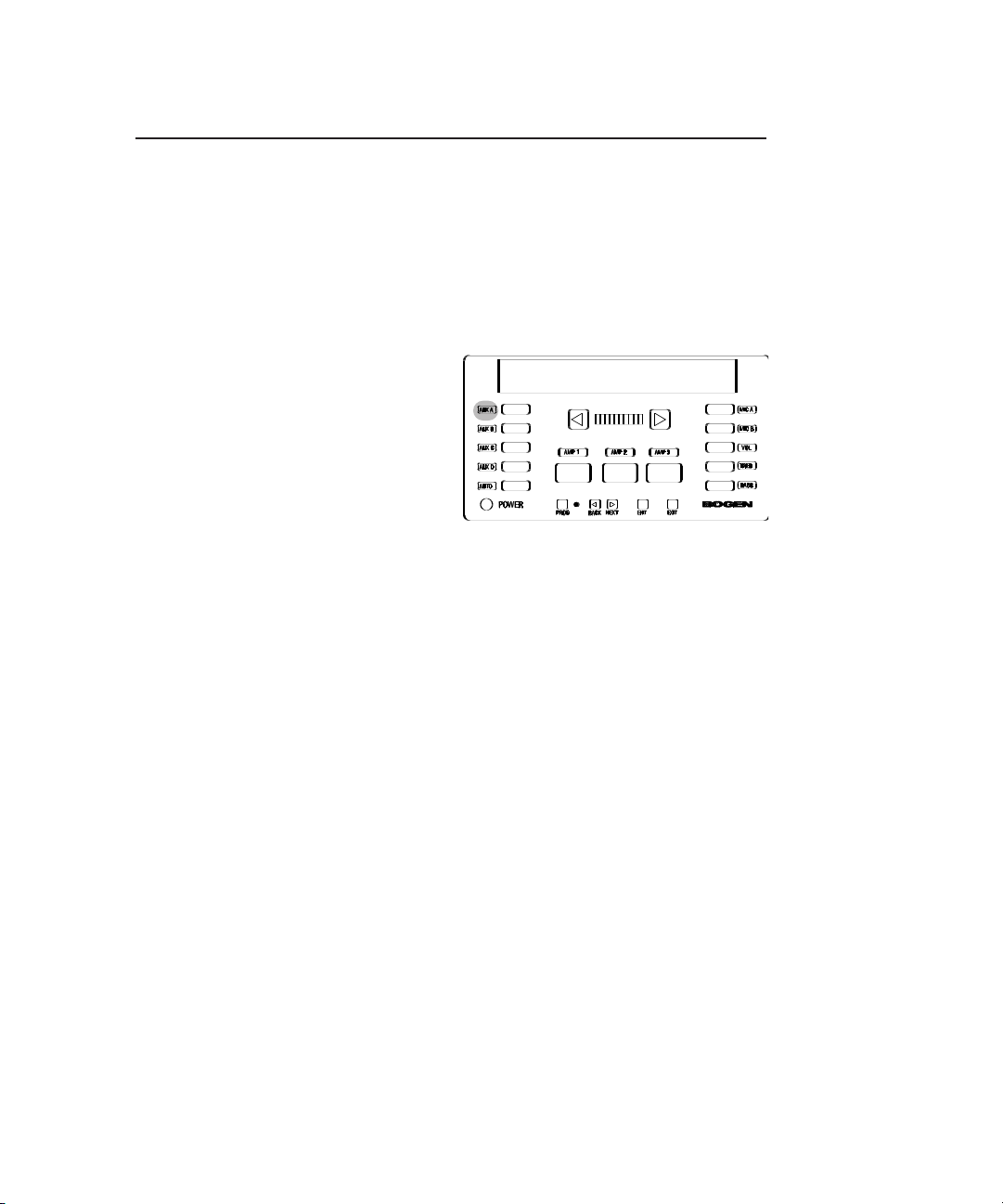

The illuminated AMP 1 indicator means that it is the “current” amp/channel — the one that the front panel controls will now effect. AUX A is the current active input and VOL is the current active control function. AUTO indicates that the inputs will auto switch. The pointer LED segment (between the large arrow keys) shows the approximate volume level.

To Select an Amp or Preamplifier Channel

To make another amp/channel current (under effect by the control panel), press the desired button (AMP 2, AMP 3); its indicator will illuminate.

Once selected, the user can adjust the VOL, BASS or TREB control for the selected amp/channel.

AUXA

Quick Start

To Control Volume

Note: Changing any of the volume, bass or treble levels will

effect all inputs associated with that amp/channel channel. Turning up the volume for the current amp/channel will cause other inputs assigned to that amp/channel to play louder when they become active. Likewise for bass and treble.

Be sure VOL is the current control (this is the normal default function). If BASS or TREB are lit, press the VOL button. Its indicator will light brightly and the volume level is displayed on the LED pointer.

Press the arrow buttons on either side of the pointer (left to decrease, right to increase).

The display shows A1 (the active amp/channel), VOL , and a 2-digit volume level number (00-25). The number (and pointer) changes

in response to the arrow buttons.

After 5 seconds of no adjustment, the control panel display will again show the current input (VOL remains the current control and can be adjusted at any time simply by pressing an arrow key).

To Control Bass or Treble.

Select the desired function by pressing the BASS or TREB button – its indicator lights.

The display shows BASS (or TREB), the current active amp/channel (A1) and a 1-digit level number (-7 to+7). The pointer shows the

approximate level.

Press the arrow buttons on either side of the pointer. The number on the display changes in response to the arrow buttons.

After 5 seconds of no adjustment, the amplifier display will again show the current input and VOL will again become the current function.

A1/VOL-10

A1/bass 0

Quick Start

To Select a Specific Input

The ProMatrix unit is normally set to monitor input activity and, based on the default or installer-created priority table, automatically switches the proper input for each amp/channel. You can override the priority switching feature of any amp/channel to select a specific input to be on continuously.

1. Press the AUTO button. Its indicator

LED will flash. and the alphanumeric display will show SEL INPUT.

2. Press the desired input selector but-

ton (MIC A/B, AUX A/B/C/D). The selected input will appear on the display and its indicator will flash (50% on/50% off) in sync with the AUTO indicator.

Note: If a different amp/channel is selected, the AUTO LED will flicker (90% on/10% off) to indicate that one or more of the other amp/channels is under manual control.

To identify which amplifier is under manual control

Press each AMP button until the AUTO indicator and input indicator (AUX A, B, etc.) flash together.

To Return to Auto Switching

Find the amp/channel that is under manual control.

Press the AUTO button once. The current input (based on priority) will appear on the display. Its indicator will light steady as will the AUTO indicator (unless another channel is in manual mode, in which case the indicator will flicker). This sets only the current amp/channel into the auto-switch mode. Any other amp/channels that have manually selected inputs will need to be returned to auto-switch mode using the same procedure described above.

Note: The amp/channel must be in AUTO mode before another manual input can be selected.

Quick Start

Aux Input Trim Adjustment

By adjusting the Trim controls as follows, inputs with different signal levels are set approximately equal within the ProMatrix unit.

Important: You must properly set the Aux Input Trim Controls. Improperly adjusted trims can result in high distortion levels, poor volume balance between different inputs or false triggering of inputs.

To adjust trims, follow the procedure below:

1. Make sure the various input sources are attached and operating at their normal output levels.

2. Select Amp 3 as the current amp/channel.

3. Press the AUTO button and manually select one of the Aux inputs (Start with Aux A).

4. Raise the volume of Amp 3/Aux A to 25 (this can be done without a load, if desired).

5. Rotate the Aux A Input Trim control while watching the Amp 3 output level meter. Adjust the trim control so that the red LED is briefly flashing only on loud music peaks.

6. Repeat steps 3, 4, and 5 for the other Aux inputs. Since the inputs are common to all three amplifier channels, the trims only need be set for one of the amp channels.

7. For PM-3000, you must also set each of the external amplifiers volume controls for the maximum sound level desired while the PM-3000 volume is set to 25.

Important Operational Notes

• Phantom power is turned on from the factory. To turn it off, see the Programming Section, starting on page 22.

• When a microphone becomes active (through Vox or contact closure), the current Aux input will be muted to a preset level. No Aux input switching is allowed when the Aux mute is active.

+ 34 hidden pages
