Bogen OMX1, ORB35 Specsheet

Description:
Orator Includes:
Specifications subject to change without notice.
© 2011 Bogen Communications, Inc.
54-8023-53D 1306
The Bogen Orator is a two-channel, infrared (IR) wireless microphone/transmitter and mixer-amplifier system designed to enhance a presenterʼs voice in all areas of the room. The Orator uses infrared technology, eliminating the interference and cross­talk from adjacent rooms that occurs in RF-based wireless products.
The rugged, wireless, IR MIC/Transmitter (OMX1) can be used as a handheld microphone, worn as a pendant microphone around the neck, or clipped to a pocket or belt as a body-pack (with an external lavaliere microphone). In addition to using the MIC/Transmitter for live voice, a mini-jack AUX input is provided to allow other audio sources to be transmitted wirelessly for the ultimate in connection convenience. The MIC/Transmitter includes a rechargeable Lithium-Ion battery.
The Orator Receiver/Base (ORB35) unit contains a two-channel wireless IR receiver and a 35W mixer/ amplifier with four AUX inputs plus a Priority Paging input compatible with line-level as well as speaker­level signals. The priority page input will mute all AUX inputs. Front-mounted Bass and Treble
controls and a rear-mounted 6-band graphic EQ provide 8 bands of frequency shaping. A boost and subwoofer signal level output complete the audio package.
Built into the front of the unit are two charging docks for the MIC/Transmitter units. In addition to battery charging, the docks provide a storage location for the MIC/Transmitters with space below to stow accessories such as lanyards or lavaliere microphones. A transparent rotating front cover provides a measure of protection for controls and equipment. The cover can be locked in the closed position to provide protection from casual tampering. The front cover can also be locked in the open position for installations where the cover may interfere with rack doors or is otherwise undesired.
A remotely mountable IR sensor is provided for detection of the IR signals. This can be positioned for optimum reception in any room, and may be augmented with an additional sensor if needed.
Bogen Orator
Voice Reinforcement System

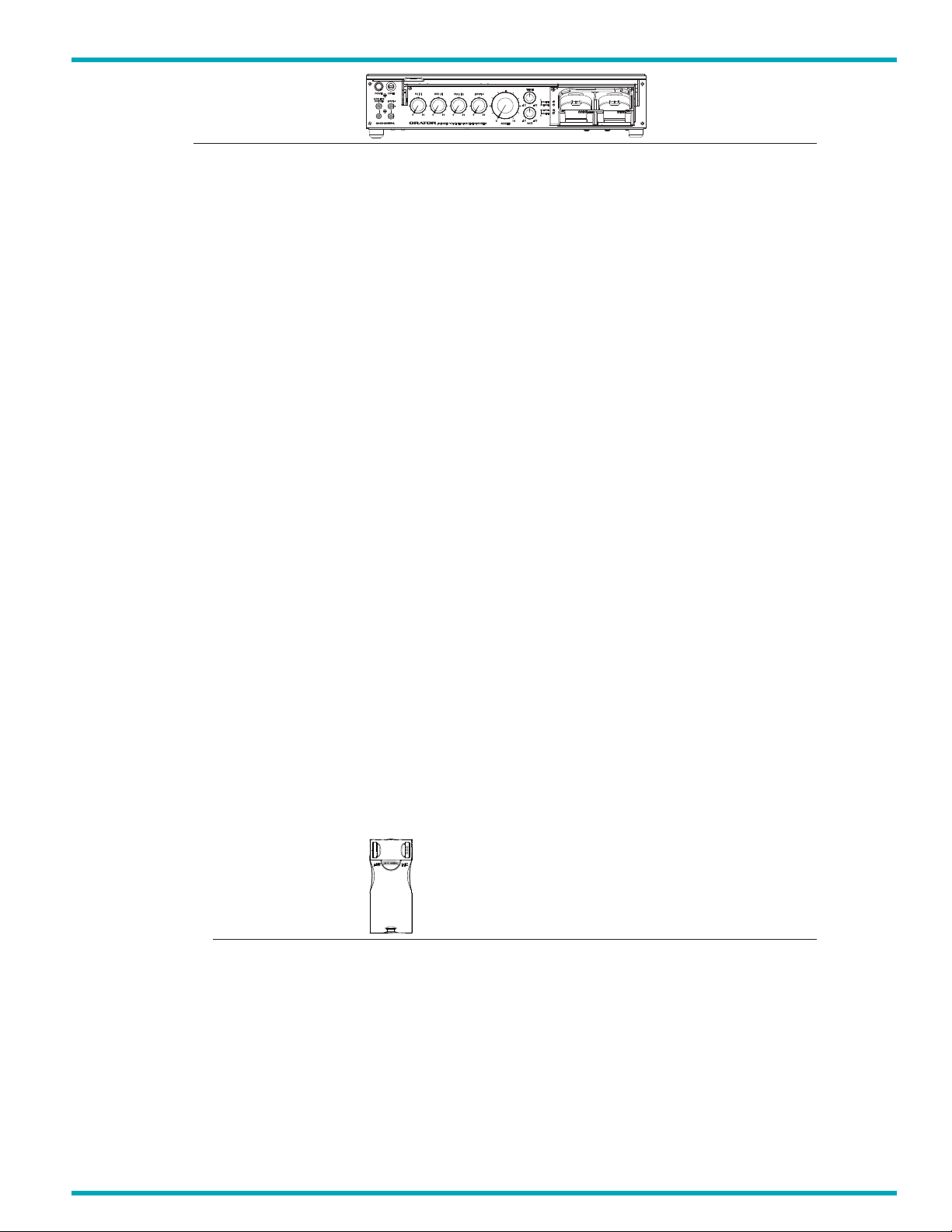

COVER IN CLOSED POSITION
1 Receiver/Base Unit (ORB35)
2 Security Cover Keys
1 or 2 MIC/Transmitters (OMX1):
Orator 1 System includes 1 OMX1 unit, Orator 2 System includes 2 OMX1 units
2 Dock Selection Tabs (per OMX1)
1 Lanyard (per OMX1)
1 Lanyard Attachment Plate (per OMX1)
1 Rechargeable Li-Ion Battery (per OMX1)
5 Blank Identification Label Cards (per OMX1)
1 Infrared Sensor (ORS)
1 Sensor Cable - 50 ft. (15m) approx.
1 Sensor Mounting Bracket (with hardware)
Features:
Accessories:
Receiver/Base Unit (ORB35)
• 7-Input mixer/amplifier includes 4 AUX inputs, 1 priority paging (25V/70V/Line), and 2 MIC/
Transmitter inputs
• Dual front-mounted charging docks for
MIC/Transmitters
• Amplifier output power: 35W
• Master Volume, plus separate volume controls for each input
• 8-band EQ: front-mounted bass and treble controls, plus 6-band rear-mounted graphic EQ
• Speaker output impedances: 70V, 25V, or 8-ohms
• Output feeds: booster amp, subwoofer
• Front-mounted AUX input
• Front-mounted system output (for assistive listening devices, recording, etc.)
• Page input with VOX-triggered priority override function
• Rotating, lockable front cover for tamper protection and secure storage of the MIC/Transmitters (2 Keys provided)
• Confirmation Tone with Volume Control (defeatable)
IR Sensor (ORS)
• Remotely mounted sensor connects using standard coaxial cable
• Add additional sensors to improve reception in trouble spots
• Coaxial Cable connector
• Plenum-Rated Cable assembly available (accessory; sold separately)
• Surface or T-Bracket mounting
MIC/Transmitter (OMX1)
• Can be used as a handheld microphone, as well as worn on a lanyard around the neck, or as a body-pack with external microphone
• Built-in microphone with recessed volume control
• Optimally sized for handheld and pendant use
• Sculpted Comfort Grip for easy handling
• Adjustable lanyard with break-away clasp for neck-worn applications
• Rugged, reliable, spring-wire belt clip
• Use built-in microphone or external microphone (according to user preference)
• AUX input for wireless connection of audio sources (computers, MP3 players, etc.)
• Recharges when placed in Receiver/Base Unit for storage
• Rechargeable, high-capacity Li-ion battery is included
• Comprehensive Battery/Status Indicator
• Mute other MIC/Transmitter in the room via function button (defeatable)
• Initiate intercom call via function button (defeatable)
• Selection Tab ensures each MIC/Transmitter will only store/recharge in its designated charging dock
• ID Label Strip to identify each MIC/Transmitter
• Battery Charge Status Indicator
• Local Microphone Mute
• ON/OFF Power Button
WMK2
Easy Mount Wall Bracket
RPK92
Rack Mount Bracket
OXC1
External Sync-Charger
OSC50Plenum
50-Foot Plenum-Rated Cable Assembly
ORB35
Receiver/Base Unit
OMX1
MIC/Transmitter
Technical Specifications:
Communication Method: Infrared Frequency Modulated
Output Power Rating: 35W
Output Speaker Impedance: Balanced or unbalanced 8-ohms, 25V, 70V
Receiving Channels: Two independent channels
Carrier Frequency: 4 operational frequencies between 1.8 – 2.7 MHz
Selectable as two bands: 1.8/2.4 MHz or 2.1/2.7 MHz
Range (line-of-sight): Up to 40 ft.
Audio Frequency Response: 60 Hz to 20 kHz AUX inputs, 100 Hz to 10 kHz Channel A & B
S/N Ratio: > 70 dB AUX/Page inputs; > 60 dB Channel A & B
Distortion: < 1% AUX inputs, < 3% Channel A & B
Input Sensitivity: ORB35: AUX: 85mV; Priority Page: 150mV or 25/70V
Input Impedance: ORB35: AUX: >10k ohms; Priority Page: 1k ohms (min.)
Controls: Front-Mounted: AUX 1 – 4 Level, Master Volume, Bass and Treble
Rear-Mounted: Channel A & B Level, Page Override Level,
6 bands of EQ, Confirmation Tone Level
Audio Inputs: Front-Mounted: AUX 4 (Stereo combining RCA jacks)
Rear-Mounted: AUX 1 – AUX 4 (Stereo combining RCA jacks);
Page Override (pluggable terminal strip)
Audio Outputs: Front-Mounted: Monitor Out (RCA jack and 1/8" Mini)
Rear-Mounted: Booster Out and Subwoofer Out (RCA jacks);
Speaker connections (pluggable terminal strip)
Switches: Front-Mounted: Power
Rear-Mounted: EQ In/Out, 8-position DIP switch (configuration)
Other Connectors: Rear-Mounted: Sensor input (F-type Connector)
Rear-Mounted: C-form relay contact set (pluggable terminal strip)
EQ: Bass and Treble controls (± 12 dB at 100 Hz and 10 kHz, respectively);
6-Band Graphic EQ (± 12 dB at 250, 500, 1k, 2k, 4k, and 8k Hz)
Indicators: Power; 2 Channel Active (one for each channel), 2 Charging (one for each dock)
Chargers: Two front-mounted with lockable rotating cover
Locks: Rotating cover; lock/unlock in both open or closed positions
Power Requirements: 120V AC, 1A
Dimensions: 17.25" W × 3.5" H × 12.5" D
Product Weight: 17 lb.
Safety Certifications: Listed to UL Standard 60065 for US and Canada
Carrier Frequency: 4 operational frequencies between 1.8 – 2.7 MHz
Audio Input: Built-in Condenser Microphone;
MIC (external): Condenser only, mono 1/8” mini plug, 2V DC through
680 ohms, 1mV sensitivity min. 10 mV max;
AUX: Stereo or mono 1/8” mini plug, 3k Ω (min.) input, 250 mV sensitivity
Controls: On/Off Switch, Input Volume Control, 2 function buttons
Connectors: MIC (external): mono 1/8” mini style
AUX: stereo or mono 1/8” mini style
Batteries: Li-ion, Rechargeable, Bogen P/N 45-7543-05
Operational Time: 10-15 hours (approx.), depending on transmit frequency
Dimensions: 1.9" W x 4" H x 1.2" D
Product Weight: 4 oz. with battery (approx.)
50 Spring Street, Ramsey, NJ 07446, USA
201-934-8500 • Fax: 201-934-9832
www.bogen.com

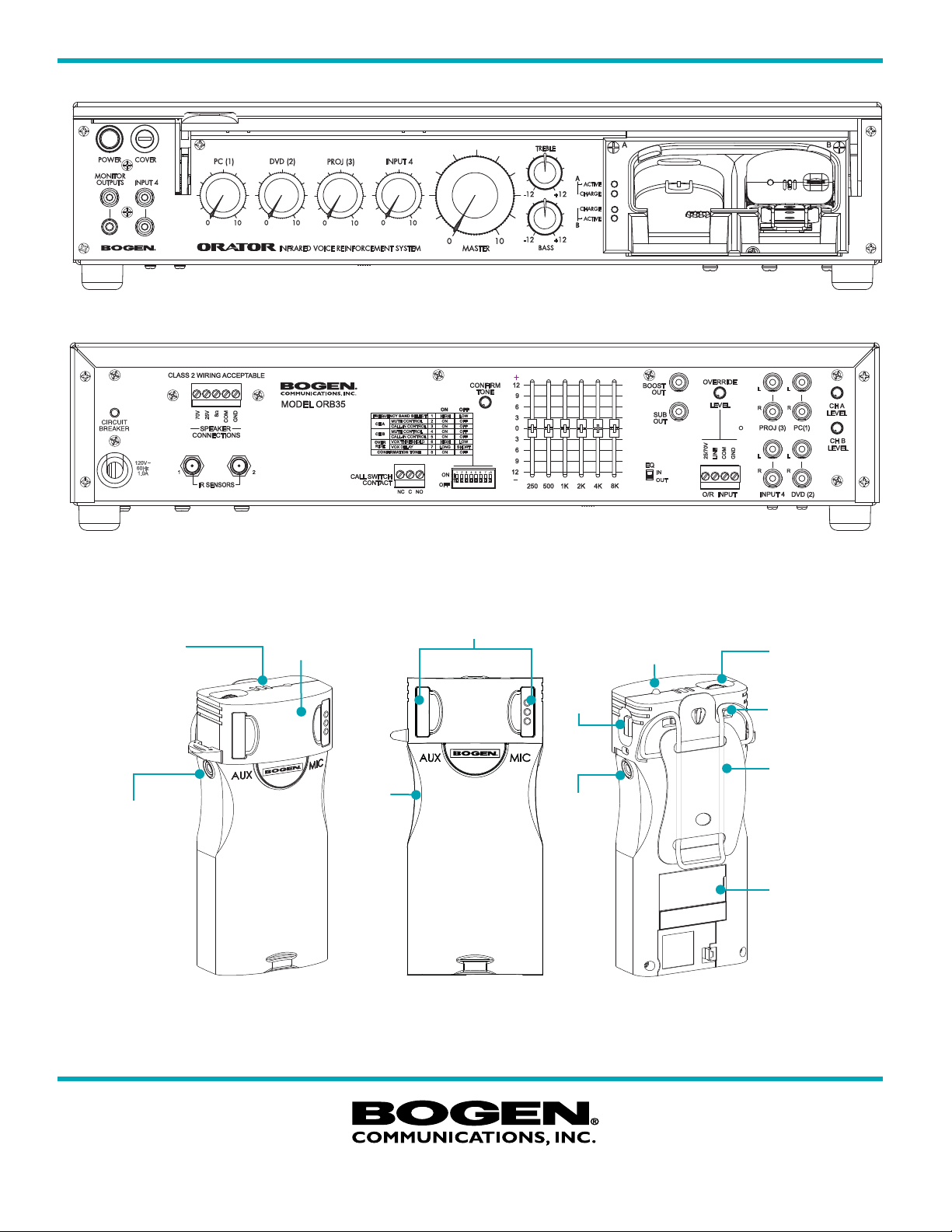

ORB35 Receiver/Base Unit (Front View)
ORB35 Receiver/Base Unit (Rear View)
OMX1 MIC/Transmitter
(Rear View)(Side View) (Front View)
FUNCTION BUTTONS
Remotely Mute Student MIC & Place Intercom Call
(functions configurable per transmitter)
SCULPTED
GRIP
Handheld MIC
Applications
LANYARD
MOUNT
(Lanyard
Not Shown)
BELT CLIP
Durable spring
wire design
BUILT-IN MIC
INFRARED
EMITTER
LENS
BATTERY/
STATUS
INDICATOR
AUX INPUT
Wireless
Connection for Computer AUX, MP3 Player, etc.
INPUT
VOLUME
CONTROL
EXTERNAL
MIC
INPUT
ID LABEL
STRIP
(w/Protective
Cover)
POWER/
MIC
MUTE
