Bogen CDC-3 User Manual
© 2001 Bogen Communications, Inc.
All rights reserved. 54-2066-01R1 0109
Printed in Korea.
Specifications subject to change without notice.
CD Player
Model CDC-3
Installation and Use Manual
Notice
Every effort was made to ensure that the information in this
guide was complete and accurate at the time of printing.
However, information is subject to change.
Important Safety Information
WARNING: To Reduce The Risk of Fire Or Electric Shock,
Do Not Expose This Apparatus To Rain Or Moisture.
Always follow these basic safety precautions when installing and
using the unit:
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding-type plug has two
blades and a third grounding prong.The wide blade, or the
third prong,are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when
unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
IMPORTANT
CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert
the user to the presence of
uninsulated “dangerous voltage”
within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing) instructions in the literature accompanying the appliance.
CLASS I
LASER PRODUCT
This product produces invisible
laser radiation. Do not operate
product with any protective
covers removed.
Domestic and International Listings
UL and C-UL Listed.
Contents
Page
COMPACT DISC & PLAYER CARE INSTRUCTIONS....................................................2
INTRODUCTION................................................................................................................3
Package Contents ................................................................................................................................3
PANEL DESCRIPTIONS..................................................................................................4-5
CDC-3 Front Panel ............................................................................................................................4
CDC-3 Rear Panel ..............................................................................................................................5

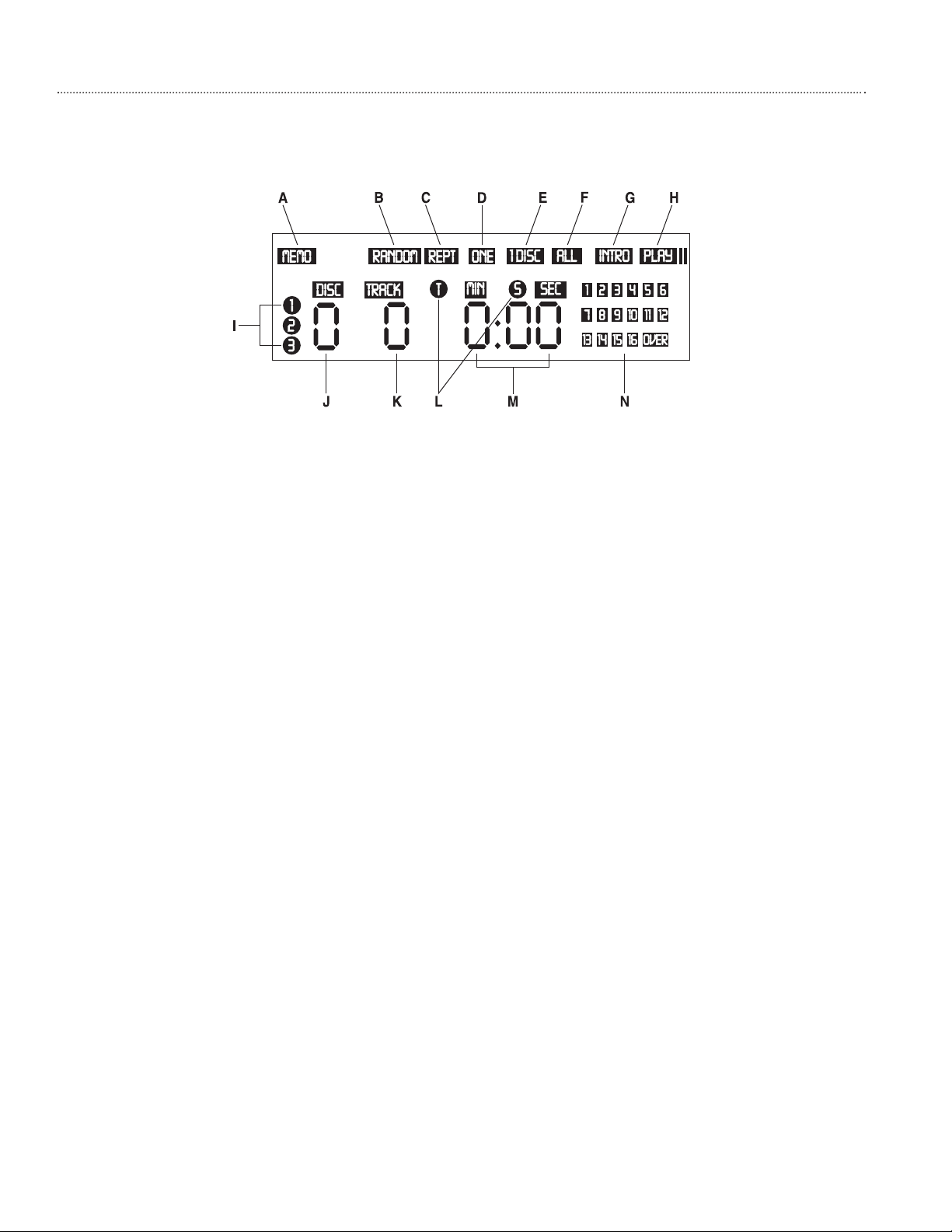

LIQUID CRYSTAL DISPLAY DESCRIPTIONS ................................................................6
INSTALLATION ..................................................................................................................7
Rack Mounting......................................................................................................................................7
Table Mounting ....................................................................................................................................7
OPERATION ..................................................................................................................8-10
Loading and Removing Discs ............................................................................................................8
Play / Pause............................................................................................................................................8
Stop Play ................................................................................................................................................8
Selecting Discs......................................................................................................................................8
Modes of Operation ..........................................................................................................................8
Clear Function......................................................................................................................................9
Search Function....................................................................................................................................9
Scan Function........................................................................................................................................9
Programming ........................................................................................................................................9
Reviewing Programs............................................................................................................................9
Clearing and Changing Programs ....................................................................................................9
Random Play Function......................................................................................................................10
Introduction Function ......................................................................................................................10
Display Time Readout ......................................................................................................................10
Repeat Function ................................................................................................................................10
CONNECTIONS................................................................................................................11
AUX Input Connections..................................................................................................................11
Output Connections ........................................................................................................................11
SPECIFICATIONS ............................................................................................................12
WARRANTY ......................................................................................................................13
1
Compact Disc & Player Care Instructions
In order to avoid sound degradation, the following instructions ought to be followed in caring for
compact discs.
• Always store discs in their cases when not being used.
• When storing, avoid locations with high or low temperatures or high humidity. Do not store in
direct sunlight.
• Keep discs clean by wiping them gently with a soft cloth from the inner edge to the outer
periphery.If necessary, dip a soft cloth in water,and after wringing it out well, wipe any dirt away
gently and then wipe dry with a soft cloth. Do not use any cleaners or liquids, other than water,
to clean discs.
• When handling a disc, grip the outside part of the the disc in order to avoid touching the signal
line.
• Do not affix gummed labels or tape to the surface of the disc or the label on the disc.
• Do not use compact discs with special shapes (such as heart-shaped or octagonal discs) as they
may damage the player.
Note:The CDC-3 will not play rewritable (CD-RW) discs, but will play recordable (CD-R) discs.
2
Introduction
Bogen's CDC-3 is an excellent choice as a background music source for a variety of installations
and for a variety of reasons.
Uninterrupted Play
The CDC-3 allows you to add or remove discs without having to stop play.The CD drawer holds
three discs at a time and discs can be added or removed while another disc continues to play.
Also, any background music source connected via the AUX input of the CDC-3, such as a tuner
or tape player, will automatically be routed through the CDC-3 when the CDC-3 is in the stop
mode or when turned off.
Multiple Modes and Features
The CDC-3 has multiple operating modes for a variety of different features.
Depending on which mode is chosen, the CDC-3 can randomly shuffle selections for a single disc
or for all discs loaded into the CD player.The CDC-3 can also scan each track from a single disc,
or for all discs loaded into the CD player, and play an excerpt from each track for 10 seconds.
Programming
The CDC-3 permits the user to program up to 36 tracks from 1, 2, or all 3 discs.
Other Features
The Liquid Crystal Display can show a variety of running times, the current disc and track selected, how many discs are currently installed, what mode the CD player is in, and many other important and informative features.
Package Contents
* CD Player (Model CDC-3) * Instruction Manual
* Power Cord * 4 Rubber Feet
* Stereo Cable with RCA Plugs
3
