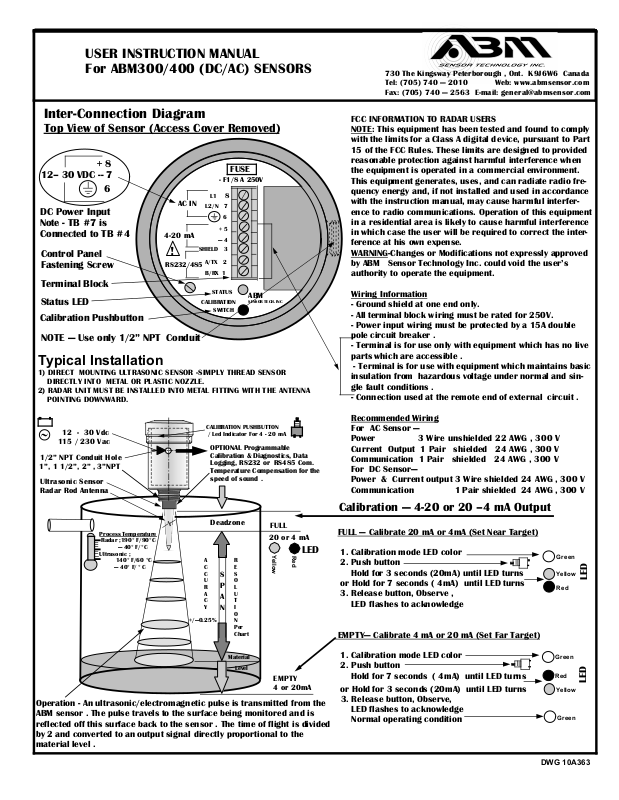

USER INSTRUCTION MANUAL
For ABM300/400 (DC/AC) SENSORS

Inter-Connection Diagram

Top View of Sensor (Access Cover Removed)

+ 8

12– 30 VDC -- 7
6

DC Power Input

AC IN

Note - TB #7 is
Connected to TB #4

Control Panel
Fastening Screw

4-20 mA

SHIELD 3

!

RS232/485

Terminal Block
Status LED

Calibration Pushbutton

NOTE — Use only 1/2” NPT Conduit

- F1/8 A 250V

L1 8

L2/N 7
6
+ 5

— 4

A/TX 2

B/RX 1

STATUS

CALIBRATION

SWITCH

FUSE

ABM

SENSOR TECH. INC

Typical Installation

1) DIRECT MOUNTING ULTRASONIC SENSOR -SIMPLY THREAD SENSOR
DIRECTLY INTO METAL OR PLASTIC NOZZLE.

2) RADAR UNIT MUST BE INSTALLED INTO METAL FITTING WITH THE ANTENNA
POINTING DOWNWARD.

12 - 30 Vdc
115 / 230 Vac

˜

1/2” NPT Conduit Hole

1”, 1 1/2”, 2” , 3”NPT

Ultrasonic Sensor
Radar Rod Antenna

CALIBRATION PUSHBUTTON
/ Led Indicator For 4 - 20 mA

OPTIONAL Programmable
Calibration & Diagnostics, Data
Logging, RS232 or RS485 Com.
Temperature Compensation for the
speed of sound .

A
C
C
U
R
A
C
Y

+/—0.25%

Deadzone

R
E
S

S

O

P

L
U

A

T
I

N

O
N
Per
Chart

Material

Level

Process Temperature
Radar ;190° F/90°C
— 40° F/°C
Ultrasonic ;
140° F/60 °C
— 40° F/° C

Operation - An ultrasonic/electromagnetic pulse is transmitted from the
ABM sensor . The pulse travels to the surface being monitored and is
reflected off this surface back to the sensor . The time of flight is divided
by 2 and converted to an output signal directly proportional to the
material level .

FULL

20 or 4 mA

LED

Yellow

Red

EMPTY
4 or 20mA

730 The Kingsway Peterborough , Ont. K9J6W6 Canada
Tel: (705) 740 — 2010 Web: www.abmsensor.com
Fax: (705) 740 — 2563 E-mail: [e-mail]

FCC INFORMATION TO RADAR USERS
NOTE: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provided
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio fre­quency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interfer­ence to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference
in which case the user will be required to correct the inter­ference at his own expense.
WARNING-Changes or Modifications not expressly approved
by ABM Sensor Technology Inc. could void the user’s
authority to operate the equipment.

Wiring Information

- Ground shield at one end only.

- All terminal block wiring must be rated for 250V.

- Power input wiring must be protected by a 15A double
pole circuit breaker .

- Terminal is for use only with equipment which has no live
parts which are accessible .

- Terminal is for use with equipment which maintains basic
insulation from hazardous voltage under normal and sin­gle fault conditions .

- Connection used at the remote end of external circuit .

Recommended Wiring
For AC Sensor —
Power 3 Wire unshielded 22 AWG , 300 V
Current Output 1 Pair shielded 24 AWG , 300 V
Communication 1 Pair shielded 24 AWG , 300 V
For DC Sensor—
Power & Current output 3 Wire shielded 24 AWG , 300 V
Communication 1 Pair shielded 24 AWG , 300 V

Calibration — 4-20 or 20 –4 mA Output

FULL — Calibrate 20 mA or 4mA (Set Near Target)

1. Calibration mode LED color

2. Push button
Hold for 3 seconds (20mA) until LED turns
or Hold for 7 seconds ( 4mA) until LED turns

3. Release button, Observe ,
LED flashes to acknowledge

EMPTY— Calibrate 4 mA or 20 mA (Set Far Target)

1. Calibration mode LED color

2. Push button
Hold for 7 seconds ( 4mA) until LED turns

or Hold for 3 seconds (20mA) until LED turns

3. Release button, Observe,
LED flashes to acknowledge
Normal operating condition

Green

Yellow

Red

Green

Red

Yellow

Green

LED

LED

DWG 10A363
