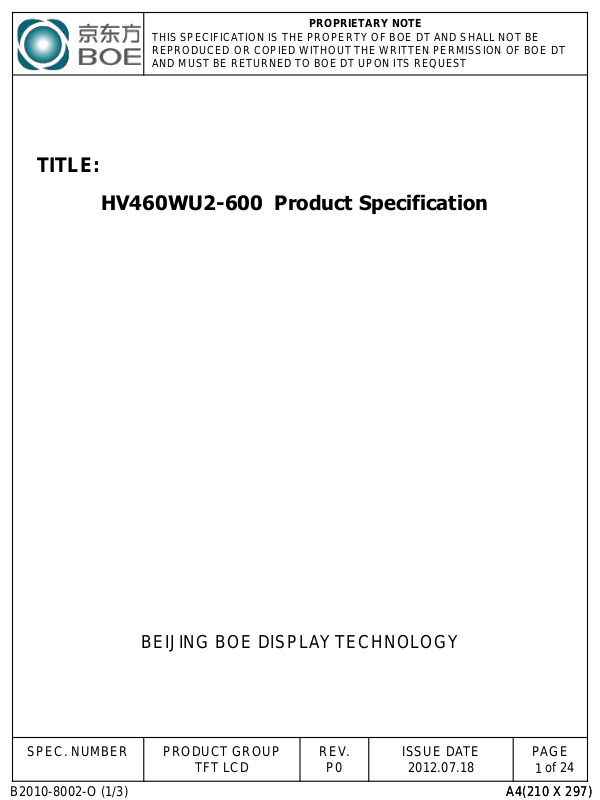

HV460WU2-600 Product Specification
SPEC. NUMBER
B2010-8002-O (1/3)
BEIJING BOE DISPLAY TECHNOLOGY
PRODUCT GROUP
TFT LCD
REV.
P0
ISSUE DATE
2012.07.18
PAGE
of 24
1
A4(210 X 297)
A4(210 X 297)
PRODUCT GROUP
REV ISSUE DATE
TFT LCD
P0 2012.07.18
REVISION HISTORY
REV. ECN NO. DESCRIPTION OF CHANGES DATE PREPARED
P0 - Initial Release 2012.07.18 Du Yufan
SPEC. NUMBER SPEC. TITLE
HV460WU2-600 Product Specification
B2010-8002-O (2/3)
PAGE
of 24
2
A4(210 X 297)
PRODUCT GROUP
REV ISSUE DATE
TFT LCD
P0 2012.07.18
Contents
No ITEM Page
REVISIONS HISTORY 2
CONTENTS
1 GENERAL DESCRIPTION
1.1 Introduction
1.2 Features
1.3 Applications
1.4 General Specification
2 ABSOLUTE MAXIMUM RATINGS 6
3 ELECTRICAL SPECIFICATIONS 7
5.4 Power Sequence
6 OPTICAL SPECIFICATIONS 15
7 MECHANICAL CHARACTERISTICS 17
8 RELIABLITY
9 PRODUCT SERIAL NUMBER 19
10 PACKING INFORMATION
11 HANDING & CAUTIONS 22
12 APPENDIX
11
18
20
23
SPEC. NUMBER SPEC. TITLE
HV460WU2-600 Product Specification
B2010-8002-O (3/3)
PAGE
of 24
3
A4(210 X 297)
PRODUCT GROUP
REV ISSUE DATE
TFT LCD
P0 2012.07.18
1.0 GENERAL DESCRIPTION
1.1 Introduction
HV460WU2-600 is a color active matrix TFT LCD open cell using amorphous silicon TFT's
(Thin Film Transistors) as an active switching devices. This module has a 46.00 inch
diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical stripe and this module can display 16.7M colors. The TFT-LCD panel is intended to
support applications to provide an excellent performance for Flat Panel Display, such as
Transparent TV, show Window, Kiosk etc.
RGB(Mini-LVDS)
VDD
+12.0V
LVDS
2Ports
LVDS_SEL
# 7
CN1
(51pin)
Timing Controller
[LVDS Rx & Mini-LVDS
Tx integrated]
S1 S1920
G1
Gate Driver Circuit
Source Driver Circuit
TFT - LCD Panel
(1920 × RGB × 1080 pixels)
Power Circuit
Block
G1080
1.2 Features
LVDS interface with 2 pixel / clock
High-speed response
Low color shift image quality
8-bit color depth, display 16.7M colors
High luminance and contrast ratio, low reflection and wide viewing angle
DE (Data Enable) only mode
ADS technology is applied for high display quality
RoHS compliant
1.3 Application Information for DID (Digital Information Display)
A long-term display like DID application may cause uneven display including image retention.
To optimize module’s lifetime and function, several operating usages are required.
1. Normal operating condition
‒ Temperature: 20 ± 15℃
‒ Humidity: 55 ± 20%
SPEC. NUMBER SPEC. TITLE
HV460WU2-600 Product Specification
B2010-8002-O (3/3)
PAGE
of 24
4
A4(210 X 297)
PRODUCT GROUP
REV ISSUE DATE
TFT LCD
‒ Display pattern: moving picture or regular switchover display
Note) Long-term static information image may cause uneven display.
2. Operating usages under abnormal operating condition.
a. Ambient condition
‒ Well-ventilated place is recommended to set up DID system.
b. Power off and screen saver
– Periodical power-off or screen saver is needed after long-term static display.
3. Operating usages to protect uneven display due to long-term static information display
a. Suitable operating time for E-DID: under 20 hours a day
b. Periodical display contents change from static image to moving picture
‒ Liquid crystal refresh time required
c. Periodical background color and character (image) color change.
‒ Use different colors for background and character (image), respectively.
‒ Change colors periodically
d. Avoid combination of background and character with large different luminance.
4. Lifetime in this spec is guaranteed only when DID is used under right operating usages.
P0 2012.07.18
1.4 General Specification
< Table 1. General Specifications >
ParameterSpecificationUnitRemark
Active area
Number of pixels
Pixel pitch
Pixel arrangement Pixels RGB Vertical stripe
Display colors 16.7M(8bits-true) colors
Display mode Transmission mode, Normally Black
Open Cell
Transmittance
Weight 2370 (Typ.) gram With T-con
Power Consumption 9.0(Typ.) Watt
1018.08(H) × 572.67(V)
1920(H) × 1080(V)
176.75(H) × RGB× 530.25(V) ㎛
9.0 (typ.) %
mm
pixels
Center point
BOE BLU
Board
SPEC. NUMBER SPEC. TITLE
HV460WU2-600 Product Specification
B2010-8002-O (3/3)
PAGE
of 24
5
A4(210 X 297)
PRODUCT GROUP
REV ISSUE DATE
TFT LCD
P0 2012.07.18
2.0 ABSOLUTE MAXIMUM RATINGS
The followings are maximum values which, if exceed, may cause faulty operation or
damage to the unit. The operational and non-operational maximum voltage and current
values are listed in Table 2.
< Table 2. Open Cell Electrical Specifications >
ParameterSymbolMin.Max.UnitRemark
Power Supply Voltage VDD VSS-0.3 13.5 V
TOP 0 +50
Operating Temperature
T
0 +60
SUR
Storage Temperature TST -20 +60
Operating Ambient
Humidity
Hop 10 80 %RH
℃
℃
℃
[VSS=GND=0V]
Ta = 25 ℃
Note 1
Storage Humidity Hst 10 80 %RH
Note 1 : Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be 39 ℃ max. and no condensation of water.
SPEC. NUMBER SPEC. TITLE
HV460WU2-600 Product Specification
B2010-8002-O (3/3)
PAGE
of 24
6
A4(210 X 297)
PRODUCT GROUP
REV ISSUE DATE
TFT LCD
P0 2012.07.18
3.0 ELECTRICAL SPECIFICATIONS
3.1 TFT LCD open cell
< Table 3. Open Cell Electrical Specifications >
Values
Parameter Symbol
Min Typ Max
Power Supply Input Voltage VDD 10.8 12 13.2 Vdc
Power Supply Ripple Voltage VRP 300 mV
Power Supply Current IDD - 750 850 mA
Power Consumption PDD 9.0 10.2 Watt
Rush current IRUSH - - 3.0 A Note 2
Differential Input High
VLVTH +100 +300 mV
Threshold Voltage
LVDS
Interface
Differential Input Low
Threshold Voltage
VLVTL -300 -100 mV
[Ta =25± 2 ℃]
Unit Remark
Note 1
Common Input Voltage VLVC 1.0 1.2 1.4 V
Input High Threshold
VIH 2.7 - 3.3 V
CMOS
Interface
Voltage
Input Low Threshold
VIL 0 - 0.6 V
Voltage
Note 1 : The supply voltage is measured and specified at the interface connector of LCM.
The current draw and power consumption specified is for VDD=12.0V,
Frame rate fV=60Hz and Clock frequency = 75.4MHz.
Test Pattern of power supply current
a) Typ : Color Test (L0/L255) b) Max : Horizontal 1 Line (L0/L255)
Note 2 : The duration of rush current is about 2ms and rising time of Power Input is 1ms(min)
R G B R G B R G B
R G B R G B R G B
R G B R G B R G B
R G B R G B R G B
R G B R G B R G B
R G B R G B R G B
R G B R G B R G B
R G B R G B R G B
SPEC. NUMBER SPEC. TITLE
HV460WU2-600 Product Specification
PAGE
of 24
7
B2010-8002-O (3/3)
A4(210 X 297)
PRODUCT GROUP
REV ISSUE DATE
TFT LCD
P0 2012.07.18
4.0 INTERFACE CONNECTION
4.1 Module Input Signal & Power
- Connector : IS050-C51B-C39-S (UJU) / FI-RE51S-HF-R1500 (JAE) or Equivalent.
< Table 4. Open Cell Input Connector Pin Configuration >
Pin No
1 NC No Connection 21 GND Ground
2 SDA I2C Data 22 CH1[3]-
3 SCL I2C Clock 23 CH1[3]+
4 NC Not Connected 24 CH1[4]-/NC
5 NC Not Connected 25 CH1[4]+/NC
6 NC Not Connected 26 2D/3D 2D/3D Signal Select
7 SELLVDS
8 NC Not Connected 28 CH2[0]-
9 NC Not Connected 29 CH2[0]+
10 NC Not Connected 30 CH2[1]-
11 GND Ground 31 CH2[1]+
12 CH1[0]-
13 CH1[0]+
14 CH1[1]-
15 CH1[1]+
16 CH1[2]-
17 CH1[2]+
18 GND Ground 38 CH2[3]-
19 CH1CLK- First pixel negative LVDS clock 39 CH2[3]+
20 CH1CLK+ First pixel positive LVDS clock
Symbol Description
High: JEIDA
Low or Open: NS
First pixel negative LVDS
differential data input. Pair0
First pixel positive LVDS
differential data input. Pair0
First pixel negative LVDS
differential data input. Pair1
First pixel positive LVDS
differential data input. Pair1
First pixel negative LVDS
differential data input. Pair2
First pixel positive LVDS
differential data input. Pair2
Pin No
27 L/R Left Right Eye Frame Sync.
32 CH2[2]-
33 CH2[2]+
34 GND Ground
35 CH2CLK- First pixel negative LVDS clock
36 CH2CLK+ First pixel positive LVDS clock
37 GND Ground
Symbol Description
First pixel negative LVDS
differential data input. Pair3
First pixel positive LVDS
differential data input. Pair3
First pixel negative LVDS
differential data input. Pair4
First pixel positive LVDS
differential data input. Pair4
Second pixel negative LVDS
differential data input. Pair0
Second pixel positive LVDS
differential data input. Pair0
Second pixel negative LVDS
differential data input. Pair1
Second pixel positive LVDS
differential data input. Pair1
Second pixel negative LVDS
differential data input. Pair2
Second pixel positive LVDS
differential data input. Pair2
Second pixel negative LVDS
differential data input. Pair3
Second pixel positive LVDS
differential data input. Pair3
SPEC. NUMBER SPEC. TITLE
HV460WU2-600 Product Specification
B2010-8002-O (3/3)
PAGE
of 24
8
A4(210 X 297)
PRODUCT GROUP
REV ISSUE DATE
TFT LCD
Pin No
40 CH2[4]-/NC
41 CH2[4]+/NC
42 NC Not Connected 48 VCC Input Voltage
43 NC Not Connected 49 VCC Input Voltage
44 GND Ground 50 VCC Input Voltage
45 GND Ground 51 VCC Input Voltage
Notes : 1. NC(Not Connected) : This pins are only used for BOE internal operations.
2. Input Level of LVDS signal is based on the IEA 664 Standard.
3. LVDS_SEL : This pin is used for selecting LVDS signal data format.
If this Pin : High (3.3V) JEIDA LVDS format
Otherwise : Low (GND) or Open (NC) Normal NS LVDS format
Symbol Description
Second pixel negative LVDS
differential data input. Pair4
Second pixel positive LVDS
differential data input. Pair4
Rear view of LCM
Pin No
46 GND Ground
47 NC Not Connected
Symbol Description
BIST Pattern
P0 2012.07.18
IS050-C51B-C39-S (UJU)
/FI-RE51S-HF-R1500 (JAE)
1
51
SPEC. NUMBER SPEC. TITLE
HV460WU2-600 Product Specification
B2010-8002-O (3/3)
PAGE
of 24
9
A4(210 X 297)
PRODUCT GROUP
REV ISSUE DATE
TFT LCD
P0 2012.07.18
4.2 LVDS Interface
- LVDS Receiver : Timing Controller (LVDS Rx merged) / LVDS Data : Pixel Data
< Table 5. Open Cell Input Connector Pin Configuration >
Notes: 1. Even though T1 is over the specified value, there is no problem if I2T spec of fuse is satisfied.
SPEC. NUMBER SPEC. TITLE
HV460WU2-600 Product Specification
B2010-8002-O (3/3)
PAGE
of 24
14
A4(210 X 297)
PRODUCT GROUP
REV ISSUE DATE
TFT LCD
P0 2012.07.18
6.0 OPTICAL SPECIFICATIONS
The test of optical specifications shall be measured in a dark room (ambient luminance1 lux
and temperature=252℃) with the equipment of Luminance meter system (Goniometer
system and PR730) and test unit shall be located at an approximate distance 50cm from the
LCD surface at a viewing angle of θ and Φ equal to 0. We refer to θ
o’clock direction (the “right”), θ
) as the 9 o’clock direction (“left”) and θ
(= θ12 ) as the 12 o’clock direction (“upward”), θ
Ø=90
(= θ6 ) as the 6 o’clock direction (“bottom”). While
Ø=270
scanning θ and/or Ø, the center of the measuring spot on the Display surface shall stay
fixed. The measurement shall be executed after 30 minutes warm-up period. VDD shall be
12.0V +/-10% at 25C. Optimum viewing angle direction is 6 ’clock.
< Table 9. Optical Table >
[VDD = 12.0V, Frame rate = 60Hz, Ta =25± 2 ℃]
(=θ3 ) as the 3
Ø=0
Ø=180
(= θ9
Parameter Symbol Condition Min Typ Max Unit Remark
Θ
3
89 Deg.
Horizontal
Viewing
Angle
Θ
9
89 Deg.
CR > 10
Θ
89 Deg.
12
Vertical
Θ
89 Deg.
6
Contrast ratio CR
900:1 1200:1 - Note 2
Θ = 0
Color Gamut 36 %
(Center)
Normal
Viewing
Response Time G to G T
g
Angle
- 8 10 ms Note 4
Gamma Scale 2.0 2.2 2.4
Cell Transmittance 9.0 % Note 5
Note 1
SPEC. NUMBER SPEC. TITLE
HV460WU2-600 Product Specification
B2010-8002-O (3/3)
PAGE
of 24
15
A4(210 X 297)
PRODUCT GROUP
REV ISSUE DATE
TFT LCD
P0 2012.07.18
Note :
1. Viewing angle is the angle at which the contrast ratio is greater than 10. The viewing are
determined for the horizontal or 3, 9 o’clock direction and the vertical or 6, 12 o’clock
direction with respect to the optical axis which is normal to the LCD surface.
2. Contrast measurements shall be made at viewing angle of = 0 and at the center of the LCD
surface. Luminance shall be measured with all pixels in the view field set first to white, then
to the dark (black) state. (See Figure 1 shown in Appendix) Luminance Contrast Ratio (CR)
is defined mathematically.
Luminance when displaying a white raster
CR =
Luminance when displaying a black raster
3. The color chromaticity coordinates specified in Table 9.shall be calculated from the spectral
data measured with all pixels first in red, green, blue and white. Measurements shall be
made at the center of the panel. The BLU is used by BOE.
4. Response time Tg is the average time required for display transition by switching the input
signal as below table and is based on Frame rate fV =60Hz to optimize.
Each time in below table is defined as Figure 2 and shall be measured by switching the
5. Definition of Transmittance (T%) :
Module is with white(L255) signal input
Transmittance =
Luminance of LCD Module
SPEC. NUMBER SPEC. TITLE
HV460WU2-600 Product Specification
B2010-8002-O (3/3)
Luminance of BLU
× 100 %
PAGE
of 24
16
A4(210 X 297)
PRODUCT GROUP
REV ISSUE DATE
TFT LCD
P0 2012.07.18
7.0 MECHANICAL CHARACTERISTICS
7.1 Dimensional Requirements
Figure 3(located in Appendix) shows mechanical outlines for the model HV460WU2-600.
Other parameters are shown in Table 10.
< Table 10. Dimensional Parameters >
Parameter Specification Unit
Active area
Pixel pitch
Number of pixels
Weight 2370 (Typ.) gram
1920(H) × 1080(V) (1 pixel = R + G + B dots)
1018.08 (H) × 572.67(V)
0.53025(H) × 0.53025(V)
mm
mm
pixels
SPEC. NUMBER SPEC. TITLE
HV460WU2-600 Product Specification
B2010-8002-O (3/3)
PAGE
of 24
17
A4(210 X 297)
PRODUCT GROUP
REV ISSUE DATE
TFT LCD
8.0 RELIABILITY TEST
The Reliability test items and its conditions are shown in below.
< Table 11. Reliability Test Parameters >
No Test ItemsConditions
1 High temperature storage test
2 Low temperature storage test
3 High temperature & high
humidity
operation test
4 High temperature operation test
5 Low temperature operation test
Ta = 60 ℃, 240 hrs
Ta = -20 ℃, 240 hrs
Ta = 50 ℃, 80%RH, 240hrs
Ta = 50 ℃, 240hrs
Ta = 0 ℃, 240hrs
P0 2012.07.18
6 Thermal shock
7 Vibration test
(non-operating)
8 Shock test
(non-operating)
9 Electro-static discharge test
Ta = -20 ℃↔ 60 ℃ (0.5 hr), 100 cycle
Frequency : 10 ~ 300 Hz, Random
Gravity / AMP : 1.0 Grms
Period : X, Y, Z 30 min/axis
Gravity : 50G
Pulse width : 11msec, Sine wave
± X, ± Y, ± Z Once for each direction
Air : ± 15kV ,150pF/330Ω ,100Point ,1time/Point
Contact :
± 8kV ,150pF/330Ω ,100Point ,1time/Point
Non operation
Contact:± 4KV~± 6KV,150pF/330Ω,100Point,
Input connector Pin, 3 times/pin with no function
loss
SPEC. NUMBER SPEC. TITLE
HV460WU2-600 Product Specification
B2010-8002-O (3/3)
PAGE
of 24
18
A4(210 X 297)
PRODUCT GROUP
REV ISSUE DATE
TFT LCD
9.0 PRODCUT SERIAL NUMBER
P0 2012.07.18
HV460WU2-600
1 2 3 4 5 6 7
X X X X X X X X X X X X X X X X X
1. Control Number
2. Rank / Grade
3. Line Classification
4. Year (2011 : 11, 2012 : 12, …)
SPEC. NUMBER SPEC. TITLE
HV460WU2-600 Product Specification
5. Month (1,2,3, … , 9, X, Y, Z)
6. Internal Use
7. Serial Number
PAGE
of 24
19
B2010-8002-O (3/3)
A4(210 X 297)
PRODUCT GROUP
REV ISSUE DATE
TFT LCD
P0 2012.07.18
10.0 PACKING INFORMATION
BOE provides the standard shipping container for customers, unless customer specifies
their packing information. The standard packing method and Barcode information are
shown in below.
Box Dimension : 875mmL× 597mmW× 279mmH Package Quantity in one Box : 10pcs
10.3 Box Label
Label Size : 110 mm (L) 55 mm (W)
Contents
Model : HV460WU2-600
Q`ty : 10 Open Cell in one box.
Serial No. : Box Serial No. See next page for detail description.
Date : Packing Date
FG Code : FG Code of Product
P0 2012.07.18
HV460WU2-600
0000000000000
00 0 00 0 0 000000
Type Grade Year Month ITEM-CODE Serial_no
SPEC. NUMBER SPEC. TITLE
HV460WU2-600 Product Specification
3840
10
201X.X.XX
Internal CODE
RoHS Mark
PAGE
of 24
21
B2010-8002-O (3/3)
A4(210 X 297)
PRODUCT GROUP
REV ISSUE DATE
TFT LCD
P0 2012.07.18
11.0 HANDLING & CAUTIONS
(1) Cautions when taking out the module
Pick the pouch only, when taking out module from a shipping package.
(2) Cautions for handling the module
As the electrostatic discharges may break the LCD module, handle the LCD
module with care. Peel a protection sheet off from the LCD panel surface as
slowly as possible.
As the LCD panel and back - light element are made from fragile glass material,
impulse and pressure to the LCD module should be avoided.
As the surface of the polarizer is very soft and easily scratched, use a soft dry
cloth without chemicals for cleaning.
Do not pull the interface connector in or out while the LCD module is operating.
Put the module display side down on a flat horizontal plane.
Handle connectors and cables with care.
(3) Cautions for the operation
When the module is operating, do not lose CLK, ENAB signals. If any one of
these signals is lost, the LCD panel would be damaged.
Obey the supply voltage sequence. If wrong sequence is applied, the module
would be damaged.
(4) Cautions for the atmosphere
Dew drop atmosphere should be avoided.
Do not store and/or operate the LCD module in a high temperature and/or
humidity atmosphere. Storage in an electro-conductive polymer packing pouch
and under relatively low temperature atmosphere is recommended.
(5) Cautions for the module characteristics
Do not apply fixed pattern data signal to the LCD module at product aging.
Applying fixed pattern for a long time may cause image sticking.
(6) Other cautions
Do not disassemble and/or re-assemble LCD module.
Do not re-adjust variable resistor or switch etc.
When returning the module for repair or etc., Please pack the module not to be
broken. We recommend to use the original shipping packages.
