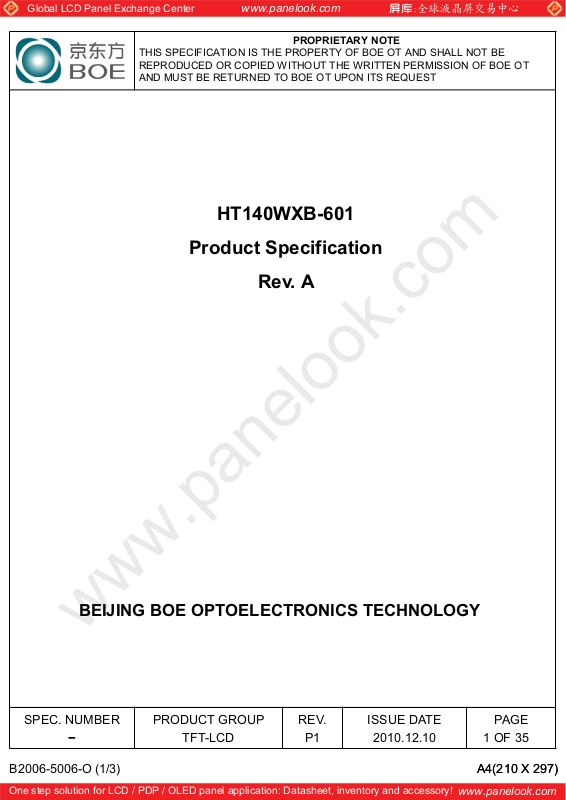

PROPRIETARY NOTE
HT140WXB-601
Product Specification
Rev. A
BEIJING BOE OPTOELECTRONICS TECHNOLOGY
SPEC. NUMBER
B2006-5006-O (1/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
3
OF 35
www.panelook.com
Page 4
Global LCD Panel Exchange Center
TG
www.panelook.com
PRODUCT GROUP
REV ISSUE DATE
TFT LCD PRODUCT P12010.12.10
1.0 GENERAL DESCRIPTION
1.1 Introduction
HT140WXB-601 is a color active matrix TFT LCD module using amorphous silicon TFT's
(Thin Film Transistors) as an active switching devices. This module has a 14.0 inch
diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical Stripe and this module can display 262,144 colors. The TFT-LCD panel used for this
module is a low reflection and higher color type. Therefore, this module is suitable for
Notebook PC. The LED Driver for back-light driving is built in this model.
All input signals are LVDS interface compatible.
LED Driver
LED Lighting Bar
LVDS
Connector
Input
Signal
1
VDD
LVDS Rx
+
T/CON
+
Mini-LVDS Tx
DC/DC
Gamma
Vcom
TFT LCD Panel
BACK LIGHT(Fluorescent Lamp)
1366 ശ768
Source Driver
1.2 Features
z 1 Channel LVDS Interface with 1 pixel / clock
z Thin and light weight
z 6-bit color depth, display 262K colors
z Single LED Lighting Bar. (Top side/Horizontal Direction)
z Data enable signal mode
z Side Mounting Frame
z Green Product (RoHS & Halogen free product)
z On board LED Driving circuit
z Low driving voltage and low power consumption

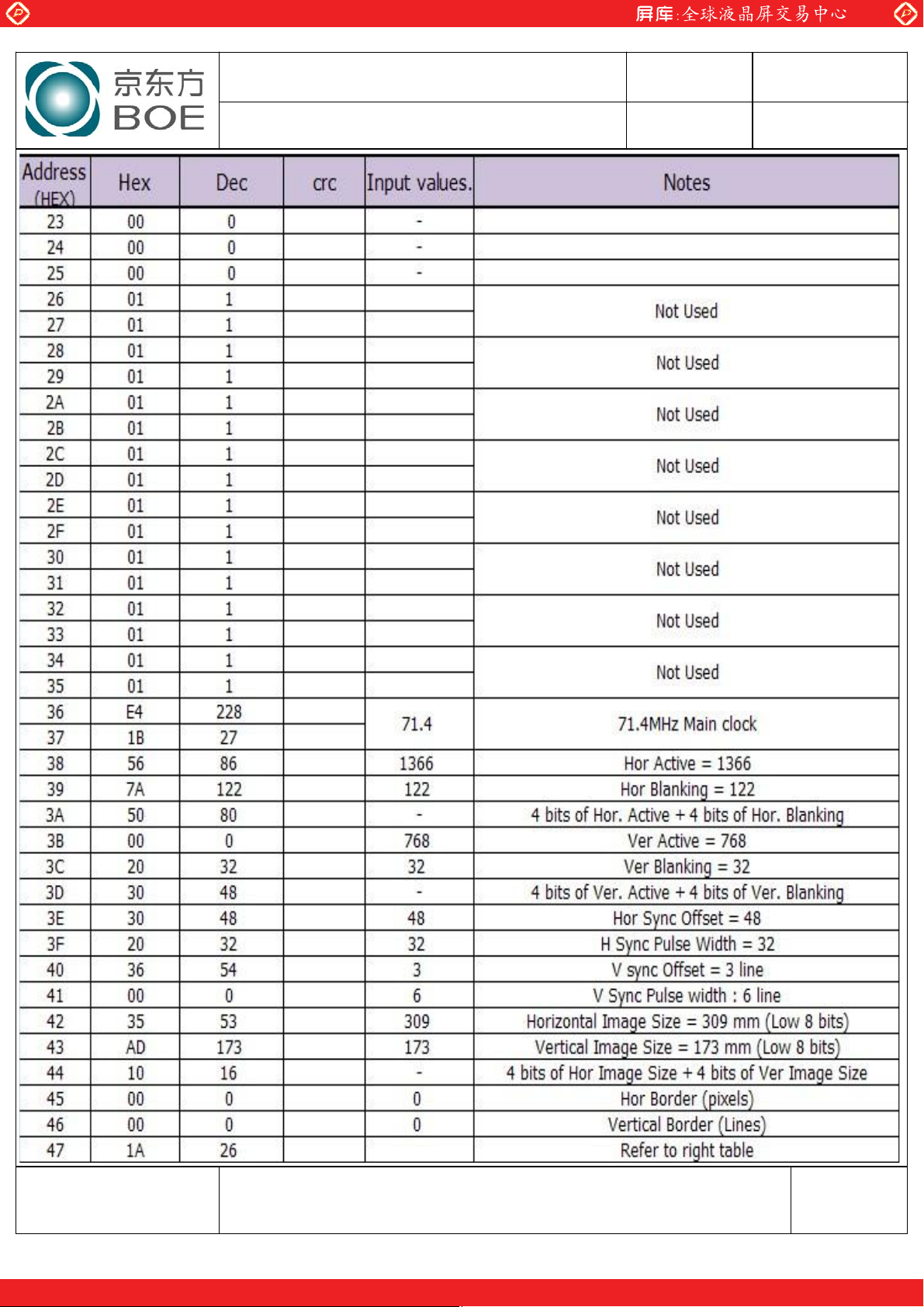

z On board EDID chip
Gate Driver
SPEC. NUMBER
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
4
OF 35
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
TG
www.panelook.com
PRODUCT GROUP
REV ISSUE DATE
TFT LCD PRODUCT P12010.12.10
1.3 Application
z Notebook PC (Wide type)
1.4 General Specification
The followings are general specifications at the model o{X[W~iT]WX. (listed in Table 1.)
<Table 1. General Specifications>
ParameterSpecificationUnit Remarks
Active area
309.4(H) ശ173.95(V)
mm
Number of pixels
Pixel pitch
1366 (H) ശ768 (V)
0.2265(H) ശ0.2265 (V)
pixels
mm
Pixel arrangement RGB Vertical stripe
Display colors 262Kcolors
Display mode Normally White
Dimensional outline
323.5 (H) ശ192 (V) ശ5.2 (D:max)
mm
Weight 350 (max) g
Surface treatment Anti-Glare (Haze 40)
Back-light Upper edge side, 1-LED Lighting Bar type Note 1
Power consumption P
: 1.1 (max) W
D
P
: 3.0 (max) W
BL
P
: 4.1 (max) W
total
Notes : 1. LED Lighting Bar (40*LED Array)
SPEC. NUMBER
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
5
OF 35
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
TG
Operating Range
Storage Range
-40 -20 0 20 40 60 80
Temperature (ఁ)
(40, 95)
(50, 80)
(60, 27)
100
80
60
40
20
90
Relative Humudity
5
Storage Range
www.panelook.com
PRODUCT GROUP
REV ISSUE DATE
TFT LCD PRODUCT P12010.12.10
2.0 ABSOLUTE MAXIMUM RATINGS
The followings are maximum values which, if exceed, may cause faulty operation or
damage to the unit. The operational and non-operational maximum voltage and current
values are listed in Table 2.
< Table 2. Absolute Maximum Ratings>
ParameterSymbolMin.Max.UnitRemarks
Power Supply Voltage V
Logic Supply Voltage V
Operating Temperature T
Storage Temperature T
DD
IN
OP
ST
-0.3 4.0 V
Vss-0.3 VDD+0.3 V
0 +50
-20+60
ć
ć
Ta=25+/-2¶C
Note 1
Note 2
Notes : 1. Permanent damage to the device may occur if maximum values are exceeded
functional operation should be restricted to the condition described under normal
operating conditions.
2. Temperature and relative humidity range are shown in the figure below.
O
95 % RH Max. ( 40
Maximum wet - bulb temperature at 39
C ≥ Ta)
O
C or less. (Ta > 40 OC) No condensation.
SPEC. NUMBER
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
6
OF 35
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
TG
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT P12010.12.10
3.0 ELECTRICAL SPECIFICATIONS
3.1 Electrical Specifications
< Table 3. Electrical specifications >
ParameterMin.Typ.Max.UnitRemarks
Power Supply Voltage V
Permissible Input Ripple
Voltage
Power Supply Current I
V
DD
RF
DD
REV ISSUE DATE
Ta=25+/-2¶C
3.0 3.3 3.6 V Note 1
- - 100mVAt VDD = 3.3V
- 205- mANote 1
Positive-going Input
Threshold Voltage
Negative-going Input
Threshold Voltage
V
V
Differential Input Voltage V
Power Consumption
P
P
P
total
IT+
IT-
ID
D
BL
- - 100mV
V
cm = 1.2V typ.
-100- - mV
200- 600mV
- 0.68 1.1 W Note 1
- 2.85 3.0 W Note 2
- 3.53 4.1 W
Notes : 1. The supply voltage is measured and specified at the interface connector of LCM.
The current draw and power consumption specified is for 3.3V at 25ć.
a) Typ : Window XP pattern
b) Max : Vertical 2 line skip pattern
2. Calculated value for reference (V
SPEC. NUMBER
SPEC TITLE
HT140WXB-601 Product Specification
LED ശ ILED)
PAGE
7 7
OF 35
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
TG
e
www.panelook.com
PRODUCT GROUP
REV ISSUE DATE
TFT LCD PRODUCT P12010.12.10
3.0 ELECTRICAL SPECIFICATIONS
3.2 Backlight Unit
< Table 4. LED Driving guideline specifications
ParameterMin.Typ.Max.UnitRemarks
LED Forward Voltage V
LED Forward Current I
LED Power Consumption P
F
F
LED
3.0 3.2 3.4 V -
- 20mA-
2.85 3.0 W Note 1
LED Life-Time N/A 15,000 - - Hour I
Ta=25+/-2¶C
F = 20mA
Power supply voltage for
LED Driver
V
LED
6 1221 V
Backlight on 2.0 5.0 V
EN Control
Level
Backlight off 0 1.0 V
PWM
PWM High
Level
2.0 5.0 V
Control
Level
PWM Control Frequency F
PWM Low
Level
PWM
0 0.1 V
180- 10,000 Hz
Duty Ratio - 5 - 100%
Notes : 1. Power supply voltage12V for LED Driver, Driver efficiency 90%,
Calculator Value for reference IF ϧ VF ϧ40 / 0.9 = PLED
2. The LED Life-time define as the estimated time to 50% degradation of initial luminous.
SPEC. NUMBER
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
8 8
OF 35
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
TG
www.panelook.com
PRODUCT GROUP
REV ISSUE DATE
TFT LCD PRODUCT P12010.12.10
4.0 OPTICAL SPECIFICATION
4.1 Overview
The test of Optical specifications shall be measured in a dark room (ambient luminance d 1
lux and temperature = 25r2ć) with the equipment of Luminance meter system (Goniometer
system and TOPCON BM-5) and test unit shall be located at an approximate distance
50cm from the LCD surface at a viewing angle of θ and Φ equal to 0q. We refer to θØ=0
(=θ3 ) as the 3 o’clock direction (the “right”), θØ=90 (= θ12 ) as the 12 o’clock direction
(“upward”), θØ=180 (= θ9 ) as the 9 o’clock direction (“left”) and
θØ=270(= θ6 ) as the 6 o’clock direction (“bottom”). While scanning θand/or Ø, the center
of the measuring spot on the Display surface shall stay fixed. The backlight should be
operating for 30 minutes prior to measurement. VDD shall be 3.3+/- 0.3V at 25qC.
Optimum viewing angle direction is 6 ’clock.
4.2 Optical Specifications
<Table 5. Optical Specifications>
ParameterSymbolConditionMin.Typ.Max. UnitRemark
Θ
Θ
Θ
Θ
12
3
9
6
CR > 10
Viewing Angle
Horizontal
range
Vertical
Luminance Contrast ratio CRΘ = 0q300400Note 2
Luminance of
White
White
Luminance
uniformity
White Chromaticity
Reproduction
of color
Response Time
(Rising + Falling)
5 Points Y
w
Θ = 0q
5 Points ΔY580- -
LED = 20mA
I
13 Points ΔY1365- -
x
Red
Green
Blue x
w
y
w
x
R
y
R
x
G
y
G
0.1200.1500.180
B
y
B
T
RT
Θ = 0q
Θ = 0q
Ta= 25q C
Θ = 0q
4045- Deg.
4045- Deg.
Note 1
1520- Deg.
3040- Deg.
170200- cd/m
2
Note 3
Note 4
0.283 0.313 0.343
Note 5
0.299 0.329 0.359
0.552 0.582 0.612
0.3230.3530.383
0.2950.3250.355
0.5190.5490.579
0.0800.1100.140
- 8 16msNote 6
Cross Talk CTΘ = 0q- - 2.0 % Note 7
SPEC. NUMBER
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
9
OF 35
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
TG
www.panelook.com
PRODUCT GROUP
REV ISSUE DATE
TFT LCD PRODUCT P12010.12.10
Notes : 1. Viewing angle is the angle at which the contrast ratio is greater than 10. The
viewing angles are determined for the horizontal or 3, 9 o’clock direction and thevertical or 6, 12 o’clock direction with respect to the optical axis which is normal
to the LCD surface (see FIGURE 1).
2. Contrast measurements shall be made at viewing angle of Θ= 0 and at the center
of the LCD surface. Luminance shall be measured with all pixels in the view field
set first to white, then to the dark (black) state .
(see FIGURE 1) Luminance Contrast Ratio (CR) is defined mathematically.
Luminance when displaying a white raster
CR =
Luminance when displaying a black raster
3. Center Luminance of white is defined as luminance values of 5 point average
across the LCD surface. Luminance shall be measured with all pixels in the view
field set first to white. This measurement shall be taken at the locations shown
in FIGURE 2 for a total of the measurements per display.

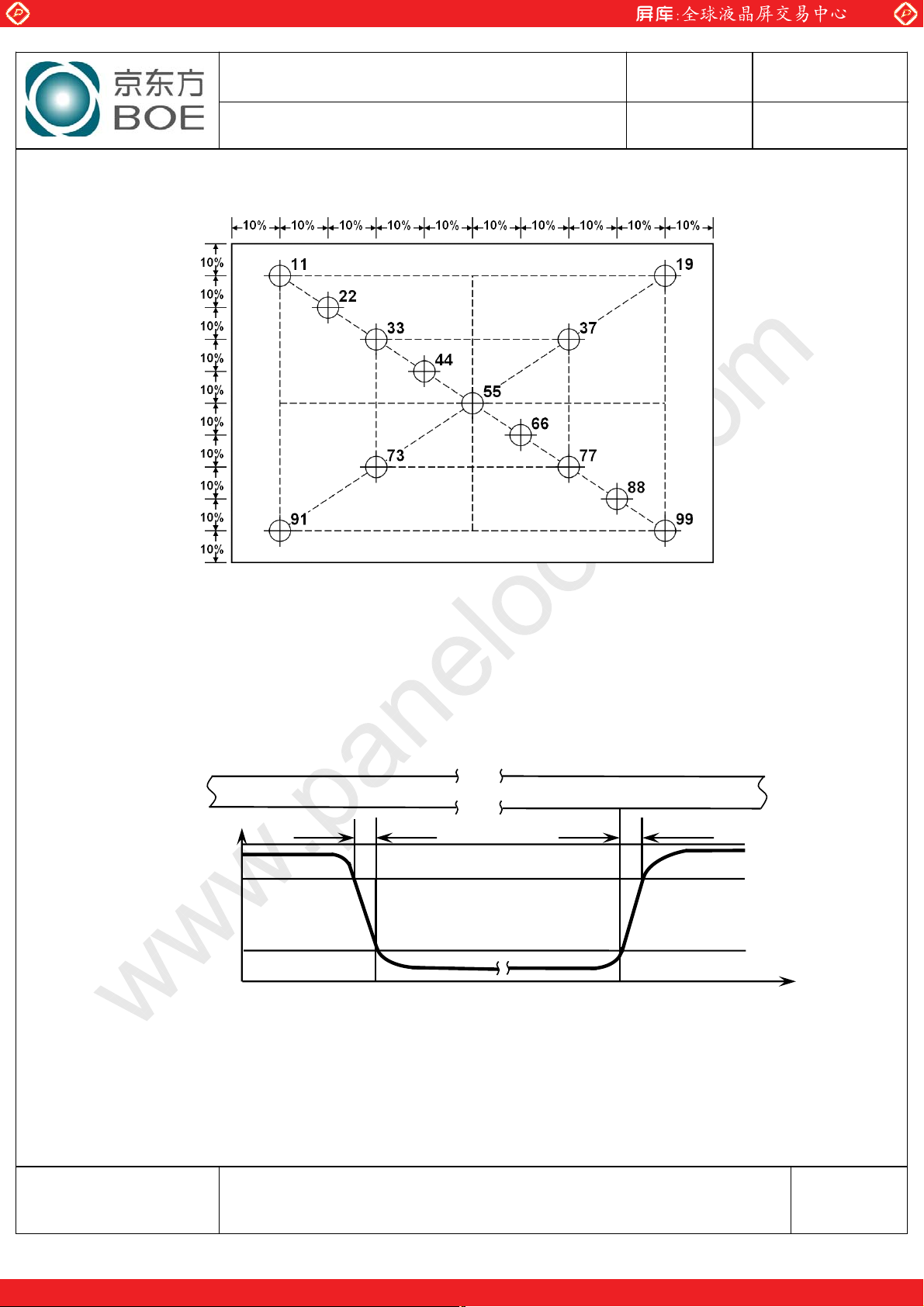

4. The White luminance uniformity on LCD surface is then expressed as : ΔY =
Minimum Luminance of 5(or 13) points / Maximum Luminance of 5(or 13) points
(see FIGURE 2 and FIGURE 3).
5. The color chromaticity coordinates specified in Table 5 shall be calculated from
the spectral data measured with all pixels first in red, green, blue and white.
Measurements shall be made at the center of the panel.
6. The electro-optical response time measurements shall be made as FIGURE 4
by switching the “data” input signal ON and OFF. The times needed for the
luminance to change from 10% to 90% is Tr, and 90% to 10% is Td.
7. Cross-Talk of one area of the LCD surface by another shall be measured by
comparing the luminance (YA) of a 25mm diameter area, with all display pixels
set to a gray level, to the luminance (YB) of that same area when any adjacent
area is driven dark. (See FIGURE 5).
SPEC. NUMBER
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
10
OF 35
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
TG
www.panelook.com
PRODUCT GROUP

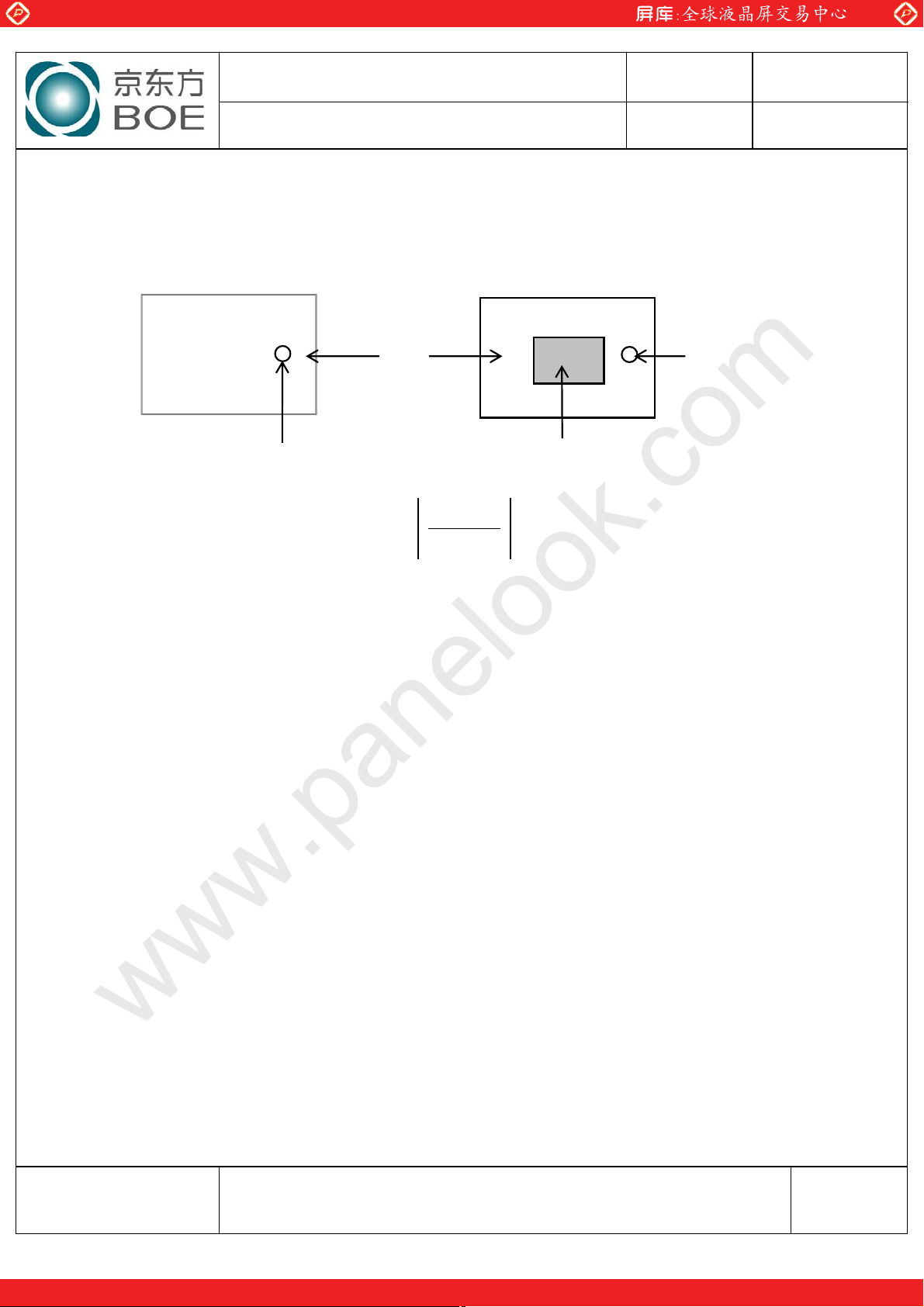

4.3 Optical measurements
Photo detector
(TOPCON BM-5A)
TFT-LCD module
REV ISSUE DATE
TFT LCD PRODUCT P12010.12.10
Figure 1. Measurement Set Up
Field = 2
o
50 cm
LCD panel
Center of the screen
Optical characteristics measurement setup
Figure 2. White Luminance and Uniformity Measurement Locations (5 points)
Note:
•Center point is defined as point 55
•5 points are defined as point 33,37,55,73,77
•11 points are defined as point 11,22,33,44,55, 66,77,88,99,19,91
SPEC. NUMBER
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
11
OF 35
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
The White luminance uniformity on LCD surface is then expressed as : ΔY5 =
Minimum Luminance of five points / Maximum Luminance of five points (see
FIGURE 2) , ΔY13 = Minimum Luminance of 13 points /Maximum Luminance of
13 points (see FIGURE 3).
Figure 4. Response Time Testing
Display data
Optical
Response
100%
90%
10%
0%
White(TFT OFF)
TR
Black(TFT ON)
White(TFT OFF)
TF
Time
The electro-optical response time measurements shall be made as shown in
FIGURE 4 by switching the “data” input signal ON and OFF. The times needed
for the luminance to change from 10% to 90% is Td and 90% to 10% is Tr.
SPEC. NUMBER
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
12
OF 35
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
TG
www.panelook.com
Figure 5. Cross Modulation Test Description
VIEW AREA
(1195, 384)
Y
A
Cross-Talk (%) =
PRODUCT GROUP
REV ISSUE DATE
TFT LCD PRODUCT P12010.12.10
VIEW AREA
342,192
L31
1025, 192
1025,576342,576
Y
(1195, 384)
B
L0
YB - Y
Y
A
ശ 100
B
Where:
Y
Y
= Initial luminance of measured area (cd/m2)
A
= Subsequent luminance of measured area (cd/m2)
B
The location measured will be exactly the same in both patterns
Cross-Talk of one area of the LCD surface by another shall be measured by
comparing the luminance (YA) of a 25mm diameter area, with all display pixels
set to a gray level, to the luminance (YB) of that same area when any adjacent
area is driven dark (Refer to FIGURE 5).
SPEC. NUMBER
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
13
OF 35
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
TG
www.panelook.com
PRODUCT GROUP
REV ISSUE DATE
TFT LCD PRODUCT P12010.12.10
5.0 INTERFACE CONNECTION.
5.1 Electrical Interface Connection
The electronics interface connector is I-PEX 20455-040E-12 or Compatible or
equivalent. The mating connector part number is I-PEX 20455-040T-11 or Compatible.
The connector interface pin assignments are listed in Table 6.
<Table 6. Pin Assignments for the Interface Connector>
Terminal Symbol Functions
Pin No. Symbol Description
1 NCNo Connection
2 VDDIN Power Supply, 3.3V (typ.)
3 VDDIN Power Supply, 3.3V (typ.)
4 VDC VDC 3.3Vpower for EDID
5 BISTCBIST control(Note.1)
6 CLK EDID EDID Clock
7 Data EDID EDID Data
8 RxIN0- Transmission Data of 0 Negative -
9 RxIN0+Transmission Data of 0 Positive +
10GND Ground
11RxIN1- Transmission Data of 1 Negative -
12RxIN1+Transmission Data of 1 Positive +
13GND Ground
14RxIN2- Transmission Data of 2 Negative -
15RxIN2+Transmission Data of 2 Positive +
16GNDGround
17RxCLKIN- Sampling Clock of Negative -
18RxCLKIN+ Sampling Clock of Positive +
19CE_ENColor Engine Enable
20NCNo Connection
21
22
23
24
25
26
27
28
29
30
NCNo Connection
GNDGround
NCNo Connection
NCNo Connection
GNDGround
(CE)
LCD internal use only
(CTL)
GNDGround
NCNo Connection
NCNo Connection
SPEC. NUMBER
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
14
OF 35
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
TG
www.panelook.com
PRODUCT GROUP
REV ISSUE DATE
TFT LCD PRODUCT P12010.12.10
Terminal Symbol Functions
Pin No. Symbol Description
31VLED_GNDLED Ground
32 VLED_GNDLED Ground
33 VLED_GNDLED Ground
34 NCNo Connection
35 PWMSystem PWM Signal Input
36 LED_ENLED enable pin(+3.3V Input)
37 DCR_ENDynamic Backlight Enable
38 VLEDLED Power Supply 6V-21V
39 VLEDLED Power Supply 6V-21V
40 VLEDLED Power Supply 6V-21V
Note.1
-BIST=“H (3.3V)” : Display BIST pattern @ No LVDS CLK or DE
(white->black->red->green->blue->white…)
-BIST=“L(GND or NC)” : Display black pattern @ No LVDS CLK or DE
SPEC. NUMBER
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
15
OF 35
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
TG
6
6
6
L
S
www.panelook.com

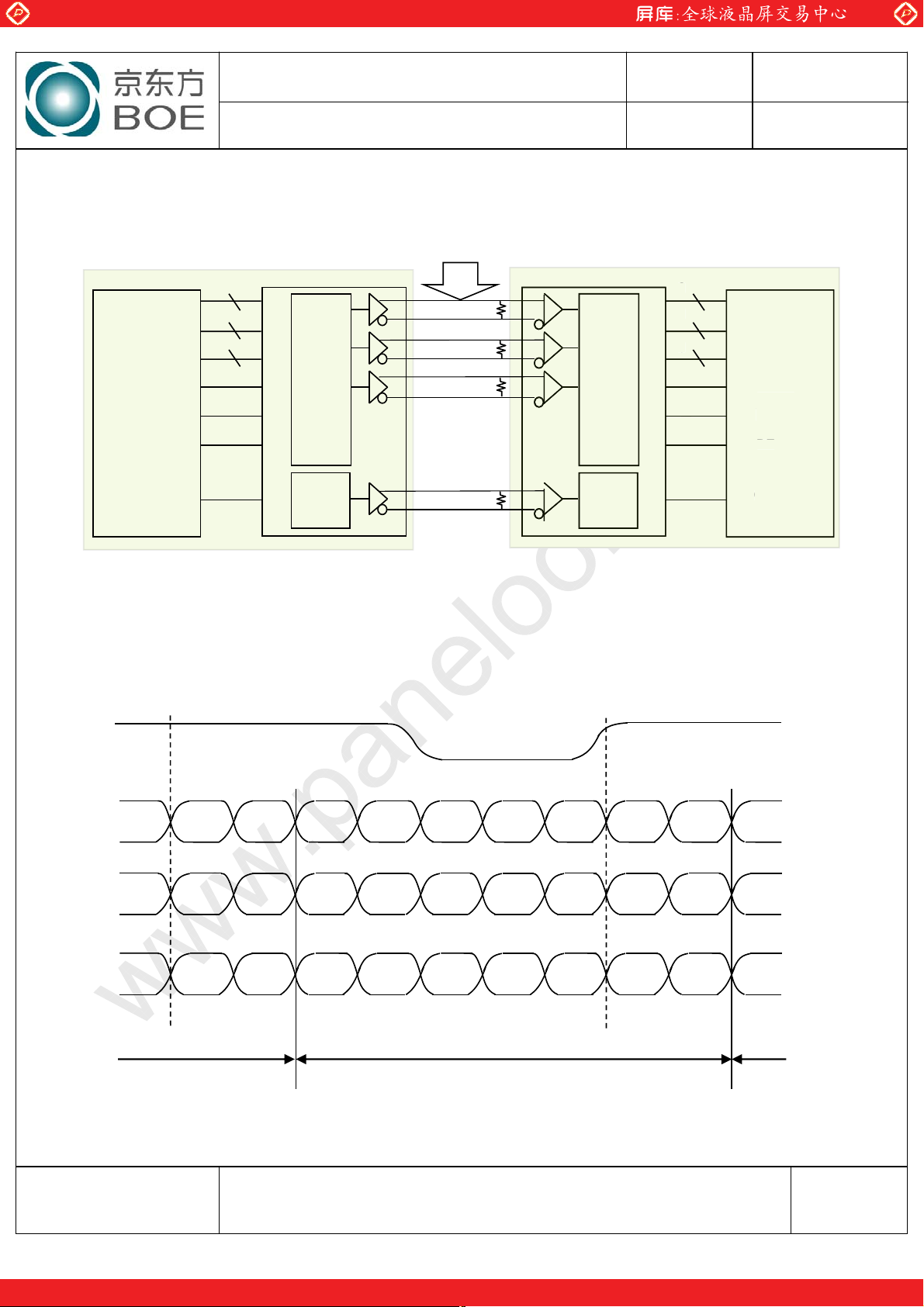

5-2. LVDS Interface
PC Side
R0~R5
G0~G5
B0~B5
Hsync
Vsync
DE
CLK
6
6
6
PRODUCT GROUP
REV ISSUE DATE
TFT LCD PRODUCT P12010.12.10
TFT-LCD Side
CN1
TTL Parallel-to-LVDS
PLL
100 ohm
100 ohm
100 ohm
100 ohm
LVDS to TTL Parallel
VD
to TTL Parallel
PLL
6
6
6
R0~R5
G0~G5
0~G5
B0~B5
~B5
Hsync
sync
Vsync
sync
DE
CLK
LK
Note. Transmitter : Thine THC63LVDM63A or equivalent.
Transmitter is not contained in Module.
5.3.LVDS Input signal
CLK+
Rin0
Rin1
Rin2
Vdiff=0V
Prior cycle
GOR5R4R3R2R1R0
B1B0G5G4G3G2G1
DEVsync B5B4B3B2Hsync
Signal for 1 DCLK cycle Next cycle
Note. Pin connection in case of using Thine THC63LVDM63A
SPEC. NUMBER
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
16
OF 35
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
TG
www.panelook.com
PRODUCT GROUP
REV ISSUE DATE
TFT LCD PRODUCT P12010.12.10
5.3 Data Input Format
<Table 6. Pin Assignments for the Interface Connector>
G
OXSXPG
yG nG iG yG nG iGyG nG iG yG nG iG
G
OYSXPG
G
OXZ]\SXPGGOXZ]]SXPG
XGwGdGZGkG
yG nG iG
yG nG iG yG nG iGyG nG iG yG nG iG
OXS^]_PGOYS^]_PGOXZ]\S^]_PG OXZ]]SG^]_PG

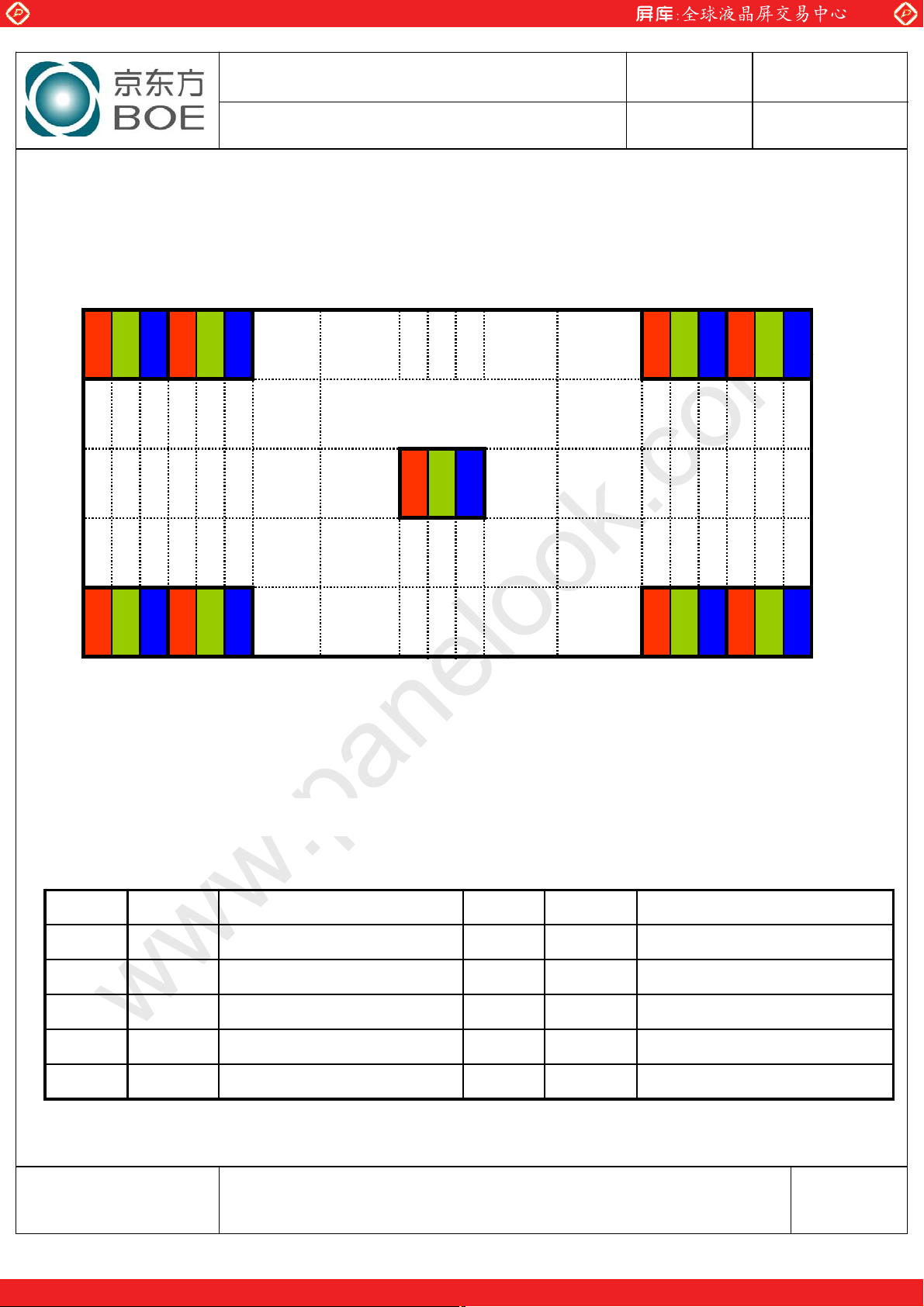

Display Position of Input Data (V-H)
5.4 Back-light & LCM Interface Connection
Interface Connector: MS24022P10 or Equivalent
<Table 7. Pin Assignments for the BLU & LCM Connector>
Pin No. Symbol Description Pin No. Symbol Description
1 Vout LED anode connection 6 LED1LED cathode connection
2 Vout LED anode connection 7 LED2LED cathode connection
3 Vout LED anode connection 8 LED3LED cathode connection
4 NCNo Connection 9 LED4LED cathode connection
5 NCNo Connection 10LED5LED cathode connection
SPEC. NUMBER
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
17
OF 35
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
TG
o{X[W~iT\WX
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT P12010.12.10

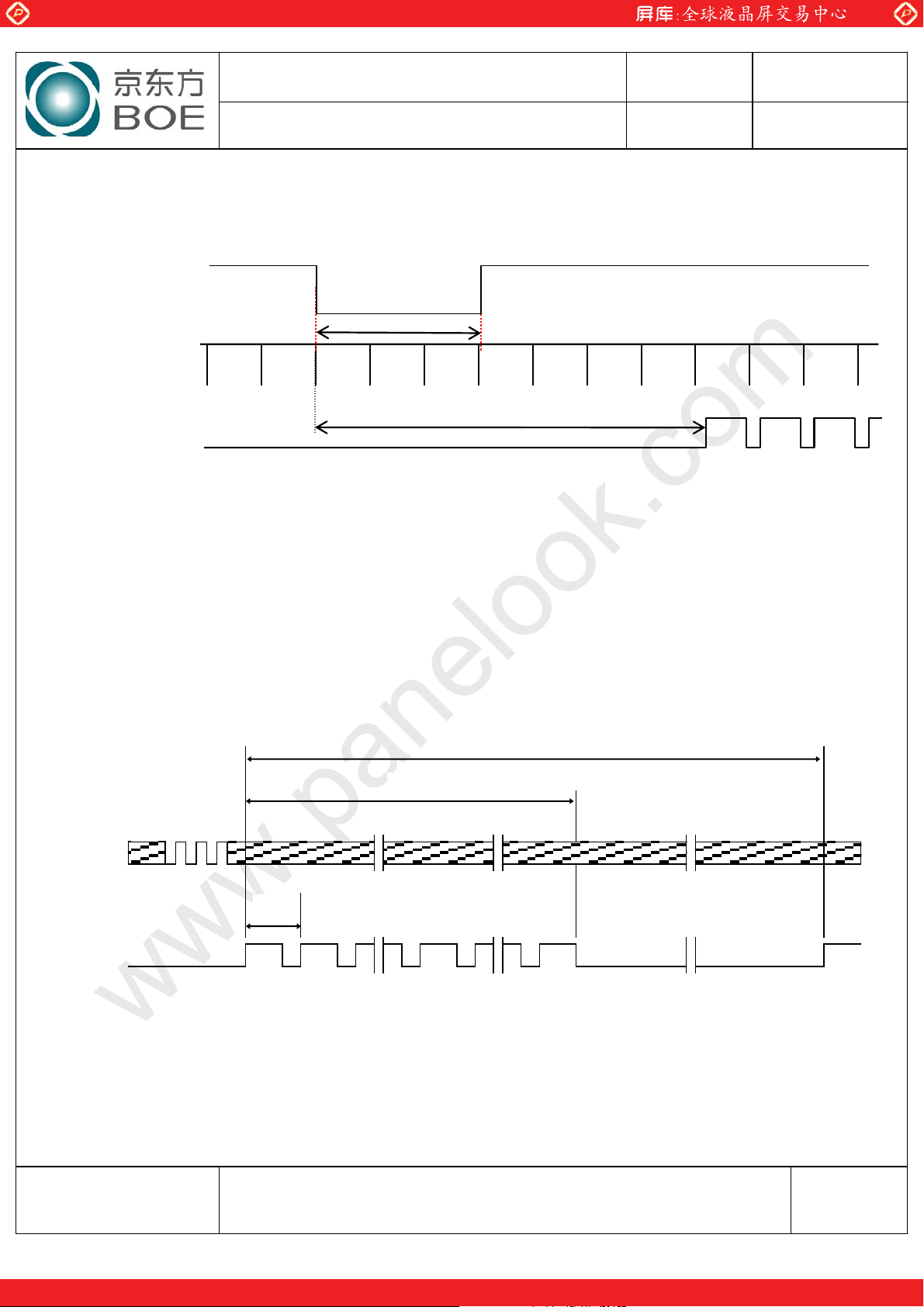

6.0 SIGNAL TIMING SPECIFICATION
6.1 The
Item Symbols Min Typ Max Unit
Frequency 1/Tc 4572.3 76.3 MHz
Clock
Frame Period Tv
High Time Tch - 4/7 - Tc
Low Time Tcl - 3/7 - Tc
is operated by the DE only.
REV ISSUE DATE
778790802lines
4060- Hz
- 16.7 - ms
Vertical Display Period Tvd 768768768lines
One line Scanning
Period
Horizontal Display
Period
Th144615261586clocks
Thd 136613661366clocks
SPEC. NUMBER
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
18
OF 35
www.panelook.com
Page 19
Global LCD Panel Exchange Center
TG
www.panelook.com
PRODUCT GROUP
REV ISSUE DATE
TFT LCD PRODUCT P12010.12.10

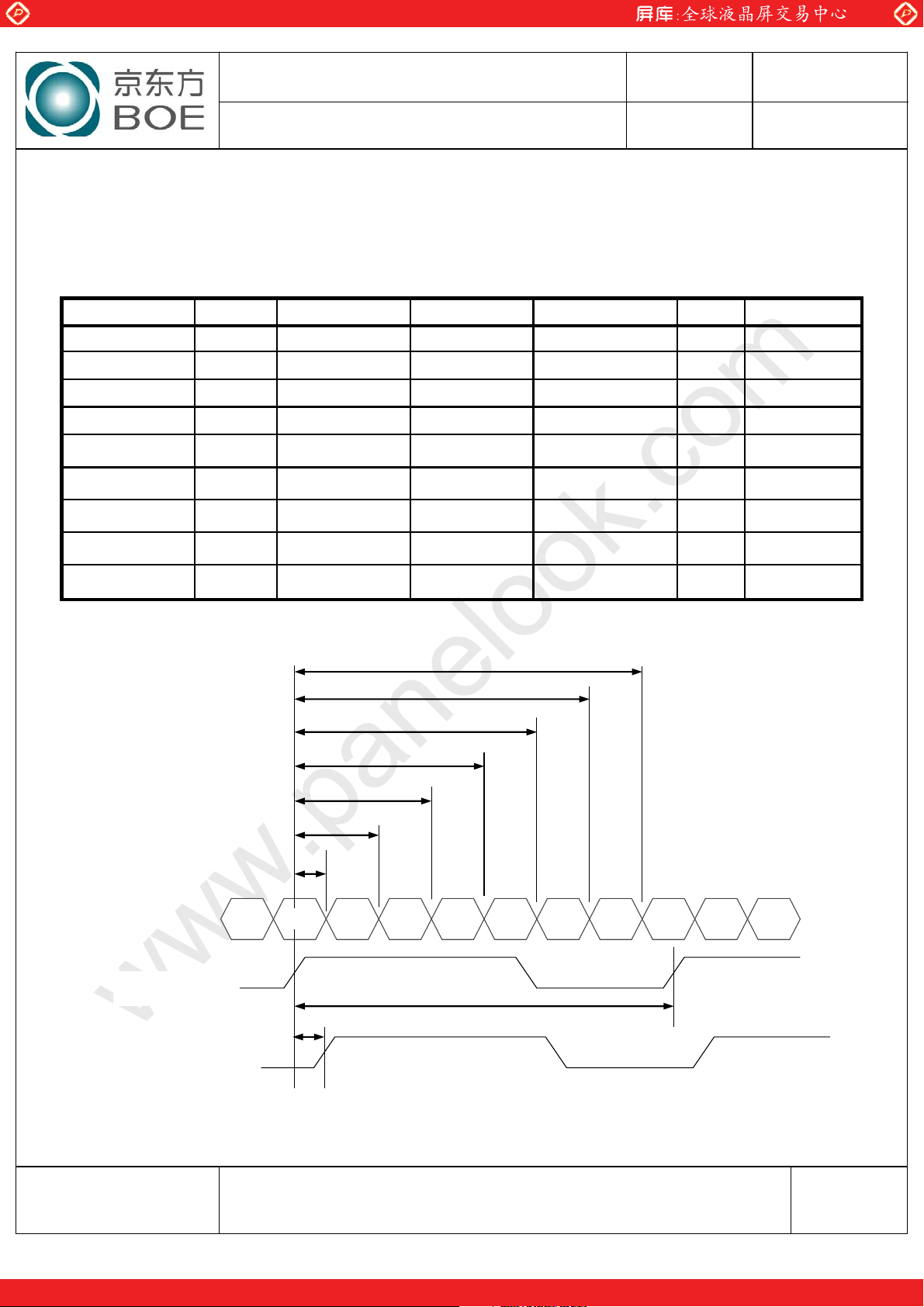

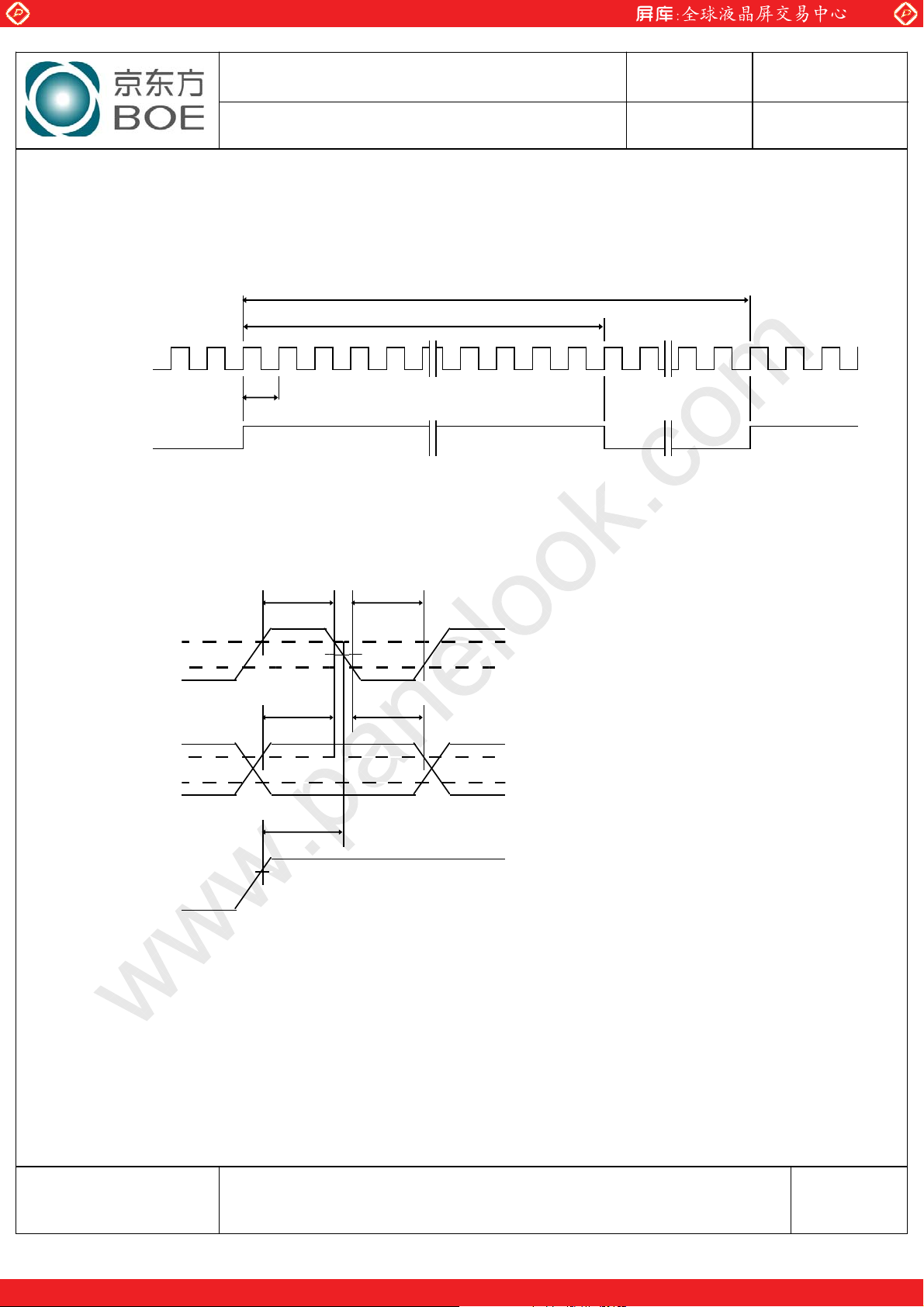

6.2 LVDS Rx Interface Timing Parameter
The specification of the LVDS Rx interface timing parameter is shown in Table 8.
<Table 8. LVDS Rx Interface Timing Specification>
ItemGSymbolGMinGTypGMaxGUnitGRemarkG
CLKIN PeriodGtRCIPG-G13.83G25GnsecG
CLK DifferenceGtCdiffG
Input Data 0GtRIP1G-0.4G0.0G+0.4GnsecG
Input Data 1GtRIP0GtRICP/7-0.4GtRICP/7GtRICP/7+0.4GnsecG
Input Data 2GtRIP6G2 ശtRICP/7-0.4G2 ശtRICP/7G2 ശtRICP/7+0.4GnsecG
Input Data 3GtRIP5G3 ശtRICP/7-0.4G3 ശtRICP/7G3 ശtRICP/7+0.4GnsecG
Input Data 4GtRIP4G4 ശtRICP/7-0.4G4 ശtRICP/7G4 ശtRICP/7+0.4GnsecG
-tRCIP*(3/7)
0G
+tRCIP*(3/7)
nsecG
Input Data 5GtRIP3G5 ശtRICP/7-0.4G5 ശtRICP/7G5 ശtRICP/7+0.4GnsecG
Input Data 6GtRIP2G6 ശtRICP/7-0.4G6 ശtRICP/7G6 ശtRICP/7+0.4Gnsec
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
TG
www.panelook.com
PRODUCT GROUP
REV ISSUE DATE
TFT LCD PRODUCT P12010.12.10

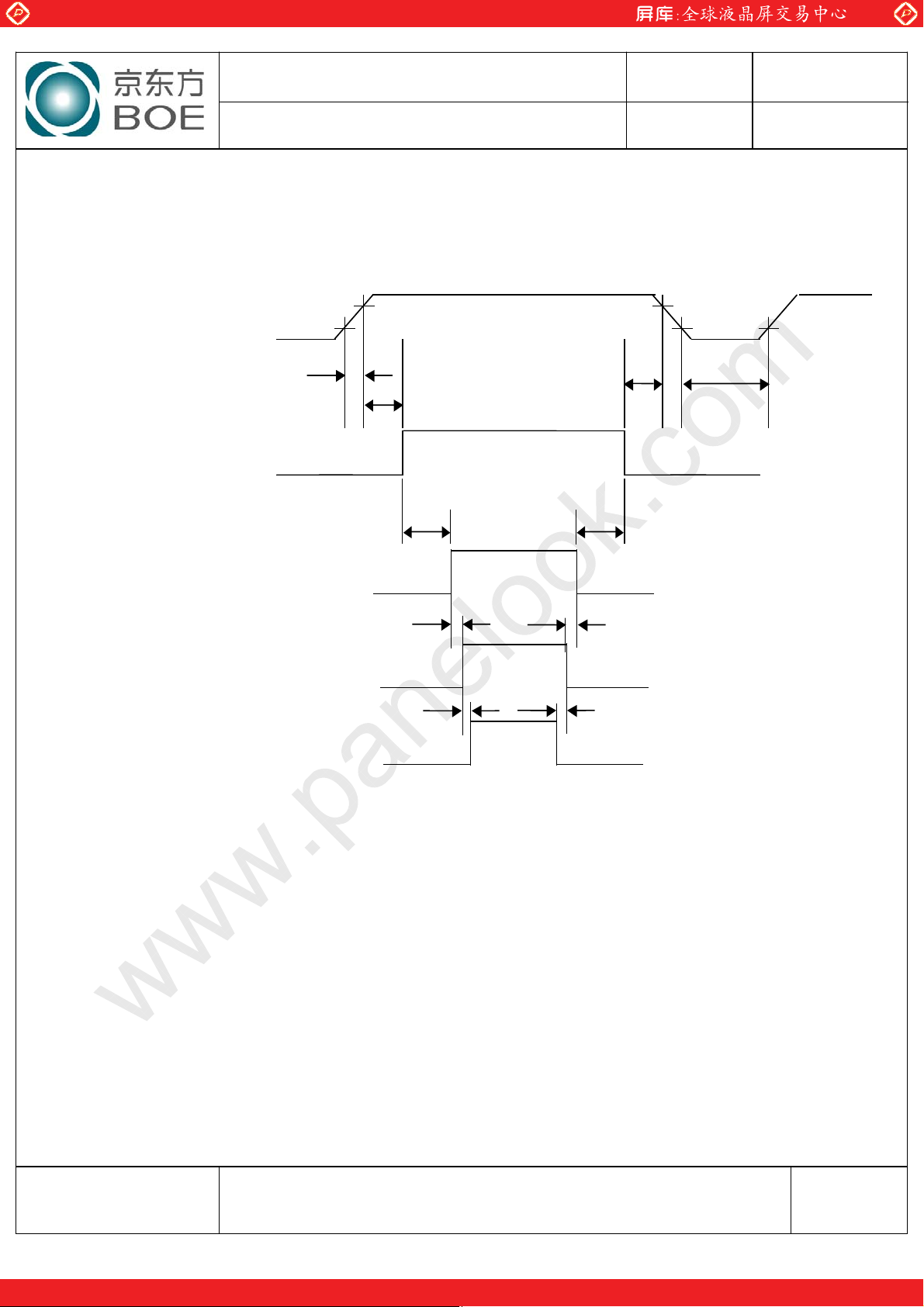

9.0 POWER SEQUENCE
To prevent a latch-up or DC operation of the LCD module, the power on/off
sequence shall be as shown in below
Power Supply
Interface Signal
0V
0V
0.9VDD
0.1VDD
T1
T2
Valid
T3 T8
0.9VDD
T9
0.1VDD
T10
Backlight Power on
PWM for LED Driver
( Dimming signal)
Enable for LED Driver
( Backlight on/off)
T1 d 10 ms
0 ms d T2 d50 ms
200 ms d T3
10 ms d T4
10 ms d T5
Notes:
0V
T4
T5 T6
0 ms d T6
10 ms d T7
200 ms d T8
0 ms d T9 d50 ms
1s d T10
T7
1. When the power supply VDD is 0V, keep the level of input signals on
the low or keep high impedance.
2. Do not keep the interface signal high impedance when power is on.
Back Light must be turn on after power for logic and interface signal
are valid.
SPEC. NUMBER
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
2323
OF 35
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
TG
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT P12010.12.10
10.0 Connector Description
Physical interface is described as for the connector on LCM.
These connectors are capable of accommodating the following signals and will
be following components.
10.1 TFT LCD Module
Connector Name /Description For Signal Connector
Manufacturer IPEX or Compatible
Type/ Part Number I-PEX 20455-040E-12 or Compatible
Mating housing/ Part Number I-PEX 20455-040T-11 or Compatible
REV ISSUE DATE
SPEC. NUMBER
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
24
OF 35
www.panelook.com
Page 25
Global LCD Panel Exchange Center
TG
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT P12010.12.10

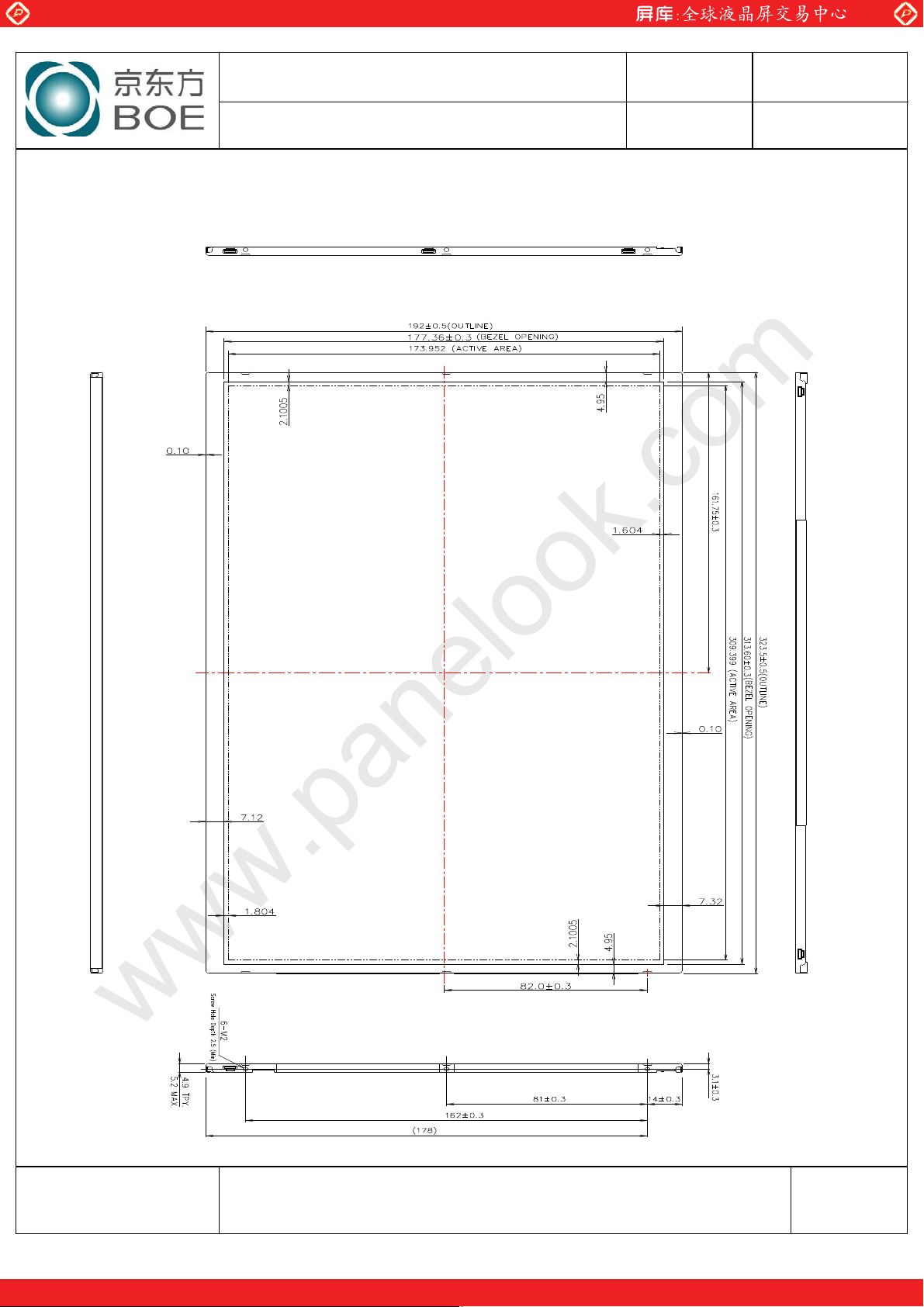

11.0 MECHANICAL CHARACTERISTICS
11.1 Dimensional Requirements

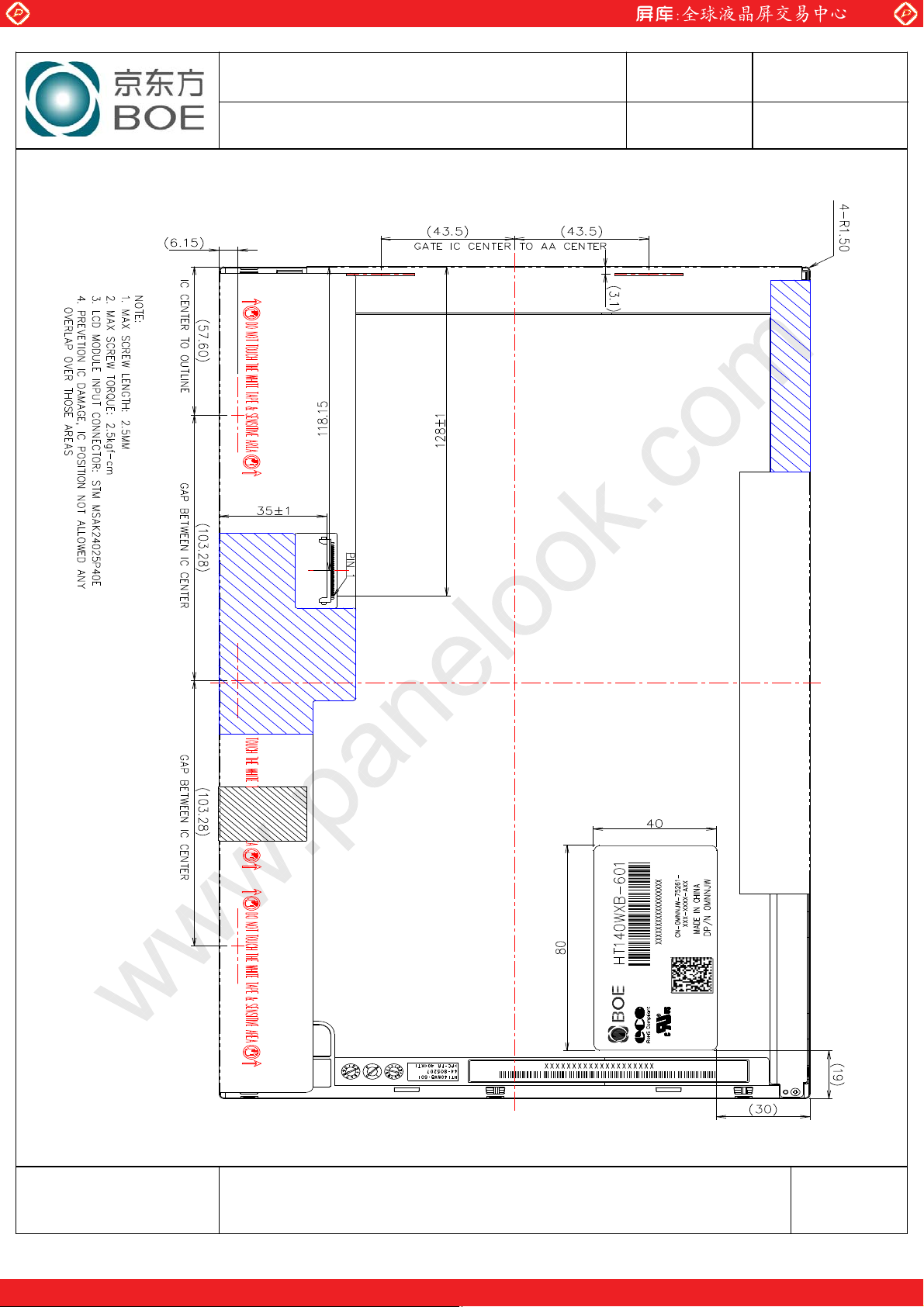

FIGURE 6 shows mechanical outlines for the model o{X[W~iT]WX.
Other parameters are shown in Table 9.
<Table 9. Dimensional Parameters>
ParameterSpecificationUnit
Active Area
Number of pixels 1366 (H) X 768 (V) (1 pixel = R + G + B dots)
Pixel pitch 0.2265 (H) X 0.2265 (V)
309.40 (H) ശ173.95 (V)
REV ISSUE DATE
Pixel arrangement RGB Vertical stripe
Display colors 262K
Display mode Normally white
Dimensional outline 323.5*192*5.2 (max) mm
Weight 350 (max) gram
Connector : MS24022P10
Back Light
LED, Horizontal-LED Array type
10.2 Mounting
See FIGURE 6.
10.3 Glare and Polarizer Hardness.
The surface of the LCD has an glare coating to maximize readability and hard coating
to reduce scratching.
10.4 Light Leakage
There shall not be visible light from the back-lighting system around the edges of the
screen as seen from a distance 50cm from the screen with an overhead light level of 350lux.
SPEC. NUMBER
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
25
OF 35
www.panelook.com
Page 26
Global LCD Panel Exchange Center
TG
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT P12010.12.10
12.0 RELIABILITY TEST
The Reliability test items and its conditions are shown in below.
<Table 10. Reliability test>
No Test ItemsConditions
1 High temperature storage test
2 Low temperature storage test
3
4 High temperature operation test
5 Low temperature operation test
6 Thermal shock
7
High temperature & high humidity
operation test
Vibration test
(non-operating)
Ta = 60 ć, 240 hrs
Ta = -20 ć, 240 hrs
Ta = 50 ć, 80%RH, 240 hrs
Ta = 50 ć, 240 hrs
Ta = 0 ć, 240 hrs
Ta = -20 ć ↔ 60 ć (0.5 hr), 100 cycle
1.5G, 10~500Hz,Half Sine
X,Y,Z / Sweep rate : 1 hour
(1) Cautions when taking out the module
y Pick the pouch only, when taking out module from a shipping package.
(2) Cautions for handling the module
y As the electrostatic discharges may break the LCD module, handle the LCD module with
care. Peel a protection sheet off from the LCD panel surface as slowly as possible.
y As the LCD panel and back - light element are made from fragile glass material, impulse
and pressure to the LCD module should be avoided.
y As the surface of the polarizer is very soft and easily scratched, use a soft dry cloth
without chemicals for cleaning.
y Do not pull the interface connector in or out while the LCD module is operating.
y Put the module display side down on a flat horizontal plane.
y Handle connectors and cables with care.
G(3) Cautions for the operation
y When the module is operating, do not lose CLK, ENAB signals. If any one of these
signals is lost, the LCD panel would be damaged.
y Obey the supply voltage sequence. If wrong sequence is applied, the module
would be damaged.
SPEC. NUMBER
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
26
OF 35
www.panelook.com
Page 27
Global LCD Panel Exchange Center
TG
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT P12010.12.10
(4) Cautions for the atmosphere
y Dew drop atmosphere should be avoided.
y Do not store and/or operate the LCD module in a high temperature and/or humidity
atmosphere. Storage in an electro-conductive polymer packing pouch and under relatively
low temperature atmosphere is recommended.
(5) Cautions for the module characteristics
y Do not apply fixed pattern data signal to the LCD module at product aging.
y Applying fixed pattern for a long time may cause image sticking.
(6) Other cautions
y Do not disassemble and/or re-assemble LCD module.
y Do not re-adjust variable resistor or switch etc.
y When returning the module for repair or etc., Please pack the module not to be broken.
We recommend to use the original shipping packages.
REV ISSUE DATE
14.0 LABEL

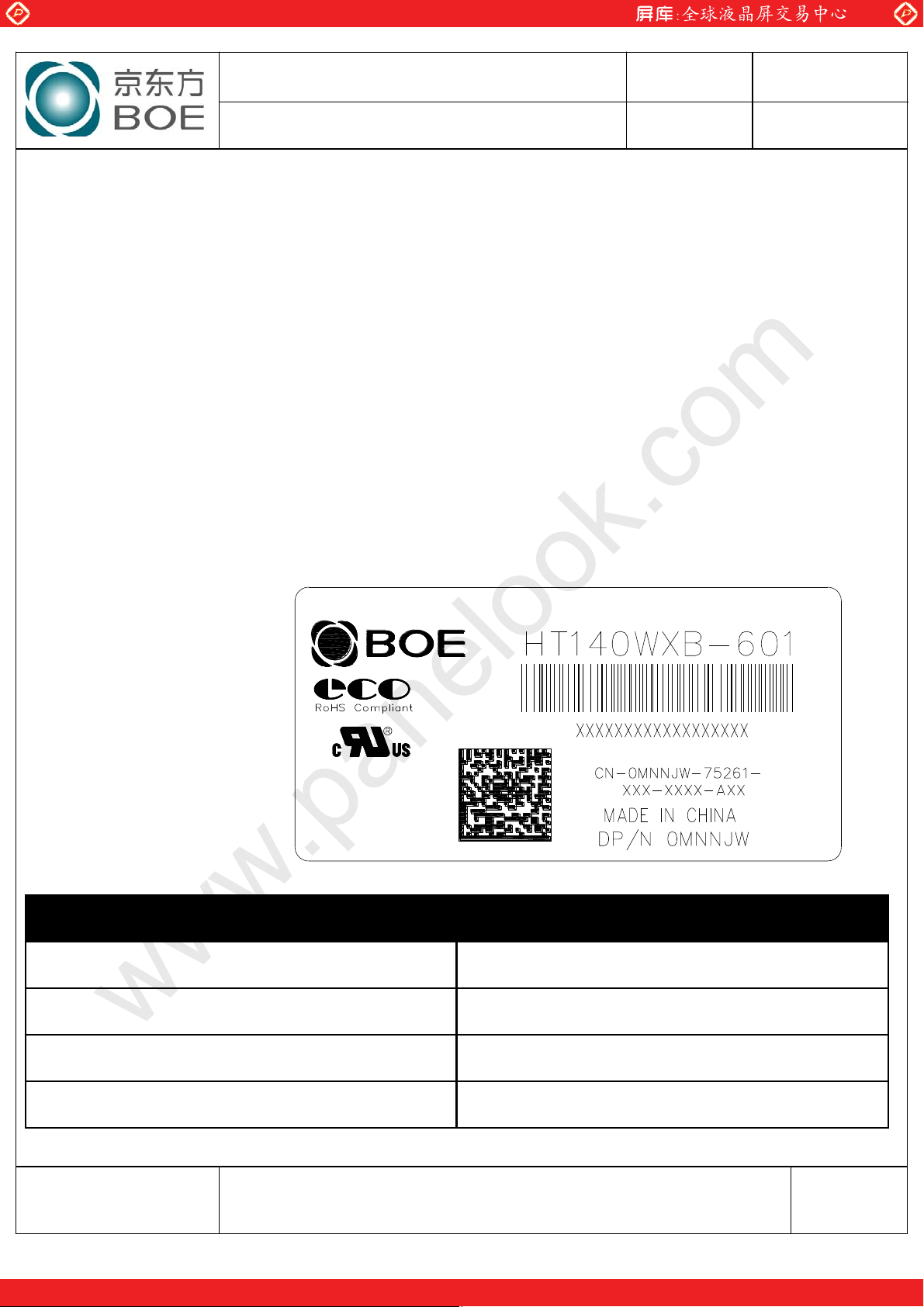

(1) Product label
BUILD PHASEGREVISIONG
SST (WS)GX00, X01, X02, ˎ X09G
PT (ES)GX10, X11, X12, ˎ X19G
ST (CS)GX20, X21, X23, ˎ X29G
XB (MP)GA00, A01, A02, ˎ A99G
SPEC. NUMBER
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
27
OF 35
www.panelook.com
Page 28
Global LCD Panel Exchange Center
TG
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT P12010.12.10

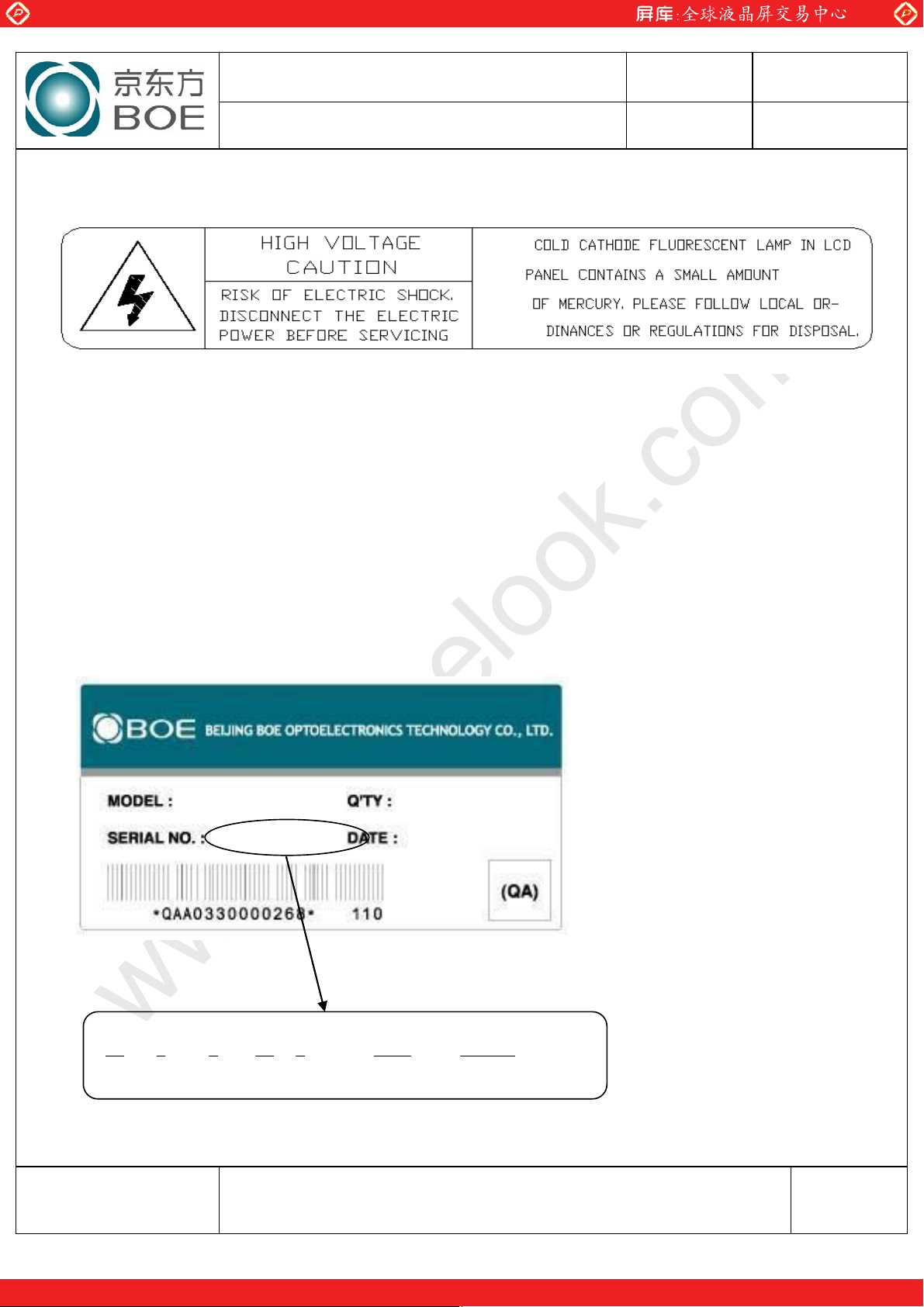

(2) High voltage caution label
(3) Box label
Label Size: 110 mm (L) u 56 mm (W)
Contents
Model: o{X[W~iT]WX
Q`ty: Module Q`ty in one box
Serial No.: Box Serial No. See next figure for detail description.
Date: Packing Date
Internal use of Product
REV ISSUE DATE
HT140WXB-601
00 0 0 00 0 0000 000000
Type Grade Line Year Month Internal use Serial No
SPEC. NUMBER
38
0000000000000
201X.X.XX
SPEC TITLE
HT140WXB-601 Product Specification
PAGE
28
OF 35
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 29
Global LCD Panel Exchange Center
TG
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT P12010.12.10
15.0 PACKING INFORMATION

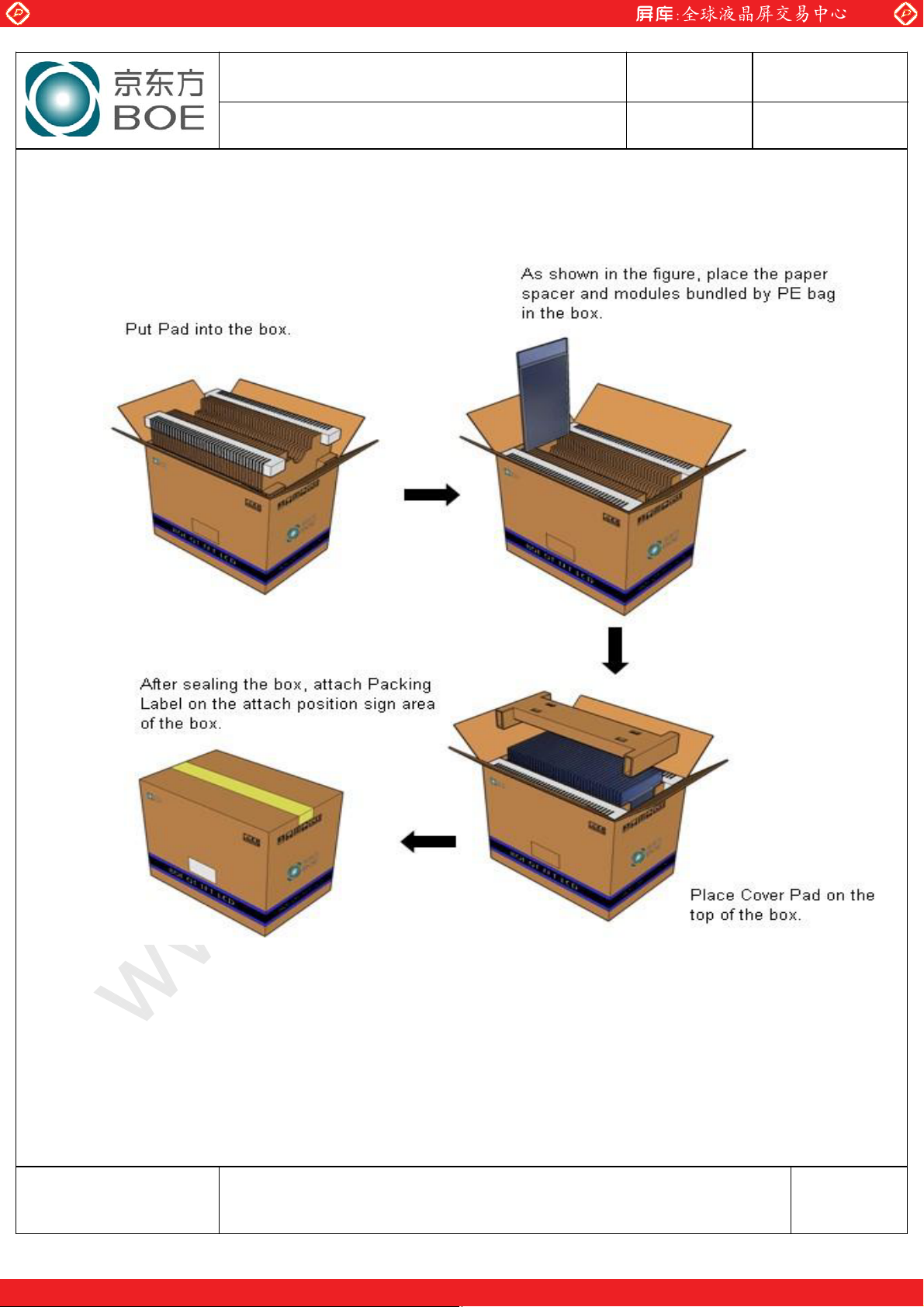

15.1 Packing order
REV ISSUE DATE
15.2 Notes
z Box Dimension: 526mm(W) x 346mm(D) x 448mm(H)
z Package Quantity in one Box: 38pcs
z Total Weight: 16kg
SPEC. NUMBER
B2006-5006-O (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
