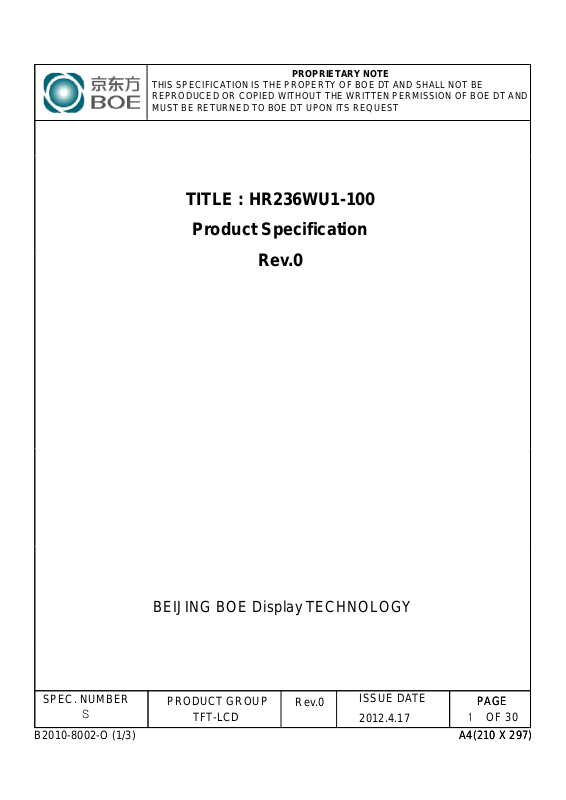

Page 1
PROPRIETARY NOTE
THIS SPECIFICATION IS THE PROPERTY OF BOE DT AND SHALL NOT BE
REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE DT AND
MUST BE RETURNED TO BOE DT UPON ITS REQUEST
TITLE : HR236WU1-100
Product Specification
Rev.0
SPEC. NUMBER
S
B2010-8002-O (1/3)
BEIJING BOE Display TECHNOLOGY
PRODUCT GROUP
TFT-LCD
Rev.0
ISSUE DATE
2012.4.17
PAGE
PAGE
1
OF 30
A4(210 X 297)
A4(210 X 297)
Page 2
PRODUCT GROUP
REVISION HISTORY
TFT- LCD PRODUCT Rev.0 Apr. 17. 12’
REV
ISSUE DATE
REV. ECN No. DESCRIPTION OF CHANGES DATE PREPARED
Rev.0 Initial Release Apr. 17. 12’ ZC.BU
SPEC. NUMBER
S
B2010-8002-O (2/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
2
OF 30
A4(210 X 297)
Page 3
PRODUCT GROUP
Content
7.0
Signal Timing Waveforms of Interface Signal
15
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
Rev.0
s
No. Item Page
1.0 General Description 4
2.0 Absolute Maximum Ratings 6
3.0 Electrical Specifications 7
4.0 Optical Specifications 8
5.0 Interface Connection 10
6.0 Signal Timing Specifications 13
8.0 Input Signals, Display Colors & Gray Scale of Colors 17
9.0 Power Sequence 18
10.0 Mechanical Characteristics 19
11.0 Reliability Test 20
12.0 Handling& Cautions 21
13.0 Product Serial Number 22
14.0 Packing 23
15.0 Appendix 25
SPEC. NUMBER
S
B2010-8002-O (3/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
3
OF 30
A4(210 X 297)
Page 4
PRODUCT GROUP
1.1 Introduction
+
gg
z
LV
DS Interface with 2 pixel / clock
z
RoHS/Halogen Free
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
Rev.0
1.0 GENERAL DESCRIPTION
HR236WU1-100 is a color active matrix TFT LCD module using amorphous silicon TFT's
(Thin Film Transistors) as an active switching devices. This module has a 23.6 inch
diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this
module is adapted for a low reflection and higher color type.
Connector (CN
LVDS
Input
Signal
LVDS Rx
+
T/CON
Gate Driver
Mini LVDS Tx
Source Driver
TFT LCD Panel
1920 × 1080
VDD
1
)
1.2 Features
z High-speed response
z 6-bit (Hi-FRC) color depth, display 16. 7M colors
z Incorporated edge type back-light (LED)
z sRGB
z High luminance and contrast ratio, low reflection and wide viewing angle
z DE (Data Enable) only
z TCO 5.0 , E/S 5.0 compliant
z Gamma Correction
DC/DC
Gamma
Vcom
LED Lighting Bar
LED Connector
SPEC. NUMBER
S
B2010-8002-O (3/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
4
OF 30
A4(210 X 297)
Page 5
PRODUCT GROUP
Display colors
16.7M
colors
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
1.3 Application
z Desktop Type of PC & Workstation Use
z Slim-Size Display for Stand-alone Monitor
z Display Terminals for Control System
z Monitors for Process Controller
1.4 General Specification
The followings are general specifications at the model HR236WU1-100.
<Table 1. General Specifications>
Parameter Specification Unit
Active area
521.28(H) × 293.22(V)
Rev.0
Remarks
mm
Number of pixels
Pixel pitch
Pixel arrangement RGB Vertical stripe
Display mode Normally Black
Dimensional outline
Weight 2200 (Typ.) g
Surface Treatment
Back-light Lower edge side, 1-LED Lighting Bar type Note 1
Power Consumption
Notes : 1. LED Lighting Bar (4*input pins)
2. PLED=Input pins* VPIN×IPIN
1920(H) ×1080(V)
0.2715(H) ×0.2715(V)
544.8(H) × 320.5(V) × 9.6(D) typ.
Haze 25%, 3H
PD: 5.5W (max)
PBL: 21.2W (max) Note 2
P
: 26.7 (max)
total
pixels
mm
mm
SPEC. NUMBER
B2010-8002-O (3/3)
S
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
5
OF 30
A4(210 X 297)
Page 6
PRODUCT GROUP
The followi
100
O p e r a tin g Range
u
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
Rev.0
2.0 ABSOLUTE MAXIMUM RATINGS
ngs are maximum values which, if exceed, may cause faulty operation or
damage to the unit. The operational and non-operational maximum voltage and current
values are listed in Table 2.
< Table 2. Absolute Maximum Ratings> [VSS=GND=0V]
Symbol Min. Max. Unit Remarks
Parameter
Power Supply Voltage V
Logic Supply Voltage V
LED Light Bar Current
Per Input Pin
LED Light Bar Voltage
Per Input Pin
Operating Temperature T
Storage Temperature T
IPIN - 140 mA
VPIN - 44.2 V
DD
IN
OP
ST
-0.3 6.0
VSS-0.3 VDD+0.3 V
0+50
-20 +60
V
℃
℃
Ta = 25 ℃
1)
1)
Note : 1) Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be 39 OC max. and no condensation of water.
(39,90)
(50,50)
(60,30)
midity (%RH)
Relative H
80
60
40
20
90
Storage Range
5
0
20 40 60 80-20
Tem perature (˚C)
SPEC. NUMBER
B2010-8002-O (3/3)
S
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
6
OF 30
A4(210 X 297)
Page 7
PRODUCT GROUP
p
[
±
2
℃
]
ppp g
RF
DD
VIL100mV
Clock frequency =
MHz. Test Pattern of power supply current
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
3.0 ELECTRICAL SPECIFICATIONS
3.1Electrical Specifications
< Table 3. Electrical specifications >
Parameter Min. Typ. Max. Unit Remarks
Power Supply Voltage V
Power Supply Current I
In-Rush Current I
Permissible In
High Level Differential Input
Threshold Voltage
Low Level Differential Input
Threshold Voltage
Differential input voltage |V
Differential input common mode voltage Vcm 1.0 1.2 1.5
Power Consumption
ut Ripple VoltageV
DD
DD
RUSH
V
IH
V
IL
| 200 - 600 mV
ID
P
D
P
BL
P
total
4.5 5.0 5.5 V
- 900 1100 mA
- 2.0 3.0 A Note 2
- - 100 mV V
- - +100 mV
-100 - - mV
-4.55.5W
18.7 20.0 21.2 W Note 3
- 24.5 26.7 W
Rev.0
Note1
V
=100mV,
IH
=-
Ta =25
= 5.0V
Notes : 1. The supply voltage is measured and specified at the interface connector of LCM.
The current draw and power consumption specified is for VDD=5.0V, Frame rate=75Hz
a) Typ : Color Test
b) Max : Skip Subpixel255
2. Duration of rush current is about 2 ms and rising time of VDD is 520 μs ± 20 %
3. Calculated value for reference (Input pins*VPIN ×IPIN) excluding inverter loss.
SPEC. NUMBER
S
B2010-8002-O (3/3)
92.9
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
7
OF 30
A4(210 X 297)
Page 8
PRODUCT GROUP
p
Table 4. LED Backlight Unit
p
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
Rev.0
3.2 Backlight Unit
<
Parameter Min. Typ. Max. Unit Remarks
LED Light Bar Input Voltage Per
Input Pin
LED Light Bar Input Current Per
In
ut Pin
LED Power Consumption P
LED Life-Time - 30,000 - Hrs Note 4
VPIN 39 41.6 44.2 V Duty 100%
IPIN - 120 - mA Note1,2,
BL
18.7 20.0 21.2 W Note 3
>
Note1: There are one light bar ,and the specified current is input LED chip 100% duty current
Note2: The sense current of each input pin is 120mA
Note3: PBL=4 Input pins*VPIN ×IPIN
Note4: The lifetime is determined as the time at which luminance of LED become 50% of the initial
brightness or not normal lighting at IPIN=120mA on condition of continuous operating at
25 ±2 ℃
SPEC. NUMBER
S
B2010-8002-O (3/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
8
OF 30
A4(210 X 297)
Page 9
PRODUCT GROUP
4.1 O
r
Note 5
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
Rev.0
4.0 OPTICAL SPECIFICATION
verview
The test of Optical specifications shall be measured in a dark room (ambient luminance ≤ 1 lux and temperature =
25±2℃) with the equipment of Luminance meter system (Goniometer system and TOPCONE BM-5) and test unit shall
be located at an approximate distance 50cm from the LCD surface at a viewing angle of θ and Φ equal to 0°. We refer to
θ
(=θ3) as the 3 o’clock direction (the “right”), θ
Ø=0
the 9 o’clock direction (“left”) and θ
(= θ6 ) as the 6 o’clock direction (“bottom”). While scanning θ and/or Ø, the
Ø=270
center of the measuring spot on the Display surface shall stay fixed. The measurement shall be executed after 30
minutes warm-up period. VDD shall be 5.0V +/-10% at 25°C. Optimum viewing angle direction is 6 ’clock.
4.2 Optical Specifications
[VDD = 5.0V, Frame rate = 60Hz, Clock = 74.25MHz, IBL= 480mA, Ta =25±2 ℃]
Parameter Symbol Condition Min. Typ. Max. Unit Remark
Θ
Horizontal
Viewing Angle
range
Vertical
3
Θ
9
Θ
12
Θ
6
(= θ12) as the 12 o’clock direction (“upward”), θ
Ø=90
75 89 - Deg.
75 89 - Deg.
CR > 10 Note 1
70 89 - Deg.
70 89 - Deg.
Ø=180
(= θ9) as
Luminance Contrast ratio CR 700 1000 Note 2
Luminance of White Y
White luminance uniformity ΔY7580%Note 4
White
Red
Reproduction
of colo
Green
Blue
Response
Time
Cross Talk CT - - 2.0 % Note 7
GTG T
W
W
w
x
y
R
x
R
y
G
x
G
y
B
x
B
y
g
Θ = 0°
(Center)
Normal
Viewing
Angle
200 250 cd/m
0.283 0.313 0.343 -
0.299 0.329 0.359 -
0.615 0.645 0.675 -
0.310 0.340 0.370 -
0.262 0.292 0.322 -
0.604 0.634 0.664 -
0.118 0.148 0.178 -
0.030 0.060 0.090 -
14 20 ms Note 6
2
Note 3
SPEC. NUMBER
S
B2010-8002-O (3/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
9
OF 30
A4(210 X 297)
Page 10
PRODUCT GROUP
surface. Luminance shall be measured with all pixels in the view field set first to white, then
3.
Center Luminance of white is defined as the LCD surface. Luminance shall be measured with
p,g,
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
Rev.0
Note :
1. Viewing angle is the angle at which the contrast ratio is greater than 10. The viewing are
determined for the horizontal or 3, 9 o’clock direction and the vertical or 6, 12 o’clock
direction with respect to the optical axis which is normal to the LCD surface.
2. Contrast measurements shall be made at viewing angle of θ= 0° and at the center of the LCD
to the dark (black) state. (See FIGURE 1 shown in Appendix) Luminance Contrast Ratio (CR)
is defined mathematically.
CR =
all pixels in the view field set first to white. This measurement shall be taken at the locations
shown in FIGURE 2 for a total of the measurements per display.
4. The White luminance uniformity on LCD surface is then expressed as :
ΔY = ( Minimum Luminance of 9points / Maximum Luminance of 9points ) * 100
(See FIGURE 2 shown in Appendix).
5. The color chromaticity coordinates specified in Table 4. shall be calculated from the spectral
data measured with all pixels first in red, green, blue and white. Measurements shall be made
at the center of the panel.
6. Response time Tg is the average time required for display transition by switching the input
Luminance when displaying a white raster
Luminance when displaying a black raster
signal as below table and is based on Frame rate fV =60Hz to optimize.
Each time in below table is defined as Figure 3and shall be measured by switching the input
signal for “any level of gray(bright)”and “any level of gray(dark)”.
(See FIGURE 3 shown in Appendix).
7. Cross-Talk of one area of the LCD surface by another shall be measured by comparing the
luminance (Y
luminance (YB) of that same area when any adjacent area is driven dark. (See FIGURE 4
shown in Appendix).
SPEC. NUMBER
S
B2010-8002-O (3/3)
) of a 25mm diameter area, with all display pixels set to a gray level, to the
A
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
10
OF 30
A4(210 X 297)
Page 11
PRODUCT GROUP
5.1 Electrical Interf
2
IRLED2
LED current sense for string2
7
CONNECTOR
3708K
Q06N
00R
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
5.0 INTERFACE CONNECTION.
ace Connection
5.1.1 LED Light Bar
< Table 1. LED Light Bar>
Pin No Symbol Description
1 IRLED1 LED current sense for string1
3 VLED LED power supply
4 VLED LED power supply
5 IRLED3 LED current sense for string3
6 IRLED4 LED current sense for string4
Rev.0
-
-
SPEC. NUMBER
S
B2010-8002-O (3/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
Figure1. Top View of LED Bar Connector
Figure2. Back Side of Module
PAGE
11
OF 30
A4(210 X 297)
Page 12
PRODUCT GROUP
5.1 Electrical Interf
2
RXO0+
Positive Transmission data of Pixel 0 (ODD)
9
RXOC+
Positi
(ODD)
16
RXE1
Positi
(EVEN)
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
5.0 INTERFACE CONNECTION.
ace Connection
● CN11 Module Side Connector : UJU IS100-L30R-C23or Equivalent
User Side Connector : JAE FI-X30H or Equivalent
Pin No Symbol Function Remark
1 RXO0- Negative Transmission data of Pixel 0 (ODD)
3 RXO1- Negative Transmission data of Pixel 1 (ODD)
4 RXO1+ Positive Transmission data of Pixel 1 (ODD)
5 RXO2- Negative Transmission data of Pixel 2 (ODD)
6 RXO2+ Positive Transmission data of Pixel 2 (ODD)
7 GND Power Ground
8 RXOC- Negative Transmission Clock (ODD)
ve Transmission Clock
10 RXO3- Negative Transmission data of Pixel 3 (ODD)
11 RXO3+ Positive Transmission data of Pixel 3 (ODD)
12 RXE0- Negative Transmission data of Pixel 0 (EVEN)
13 RXE0+ Positive Transmission data of Pixel 0 (EVEN)
14 GND Power Ground
15 RXE1- Negative Transmission data of Pixel 1 (EVEN)
+
17 GNG Power Ground
18 RXE2- Negative Transmission data of Pixel 2 (EVEN)
19 RXE2+ Positive Transmission data of Pixel 2 (EVEN)
20 RXEC- Negative Transmission Clock (EVEN)
21 RXEC+ Positive Transmission Clock (EVEN)
22 RXE3- Negative Transmission data of Pixel 3 (EVEN)
23 RXE3+ Positive Transmission data of Pixel 3 (EVEN)
24 GND Power Ground Note 1
25 NC
26 NC
27 NC
28 VDD
30 VDD
ve Transmission data of Pixel 1
No. Connection
Power Supply: +5V29 VDD
Rev.0
Note 1 : This pin should be connected with GND.
SPEC. NUMBER
SPEC. TITLE
S
B2010-8002-O (3/3)
HR236WU1-100 Product Specification_Rev.0
PAGE
12
OF 30
A4(210 X 297)
Page 13
PRODUCT GROUP
5.2.1 LVDS Interface
22
OB3
D
25
RSVD
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
5.2 LVDS Interface (Tx; THC63LVDF83A or Equivalent)
OUT0-
OUT1-
Interface
TFT-LCD
(Rx)
RXO0RXO0+
RXO1RXO1+
Input
Signal
OR0
OR1
OR2
OR3
OR4
OR5
OG0
OG1
OG2
OG3
OG4
OG5
OB0
L
V
OB1
OB2
Transmitter Remark
Pin No.
51
52
54
55
56
3
4
6
7
11
12
14
15
19
20
Pin No. System (Tx)
48
47
46
45
OUT0+
OUT1+
Rev.0
HR236WU1-100
(CN11)
Pin No.
1
2
3
4
S
OB4
OB5
Hsync
Vsync
DE
MCLK
OR6
OR7
OG6
OG7
OB6
OB7
SPEC. NUMBER
S
23
24
27
28
30
31
50
2
8
10
16
18
42
41
40
39
38
37
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
OUT2-
OUT2+
CLK OUT-
CLK OUT+
OUT3-
OUT3+
RXO2RXO2+
RXO CLK-
RXO CLK+
RXO3RXO3+
10
11
5
6
8
9
PAGE
13
OF 30
B2010-8002-O (3/3)
A4(210 X 297)
Page 14
PRODUCT GROUP
RGBRGBRGBRG
B
Display Position of Input Data (V
H)
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
Rev.0
5.3 Data Input Format
(1,1) (2,1) (1919,1) (1920,1)
1 Pixel = 3 Dots
RGB
RGBRGB RGBRGB
(1,1080) (2,1080) (1919,1080) (1920,1080)
-
SPEC. NUMBER
S
B2010-8002-O (3/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
14
OF 30
A4(210 X 297)
Page 15
PRODUCT GROUP
6.1
The HR236WU1
100 i
Vertical Display Period
Tvd
1080
lines
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
6.0 SIGNAL TIMING SPECIFICATION
Clock
Frame Period Tv
One line Scanning Period Th 1050 1100 1150 clocks
-
s operated by the DE only.
Item Symbols Min Typ Max Unit
Frequency 1/Tc 58.54 74.25 98 MHz
High Time Tch - 4/7Tc -
Low Time Tcl - 4/7Tc -
Rev.0
1115 1126 1136 lines
50 60 75 Hz
20 16.7 13.3 ms
-
-
Horizontal Display Period Thd 960 960 960 clocks
SPEC. NUMBER
S
B2010-8002-O (3/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
15
OF 30
A4(210 X 297)
Page 16
PRODUCT GROUP
The specification of the LVDS Rx interface timing parameter is shown in Table 4
I
1
tRIP0
tRCIP/7
4
tRCIP/7
tRCIP/7+0.4
RXz +/
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
Rev.0
6.2 LVDS Rx Interface Timing Parameter
.
<Table 4. LVDS Rx Interface Timing Specification>
Item Symbol Min Typ Max Unit Remark
CLKIN Period tRCIP 10.20 13.47 17.08 nsec
Input Data 0 tRIP1 -0.4 0.0 +0.4 nsec
nput Data
Input Data 2 tRIP6 2 ×tRCIP/7-0.4 2 ×tRCIP/7 2 ×tRCIP/7+0.4 nsec
Input Data 3 tRIP5 3 ×tRCIP/7-0.4 3 ×tRCIP/7 3 ×tRCIP/7+0.4 nsec
Input Data 4 tRIP4 4 ×tRCIP/7-0.4 4 ×tRCIP/7 4 ×tRCIP/7+0.4 nsec
Input Data 5 tRIP3 5 ×tRCIP/7-0.4 5 ×tRCIP/7 5 ×tRCIP/7+0.4 nsec
Input Data 6 tRIP2 6 ×tRCIP/7-0.4 6 ×tRCIP/7 6 ×tRCIP/7+0.4 nsec
-0.
nsec
-
* Z = 0, 1, 2,3
RxCLK+
tRIP2
tRIP3
tRIP4
tRIP5
tRIP6
tRIP0
tRIP1
Rx2 Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0Rx3
tRCIP
* Vdiff = (RXz+)-(RXz-),…. ,(RXCLK+)-(RXCLK-)
Vdiff=0[v]Vdiff=0[v]
SPEC. NUMBER
S
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
B2010-8002-O (3/3)
PAGE
16
OF 30
A4(210 X 297)
Page 17
PRODUCT GROUP
7.1 Sync Timing Waveforms
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
Rev.0
7.0 SIGNAL TIMING WAVEFORMS OF INTERFACE SIGNAL
V-Sync
H-Sync
DE
1) Need over 3 H-sync during V-Sync Low
2) Fix H-Sync width from V-Sync falling edge to first rising edge
Over 3 H-sync
Fix H-Sync width Area
7.2 Vertical Timing W aveforms
MCLK
Th
DE
R7 ~ R0
G7 ~ G0
B7 ~ B0
Invalid Data DataInvalid
x,1 x,2 x,y x+1,1
Tv
Tvd
x,1050
SPEC. NUMBER
S
B2010-8002-O (3/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
17
OF 30
A4(210 X 297)
Page 18
PRODUCT GROUP
Tc
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
7.3 Horizontal Timing Waveforms
MCLK
DE
RA7 ~RA0
GA7 ~GA0
BA7 ~BA0
D1 D2 Dn Data D1 D2 D3
Tch
Thd
Tcl
Th
D1048 D1049 D1050
Rev.0
Invalid
MCLK
Data
DE
Tds
Valid
Tes
2.0V
1.5V
Tdh
Data
2.0V
0.8V
2.0V
0.8V
SPEC. NUMBER
S
B2010-8002-O (3/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
18
OF 30
A4(210 X 297)
Page 19
PRODUCT GROUP
,
Brighter
11111101000000000000000
0
▽
00000000111111100000000
0
White11111111111111111111111
1
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
Rev.0
8.0 INPUT SIGNALS, BASIC DISPLAY COLORS & GRAY SCALE OF COLORS
Color & Gray Scale
Basic Colors
Gray Scale
of RED
Gray Scale
of GREEN
R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0
Black 000000000000000000000000
Blue 000000000000000011111111
Green 000000001111111100000000
Cyan 000000001111111111111111
Red 111111110000000000000000
Magenta 111111110000000011111111
Yellow 111111111111111100000000
White 111111111111111111111111
Black 000000000000000000000000
△
Darker 000000100000000000000000
△
▽
▽
Red 111111110000000000000000
Black 000000000000000000000000
△
Darker 000000000000001000000000
△
▽
Brighter 000000001111110100000000
RED DATA GREEN DATA BLUE DATA
000000010000000000000000
↑↑↑
↓↓↓
111111100000000000000000
000000000000000100000000
↑↑↑
↓↓↓
Gray Scale
of BLUE
Brighter 000000000000000011111101
Gray Scale
of WHITE
Brighter 111111011111110111111101
SPEC. NUMBER
S
B2010-8002-O (3/3)
Green 000000001111111100000000
Black 000000000000000000000000
△
Darker 000000000000000000000010
△
▽
▽
Blue 000000000000000011111111
Black 000000000000000000000000
△
Darker 000000100000001000000010
△
▽
▽
000000000000000000000001
↑↑↑
↓↓↓
000000000000000011111110
000000010000000100000001
↑↑↑
↓↓↓
111111101111111011111110
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
19
PAGE
OF 30
A4(210 X 297)
Page 20
PRODUCT GROUP
T
LCD
0
V
pggpp
REV
ISSUE DATE
9.0 POWER SEQUENCE
o prevent a latch-up or DC operation of the
shall be as shown in below
0.9VDD
Power Supply
Interface Signal
0.1VDD
0V
TFT- LCD PRODUCT Apr. 17. 12’
Rev.0
module, the power on/off sequence
0.9VDD
0.1VDD
T1
T2
Valid
T5 T6
T3
T4
Back- light
0V
● 0.5 ms ≤ T1 ≤ 10 ms
● 0 ≤ T2 ≤ 50 ms
● 0 ≤ T3 ≤ 50 ms
● 1 sec ≤ T4
● 200 ms ≤ T5
● 200 ms ≤ T6
Notes:
1. When the power supply VDD is 0V, keep the level of input signals on
the low or keep high impedance.
2. Do not keep the interface signal high impedance when power is on.
3. Back Light must be turn on after power for logic and interface signal are valid.
SPEC. NUMBER
S
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
B2010-8002-O (3/3)
PAGE
20
OF 30
A4(210 X 297)
Page 21
PRODUCT GROUP
10.1 Dimensional Requirements
)
()
()(p )
No Mounting
g
ggy g
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
Rev.0
10.0 MECHANICAL CHARACTERISTICS
FIGURE 6 (located in Appendix) shows mechanical outlines for the model HR236WU1-100.
Other parameters are shown in Table 5.
<Table 5. Dimensional Parameters>
Parameter Specification Unit
Dimensional outline
Weight
Active area
Pixel pitch
Number of pixels
Back-light
544.8(H) × 320.5(V) × 9.6(D) typ
2200(typ)
521.28 (H) × 293.22 (V)
0.2715 (H) ×0.2715 (V)
1920 (H)×1080 (V) (1 pixel = R + G + B dots
Lower edge side, 1-LED Lighting Bar type
mm
gram
mm
mm
pixels
10.2 Mounting
10.3 Anti-Glare and Polarizer Hardness.
The surface of the LCD has an anti-glare coating to minimize reflection and a coating to reduce
scratching.
10.4 Light Leakage
There shall not be visible light from the back-lighting system around the edges of the screen as
seen from a distance 50cm from the screen with an overhead light level of 350lux.
SPEC. NUMBER
S
B2010-8002-O (3/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
21
OF 30
A4(210 X 297)
Page 22
PRODUCT GROUP
t
pg
t
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
11.0 RELIABLITY TEST
The Reliability test items and its conditions are shown in below.
<Table 6. Reliability Test Parameters >
No Test Items
High temperature storage test
1
Low temperature storage tes
2
High temperature & high humidity
3
operation test
High temperature operation test
4
Low temperature operation test
5
Thermal shock
6
Vibration test
7
(non-operating)
Ta = 60 ℃, 240 hrs
Ta = -20 ℃, 240 hrs
Ta = 50 ℃, 80%RH, 240hrs
Ta = 50 ℃, 240hrs
Ta = 0℃, 240hrs
Ta = -20 ℃ ↔ 60 ℃ (0.5 hr), 100 cycle
Frequency
Gravity / AMP 1.5 Grms
Period X, Y, Z 30 min
Rev.0
Conditions
Random,10 ~ 300 Hz,
30 min/Axis
Shock tes
8
(non-operating)
Electro-static discharge test
9
(non-operating)
Gravity
Pulse width
Direction
Air : 150 pF, 330Ω, 15 KV
Contact : 150 pF, 330Ω, 8 KV
50G
11msec, sine wave
±X, ±Y, ±Z Once for each
SPEC. NUMBER
S
B2010-8002-O (3/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
22
OF 30
A4(210 X 297)
Page 23
PRODUCT GROUP
12.0 HANDLING & CAUTIONS
(3)
LCD
y
Do not disassemble and/or re
assemble LCD module
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
(1) Cautions when taking out the module
y Pick the pouch only, when taking out module from a shipping package.
(2) Cautions for handling the module
y As the electrostatic discharges may break the LCD module, handle the LCD
module with care. Peel a protection sheet off from the LCD panel surface as
slowly as possible.
y As the LCD panel and back - light element are made from fragile glass material,
impulse and pressure to the LCD module should be avoided.
y As the surface of the polarizer is very soft and easily scratched, use a soft dry
cloth without chemicals for cleaning.
y Do not pull the interface connector in or out while the LCD module is operating.
y Put the module display side down on a flat horizontal plane.
y Handle connectors and cables with care.
Cautions for the operation
y When the module is operating, do not lose CLK, ENAB signals. If any one of
these signals is lost, the LCD panel would be damaged.
y Obey the supply voltage sequence. If wrong sequence is applied, the module
would be damaged.
(4) Cautions for the atmosphere
y Dew drop atmosphere should be avoided.
yDo not store and/or operate the
humidity atmosphere. Storage in an electro-conductive polymer packing pouch
and under relatively low temperature atmosphere is recommended.
(5) Cautions for the module characteristics
y Do not apply fixed pattern data signal to the LCD module at product aging.
y Applying fixed pattern for a long time may cause image sticking.
(6) Other cautions
-
y Do not re-adjust variable resistor or switch etc.
yWhen returning the module for repair or etc., Please pack the module not to be
broken. We recommend to use the original shipping packages.
module in a high temperature and/or
.
Rev.0
SPEC. NUMBER
S
B2010-8002-O (3/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
23
OF 30
A4(210 X 297)
Page 24
PRODUCT GROUP
13.0 PRODUCT SERIAL NUMBER
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
Rev.0
HR236WU1-100
1 2 3 4 5 6 7
XX X X XX X XXXX XXXXXXX
1. Control Number
2. Rank / Grade
3. Line Classification
4. Year (2001 : 01, 2002 : 02, …)
5. Month (1,2,3, … , 9, X, Y, Z)
6. Internal Use
7. Serial Number
SPEC. NUMBER
S
B2010-8002-O (3/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
24
OF 30
A4(210 X 297)
Page 25
PRODUCT GROUP
Af
REV
ISSUE DATE
14.0 Packing
14.1 Packing Order

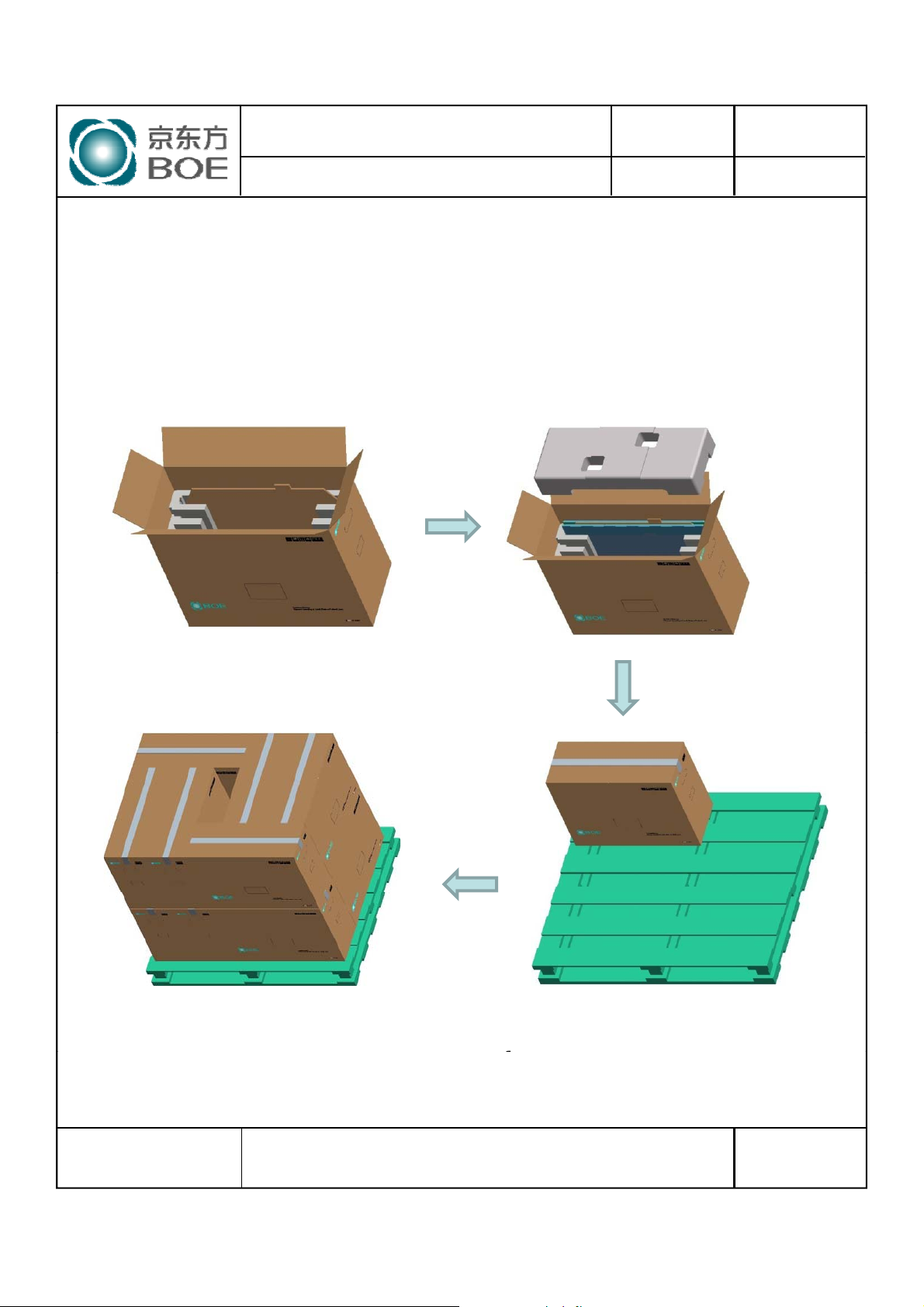

Put pad into the box
TFT- LCD PRODUCT Apr. 17. 12’
Place the modules bundled by packing
bag in the box, 8pcs module per box, pla
ce a cover on the top of the box
Rev.0
12ea box per pallet
SPEC. NUMBER
S
B2010-8002-O (3/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
ter sealing the box, put the box
on the pallet
PAGE
25
OF 30
A4(210 X 297)
Page 26
PRODUCT GROUP
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
14.2 Packing Note
y Box Dimension : 233mm(W) × 613mm(L) × 445mm(H)
y Package Quantity in one Box : 8 pcs
14.3 Box label
y Label Size : 108 mm (L) × 56 mm (W)
y Contents
Model : HR236WU1-100
Q`ty : Module 8 Q`ty in one box
Serial No. : Box Serial No. See next page for detail description.
Date : Packing Date
Rev.0
00 0 00 0 0 000000
Type Grade Year Month ITEM-CODE Serial_no
SPEC. NUMBER
S
B2010-8002-O (3/3)
HR236WU1-100
0000000000000
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
5940
8
20XX.X.XX
Internal Use RoHS Mark
A4(210 X 297)
26
PAGE
OF 30
Page 27
PRODUCT GROUP
REV
ISSUE DATE
15.0 APPENDIX
Figure 1. Measurement Set Up
TFT- LCD PRODUCT Apr. 17. 12’
Rev.0
(L = 5 0 c m )
Figure 2. White Luminance and Uniformity Measurement Locations (9 points)
192 810 1728
1) 1
1) 4 1) 5
1) 7 1) 8 1) 9
1) 2 1) 3
1) 6
108
540
972
SPEC. NUMBER
S
B2010-8002-O (3/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
27
OF 30
A4(210 X 297)
Page 28
PRODUCT GROUP
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
Figure 3. Response Time Testing
Figure 4. Cross Modulation Test Description
VIEW AREA VIEW AREA
Rev.0
(D/4, W/4)
YB(7D/8,W/2)
YA(7D/8,W/2)
(D, W)
L31
(3D/4, 3W/4)
(D, W)
L0
Cross-Talk (%) =
YB-Y
Y
A
A
× 100
Where: YA= Initial luminance of measured area (cd/m2)
Y
= Subsequent luminance of measured area (cd/m2)
B
The location measured will be exactly the same in both patterns
SPEC. NUMBER
S
B2010-8002-O (3/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
28
OF 30
A4(210 X 297)
Page 29
PRODUCT GROUP
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
Figure 5. TFT-LCD Module Outline Dimensions (Front view)
Rev.0
SPEC. NUMBER
S
B2010-8002-O (3/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
29
OF 30
A4(210 X 297)
Page 30
PRODUCT GROUP
REV
ISSUE DATE
TFT- LCD PRODUCT Apr. 17. 12’
Figure 6. TFT-LCD Module Outline Dimensions (Rear view)
Rev.0
SPEC. NUMBER
S
B2010-8002-O (3/3)
SPEC. TITLE
HR236WU1-100 Product Specification_Rev.0
PAGE
30
OF 30
A4(210 X 297)
Loading...
