1.0 GENERAL DESCRIPTION

1.1 Introduction

HR215WU1-200 is a color active matrix TFT LCD module using amorphous silicon TFT's
(Thin Film Transistors) as an active switching devices. This module has a 21.5 inch
diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this
module is adapted for a low reflection and higher color type.

Conn

ctor (CN

LVDS
Input
Signal

LVDS Rx

+

T/CON

+

Mini LVDS Tx

Gat
Driver

Source Driver

TFT LCD Panel

2013.02.05
PAGE

OF 29

4

1920 × 1080

VDD

1

)

1.2 Features

z LVDS Interface with 2 pixel / clock
z High-speed response
z 6-bit (Hi-FRC) color depth, display 16. 7M colors
z
z High luminance and contrast ratio, low reflection and wide viewing angle
z DE (Data Enable) only
z RoHS /TCO 5.0 ,ES5.0 Compliant

R2010-6053-O(3/3)

DC/DC

Gamma

Vcom

LED Light Bar

-

CN2

A4(210 X 297)

PRODUCT GROUP

p

REV

ISSUE DATE

PRODUCT SPEC-TFT MODULE

SPEC. NUMBER

1.3 Application

z Desktop Type of PC & Workstation Use
z Slim-Size Display for Stand-alone Monitor
z Display Terminals for Control System
z Monitors for Process Controller

1.4 General Specification

The followings are general specifications at the model HR215WU1-200.

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

O

2013.02.05
PAGE

OF 29

5

<Table 1. General Specifications>

Parameter Specification Unit

Active area

Number of pixels

Pixel pitch

Pixel arrangement RGB Vertical stripe

Display colors 16.7M colors

Display mode Normally Black

Dimensional outline

Weight 2150 (typ.) g

Surface Treatment

Back-light

476.64(H) × 268.11 (V)

1920(H) ×1080(V)

0.24825(H) ×0.24825(V)

495.6(H) × 292.2(V) × 10.7(D) typ.

Anti-glare, 3H

Lower side 1-LED Light bar Type

mm

pixels

mm

mm

Remarks

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

< Table 2. Absolute Maximum Ratings>

[VSS GND 0V]

Wet bulb temperature should be 39

C

max. and no condensation of water

5

REV

ISSUE DATE

PRODUCT SPEC-TFT MODULE

SPEC. NUMBER

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

2.0 ABSOLUTE MAXIMUM RATINGS

The followings are maximum values which, if exceed, may cause faulty operation or

damage to the unit. The operational and non-operational maximum voltage and current
values are listed in Table 2.

Symbol Min. Max. Unit Remarks

Parameter

Power Supply Voltage V

Logic Supply Voltage V

Operating Temperature T

Storage Temperature T

DD

IN

OP

ST

-0.5 5.5

VSS-0.3 VDD+0.3 V

0+50

-20 +60

℃

℃

O

2013.02.05
PAGE

OF 29

6

=

=

V

Ta = 25 ℃

1)

1)

Note : 1) Temperature and relative humidity range are shown in the figure below.

O

100

80

ity (%RH)

Relative Humid

60

40

20

90

O perating Range

Storage R ange

0

20 40 60 80-20

Tem perature (˚C)

(39,90)

(50,50)

(60,30)

.

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

Diff

|

VID|

200-600mV

REV

ISSUE DATE

PRODUCT SPEC-TFT MODULE

SPEC. NUMBER

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

3.0 ELECTRICAL SPECIFICATIONS

3.1Electrical Specifications

< Table 3. Electrical specifications >

Parameter Min. Typ. Max. Unit Remarks

Power Supply Voltage V

Power Supply Current I

In-Rush Current I

Permissible Input Ripple Voltage V

High Level Differential Input
Threshold Voltage

Low Level Differential Input
Threshold Voltage

erential input voltage

Differential input common mode voltage Vcm 1.0 1.2 1.5

DD

DD

RUSH

RF

V

IH

V

IL

4.5 5.0 5.5 V

- 800 1400 mA

--3ANote 2

- - 300 mV VDD= 5.0V

- - +100 mV

-100 - - mV

O

2013.02.05

[Ta =25±2 ℃]

Note1

VIH=100mV,
VIL=-100mV

PAGE

OF 29

7

LED Voltage V

LED Channel Voltage V

LED Channel Current I

LED Lifetime 30,000 - - Hrs IL=120 mA

Power Consumption

L

L

L

P

D

P

BL

P

total

-3.23.5V

39.65 41.6 45

- 120 130 mA

- 4.9 6.25 W

- 19.97 21 W I

- 24.87 27.25 W

Notes : 1. The supply voltage is measured and specified at the interface connector of LCM.

The current draw and power consumption specified is for VDD=5.0V, Frame rate=75Hz. Test Pattern of power

supply current

a) Typ : Color Bar pattern
b) Max : Skip Sub Pixel Pattern

2. Duration of rush current is about 2 ms and rising time of VDD is 520 μs ± 20 %

3. The lamp frequency should be selected as different as possible from the horizontal

synchronous frequency and its harmonics to avoid interference, which may cause line flow on the display

4. Calculated value for reference (V

× IL) ×4(channel) excluding driver loss. (LED Light bar: 13S4P)

L

=120 mA, Note 4

L

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

the 9 o’clock direction (“left”) and θ

(= θ

) as the 6 o’clock direction (“bottom”). W

sca

d/or Ø, the

t e 9 o c oc d ect o ( e t ) a d θ

Ø=270

( θ

6

) as t e 6 o c oc d ect o ( botto ). W e sca g θ ad/oØ,te

gg g

Wy0.299

0.329

0.359

y

...

REV

ISSUE DATE

SPEC. NUMBER

PRODUCT SPEC-TFT MODULE

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

O

2013.02.05
PAGE

OF 29

8

4.0 OPTICAL SPECIFICAT ION

4.1 Overview

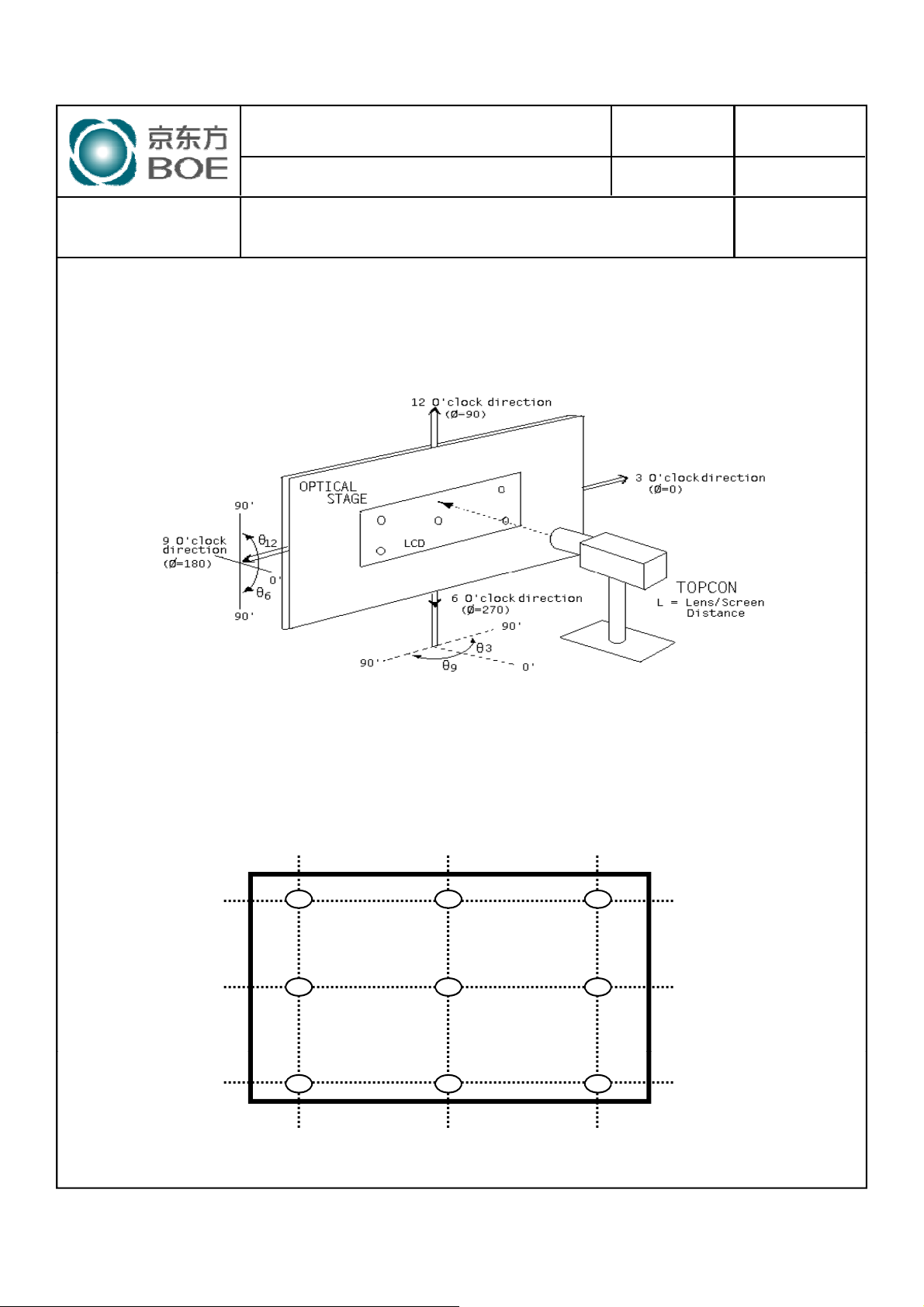

The test of Optical specifications shall be measured in a dark room (ambient luminance ≤ 1 lux and temperature =

25±2℃) with the equipment of Luminance meter system (Goniometer system and TOPCONE BM-5) and test unit shall
be located at an approximate distance 50cm from the LCD surface at a viewing angle of θ and Φ equal to 0°. We refer to

θ

(=θ3) as the 3 o’clock direction (the “right”), θ

Ø=0

center of the measuring spot on the Display surface shall stay fixed. The measurement shall be executed after 30
minutes warm-up period. VDD shall be 5.0V +/-10% at 25°C. Optimum viewing angle direction is 6 ’clock.

4.2 Optical Specifications

[VDD = 5.0V, Frame rate = 60Hz, Clock = 78MHz, IBL= 120mA, Ta =25±2 ℃]

Parameter Symbol Condition Min. Typ. Max. Unit Remark

Θ

Θ

Θ

W

3

Θ

9

12

Θ

6

Θ

3

Θ

9

12

Θ

6

w

x

R

x

R

y

G

x

G

y

B

x

B

Horizontal

Viewing Angle range

Vertical

Horizontal

Viewing Angle range

Vertical

Luminance Contrast ratio CR

Luminance of White Y

White luminance uniformity ΔY7580%Note 4

White

Red

Reproduction

of color

Green

Blue

(= θ12) as the 12 o’clock direction (“upward”), θ

Ø=90

hile

-89-Deg.

CR > 10

CR > 5

Θ = 0°

(Center)

Normal

Viewing

Angle

-89-Deg.

-89-Deg.

-89-Deg.

-89-Deg.

-89-Deg.

-89-Deg.

-89-Deg.

700 1000 Note 2

200 250 cd/m

0.283 0.313 0.343

0.617 0.647 0.677

0.309 0.339 0.369

0.277 0.307 0.337

0.603 0.633 0.663

0.116 0.146 0.176

0.026 0.056 0.086

nning θ an

2

Ø=180

(= θ9) as

Note 1

Note 3

Note 5

Response Time Rising+Falling T

Cross Talk CT - - 2.0 % Note 7

T

r

f

+

R2010-6053-O(3/3)

14 21 ms Note 6

A4(210 X 297)

PRODUCT GROUP

di

ith

LCD

Luminance when displaying a black raster

(See FIGURE 2 shown in Appendix)

7.

Cross

Talk of one area of the LCD surface by another shall be measured by comparing the

REV

ISSUE DATE

SPEC. NUMBER

PRODUCT SPEC-TFT MODULE

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

O

2013.02.05

9

Note :

1. Viewing angle is the angle at which the contrast ratio is greater than 10. The viewing are
determined for the horizontal or 3, 9 o’clock direction and the vertical or 6, 12 o’clock

rection w

2. Contrast measurements shall be made at viewing angle of θ= 0° and at the center of the LCD
surface. Luminance shall be measured with all pixels in the view field set first to white, then
to the dark (black) state. (See FIGURE 1 shown in Appendix) Luminance Contrast Ratio (CR)
is defined mathematically.

3. Center Luminance of white is defined as the LCD surface. Luminance shall be measured with
all pixels in the view field set first to white. This measurement shall be taken at the locations
shown in FIGURE 2 for a total of the measurements per display.

4. The White luminance uniformity on LCD surface is then expressed as :
ΔY = ( Minimum Luminance of 9points / Maximum Luminance of 9points ) * 100

5. The color chromaticity coordinates specified in Table 4. shall be calculated from the spectral
data measured with all pixels first in red, green, blue and white. Measurements shall be made
at the center of the panel.

6. The electro-optical response time measurements shall be made as FIGURE 3 shown in
Appendix by switching the “data” input signal ON and OFF. The times needed for the
luminance to change from 10% to 90% is Td, and 90% to 10% is Tr.

­luminance (Y
luminance (Y
shown in Appendix).

respect to the optical axis which is normal to the

CR =

Luminance when displaying a white raster

surface.

.

) of a 25mm diameter area, with all display pixels set to a gray level, to the

A

) of that same area when any adjacent area is driven dark. (See FIGURE 4

B

PAGE

OF 29

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

T

)

()

T

)

()

20

RXECNegative

Transmission Clock (EVEN)

REV

ISSUE DATE

PRODUCT SPEC-TFT MODULE

SPEC. NUMBER

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

5.0 INTERFACE CONNECTION.

5.1 Electrical Interface Connection

● CN1 Module Side Connector : UJU IS100-L300-C23 or Equivalent

User Side Connector : JAE FI-X30H or Equivalent

Pin No Symbol Function Remark

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

21

22

23

24

25

RXO0- Negative Transmission data of Pixel 0 (ODD)

RXO0+ Positive Transmission data of Pixel 0 (ODD)

RXO1- Negative Transmission data of Pixel 1 (ODD)

RXO1+ Positive Transmission data of Pixel 1 (ODD)

RXO2- Negative Transmission data of Pixel 2 (ODD)
RXO2+ Positive

GND Power Ground

RXOC- Negative Transmission Clock (ODD)
RXOC+ Positive Transmission Clock (ODD)
RXO3- Negative Transmission data of Pixel 3 (ODD)

RXO3+ PositiveTransmission data of Pixel 3 (ODD)

RXE0- Negative Transmission data of Pixel 0 (EVEN)

RXE0+ Positive

GND Power Ground

RXE1- Negative Transmission data of Pixel 1 (EVEN)

RXE1+ Positive Transmission data of Pixel 1 (EVEN)

GND Power Ground

RXE2- Negative Transmission data of Pixel 2 (EVEN)

RXE2+ Positive Transmission data of Pixel 2 (EVEN)

-

RXEC+ Positive Transmission Clock (EVEN)

RXE3- Negative Transmission data of Pixel 3 (EVEN)

RXE3+ Positive Transmission data of Pixel 3 (EVEN)

GND Power Ground

NC Not connection, this pin should be open

ransmission data of Pixel 2 (ODD

ransmission data of Pixel 0 (EVEN

O

2013.02.05

10

Note1

PAGE

OF 29

26

27

28

29

30

Note 1： This pin should be connected with GND

R2010-6053-O(3/3)

NC Not connection, this pin should be open

NC Not connection
VDD1 Power Supply:+5V
VDD2
VDD3

A4(210 X 297)

PRODUCT GROUP

)

(Rx)

y()

D

1137OUT3+

REV

ISSUE DATE

PRODUCT SPEC-TFT MODULE

SPEC. NUMBER

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

5.2 LVDS Interface (Tx; THC63LVDF83A or Equivalent)

5.2.1 ODD LVDS Interface

Input

Signal

OR0

OR1

OR2

OR3

OR4

OR5

OG0

OG1

OG2

OG3

OG4

OG5

O

D

L
V
D

S

OB0

OB1

OB2

OB3

OB4

OB5

Hsync

Vsync

DE

MCLK

OR6

OR7

OG6

OG7

OB6

OB7

RSVD

Transmitter Remark

Pin No.

51

52

54

55

56

3

4

6

7

11

12

14

15

19

20

22

23

24

27

28

30

31

50

2

8

10

16

18

25

Pin No. System (Tx

48
47

46
45

42
41

40
39

38

OUT0+

OUT1+

OUT2+

CLK OUT-

CLK OUT+

Interface

OUT0-

OUT1-

OUT2-

OUT3-

TFT-LCD

RXO0-

RXO0+

RXO1-

RXO1+

RXO2-

RXO2+

RXO CLK-

RXO CLK+

RXO3-

RXO3+

O

HR215WU1-200

(CN11)

Pin No.

1
2

3
4

5
6

8
9

10

2013.02.05
PAGE

OF 29

11

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

E

30

DE

REV

ISSUE DATE

SPEC. NUMBER

5.2.2 EVEN LVDS Interface

Input

Signal

ER0

ER1

ER2

ER3

ER4

ER5

EG0

EG1

EG2

EG3

EG4

E
V

N

L
V
D

S

EG5

EB0

EB1

EB2

EB3

EB4

EB5

Hsync

Vsync

PRODUCT SPEC-TFT MODULE

O

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

HR215WU1-200 (C

N11)

Pin No.

12
13

15
16

18
19

OUT0-

OUT1-

OUT2-

Interface

TFT-LCD

(Rx)

RXE0­RXE0+

RXE1­RXE1+

RXE2­RXE2+

Transmitter Remark

Pin No.

51

52

54

55

56

3

4

6

7

11

12

14

15

19

20

22

23

24

27

28

Pin No. System (Tx)

48
47

46
45

42
41

OUT0+

OUT1+

OUT2+

2013.02.05
PAGE

OF 29

12

MCLK

ER6

ER7

EG6

EG7

EB6

EB7

RSVD

R2010-6053-O(3/3)

31

50

10

16

18

25

40
39

2

8

38
37

CLK OUT-

CLK OUT+

OUT3-

OUT3+

RXE CLK-

RXE CLK+

RXE3­RXE3+

20
21

22
23

A4(210 X 297)

PRODUCT GROUP

RGB

5

Channel3CurrentFeedback

REV

ISSUE DATE

SPEC. NUMBER

5.3 Data Input Format

(1,1) (2,1) (1919,1) (1920,1)

RGBRGB RGBRGB

PRODUCT SPEC-TFT MODULE

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

1 Pixel = 3 Dots

O

2013.02.05
PAGE

OF 29

13

RGBRGB RGBRGB

(1,1080) (2,1080) (1919,1080) (1920,1080)

Display Position of Input Data (V-H)

5.4 Back-light Interface Connection

LED LightBar Connector●CN 2

Pin Function

1

2

3

4

6

Channel1CurrentFeedback

Channel2CurrentFeedback

LEDPowerSupply

LEDPowerSupply

Channel4CurrentFeedback

:CI1406M1HRL-NH or equivalent

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

Item

Symbols

Min

Typ

MaxUnit

V-blank

114569

lines

Spresd

f

REV

ISSUE DATE

PRODUCT SPEC-TFT MODULE

SPEC. NUMBER

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

6.0 SIGNAL TIMING SPECIFICA TION

6.1 The HR215WU1-200 is operated by the DE only.

Frequency 1/Tc 61.93 74.32 92.90 MHz

Clock

Frame Period Tv 50 60 75 Hz

High Time Tch - 4/7 Tc -

Low Time Tcl - 3/7 Tc -

O

2013.02.05

14

1091 1125 1149 lines

PAGE

OF 29

20 16.67 13.33 ms

Vertical Display Period Tvd - 1080 - lines

H-blank 100 140 240 lines

One line Scanning Period Th 1060 1100 1200 clocks

Horizontal Display Period Thd - 960 - clocks

Input cycle to

cycle jitter

Trcl

-100 - 100

ps

LVDS

Receiver

Clock

Spectrum

modulation

range

Fclkin_m

od

Fclkin*-3% - Fclkin*+3%

MHz

Spresd

Spectrum

modulation

Fssm

- - 300

KHz

requency

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

SPEC. NUMBER

6.2 LVDS Rx Interface Timing Parameter

The specification of the LVDS Rx interface timing parameter is shown in Table 4.

Item Symbol Min Typ Max Unit Remark

CLKIN Period tRCIP

Input Data 0 tRIP1

Input Data 1 tRIP0

Input Data 2 tRIP6 2 ×tRCIP/7-0.4 2 ×tRCIP/7 2 ×tRCIP/7+0.4 nsec

Input Data 3 tRIP5 3 ×tRCIP/7-0.4 3 ×tRCIP/7 3 ×tRCIP/7+0.4 nsec

Input Data 4 tRIP4 4 ×tRCIP/7-0.4 4 ×tRCIP/7 4 ×tRCIP/7+0.4 nsec

Input Data 5 tRIP3 5 ×tRCIP/7-0.4 5 ×tRCIP/7 5 ×tRCIP/7+0.4 nsec

Input Data 6 tRIP2 6 ×tRCIP/7-0.4 6 ×tRCIP/7 6 ×tRCIP/7+0.4 nsec

PRODUCT SPEC-TFT MODULE

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

<Table 4. LVDS Rx Interface Timing Specification>

10.76 13.46 16.15

-0.4 0.0 +0.4

tRCIP/7-0.4 tRCIP/7 tRCIP/7+0.4

O

nsec

nsec

nsec

2013.02.05
PAGE

OF 29

15

RXz +/-

* Z = 0, 1, 2,3

RxCLK+

tRIP2

tRIP3

tRIP4

tRIP5

tRIP6

tRIP0

tRIP1

Rx2 Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0Rx3

tRCIP

* Vdiff = (RXz+)-(RXz-),…. ,(RXCLK+)-(RXCLK-)

Vdiff=0[v]Vdiff=0[v]

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

O

3

H

7.2 Vertical

Timing Waveforms

REV

ISSUE DATE

PRODUCT SPEC-TFT MODULE

SPEC. NUMBER

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

7.0 SIGNAL TIMING WAVEFORMS OF INTERFACE SIGNAL

7.1 Sync Timing Waveforms

V-Sync

H-Sync

DE

ver

1) Need over 3 H-sync during V-Sync Low

2) Fix H-Sync width from V-Sync falling edge to first rising edge

-sync

Fix H-Sync width Area

O

2013.02.05
PAGE

OF 29

16

MCLK

DE

R7 ~ R0

G7 ~ G0

B7 ~ B0

Invalid Data DataInvalid

R2010-6053-O(3/3)

Tv

Tvd

Th

x,1 x,2 x,y x+1,1

x,1050

A4(210 X 297)

PRODUCT GROUP

D1D2Dn

DataD1D2

D3 Invalid

D1048

D1049

D1050

REV

ISSUE DATE

PRODUCT SPEC-TFT MODULE

SPEC. NUMBER

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

7.3 Horizontal Timing Waveforms

MCLK

Tc

DE

RA7 ~RA0

GA7 ~GA0

BA7 ~BA0

Thd

Th

O

2013.02.05
PAGE

OF 29

17

MCLK

Data

Tch

Tds

Valid

Tes

2.0VDE

Tcl

1.5V

Tdh

Data

2.0V

0.8V

2.0V

0.8V

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

Green

00000000111111110000000

0

Gray Scale

△

↑↑↑

↑↑↑

GREEN

↑↑↑

▽

↓↓↓

REV

ISSUE DATE

SPEC. NUMBER

PRODUCT SPEC-TFT MODULE

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

O

2013.02.05
PAGE

OF 29

18

8.0 INPUT SIGNALS, BASIC DISPLAY COLORS & GRAY SCALE OF COLORS

Color & Gray Scale

Basic Colors

of RED

Gray Scale

of

Gray Scale

of BLUE

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 000000000000000000000000

Blue 000000000000000011111111

Cyan 000000001111111111111111

Red 111111110000000000000000

Magenta 111111110000000011111111

Yellow 111111111111111100000000

White 111111111111111111111111

Black 000000000000000000000000

△

Darker 000000100000000000000000

▽

Brighter 111111010000000000000000

▽

Red 111111110000000000000000

Black 000000000000000000000000

△

Darker 000000000000001000000000

△
▽

Brighter 000000001111110100000000

▽

Green 000000001111111100000000

Black 000000000000000000000000

△

Darker 000000000000000000000010

△

RED DATA GREEN DATA BLUE DATA

000000010000000000000000

↓↓↓

111111100000000000000000

000000000000000100000000

↓↓↓

000000001111111000000000

000000000000000000000001

↑↑↑

Brighter 000000000000000011111101

Blue 000000000000000011111111

Black 000000000000000000000000

Gray Scale

of WHITE

Darker 000000100000001000000010

Brighter 111111011111110111111101

White 111111111111111111111111

R2010-6053-O(3/3)

▽

△

△
▽

▽

000000000000000011111110

000000010000000100000001

↑↑↑
↓↓↓

111111101111111011111110

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

PRODUCT SPEC-TFT MODULE

SPEC. NUMBER

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

9.0 POWER SEQUENCE

To prevent a latch-up or DC operation of the LCD module, the power on/off sequence
shall be as shown in below

Power Supply

Interface Signal

0.1VDD

0V

0V

0.9VDD

T1

T2

Valid

0.9VDD

T3

T7

O

0.1VDD

T4

2013.02.05
PAGE

OF 29

19

T5 T6

Back- light

0V

● 0.5 ms ≤ T1 ≤ 10 ms

● 0 ≤ T2 ≤ 50 ms

● 0 ≤ T3 ≤ 50 ms

● 1 sec ≤ T4

● 200 ms ≤ T5

● 200 ms ≤ T6

● 0 ≤ T7 ≤ 50 ms

Notes:

1. When the power supply VDD is 0V, keep the level of input signals on
the low or keep high impedance.

2. Do not keep the interface signal high impedance when power is on.

3. Back Light must be turn on after power for logic and interface signal are valid.

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

PRODUCT SPEC-TFT MODULE

SPEC. NUMBER

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

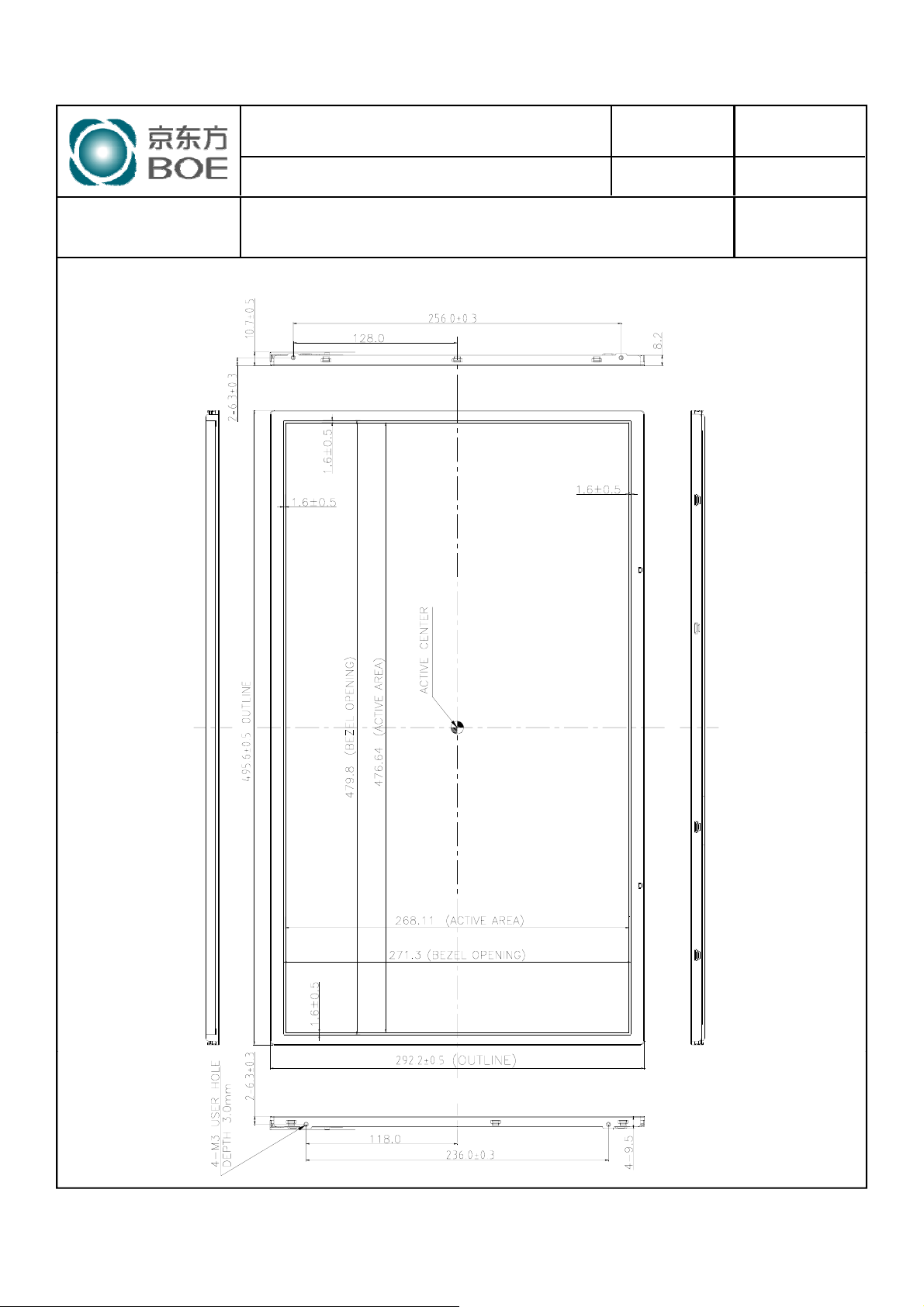

10.0 MECHANICAL CHARACTERISTICS

10.1 Dimensional Requirements

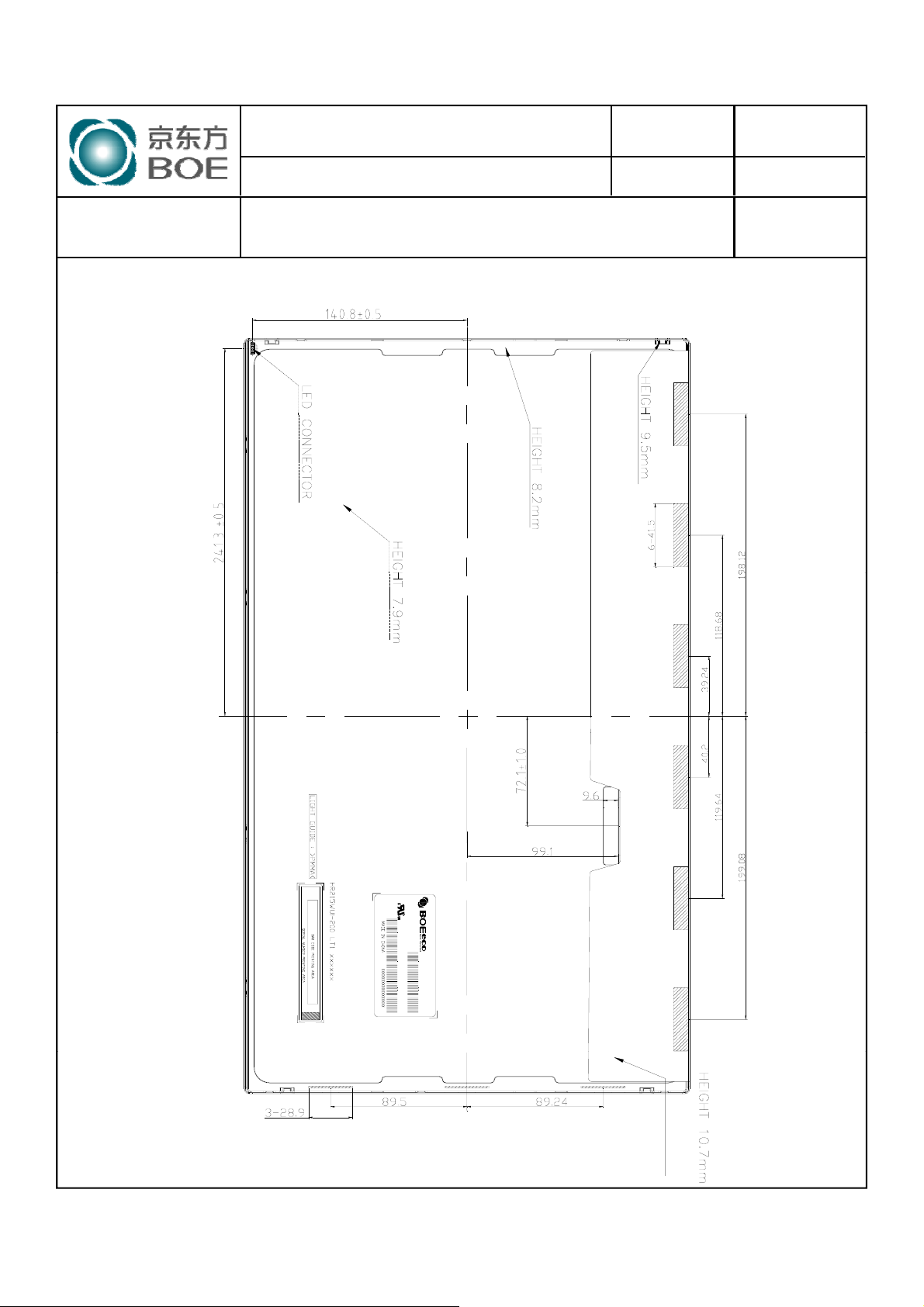

FIGURE 6 (located in Appendix) shows mechanical outlines for the model HR215WU1-200.
Other parameters are shown in Table 5.

<Table 5. Dimensional Parameters>

Parameter Specification Unit

Dimensional outline

Weight

Active area

Pixel pitch

Number of pixels

495.6 ×292.2×10.7

2150(typ.)

476.64(H) × 268.11(V)

0.24825(H) x 0.24825(V)

1920(H)×1080(V) (1 pixel = R + G + B dots)

O

2013.02.05
PAGE

OF 29

20

mm

g

mm

mm

pixels

Back-light

Lower side 1-LED Light bar Type

10.2 Mounting

See FIGURE 5. (shown in Appendix)

10.3 Anti-Glare and Polarizer Hardness.

The surface of the LCD has an Anti-glare coating to reduce reflection and a coating to reduce
scratching.

10.4 Light Leakage

There shall not be visible light from the back-lighting system around the edges of the screen as
seen from a distance 50cm from the screen with an overhead light level of 250lux.

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

0G

REV

ISSUE DATE

PRODUCT SPEC-TFT MODULE

SPEC. NUMBER

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

11.0 RELIABLITY TEST

The Reliability test items and its conditions are shown in below.

<Table 6. Reliability Test Parameters >

No Test Items

High temperature storage test

1

Low temperature storage test

2

High temperature & high humidity

3

operation test

High temperature operation test

4

Low temperature operation test

5

Thermal shock

6

Ta = 60 ℃, 240 hrs

Ta = -20 ℃, 240 hrs

Ta = 50 ℃, 80%RH, 240hrs

Ta = 50 ℃, 240hrs

Ta = 0 ℃, 240hrs

Ta = -20 ℃ ↔ 60 ℃ (0.5 hr), 100 cycle

Conditions

O

2013.02.05
PAGE

OF 29

21

Vibration test

7

(non-operating)

Shock test

8

(non-operating)

Electro-static discharge test

9

(non-operating)

10 Altitude test

Frequency 10 ~ 300 Hz, Sweep rate 30 min

Gravity / AMP 1.5 G

Period X, Y, Z 30 min

Gravity

Pulse width

Direction

Air : 150 pF, 330Ω, 15 KV
Contact : 150 pF, 330Ω, 8 KV

5

11msec, sine wave

± X, ± Y, ± Z Once for each

Operating: 0 to 16400ft , 0 to 40°
Non Operating: 0 to 40000ft, -20 to 40°

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

module with care. Peel a protection sheet off from the LCD panel surface as

Put the module display side down on a flat horizontal plane

(4)

() p

REV

ISSUE DATE

PRODUCT SPEC-TFT MODULE

SPEC. NUMBER

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

12.0 HANDLING & CAUTIONS

(1) Cautions when taking out the module

y Pick the pouch only, when taking out module from a shipping package.

(2) Cautions for handling the module

y As the electrostatic discharges may break the LCD module, handle the LCD

slowly as possible.

y As the LCD panel and back - light element are made from fragile glass material,

impulse and pressure to the LCD module should be avoided.

y As the surface of the polarizer is very soft and easily scratched, use a soft dry

cloth without chemicals for cleaning.

y Do not pull the interface connector in or out while the LCD module is operating.
y
y Handle connectors and cables with care.

(3) Cautions for the operation

y When the module is operating, do not lose CLK, ENAB signals. If any one of

these signals is lost, the LCD panel would be damaged.

y Obey the supply voltage sequence. If wrong sequence is applied, the module

would be damaged.

Cautions for the atmosphere

y Dew drop atmosphere should be avoided.
y Do not store and/or operate the LCD module in a high temperature and/or

humidity atmosphere. Storage in an electro-conductive polymer packing pouch

and under relatively low temperature atmosphere is recommended.

(5) Cautions for the module characteristics

y Do not apply fixed pattern data signal to the LCD module at product aging.
y Applying fixed pattern for a long time may cause image sticking.

(6) Other cautions

y Do not disassemble and/or re-assemble LCD module.
y Do not re-adjust variable resistor or switch etc.
yWhen returning the module for repair or etc., Please pack the module not to be

broken. We recommend to use the original shipping packages.

O

.

2013.02.05
PAGE

OF 29

22

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

PRODUCT SPEC-TFT MODULE

SPEC. NUMBER

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

13.0 PRODUCT SERIAL NUMBER

HR215WU1-200

O

2013.02.05
PAGE

OF 29

23

1 2 3 4 5 6 7

XXXXXXXXXXX XXXXXX

1. Control Number

2. Rank / Grade

3. Line Classification

4. Year (2001 : 01, 2002 : 02, …)

5. Month (1,2,3, … , 9, X, Y, Z)

6. Internal Use

7. Serial Number

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

modules

bundled

byPEBag

REV

ISSUE DATE

SPEC. NUMBER

PRODUCT SPEC-TFT MODULE

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

O

14.0 Packing

14.1 Packing Order

PutPaperPadintotheinbox Put module into the paper spacer and

2013.02.05
PAGE

OF 29

24

2 layers per Pallet, 8 inner boxes per layer

Pallet outer package : Protective film & Paper Corner

112pcs Module per Pallet

R2010-6053-O(3/3)

Put Cover on the top of the pad

and Sealing the box

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

SPEC. NUMBER

PRODUCT SPEC-TFT MODULE

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

O

14.2 Packing Specification and Note

Specification

Item

Packing Box 7pcs/Box 565(L)mm x 240(W)mm x 370(H)mm 16 -

Pallet 1

Pallet after Packing

Q'ty Dimension Weight (kg)

16boxes/

pallet

1200(L)mm x 1100(W)mm x 130(H)m

m

1200(L)mm x 1100W)mm x 820(H)mm 870 -

15.90 -

14.3 Box label

y Label Size : 108 mm (L) × 56 mm (W)
y Contents

Model : HR215WU1-200
Q`ty : Module Q`ty in one box
Serial No. : Box Serial No. See next page for detail description.
Date : Packing Date
FG Code : FG Code of Product

2013.02.05
PAGE

OF 29

25

Remark

00 0 00 0 0 000000
Type Grade Year Month ITEM-CODE Serial_no

R2010-6053-O(3/3)

HR215WU1-200

0000000000000

3930

7

201X.X.XX

FG CODE

RoHS Mark

A4(210 X 297)

PRODUCT GROUP

108

REV

ISSUE DATE

SPEC. NUMBER

15.0 APPENDIX

Figure 1. Measurement Set Up

PRODUCT SPEC-TFT MODULE

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

O

(L = 50cm )

2013.02.05
PAGE

OF 29

26

Figure 2. White Luminance and Uniformity Measurement Locations (9 points)

R2010-6053-O(3/3)

192 960 1728

540

972

A4(210 X 297)

PRODUCT GROUP

Wh

Y

itial lumi

d/m

2

)

REV

ISSUE DATE

SPEC. NUMBER

Display data

Optical
Response

PRODUCT SPEC-TFT MODULE

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

Figure 3. Response Time Testing

White(TFT OFF)

TR

100%

90%

10%

0%

Black(TFT ON)

O

White(TFT OFF)

TF

Time

2013.02.05
PAGE

OF 29

27

Figure 4. Cross Modulation Test Description

VIEW AREA VIEW AREA

(D/4, W/4)

L31

(3D/4, 3W/4)

(D, W)

YA(7D/8,W/2)

(D, W)

L0

Cross-Talk (%) =

ere:

A

= In

YB-Y

nance of measured area (c

Y

A

A

× 100

YB= Subsequent luminance of measured area (cd/m2)

The location measured will be exactly the same in both patterns

YB(7D/8,W/2)

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

SPEC. NUMBER

PRODUCT SPEC-TFT MODULE

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

Figure 5. TFT-LCD Module Outline Dimensions (Front view)

O

2013.02.05
PAGE

OF 29

28

()

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

SPEC. NUMBER

PRODUCT SPEC-TFT MODULE

SPEC. TITLE
HR215WU1-200 Product Specification_ Rev.O

Figure 6. TFT-LCD Module Outline Dimensions (Rear view)

O

2013.02.05
PAGE

OF 29

29

R2010-6053-O(3/3)

A4(210 X 297)
