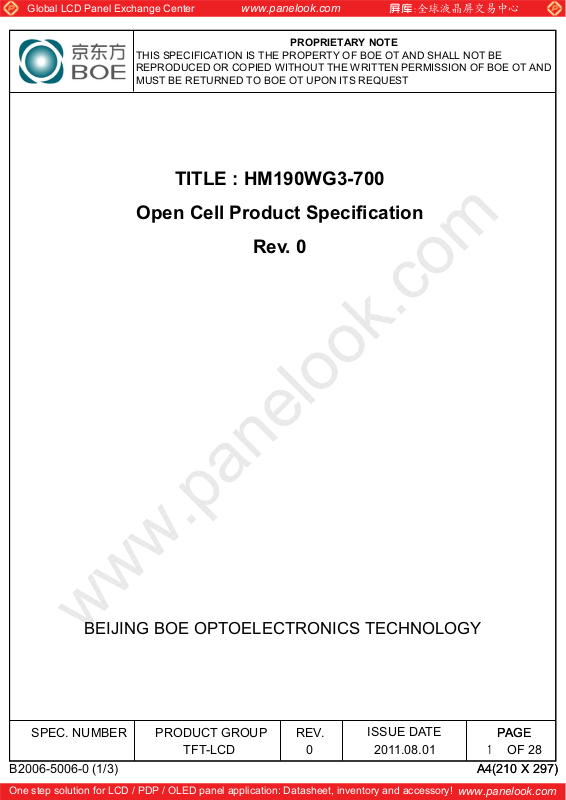

TITLE : HM190WG3-700
Open Cell Product Specification
www.panelook.com
PROPRIETARY NOTE
Rev. 0
BEIJING BOE OPTOELECTRONICS TECHNOLOGY
SPEC. NUMBER
B2006-5006-0 (1/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PRODUCT GROUP REV.
TFT-LCD
ISSUE DATE
2011.08.01
PAGE
PAGE
XG
OF 28 0
A4(210 X 297)
A4(210 X 297)
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT- LCD PRODUCT 0 2011.08.01
REV
ISSUE DATE
REVISION HISTORY
REV. ECN No. DESCRIPTION OF CHANGES DATE PREPARED
0 Initial Release 2011.08.01 Wangkaixuan
SPEC. NUMBER
B2006-5006-0 (2/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC. TITLE PAGE
HM190WG3-700 Open Cell Product Specification
YG
OF 28
A4(210 X 297)
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
REV
0 TFT- LCD PRODUCT
ISSUE DATE
2011.08.01
Contents
No. Item Page
1.0 General Description 4
2.0 Absolute Maximum Ratings 6
3.0 Electrical specifications 7
4.0 Optical specifications 8
5.0 Interface Connection 10
6.0 Signal Timing Specifications 14
7.0 Signal Timing waveforms of Interface Signal 16
8.0 Input Signals, Display Colors & Gray Scale of Colors 18
9.0 Power Sequence 19

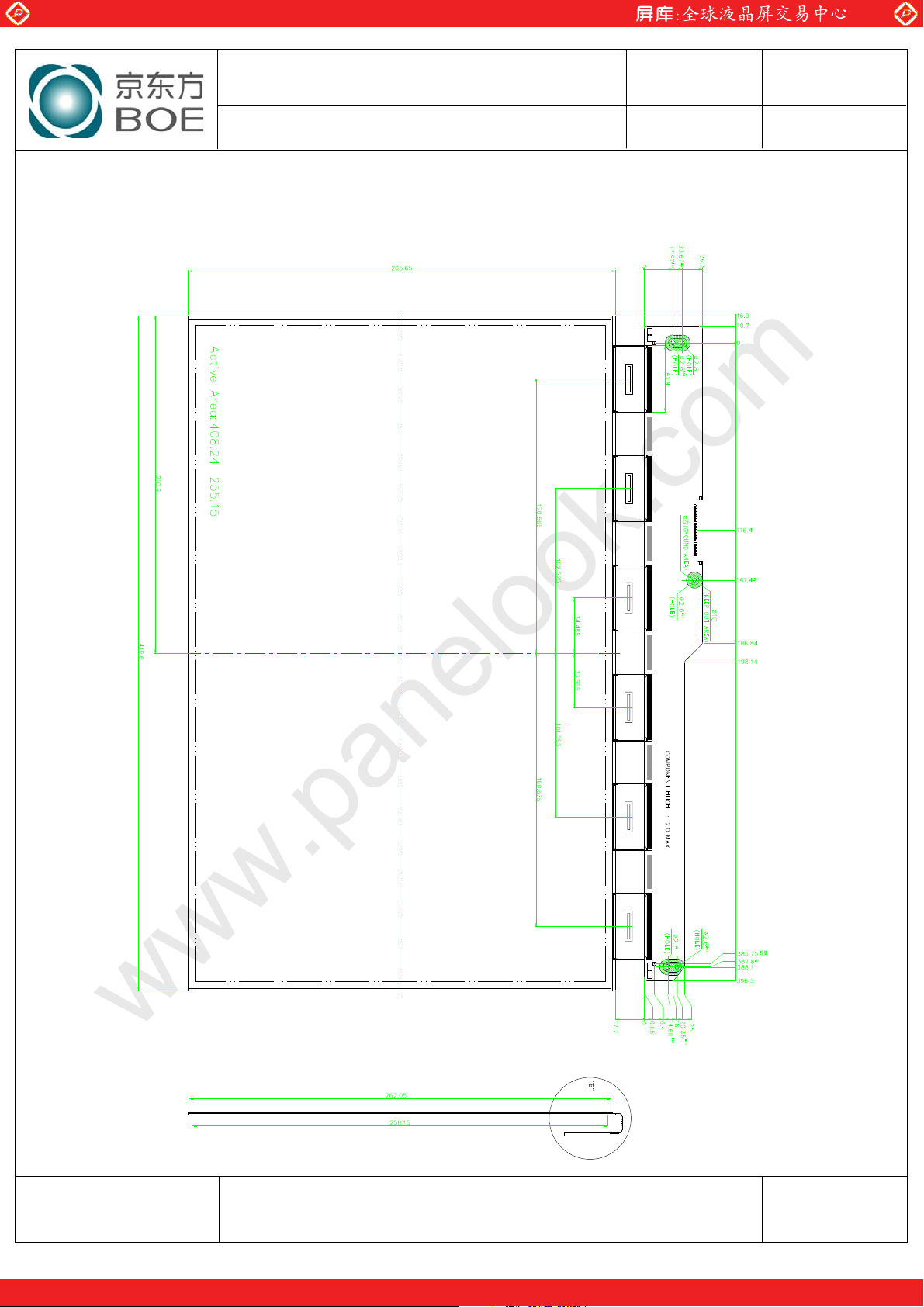

10.0 Mechanical Characteristics 20
11.0 Reliability Test 21
12.0 Handling & Cautions 22

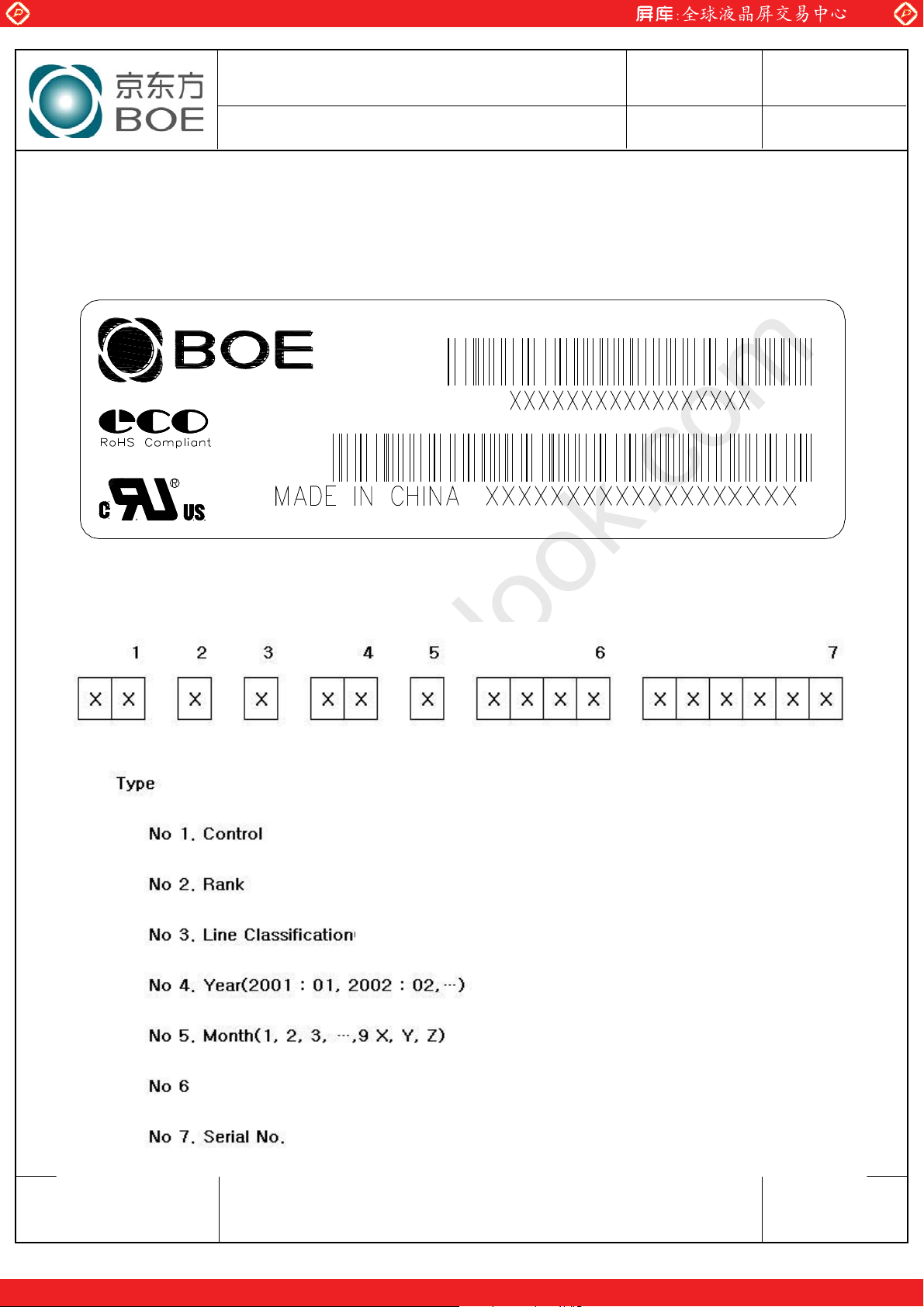

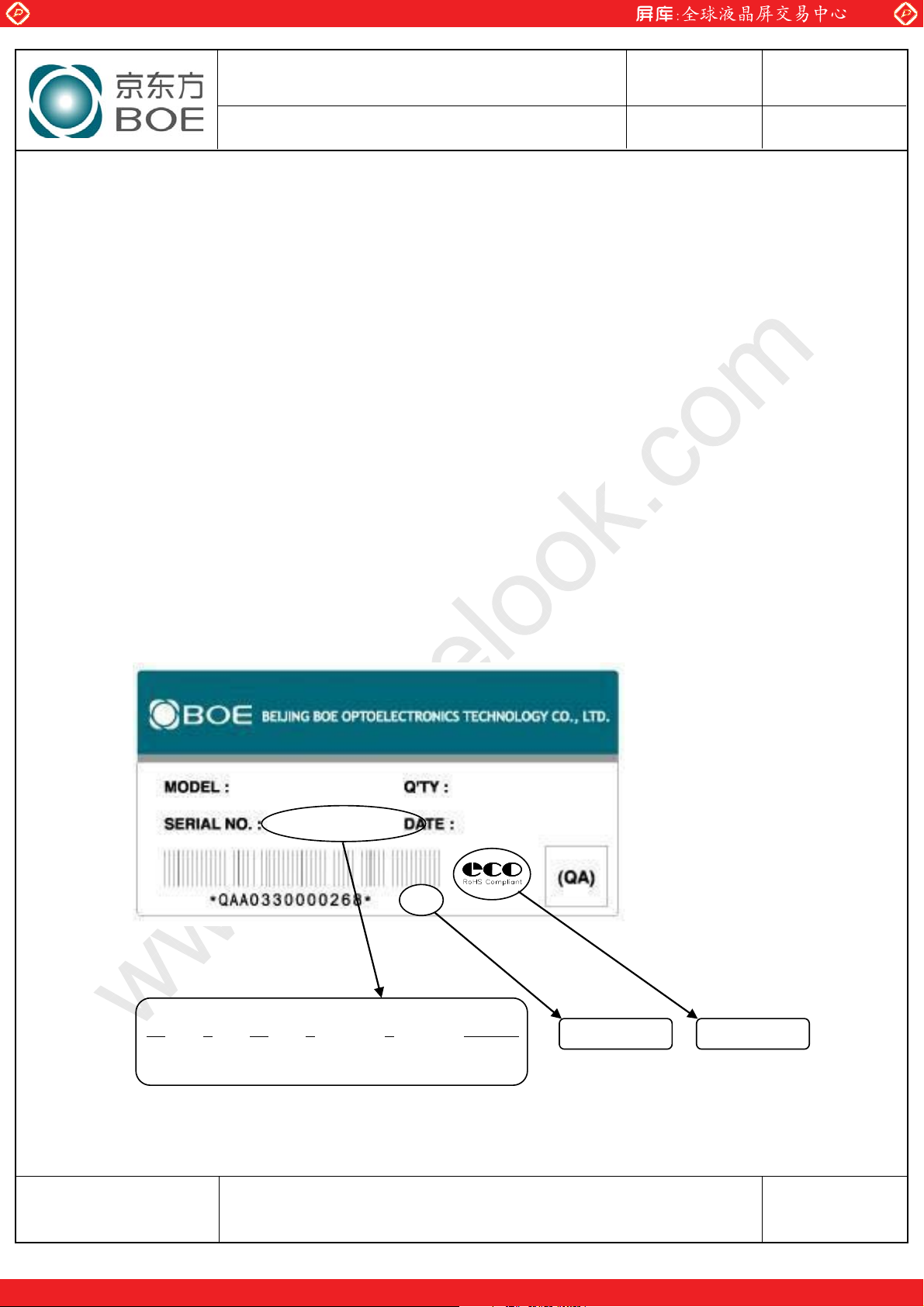

13.0 Product Serial Number 23
14.0 Packing 24
15.0 Appendix 26
SPEC. NUMBER
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
PAGE
3
OF 28
A4(210 X 297)
www.panelook.com
Page 4
Global LCD Panel Exchange Center
Ý
www.panelook.com
PRODUCT GROUP
REV
0 TFT- LCD PRODUCT
1.0 General Description
1.1 Introduction
HM190WG3-700 is a color active matrix TFT LCD Open Cell using amorphous silicon
TFT's (Thin Film Transistors) as an active switching devices. This Open Cell has a 19.0
inch diagonally measured active area with WXGA+ resolutions (1440 horizontal by 900

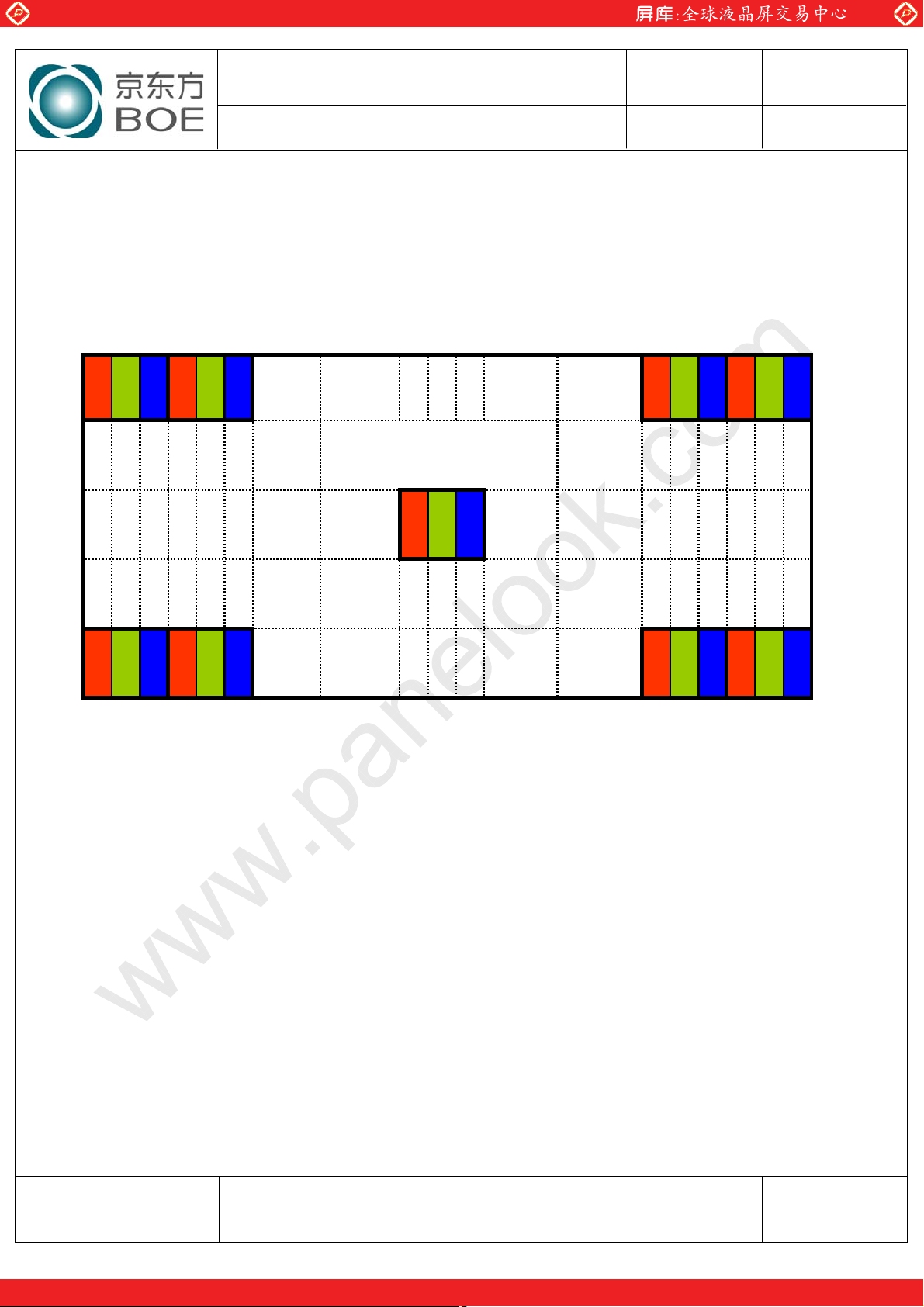

vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are
arranged in vertical stripe and this Open Cell can display 16,7 M colors. The TFT-LCD
panel used for this Open Cell is adapted for a low reflection and higher color type.
ISSUE DATE
2011.08.01
LVDS
Input
Signal
Connector (CN
LVDS Rx
+
T/CON
+
Mini-LVDS Tx
S1
G1
…………
Source Driver
…………
S1440
TFT LCD Panel
1440
VDD
1
)
1.2 Features
z LVDS Interface with 2 pixel / clock
z High-speed response
z Low power consumption
z 6-bit (Hi-FRC) color depth, display 16,7 M colors
z High luminance and contrast ratio, low reflection and wide viewing angle
z DE (Data Enable) only
z RoHS Compliance
z TCO03 Compliance
DC/DC
Gamma
Vcom
G900
900
SPEC. NUMBER
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
4
OF 28
A4(210 X 297)
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
1.3 Application
z Desktop Type of PC & Workstation Use
z Slim-Size Display for Stand-alone Monitor
z Display Terminals for Control System
z Monitors for Process ControllerG
1.4 General Specification
The followings are general specifications at the model HM190WG3-700.
<Table 1. General Specifications>
REV
0 TFT- LCD PRODUCT
ISSUE DATE
2011.08.01
Parameter Specification Unit
Active area
Number of pixels
Pixel pitch
408.24(H) Ý 255.15(V)
1440(H) ശ900(V)
0.2835(H) ശ0.2835(V)
mm
pixels
mm
Pixel arrangement RGB Vertical stripe
Display colors 16.7M colors
Display mode Normally White
Weight 420 (max.) g
Surface Treatment
Haze 25%, 3HG
Remarks
SPEC. NUMBER
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
5
OF 28
A4(210 X 297)
www.panelook.com
Page 6
Global LCD Panel Exchange Center
ڋ
ڍ ڋ
ڏ ڋ
ڑ ڋ
ړ ڋ
ڈڍ ڋ
ڐ
ڍ ڋ
ڏ ڋ
ڑ ڋ
ړ ڋ
ڔڋ
ڌ ڋ ڋ
ڪ ۋ ۀ ۍڼ ۏۄۉ ۂ ٻڭ ڼ ۉ ۂ ۀ
ڮ ۏۊ ۍڼ ۂ ۀ ٻڭ ڼ ۉ ۂ ۀ
ڭۀۇڼ ۏۄ ۑۀٻ ڣېۈۄڿۄ ۏ۔ ٻڃڀ ڭڣڄ
گ ۀ ۈ ۋ ۀ ۍڼ ۏې ۍۀ ٻڃഴڞ ڄ
www.panelook.com
PRODUCT GROUP
REV
0 TFT- LCD PRODUCT
ISSUE DATE
2011.08.01
2.0 ABSOLUTE MAXIMUM RATINGSG
The followings are maximum values which, if exceed, may cause faulty operation or
damage to the unit. The operational and non-operational maximum voltage and current
values are listed in Table 2.
GG
< Table 2. Absolute Maximum Ratings>
ParameterG
Power Supply Voltage V
Logic Supply Voltage V
Operating Temperature T
Storage Temperature T
SymbolG Min.G Max.G UnitG RemarksG
VSS-0.5 6.5 V
DD
VSS-0.3 VDD+0.3 V
IN
0 +50
OP
-20 +60
ST
ć
ć
[VSS=GND=0V]G
Ta = 25 ć
Note 1
Note 1
Note : 1) Temperature and relative humidity range are shown in the figure below.
O
Wet bulb temperature should be 39
C max. and no condensation of water.
SPEC. NUMBER
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
PAGE
6
OF 28
A4(210 X 297)
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
3.0 ELECTRICAL SPECIFICATIONSG
3.1Electrical Specifications
< Table 3. Electrical specifications > G
Parameter
Power Supply Voltage V
Power Supply Current I
In-Rush Current I
Permissible Input Ripple Voltage V
High Level Differential Input
Threshold Voltage
Low Level Differential Input
Threshold Voltage
DD
DD
RUSH
RF
V
IH
V
IL
Min. Typ. Max. Unit Remarks
4.5 5.0 5.5 V
- 800 1100 mA
- 2.0 3.0 A Note 2
- - 100 mV VDD = 5.0V
- - +100 mV
-100 - - mV
REV
0 TFT- LCD PRODUCT
ISSUE DATE
2011.08.01
[Ta =25ധ2 ć]
Note1
Vcm = 1.2V typ.
Power Consumption P
Notes : 1. The supply voltage is measured and specified at the interface connector of LCM.G
The current draw and power consumption specified is for VDD=5.0V, Frame rate=76Hz and
Clock frequency =56.3MHz. Test Pattern of power supply currentG
a) Typ : Color Bar patternG
b) Max : Dot pattern
2. Duration of rush current is about 2 ms and rising time of VDD is 520 μs ρ 20 %G
- 4.0 W
D
SPEC. NUMBER
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
7
OF 28
A4(210 X 297)
www.panelook.com
Page 8
Global LCD Panel Exchange Center
G
www.panelook.com
PRODUCT GROUP
REV
0 TFT- LCD PRODUCT
ISSUE DATE
2011.08.01
4.0 OPTICAL SPECIFICATION G
4.1 Overview

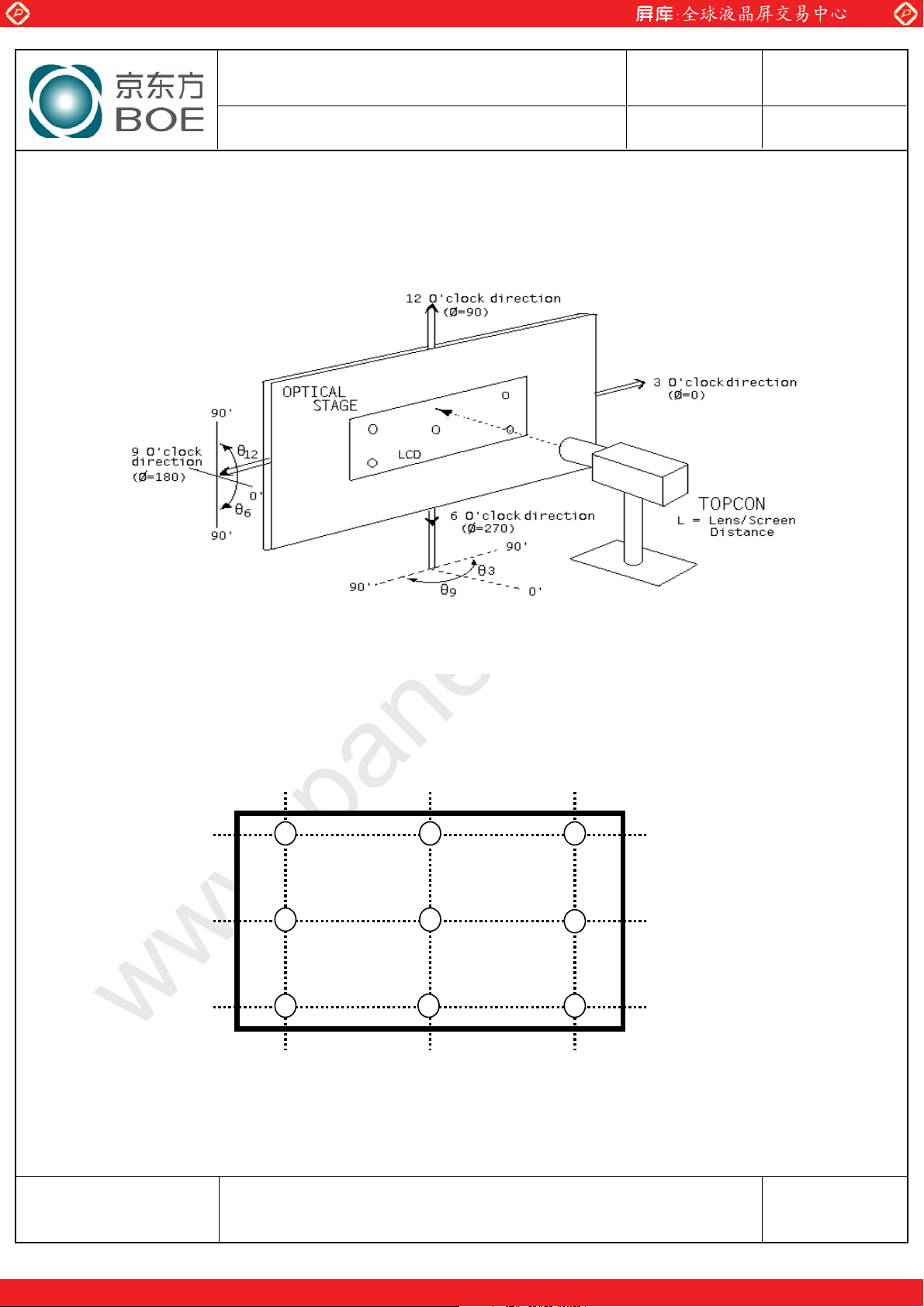

The test of Optical specifications shall be measured in a dark room (ambient luminance d 1 lux and temperature =
25r2ć) with the equipment of Luminance meter system (Goniometer system and TOPCONE BM-5) and test unit shall
be located at an approximate distance 50cm from the LCD surface at a viewing angle of θ and Φ equal to 0q. We refer to
(=θ3 ) as the 3 o’clock direction (the “right”), θ
θ
Ø=0
the 9 o’clock direction (“left”) and θ
center of the measuring spot on the Display surface shall stay fixed. The measurement shall be executed after 30
minutes warm-up period. VDD shall be 5.0V +/-10% at 25qC. Optimum viewing angle direction is 6 ’clock.
4.2 Optical Specifications
[VDD = 5.0V, Frame rate = 60Hz, Clock = 54MHz, I
Parameter Symbol Condition Min. Typ. Max. Unit Remark
Viewing Angle range
Luminance Contrast ratio CR
Horizontal
Vertical
(= θ12 ) as the 12 o’clock direction (“upward”), θ
Ø=90
(= θ6 ) as the 6 o’clock direction (“bottom”). While scanning θ and/or Ø, the
Ø=270
= 6.5mA, Ta =25ധ2 ć]
BL
Θ
3
35 45 - Deg.
Θ
9
10 20 - Deg.
Θ
12
30 40 - Deg.
Θ
6
CR > 10
35 45 - Deg.
600 Note 3
Ø=180
(= θ9 ) as
Note 2
Cell Transmittance Tr - 6.0% - Note 4
0.283 0.313 0.343
W
White
Reproduction
of color
Response
Time
Cross Talk CT - - 2.0 % Note 9
Red
Green
Blue
Rising T
Falling T
x
W
0.299 0.329 0.359
y
R
x
R
y
G
x
G
y
B
0.110 0.140 0.171
x
B
y
r
f
Θ = 0q
(Center)
Normal
Viewing
Angle
Ta= 25q C
Θ = 0q
0.610 0.640 0.670
0.306 0.336 0.366
0.249 0.279 0.309
0.573 0.603 0.633
0.038 0.068 0.098
1.5 2.5 ms
3.5 5.5 ms
Note 7
Note 8
SPEC. NUMBER
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
8
OF 28
A4(210 X 297)
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
REV
0 TFT- LCD PRODUCT
ISSUE DATE
2011.08.01
Note :
1. The value in upper table are based on BLU provided by BOEOT
2. Viewing angle is the angle at which the contrast ratio is greater than 10. The viewing are
determined for the horizontal or 3, 9 o’clock direction and the vertical or 6, 12 o’clock
direction with respect to the optical axis which is normal to the LCD surface.
3. Contrast measurements shall be made at viewing angle of T= 0q and at the center of the LCD
surface. Luminance shall be measured with all pixels in the view field set first to white, then
to the dark (black) state. (See FIGURE 1 shown in Appendix) Luminance Contrast Ratio (CR)
is defined mathematically.
Luminance when displaying a white raster
CR =
Luminance when displaying a black raster
4. Luminance of LCD module shall be made without signal input. Cell transmittance is defined
mathematically, BLU provided by BOEOT.
Transmittance =
5. Center Luminance of white is defined as the LCD surface. Luminance shall be measured with
all pixels in the view field set first to white. This measurement shall be taken at the locations
shown in FIGURE 2 for a total of the measurements per display.
6. The White luminance uniformity on LCD surface is then expressed as :
ԩY = ( Minimum Luminance of 9points / Maximum Luminance of 9points ) * 100
(See FIGURE 2 shown in Appendix).
7. The color chromaticity coordinates specified in above Table shall be calculated from the
spectral data measured with all pixels first in red, green, blue and white. Measurements shall
be made at the center of the panel with BLU provided by BOEOT.

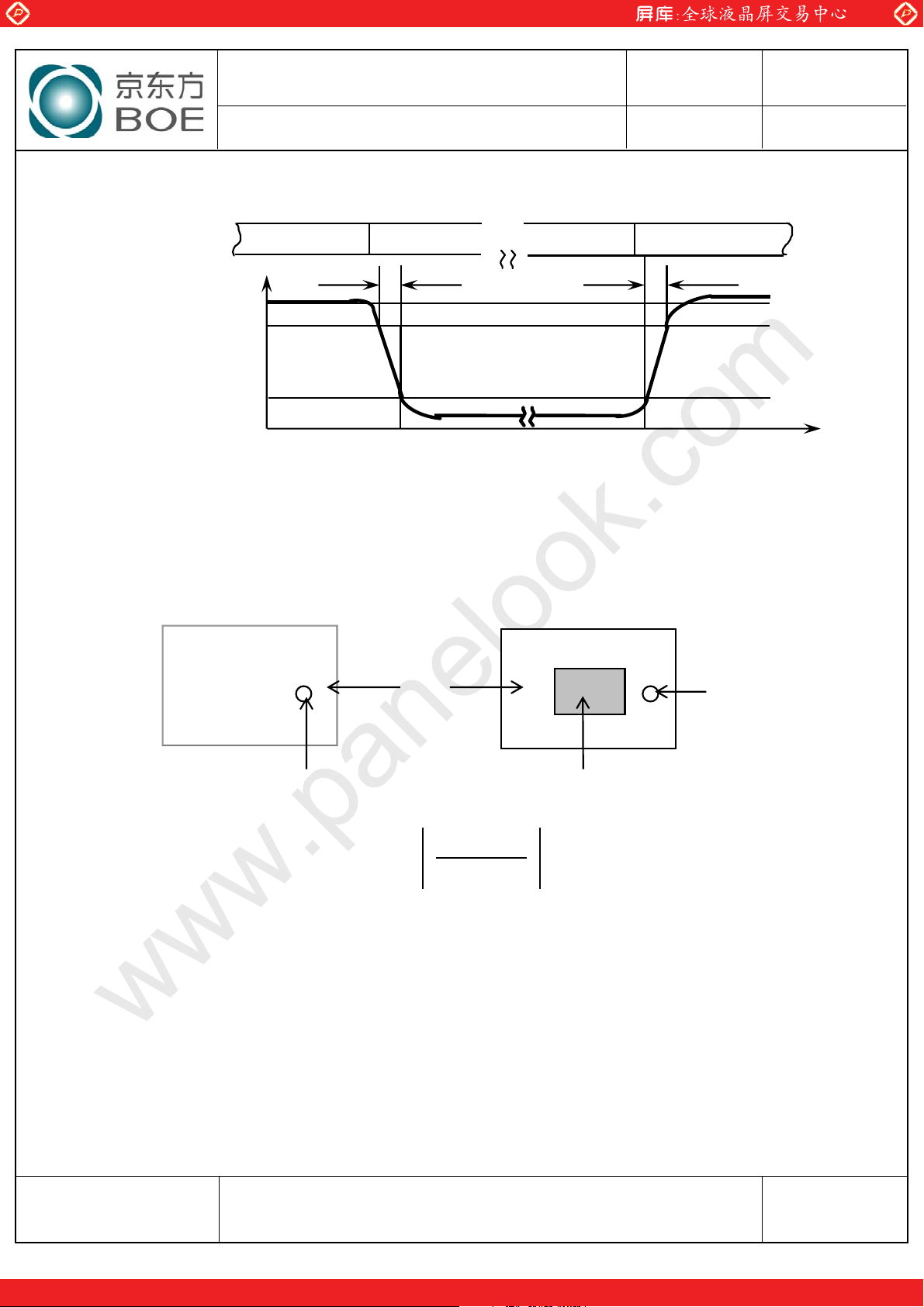

8. The electro-optical response time measurements shall be made as FIGURE 3 shown in
Appendix by switching the “data” input signal ON and OFF. The times needed for the
luminance to change from 10% to 90% is Td, and 90% to 10% is Tr.
9. Cross-Talk of one area of the LCD surface by another shall be measured by comparing the
luminance (YA) of a 25mm diameter area, with all display pixels set to a gray level, to the
luminance (YB) of that same area when any adjacent area is driven dark. (See FIGURE 4
shown in Appendix).
Luminance of LCD Module
Luminance of BLU
SPEC. NUMBER
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
PAGE
`G
OF 28
A4(210 X 297)
www.panelook.com
Page 10
Global LCD Panel Exchange Center
G
www.panelook.com
PRODUCT GROUP
REV
0 TFT- LCD PRODUCT
5.0 INTERFACE CONNECTION.G
5.1 Electrical Interface Connection
CN11 Open Cell Side Connector : UJU IS100-L30O-C23 or Equivalent
User Side Connector : JAE FI-X30H or Equivalent G
Pin No Symbol Function Remark
1 RXO0- Negative Transmission data of Pixel 0 (ODD)
2 RXO0+ Positive Transmission data of Pixel 0 (ODD)
3 RXO1- Negative Transmission data of Pixel 1 (ODD)
4 RXO1+ Positive Transmission data of Pixel 1 (ODD)
5 RXO2- Negative Transmission data of Pixel 2 (ODD)
6 RXO2+ Positive Transmission data of Pixel 2 (ODD)
7 GND Power Ground
8 RXOC- Negative Transmission Clock (ODD)
9 RXOC+ Positive Transmission Clock (ODD)
10 RXO3- Negative Transmission data of Pixel 3 (ODD)
11 RXO3+ Positive Transmission data of Pixel 3 (ODD)
12 RXE0- Negative Transmission data of Pixel 0 (EVEN)
13 RXE0+ Positive Transmission data of Pixel 0 (EVEN)
14 GND Power Ground
15 RXE1- Negative Transmission data of Pixel 1 (EVEN)
16 RXE1+ Positive Transmission data of Pixel 1 (EVEN)
17 GNG Power Ground
18 RXE2- Negative Transmission data of Pixel 2 (EVEN)
19 RXE2+ Positive Transmission data of Pixel 2 (EVEN)
20 RXEC- Negative Transmission Clock (EVEN)
21 RXEC+ Positive Transmission Clock (EVEN)
22 RXE3- Negative Transmission data of Pixel 3 (EVEN)
23 RXE3+ Positive Transmission data of Pixel 3 (EVEN)
24 GND Power Ground Note 1
25 (CE) LCD internal use only Internal Use
26 (CTL) Internal Use
27 NC No. Connection
28 VDD
Power Supply: +5V 29 VDD
30 VDD
ISSUE DATE
2011.08.01
Note 1 : This pin should be connected with GND.
SPEC. NUMBER
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
10
OF 28
A4(210 X 297)
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
5.2 LVDS Interface (Tx; THC63LVDF83A or Equivalent)
5.2.1 ODD LVDS Interface
O
D
D
L
V
D
S
Input
Signal
OR0
OR1
OR2
OR3
OR4
OR5
OG0
OG1
OG2
OG3
OG4
OG5
OB0
OB1
OB2
OB3
OB4
OB5
Hsync
Vsync
DE
MCLK
OR6
OR7
OG6
OG7
OB6
OB7
RSVD
Transmitter Remark
Pin No.
51
52
54
55
56
3
4
6
7
11
12
14
15
19
20
22
23
24
27
28
30
31
50
2
8
10
16
18
25
Pin No.
48
47
46
45
42
41
40
39
38
37
System (Tx)
OUT0-
OUT0+
OUT1-
OUT1+
OUT2-
OUT2+
CLK OUT-
CLK OUT+
OUT3-
OUT3+
Interface
TFT-LCD
(Rx)
RXO0-
RXO0+
RXO1-
RXO1+
RXO2-
RXO2+
RXO CLK-
RXO CLK+
RXO3-
RXO3+
REV
0 TFT- LCD PRODUCT
HM190WG3-700
Pin No.
1
2
3
4
5
6
8
9
10
11
ISSUE DATE
2011.08.01
SPEC. NUMBER
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
11
OF 28
A4(210 X 297)
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
5.2.2 EVEN LVDS Interface
Input
E
V
E
N
L
V
D
S
Signal
ER0
ER1
ER2
ER3
ER4
ER5
EG0
EG1
EG2
EG3
EG4
EG5
EB0
EB1
EB2
EB3
EB4
EB5
Hsync
Vsync
DE
MCLK
ER6
ER7
EG6
EG7
EB6
EB7
RSVD
Pin No.
51
52
54
55
56
3
4
6
7
11
12
14
15
19
20
22
23
24
27
28
30
31
50
2
8
10
16
18
25
PRODUCT GROUP
REV
0 TFT- LCD PRODUCT
Transmitter Remark
Pin No.
48
47
46
45
42
41
40
39
38
37
System (Tx)
OUT0-
OUT0+
OUT1-
OUT1+
OUT2-
OUT2+
CLK OUT-
CLK OUT+
OUT3-
OUT3+
Interface
TFT-LCD
(Rx)
RXO0-
RXO0+
RXO1-
RXO1+
RXO2-
RXO2+
RXO CLK-
RXO CLK+
RXO3-
RXO3+
HM190WG3-700
Pin No.
12
13
15
16
18
19
20
21
22
23
ISSUE DATE
2011.08.01
SPEC. NUMBER
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
12
OF 28
A4(210 X 297)
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
REV
0 TFT- LCD PRODUCT
5.3 Data Input Format
vkkG
OXSXPG
yG nG iG yG nG iG yG nG iG yG nG iG
l}luG
OYSXPG
G
G
OX[Z`SXPGGOX[[WSXPG
XGwGdGZGkG
yG nG iG
ISSUE DATE
2011.08.01
yG nG iG yG nG iG yG nG iG yG nG iG
OXS`WWPG OYS`WWPG OX[Z`S`WWPG OX[[WSG`WWPG
Display Position of Input Data (V-H)G
SPEC. NUMBER
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
13
OF 28
A4(210 X 297)
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
6.0 SIGNAL TIMING SPECIFICATIONG
6.1 The HM190WG3-700 is operated by the DE only..G
Item Symbols Min Typ Max Unit
Frequency 1/Tc 41.5 44.5 65.7 MHz
Clock
Data
High Time Tch 4 - - ns
Low Time Tcl 4 - - ns
Setup time Tds 4 - - ns
Hold time Tdh 4 - - ns
REV
0 TFT- LCD PRODUCT
ISSUE DATE
2011.08.01
Data Enable Setup Time Tes 4 - - ns
918 926 1050 lines
Frame Period Tv
Vertical Display Period Tvd - 900 - lines
One line Scanning Period Th 760 800 1400 clocks
Horizontal Display Period Thd 720 720 720 clocks
56 60 76 Hz
17.9 16.7 13.1 ms
SPEC. NUMBER
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
PAGE
14
OF 28
A4(210 X 297)
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
REV
0 TFT- LCD PRODUCT

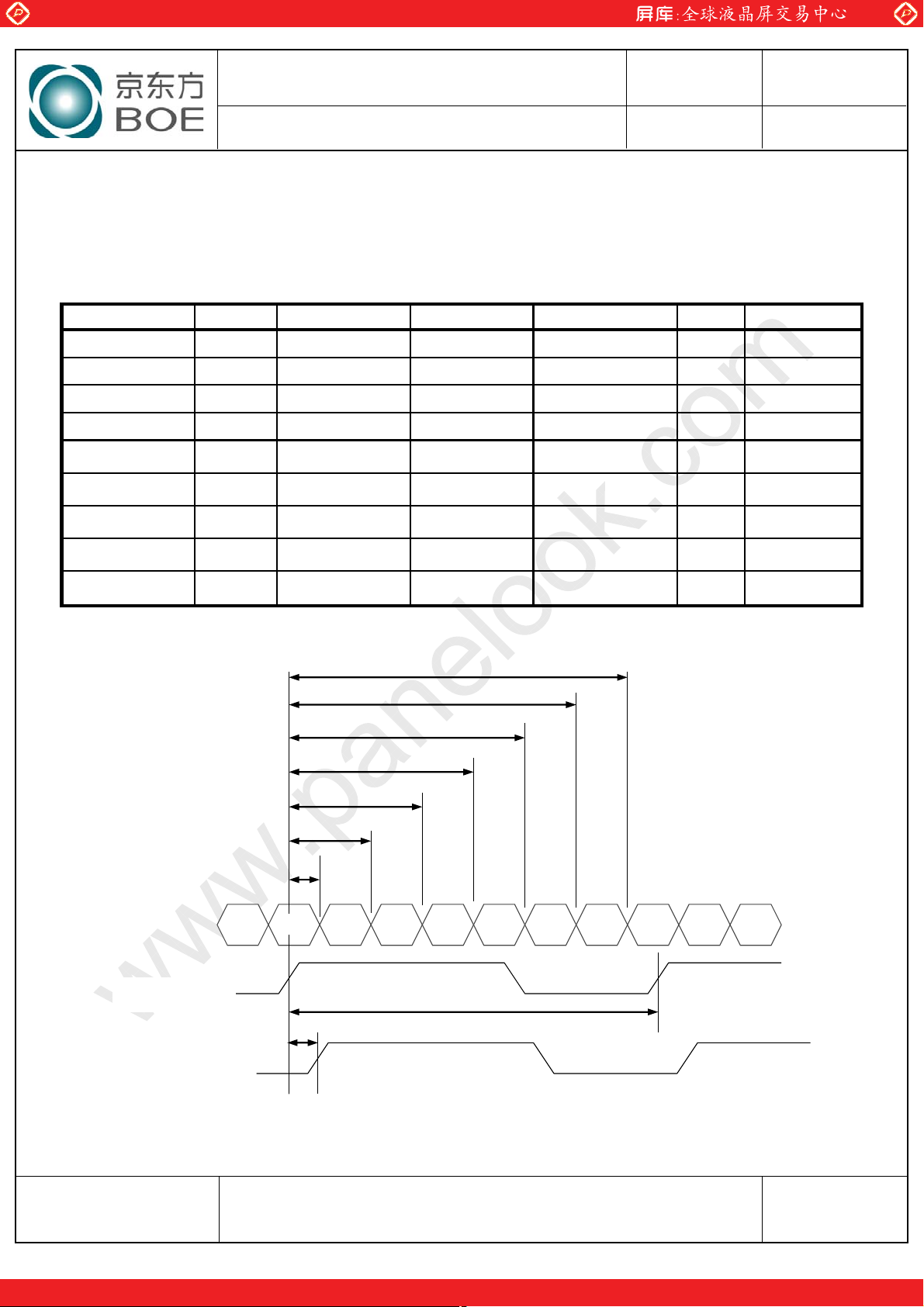

6.2 LVDS Rx Interface Timing Parameter
The specification of the LVDS Rx interface timing parameter is shown in Table 4.G
<Table 4. LVDS Rx Interface Timing Specification>
ItemG SymbolG MinG TypG MaxG UnitG RemarkG
CLKIN PeriodG tRCIPG 14.7G 18.5G -G msecG
CLK DifferenceG tCdiffG
Input Data 0G tRIP1G -0.4G 0.0G +0.4G nsecG
Input Data 1G tRIP0G tRCIP/7-0.4G tRCIP/7G tRCIP/7+0.4G nsecG
Input Data 2G tRIP6G 2 ശtRCIP/7-0.4G 2 ശtRCIP/7G 2 ശtRCIP/7+0.4G nsecG
Input Data 3G tRIP5G 3 ശtRCIP/7-0.4G 3 ശtRCIP/7G 3 ശtRCIP/7+0.4G nsecG
Input Data 4G tRIP4G 4 ശtRCIP/7-0.4G 4 ശtRCIP/7G 4 ശtRCIP/7+0.4G nsecG
-tRCIP*(3/7)
0G
+tRCIP*(3/7)
nsecG
ISSUE DATE
2011.08.01
Input Data 5G tRIP3G 5 ശtRCIP/7-0.4G 5 ശtRCIP/7G 5 ശtRCIP/7+0.4G nsecG
Input Data 6G tRIP2G 6 ശtRCIP/7-0.4G 6 ശtRCIP/7G 6 ശtRCIP/7+0.4G nsecG
tRIP2G
tRIP3G
tRIP4G
tRIP5G
tRIP6G
tRIP0G
tRIP1G
RXO/Ez +/-G
* Z = 0, 1, 2,3 G
G
RxOCLKIN+G
Rx2G Rx1G Rx0G Rx6G Rx5G Rx4G Rx3G Rx2G Rx1G Rx0GRx3G
Vdiff=0[v]GVdiff=0[v]G
tRCIPG
RxECLKIN+G tCdiffG
* Vdiff = (RXO/Ez+)-(RXO/Ez-),…. ,(RXO/ECLK+)-(RXO/ECLK-)
SPEC. NUMBER
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
15
OF 28
A4(210 X 297)
www.panelook.com
Page 16
Global LCD Panel Exchange Center
G
G
G
x,900
Invalid Data
Data
Invalid
www.panelook.com
PRODUCT GROUP
REV
0 TFT- LCD PRODUCT

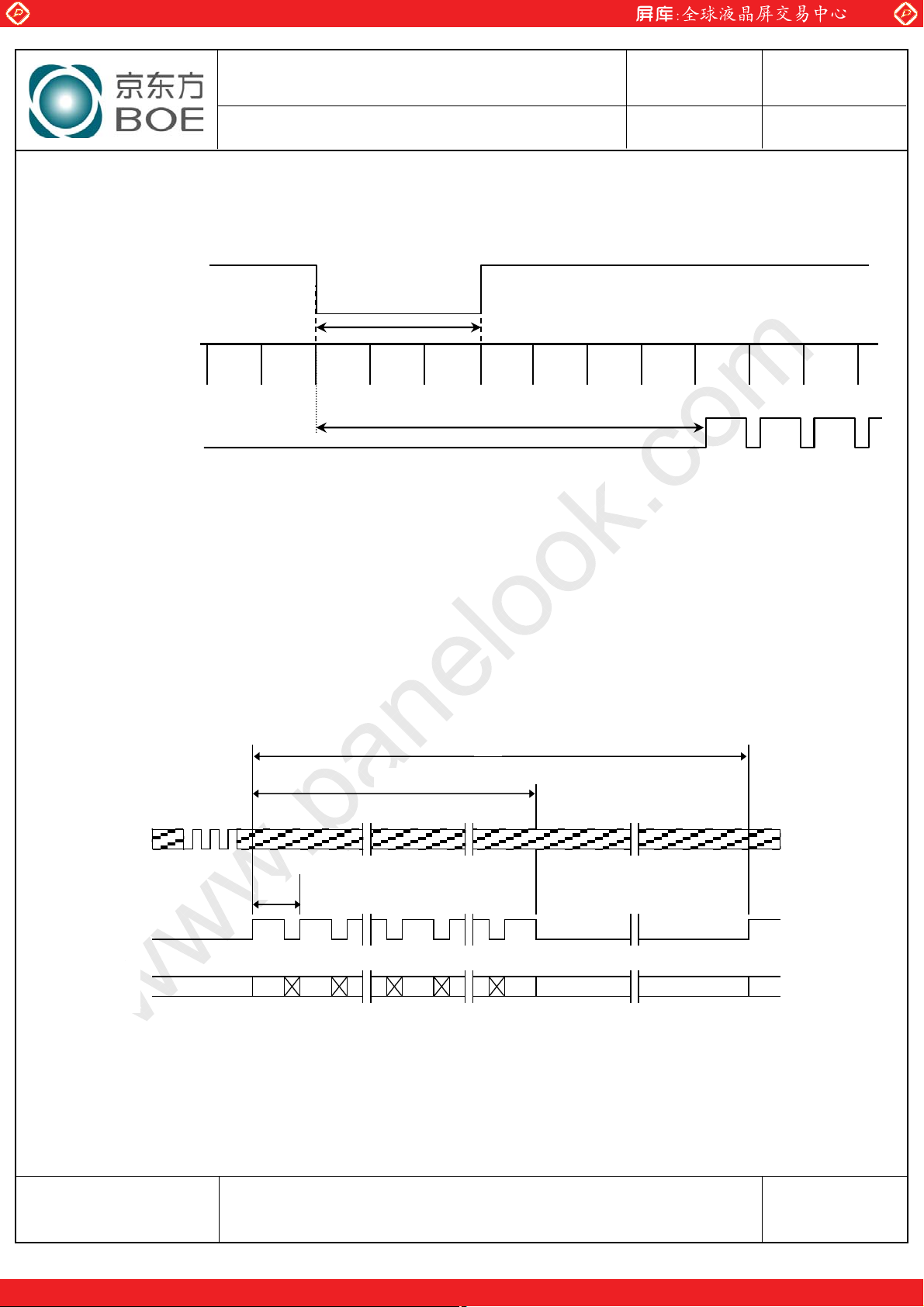

7.0 SIGNAL TIMING WAVEFORMS OF INTERFACE SIGNAL G
7.1 Sync Timing Waveforms
}TzG
oTzG
klG
1) Need over 3 H-sync during V-Sync Low
2) Fix H-Sync width from V-Sync falling edge to first rising edge
vGZGoTG
mGoTzGGhG
ISSUE DATE
2011.08.01
7.2 Vertical Timing Waveforms
MCLK
Th
DE
R7 ~ R0
G7 ~ G0
B7 ~ B0
x,1 x,2 x,y x+1,1
Tv
Tvd
SPEC. NUMBER
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
16
OF 28
A4(210 X 297)
www.panelook.com
Page 17
Global LCD Panel Exchange Center
G
Invalid
D638
D639
D720
Th
Thd
Tc
RA7 ~RA0
GA7 ~GA0
BA7 ~BA0
Tch
Tcl
Tdh
Tds
2.0V
0.8V
2.0V
0.8V
Tes
2.0V
MCLK
Va lid
Data
Data
DE
1.5V
www.panelook.com
PRODUCT GROUP

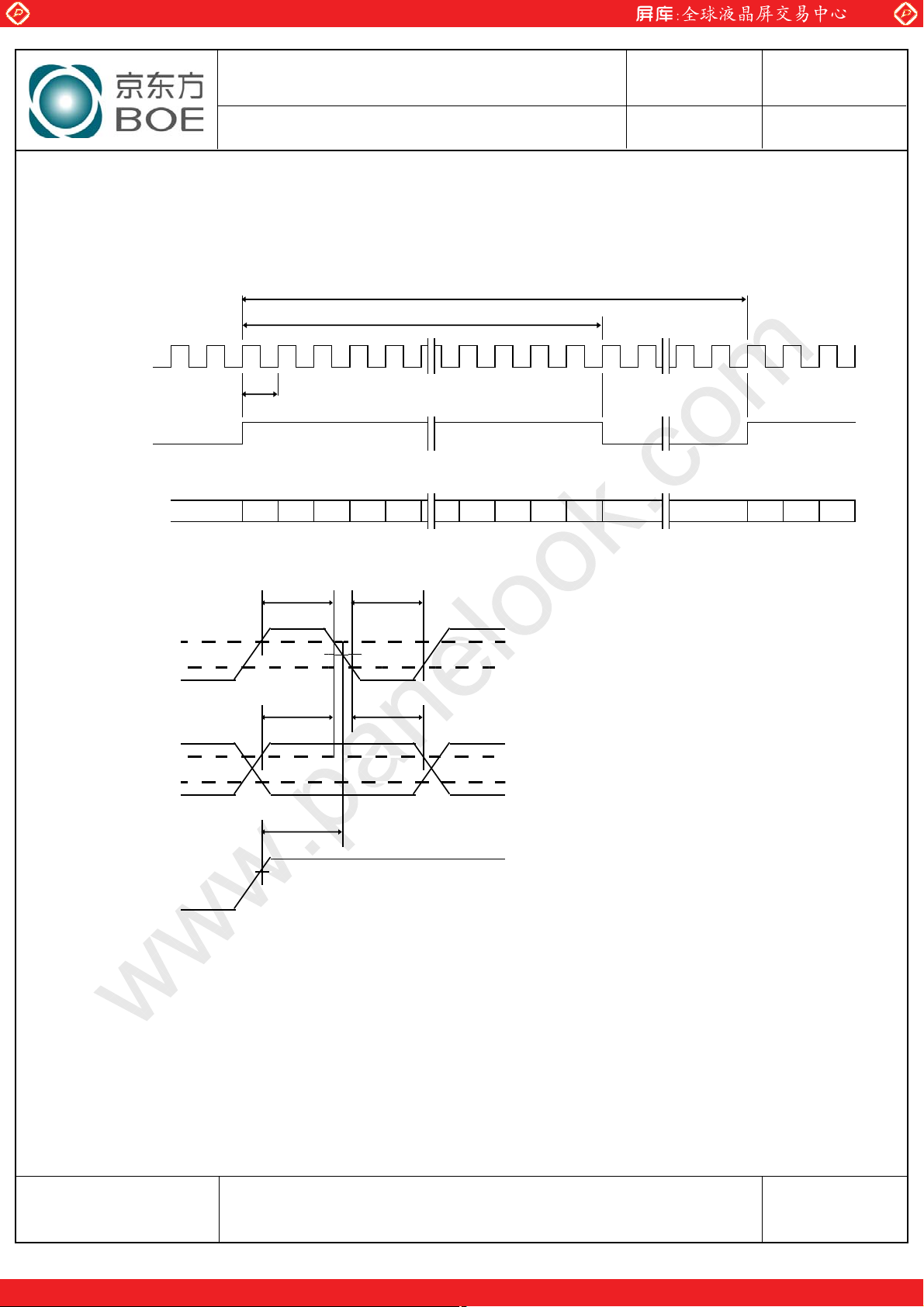

7.3 Horizontal Timing Waveforms
MCLK
DE
D1 D2 Dn Data D1 D2 D3
REV
0 TFT- LCD PRODUCT
ISSUE DATE
2011.08.01
SPEC. NUMBER
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
PAGE
17
OF 28
A4(210 X 297)
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
REV
0 TFT- LCD PRODUCT
ISSUE DATE
2011.08.01
8.0 INPUT SIGNALS, BASIC DISPLAY COLORS & GRAY SCALE OF COLORS
Color & Gray Scale
Basic Colors
Gray Scale
of RED
Gray Scale
of GREEN
Gray Scale
of BLUE
Gray Scale
of WHITE
R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Blue 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Green 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Red 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Darker 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
ୠ
Brighter 1 1 1 1 1 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
ୠ
Red 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Darker 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0
ୠ
Brighter 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 1 0 0 0 0 0 0 0 0
ୠ
Green 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Darker 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0
ୠ
Brighter 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 1
ୠ
Blue 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Darker 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0
ୠ
Brighter 1 1 1 1 1 1 0 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 0 1
ୠ
White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0
0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1
1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 0
RED DATA GREEN DATA BLUE DATA
↑ ↑ ↑
↓ ↓ ↓
↑ ↑ ↑
↓ ↓ ↓
↑ ↑ ↑
↓ ↓ ↓
↑ ↑ ↑
↓ ↓ ↓
SPEC. NUMBER
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
18
OF 28
A4(210 X 297)
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP

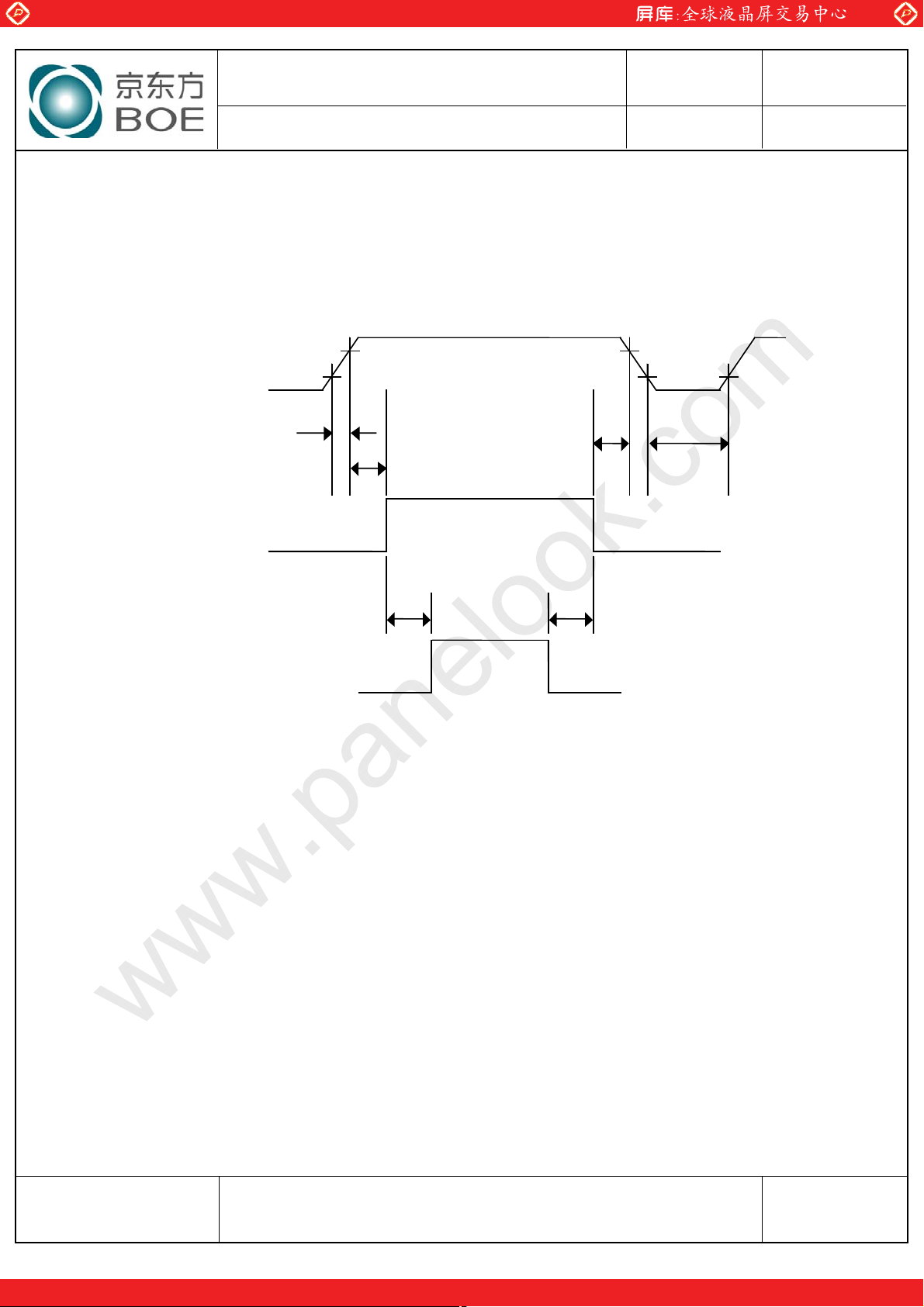

9.0 POWER SEQUENCE
To prevent a latch-up or DC operation of the LCD Open Cell, the power on/off
sequence shall be as shown in below
wGzG
pGzG
WU`}kkG
WUX}kkG
W}G
{XG
{YG
}G
W}G
WU`}kkG
{ZG
REV
0 TFT- LCD PRODUCT
WUX}kkG
{[G
ISSUE DATE
2011.08.01
{\G {]G
iTGG
W}G
0.5 ms d T1 d 10 ms
0 d T2 d 50 ms
0 d T3 d 50 ms
1 sec d T4
200 ms d T5
200 ms d T6
Notes:
1. When the power supply VDD is 0V, Keep the level of input signals on
the low or keep high impedance.
2. Do not keep the interface signal high impedance when power is on.
3. Back Light must be turn on after power for logic and interface signal
are valid.
SPEC. NUMBER
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
19
OF 28
A4(210 X 297)
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
REV
0 TFT- LCD PRODUCT
ISSUE DATE
2011.08.01
10.0 MECHANICAL CHARACTERISTICS
10.1 Dimensional Requirements
FIGURE 6 (located in Appendix) shows mechanical outlines for the Open Cell HM190WG3-700.
Other parameters are shown in Table 5.
<Table 5. Dimensional Parameters>
ParameterG SpecificationG UnitG
Weight 420 (max.) g
Active area G
Pixel pitch G
408.24(H) Ý 255.15(V)
0.2835(H) ശ0.2835(V)
mmG
mmG
Number of pixels G
1440(H)ശ900(V) (1 pixel = R + G + B dots)G
10.2 Mounting
See FIGURE 5. (shown in Appendix)
pixelsG
SPEC. NUMBER
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
20
OF 28
A4(210 X 297)
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
11.0 RELIABLITY TEST
The Reliability test items and its conditions are shown in below.
<Table 6. Reliability Test Parameters >
No Test Items
1
2
3
4
5
High temperature storage test
Low temperature storage test
High temperature & high humidity
operation test
High temperature operation test
Low temperature operation test
Ta = 60 ć, 240 hrs
Ta = -20 ć, 240 hrs
Ta = 50 ć, 80%RH, 240hrs
Ta = 50 ć, 240hrs
Ta = 0 ć, 240hrs
Conditions
REV
0 TFT- LCD PRODUCT
ISSUE DATE
2011.08.01
6
7
8
Thermal shock
Vibration test
(non-operating)
Electro-static discharge test
(non-operating)
Ta = -20 ć ↔ 60 ć (0.5 hr), 100 cycle
Frequency 10 ~ 300 Hz, Sweep rate 60 min
Gravity / AMP 1.5 G
Period
Air : 150 pF, 330Ω, 15 KV
Contact : 150 pF, 330Ω, 8 KV
ധX, ധY, ധZ 60 min
SPEC. NUMBER
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
21
OF 28
A4(210 X 297)
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
REV
0 TFT- LCD PRODUCT
12.0 HANDLING & CAUTIONS
(1) Cautions when taking out the module
y Pick the pouch only, when taking out Open Cell from a shipping package.
(2) Cautions for handling the module
y As the electrostatic discharges may break the LCD Open Cell, handle the LCD
Open Cell with care. Peel a protection sheet off from the LCD panel surface as
slowly as possible.
y As the LCD Open Cell is made from fragile glass material, impulse and pressure
to the LCD Open Cell should be avoided.
y As the surface of the polarizer is very soft and easily scratched, use a soft dry
cloth without chemicals for cleaning.
y Do not pull the interface connector in or out while the LCD Open Cell is operating.
y Handle connectors and cables with care.
(3) Cautions for the operation
y When the module is operating, do not lose CLK, ENAB signals. If any one of
these signals is lost, the LCD panel would be damaged.
y Obey the supply voltage sequence. If wrong sequence is applied, the module
would be damaged.
(4) Cautions for the atmosphere
y Dew drop atmosphere should be avoided.
y Do not store and/or operate the LCD Open Cell in a high temperature and/or
humidity atmosphere. Storage in an electro-conductive polymer packing pouch
and under relatively low temperature atmosphere is recommended.
(5) Cautions for the module characteristics
y Do not apply fixed pattern data signal to the LCD Open Cell at product aging.
y Applying fixed pattern for a long time may cause image sticking.
(6) Other cautions
y Do not re-adjust variable resistor or switch etc.
yWhen returning the module for repair or etc., Please pack the module not to be
broken. We recommend to use the original shipping packages.
ISSUE DATE
2011.08.01
SPEC. NUMBER
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
PAGE
22
OF 28
A4(210 X 297)
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
13.0 PRODUCT SERIAL NUMBER
REV
otX`W~nZT^WWG
ISSUE DATE
0 TFT- LCD PRODUCT
2011.08.01
Internal use
SPEC. NUMBER
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
23
OF 28
A4(210 X 297)
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com

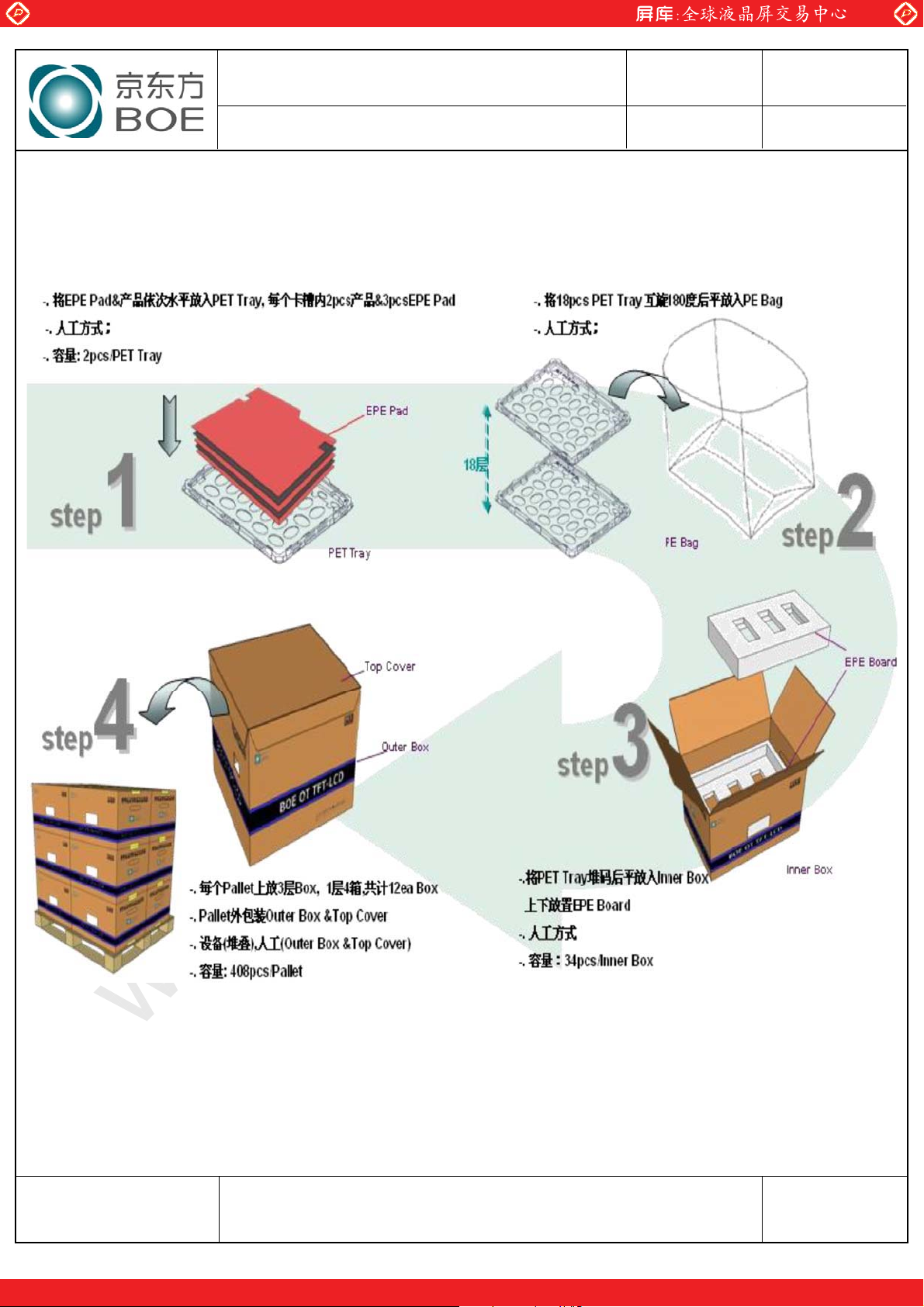

14.0 Packing
14.1 Packing Order
PRODUCT GROUP
REV
0 TFT- LCD PRODUCT
ISSUE DATE
2011.08.01
SPEC. NUMBER
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
PAGE
24
OF 28
A4(210 X 297)
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
14.2 Packing Note
y Box Dimension : 520mm(L) Ý510mm(W)Ý260mm(H)
y Package Quantity in one Box : 34pcs
14.3 Box label
y Label Size : 108 mm (L) u 56 mm (W)
y Contents
Open Cell : HM190WG3-700
Q`ty : 34
Serial No. : Box Serial No. See next page for detail description.
Date : Packing Date
REV
0 TFT- LCD PRODUCT
ISSUE DATE
2011.08.01
00 0 00 0 0 000000
Type Grade Year Month ITEM-CODE Serial_no
SPEC. NUMBER
HM190WG3-700
0000000000000
1940
34
201X.X.XX
Internal Use RoHS Mark
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
PAGE
25
OF 28
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
A4(210 X 297)
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
15.0 Appendix
Figure 1. Measurement Set Up
PRODUCT GROUP
REV
0 TFT- LCD PRODUCT
ISSUE DATE
2011.08.01
ڃڧٻژٻڐڋھۈ ڄٻ
Figure 2. White Luminance and Uniformity Measurement Locations (9 points)
144 720 1296
1) 1
1) 4 1) 5
1) 2 1) 3
1) 6
90
450
810
SPEC. NUMBER
1) 7 1) 8 1) 9
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
26
OF 28
A4(210 X 297)
www.panelook.com
Page 27
Global LCD Panel Exchange Center
www.panelook.com
Display data
Optical
Response
White(TFT OFF)
100%
90%
10%
0%
PRODUCT GROUP
Figure 3. Response Time Testing
Black(TFT ON)
TR
REV
0 TFT- LCD PRODUCT
White(TFT OFF)
TF
Time
ISSUE DATE
2011.08.01
Figure 4. Cross Modulation Test Description
VIEW AREA VIEW AREA
(480,300)
L31
(720,450)
Y
A
YB - YA
Cross-Talk (%) =
Y
A
Where: Y
Y
= Initial luminance of measured area (cd/m2)
A
= Subsequent luminance of measured area (cd/m2)
B
The location measured will be exactly the same in both patterns
(860,300)
(860,600) (480,600)
L0
ശ 100
(720,450)
Y
B
SPEC. NUMBER
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
27
OF 28
A4(210 X 297)
www.panelook.com
Page 28
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
REV
0 TFT- LCD PRODUCT
ISSUE DATE
2011.08.01
Figure 5. Open Cell Outline Dimensions
h
SPEC. NUMBER
SPEC. TITLE
HM190WG3-700 Open Cell Product Specification
B2006-5006-0 (3/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
28
OF 28
A4(210 X 297)
www.panelook.com
Loading...
