BOE HM185WX3-300 Specification

PROPRIETARY NOTE

THIS SPECIFICATION IS THE PROPERTY OF BOE HF AND SHALL NOT BE
REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE HF AND
MUST BE RETURNED TO BOE HF UPON ITS REQUEST

SPEC. NUMBER

PRODUCT GROUP

TFT-LCD

Rev. O 2011.07.05

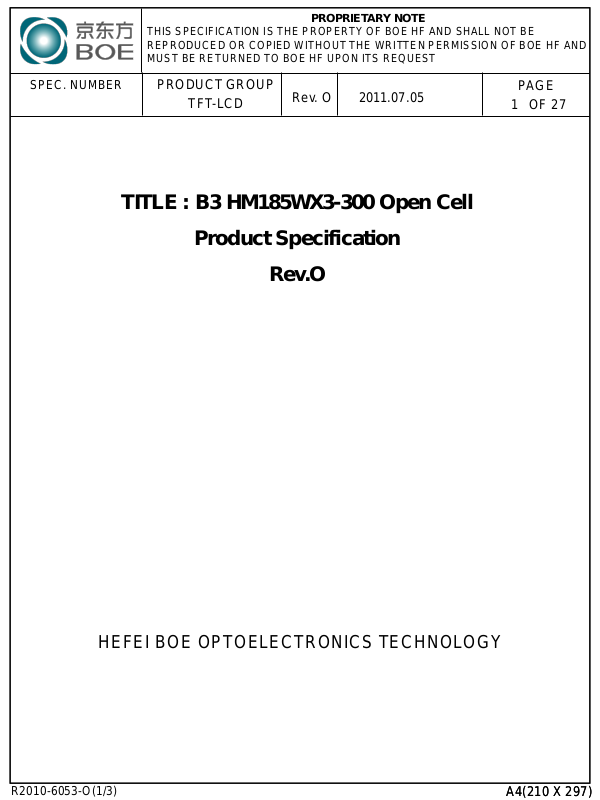

TITLE : B3 HM185WX3-300 Open Cell

Product Specification

Rev.O

PAGE

1

OF 27

HEFEI BOE OPTOELECTRONICS TECHNOLOGY

R2010-6053-O(1/3)

A4(210 X 297)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

SPEC. NUMBER

TFT- LCD PRODUCT 2011.07.05

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

Rev. O

PAGE

2

OF 27

REVISION HISTORY

REV. ECN No. DESCRIPTION OF CHANGES DATE PREPARED

O

Initial Release

2011.07.05

张文浩

R2010-6053-O(2/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

SPEC. NUMBER

No. Item Page

1.0 General Description 4

2.0 Absolute Maximum Ratings 6

3.0 Electrical Specifications 7

4.0 Optical Specifications 8

5.0 Interface Connection 10

6.0 Signal Timing Specifications 13

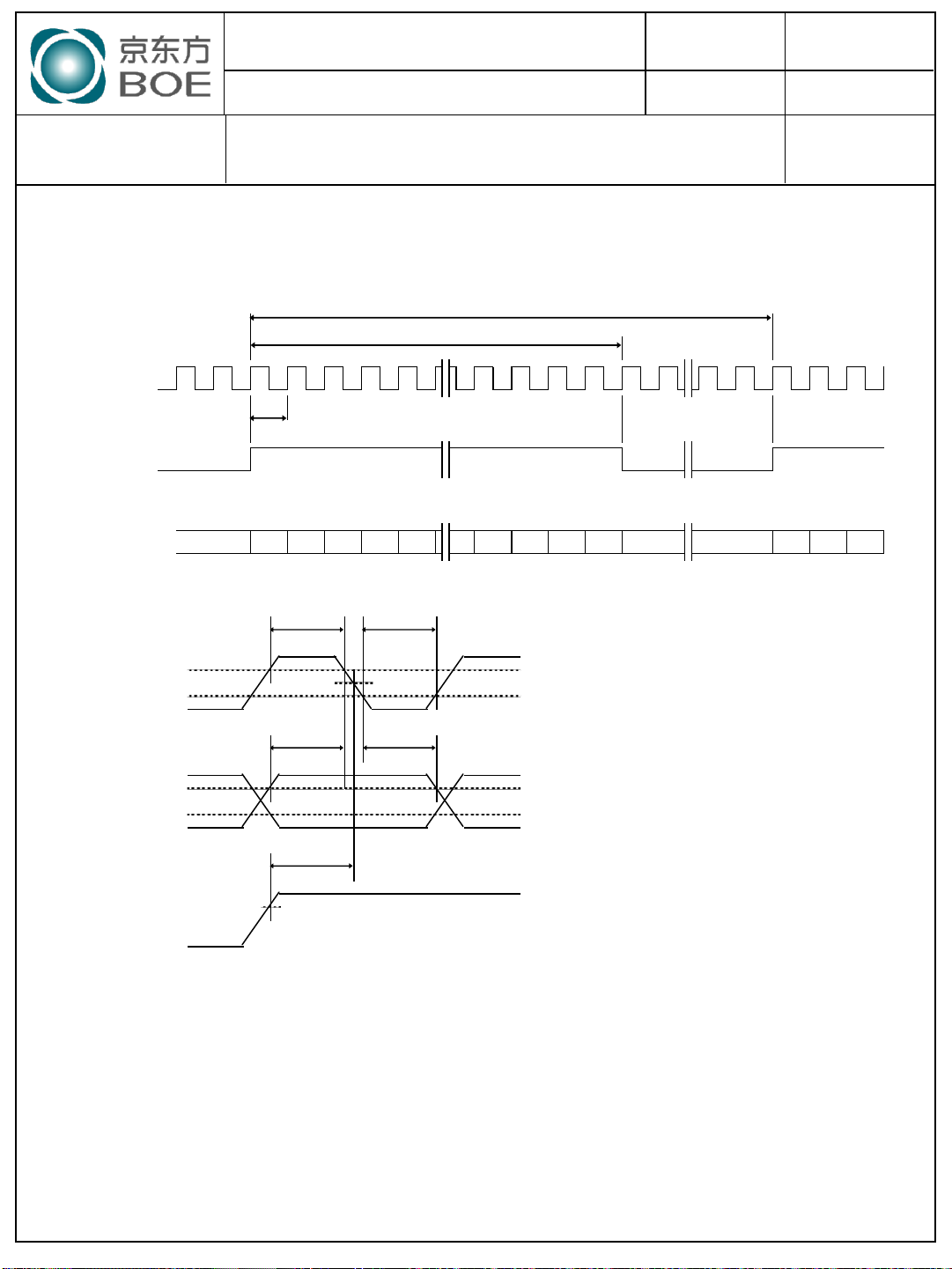

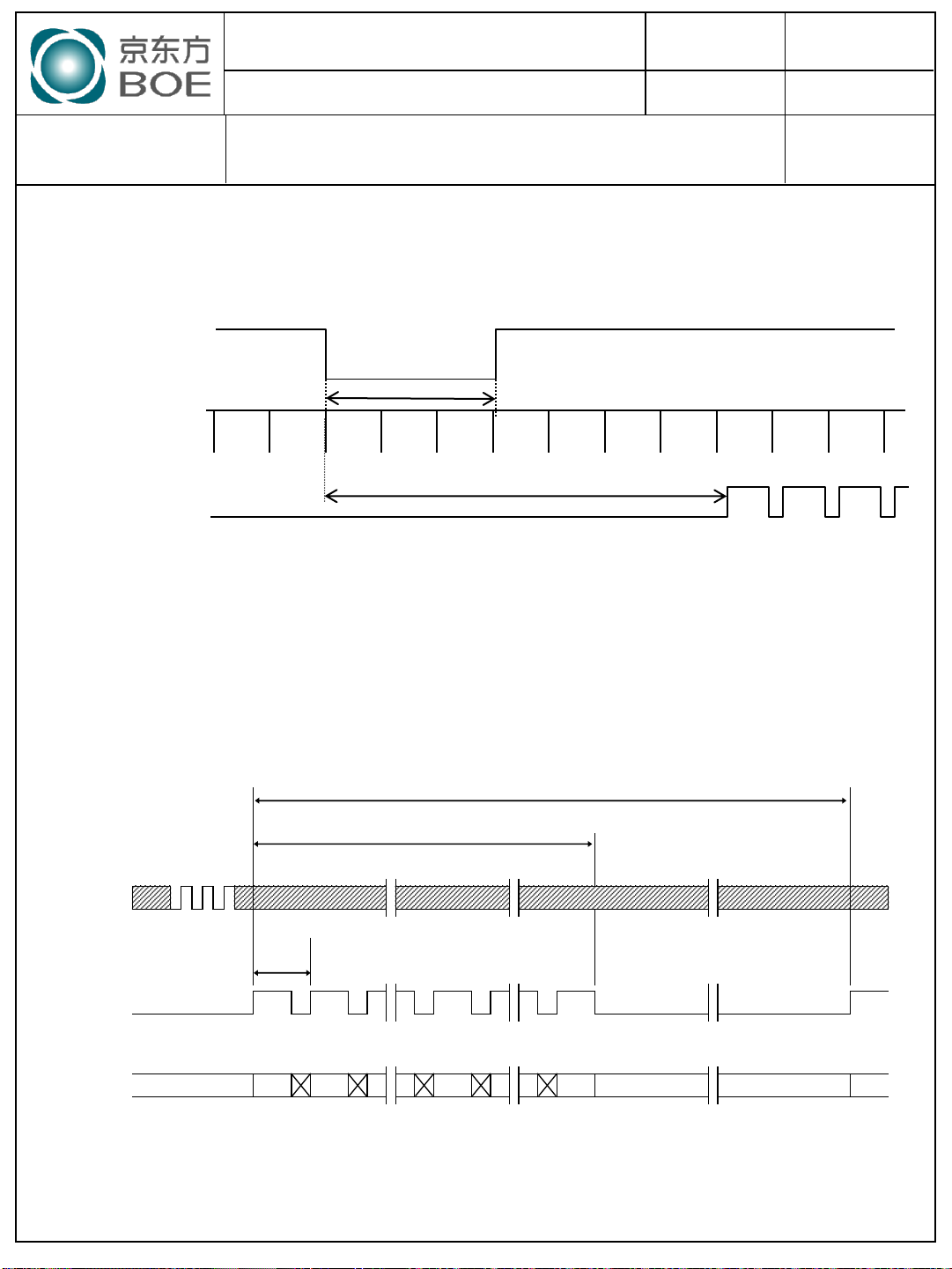

7.0 Signal Timing Waveforms of Interface Signal 15

8.0 Input Signals, Display Colors & Gray Scale of Colors 17

TFT- LCD PRODUCT

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

Contents

2011.07.05 Rev. O
PAGE

OF 27

3

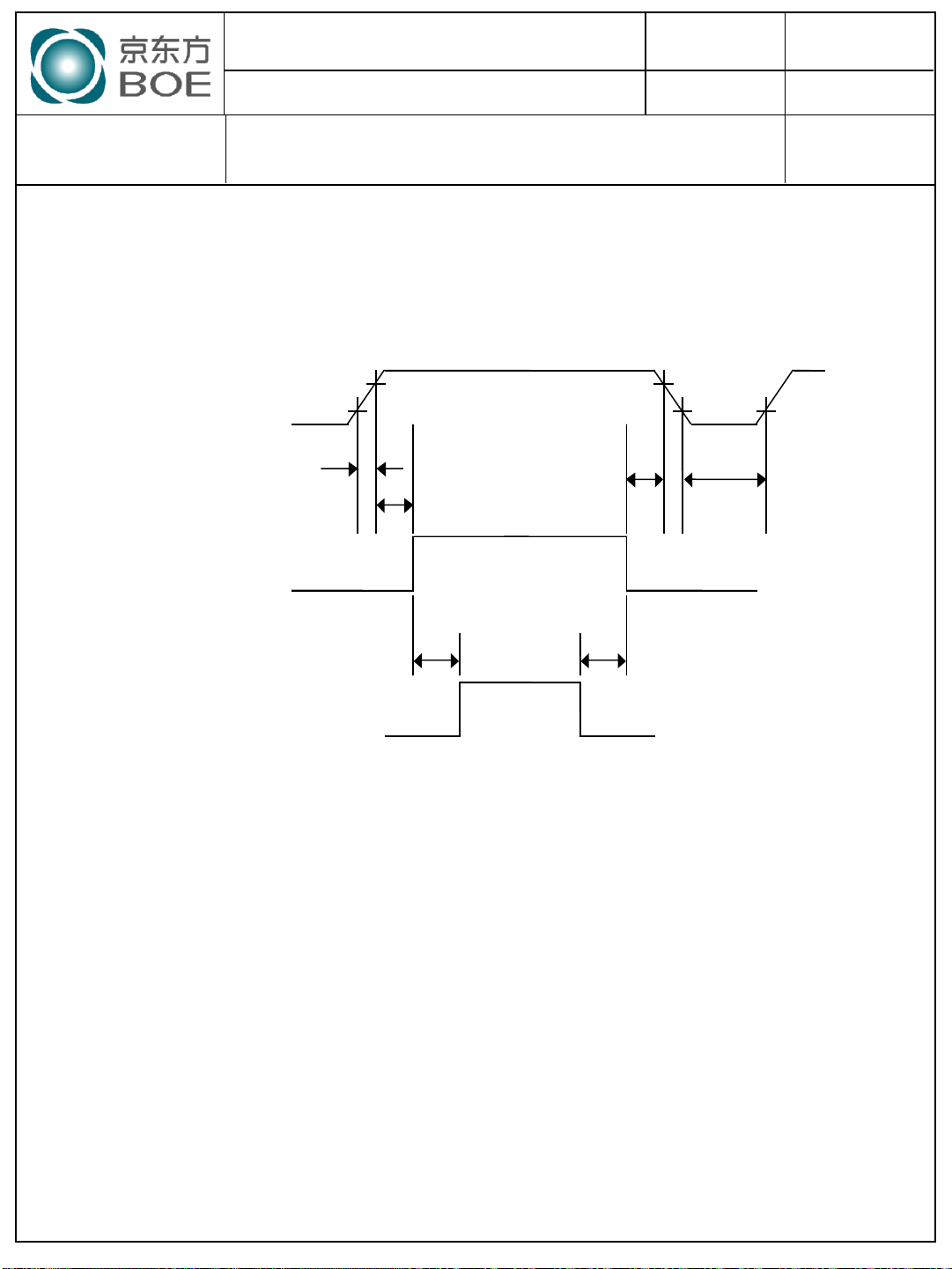

9.0 Power Sequence 18

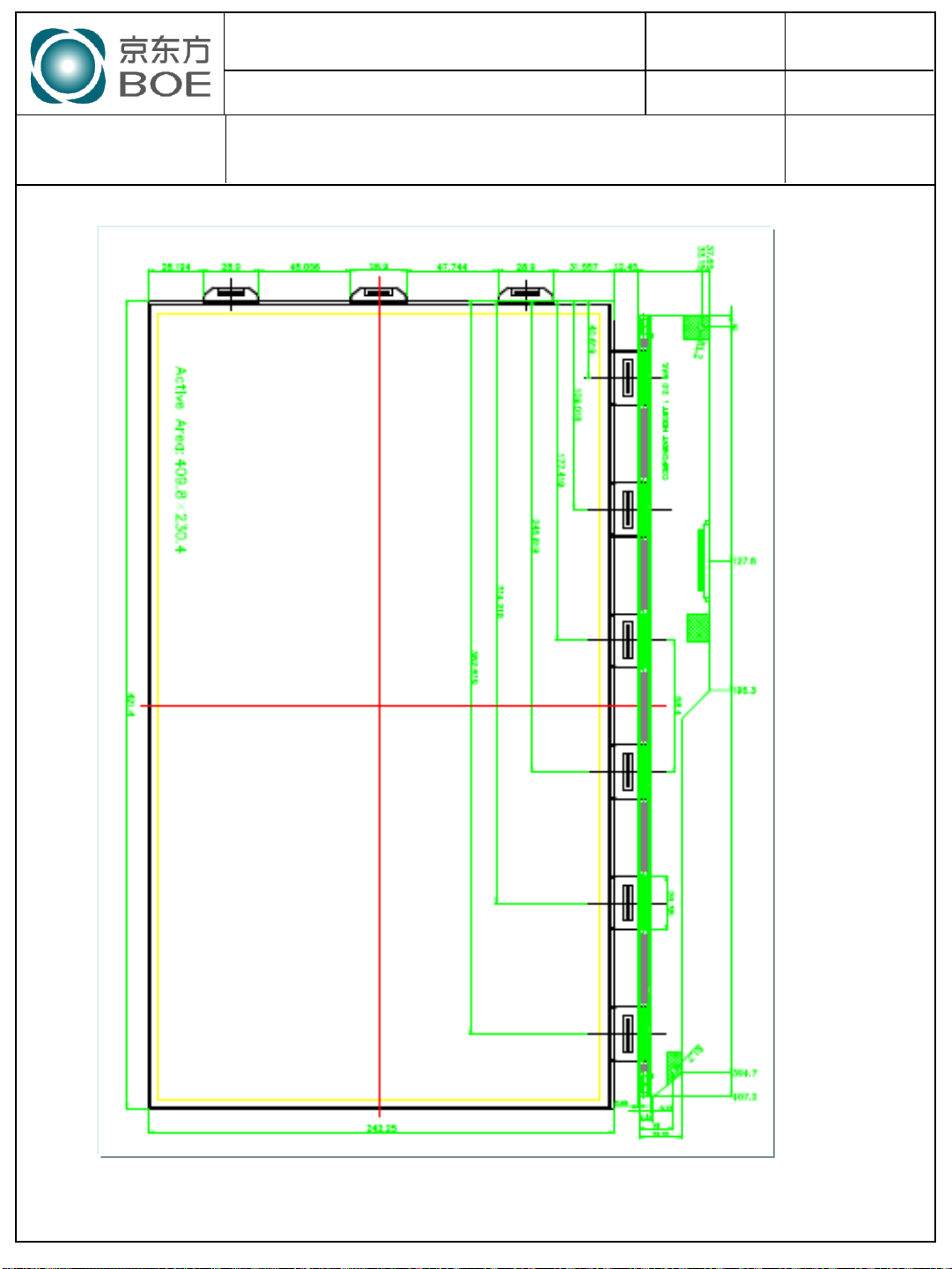

10.0 Mechanical Characteristics 19

11.0 Reliability Test 20

12.0 Handling& Cautions 21

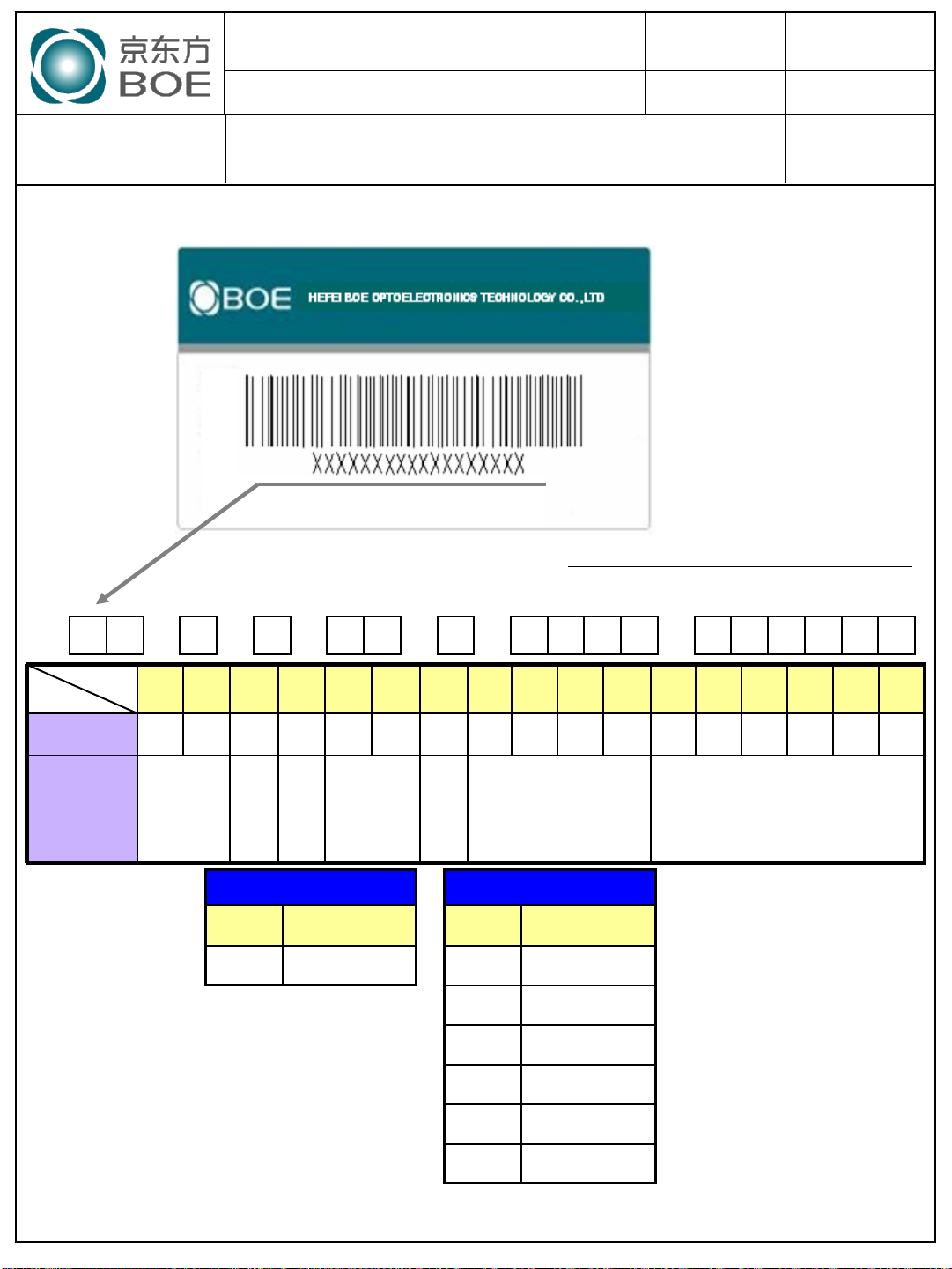

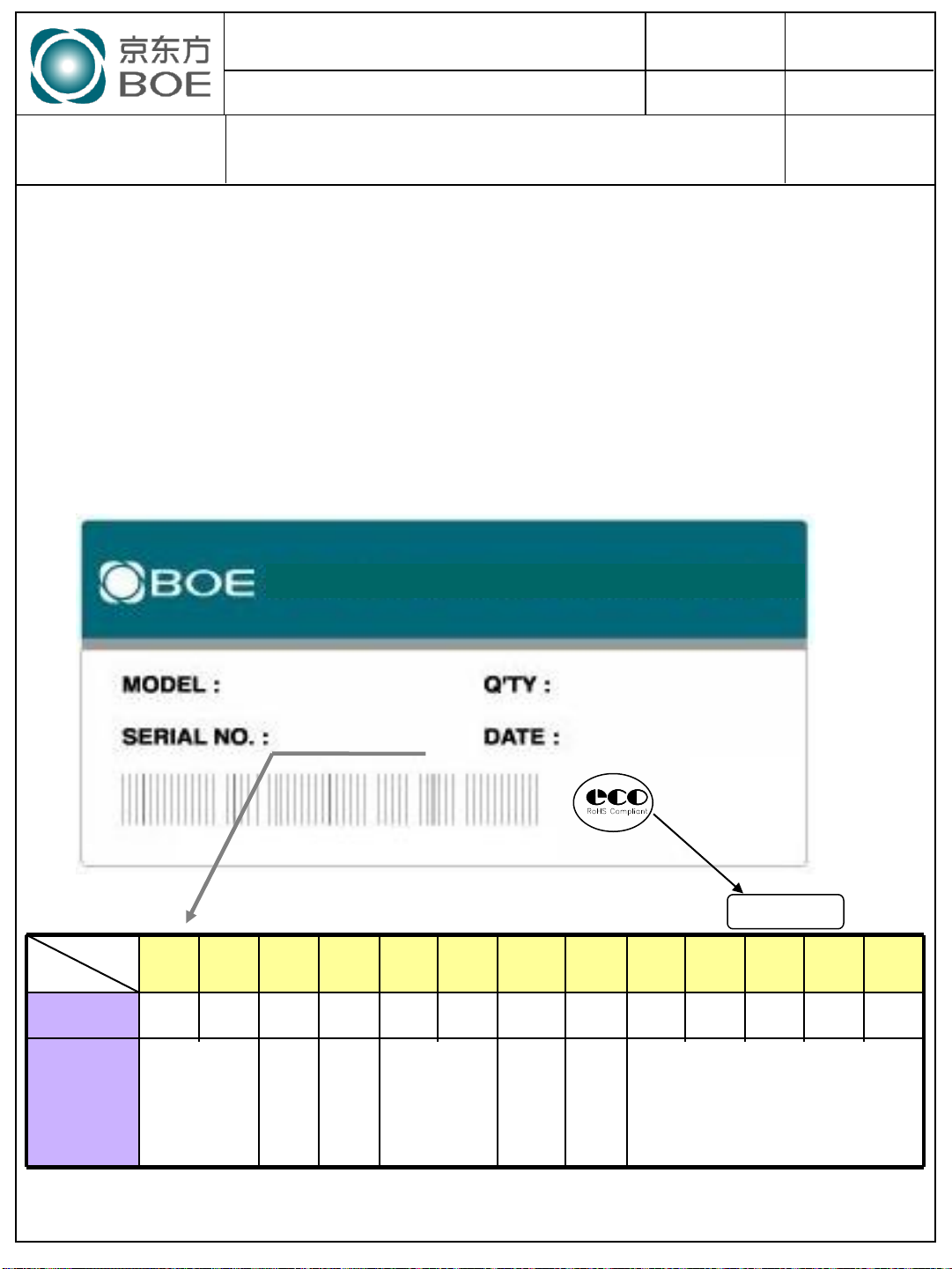

13.0 Product Serial Number 22

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

SPEC. NUMBER

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

1.0 GENERAL DESCRIPTION

1.1 Introduction

HM185WX3-300 is a color active matrix TFT LCD open cell using amorphous silicon
TFT's (Thin Film Transistors) as an active switching devices. This open cell has a 18.5 inch
diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical stripe and this open cell can display 16.7M colors. The TFT-LCD panel used for

this open cell is adapted for a low reflection and higher color type.

Connector (CN

LVDS
Input
Signal

LVDS Rx

+

T/CON

+

Mini LVDS Tx

Gate Driver

Source Driver

TFT LCD Panel

2011.07.05 Rev. O
PAGE

OF 27

4

VDD

1

)

1.2 Features

 LVDS Interface with 1 pixel / clock
 High-speed response
 6-bit (Hi-FRC) color depth, display 16. 7M colors
 Low reflection and wide viewing angle
 DE (Data Enable) only
 RoHS /TCO 5.0 Compliant
 Gamma Correction

R2010-6053-O(3/3)

DC/DC

Gamma

Vcom

1366 × 768

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

SPEC. NUMBER

1.3 Application

 Desktop Type of PC & Workstation Use

 Slim-Size Display for Stand-alone Monitor

 Display Terminals for Control System
 Monitors for Process Controller

1.4 General Specification

The followings are general specifications at the open cell HM185WX3-300.

<Table 1. General Specifications>

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

2011.07.05 Rev. O
PAGE

OF 27

5

Parameter Specification Unit

Active area
Number of pixels
Pixel pitch
Pixel arrangement RGB Vertical stripe
Display colors 16.7M colors

Display mode Normally White

Weight 500 (max.) g
Surface Treatment

409.8(H) × 230.4(V)
1366(H) × 768(V)

0.3(H) × 0.3(V)

Haze 25%, 3H

mm

pixels

mm

Remarks

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

020406080

-2 0

5

20

406080

90

100

O p e ra tin g R a n g e

S to ra g e R a n g e

Relative H um id it y ( %R H)

T e m p e ra tu re (˚C )

REV

ISSUE DATE

SPEC. NUMBER

TFT- LCD PRODUCT

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

2011.07.05 Rev. O

2.0 ABSOLUTE MAXIMUM RATINGS

The followings are maximum values which, if exceed, may cause faulty operation or

damage to the unit. The operational and non-operational maximum voltage and current

values are listed in Table 2.

< Table 2. Absolute Maximum Ratings> [VSS=GND=0V]

Parameter

Power Supply Voltage VDD
Logic Supply Voltage VIN VSS-0.3 VDD+0.3 V
Operating Temperature TOP 0 +50

Storage Temperature TST -20 +60

Symbol Min. Max. Unit Remarks

-0.5 5.5

V

Ta = 25 ℃

℃

℃

1)

1)

PAGE

OF 27

6

Note : 1) Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be 39 OC max. and no condensation of water.

(39,90)

(50,50)

(60,30)

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

SPEC. NUMBER

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

3.0 ELECTRICAL SPECIFICATIONS

3.1Electrical Specifications

< Table 3. Electrical specifications >

Parameter Min. Typ. Max. Unit Remarks

Power Supply Voltage VDD 4.5 5.0 5.5 V

Note1

Power Supply Current IDD - 600 1000 mA

In-Rush Current I

Permissible Input Ripple Voltage VRF - - 100 mV VDD = 5.0V

High Level Differential Input
Threshold Voltage

Low Level Differential Input
Threshold Voltage

- 2.0 3.0 A Note 2

RUSH

VIH - - +100 mV

VIL -100 - - mV

2011.07.05 Rev. O
PAGE

OF 27

7

[Ta =25± 2 ℃]

Differential input voltage |VID | 200 - 600 mV

Differential input common mode voltage Vcm 1.0 1.2 1.5

Power Consumption PD - 3 4.5 W

Notes : 1. The supply voltage is measured and specified at the interface connector of LCM.

The current draw and power consumption specified is for VDD=5.0V, Frame rate=75Hz and
Clock frequency = 95MHz. Test Pattern of power supply current
a) Typ : Color Bar pattern
b) Max : Skip Sub Pixel Pattern

2. Duration of rush current is about 2 ms and rising time of VDD is 520 μs ± 20 %

VIH=100mV,
VIL=-100mV

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

SPEC. NUMBER

TFT- LCD PRODUCT

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

2011.07.05 Rev. O
PAGE

OF 27

8

4.0 OPTICAL SPECIFICATION

4.1 Overview

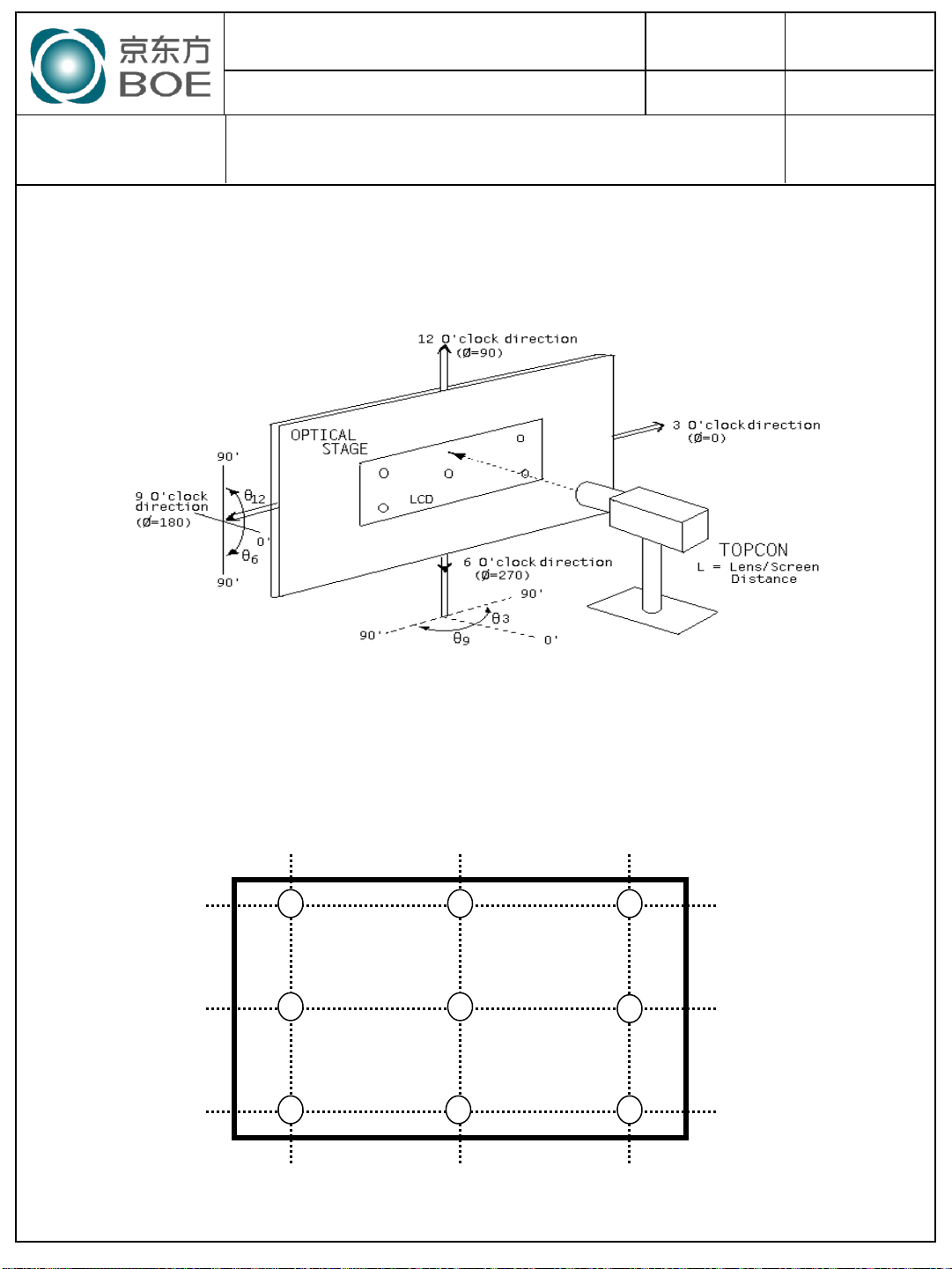

The test of Optical specifications shall be measured in a dark room (ambient luminance  1 lux and temperature =
252℃) with the equipment of Luminance meter system (Goniometer system and TOPCONE BM-5) and test unit shall

be located at an approximate distance 50cm from the LCD surface at a viewing angle of θ and Φ equal to 0. We refer to

θ

(=θ3 ) as the 3 o’clock direction (the “right”), θ

Ø=0

the 9 o’clock direction (“left”) and θ

(= θ6 ) as the 6 o’clock direction (“bottom”). While scanning θ and/or Ø, the

Ø=270

center of the measuring spot on the Display surface shall stay fixed. The measurement shall be executed after 30
minutes warm-up period. VDD shall be 5.0V +/-10% at 25C. Optimum viewing angle direction is 6 ’clock.

4.2 Optical Specifications

[VDD = 5.0V, Frame rate = 60Hz, Clock = 78MHz, I

Parameter Symbol Condition Min. Typ. Max. Unit Remark

Θ

Horizontal

Viewing Angle range

Vertical

Horizontal

Viewing Angle range

Vertical

Luminance Contrast ratio CR
Cell Transmittance Tr - 5.4 - % Note 4
White luminance uniformity ΔY 75 80 % Note 5

White

Reproduction

of color

Response

Time

Cross Talk CT - - 2.0 % Note 8

Red

Green

Blue

Rising T

Falling T

3

Θ

70 85 - Deg.

9

Θ

70 80 - Deg.

12

Θ

70 80 - Deg.

6

Θ

3

Θ

85 - - Deg.

9

Θ

85 - - Deg.

12

Θ

85 - - Deg.

6

Wx 0.283 0.313 0.343
Wy 0.299 0.329 0.359

R

x

R

y

G

x

G

y

Bx 0.124 0.154 0.184
B

y

1.5 2.5 ms

r

f

(= θ12 ) as the 12 o’clock direction (“upward”), θ

Ø=90

BL

70 85 - Deg.

CR > 10

85 - - Deg.

CR > 5

700 1000 Note 3

Θ = 0

(Center)

Normal

Viewing

Angle

0.606 0.636 0.666

0.313 0.343 0.373

0.297 0.327 0.357

0.599 0.629 0.659

0.018 0.048 0.078

3.5 5.5 ms

(= θ9 ) as

Ø=180

= 7.5mA, Ta =25± 2 ℃]

Note 2

Note 6

Note 7

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

SPEC. NUMBER

TFT- LCD PRODUCT

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

2011.07.05 Rev. O
PAGE

OF 27

9

Note :

1. The value in upper table are based on BLU provided by BOEHF.

2. Viewing angle is the angle at which the contrast ratio is greater than 10. The viewing are

determined for the horizontal or 3, 9 o’clock direction and the vertical or 6, 12 o’clock

direction with respect to the optical axis which is normal to the LCD surface.

3. Contrast measurements shall be made at viewing angle of = 0 and at the center of the LCD
surface. Luminance shall be measured with all pixels in the view field set first to white, then
to the dark (black) state. (See FIGURE 1 shown in Appendix) Luminance Contrast Ratio (CR)
is defined mathematically.

Luminance when displaying a white raster
CR =

Luminance when displaying a black raster

4. Luminance of LCD module shall be made without signal input. Cell transmittance is defined
mathematically, BLU provided by BOEHF.

Transmittance =

5. The White luminance uniformity on LCD surface is then expressed as :

ΔY = ( Minimum Luminance of 9points / Maximum Luminance of 9points ) * 100

(See FIGURE 2 shown in Appendix).

6. The color chromaticity coordinates specified in Table 4. shall be calculated from the spectral
data measured with all pixels first in red, green, blue and white. Measurements shall be made
at the center of the panel with BLU provided by BOEHF.

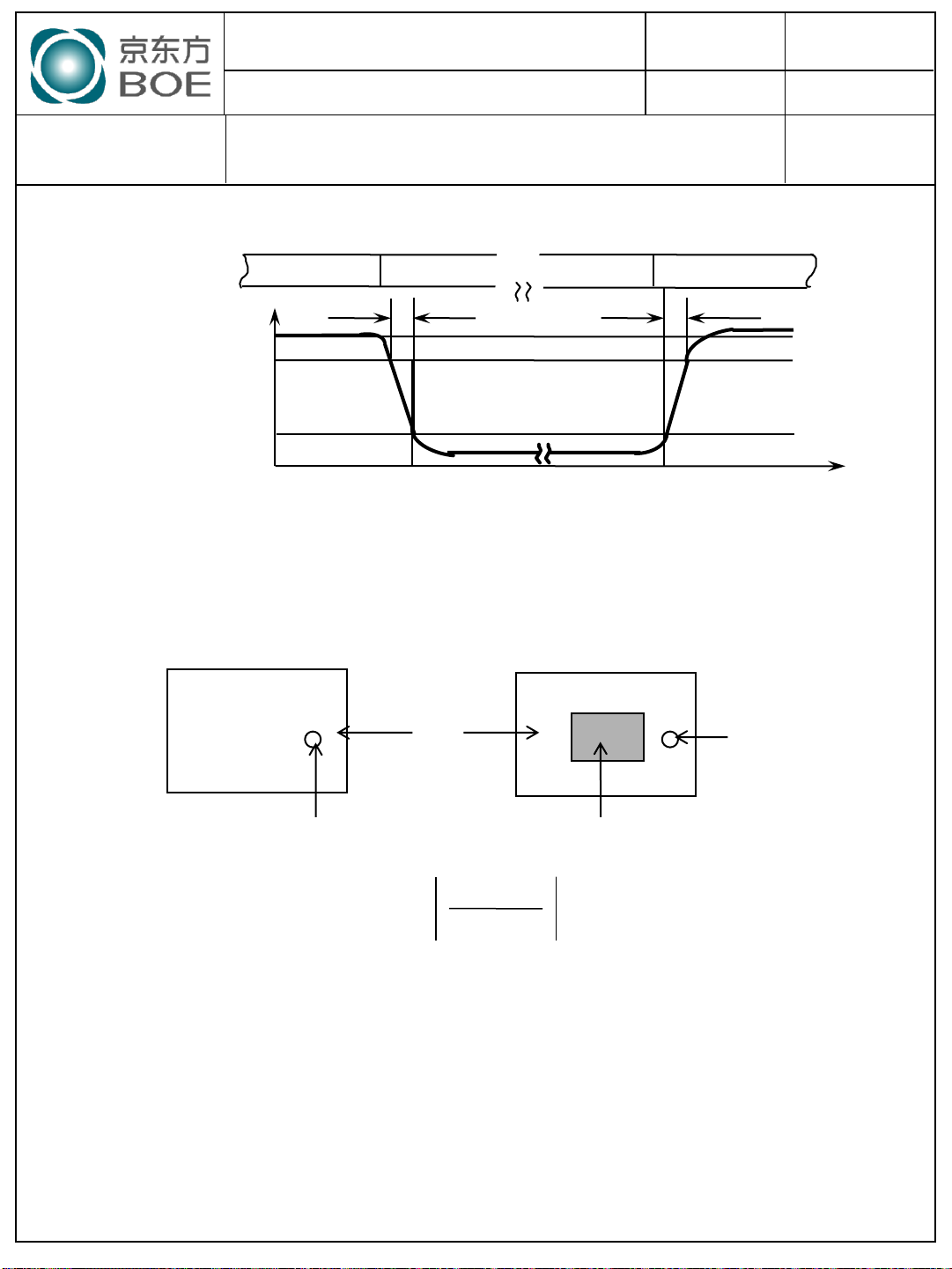

7. The electro-optical response time measurements shall be made as FIGURE 3 shown in

Appendix by switching the “data” input signal ON and OFF. The times needed for the

luminance to change from 10% to 90% is Td, and 90% to 10% is Tr.

8. Cross-Talk of one area of the LCD surface by another shall be measured by comparing the
luminance (YA) of a 25mm diameter area, with all display pixels set to a gray level, to the
luminance (YB) of that same area when any adjacent area is driven dark. (See FIGURE 4
shown in Appendix).

Luminance of LCD Module

Luminance of BLU

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

SPEC. NUMBER

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

5.0 INTERFACE CONNECTION.

5.1 Electrical Interface Connection

● CN11 Open Cell Side Connector : UJU IS100-30O-C23 or Equivalent
User Side Connector : JAE FI-X30H or Equivalent

Pin No Symbol Function Remark

1
2
3
4
5
6
7
8
9

10

11

12
13
14
15

16

17
18
19
20
21
22
23
24

25

NC No connection
CE No connection

CTL No connection

GND GND Ground

RX0- Negative LVDS differential data input. Channel 0

RX0+ Positive LVDS differential data input. Channel 0

GND Ground
RX1- Negative LVDS differential data input. Channel 1

RX1+ Positive LVDS differential data input. Channel 1

GND Ground

RX2- Negative LVDS differential data input. Channel 2

RX2+ Positive LVDS differential data input. Channel 2

GND Ground

RXCLK- Negative LVDS differential clock input.

RXCLK+ Positive LVDS differential clock input.

GND Ground

RX3- Negative LVDS differential data input. Channel 3

RX3+ Positive LVDS differential data input. Channel 3

GND Ground

NC Not connection, this pin should be open.
NC Not connection, this pin should be open.

NC Not connection, this pin should be open.
GND Ground
GND Ground
GND Ground

internal use
internal use

2011.07.05 Rev. O

10

PAGE

OF 27

26
27
28
29
30

R2010-6053-O(3/3)

VCC 5V Power supply
VCC
VCC
VCC
VCC

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

SPEC. NUMBER

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

5.2 LVDS Interface (Tx; THC63LVDF83A or Equivalent)

5.2.1 LVDS Interface

OUT0-

OUT1-

OUT2-

OUT3-

Interface

TFT-LCD

(Rx)

RXO0-

RXO0+

RXO1-

RXO1+

RXO2-

RXO2+

RXO CLK-

RXO CLK+

RXO3-

RXO3+

L
V
D

S

Input

Signal

OR0
OR1
OR2
OR3
OR4
OR5

OG0

OG1
OG2
OG3
OG4
OG5
OB0
OB1
OB2
OB3
OB4

OB5
Hsync
Vsync

DE

MCLK

OR6

OR7

OG6

OG7

OB6

OB7
RSVD

Transmitter Remark

Pin No.

51
52
54
55
56

3

4

6

7
11
12
14
15
19
20
22
23
24
27
28
30
31

50

2

8
10
16

18

25

Pin No.

48
47

46
45

42

41

40
39

38
37

System (Tx)

OUT0+

OUT1+

OUT2+

CLK OUT-

CLK OUT+

OUT3+

2011.07.05 Rev. O
PAGE

OF 27

11

HE185WX1-100

(CN11)
Pin No.

1
2

3
4

5

6

8
9

10
11

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

SPEC. NUMBER

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

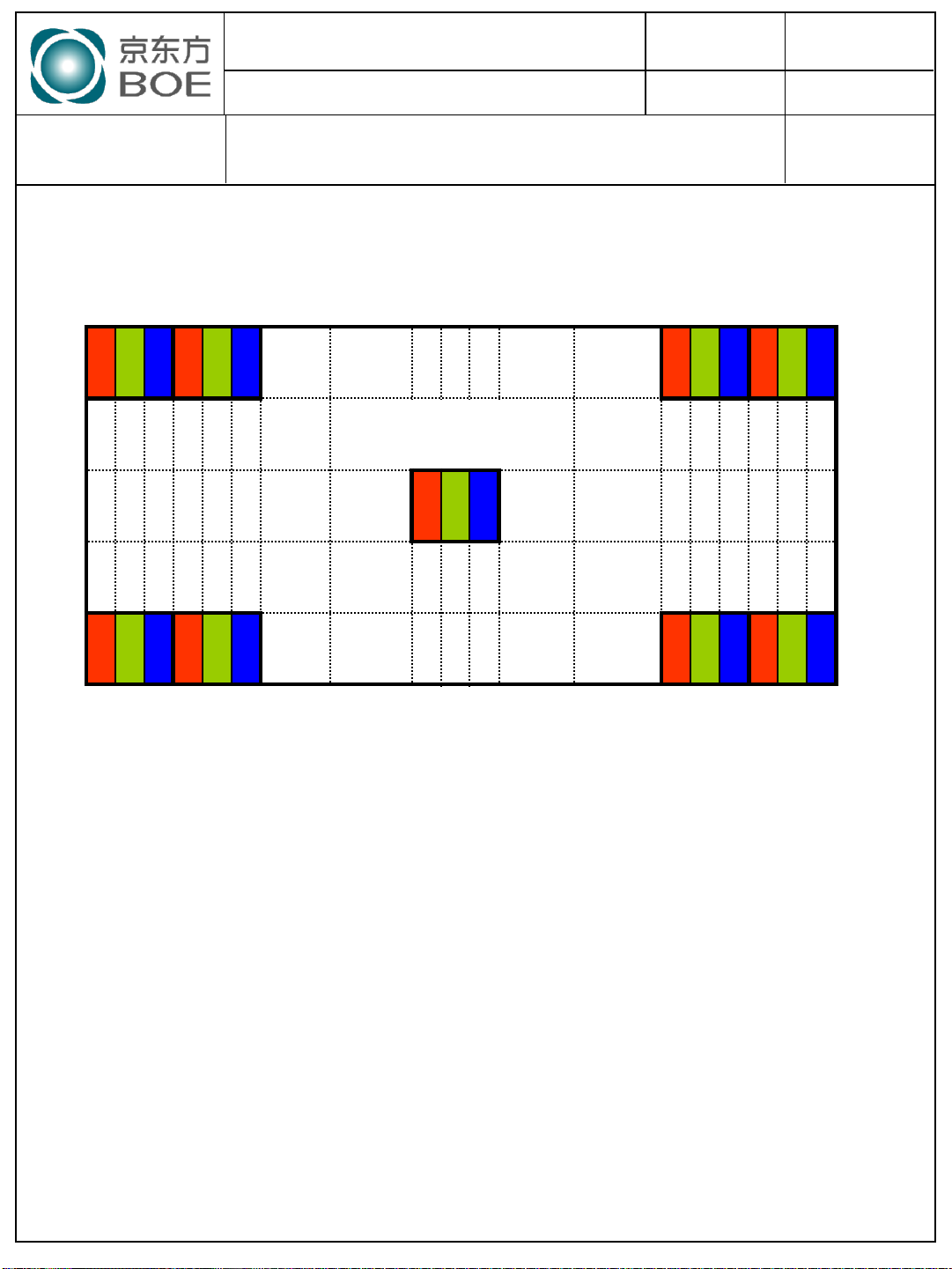

5.3 Data Input Format

(1,1)

R G B R G B R G B R G B

(2,1)

TFT- LCD PRODUCT

1 Pixel = 3 Dots

R G B

2011.07.05 Rev. O

12

(1365,1) (1366,1)

PAGE

OF 27

R G B R G B R G B R G B

(1,768) (2,768) (1365,768) (1366,768)

Display Position of Input Data (V-H)

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

SPEC. NUMBER

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

6.0 SIGNAL TIMING SPECIFICATION

6.1 The HM185WX3-300 is operated by the DE only.

Item Symbols Min Typ Max Unit

Frequency 1/Tc 50 78 95 MHz

Clock

Frame Period Tv

Vertical Display Period Tvd - 768 - lines

High Time Tch - 4/7Tc -

Low Time Tcl - 4/7Tc -

778 806 888 lines

50 60 75 Hz
20 16.7 13.3 ms

2011.07.05 Rev. O

13

PAGE

OF 27

One line Scanning Period Th 1446 1560 1936 clocks

Horizontal Display Period Thd - 1366 - clocks

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

SPEC. NUMBER

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

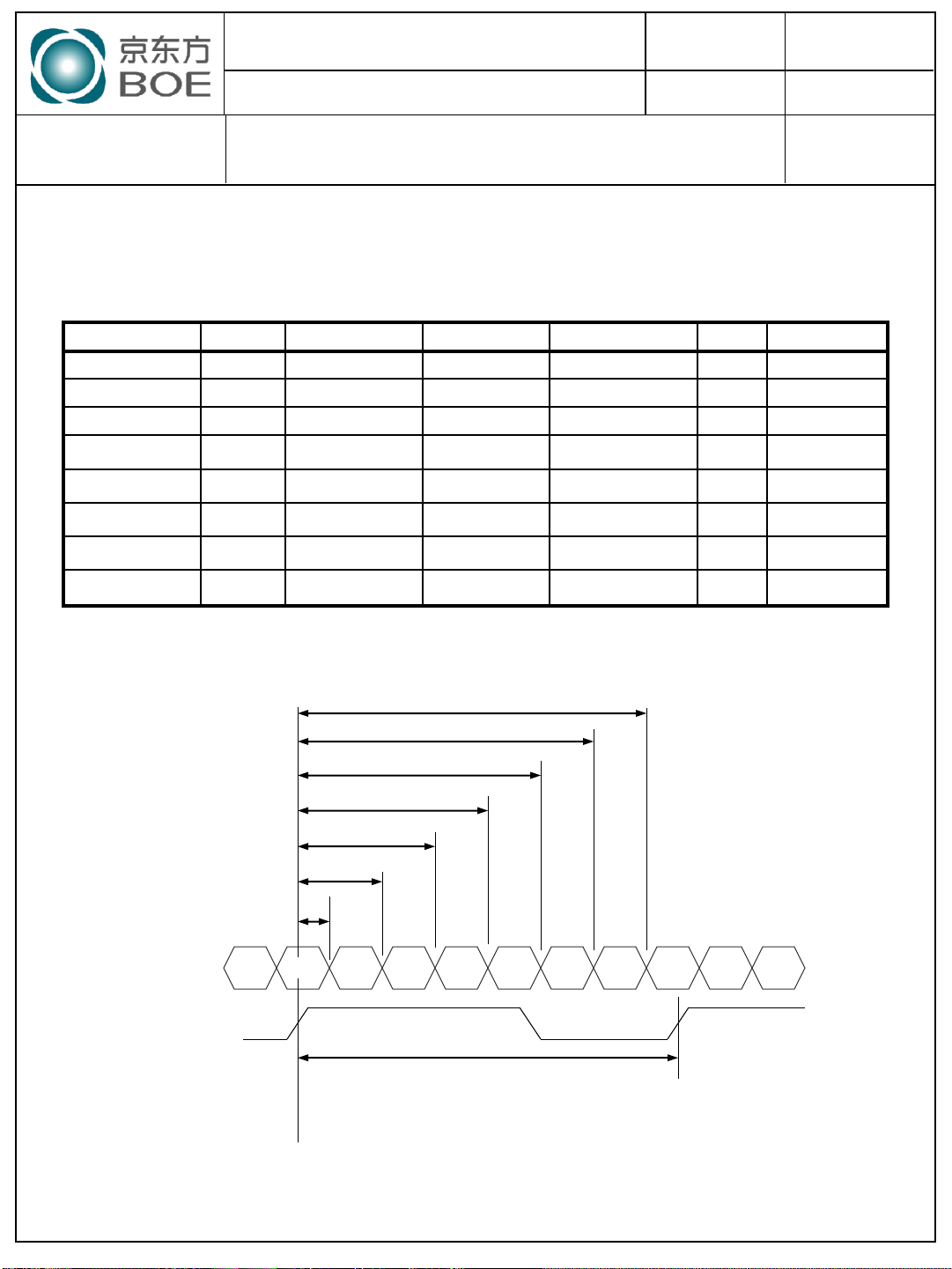

6.2 LVDS Rx Interface Timing Parameter

The specification of the LVDS Rx interface timing parameter is shown in Table 4.

<Table 4. LVDS Rx Interface Timing Specification>

Item Symbol Min Typ Max Unit Remark

CLKIN Period tRCIP 10.60 13.25 20.00 nsec

Input Data 0 tRIP1 -0.4 0.0 +0.4 nsec

Input Data 1 tRIP0 tRCIP/7-0.4 tRCIP/7 tRCIP/7+0.4 nsec

Input Data 2 tRIP6 2 × tRCIP/7-0.4 2 × tRCIP/7 2 × tRCIP/7+0.4 nsec
Input Data 3 tRIP5 3 × tRCIP/7-0.4 3 × tRCIP/7 3 × tRCIP/7+0.4 nsec
Input Data 4 tRIP4 4 × tRCIP/7-0.4 4 × tRCIP/7 4 × tRCIP/7+0.4 nsec
Input Data 5 tRIP3 5 × tRCIP/7-0.4 5 × tRCIP/7 5 × tRCIP/7+0.4 nsec
Input Data 6 tRIP2 6 × tRCIP/7-0.4 6 × tRCIP/7 6 × tRCIP/7+0.4 nsec

2011.07.05 Rev. O

14

PAGE

OF 27

RXz +/-

* Z = 0, 1, 2,3

RxCLK+

tRIP2

tRIP3

tRIP4

tRIP5

tRIP6

tRIP0

tRIP1

Rx2 Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0 Rx3

tRCIP

* Vdiff = (RXz+)-(RXz-),…. ,(RXCLK+)-(RXCLK-)

Vdiff=0[v] Vdiff=0[v]

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

MCLK

DE

x,1 x,2 x,y x+1,1

x,1050

Invalid Data

Data

Invalid

ThTvTvd

R7 ~ R0

G7 ~ G0

B7 ~ B0

REV

ISSUE DATE

TFT- LCD PRODUCT

SPEC. NUMBER

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

7.0 SIGNAL TIMING WAVEFORMS OF INTERFACE SIGNAL

7.1 Sync Timing Waveforms

V-Sync

H-Sync

DE

1) Need over 3 H-sync during V-Sync Low

2) Fix H-Sync width from V-Sync falling edge to first rising edge

Over 3 H-sync

Fix H-Sync width Area

2011.07.05 Rev. O

15

PAGE

OF 27

7.2 Vertical Timing Waveforms

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

MCLK

DE

D1 D2 Dn Data D1 D2 D3

Invalid

D1048

D1049

D1050

Th

Thd

Tc

RA7 ~RA0

GA7 ~GA0

BA7 ~BA0

Tch

Tcl

Tdh

Tds

2.0V

0.8V

2.0V

0.8V

Tes

2.0V

MCLK

Valid

Data

Data

DE

1.5V

REV

ISSUE DATE

TFT- LCD PRODUCT

SPEC. NUMBER

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

7.3 Horizontal Timing Waveforms

2011.07.05 Rev. O

16

PAGE

OF 27

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

SPEC. NUMBER

TFT- LCD PRODUCT

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

2011.07.05 Rev. O

17

PAGE

OF 27

8.0 INPUT SIGNALS, BASIC DISPLAY COLORS & GRAY SCALE OF COLORS

Color & Gray Scale

Basic Colors

Gray Scale
of RED

Gray Scale
of GREEN

Gray Scale
of BLUE

Gray Scale

of WHITE

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Blue 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Green 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Red 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△

Darker 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△
▽

Brighter 1 1 1 1 1 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

▽

Red 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△

Darker 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0

△
▽

Brighter 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 1 0 0 0 0 0 0 0 0

▽
Green 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△

Darker 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0

△

▽

Brighter 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 1

▽

Blue 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△

Darker 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0

△

▽

Brighter 1 1 1 1 1 1 0 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 0 1

▽
White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED DATA GREEN DATA BLUE DATA

0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

↑ ↑ ↑
↓ ↓ ↓

1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

↑ ↑ ↑
↓ ↓ ↓

0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

↑ ↑ ↑
↓ ↓ ↓

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1

↑ ↑ ↑
↓ ↓ ↓

1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 0

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

SPEC. NUMBER

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

9.0 POWER SEQUENCE

To prevent a latch-up or DC operation of the Open Cell, the power on/off sequence
shall be as shown in below

Power Supply

0V

Interface Signal

0V

TFT- LCD PRODUCT

0.9VDD

0.1VDD

T1

T2

Valid

0.9VDD

T3

0.1VDD

T4

2011.07.05 Rev. O

18

PAGE

OF 27

T5 T6

Back- light

0V

● 0.5 ms ≤ T1  10 ms

● 0  T2  50 ms

● 0 ≤ T3  50 ms

● 1 sec  T4

● 200 ms  T5

● 200 ms  T6

Notes:

1. When the power supply VDD is 0V, keep the level of input signals on

the low or keep high impedance.

2. Do not keep the interface signal high impedance when power is on.

3. Back Light must be turn on after power for logic and interface signal are valid.

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

SPEC. NUMBER

TFT- LCD PRODUCT

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

2011.07.05 Rev. O

19

PAGE

OF 27

10.0 MECHANICAL CHARACTERISTICS

10.1 Dimensional Requirements

FIGURE 6 (located in Appendix) shows mechanical outlines for the open cell HM185WX3-300.
Other parameters are shown in Table 5.

<Table 5. Dimensional Parameters>

Parameter Specification Unit

Weight
Active area
Pixel pitch
Number of pixels

500 (max.)

409.8(H) × 230.4(V)

0.3(H) × 0.3(V)
1366(H)× 768(V) (1 pixel = R + G + B dots)

gram

mm
mm

pixels

10.2 Anti-Glare and Polarizer Hardness.

The surface of the LCD has an anti-glare coating to minimize reflection and a coating to reduce
scratching.

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

SPEC. NUMBER

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

11.0 RELIABLITY TEST

The Reliability test items and its conditions are shown in below.
<Table 6. Reliability Test Parameters >

No Test Items Conditions

1 High temperature storage test Ta = 60 ℃, 240 hrs
2 Low temperature storage test Ta = -20 ℃, 240 hrs

High temperature & high humidity

3

(operation test)
4 High temperature operation test Ta = 50 ℃, 240hrs
5 Low temperature operation test Ta = 0 ℃, 240hrs

6 Thermal shock Ta = -20 ℃ ↔ 60 ℃ (0.5 hr), 100 cycle

Ta = 50 ℃, 80%RH, 240hrs

2011.07.05 Rev. O

20

PAGE

OF 27

Note

1

Electro-static discharge test Air: 150 pF, 330Ω, 15 KV
7

(non-operating) Contact: 150 pF, 330Ω, 8 KV

Vibration test Frequency

8

9 Packing Vibration Test

10 Drop Test

(non-operating) Gravity / AMP 1.5 G

Period +X, +Y, +Z 30 min

1.47Grms, 1~200Hz, Random
±X, ±Y, ±Z per 1hr
1Angle,3Edge,6Face
Height: JIS-Z-0200 Level 1

10 ~ 300 Hz, Sweep rat
e 30 min

Notes:

1. The tests are done with LCD modules. (Use BOEHF BLU)

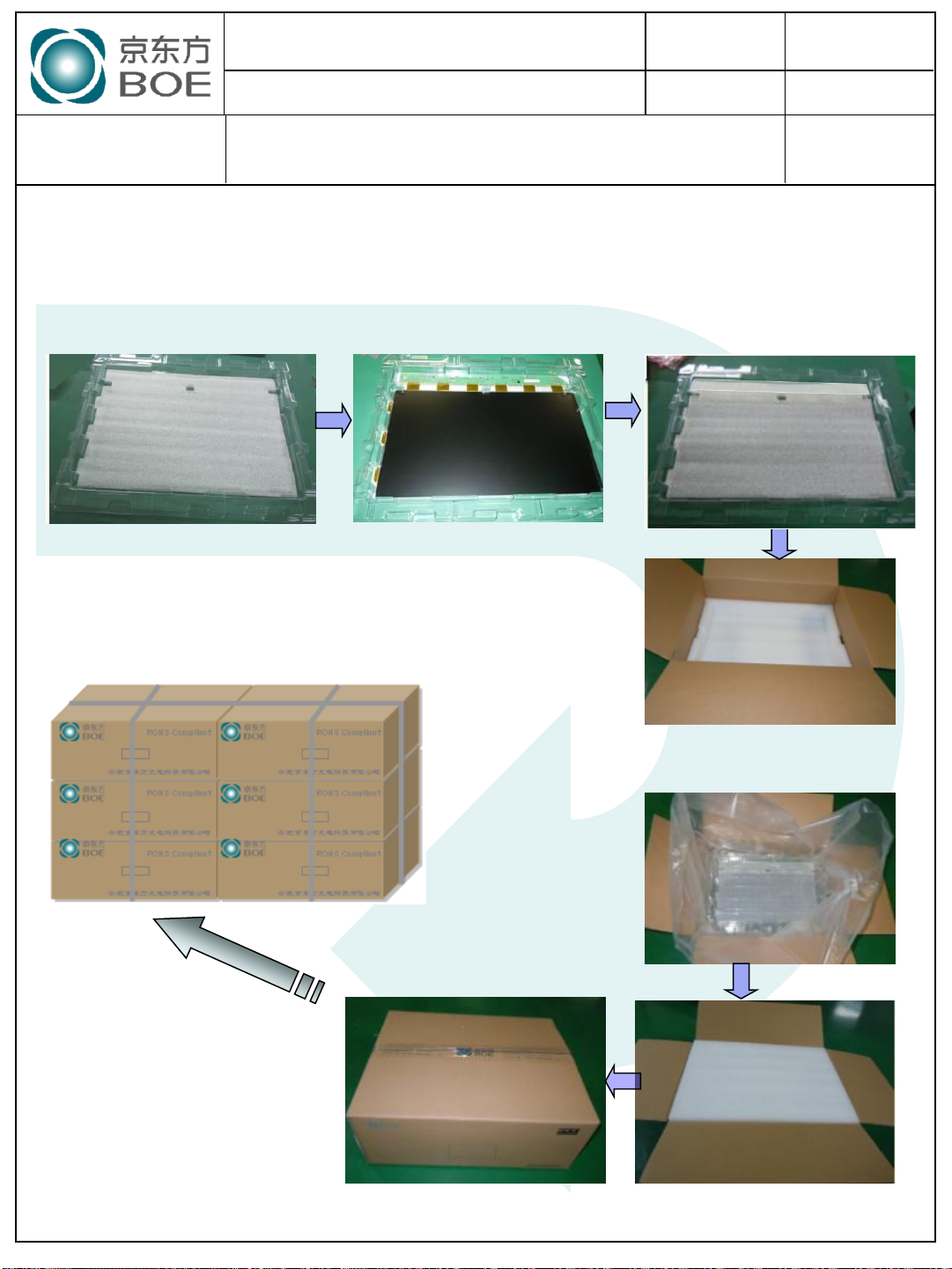

2. The test is done with a package (20pcs open cell / 1 Box) shown in section 14.

Note

2

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

SPEC. NUMBER

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

12.0 HANDLING & CAUTIONS

(1) Cautions when taking out the open cell
 Pick the pouch only, when taking out open cell from a shipping package.
(2) Cautions for handling the open cell
 As the electrostatic discharges may break the LCD open cell, handle the LCD
open cell with care. Peel a protection sheet off from the LCD panel surface as
slowly as possible.
 As the LCD panel is made from fragile glass material, impulse and pressure to the LCD
module should be avoided.
 As the surface of the polarizer is very soft and easily scratched, use a soft dry
cloth without chemicals for cleaning.
 Do not pull the interface connector in or out while the LCD open cell is operating.
 Handle connectors and cables with care.
(3) Cautions for the operation
 When the open cell is operating, do not lose CLK, ENAB signals. If any one of

these signals is lost, the LCD panel would be damaged.

 Obey the supply voltage sequence. If wrong sequence is applied, the open cell
would be damaged.
(4) Cautions for the atmosphere
 Dew drop atmosphere should be avoided.
 Do not store and/or operate the LCD open cell in a high temperature and/or
humidity atmosphere. Storage in an electro-conductive polymer packing pouch

and under relatively low temperature atmosphere is recommended.

(5) Cautions for the open cell characteristics
 Do not apply fixed pattern data signal to the LCD open cell at product aging.
 Applying fixed pattern for a long time may cause image sticking.

(6) Other cautions

 Do not re-adjust variable resistor or switch etc.
When returning the open cell for repair or etc., Please pack the open cell not to be

broken. We recommend to use the original shipping packages.

2011.07.05 Rev. O

21

PAGE

OF 27

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

SPEC. NUMBER

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

13.0 PRODUCT SERIAL NUMBER

Label Size: 80mm (L) x 40 mm (W)

1 2 3 4 5 6 7

2011.07.05 Rev. O

22

PAGE

OF 27

X X X X X X X X X X X X X X X X X

Digit

Code

Descriptio
n

1

S Code

Model

Code

/GBN

4

3

2

3

S

L

Lin

Gra

e

de

Line

Code Description

3 BOEHF

5

0

Year

6

9

9

8

7

9

5

3

Model Extension

Mo

Code

nth

(Last 4 Digits Of
FGCOD)

Month

Code Description

1
2

… …

A

B

10

4

1月
2月

10月

11月

12

11

0

2

Serial No

Hex-Decimal

00000-FFFFFF

13

0

14

0

15

1

16

D

17

B

R2010-6053-O(3/3)

C

12月

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

SPEC. NUMBER

14.0 Packing

14.1 Packing Order

-. First put one PE cushion i
n the tray

TFT- LCD PRODUCT

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

-.One PE cushion again, …. , Total
ly 4 pcs open cell and 5 pcs PE cus

-. Then put one open cell
on PE cushion

hion in one tray，Finally another 4
mm epe on the top.

2011.07.05 Rev. O

23

PAGE

OF 27

-. One pallet contains 12 boxes, that is 2
40 pcs open cell (outbox not shown);

-. Totally 6 tray (one empty tray on t
he top, 20pcs open cell ) in PE bag,
PE bag sealing by tape;

-. Tape sealing

(20 pcs open cell in one box)

Attention:

1. Open cell packing in clean room;

2. Operators should take open cell carefully, especially COF;

3. 20pcs open cell must be filled in one paper box;

4. Packing flow should be strictly followed;

5. Open cell is fragile materials, please pay attention both in packing and transportation;

-. Top cover

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

SPEC. NUMBER

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

14.2 Packing Note
 Box Dimension : 440mm(W)  550mm(L)  220mm(H)
 Package Quantity in one Box : 20pcs

14.3 Box label
 Label Size : 108 mm (L)  56 mm (W)

 Contents
Open cell : HM185WX3-300

Q`ty : 20

Serial No. : Box Serial No. See following picture for detail description.
Date : Packing Date
FG Code : FG Code of Product

HEFEI BOE OPTOELECTRONICS TECHNOLOGY CO.,LTD

2011.07.05 Rev. O

24

PAGE

OF 27

Digit

Code

Description

1

S Code

Products

GBN

2

L

0000000000000

3

S

Gra

de

4

3

Line

5

0

Year

6

9

7

3

Mont

h

20 HM185WX3-300

20XX.X.XX

8

D

Revisi
on

Code

9

0

10

0

RoHS Mark

11

0

12

6

13

8

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

(L = 50 c m )

REV

ISSUE DATE

SPEC. NUMBER

15.0 APPENDIX

Figure 1. Measurement Set Up

TFT- LCD PRODUCT

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

2011.07.05 Rev. O

25

PAGE

OF 27

Figure 2. White Luminance and Uniformity Measurement Locations (9 points)

136 683 1229

1

4

7

2 3

5 6

8 9

77

384

691

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

SPEC. NUMBER

Display data

Optical
Response

TFT- LCD PRODUCT

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

Figure 3. Response Time Testing

White(TFT OFF)

100%
90%

10%
0%

Black(TFT ON)

TR

White(TFT OFF)

TF

Figure 4. Cross Modulation Test Description

Time

2011.07.05 Rev. O

26

PAGE

OF 27

VIEW AREA VIEW AREA

(D/4, W/4)

L31

(3D/4, 3W/4)

(D, W)

YA (7D/8,W/2)

L0

YB - YA

Cross-Talk (%) =

Y

A

× 100

Where: YA = Initial luminance of measured area (cd/m2)
YB = Subsequent luminance of measured area (cd/m2)
The location measured will be exactly the same in both patterns

(D, W)

YB(7D/8,W/2)

R2010-6053-O(3/3)

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

SPEC. NUMBER

TFT- LCD PRODUCT

B3 HM185WX3-300 Open Cell Product Specification_ Rev.O

Figure 5. Open Cell Outline Dimensions

2011.07.05 Rev. O

27

PAGE

OF 27

R2010-6053-O(3/3)

A4(210 X 297)
