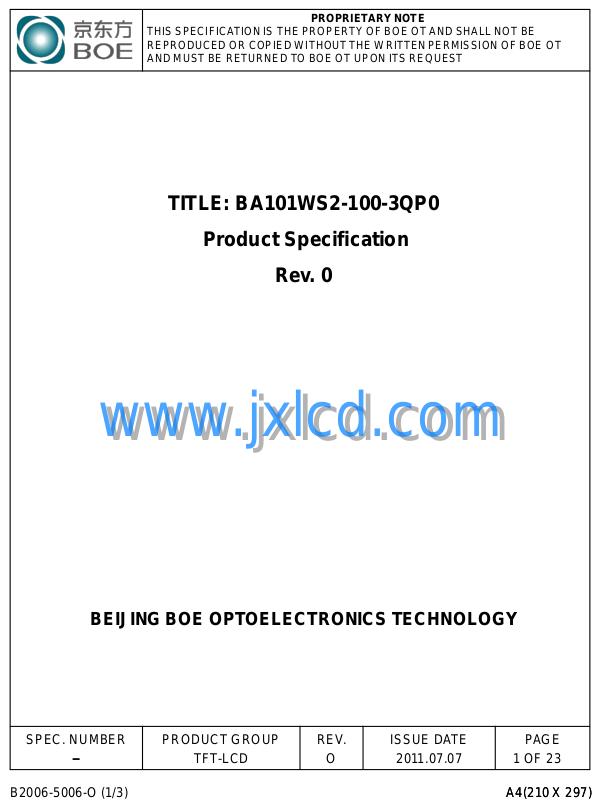

PROPRIETARY NOTE
THIS SPECIFICATION IS THE PROPERTY OF BOE OT AND SHALL NOTBE
REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE OT
AND MUST BE RETURNED TO BOE OT UPON ITS REQUEST
TITLE: BA101WS2-100-3QP0
Product Specification
Rev. 0
www.jxlcd.com
www.jxlcd.com
BEIJING BOE OPTOELECTRONICS TECHNOLOGY
SPEC. NUMBER
PRODUCT GROUP
REV.
ISSUE DATE
PAGE
-
B2006-5006-O (1/3)
TFT-LCD
O
2011.07.07
OF 23
1
A4(210 X 297) A4(210 X 297)
Page 2
PRODUCT GROUP
TFT LCD PRODUCT 0 2011.07.07
REVISION HISTORY
REV. ECN NO. DESCRIPTION OF CHANGES DATE PREPARED
0 - Initial Release 2011.07.06 Hu Ming
REV ISSUE DATE
www.jxlcd.com
www.jxlcd.com
SPEC. NUMBER
SPEC TITLE
PAGE
-
B2006-5006-O (3/3) A4(210 X 297)
BA101WS2-100 Product Specification
2
OF 21
Page 3
PRODUCT GROUP
TFT LCD PRODUCT 0 2011.07.07
REV ISSUE DATE
Contents
No. Items Page
1.0 General Description 4
2.0 Absolute Maximum ratings 6
3.0 Electrical specifications. 7
4.0 Optical specifications. 8
5.0 Reliability Test 10
6.0 FPC Pin Assignment 11
7.0 APPENDIX 12
www.jxlcd.com
8.0 Packing (Single-Panel) 18
9.0 Handling & Cautions 19
www.jxlcd.com
SPEC. NUMBER
-
B2006-5006-O (3/3) A4(210 X 297)
SPEC TITLE
BA101WS2-100 Product Specification
PAGE
3
OF 21
Page 4
PRODUCT GROUP
TFT LCD PRODUCT 0 2011.07.07
1.0 GENERAL DESCRIPTION
1.1 Introduction
BA101WS2-100 is a color active matrix TFT LCD module using amorphous silicon
TFT's (Thin Film Transistors) as an active switching devices. This module has a 10.1
inch diagonally measured active area with WSVGA resolutions (1024 horizontal by 600
vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are
arranged in vertical stripe and this module can display 262K colors. The TFT-LCD panel
used for this module is adapted for a low reflection and higher color type.
REV ISSUE DATE
www.jxlcd.com
www.jxlcd.com
1.2 Features
Thin and light weight
0.5 t Glass
TFT LCD Panel
1024× RGB × 600
SPEC. NUMBER
-
B2006-5006-O (3/3) A4(210 X 297)
SPEC TITLE
BA101WS2-100 Product Specification
PAGE
4
OF 21
Page 5
PRODUCT GROUP
TFT LCD PRODUCT 0 2011.07.07
1.3 Application
Tablet & Application Mini-PC (Wide Type)
1.4 General Specification
< Table 1. General Specifications >
Parameter Specification Unit Remarks
Active area 222.72(H) × 125.28(V) mm
REV ISSUE DATE
PNL outline 226.7(H) × 131.8(V) mm
Number of pixels 1024(H) × 600(V) pixels
Pixel pitch 0.2175(H) × 0.2088 (V)× RGB mm
Pixel arrangement Pixels RGB stripe arrangement
Display colors 262K colors
Color gamut (C light) 50 %
Display mode Normally White
Panel Size 230.4(H) × 134.2(V) mm
Weight TBD g
View direction 6:00 O‟clock
www.jxlcd.com
www.jxlcd.com

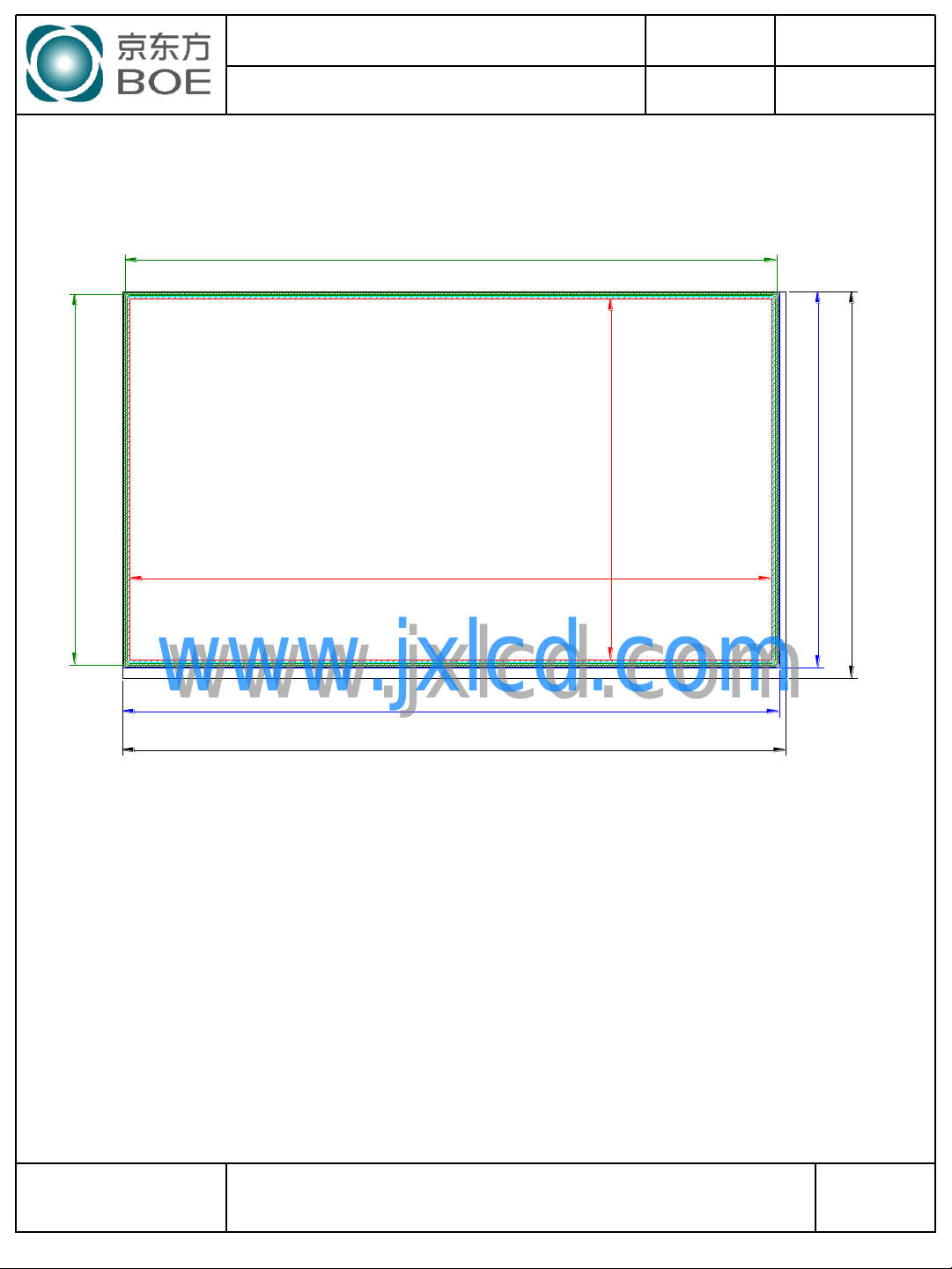

Figure 9
SPEC. NUMBER
-
B2006-5006-O (3/3) A4(210 X 297)
SPEC TITLE
BA101WS2-100 Product Specification
PAGE
5
OF 21
Page 6
PRODUCT GROUP
TFT LCD PRODUCT 0 2011.07.07
2.0 ABSOLUTE MAXIMUM RATINGS
The followings are maximum values which, if exceed, may cause faulty operation or
damage to the unit. The operational and non-operational maximum voltage and
current values are listed in Table 2.
< Table 2. LCD Module Electrical Specifications > [Ta =25± 2 ℃]
Parameter Symbol Min. Max. Unit Remarks
REV ISSUE DATE
LC operating Voltage V
Operating Temperature
(Humidity)
Storage Temperature
(Humidity)
*1) Liquid Crystal driving voltage
Due to the characteristics of LC Material, this voltage varies with environmental
temperature.
www.jxlcd.com
www.jxlcd.com
OP
T
OP
T
ST
0 +50 ℃
-20 +60 ℃
4 V
Ta=25+/-2°C
SPEC. NUMBER
-
B2006-5006-O (3/3) A4(210 X 297)
SPEC TITLE
BA101WS2-100 Product Specification
PAGE
6
OF 21
Page 7
PRODUCT GROUP
TFT LCD PRODUCT 0 2011.07.07
3.0 ELECTRICAL SPECIFICATIONS
3.1 Electrical Specifications
Parameter Symbol Value Unit Remarks
TFT Gate ON Voltage VGH 21 V
TFT Gate OFF Voltage VGL -8.0 V
TFT Common Electrode Voltage VCOM 3.8 V
Analog Power Supply Voltage AVDD 10.4 V
REV ISSUE DATE
[Ta =25± 2 ℃]< Table 3. LCD Module Electrical Specifications >
www.jxlcd.com
www.jxlcd.com
SPEC. NUMBER
SPEC TITLE
PAGE
-
B2006-5006-O (3/3) A4(210 X 297)
BA101WS2-100 Product Specification
7
OF 21
Page 8
PRODUCT GROUP
TFT LCD PRODUCT 0 2011.07.07
REV ISSUE DATE
4.0 OPTICAL SPECIFICATION
4.1 Overview
The test of Optical specifications shall be measured in a dark room (ambient luminance
1lux and temperature = 252℃) with the equipment of Luminance meter system
(Goniometer system and TOPCON BM-5) and test unit shall be located at an approximate
distance 50cm from the LCD surface at a viewing angle of θ and Φ equal to 0. We refer
to θØ=0 (=θ3 ) as the 3 o‟clock direction (the “right”), θØ=90 (= θ12 ) as the 12 o‟clock
direction (“upward”), θØ=180 (= θ9 ) as the 9 o‟clock direction (“left”) and θØ=270(= θ6 )
as the 6 o‟clock direction (“bottom”). While scanning θ and /or Ø, the center of the
measuring spot on the Display surface shall stay fixed. The backlight should be operating
for 30 minutes prior to measurement. VDD shall be 3.3+/- 0.3V at 25C. Optimum viewing
angle direction is 6 ‟clock.
4.2 Optical Specifications
<Table 5. Optical Specifications>
Parameter Symbol Condition Min. Typ. Max. Unit Remark
Θ
Θ
Θ
Θ
12
3
9
6
CR > 10
Viewing Angle
range
Color Gamut (C light) 50 - % Note 2
Luminance Contrast ratio CR Θ = 0 600
Transmittance T(%) Θ = 0 - 6.6 - %
Horizontal
Vertical
www.jxlcd.com
www.jxlcd.com
- 70 - Deg.
- 70 - Deg.
- 60 - Deg.
- 70 - Deg.
Note 1
WV-Pol
Base on C
Light
Note 3
x
White Chromaticity
Red
Reproduction
of color
(C light)
Response Time
(Rising + Falling)
SPEC. NUMBER
-
B2006-5006-O (3/3) A4(210 X 297)
Green
Blue x
SPEC TITLE
BA101WS2-100 Product Specification
w
y
w
x
R
y
R
x
G
y
G
B
y
B
T
RT
Θ = 0
Θ = 0
Ta= 25 C
Θ = 0
0.245 0.295 0.345
0.281 0.331 0.381
0.58 0.63 0.68
0.26 0.31 0.36
0.244 0.294 0.344
0.468 0.518 0.568
0.093 0.143 0.193
0.101 0.151 0.201
- 8 - ms Note 5
Note 4
CF Glass
8
PAGE
OF 21
Page 9
PRODUCT GROUP
TFT LCD PRODUCT 0 2011.07.07
Notes : 1. Viewing angle is the angle at which the contrast ratio is greater than 10. The
viewing angles are determined for the horizontal or 3, 9 o‟clock direction and
the vertical or 6, 12 o‟clock direction with respect to the optical axis which is
normal to the LCD surface (see FIGURE 1).
2. Contrast measurements shall be made at viewing angle of Θ= 0 and at the
center of the LCD surface. Luminance shall be measured with all pixels in
the view field set first to white, then to the dark (black) state . (see FIGURE
1) Luminance Contrast Ratio (CR) is defined mathematically.
Luminance when displaying a white raster
CR =
Luminance when displaying a black raster
REV ISSUE DATE
3. Transmittance is the Value with Polarizer
4. The color chromaticity coordinates specified in Table 5 shall be calculated
from the spectral data measured with all pixels first in red, green, blue and
white. Measurements shall be made at the center of the panel.
www.jxlcd.com
www.jxlcd.com
5. The electro-optical response time measurements shall be made as FIGURE
3 by switching the “data” input signal ON and OFF. The times needed for the
luminance to change from 10% to 90% is Tr, and 90% to 10% is Td.
SPEC. NUMBER
-
B2006-5006-O (3/3) A4(210 X 297)
SPEC TITLE
BA101WS2-100 Product Specification
PAGE
9
OF 21
Page 10
PRODUCT GROUP
TFT LCD PRODUCT 0 2011.07.07
5.0 RELIABILITY TEST
<Table 6. Reliability test>
No Test Items Conditions
1 High temperature storage test Ta = 80 ℃, 240 hrs
2 Low temperature storage test Ta = -30 ℃, 240 hrs
3 High temperature operation test Ta = 70 ℃, 240 hrs
4 Low temperature operation test Ta = -20 ℃, 240 hrs
REV ISSUE DATE
5
6 Thermal shock
High temperature & high humidity
operation test
www.jxlcd.com
www.jxlcd.com
Ta = 60 ℃, 90%RH, 240 hrs
Ta = -30℃~ 80℃,100Cycle，per 30min
SPEC. NUMBER
-
B2006-5006-O (3/3) A4(210 X 297)
SPEC TITLE
BA101WS2-100 Product Specification
PAGE
10
OF 21
Page 11
PRODUCT GROUP
1
DUMMY
31
VDD
61
V13
91
D21
121
VDD
151
AGND
2
DUMMY
32
VDD
62
V12
92
DASHD
122
VDD
152
VCOM
3
GND
33
DUMMY
63
V11
93
D22
123
SCL
153
VCOM
4
GND
34
DUMMY
64
V10
94
D23
124
SDA
154
VCOM
5
VGL
35
DUMMY
65
V9
95
DASHD
125
CSB
155
VGH
6
VCOM
36
DUMMY
66
V8
96
D24
126
SEL1
156
VGH
7
VCOM
37
DUMMY
67
GAML
97
D25
127
SEL0
157
VGH
8
VCOM
38
RES[2]
68
D00
98
DASHD
128
FRAME
158
VEE
9
COM2_IN
39
UPDN
69
D01
99
D26
129
DUMMY
159
VEE
10
VCOMO
40
SHLR
70
D02
100
D27
130
DUMMY
160
VEE
11
DRVL -B
41
GRB
71
D03
101
GND LVDS
131
HFRC
161
VDD
12
DRVL
42
STBYB
72
D04
102
GND LVDS
132
DITHER
162
VDD
13
DRVH
43
DCLKPOL
73
D05
103
DEN
133
DIMO
163
VDD
14
DRVA
44
RES[1]
74
D06
104
DASHD
134
PINCTL
164
VSS
15
AVDDG
45
DUMMY
75
D07
105
HSD
135
NBW
165
VSS
16
FBA
46
BIST
76
D10
106
VSD
136
DIMI
166
VSS
17
FBH
47
IFSEL
77
D11
107
GAMH
137
DUMMY
167
DUMMY
18
FBL
48
MODE
78
D12
108
V7
138
DUMMY
168
DUMMY
19
PW R-EN
49
OPDRV
79
D13
109
V6
139
DUMMY
20
VCOMI
50
CABC EN1
80
D14
110
V5
140
DUMMY
21
DUMMY
51
CABC EN0
81
D15
111
V4
141
DUMMY
22
AGDNH
52
VDD
82
D16
112
V3
142
DUMMY
23
AGDNH
53
VDD
83
D17
113
V2
143
DUMMY
24
DUMMY
54
GND
84
REV
114
V1
144
VDD
25
AVDDL
55
GND
85
VDD LVDS
115
AGNDH
145
VDD
26
AVDDL
56
AVDD
86
VDD LVDS
116
AGNDH
146
GND
27
DUMMY
57
AVDD
87
NINC
117
AVDDL
147
GND
28
GND
58
AGND
88
DCLK
118
AVDDL
148
AVDD
29
GND
59
AGND
89
DASHD
119
GND
149
AVDD
30
DUMMY
60
V14
90
D20
120
GND
150
AGND
PIN 168 CH (PITCH 0.2mm)
FPC
A
33.4
0.7
11
35.859
6.0 FPC Pin Assignment
6.１ FPC PIN Assignment
REV ISSUE DATE
TFT LCD PRODUCT 0 2011.07.07
Notes:
CF is in Upper side
TFT is in Bottom side
www.jxlcd.com
www.jxlcd.com
<Figure 1. FPC Pad Dimension & FPC Pin Assignment>
SPEC. NUMBER
-
SPEC TITLE
BA101WS2-100 Product Specification
PAGE
11
OF 21
B2006-5006-O (3/3) A4(210 X 297)
Page 12
7.0 APPENDIX

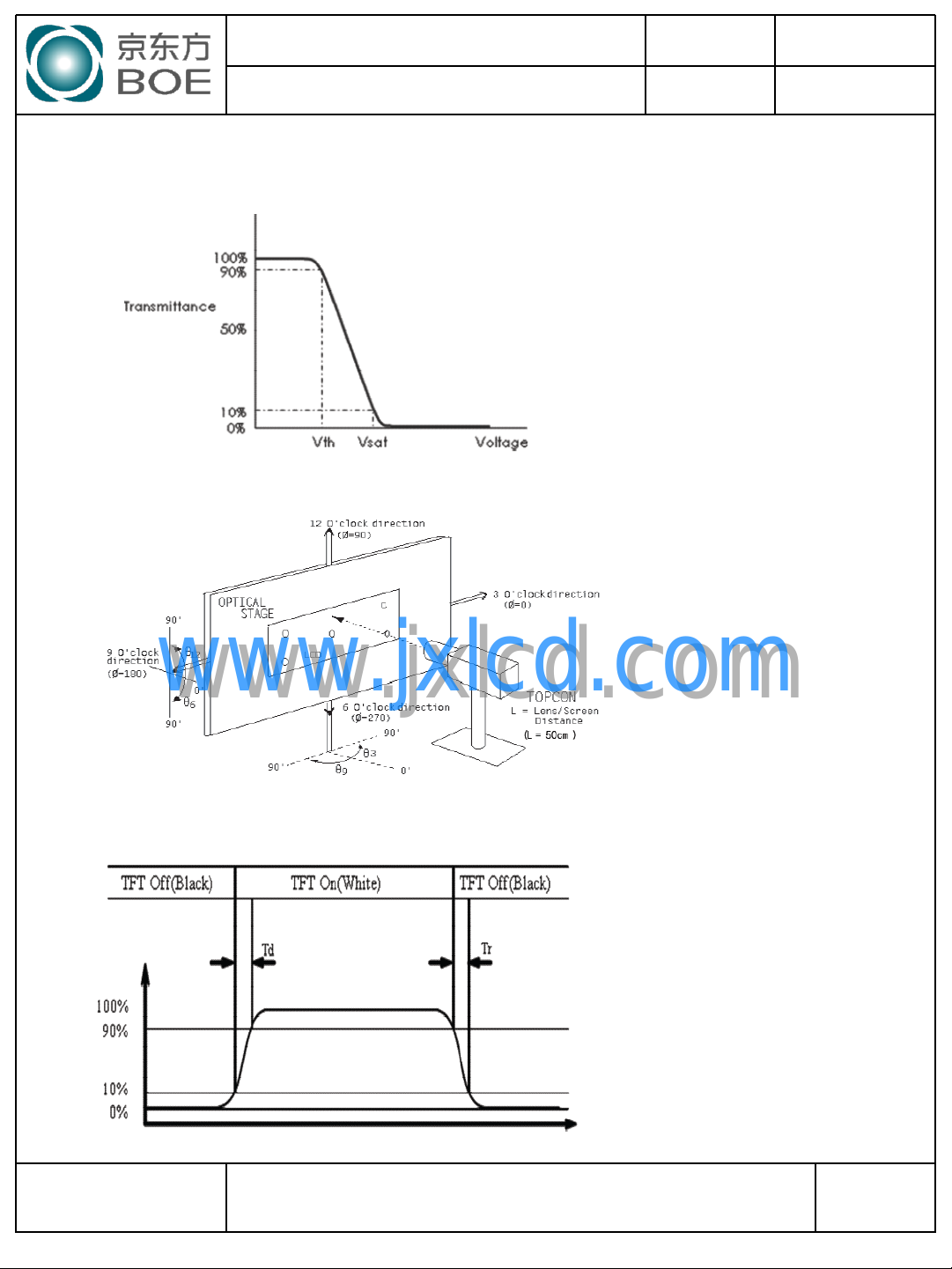

Figure 2. The Definition of Vth & Vsat
Figure 3. Measurement Set Up
PRODUCT GROUP
TFT LCD PRODUCT 0 2011.07.07
REV ISSUE DATE
www.jxlcd.com
www.jxlcd.com
Figure 4. Response Time Testing
SPEC. NUMBER
SPEC TITLE
PAGE
-
B2006-5006-O (3/3) A4(210 X 297)
BA101WS2-100 Product Specification
12
OF 21
Page 13
PRODUCT GROUP
95.9705
35.859
101.4
25
104
57.257
B3 10.1" TN
98.5705
53.375
23.568
35.859
0.5
0.15
0.15
3.7
0.7
0.15
0.7
0.15
1.65
11
0.354
0.1
0.1
0.7
0.2
0.085
0.0325
0.45
0.45
FPC
0.0325
ON FPC
ON Panel
A
Detail of A
1
0.35
33.4
COG Chip
CF Edge
TFT Edge
PIN 168 CH (PITCH 0.2mm)
Pitch 0.2mm
Width 0.1mm
Space 0.1mm
0.0850.15
0.15
TFT LCD PRODUCT 0 2011.07.07

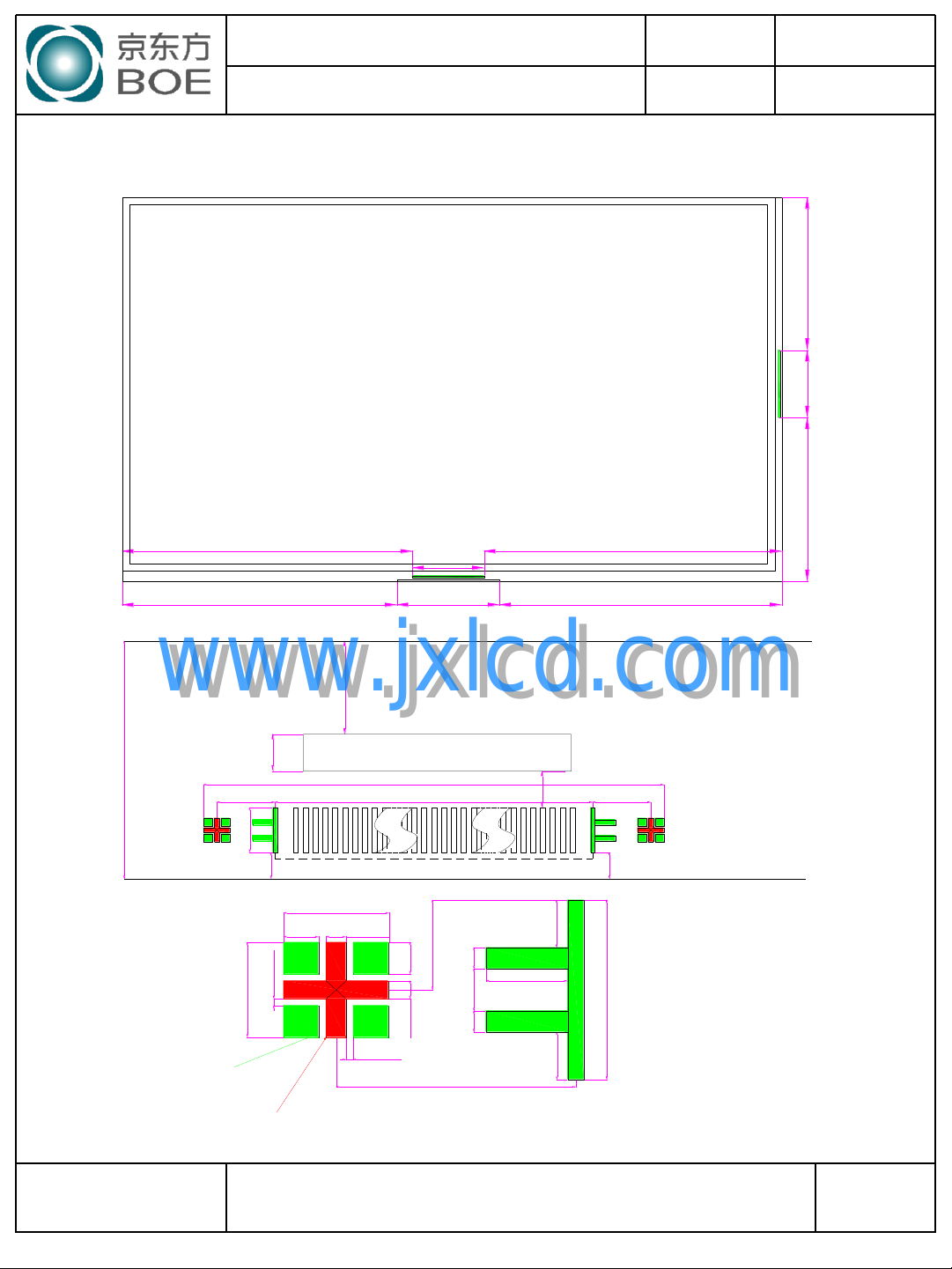

Figure 5. TFT-LCD Panel Outline Dimension
REV ISSUE DATE
www.jxlcd.com
www.jxlcd.com
SPEC. NUMBER
-
SPEC TITLE
BA101WS2-100 Product Specification
PAGE
13
OF 21
B2006-5006-O (3/3) A4(210 X 297)
Page 14
PRODUCT GROUP
B3 10.1TN
GO
(0,0)
GE
GS
VCOM
DO
DE
DS
G1
G1200
VSS
VDD
VGL
VGH
STV2
CPV
LR
CE
17.11
0.58
2.74 2.2
1.38
2.2
3.42
DO
DE
DS
G1
G1200
VSS
VDD
VGL
VGH
STV2
CPV
LR
CE
17.11
0.58
2.2
3.42
GO
GE
GS
VCOM
2.2
1.38
1.24
1.24
0.54
0.54
TFT LCD PRODUCT 0 2011.07.07

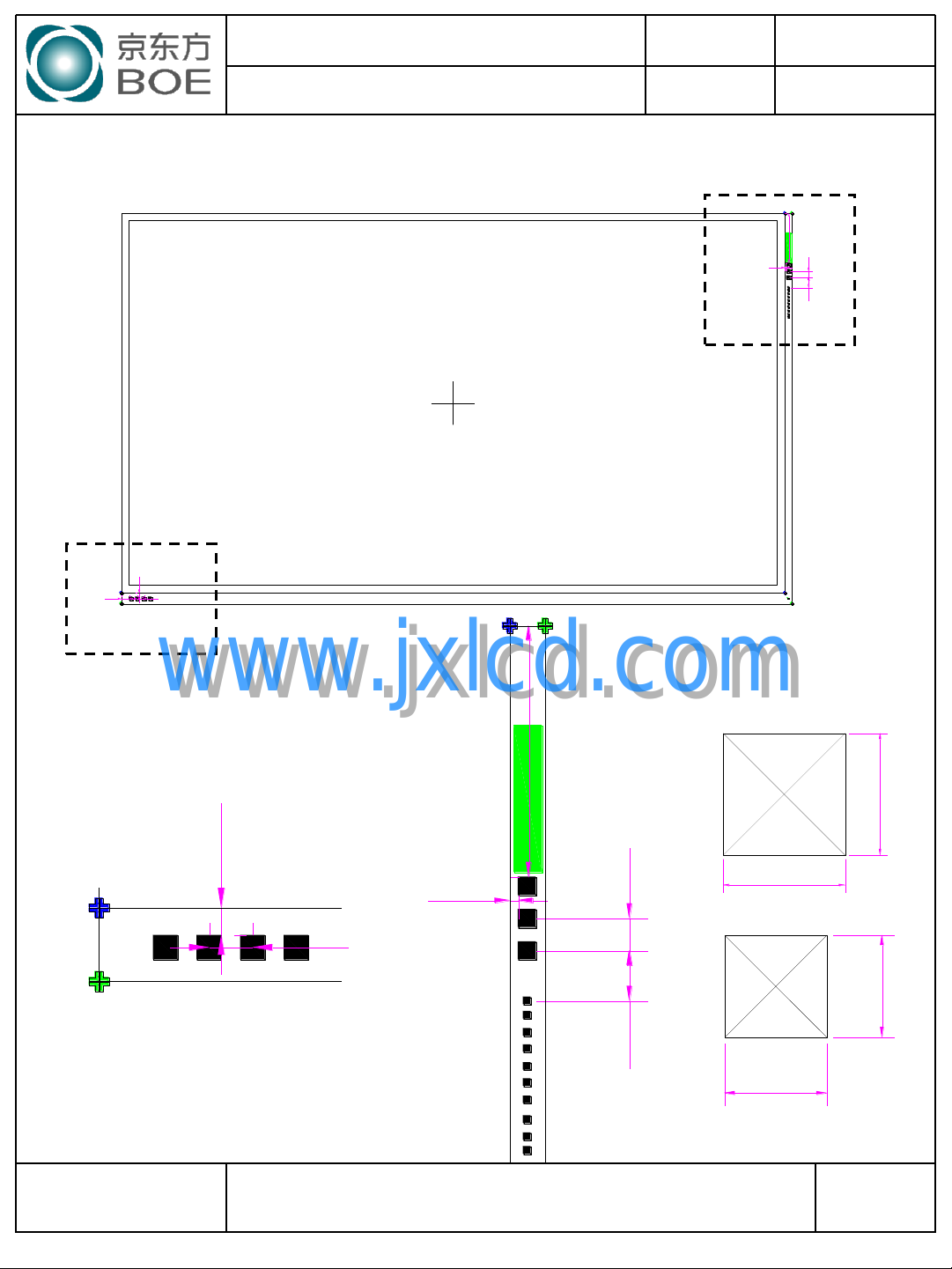

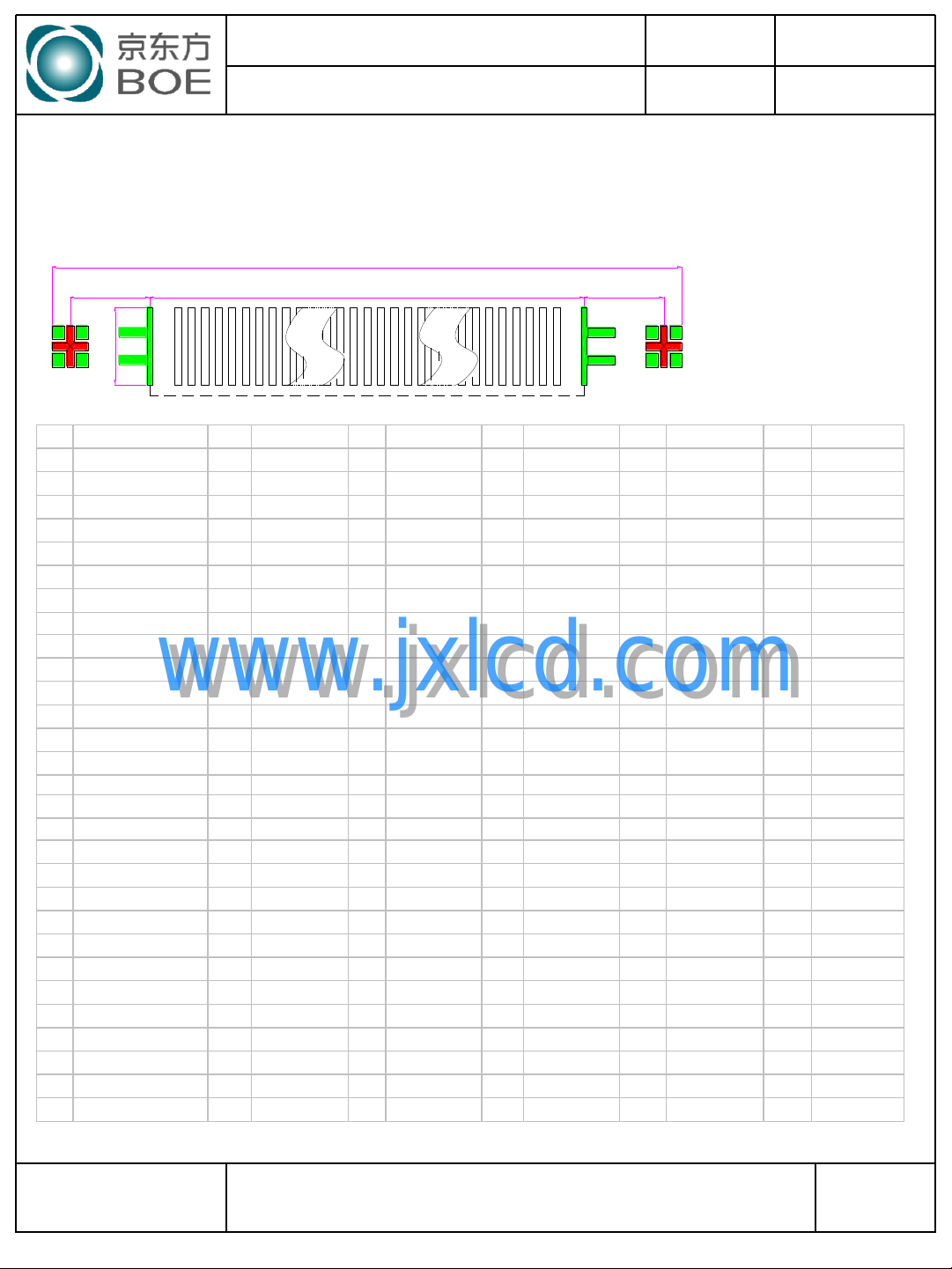

Figure 6. TFT-LCD Panel Test
REV ISSUE DATE
A
B
Detail of A
www.jxlcd.com
www.jxlcd.com
Detail of B
SPEC TITLE
BA101WS2-100 Product Specification
SPEC. NUMBER
B2006-5006-O (3/3) A4(210 X 297)
-
PAGE
14
OF 21
Page 15
PRODUCT GROUP
Q1
Q2
DO
DE
DS
VCOM
GS
GE
GO
DO
DE
DS
VCOM
GS
GE
GO
DO
DE
DS
VCOM
GS
GE
GO
DO
DE
DS
VCOM
GS
GE
GO
DO
DE
DS
VCOM
GS
GE
GO
DO
DE
DS
VCOM
GS
GE
GO
DO
DE
DS
VCOM
GS
GE
GO
DO
DE
DS
VCOM
GS
GE
GO
(0,0)
(0,0)
TFT LCD PRODUCT 0 2011.07.07

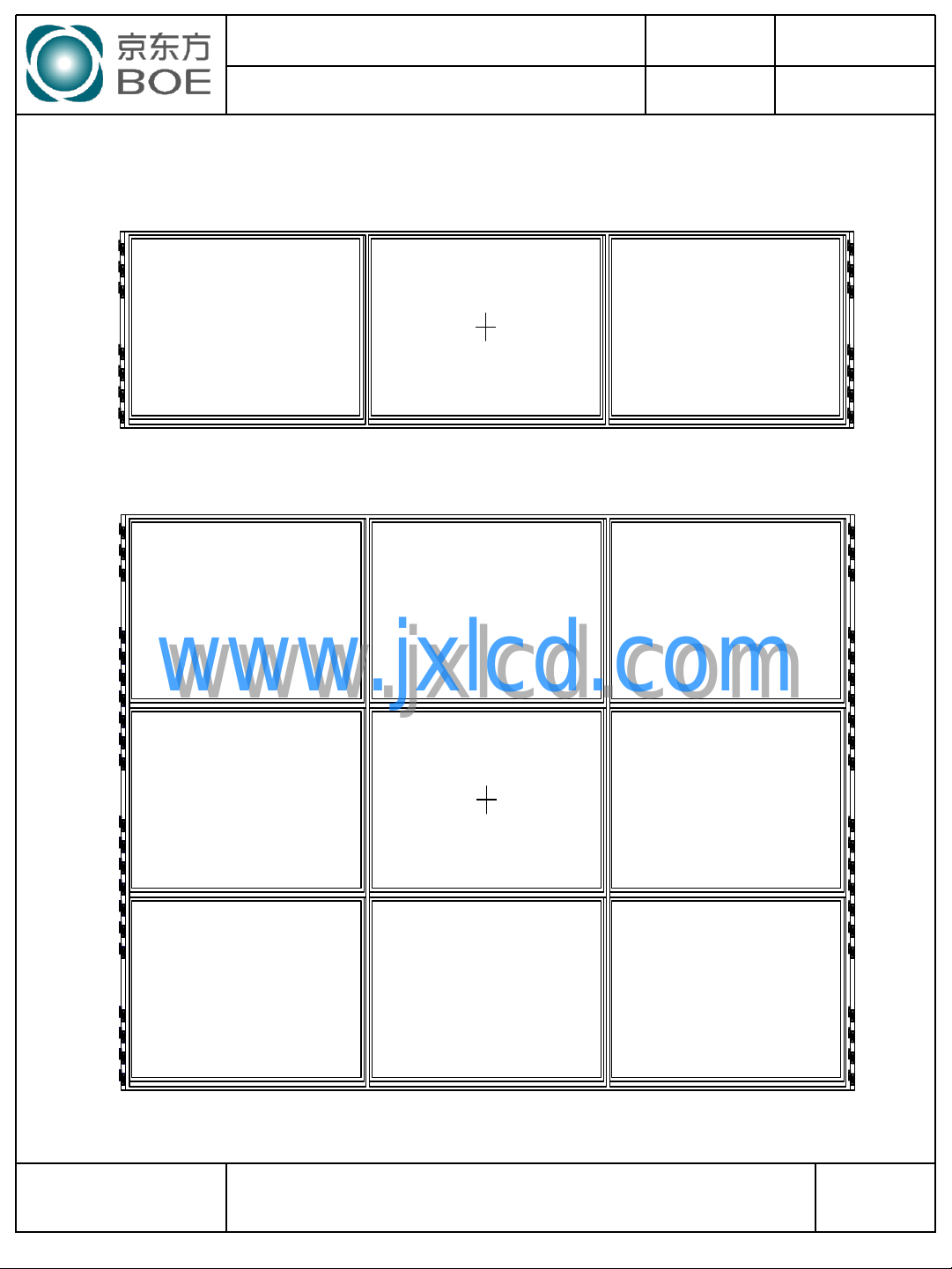

Figure 7. TFT-LCD Q Panel outline dimension
REV ISSUE DATE
www.jxlcd.com
www.jxlcd.com
SPEC. NUMBER
-
SPEC TITLE
BA101WS2-100 Product Specification
B2006-5006-O (3/3) A4(210 X 297)
1515
PAGE
OF 21
Page 16
PRODUCT GROUP
* Seal width : 1.15± 0.2mm
* Scribing Accuracy : Target± 0.3mm
* Glass Thickness 0.5mm
125.28 mm(Active Area)
130.5 mm±0.3 mm
228 mm±0.3 mm
222.72 mm(Active Area)
A
B
134.2 mm±0.3 mm
230.4 mm±0.3 mm
226.26 mm(Seal Center ~ Seal Center)
0.1 mm(Seal Edge ~ BM Edge)
0.2 mm(BM Edge ~ CF Glass)
0.19 mm(BM Edge ~ CF Glass)
0.1 mm(Seal Edge ~ BM Edge)
0.2 mm(PI Edge ~ Seal Edge)
128.79 mm(Seal Center ~ Seal Center)
Figure 8. Seal on Panel
REV ISSUE DATE
TFT LCD PRODUCT 0 2011.07.07
AA Size：222.72*125.28 mm
www.jxlcd.com
www.jxlcd.com
SPEC. NUMBER
-
B2006-5006-O (3/3) A4(210 X 297)
SPEC TITLE
BA101WS2-100 Product Specification
PAGE
16
OF 21
Page 17
PRODUCT GROUP
222.72
228
230.4
125.28
130.5
134.2

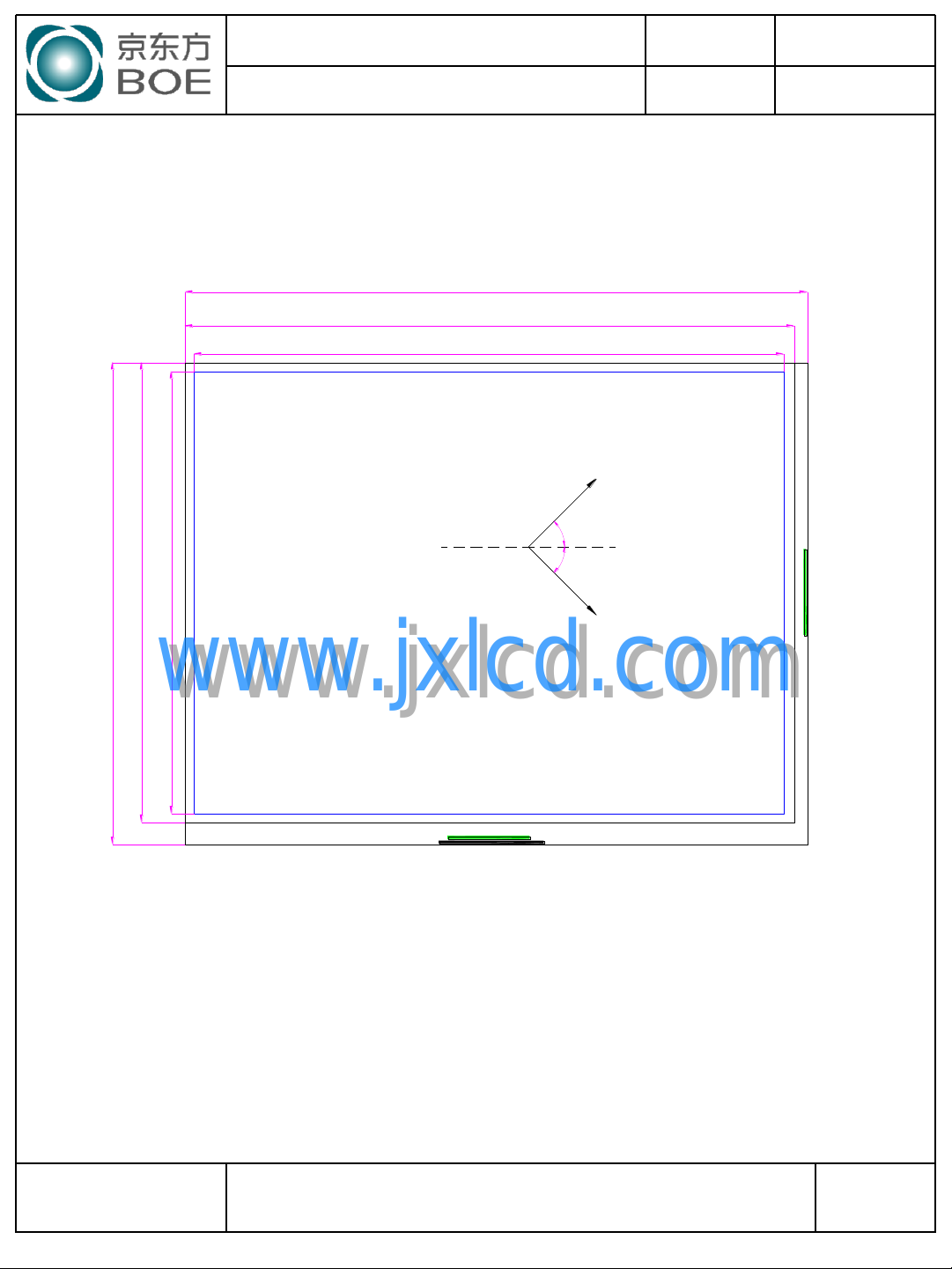

View Direction
6 O‟Clock
CF
TFT
45°
45°
TFT LCD PRODUCT 0 2011.07.07
Figure 9. Rubbing Direction
REV ISSUE DATE
SPEC. NUMBER
www.jxlcd.com
www.jxlcd.com
SPEC TITLE
PAGE
-
B2006-5006-O (3/3) A4(210 X 297)
BA101WS2-100 Product Specification
1717
OF 21
Page 18
PRODUCT GROUP
8.0 Packing (Single Cell)
REV ISSUE DATE
TFT LCD PRODUCT 0 2011.07.07
www.jxlcd.com
www.jxlcd.com
SPEC. NUMBER
SPEC TITLE
PAGE
-
B2006-5006-O (3/3) A4(210 X 297)
BA101WS2-100 Product Specification
18
OF 21
Page 19
PRODUCT GROUP
TFT LCD PRODUCT 0 2011.07.07
REV ISSUE DATE
9. Handling & Cautions
9.1 Mounting Method
The panel of the LCD consists of two thin glasses with polarizers which easily get
damaged. So extreme care should be taken when handling the LCD.
Excessive stress or pressure on the glass of the LCD should be avoided. Care must be
taken to insure that no torsional or compressive forces are applied to the LCD unit
when it is mounted.
If the customer's set presses the main parts of the LCD, the LCD may show the abnormal
display. But this phenomenon does not mean the malfunction of the LCD and should be
pressed by the way of mutual agreement.
To determine the optimum mounting angle, refer to the viewing angle range in the
specification for each model.
Mount a LCD module with the specified mounting parts.
9.2 caution of LCD Handling and Cleaning
Since the LCD is made of glass, do not apply strong mechanical impact or static load
onto it. Handling with care since shock, vibration,and careless handling may seriously
affect the product. If it falls from a high place or receives a strong shock, the glass may
be broken.
The polarizers on the surface of panel are made from organic substances. Be very
careful for chemicals not to touch the polarizers or it leads the polarizers to be deteriorated.
If the use of a chemical is unavoidable, use soft cloth with solvent（recommended below）
to clean the LCD„s surface with wipe lightly.
-IPA(Isopropyl Alcohol), Ethyl Alcohol, Trichlorotriflorothane
Do not wipe the LCD's surface with dry or hard materials that will damage the polarizers
and others. Do not use the following solvent.
-Water, Ketone, Aromatics
It is recommended that the LCD be handled with soft gloves during assembly, etc. The
polarizers on the LCD's surface are vulnerable to scratch and thus to be damaged by
sharp particles.
Do not drop water or any chemicals onto the LCD's surface.
A protective film is supplied on the LCD and should be left in place until the LCD is
required for operation.
The ITO pad area needs special careful caution because it could be easily corroded.
Do not contact the ITO pad area with HCFC,Soldering flux,Chlorine,Sulfur,saliva or
fingerprint. To prevent the ITO corrosion, customers are recommended that the ITO
area would be covered by UV or silicon.
www.jxlcd.com
www.jxlcd.com
SPEC. NUMBER
-
B2006-5006-O (3/3) A4(210 X 297)
SPEC TITLE
BA101WS2-100 Product Specification
PAGE
19
OF 21
Page 20
PRODUCT GROUP
TFT LCD PRODUCT 0 2011.07.07
9.3 Caution Against Static Charge
The LCD modules use C-MOS LSI drivers, so customers are recommended that any unused
input terminal would be connected to Vdd or Vss, do not input any signals before
power is turn on, and ground you body, work/assembly area, assembly equipments to
protect against static electricity.
Remove the protective film slowly, keeping the removing direction approximate
30-degree not vertical from panel surface, If possible, under ESD control device like
ion blower, and the humidity of working room should be kept over 50%RH to reduce the
risk of static charge.
Avoid the use work clothing made of synthetic fibers. We recommend cotton clothing or
other conductivity-treated fibers.
In handling the LCD, wear non-charged material gloves. And the conducting wrist to the
earth and the conducting shoes to the earth are necessary.
9.4 Caution For operation
REV ISSUE DATE
It is indispensable to drive the LCD within the specified voltage limit since the higher
Voltage than the limit causes the shorter LCD's life. An electro-chemical reaction due to
DC causes undesirable deterioration of the LCD so that the use of DC drive should avoid.
Do not connect or disconnect the LCD to or from the system when power is on.
Never use the LCD under abnormal conditions of high temperature and high humidity.
When expose to drastic fluctuation of temperature (hot to cold or cold to hot）,the
LCD may be affected; Specifically, drastic temperature fluctuation from cold to hot ,produces
dew on the LCD's surface which may affect the operation of the polarizer and the LCD.
Response time will be extremely delayed at lower temperature than the operating
temperature range and on the other hand at higher temperature LCD may turn black at
temperature above its operational range. However those phenomena do not mean
malfunction or out of order with the LCD. The LCD will revert to normal operation once
the temperature returns to the recommended temperature range for normal operation.
Do not display the fixed pattern for a long time because it may develop image sticking
due to the LCD structure. If the screen is displayed with fixed pattern, use a screen saver.
www.jxlcd.com
www.jxlcd.com
SPEC. NUMBER
-
B2006-5006-O (3/3) A4(210 X 297)
SPEC TITLE
BA101WS2-100 Product Specification
PAGE
20
OF 21
Page 21
PRODUCT GROUP
TFT LCD PRODUCT 0 2011.07.07
9.5 Packaging
Modules use LCD element, and must be treated as such.
-Avoid intense shock and falls from a height.
-To prevent modules from degradation, do not operate or store them exposed directly
to sunshine or high temperature/humidity for long periods.
9.6 Storage
A slight dew depositing on terminals is a cause for electro-chemical reaction resulting
in terminal open circuit. Relative humidity of the environment should therefore be kept
below 60%RH.
Original protective film should be used on LCD‟s surface (polarizer). Adhesive type
protective film should be avoided, because it may change color and/or properties of
the polarizers.
Do not store the LCD near organic solvents or corrosive gasses.
Keep the LCD safe from vibration, shock and pressure.
Black or white air-bubbles may be produced if the LCD is stored for long time in the
lower temperature or mechanical shocks are applied onto the LCD.
In the case of storing for a long period of time for the purpose or replacement use,
the following ways are recommended.
-Store in a polyethylene bag with sealed so as not to enter fresh air outside in it.
-Store in a dark place where neither exposure to direct sunlight nor light is.
-Keep temperature in the specified storage temperature range.
-Store with no touch on polarizer surface by the anything else. If possible, store the LCD
in the packaging situation LCD when it was delivered.
www.jxlcd.com
www.jxlcd.com
REV ISSUE DATE
9.7 Safety
For the crash damaged or unnecessary LCD, it is recommended to wash off liquid crystal
by either of solvents such as acetone and ethanol an should be burned up later.
In the case the LCD is broken, watch out whether liquid crystal leaks out or not. If your
hands touch the liquid crystal, wash your hands cleanly with water an soap as soon
as possible.
If you should swallow the liquid crystal, first, wash your mouth thoroughly with water,
then drink a lot of water and induce vomiting, and then, consult a physician.
If the liquid crystal should get in your eyes, flush your eyes with running water for at
least fifteen minutes.
If the liquid crystal touches your skin or clothes, remove it and wash the affected part
of your skin or clothes with soap and running water.
SPEC. NUMBER
-
B2006-5006-O (3/3) A4(210 X 297)
SPEC TITLE
BA101WS2-100 Product Specification
PAGE
21
OF 21
Loading...
