Top View Shown without Finger-Safe Cover Installed
L2WL1UV
B+
AC LINEMOTOR
B-
J1
CON3
J2
PWR
ST
50/60Hz
F - S - R
CON2
A/M
J1
P2 P3
CON1
X1 X2
P1
DEC/BMINMAXCL ACC COMP
230V 115V
1.25
31.8
(2 Places)
0.5
12.7
0.25
6.4
(10 Places)
0.2
5.1
3.00
76.2
99.0
3.90
3.80
96.5
4.30
109

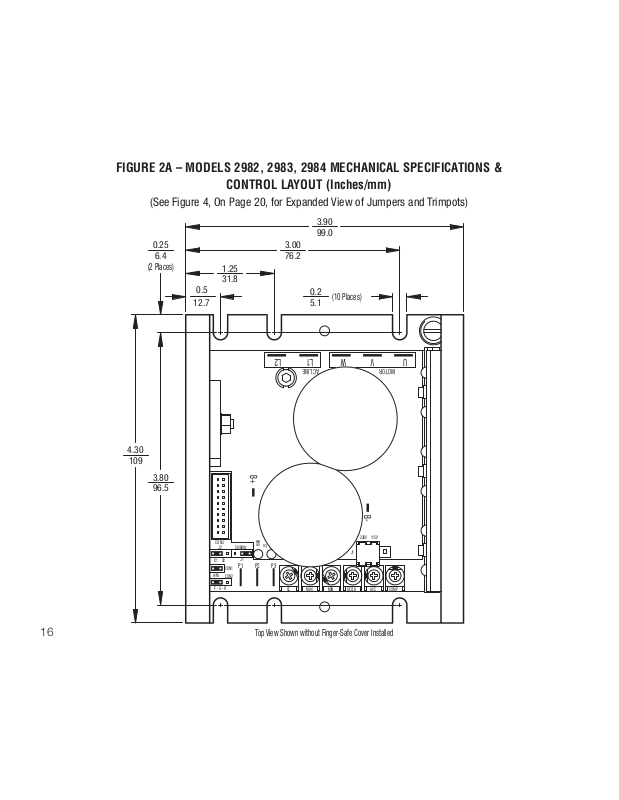

FIGURE 2A – MODELS 2982, 2983, 2984 MECHANICAL SPECIFICATIONS &
CONTROL LAYOUT (Inches/mm)
(See Figure 4, On Page 20, for Expanded View of Jumpers and Trimpots)
17
FIGURE 2B – MODELS 2982, 2983, 2984 MECHANICAL SPECIFICATIONS
(Inches/mm)
(See Figure 4, On Page 20, for Expanded View of Jumpers and Trimpots)
FINGER-SAFE COVER RETAINING CLIPS*
0.2
5.1
(2 Places)
See
Chart
0.95
24.1
3.80
96.5
Side View Shown with Finger-Safe Cover Installed
Maximum Height
Models 2982, 2983, 2984
2.75
70
18

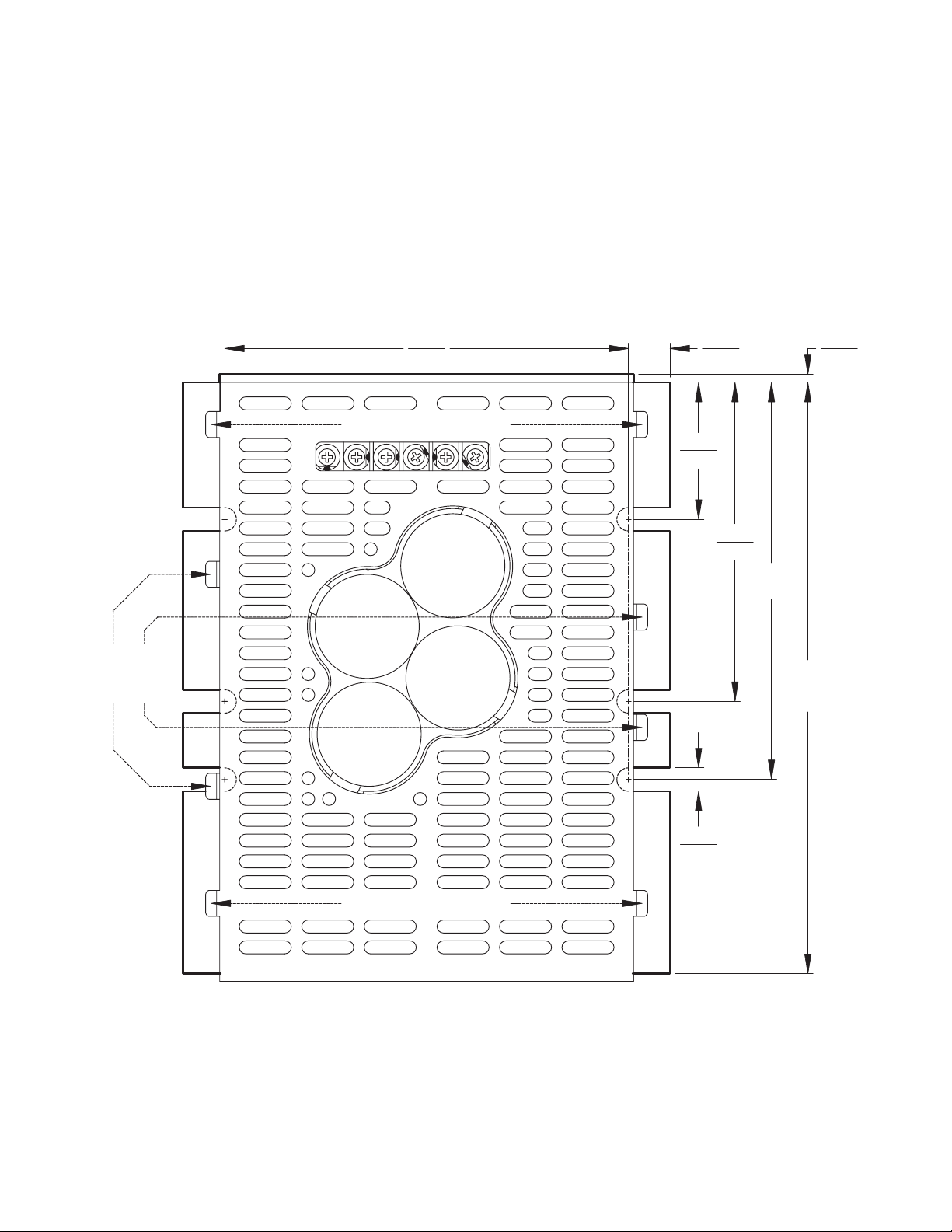

FIGURE 3A – MODEL 2987 MECHANICAL SPECIFICATIONS (INCHES/MM)
(Shown with Finger-Safe Cover Installed)
(See Figure 4, On Page 20, for Expanded View of Jumpers and Trimpots)
DO NOT USE
THESE FOUR
RETAINING CLIPS
3.90
99.0
FINGER-SAFE COVER RETAINING CLIPS
1.32
33.5
0.4
10.2
3.07
77.9
(2 Places)
3.82
97.0
0.08
2.0
(2 Places)
See
Chart A
on page 19
FINGER-SAFE COVER RETAINING CLIPS
0.2
5.1
(6 Places)
19
FIGURE 3B – MODEL 2987 MECHANICAL SPECIFICATIONS (INCHES/MM)
(Shown with Finger-Safe Cover Installed)
(See Figure 4, On Page 20, for Expanded View of Jumpers and Trimpots)
Chart A - Maximum Length Chart B - Maximum Height
Model 2987
4.30
109
4.70
119
See
Chart B
Models 2987
5.00
127
4.40
112
FINGER-SAFE COVER RETAINING CLIPS
