Assembly and operation manual
Nursing care beds

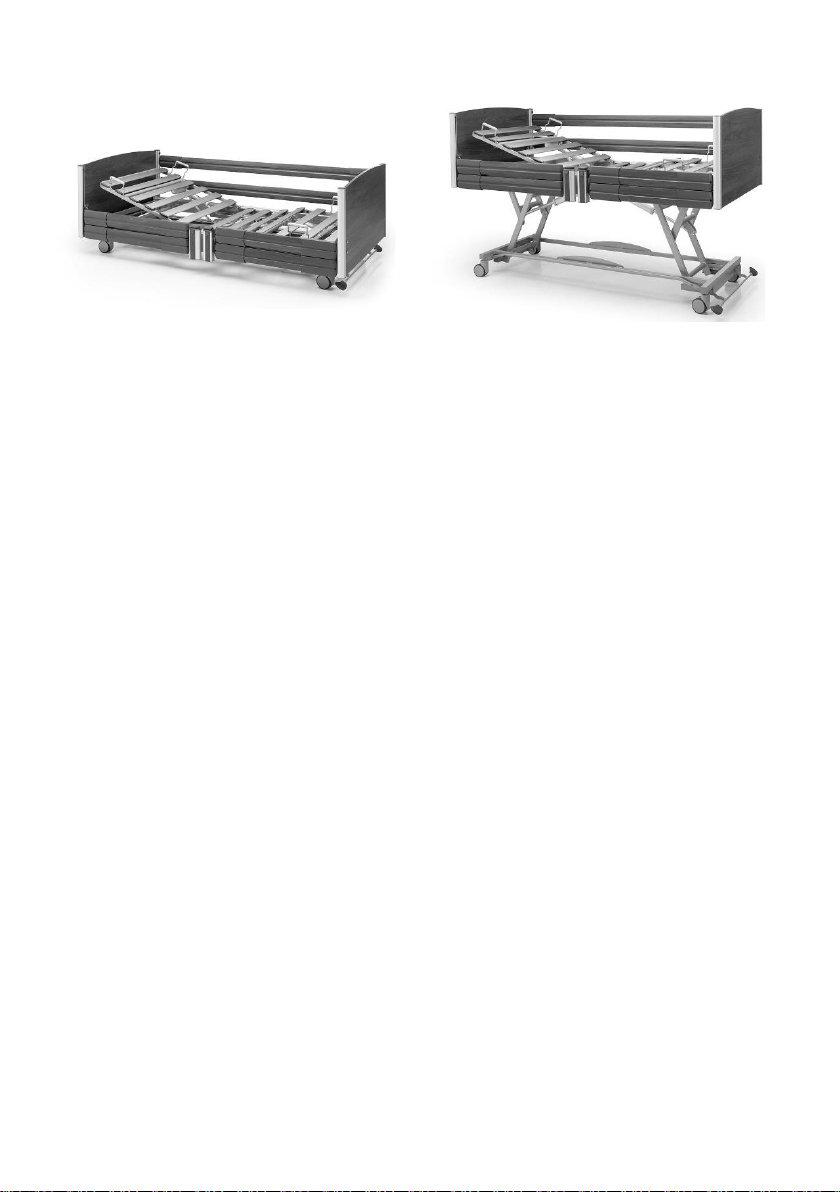

practico alu plus
practico alu SCC
2
Dear valued customer,
with your decision to purchase a nursing care bed from Hermann Bock
GmbH, you are receiving a long-lasting care product with superior functionality at the highest safety level. Our electrically operated nursing care beds
guarantee optimal lying comfort and allow professional care at the same
time. This product was designed with a focus on the elderly, whose confidence must be reinforced and whose life needs protection. With this health
care product, we meet these requirements.
We urge you to prevent potential malfunctions and the risk of accidents by
complying strictly with the safety and operating instructions and by carry-
ing out the necessary maintenance.
Klaus Bock Dr. Stefan Kettelhoit
3
Table of contents
1 Preface and general instructions ......................................................................... 4
1.1 Intended purpose .............................................................................................. 4
1.2 Definition of person groups .............................................................................. 5
1.3 Safety instructions ............................................................................................. 6
1.4 Service life / warranty ....................................................................................... 7
1.5 Requirements for the installation location ....................................................... 7
1.6 Type plate .......................................................................................................... 8
2 General description of the functions .................................................................. 10
3 Electric parts ..................................................................................................... 14
3.1 The drive unit .................................................................................................. 14
3.2 Caution: Electric drive ..................................................................................... 14
3.3 Drives ............................................................................................................... 15
3.4 The external switch mode power supply SMPS .............................................. 15
3.5 The controller .................................................................................................. 16
3.6 The series hand control ................................................................................... 17
3.7 Hand control - lock functions .......................................................................... 19
3.8 Hand control for the domestic environment (practico alu plus) ..................... 19
3.9 Second controller (optional as accessory) ....................................................... 20
3.10 Rechargeable Battery (optional as accessory) ................................................ 21
3.11 Further accessories for the practico alu SCC ................................................... 22
4 Assembly and operation .................................................................................... 23
4.1 Technical data ................................................................................................. 23
4.2 practico alu plus and practico alu SCC ............................................................. 24
4.3 Bed extension .................................................................................................. 31
4.4 Emergency lowering - back part (standard) .................................................... 32
4.5 Emergency lowering - back part (optional) ..................................................... 33
4.6 Change of location .......................................................................................... 34
4.7 Transport, storage and operating conditions .................................................. 34
4.8 Function notes ................................................................................................. 34
4.9 Disposal ........................................................................................................... 34
4.10 Troubleshooting .............................................................................................. 35
5 Accessories ........................................................................................................ 36
5.1 Special dimensions .......................................................................................... 36
6 Cleaning, maintenance and disinfection ............................................................ 37
6.1 Cleaning and care ............................................................................................ 37
6.2 Disinfection ..................................................................................................... 38
6.3 Avoidance of hazards ...................................................................................... 38
7 Guidance and manufacturer's declaration ......................................................... 39
8 Regular inspections with service ........................................................................ 41
4
1 Preface and general instructions
The various bed systems from Hermann Bock meet special requirements for the use in
care and treatment facilities as well as for home care. Reliable functionality and a long
product life make each bed particularly valuable. Our beds need little maintenance with
proper operation and care. Each bed from Hermann Bock must pass quality testing in a
final inspection before it is shipped anywhere. The beds are manufactured according to
the current standards and compliant with the statutory requirements for medically used
beds, and tested accordingly.
The nursing care beds comply with the EN 60601-2-52 standard. The electrical building
components comply with safety standard EN 60601-1 for medical devices. Nursing care
beds are medical devices and are to be assigned to Class 1.
These standards divide the beds in five different areas of use:
1. Intensive care in a hospital; intensive care bed
2. Short-term care in a hospital or other medical facility; patient bed in the hospital
3. Long-term care in medical environment; stationary nursing care bed
4. Care at home, pure so-called “HomeCare bed”
5. Home-care nursing service
1.1 Intended purpose
The nursing care bed is suitable for persons (adults) in need of
care who are at least 146 cm tall. The person's weight must not
exceed 185 kg and must be over 40 kg. The body mass index
(BMI = weight of the person (kg) / body height of the person (m)2)
must be greater than or equal to 17.
The nursing care bed may be used in homes for the elderly or nursing homes and rehabilitation facilities. It is used to alleviate a disability and/or to facilitate the lives of people
who are in need of care or to make the work of their caregivers easier. Furthermore, the
nursing care bed was also designed as a convenient solution for the home care of frail and
elderly people as well as for home care of people with disabilities. Accordingly, the nursing
care beds are designed to be used for the application environments 3 to 5. Any other use
is considered improper and is excluded from a possible liability claim.
The Trendelenburg function may be used exclusively under supervision of medical professionals. The beds, which are determined for application environment type 4, are equipped
with a hand control which is unable to operate the Trendelenburg function.
5
The nursing care bed is not suitable for use in hospitals. If the nursing care bed is equipped
with open wheels, the nursing care bed is suitable for the transport of patients. The nursing care bed is mobile with the patient resting in it. To prepare for this, lock the castors
and move the lying surface to the lowest horizontal position. Unlock the castors and move
the bed. After the transport, lock the castors. If the nursing care bed is equipped with a
roller cover, the bed is only suitable to be moved for cleaning purposes inside the patient’s
room or to allow access to the patient.
The bed is suitable for the re-use. Please observe the instructions for cleaning, care and
disinfection in these assembly and operation manual. Special attention must also be paid
to the information regarding the inspections.
Attention: The beds come with no special connection options for a potential equalisation.
Electrical medical devices connected to the patient intravascular or intracardiac may not
be used. The operator of the medical products has to ensure that the combination of the
equipment meets the requirements of EN 60601-1.
This user manual contains safety instructions. All persons working with the beds must
be acquainted with the contents of these instructions. Improper operation can result in
personal injuries.
1.2 Definition of person groups
Operator
Operators (e.g. medical supply stores, specialist dealers, facilities and cost units) include
all physical or juridical persons, who use the beds or have the beds used for medical purposes. The briefing on the use of the product shall generally be conducted by the operator.
User
Users are persons whose training, experience or briefing on the product allows them to
operate the nursing care bed or carry out works on it. The user is able to recognize possible
hazards and/or to avoid them and to assess the health condition of the patient.
Patient/resident
Person with one or more disabilities, one or more activity restrictions, one or more participation restrictions or a combination thereof.
Qualified personnel
Employees of the operator are referred to as qualified personnel. They are entitled to
deliver the nursing care bed, assemble, dismantle and transport it, on the basis of their
training or instructions. Besides knowing how to operate, mount and demount the nursing
care bed, these persons must be instructed according to the guidelines concerning the
cleaning and disinfection of the nursing care bed.
6
1.3 Safety instructions
The intended use/operation of all moving parts is as important for the safety of the person
in need of care as well as for the relatives and the caregivers/nursing staff to avoid potentially dangerous situations. This requires the correct installation and operation of the bed.
The individual physique of the person in need of care as well as type and the extent of
their disability must be taken into account by all means when operating the bed.
Avoid dangers, accidental motor adjustments and incorrect operation by using the disabling function. When the operator, e.g. the nursing staff/caregivers or the care providing
relative leaves the room, the entire operating functions of the bed should be disabled via
the hand control. This is achieved by operating the key of the hand control. First, lower
the lying surface to the lowest position and activate the lock function with a twist of the
key, located in the key lock on the backside. Remove the key and check the function of
the hand control for safety reasons. Make sure that it is indeed locked.
These recommendations apply particularly:
– if the person in need of care cannot operate the hand control safely due to
certain disabilities;
– if the person in need of care or the caregivers could be at risk due to those
accidental adjustments;
– if the side rails are in a raised position and there could be danger of trapping
and crushing,
– if children are unsupervised in the room with the bed.
Always make sure that the hand control (when not in use) is securely hooked in the support hook at the bed and cannot drop.
As a general rule, the bed should be operated by instructed nursing staff/caregivers, relatives or in attendance of instructed persons.
When adjusting the lying surface, it is particularly important to ensure that no limbs are
placed within the adjustment range of the side rails. If the side rails are adjusted, pay
attention to the correct lying position of the person in need of care.
Prior to making any electrical adjustment, it should, as a general rule, be made sure that
no limbs are positioned in the adjustment range between the chassis and the head or foot
part, especially that there are no persons or animals in the area between the floor and the
raised lying surface. Danger of being crushed is particularly high in these areas. Always
beware of objects that are located close to or even below the nursing care bed. This can
lead to damages.
7
The permitted person’s weight depends on the total weight of the equipment that has
been mounted to the bed (mattresses and other electronic medical devices). For safe
working load, please refer to the type plate on the lying surface frame of the bed.
1.4 Service life / warranty
This nursing care bed was developed, designed and manufactured for safe operation over
a long period of time. With proper operation and maintenance, this nursing care bed has
an expected service life of 15 to 20 years. The service life depends on operating conditions
and frequency.
Attention: Unauthorised technical changes to the product voids all warranty claims.
This product is not approved for the North American market, particularly not for the
United States of America (USA). Distribution and use of the nursing care bed in these
markets, including through third parties, is prohibited by the manufacturer.
1.5 Requirements for the installation location
The company Hermann Bock GmbH is not liable for damages which might arise from the
daily usage on the floor.
To avoid floor indentations, floor should correspond to the recommendations of the FEB
- Fachverband der Hersteller elastischer Bodenbeläge e.V. (Association of Elastic Floor
Coverings Manufacturers). To do this, the technical information FEB No. 3 can be referenced.
Hazard note from Bock
Simultaneous use of electrical appliances particularly in the vicinity of the operational bed may
result in small electromagnetic interactions of these electric devices, e.g. static noise in the radio. In such rare events, increase the distance of the devices. Do not use the same socket or
temporarily switch off the interference source and/or the disturbing or disturbed device.
If the bed should be operated with electrical medical equipment (contrary to its intended use),
the functions of the bed must first be disabled via the integrated locking function in the hand
control for the duration of the application.
8

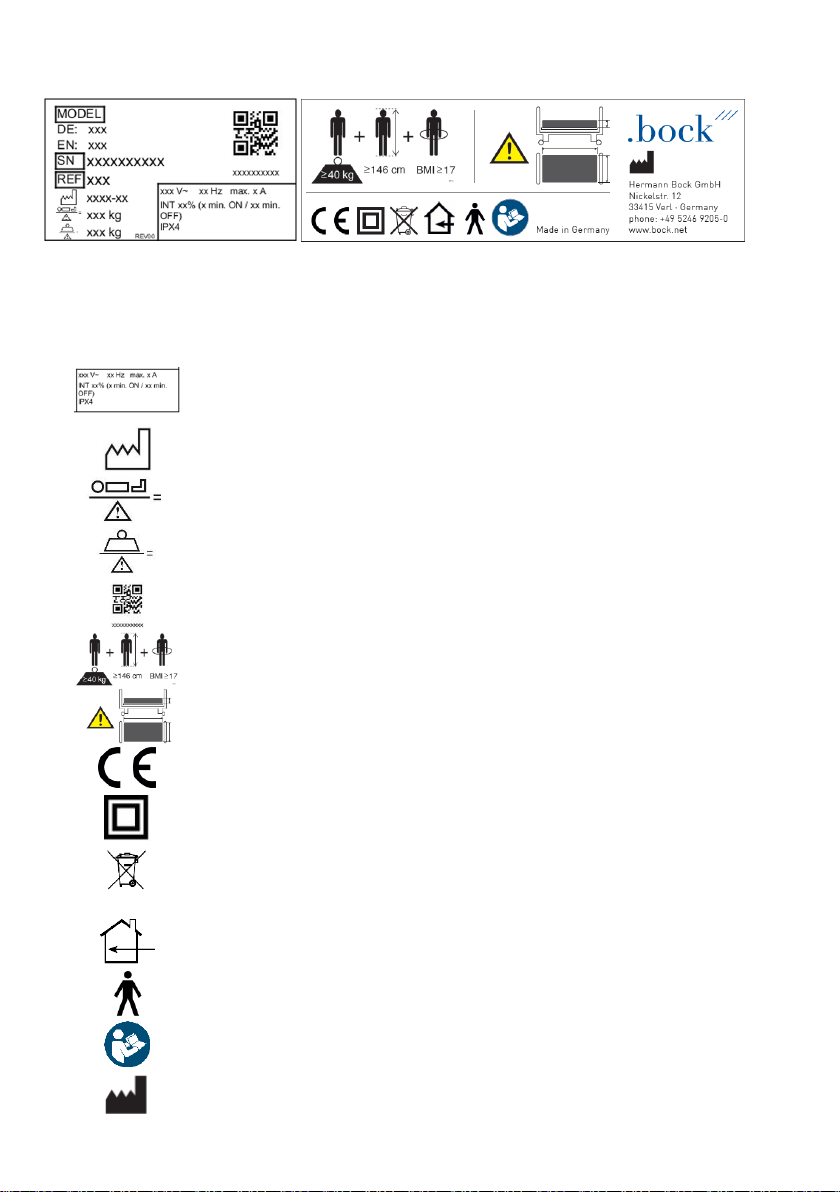

1.6 Type plate
Each nursing care bed is marked with an individual type plate. Either there is only one
sticker on your nursing care bed (Fig. 1, previous nursing care bed models) or there are
two separate type plates (Fig. 2, current nursing care bed models) on your nursing care
bed.
Type plate for previous nursing care bed models
(1) Model designation
(2) Manufacture date: Day, month and year
(3) Serial number: Order number - running number
(4) Mains voltage, mains frequency and power input
(5) Duty cycle
(6) Drive protection class
(7) Maximum patient weight / safe working load
(8) Manufacturer
(9) Symbols (located on the right side)
Conformity mark according to the medical device directive
IPX4
Protection of electrical equipment against splashing water
Medical application part type B
Use only in dry rooms
Protection class II (double insulation, insulated for protection)
Within the European Union, this product must be disposed via the
separated municipal waste. Product may not be disposed
of as household waste.
Symbol for maximum patient weight
Symbol for safe working load
Symbol for observance of the user manual
9
Type plate for current nursing care bed models
Model
Model designation in German (DE) and English (EN)
SN
Serial number
REF
Item numbers
Mains voltage, mains frequency, power input,
Duty cycle (INT)
Drive protection class
Date of manufacture (year-month)
Patient weight
Safe working load
Machine readable serial number
Patient population
Follow the instructions appropriate for mattress size and thickness
Conformity mark according to the medical device directive
Protection class II (double insulation, insulated for protection)
Within the European Union, this product must be disposed via
the separated municipal waste. Product may not be disposed
of as household waste.
Use only in dry rooms
Medical application part type B
Symbol for observance of the user manual
Address of the manufacturer
10
2 General description of the functions
Construction design and function
Corrosion protection
The Hermann Bock GmbH nursing care beds are developed and constructed in such a way
that they can function long and safely. For this reason, all materials that may corrode are
protected accordingly. All metal parts are equipped with a surface protection. The steel
parts are either galvanised or stove-enamelled with a PES powder coating and the aluminium profiles are anodised.

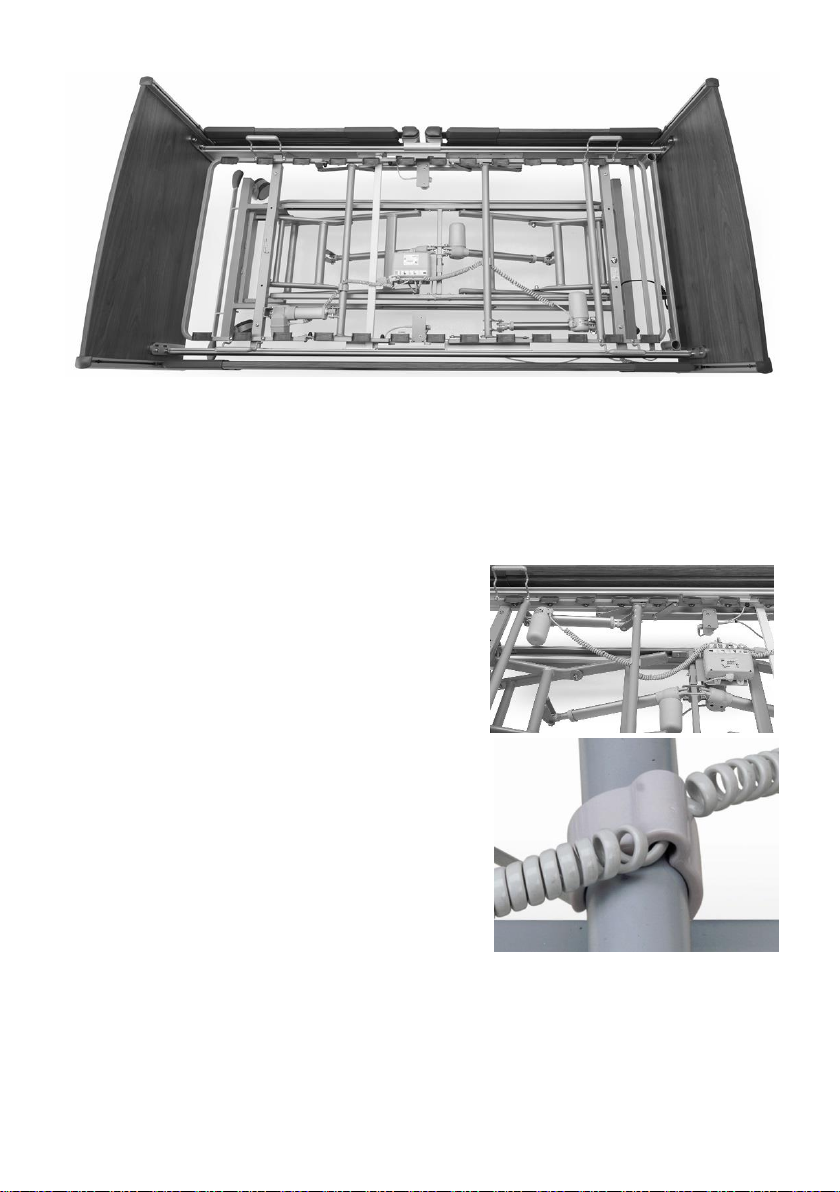

The lying surface with 4 function areas
The lying surface consists as standard of a slatted comfort frame (can alternatively be fitted with aluminium slats or special suspension systems) and is divided into four functional
areas: Backrest, fixed seat part, upper and lower leg rest.
The comprehensive
lying surface frame
is welded from a
steel / aluminium
tube. The steel
tubes are stoveenamelled with a
PES-powder coating. The electric
variable height adjustment of the lying surface is carried out with protective
low-voltage DC motors (29 to 35V), and controlled with the smooth keys of the hand controller. The backrest can be adjusted electrically. The leg part consists of a foot support
that is divided into two parts. With a touch of a button on the hand control, each individual
position can be adjusted continuously. In case of a power failure the back part that can be
lowered by loosening the tube clip.
The chassis
The height adjustment of the bed is performed through a base frame with two individual
drives. The surface of the tubular steel structure is stove-enamelled with a PES-powder
coating.
The side rail
Each nursing care bed can be equipped on both sides with two side rails at a special safety
height. The side rails can be lifted and lowered through a rail. The sliding pieces run particularly smoothly and quietly with an impact damper, and each end is fitted with a functional cap. The side rail can be easily operated through an ergonomically designed release
1 long back part
2 fixed seat part
3 upper leg rest
4 lower leg rest
11
button. Depending on the model, shorter or longer divided side rail variations are available.
Operating the telescopic divided side rails
Each side rail element can be adjusted independently from the rest
of the side rail parts. The release buttons for adjustment are on the
bottom of the telescopic post and on the top of the appropriate end
panel of the nursing care beds, right next to the metal guides for the
side guard rail bars.

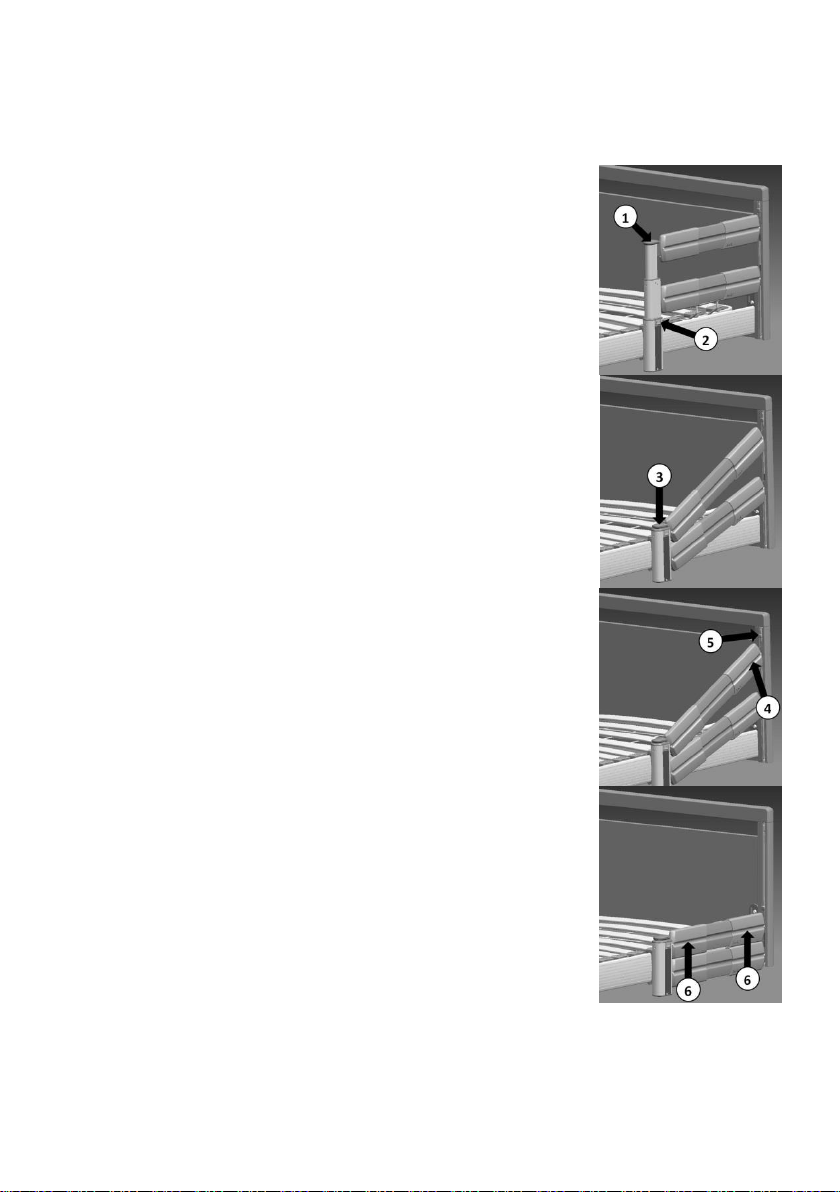

To lower the side rail element, hold the upper knob (1) of the middle
post with one hand, lift it up slightly, and with the other hand press
the release button (2) on the middle post in the inner direction.
The side rail opens at the corresponding place and can be easily lowered downwards as far as it will go (3). The side rail is now diagonal.
To also lower the other side, please hold the side rail on the side of
the end panel at the gripping groove (4), and slowly raise the side
rail somewhat. Now, you can fully press the release button (5) and
slowly lower the side rail.
Please observe:
Be sure to raise the side rail slightly, and only then press
the release button! Failure to do so will result in damage to the release.
The side rail is now in the lowered position.
If the side rail element should be placed in the top position to aid in
fall prevention, reach with both hands in the centre of the gripping
groove (6) in the upper side guard rail, and pull it upwards until you
hear it click into place at both ends. The side rail is now in a pulledup position.
12

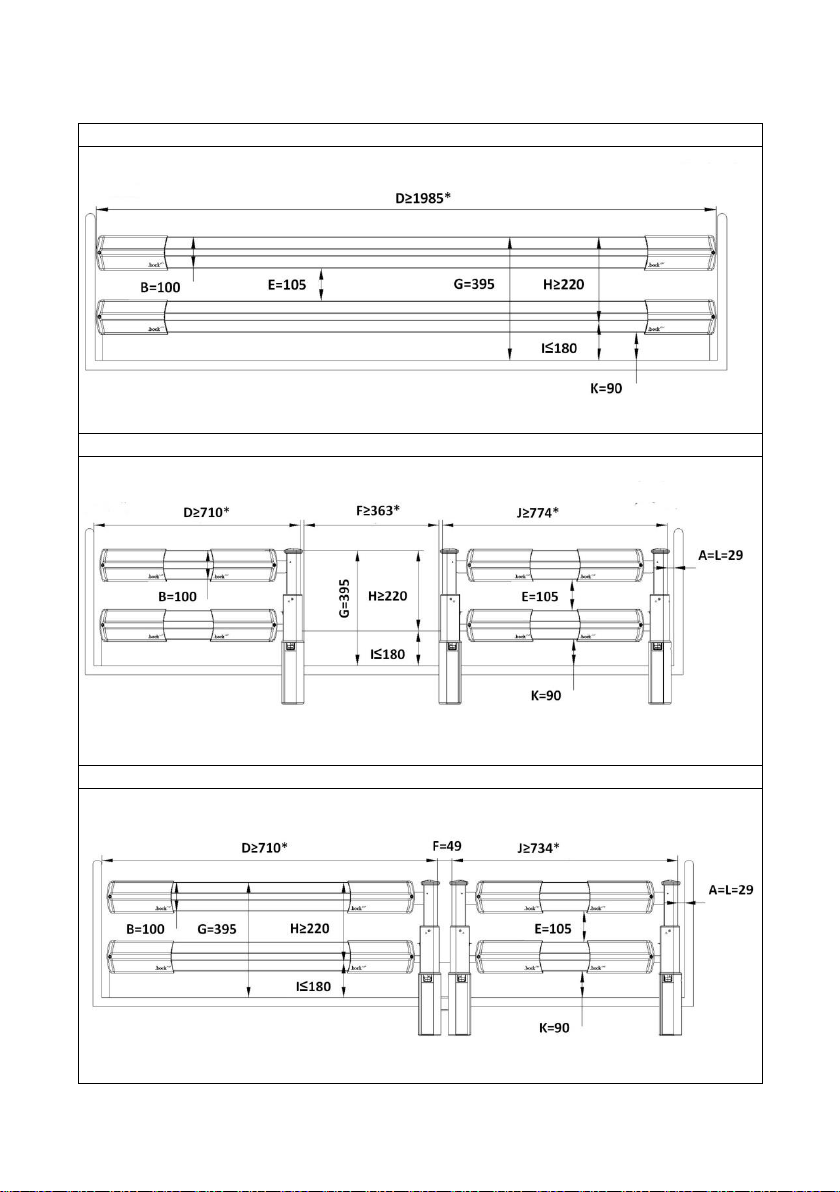

Fig. 1: Continuous wood side rail
Fig. 2: Telescopic wooden side rail, solo post in the middle
Fig. 3: Telescopic wooden side rail, double post in the middle
All dimensions in mm.
13
(*) Depending on the length of the lying surface. The single post at the head and leg end is optional. The
dimension in brackets is optional.
Legend
A: Distance between the head part and the side rail
B: Height 1 of side rail
C: Height 2 of side rail
D: Width 1 of the side rail
E: Distance between the elements within the side rail
F: Distance between the divided side rails
G: Distance between the lying surface and the upper edge of the side rail
H: Height of the top edge of the side rail above the mattress without compression
I: Thickness of the mattress for the intended use
J: Width 2 of the side rail
K: Smallest dimension between side rail and lying surface (or the panel, if any)
L: Distance between the foot part and the side rail
Item numbers
Designation item no.
Fig. 1: Continuous wood side rail
Wooden side rail (two bars) 91703
Fig. 2: Telescopic wooden side rail, solo post in the middle
Wooden side rail (two bars) 91868
Fig. 3: Telescopic wooden side rail, double post in the middle
Wooden side rail long head part (two bars) 91704
Wooden side rail short foot end (two bars) 91705
Hazard note from Bock
Use only original Bock side rails, which are available as accessories for every nursing care beds.
Use only technically flawless and non-damaged side rails with the permissible gap dimensions.
Make sure that the side rails are engaged securely.
Before installation of the side rail and each new use, inspect all mechanical parts on the bed
frame, and all parts of the side rails, and all parts which secure the side rails, for any possible
damages.
The operation of the side rail should be done with great care. Fingers can be quickly pinched
between the longitudinal pieces.
14
3 Electric parts
3.1 The drive unit
The drive unit consists of individual drives for the electrical adjustment of the back and
leg rest part. The level adjustment is performed with two individual drives that are attached to the chassis. The adjustment range of these individual drives is determined via
Hall sensors. The motors and the hand control are connected to the inner control box. A
power supply converts the input voltage into a low voltage power of max. 29 VDC (direct
current). The motors, controller and the hand control function with this non-hazardous
low protective voltage. The cables are double-insulated and the mains plug has a primary
fuse.
A power adjustment provides constant function speed. Therefore, the safety functions
comply with protection class II and the moisture barrier protection type IPX4.
The maximum duty cycle is specified on the (type plate) of the bed. For example, 10% duty
cycle (2 min. ON / 18 min. OFF) means that any electronic adjustment can be performed
for a max. of 2 minutes within a timeframe of 20 minutes (protection against overheating).
If the maximum setting time of two minutes is exceeded by two minutes (e.g. someone
plays continuously with the hand control), which could lead to overheating of the controller or drives, the thermal fuse immediately shuts off the power supply to the bed. After a
cooling time of approx. one hour, the power supply in the controller is automatically restored.
3.2 Caution: Electric drive
The electrically operated nursing care bed enables the person in need of care to support
the recovery process psychologically and physically and at the same time relieve pain
through its various functions. Electrically operated beds that are medical products need
special care in regards to constant safety checks. This includes safety-conscious handling
of the bed, daily inspection of electrical equipment and proper maintenance and cleaning.
To prevent damages to the cables, wiring should be conducted outside of the area in
which damages could be caused. Furthermore, avoid touching the sharp parts. To prevent
injury through an electric shock, avoid the possibilities of too high contact voltages. These
circumstances may especially be the case if the power cable is damaged, if inadmissible
and excessive leakage currents exist, or if liquid was spilled into the motor housing, e.g.
during improper cleaning. This damage can cause malfunction of the controller, which
could result in unwanted movements of single bed elements, posing a risk of injury for the
operator and the person in need of care.
15
3.3 Drives
Hermann Bock GmbH equips nursing care beds with drive systems from the company
DewertOkin GmbH.
Each drive consists always of four main components.
– Housing
– Motor
– Gear
- Spindle with nut
The housing principle of the individual drive guarantees the permanent function of all
drive components. Through a detailed interior structure, the construction of the housing
interior creates an essential prerequisite for the precise integration of the drive technology, as well as a trouble-free assembly/disassembly.
3.4 The external switch mode power supply SMPS
The plug-in part of the external switch mode power supply (SMPS) is an electronic transformer, which warms up only to a minimum degree under load and it is equipped with
electronic performance monitoring. The result is a constant voltage up to the maximum
load (no loss of speed) and a high level of protection against overloading. The external
transformer ensures safety right from the socket because it converts the voltage directly
into the 29V safety low-voltage which is used to actuate the bed. It is connected via plug
coupling to the mains supply line feeder cable and can be replaced separately if defective.
The plug-in part of the external switch mode power supply complies with the European
directives for electrical household appliances. In standby mode, it also has a low energy
consumption of maximum 0.5 Watt and can be used internationally with variable input
voltages from 100 V to 240 V. Electromagnetic alternating fields are not measurable on
the SMPS adapter.
The external switch mode power supply
16
3.5 The controller
Practico alu plus controller
The practico alu plus is equipped with a controller system from DewertOkin GmbH. Four
drives can be connected to the controller (sockets 3,4,5 and 6). The colour coding can be
found in chapter 4 "Assembly and operation". Additionally, a floor lighting can be connected to the connection socket for the hand control (socket 2). Please make sure that a
dummy plug is attached to the connector for the battery (socket 7) if no battery is connected. A jumper plug must be fitted to the connection for the additional control element
(socket 1). The pigtail connector (not in Fig.), which is the cable that is run from the top of
the controller, can be used to connect a reading lamp.
Practico alu SCC controller
The practico alu SCC is equipped with a controller system from Hermann Bock GmbH. The
socket 1 is a CAN-BUS connection which can also be used to connect a sensor pad for bedoff detection. Further details can be found in the separately supplied assembly and operation manual of the Smart-Care-Control unit. A Y-cable is plugged into the socket 2, which
is used to connect the floor lighting and the reading lamp. The supplied hand control must
be connected to socket 3. The connector sockets 4, 5, 6 and 7 are intended for the individual drives in the scissor and lying surface.
17
3.6 The series hand control
The series hand control is equipped with a built-in locking device, which allows the caregivers to lock the hand switch via a key completely or partially for its operation.
The lockable hand control, first-fault protected
The base functions can be controlled through the ten operation keys on the hand control.
The four symbols in the middle indicate a special function that can be performed by simultaneously pressing the adjacent keys. The individual keys are marked with corresponding symbols. The servomotors run until as long as a corresponding key is pressed and held.
A coiled cable allows the necessary freedom of movement while operating.
With the rear-mounted suspension unit, the hand control can be attached to the side rail
- particularly when cleaning and during the maintenance of the bed. Thus, a possible disruptive position of the hand control can be avoided by simply attaching it to any preferred
spot on the bed.
Hazard note from Bock
All drive components must not be opened!
Troubleshooting or exchanging single electrical components may only be performed only by
special qualified personnel.
Hazard note from Bock
The motors meet the water protection standard IPX4. Do not squeeze/crush the cables. Adjustment of moving parts may only be used for the intended use. Hermann Bock GmbH assumes no
liability for unauthorized technical changes.
Hazard note by Bock
Do not try to fix failures on the electrical equipment itself. It could be fatal! Either call the customer service of Hermann Bock GmbH or an authorised/licensed electrician who conducts the
troubleshooting in compliance with all relevant VDE regulations and safety regulations.
18
Function keys:
The following described remaining travel must only be carried out with the practico alu
plus nursing care bed!
Reset: Reset motion is carried out by pushing keys (7) and (8) simultaneously. In doing so,
after approx. 8 seconds, the bed moves slowly in the lowest position. After a signal beep
from the controller, reset is fully carried out.
With the practico alu SCC nursing care bed it is possible to reset all motor positions by
moving all motors to the lower position, with an actuation of the respective button for
about 1 second after the lower control limit switch has been reached.
(*) The comfort sitting position just moves upwards. All adjusted positions can be lowered
by pressing key 13.
(1)
Back part upwards
(2)
Back part downwards
(3)
Floor lighting:
Push keys (1) and (2) simultaneously
(4)
Lower leg part upwards
(5)
Lower leg part downwards
(6)
Lightening / reading lamp:
Push keys (4) and (5) simultaneously
(7)
Lying surface upwards
(8)
Lying surface downwards
(Interim stop at the 37.5 cm exit position)
(9)
Reset (only applies to practico alu plus):
It is absolutely necessary to carry out this work during
initial commissioning and after disconnection from
the power supply!
(The reset motion is carried out by pushing keys (7)
and (8) simultaneously. In doing so, after approx. 8
seconds, the bed moves slowly in the lowest position.
After a signal beep from the controller, reset is carried
out completely.)
(10)
Comfort sitting position upwards (*)
(11)
Foot-lowering position (anti-Trendelenburg)
(12)
Head-lowering position (Trendelenburg)
(13)
Lying surface, back and lower leg part downwards
(Interim stop at the 37.5 cm exit position)
(14)
Without function
19
3.7 Hand control - lock functions
The hand control comes with an integrated disabling function
that can be activated and deactivated with the corresponding
key. To disable the entire electrical function, insert the key in
the keylock on the backside and turn the lock function on or
off with a corresponding twist of the key.
A: Socket key
B: Release hand control keys
C: Head-lowering position (Trendelenburg) blocked
D: Release hand control keys
3.8 Hand control for the domestic environment (practico alu plus)
In the domestic environment, the head-lowering position may not be used. Beds for the
application environment 4 are supplied with the hand control shown here. This hand control also has a built-in locking device, as described in the previous section. However, in
position C the buttons (11) comfort sitting position and (12) low foot support are locked.
As described in the previous section, the reset operation is performed by simultaneously pressing keys (7) and (8).
(1)
Back part upwards
(2)
Back part downwards
(3)
Floor lighting:
Push keys (1) and (2) simultaneously
(4)
Lower leg part upwards
(5)
Lower leg part downwards
(6)
Ambient lighting:
Push keys (4) and (5) simultaneously
(7)
Autocontour upwards
(8)
Autocontour downwards
(9)
Lying surface upwards
(10)
Lying surface downwards
(Interim stop at the 58 cm exit position)
(11)
Comfort sitting position upwards (*)
(12)
Foot-lowering position (anti-Trendelenburg)
(13)
Low function:
Push keys (11) and (12) simultaneously
20
3.9 Second controller (optional as accessory)
The nursing care bed can optionally be equipped with an additional controller.
For this purpose a second control box is mounted in the bed, which is connected to socket
2 of the controller. The hand control in socket 1 and the second controller in socket 2 are
plugged into this second control box. Sockets 3, 4 and 5 remain unassigned and are
equipped with a blind plug.
Operation:
To control the nursing care bed with the control panel, the keys must be released by pressing the "START" key (1). Now all functions can be executed that you can also find on the
hand control. After adjusting the nursing care bed, you can press the "STOP" button to
activate the key lock immediately, otherwise it will be activated automatically after some
time of non-use.
Locking of functions:
You can use the second control panel to lock individual functions. To do this, press the key
with the symbolic lock (3). Now you can select individual functions. The function is not
disabled when the respective control lamp is lit. If the respective control lamp does not
light up, the function is disabled. These functions are then disabled on the control panel
and on the hand control. After you have locked all the necessary keys, you can confirm
your selection by pressing the "START" or "STOP" key. The settings remain saved.
ATTENTION: If certain functions have been locked on the hand control, they are not
locked on the second controller. These functions must be locked separately here.
Hazard note from Bock
Do not exceed the maximum duty cycle of 2 minutes. Observe a subsequent break of at least
18 minutes by all means.
21
3.10 Rechargeable Battery (optional as accessory)
The battery serves as a mains-independent reset function. No warranty shall be provided
for the functioning of the drive in the event of a power failure.
Fully charge the battery for at least 24 hours before the first use. The built-in rechargeable
batteries only reach their full capacity after 5 to 10 charging and discharging cycles.
As long as the controller is supplied with mains voltage, the automatic charging circuit
ensures a permanent operational readiness. After using the drive system independently
from the mains power, the battery should be recharged immediately by re-establishing
the mains connection.
When the battery voltage reaches the cut-off threshold, the drive system is completely
deactivated. The deep discharge protection protects the battery from possible damages
that could result from failure to observe the discharge warning. If the voltage of the battery reaches the threshold of the deep discharge protection warning during driving, an
acoustic signal sound. The battery should be
charged immediately when the acoustic signal
sounds, but the drive can still be moved for a short
time.
Technical data
AG7 rechargeable battery
Input voltage
24V DC
Capacity
1.2 Ah
Fuse
T 15 A
Degree of protection
IPX4
Battery type
Lead fleece
Charge cut-off voltage
29 V DC
Charging time
approx. 14 hours
Service life
approx. 1000 charging cycles
Self-discharge
approx. 6 months
22
3.11 Further accessories for the practico alu SCC
For information about further accessories which can be connected to the practico alu SCC,
please refer to the separately supplied assembly and operation manual.
Hazard note from Bock
Note the idle time of the battery. This must rest for at least one hour prior to commissioning,
removal and replacement of the battery.
There is a danger of electric shock! Before mounting, be sure to disconnect the mains plug of
the drive from the socket! Make sure that the mains plug is accessible at all times.
To increase operational safety, carry out the following measures before initial commissioning
or after extreme mechanical loads: Check the housing for damages. If the housing show signs of
damage, or if the unit heats up excessively: Then disconnect the battery from the controller and
shut down the drive system.
Do not open or destroy the battery.
Do not expose the battery to heat or open fire. Avoid storage in direct sunlight.
If the battery is leaking and there is a contact with the leaking liquid, rinse the liquid off thoroughly with water and seek medical attention immediately.
Dispose of the battery in accordance with the legal regulations for used batteries and rechargeable batteries,
as these may not be disposed of with household waste.
Maintenance: Perform regular visual inspections (at least every 6 months). Pay attention to possible damages on the housing, and check the plug connections and the cables for damages,
crushed sections or shearing.
Maximum storage time 6 is months at the recommended storage temperature. Afterwards, the
battery should be
charged again. At higher storage temperatures, the battery should be charged at an earlier
point in time. This is to avoid a deep discharge, which could lead to an irreparable damage
of the battery.
Hazard note from Bock
Bed models with roller covers are not suitable for the transportation of the patient. The beds
must be only moved for cleaning purposes inside the patient’s room or to allow access to the
patient.
23
4 Assembly and operation
4.1 Technical data
Technical data
practico alu plus
practico alu SCC
Lying surface dimension: cm
90 x 200
Outer dimension: cm
101.5 x 208.5
Outer dimensions of the wood end panel type 20: cm
101.5 x 210
safe working load: kg
220
max. Weight of person: kg
185
Height adjustment: cm
25 - 81
Length of backrest: cm
88
max. Angle of incidence to horizontal:
- back part
70°
- Lower leg part
20°
- Trendelenburg position
15°
Side rail height with spring strips: cm
39.5
Side rail height with ripolux neo®: cm
35
Selection options for side rails:
- Continuous wood side rail
•
- Telescopic wooden side rail
•
Lifter bottom space clearance: cm
> 15
Sound level: dB(A)
< 65
Weights:
Total incl. continuous Wood side rail: kg
135
Lying surface: kg
46.8
Chassis (open role, ZV): kg
55
Wood end panel (type 22): kg
8.6
Continuous wood side rail: kg/set
8.1
Telescopic wood side rail: kg/set
11.2
Electric data
Input voltage: V
100-240
Frequency: Hz
50/60
max. power consumption: A
3.5
All parts and data are subject to a constant further development and may therefore differ from
the mentioned data.
24
4.2 practico alu plus and practico alu SCC
A bed for all circumstances that unifies technology and comfort. Technically perfected
down to the last detail: The practico alu plus and the practico alu SCC can be extended
without any tools, and therefore individually adapted to patients. It is really easy: The fully
ergonomic, real bed extension is inserted in the blink of an eye, as described at the end of
this chapter. The side rails are provided for all lengths. These nursing care beds provide a
high degree of comfort to frail people, patients who need care and people with disabilities,
thus facilitating an optimal care through a high lying comfort and an easy operation.
- practico alu plus and practico alu SCC are not intended to be used in hospitals.
- If the practico alu plus or practico alu SCC are equipped with open wheels, the
nursing care bed is suitable for the transport of patients. The bed is mobile with
the patient resting in it. To prepare for this, lock the castors and move the lying
surface to the lowest horizontal position. Unlock the castors and move the bed.
After the transport, lock the castors. If the nursing care bed is equipped with a
roller cover, the bed is only suitable to be moved for cleaning purposes inside the
patient’s room or to allow access to the patient.
- The nursing care bed is suitable for persons (adults) in need of care who are at
least 146 cm tall. The person's weight must not exceed 185 kg and must be over
40 kg. The body mass index (BMI) must be greater than or equal to 17.
- Under certain circumstances the practico alu plus or practico alu SCC can be used
(if necessary) for medical purposes with other electric medical equipment (e.g.
suction devices, ultrasonic humidifiers, food systems, anti-bedsore systems, oxygen concentrators and similar devices). In this event, disable all bed functions for
the duration of the application via the integrated disabling function.
Attention: The bed has no special connection options for a potential equalisation. Electrical medical devices connected to the patient intravascular or intracardiac may not be
used. The operator of the medical products has to ensure that the combination of the
equipment meets the requirements of EN 60601-1.
25
practico alu plus and practico alu SCC preparation for operation
Remove all packaging from the bed and
place chassis on a free and flat surface.
Place the lying surface on top of the chassis.
Pay attention to the head and leg end.
This Fig. shows the central locking foot pedal
on the left side of the chassis, which must be
located on the foot end of the lying surface.
Slide the lying surface on the chassis so that
the holes are aligned on top of each other.
Attach the lying surface using the 4 screws
provided (cylinder head screws M8x45) and
the 4 nuts.
Now, route the lying surface motor cables and the cable of the hand control safely below
the lying surface up to the control box. Ensure that the cables cannot be not clamped or
damaged in any way. To simplify the cable routing, you can remove some of the panels from
the lying surface frame.
26
Attention: The following note only applies to the alu practico plus: If your bed is factoryequipped with an floor lighting, you must insert the hand control into the free socket of one
of the two floor lighting units. The floor lighting is already mounted on the lying surface
frame. In this case, the plug of the floor lighting must be inserted into the socket for the
hand control (red mark) on the controller. Ensure that all sockets are subsequently covered
with the locking caps, in order to guarantee the protection class requirements.
Cable routing from the head part motor to
the controller.
Please use the clip to attach the cable centred on the head lifter part.
27
Cable routing from the foot part motor to
the controller.
Please use the clip (see upper Fig.) to attach
the cable centred on the foot lifter part on
the height level of the controller.
Practico alu plus and practico alu SCC nursing
care bed socket assignment on the control
box:
Red: hand control or
floor lighting
Black: head part of lying surface
Yellow: foot part of lying surface
Blue: Scissor drive - head
White: Scissor drive - foot
Please note the descriptions of the controllers in Chapter 3.
After all plugs have been connected to the
controller, you can clip the supplied cover
cap on the controller so that the connectors
are securely fastened.
Route the power cable in the middle across
the frame of the undercarriage, all the way
to the head end piece. There, please screw
on the cable with the help of the strain relief.
IMPORTANT!
Please perform a reset of all the motors,
before putting the bed into operation.
This process is described in Chapter 3 on
page 18.
28
If the mounting latches for the end panels
are not yet mounted, slide them into the longitudinal bars of the lying surface, and attach
them from below with the enclosed
threaded rods.
Now, attach the mattress brackets using the
supplied self-tapping screws, if these were
not factory-installed (depending on shipping
method of the nursing care bed).
Subsequently, raise the chassis for the further assembly.
Actuate the central parking brake to prevent
an unintentional movement of the bed.
Bolt the end panels and the lying surface together.
29
Telescopic side protection:
Place the outer posts at the end of the lying
surface and the middle posts in the centre on
the longitudinal frame of the lying surface.
Insert the side guard rails onto the mounting
latches and screw them together.
The markings on the side rail receptacles
must point downwards.
Align the middle post sideways and tighten it
from below.
30
Inserting the decorative foil into the telescopic posts
Take the decorative foil (1) and push it from
below through the slot in the plug (2) into
the aluminium profile of the side rail post (3).
Please make sure that the correct side of the
decorative film is facing outwards. This will
be difficult to remove later. Push the decorative foil in until it is flush with the button (4).
On the lower plug (2) there is a snap-in lug
which prevents the decorative foil from falling out.
For continuous side rails:
Loosen the screws of the insertion at the
head end piece and pull it out slightly.
Now, insert the side guard rails onto the
mounting latches and screw them together.
After all side guard rails have been installed,
slide the end panel back and tighten the
screws again.
Check all screw connections again before operating the bed.
31
4.3 Bed extension
On the foot part, remove the two lower
screws of the end panel attachment.
Pull the foot end piece out, approx. 220
mm.
Take the foot bracket extension (availa-
ble as accessory) and remove both attached aluminium caps, as well as both of
the folding thumb-screws.
Clip them onto the pull-outs.
Slide the foot end piece again back, so
that the longitudinal frame and the
clipped-on part lie levelled on each other.
The end panel is then firmly attached
with the two folding thumb-screws.
Insert the foot bracket extension as shown in the Fig.
32
4.4 Emergency lowering - back part (standard)
In case of power or drive system failure, you
can lower the elevated back part manually.
Must be carried out always by two people!
One person lifts the back part slightly (to
take pressure off) and holds it in this position. As next step, the second person removes the locking pin from the motor.
The motor is now separated from the back
part and can be swivelled downwards.
Once the second person has left the danger
zone, the first person can lower gently the
back part.
Hold the back part by all means until it is
fully lowered.
Hazard note from Bock
Emergency lowering may be only carried out in an emergency by people who safely master this
operation.
Absolutely disconnect the bed from the mains as long as the motors have not been mounted
again.
33
4.5 Emergency lowering - back part (optional)
In an emergency, the backrest can be lowered by means of a mechanical device on the
nursing care bed. To do this, move the red operating lever upwards in the direction of the
head end piece. The speed of lowering depends on the weight of the mattress and the
weight of the patient.
Operation:
Hold the mattress bracket (1) on the backrest with one hand and move the red operating lever (2) upwards with the other hand in the direction of the head end piece (see arrow direction). The backrest moves downwards. Hold your hand on the mattress bracket
(1) until you release the control lever (2). The backrest will then be held in this position.
Make sure that the control lever (2) points vertically downwards again after the operation.
Hazard note from Bock
With heavy patients, the backrest can lower very quickly. Always lower the backrest with one
hand on the mattress bracket to check the adjustment.
Hazard note from Bock
With the practico alu SCC nursing care bed model, the head part motor must be retracted completely once with the hand control after using the emergency release.
34
4.6 Change of location
If the bed must be moved to another location, please follow these safety instructions:
– Move the lying surface into the lowest position using the button (8) of the hand con-
trol.
– Before performing a movement, pull out the mains plug and attach with the suspen-
sion device at the wood side rail, to secure the power cable against falling and being
crushed through over-travel. Make sure that the cable is not dragged over the floor.
– Before inserted the mains plug again, inspect the power cable visually for mechanical
damage (dents and kinks, abrasions and bare wires).
– Place the power cable in a way that it will not be rolled over or strained during the
operation of the bed or could be damaged when inserting the mains plug again.
– Perform the reset movement, as described on page 18 (applies to the practico alu
plus).
4.7 Transport, storage and operating conditions
Transport and storage
Operation
Temperature
0°C to +40°C
10°C to +40°C
Relative humidity
20% to 80%
20% to 70%
Air pressure
800hPa to 1060hPA
4.8 Function notes
To keep the bed in one location, you must block the brakes on castors of the chassis. To
accomplish this, use your foot to move the locking lever on the chassis downwards.
If necessary, pull the integrated side rails up until they lock into place. When using mattresses of different thickness, the minimum height of 22 cm, measured from the top edge
of the side rail above the mattress without compression, may not be underrun (additionally, a third side rail attachment guard must be used, which is available as an accessory).
4.9 Disposal
Each of the components made of plastic, metal and wood are recyclable and can be disposed/recycled in compliance with the relevant legal provisions. Please note that electric
adjustable nursing care beds or nursing beds are considered commercially used electronic
scrap according to the WEEE-EC directive 2012/19/EC (b2b). All replaced electrical and
electronic components of the electrical adjustment system must be handled in accordance with the requirements of the Electrical and Electronic Equipment Act (ElektroG) and
disposed of properly.
35
4.10 Troubleshooting
This overview helps you to detect and correct malfunctions on your own and explains,
what kind of malfunctions require the consultation of suitably qualified service personnel.
Malfunction
Potential causes
Remedy
The drive units cannot be controlled via the hand control
Power cable is not connected
Insert power cable
Signals of the drives for the height adjustment are incorrectly processed
within the controller
Perform the reset movement, as
described on page 18 (only applies
to the practico alu plus).
No voltage in the socket
Check the socket or the fuse box
Plug connector of the hand control not
fixed firmly
Check the plug-in connection on
the motor
Hand control or drive unit defective
Notify the operator or Bock customer service
Disabling function or control box in the
hand control activated
Disabling function or control box in
the hand control deactivated
When buttons are pressed, the
drive units stop after a short
time
There is an obstruction in the adjustment range
Remove obstruction
The safe working load has been exceeded
Reduce the load
The drives stop after a longer
adjustment time
The adjustment time or safe working
load has been exceeded and the polyswitch in the transformer of the controller has responded to increased
heat
Allow the drive system to cool
down sufficiently. After 2 minutes
of adjustment under full load, a
break of 18 minutes must be observed
Opposite functions when operating the hand control
Check the pin assignments on the controller, see Chapter 4.2
Connect the cables according to
the colour marking, or inform the
operator or the customer service of
H. Bock
Individual drive units run in one
direction only
Hand control, drive unit or controller
defective
Notify the operator or Bock customer service
Drive units stop and bed remains in a tilted position
Constant operation of adjustment
functions
Move lying surface in bottom or
top position as this will straighten
it again horizontally. Activate disabling function in hand control
36
5 Accessories
Hermann Bock GmbH offers practical and mobility-promoting accessories to ensure that
each nursing care bed is tailored even more precisely to the individual needs of the person
in need of care. The installation is done in a quick and easy manner using the fixing points
on the bed that have already been prepared for this purpose. It goes without saying that
every element of our additional equipment offer meets the special quality and safety
standards of Bock. In addition to the standard accessories included in basic equipment,
the customer can also choose from our variety of accessories, which is available for each
bed model. These optional accessories vary depending on the bed model and are fitted to
its special functions and location of use. The range stretches from technical elements over
mattresses up to the occasional extra bed. A wide range of wooden finishes and a variety
of colours allow for the harmonious integration of each nursing care bed with any kind of
furniture.
5.1 Special dimensions
Special dimensions are an essential part of the production Hermann Bock GmbH. Optimal
lying comfort for persons in need of care who have a particular physique can only be
achieved by means of custom-built models. With its customized models, Hermann Bock
GmbH enables customers to have their nursing care bed tailored to fit the individually
physical requirements of the person in need of care. For body heights greater than 180
cm, Hermann Bock GmbH recommends the use of an integrated bed extension together
with a foot extension (refer to Accessories) that allows an extension of the lying surface
to a length of up to 220 cm. This enables even tall people to lie comfortably while maintaining the same level of functionality.
Hazard note from Bock
When using accessories on the bed or medically necessary devices as infusion stands in close
proximity to the bed, ensure particularly that there are no risks of crushing or shearing for the
person in need of care when adjusting the back and leg rests.
The representative of the service hotline of Hermann Bock are looking forward to informing you
about the best retrofitting
solution for your bed. Hotline no. 0180 5262500 (14 cents/min. for calls from landline phones,
42 cents/min. for calls from mobile phones).
A wide product range of auxiliary furniture complements the various bed models up to the complete interior design of your home. This combination creates a care and living comfort resulting
in perfect harmony.
37
6 Cleaning, maintenance and disinfection
The individual bed elements consist of high quality materials. The surfaces of the steel
tubes are covered with a durable polyester-powder coating. All surfaces of the wooden
parts are surface-sealed with an ecologically coating that is low on harmful substances. All
bed elements are easy to clean and cared for using wipe and spray disinfection means
according to the applicable cleaning requirements with respect to the various areas of
application. Observing the following care instructions will retain the usability and visual
appearance of your nursing care bed for a long time to come.
6.1 Cleaning and care
Steel tubes and vanished metal parts:
Please use a wet wipe and a regular mild household detergent for the cleaning and care
of these surfaces.
Wooden-, decorative-, and plastic elements:
All standard furniture cleaners and cleaning detergents can be used. Using a wet wipe
without detergent additives for the cleaning of the plastic elements should generally be
sufficient. For care of the plastic surfaces use a product that is specifically suitable for
plastics.
Drive:
To prevent the intrusion of moisture into the motor housing, we recommended using only
a damp rag to clean outside housing.
Spring systems ripolux neo:
Use a damp rag without adding any detergents, or, if deemed necessary, a detergent that
is exclusively suitable for plastics and clean the spring elements made of plastics. In case
of heavy contamination, remove the spring elements from the supporting elements and
the supporting elements from the frame of the lying surface. The dismounted plastics elements can be rinsed or spray-washed with hot water to get them clean. For the disinfection, the components should be sprayed with a detergent suitable for plastics. Most of the
moisture drips off the plastic surface by slightly shaking it, while the rest will dry on its
own within a very short time. Remount the elements after they have completely dried. If
required, you can also remove each of the individual lying surface elements completely
from the frame to clean them.
38
6.2 Disinfection
Disinfect the nursing care bed with a wipe disinfectant. Please adhere to the tested and
recognised procedures of the Robert Koch Institute (RKI). You can use commercially available cleaning and disinfecting agents approved by the RKI. In order to maintain the material resistance of the plastic elements such as the motor housing and decorative elements,
only mild and gentle agents should be used for disinfection. Concentrated acids, aromatic
and chlorinated hydrocarbons as well as detergents containing highly concentrated alcohols, ether, ester and ketone may damage the material and should therefore be avoided.
The list of disinfectants and disinfection methods tested and approved by the Robert Koch
Institute can be found on the Internet at www.rki.de.
6.3 Avoidance of hazards
In order to avoid dangers in connection with cleaning and disinfection, you must first observe the following regulations in connection with the electrical components of your nursing care bed. Non-observance of these guidelines may result in considerable damage of
the electrical lines and the drive.
1. Pull the mains plug and position it in such a way that contact with excessive
amounts of water or detergents can be excluded.
2. Check all plug-connections for correct position according to the instructions.
3. Check the cables and electrical component parts for damage. Should you detect
any damage, do not perform any cleaning operations but first have the defects
repaired by the manufacturer or an authorised/ licensed electrician.
4. Before starting the operation, check the mains plug for residual moisture and dry
or blow out the device, if necessary.
5. On any suspicion of the intrusion of moisture into the electrical components, dis-
connect the mains plug immediately and do not re-establish the connection. Put
the bed out of operation immediately, attach an appropriate visible label and
contact the manufacturer/supplier.
Hazard note from Bock
Use of abrasive cleansers and/or detergents containing grinding particles, cleaning pads or stainless steel cleaners for the cleaning is absolutely not recommended. Neither use organic solvents
such as halogenated/aromatic hydrocarbons and ketones nor detergents containing acid or alkaline.
Under no circumstances must the bed be sprayed with a water hose or high-pressure cleaner,
as liquid penetrates into the electrical components, and as a result malfunctions
and dangers could occur.
Clean and disinfect the bed before using it again. Also, at the same time, perform a visual inspection to check for any mechanical damages. You will find detailed information on this in the
inspection list.
39
7 Guidance and manufacturer's declaration
Guidance and manufacturer's declaration
– Electromagnetic emission
The medizinisches Bett is intended for use in the electromagnetic environment specified below.
The customer or the user of the medizinisches Bett should assure that it is used in such an environment.
Emission test
Complliance
Electromagnetic environment - guidance
RF emissions
CISPR 11 (partly)
Group 1
The medical used bed uses RF energy only for its internal function. Therefore, its RF emissions are very lowand are not likely to cause any interference in nearby electronic
equipment.
RF emissions
CISPR 11 (partly)
Class B
The medizinisches Bett is suitable for use in all establishments other than domestic and
those directly connected to the public-voltage power supply network that supplies buildings
used for domestic purpose.
Harmonic emissions
IEC 61000-3-2
Class A
Voltage fluctuations/flicker
emissions
IEC 61000-3-3
Complies
– Electromagnetic immunity
The medizinisches Bett is intended for use in the electromagnetic environment specified below.
The customer or the user of the medizinisches Bett should assure that it is used in such an environment.
Immunity test
IEC 60601 test level
Compliance level
Electromagnetic environment - guidance
Electrostatic discharge
(ESD) IEC 61000-4-2
± 6 kV contact
± 8 kV air
± 6 kV contact
± 8 kV air
Floors should be wood, concrete or ceramic
tile. If floors are covered with synthetic material, the relative humidity should be at least
30%.
Electrostatic transient/burst
IEC 61000-4-4
± 2 kV for power supply lines
± 1 kV for input/output lines
± 2 kV for power supply lines
± 1 kV for input/output lines
Mains power quality should be that of a typical commercial or hospital environment.
Surge
IEC 61000-4-5
± 1 kV differential mode
± 2 kV common mode
± 1 kV differential mode
± 2 kV common mode
Mains power quality should be that of a typical commercial or hospital environment.
Voltage dips, short interruptions and voltage variations on power supply input
lines
IEC 61000-4-11
< 5 % U
T
(>95 % dip in UT ) for 0.5 cycle
40 % UT
(60 % dip in UT ) for 5 cycles
70 % UT
(30 % dip in UT ) for 25 cycles
< 5 % UT
(>95 % dip in UT ) for 5 sec
< 5 % UT
(>95 % dip in UT ) for 0.5
cycle
40 % UT
(60 % dip in UT ) for 5 cycles
70 % UT
(30 % dip in UT ) for 25 cycles
< 5 % UT
(>95 % dip in UT ) for 5 sec
Mains power quality should be that of a typical commercial or hospital environment. If the
user of the medizinisches Bett requires continued operation during power mains interruptions, it is recommended that the medizinisches Bett be powered from an uninterruptible power supply or a battery.
Power frequency (50/60
Hz) magnetic field
IEC 61000-4-8
3 A/m
3 A/m
Power frequency magnetic fields should be at
levels characteristic of a typical location in a
typical commercial or hospital environment.
Note: UT is the a. c. mains voltage prior to application of the test level.
40
– Electromagnetic immunity
The medizinisches Bett is intended for use in the electromagnetic environment specified below.
The customer or the user of the medizinisches Bett should assure that it is used in such an environment.
Immunity test
IEC 60601 test level
Compliance level
Electromagnetic environment - guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 V 150kHz-80MHz
………………………………………
3 V/m 80MHz-2500MHz
3 V 150kHz-80MHz
……………………………………
3 V/m 80MHz-2500MHz
Portable and mobile RF communications
equipment should be used no closer to any
part of the EQUIPMENT medizinisches Bett,
including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.
Recommended separation distance:
150 kHz to 80 MHz
80 MHz to 800 MHz
800 MHz to 2,5 GHz
where p is the maximum output power rating
of the transmitter in watts (W) according to
the transmitter manufacturer and d is the
recommended separation distance in metres
(m).
Field strengths from fixed RF transmitters, as
determined by an electromagnetic site surveya, should be less than the compliance level in each frequency rangeb.
Interference may occur in the vicinity of
equipment marked with the following symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection form structures,
objects and people.
a
Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM
and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to
fixed RF transmitters, en electromagnetic site survey should be considered. If the measured field strength in the location in which the medizinisches Bett is used exceeds the applicable RF compliance level above, the medizinisches Bett should be observed to verify normal operation. If
abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the medizinisches Bett.
b
Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Recommended separation distances between portable and mobile RF communications equipment and the medizinisches Bett
The medizinisches Bett is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
The customer or the user of the medizinisches Bett can help prevent electromagnetic interference by maintaining a minimum distance between
portable and mobile RF communications equipment (transmitters) and the medizinisches Bett as recommended below, according to the maximum
output power of the communications equipment.
Rated maximum out-
put of transmitter W
Separation distance according to frequency of transmitter m
150 kHz to 80 MHz
80 MHz to 800 MHz
800 MHz to 2,5 GHz
0,01
0,12
0,12
0,23
0,1
0,37
0,37
0,74
1
1,17
1,17
2,33
10
3,69
3,69
7,38
100
11,67
11,67
23,33
For transmitters rated at a maximum output power not listed above the recommended separation distance d in metres (m) can be estimated using
the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according
to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures,
objects and people.
41
8 Regular inspections with service
Regular inspections facilitate the maintaining of the highest possible safety level, and are
considered to be an important safety precaution. Medical devices must be inspected regularly in terms of safety according to the stipulated regulations of the manufacturer and
the generally accepted rules of technology. The safety-related protection measures are
subject to different requirements and demands. This also applies to the potential wear
and tear in the daily use. To prevent such risks, constant and consistent compliance with
the deadlines for regular functional testing is absolutely necessary. The manufacturer has
no influence on the operator’s adherence with respect to the observance of these regula-
tions concerning electric beds. Bock facilitates the observance of the necessary precautionary measures to be taken by means of their time-saving services.
The execution of the inspection, assessment and documentation must be performed only
by or under supervision of professional persons such as electricians or electro-technically
instructed persons who have a thorough knowledge of the relevant provisions and are
able to recognize possible impacts and hazards.
In the event that no person on the part of the user is eligible for the regular inspections
or is commissioned, the Bock service offers you the assumption of the regular inspections
with simultaneous control and observance of the corresponding intervals for a fee.
The company Hermann Bock GmbH specifies an inspection interval which stipulates that
a safety-technical inspection is to be executed at least once annually, and with each reuse of the bed.
For support purposes, Hermann Bock GmbH will provide you with the inspection list in the
assembly and operation manual for carrying out all the necessary tests. Please copy the
checklist as a form for your inspection. The checklist serves as evidence report of the performed inspection and must be kept on file.
The inspection list can also be downloaded from the Internet: www.bock.net.
Attention: Unauthorised technical changes to the product voids all warranty claims.
42
Inspection list for Bock nursing care beds
Page 1 of 2
Issuing date: 09.10.2018
Model designation
Serial / Inventory-No.:
Year of manufacture:
Manufacturer:
Hermann Bock GmbH
Visual inspection:
No.
Description
Yes
No
Remark
General:
1
Type plate/sticker present on bed and legible?
☐
☐
2 Operating manual available?
☐
☐
3
Is the safe working load as per type plate (patient weight + mattress
weight + accessory weight) observed?
☐
☐
4
Are the accessories (e.g. lifting pole incl. handle and belt, stand-up aid, wall deflec-
tor rollers, etc.) in perfect condition? Are all accessories securely fixed and without
signs of wear? Is the handle on the lifting pole not older than 5 years (service life of
the handle according to the manufacturer's specifications)?
☐
☐
Electric components:
5
Power cables, connecting cables and plugs without cable breaks, pressure
and kinking points, abrasions, porous points and exposed wires?
☐
☐
6
Strain relief firmly fastened and efficient?
☐
☐
7
Correct and secure cable leading and cable connections?
☐
☐
8 Housings of motors and hand control without damages?
☐
☐
9
Motor lift pipes without damages?
☐
☐
Chassis (with scissors construction beds) / end panels (of actuator beds):
10
Chassis construction free of defects with no ruptured welding seams?
☐
☐
11
Are the castors and bumper rollers (if available) without damages?
☐
☐
12
Plastic end caps and mechanical connecting elements (screws, bolts, etc.)
complete and without damages?
☐
☐
Lying surface and end panels:
13
Sprung wooden slats, aluminium/steel bars, carrier plate and/or springs
without damages? (No cracks, no fractures, tight fit, enough pressure, etc.)
Only for nursing care bed dino: Distance between aluminium bars less than 6 cm?
☐
☐
14
Frame of lying surface and lifting parts free of defects with no ruptured
welding seams?
☐
☐
15
Plastic end caps and mechanical connecting elements (screws, bolts, etc.)
complete and without damages?
☐
☐
16
Tight fit and no cracks or breakages of head and foot end piece?
☐
☐ Side rail:
17
Are the side rails without cracks, breakages or damages?
☐
☐
18
Is the distance between side guard rails is not more than 12 cm?
Only nursing care bed dino: Distance between bars less than 6 cm? Dis-
tance between side rail and lying surface smaller than 6 cm?
☐
☐
19
Is the height of the side rail above the mattress at least 22 cm?
Only nursing care bed dino: Is the height of the side rail above the mattress
at least 60 cm?
☐
☐
20
Only with split side rails: Is the distance between the end part and side rails
and/or distance between divided side rails less than 6 cm or greater than
31.8 cm?
☐
☐
43
Inspection list for Bock nursing care beds
Page 2 of 2
Issuing date: 09.10.2018
Name / location:
Address / Postcode / City:
Station / Room:
Name of examiner / Date:
Functional testing:
No.
Description
Yes
No
Remark
Side rail:
21
Are the side rails running smoothly in the tracks and locking into place safely?
Only nursing care bed dino: Smooth running of the doors on the aluminium
profiles? Doors lock securely into the locking mechanism?
☐
☐
22
Are the side guard rails/parts sufficiently mounted and firmly seated?
☐
☐
23
Was the load stress test of the side rail without deformation?
☐
☐
Lying surface:
24
Back part, leg part adjustment and special functions properly and without
any obstacles?
☐
☐
25
Safe grid mechanism of lower leg rest (if available) in every step, even un-
der stress?
☐
☐
26
Only domiflex 2 nursing care bed: Is the clamping effect of the 6 eccentric clamps
sufficient? If this is not the case, the stop nut must be tightened slightly!
☐
☐
Chassis (with scissors construction beds) / end panels (of actuator beds):
27
Hub adjustment properly and without any obstacles?
☐
☐
28
Safe braking effect, blocking and free running of wheels?
☐
☐ Electric components:
29
Testing of hand control (keys and disabling function) all working properly
without any defects?
☐
☐
30
Battery/Bock battery/emergency lowering: Function properly and without
any defects?
☐
☐
General:
31
Function of the accessories flawless and safe? (e.g. lifting pole incl. grab
handle and belt, stand-up aids, wall deflector holder, etc.)
☐
☐
Electric measuring:
No.
Description
Yes
No
Remark
Insulation resistance - (must be only measured on old models before manufacture year of 2002.)
32
Insulation resistance – measured value larger than 7 MΩ?
☐
☐
Device leakage current - (This measurement does not have to be carried out for nursing care beds with a limoss drive set for
nursing care beds manufactured from 2018-05 onwards, or for nursing care beds with a Dewert drive set for nursing care beds
manufactured from 2015-07 onwards during the first 10 years of service life, if the visual and functional testing is passed, if this
is a nursing care bed with a limoss or Dewert switched-mode power supply (SMPS). With these nursing care beds, the mains
voltage is directly converted into a safety extra-low voltage of max. 35 V in the switch-mode power supply unit.)
33
Device leakage current - measured value smaller than 0.1mA?
☐
☐
Evaluation
No.
Description
Yes
No
Remark
34
All values/inspection within the permissible range passed?
☐
☐
In the event the inspection result did not pass:
☐Repair
☐Singling out
Date / Signature
Next inspection
Our SALES PARTNERS
Our business partners pursue the same strategy as we do: quality, innovation and above-average standards that
are internationally recognized. You can rely on our business partners as you can rely on us.
Please note that only our authorised personnel and our sales partners can provide training, supply of spare parts,
repairs, inspections and other service. Otherwise, all warranty claims will be void.
A listing of our current distributors can be found under www.bock.net/kontakt/vertriebspartner
© registered trademark
890.02261 current as of: 2018-11
Rev. 01
Technical changes reserved
Hermann Bock GmbH
Nickelstr. 12
D-33415 Verl, Germany
Tel.: +49 52 46 92 05 - 0
Fax: +49 52 46 92 05 - 25
Internet: www.bock.net
E-Mail: info@bock.net
Loading...
