Bobrick B-39619 Specifications

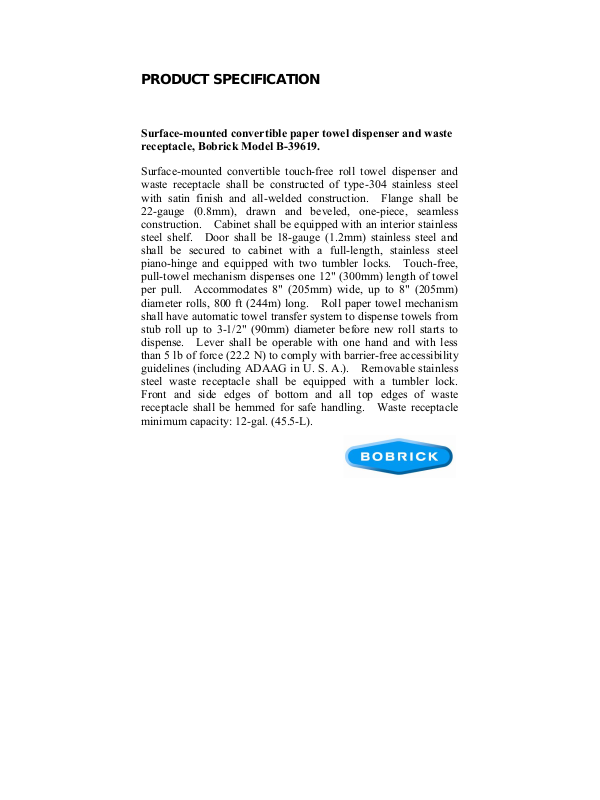

PRODUCT SPECIFICATION

Surface-mounted convertible paper towel dispenser and waste
receptacle, Bobrick Model B-39619.

Surface-mounted convertible touch-free roll towel dispenser and
waste receptacle shall be constructed of type-304 stainless steel
with satin finish and all-welded construction. Flange shall be
22-gauge (0.8mm), drawn and beveled, one-piece, seamless
construction. Cabinet shall be equipped with an interior stainless
steel shelf. Door shall be 18-gauge (1.2mm) stainless steel and
shall be secured to cabinet with a full-length, stainless steel
piano-hinge and equipped with two tumbler locks. Touch-free,
pull-towel mechanism dispenses one 12" (300mm) length of towel
per pull. Accommodates 8" (205mm) wide, up to 8" (205mm)
diameter rolls, 800 ft (244m) long. Roll paper towel mechanism
shall have automatic towel transfer system to dispense towels from
stub roll up to 3-1/2" (90mm) diameter before new roll starts to
dispense. Lever shall be operable with one hand and with less
than 5 lb of force (22.2 N) to comply with barrier-free accessibility
guidelines (including ADAAG in U. S. A.). Removable stainless
steel waste receptacle shall be equipped with a tumbler lock.
Front and side edges of bottom and all top edges of waste
receptacle shall be hemmed for safe handling. Waste receptacle
minimum capacity: 12-gal. (45.5-L).
