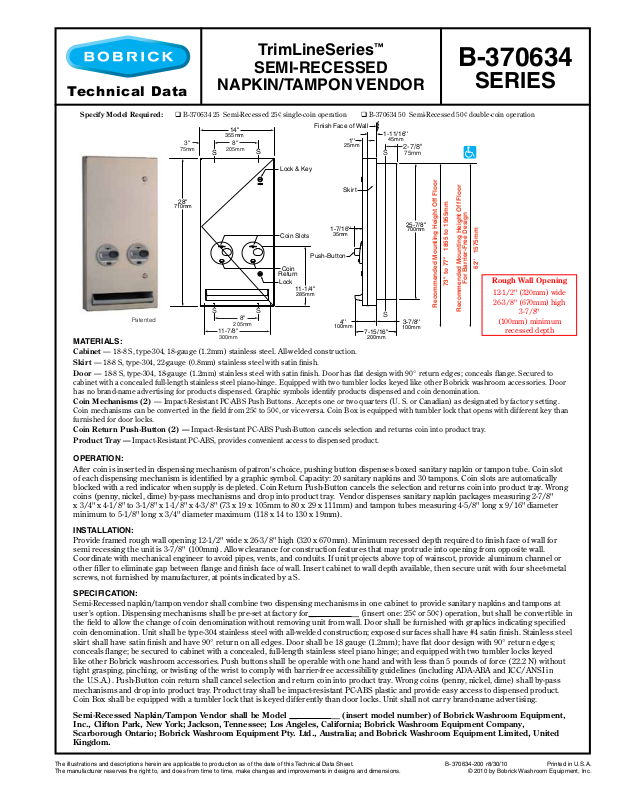

Technical Data
TrimLineSeries
™
SEMI-RECESSED
NAPKIN/TAMPON VENDOR
B-370634
SERIES
Specify Model Required:
Patented
MATERIALS:
Cabinet — 18-8 S, type-304, 18-gauge (1.2mm) stainless steel. All-welded construc tion.
Skirt — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin finish.
Door — 18-8 S, type-304, 18-gauge (1.2mm) stainless steel with satin finish. Door has flat design with 90° return edges; conceals flange. Secured to
cabinet with a concealed full-length stainless steel piano-hinge. Equipped with two tumbler locks keyed like other Bobrick washroom accessories. Door
has no brand-name advertising for products dispensed. Graphic symbols identify products dispensed and coin denomination.
Coin Mechanisms (2) — Impact-Resistant PC-ABS Push Buttons. Accepts one or two quarters (U. S. or Canadian) as designated by factor y setting.
Coin mechanisms can be converted in the field from 25¢ to 50¢, or vice-versa. Coin Box is equipped with tumbler lock that opens with dif ferent key than
furnished for door locks.
Coin Return Push-Button (2) — Impact-Resistant PC-ABS Push-Button cancels selection and returns coin into product tray.
Product Tray — Impact-Resistant PC-ABS, provides convenient access to dispensed product.
B-370634 25 Semi-Recessed 25¢ single-coin operation B-370634 50 Semi-Recessed 50¢ double-coin operation
Finish Face of Wall
Push-Button
11-1/4''
285mm
1-7/16''
35mm
4''
100mm
1''
25mm
Skirt
7-15/16''
200mm
1-11/16''
45mm
S
S
2-7/8''
75mm
25-7/8''
700mm
3-7/8''
100mm
62'' 1575mm
Rough Wall Opening
For Barrier-Free Design
73'' to 77'' 1855 to 1955mm
Recommended Mounting Height Off Floor
Recommended Mounting Height Off Floor
12-1/2" (320mm) wide
26-3/8" (670mm) high
3-7/8"
(100mm) minimum
recessed depth
75mm
28''
710mm
14''
355mm
S
S
11-7/8''
205mm
300mm
8''
8''
205mm
S
Lock & Key
Coin Slots
Coin
Return
Lock
S
3''
OPERATION:
After coin is inserted in dispensing mechanism of patron's choice, pushing button dispenses boxed sanitar y napkin or tampon tube. Coin slot
of each dispensing mechanism is identified by a graphic symbol. Capacity: 20 sanitary napkins and 30 tampons. Coin slots are automatically
blocked with a red indicator when supply is depleted. Coin Return Push-Button cancels the selection and returns coin into product tray. Wrong
coins (penny, nickel, dime) by-pass mechanisms and drop into product tray. Vendor dispenses sanitar y napkin packages measuring 2-7/8"
x 3/4" x 4-1/8" to 3-1/8" x 1-1/8" x 4-3/8" (73 x 19 x 105mm to 80 x 29 x 111mm) and tampon tubes measuring 4-5/8" long x 9/16" diameter
minimum to 5-1/8" long x 3/4" diameter maximum (118 x 14 to 130 x 19mm).
INSTALLATION:
Provide framed rough wall opening 12-1/2" wide x 26-3/8" high (320 x 670mm). Minimum recessed depth required to finish face of wall for
semi recessing the unit is 3-7/8" (100mm). Allow clearance for construction features that may protrude into opening from opposite wall.
Coordinate with mechanical engineer to avoid pipes, vents, and conduits. If unit projects above top of wainscot, provide aluminum channel or
other filler to eliminate gap between flange and finish face of wall. Insert cabinet to wall depth available, then secure unit with four sheet-metal
screws, not furnished by manufacturer, at points indicated by a S.
SPECIFICATION:
Semi-Recessed napkin/tampon vendor shall combine two dispensing mechanisms in one cabinet to provide sanitary napkins and tampons at
user’s option. Dispensing mechanisms shall be pre-set at factory for__ __ (insert one: 25¢ or 50¢) operation, but shall be convertible in
the field to allow the change of coin denomination without removing unit from wall. Door shall be furnished with graphics indicating specified
coin denomination. Unit shall be type-304 stainless steel with all-welded construction; exposed sur faces shall have #4 satin finish. Stainless steel
skirt shall have satin finish and have 90° retur n on all edges. Door shall be 18 gauge (1.2mm); have flat door design with 90° return edges;
conceals flange; be secured to cabinet with a concealed, full-length stainless steel piano hinge; and equipped with two tumbler locks keyed
like other Bobrick washroom accessories. Push buttons shall be operable with one hand and with less than 5 pounds of force (22.2 N) without
tight grasping, pinching, or twisting of the wrist to comply with barrier-free accessibility guidelines (including ADA-ABA and ICC/ANSI in
the U.S.A.). Push-Button coin return shall cancel selection and return coin into product tray. Wrong coins (penny, nickel, dime) shall by-pass
mechanisms and drop into product tray. Product tray shall be impact-resistant PC-ABS plastic and provide easy access to dispensed product.
Coin Box shall be equipped with a tumbler lock that is keyed differently than door locks. Unit shall not car ry brand-name advertising.
Semi-Recessed Napkin/Tampon Vendor shall be Model __ __ (insert model number) of Bobrick Washroom Equipment,
Inc., Clifton Park, New York; Jackson, Tennessee; Los Angeles, California; Bobrick Washroom Equipment Company,
Scarborough Ontario; Bobrick Washroom Equipment Pty. Ltd., Australia; and Bobrick Washroom Equipment Limited, United
Kingdom.
The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet. B-370634-200 r8/30/10 Printed in U.S.A.
The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions. © 2010 by Bobrick Washroom Equipment, Inc.
