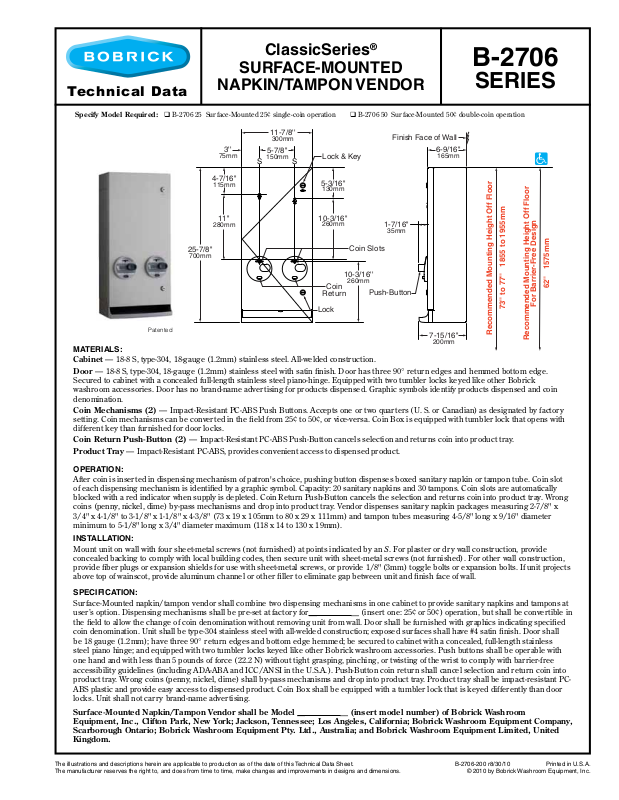

Technical Data
ClassicSeries
®
SuRFACE-MOuNTEd
NAPKIN/TAMPON VENdOR
B-2706
SERIES
Specify Model Required:
MATERIALS:
Cabinet — 18-8 S, type-304, 18-gauge (1.2mm) stainless steel. All-welded construc tion.
Door — 18-8 S, type-304, 18-gauge (1.2mm) stainless steel with satin finish. Door has three 90° return edges and hemmed bottom edge.
Secured to cabinet with a concealed full-length stainless steel piano-hinge. Equipped with two tumbler locks keyed like other Bobrick
washroom accessories. Door has no brand-name advertising for products dispensed. Graphic symbols identify products dispensed and coin
denomination.
Coin Mechanisms (2) — Impact-Resistant PC-ABS Push Buttons. Accepts one or two quarters (U. S. or Canadian) as designated by factor y
setting. Coin mechanisms can be converted in the field from 25¢ to 50¢, or vice-versa. Coin Box is equipped with tumbler lock that opens with
different key than fur nished for door locks.
Coin Return Push-Button (2) — Impact-Resistant PC-ABS Push-Button cancels selection and returns coin into product tray.
Product Tray — Impact-Resistant PC-ABS, provides convenient access to dispensed product.
B-2706 25 Surface-Mounted 25¢ single-coin operation B-2706 50 Surface-Mounted 50¢ double-coin operation
Patented
25-7/8''
700mm
3''
75mm
4-7/16''
115mm
11''
280mm
S
11-7/8''
300mm
5-7/8''
150mm
S
Lock & Key
5-3/16''
130mm
10-3/16''
260mm
Coin
Return
Lock
Coin Slots
10-3/16''
260mm
Finish Face of Wall
1-7/16''
35mm
Push-Button
6-9/16''
165mm
7-15/16''
200mm
62'' 1575mm
For Barrier-Free Design
73'' to 77'' 1855 to 1955mm
Recommended Mounting Height Off Floor
Recommended Mounting Height Off Floor
OPERATION:
After coin is inserted in dispensing mechanism of patron's choice, pushing button dispenses boxed sanitar y napkin or tampon tube. Coin slot
of each dispensing mechanism is identified by a graphic symbol. Capacity: 20 sanitary napkins and 30 tampons. Coin slots are automatically
blocked with a red indicator when supply is depleted. Coin Return Push-Button cancels the selection and returns coin into product tray. Wrong
coins (penny, nickel, dime) by-pass mechanisms and drop into product tray. Vendor dispenses sanitar y napkin packages measuring 2-7/8" x
3/4" x 4-1/8" to 3-1/8" x 1-1/8" x 4-3/8" (73 x 19 x 105mm to 80 x 29 x 111mm) and tampon tubes measuring 4-5/8" long x 9/16" diameter
minimum to 5-1/8" long x 3/4" diameter maximum (118 x 14 to 130 x 19mm).
INSTALLATION:
Mount unit on wall with four sheet-metal screws (not furnished) at points indicated by an S. For plaster or dr y wall construction, provide
concealed backing to comply with local building codes, then secure unit with sheet-metal screws (not furnished). For other wall constr uction,
provide fiber plugs or expansion shields for use with sheet-metal screws, or provide 1/8" (3mm) toggle bolts or expansion bolts. If unit projects
above top of wainscot, provide aluminum channel or other filler to eliminate gap between unit and finish face of wall.
SPECIFICATION:
Surface-Mounted napkin/tampon vendor shall combine two dispensing mechanisms in one cabinet to provide sanitar y napkins and tampons at
user’s option. Dispensing mechanisms shall be pre-set at factory for__ __ (insert one: 25¢ or 50¢) operation, but shall be convertible in
the field to allow the change of coin denomination without removing unit from wall. Door shall be furnished with graphics indicating specified
coin denomination. Unit shall be type-304 stainless steel with all-welded construction; exposed sur faces shall have #4 satin finish. Door shall
be 18 gauge (1.2mm); have three 90° return edges and bottom edge hemmed; be secured to cabinet with a concealed, full-length stainless
steel piano hinge; and equipped with two tumbler locks keyed like other Bobrick washroom accessories. Push buttons shall be operable with
one hand and with less than 5 pounds of force (22.2 N) without tight grasping, pinching, or twisting of the wrist to comply with barrier-free
accessibility guidelines (including ADA-ABA and ICC/ANSI in the U.S.A.). Push-Button coin return shall cancel selection and return coin into
product tray. Wrong coins (penny, nickel, dime) shall by-pass mechanisms and drop into product tray. Product tray shall be impact-resistant PCABS plastic and provide easy access to dispensed product. Coin Box shall be equipped with a tumbler lock that is keyed differently than door
locks. Unit shall not carr y brand-name advertising.
Surface-Mounted Napkin/Tampon Vendor shall be Model __ __ (insert model number) of Bobrick Washroom
Equipment, Inc., Clifton Park, New York; Jackson, Tennessee; Los Angeles, California; Bobrick Washroom Equipment Company,
Scarborough Ontario; Bobrick Washroom Equipment Pty. Ltd., Australia; and Bobrick Washroom Equipment Limited, United
Kingdom.
The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet. B-2706-200 r8/30/10 Printed in U.S.A.
The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions. © 2010 by Bobrick Washroom Equipment, Inc.
