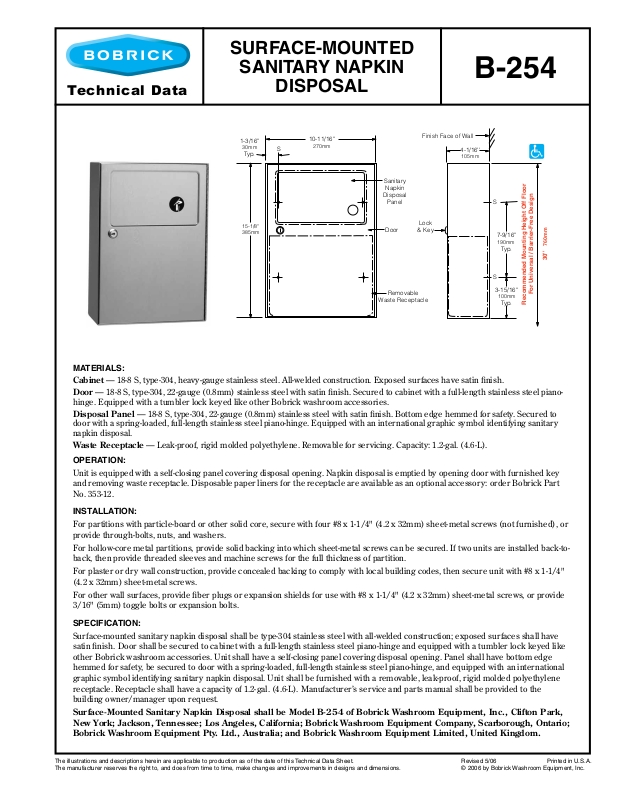

Bobrick B-254 User Manual

surface-mOunted
Technical Data
sanitary napkin
dispOsal
1-3/16''
30mm
Typ.
15-1/8'' 385mm
10-11/16''
270mm
Sanitary
Napkin
Disposal
Panel
Door
Removable
Waste Receptacle
Finish Face of Wall
Lock
& Key
B-254
4-1/16''
105mm
7-9/16''
190mm
Typ.
3-15/16''
100mm
Typ.
760mm
30''
For Universal / Barrier-Free Design
Recommended Mounting Height Off Floor
materials:
Cabinet — 18-8 S, type-304, heavy-gauge stainless steel. All-welded construction. Exposed sur faces have satin finish. Door — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Secured to cabinet with a full-length stainless steel piano-
hinge. Equipped with a tumbler lock keyed like other Bobrick washroom accessories. Disposal Panel — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Bottom edge hemmed for safety. Secured to
door with a spring-loaded, full-length stainless steel piano-hinge. Equipped with an international graphic symbol identifying sanitar y napkin disposal.
Waste Receptacle — Leak-proof, rigid molded polyethylene. Removable for servicing. Capacity: 1.2-gal. (4.6-L).
OperatiOn:
Unit is equipped with a self-closing panel covering disposal opening. Napkin disposal is emptied by opening door with furnished key and removing waste receptacle. Disposable paper liners for the receptacle are available as an optional accessor y: order Bobrick Part No. 353-12.
installatiOn:
For partitions with par ticle-board or other solid core, secure with four #8 x 1-1/4" (4.2 x 32mm) sheet-metal screws (not furnished), or provide through-bolts, nuts, and washers.
For hollow-core metal partitions, provide solid backing into which sheet-metal screws can be secured. If two units are installed back-to­back, then provide threaded sleeves and machine screws for the full thickness of partition.
For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with #8 x 1-1/4" (4.2 x 32mm) sheet-metal screws.
For other wall surfaces, provide fiber plugs or expansion shields for use with #8 x 1-1/4" (4.2 x 32mm) sheet-metal screws, or provide 3/16" (5mm) toggle bolts or expansion bolts.
specificatiOn:
Surface-mounted sanitar y napkin disposal shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Door shall be secured to cabinet with a full-length stainless steel piano-hinge and equipped with a tumbler lock keyed like other Bobrick washroom accessories. Unit shall have a self-closing panel covering disposal opening. Panel shall have bottom edge hemmed for safety, be secured to door with a spring-loaded, full-length stainless steel piano-hinge, and equipped with an international graphic symbol identifying sanitary napkin disposal. Unit shall be furnished with a removable, leak-proof, rigid molded polyethylene receptacle. Receptacle shall have a capacity of 1.2-gal. (4.6-L). Manufacturer’s service and parts manual shall be provided to the building owner/manager upon request.
Surface-Mounted Sanitar y Napkin Disposal shall be Model B-254 of Bobrick Washroom Equipment, Inc., Clifton Park, New York; Jackson, Tennessee; Los Angeles, California; Bobrick Washroom Equipment Company, Scarborough, Ontario; Bobrick Washroom Equipment Pty. Ltd., Australia; and Bobrick Washroom Equipment Limited, United Kingdom.
The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet. Revised 5/06 Printed in U.S.A. The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions. © 2006 by Bobrick Washroom Equipment, Inc.
