S

S

3-1/2''

90mm

8-3/4''

220mm

15-3/4''

400mm

4-1/2''

115mm

11''

280mm

Finish Face of Wall

2''

50mm

Recommended Mounting Height Off Floor

45'' to 59'' 1145 to

1500mm

Recommended Mounting Height Off Floor

For Barrier-Free Design

30'' to 48''

760 to 1220mm

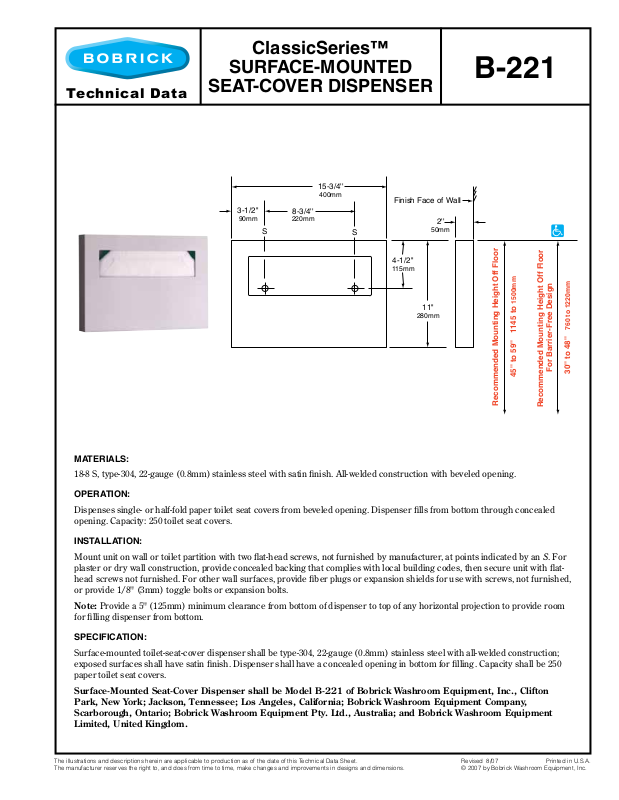

ClassicSeries™

Technical Data

SuRFACE-MOuNTED

SEAT-COVER DISPENSER

B-221

MATERIALS:

18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin finish. All-welded construction with beveled opening.

OPERATION:

Dispenses single- or half-fold paper toilet seat covers from beveled opening. Dispenser fills from bottom through concealed
opening. Capacity: 250 toilet seat covers.

INSTALLATION:

Mount unit on wall or toilet partition with two flat-head screws, not furnished by manufacturer, at points indicated by an S. For
plaster or dry wall construction, provide concealed backing that complies with local building codes, then secure unit with flat­head screws not furnished. For other wall sur faces, provide fiber plugs or expansion shields for use with screws, not furnished,
or provide 1/8'' (3mm) toggle bolts or expansion bolts.

Note: Provide a 5'' (125mm) minimum clearance from bottom of dispenser to top of any horizontal projection to provide room
for filling dispenser from bottom.

SPECIFICATION:

Surface-mounted toilet-seat-cover dispenser shall be type-304, 22-gauge (0.8mm) stainless steel with all-welded constr uction;
exposed surfaces shall have satin finish. Dispenser shall have a concealed opening in bottom for filling. Capacity shall be 250
paper toilet seat covers.

Surface-Mounted Seat-Cover Dispenser shall be Model B-221 of Bobrick Washroom Equipment, Inc., Clifton
Park, New York; Jackson, Tennessee; Los Angeles, California; Bobrick Washroom Equipment Company,
Scarborough, Ontario; Bobrick Washroom Equipment Pty. Ltd., Australia; and Bobrick Washroom Equipment
Limited, United Kingdom.

The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet. Revised 8/07 Printed in U.S.A.
The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions. © 2007 by Bobrick Washroom Equipment, Inc.
